EN 15609:2021

(Main)

LPG equipment and accessories - LPG propulsion systems for boats, yachts and other watercraft - Installation requirements

LPG equipment and accessories - LPG propulsion systems for boats, yachts and other watercraft - Installation requirements

This document specifies the installation requirements for LPG propulsion systems on watercraft with hull lengths less than or equal to 24 m, as defined in EN ISO 8666 [11]. This document does not cover appliances with directly attached gas cylinders, such as portable self-contained camping stoves and portable gas lamps.

Flüssiggas-Geräte und Ausrüstungsteile - Flüssiggas(LPG)-Antriebsanlagen für Boote, Jachten und andere Wasserfahrzeuge - Einbauvorschriften

Dieses Dokument legt die Anforderungen an den Einbau von LPG Antriebssystemen von Wasserfahrzeugen mit Rumpflängen bis einschließlich 24 m fest, wie in EN ISO 8666 [11] festgelegt. Dieses Dokument gilt nicht für direkt an Gasflaschen angebrachte Verbrauchseinrichtungen, wie tragbare eigenständige Campingkocher und tragbare Gaslampen.

Équipements pour gaz de pétrole liquéfié et leurs accessoires - Systèmes de propulsion GPL des bateaux, yachts et autres navires - Exigences d'installation

Le présent document spécifie les exigences relatives aux systèmes de propulsion GPL des bateaux dont la longueur de coque est inférieure ou égale à 24 m, tel que défini dans l'EN ISO 8666 [11]. Le présent document ne couvre pas les appareils fixés directement sur les bouteilles à gaz, tels que les réchauds de camping portatifs et les lampes à gaz portatives.

Oprema in pribor za utekočinjeni naftni plin (UNP) - Pogonski sistemi na UNP za čolne, jahte in druga vodna plovila - Zahteve za vgradnjo

Ta evropski standard določa zahteve za pogonske sisteme na utekočinjeni naftni plin (UNP) na plovilih, katerih dolžina trupa je manjša ali enaka 24 m, vključno s plovili, opredeljenimi v Direktivi 94/25/ES.
Ta evropski standard ne vključuje aparatov z neposredno pritrjenimi plinskimi jeklenkami, kot so prenosne samostojne peči za taborjenje in prenosne plinske svetilke.

General Information

Status
Published
Publication Date
14-Dec-2021
Withdrawal Date
29-Jun-2022
ICS
47.020.20 - Marine engines and propulsion systems
47.080 - Small craft
Technical Committee
CEN/TC 286 - Liquefied petroleum gas equipment and accessories
Drafting Committee
CEN/TC 286/WG 9 - LPG propulsion systems for recreational craft
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
15-Dec-2021
Due Date
06-Nov-2021
Completion Date
15-Dec-2021
Directive
2013/53/EU - Directive 2013/53/EU of the European Parliament and of the Council of 20 November 2013 on recreational craft and personal watercraft and repealing Directive 94/25/EC
Mandate
M/075 - Revised mandate to CEN for standardization in the field of recreational craft
M/542 - [C(2015)8736] Standardisation Request to the European Committee for Standardisation and the European Committee for Electro-technical Standardisation as regards recreational craft and personal watercraft in support of Directive 2013/53/EU of the European Parliament and of the Council of 20 November 2013 on recreational craft and personal watercraft and repealing Directive 94/25/EC.
Ref Project
SIST EN 15609:2022 - LPG equipment and accessories - LPG propulsion systems for boats, yachts and other watercraft - Installation requirements

Relations

Replaces
EN 15609:2012 - LPG equipment and accessories - LPG propulsion systems for boats, yachts and other craft
Effective Date
22-Dec-2021

Buy Standard

EN 15609:2022EN 15609:2022
PreviousNext
Standard
EN 15609:2022
English language
45 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

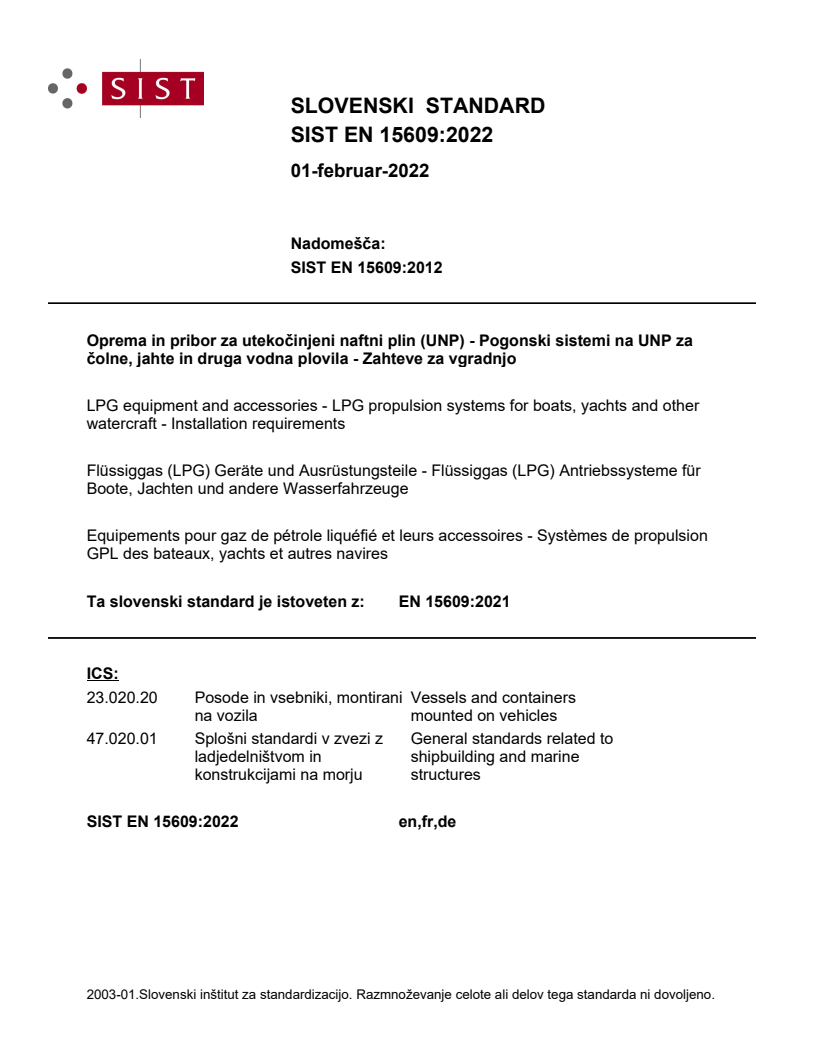

SLOVENSKI STANDARD
01-februar-2022
Nadomešča:
SIST EN 15609:2012
Oprema in pribor za utekočinjeni naftni plin (UNP) - Pogonski sistemi na UNP za
čolne, jahte in druga vodna plovila - Zahteve za vgradnjo
LPG equipment and accessories - LPG propulsion systems for boats, yachts and other
watercraft - Installation requirements
Flüssiggas (LPG) Geräte und Ausrüstungsteile - Flüssiggas (LPG) Antriebssysteme für
Boote, Jachten und andere Wasserfahrzeuge
Equipements pour gaz de pétrole liquéfié et leurs accessoires - Systèmes de propulsion
GPL des bateaux, yachts et autres navires
Ta slovenski standard je istoveten z: EN 15609:2021
ICS:
23.020.20 Posode in vsebniki, montirani Vessels and containers
na vozila mounted on vehicles
47.020.01 Splošni standardi v zvezi z General standards related to
ladjedelništvom in shipbuilding and marine
konstrukcijami na morju structures
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

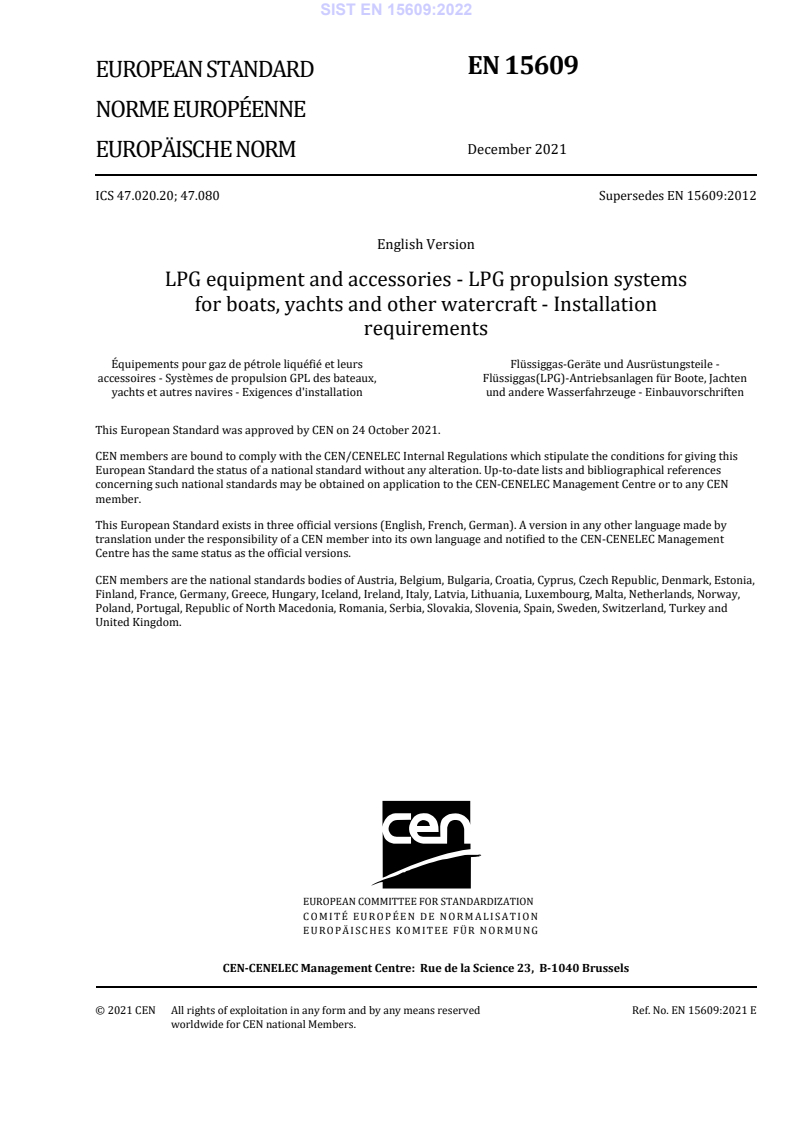

EN 15609
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2021
EUROPÄISCHE NORM
ICS 47.020.20; 47.080 Supersedes EN 15609:2012
English Version
LPG equipment and accessories - LPG propulsion systems
for boats, yachts and other watercraft - Installation
requirements
Équipements pour gaz de pétrole liquéfié et leurs Flüssiggas-Geräte und Ausrüstungsteile -
accessoires - Systèmes de propulsion GPL des bateaux, Flüssiggas(LPG)-Antriebsanlagen für Boote, Jachten
yachts et autres navires - Exigences d'installation und andere Wasserfahrzeuge - Einbauvorschriften
This European Standard was approved by CEN on 24 October 2021.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 15609:2021 E
worldwide for CEN national Members.

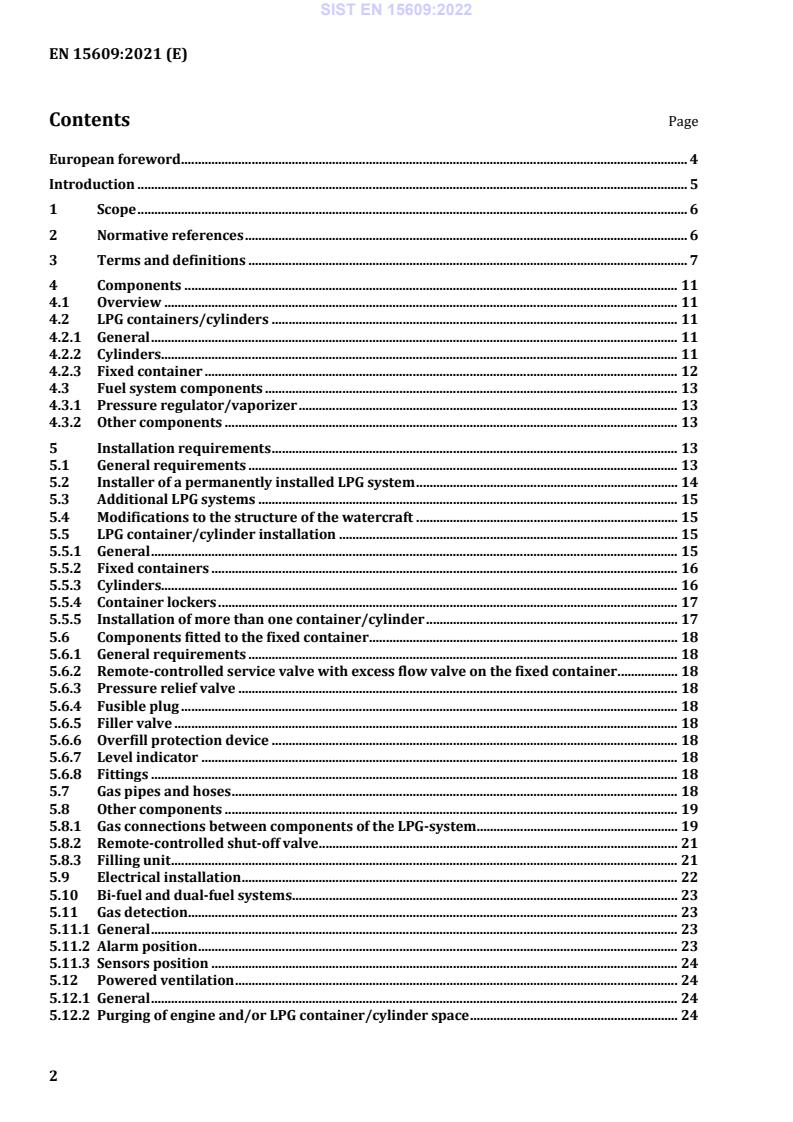

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Components . 11
4.1 Overview . 11
4.2 LPG containers/cylinders . 11
4.2.1 General . 11
4.2.2 Cylinders. 11
4.2.3 Fixed container . 12
4.3 Fuel system components . 13
4.3.1 Pressure regulator/vaporizer . 13
4.3.2 Other components . 13
5 Installation requirements . 13
5.1 General requirements . 13
5.2 Installer of a permanently installed LPG system . 14
5.3 Additional LPG systems . 15
5.4 Modifications to the structure of the watercraft . 15
5.5 LPG container/cylinder installation . 15
5.5.1 General . 15
5.5.2 Fixed containers . 16
5.5.3 Cylinders. 16
5.5.4 Container lockers . 17
5.5.5 Installation of more than one container/cylinder . 17
5.6 Components fitted to the fixed container . 18
5.6.1 General requirements . 18
5.6.2 Remote-controlled service valve with excess flow valve on the fixed container . 18
5.6.3 Pressure relief valve . 18
5.6.4 Fusible plug . 18
5.6.5 Filler valve . 18
5.6.6 Overfill protection device . 18
5.6.7 Level indicator . 18
5.6.8 Fittings . 18
5.7 Gas pipes and hoses . 18
5.8 Other components . 19
5.8.1 Gas connections between components of the LPG-system . 19
5.8.2 Remote-controlled shut-off valve . 21
5.8.3 Filling unit . 21
5.9 Electrical installation . 22
5.10 Bi-fuel and dual-fuel systems . 23
5.11 Gas detection. 23
5.11.1 General . 23
5.11.2 Alarm position . 23
5.11.3 Sensors position . 24
5.12 Powered ventilation . 24
5.12.1 General . 24
5.12.2 Purging of engine and/or LPG container/cylinder space . 24
6 Fire-extinguishing equipment . 24
7 Owner's manual . 24
8 Commissioning . 24
8.1 Tightness test – fixed containers . 24
8.2 Initial filling of the container and the system with LPG. 25
8.3 LPG system test . 25
8.4 Water trial . 25
Annex A (normative) Fixing requirements for containers/cylinders . 26
Annex B (normative) Cylinder securing requirements. 28
Annex C (normative) Instructions to be included in the owner's manual . 31
Annex D (normative) Additional test requirements for vaporizers . 35
Annex E (informative) Installation of more than one container . 37
Annex F (informative) Example of installation certificate . 39
Annex G (informative) Types of LPG Propulsion systems . 40
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2013/53/EU aimed to be covered . 43
Bibliography . 45

European foreword
This document (EN 15609:2021) has been prepared by Technical Committee CEN/TC 286 “Liquefied
petroleum gas equipment and accessories”, the secretariat of which is held by NSAI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by June 2022, and conflicting national standards shall be
withdrawn at the latest by June 2022.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 15609:2012.
This document has been prepared under a Standardization Request given to CEN by the European
Commission and the European Free Trade Association and supports essential requirements of
EU Directive(s) / Regulation(s).
For relationship with EU Directive(s) / Regulation(s), see informative Annex ZA, which is an integral part
of this document.
The main changes with respect to the previous edition include:
— Addition of fusible plug requirements;
— Addition of requirements for Outboard engines;
— Addition of LPG generator sets;
— Addition of Informative Annex G - Types of LPG propulsion systems;
— Addition of requirements for Fixed container - liquid phas
...
