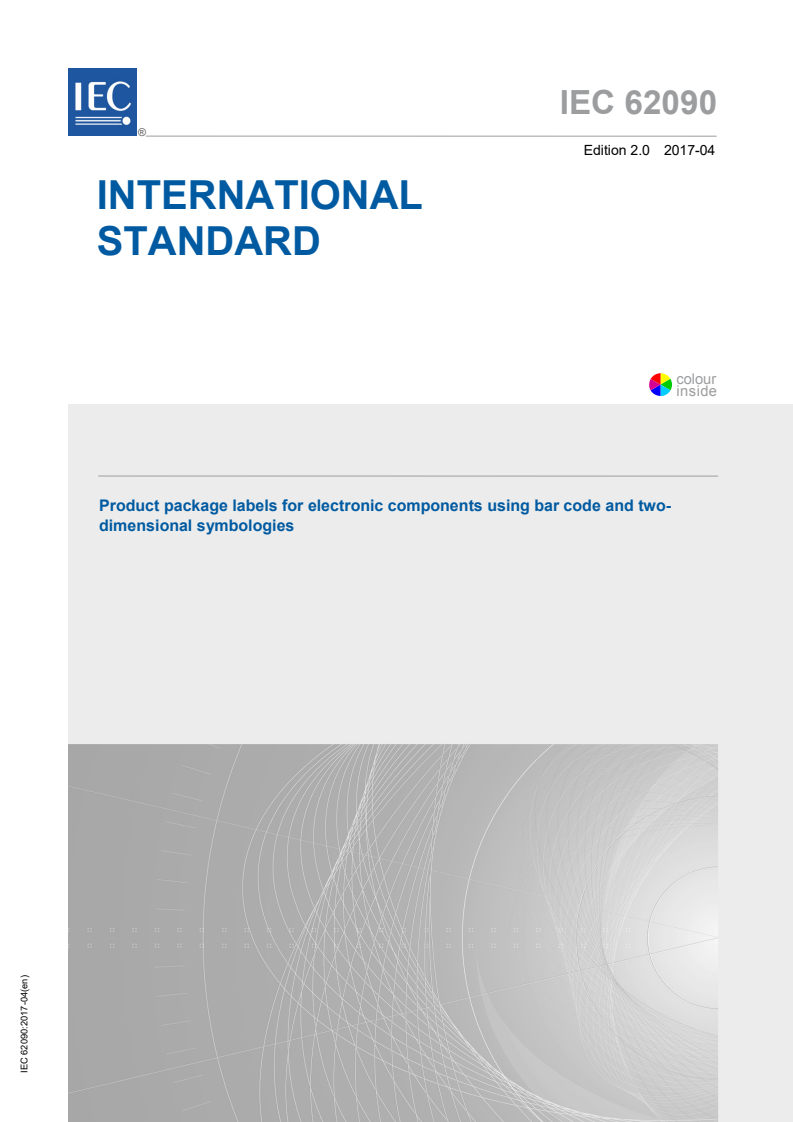

IEC 62090:2017

IEC 62090 ®
Edition 2.0 2017-04
INTERNATIONAL
STANDARD
colour
inside
Product package labels for electronic components using bar code and two-
dimensional symbologies
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.

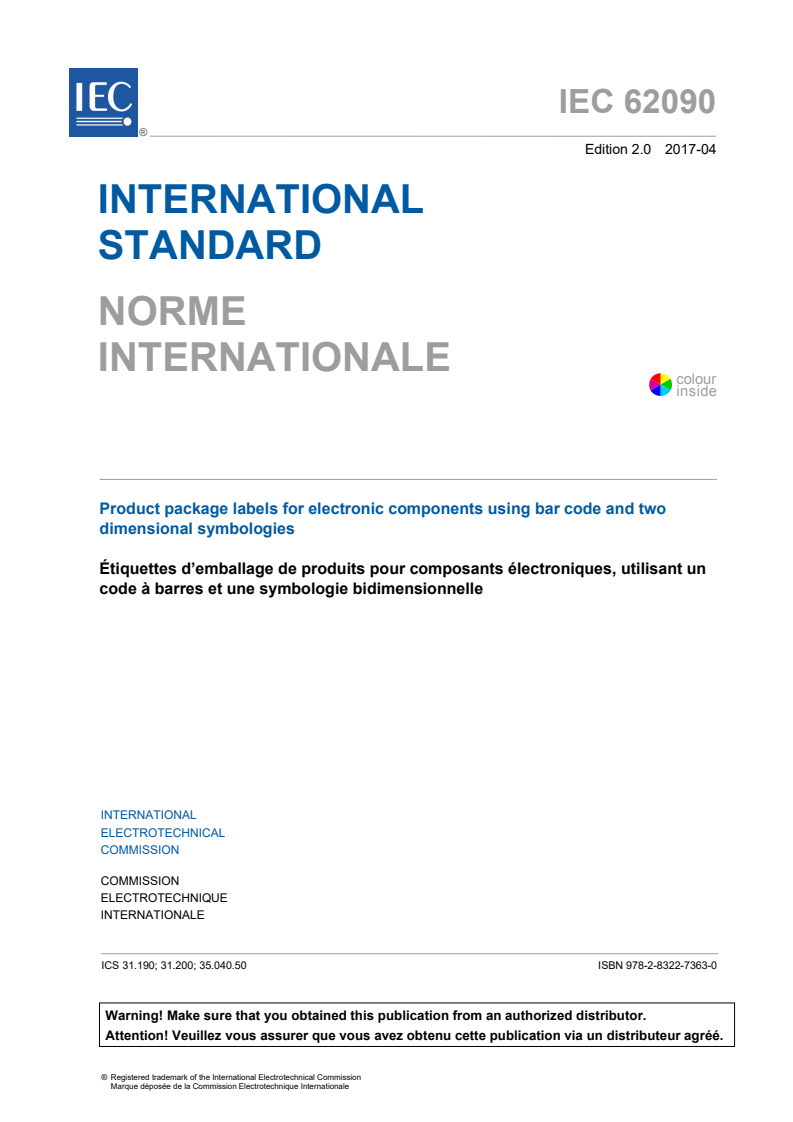

IEC 62090 ®
Edition 2.0 2017-04
INTERNATIONAL
STANDARD
colour
inside
Product package labels for electronic components using bar code and two-

dimensional symbologies
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 31.190; 31.200; 35.040.50 ISBN 978-2-8322-4160-8

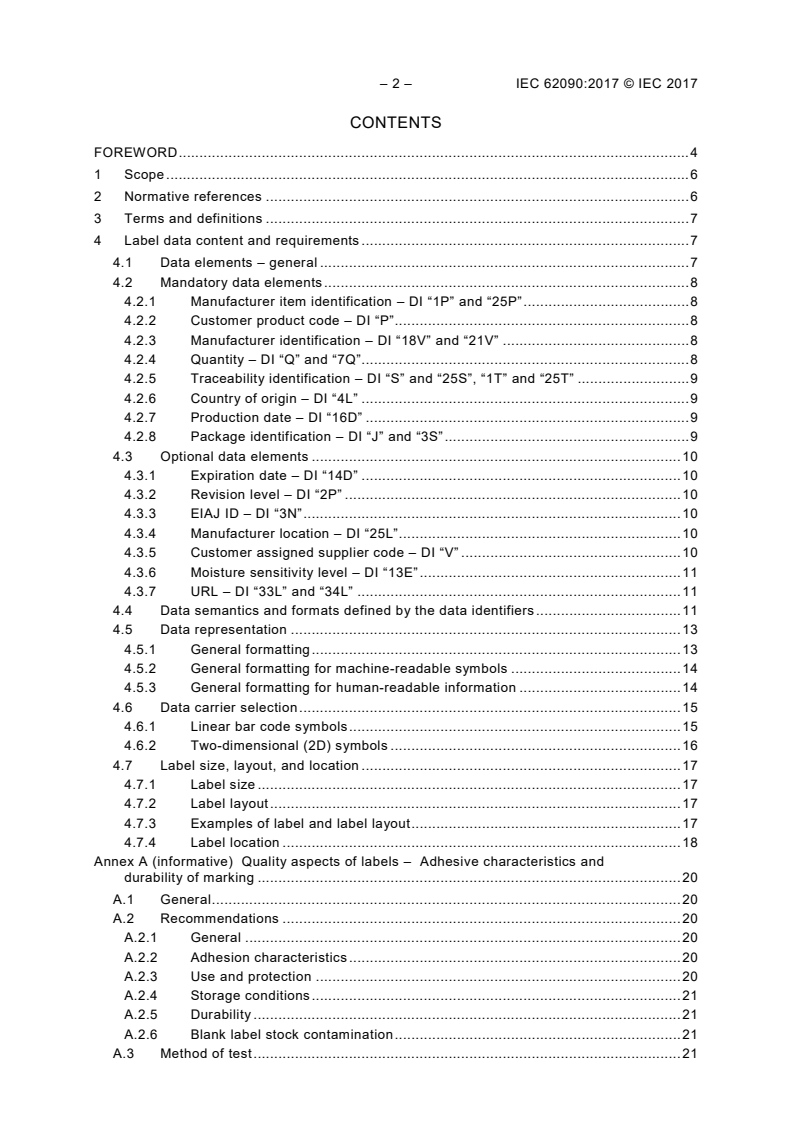

– 2 – IEC 62090:2017 © IEC 2017
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Label data content and requirements . 7
4.1 Data elements – general . 7
4.2 Mandatory data elements . 8
4.2.1 Manufacturer item identification – DI “1P” and “25P” . 8
4.2.2 Customer product code – DI “P” . 8
4.2.3 Manufacturer identification – DI “18V” and “21V” . 8
4.2.4 Quantity – DI “Q” and “7Q” . 8
4.2.5 Traceability identification – DI “S” and “25S”, “1T” and “25T” . 9
4.2.6 Country of origin – DI “4L” . 9
4.2.7 Production date – DI “16D” . 9
4.2.8 Package identification – DI “J” and “3S” . 9
4.3 Optional data elements . 10
4.3.1 Expiration date – DI “14D” . 10
4.3.2 Revision level – DI “2P” . 10
4.3.3 EIAJ ID – DI “3N” . 10
4.3.4 Manufacturer location – DI “25L” . 10
4.3.5 Customer assigned supplier code – DI “V” . 10
4.3.6 Moisture sensitivity level – DI “13E” . 11
4.3.7 URL – DI “33L” and “34L” . 11
4.4 Data semantics and formats defined by the data identifiers . 11
4.5 Data representation . 13
4.5.1 General formatting . 13
4.5.2 General formatting for machine-readable symbols . 14
4.5.3 General formatting for human-readable information . 14
4.6 Data carrier selection . 15
4.6.1 Linear bar code symbols . 15
4.6.2 Two-dimensional (2D) symbols . 16
4.7 Label size, layout, and location . 17
4.7.1 Label size . 17
4.7.2 Label layout . 17
4.7.3 Examples of label and label layout . 17
4.7.4 Label location . 18
Annex A (informative) Quality aspects of labels – Adhesive characteristics and
durability of marking . 20
A.1 General . 20
A.2 Recommendations . 20
A.2.1 General . 20
A.2.2 Adhesion characteristics . 20
A.2.3 Use and protection . 20
A.2.4 Storage conditions . 21
A.2.5 Durability . 21
A.2.6 Blank label stock contamination . 21
A.3 Method of test . 21

A.3.1 Adhesive strength . 21
A.3.2 Blank label stock contamination . 21
A.3.3 Recyclability . 22
Annex B (informative) ISO/IEC 15434 Data Transfer Syntax . 23
Annex C (informative) URL . 24
C.1 General . 24
C.2 Principle of using the URL DI “33L” . 24
C.3 Principle of using the P2P URL DI “34L” . 25
C.4 Implementation of product to internet communication by help of P2P data
identifier “34L” . 25
Annex D (informative) Examples of data element short titles . 27
Annex E (informative) Package levels for component package labels . 28
E.1 Inner and outer product packages . 28
E.2 "Unit load packages" / "handling units" / "overpacks" . 29
E.3 "Shipping units" / "transport packages" . 29
Bibliography . 30

Figure 1 – Label with a linear bar code, Data Matrix symbol and human-readable
information . 17
Figure 2 – Label with minimum content, Data Matrix and human-readable information . 17
Figure 3 – Label with minimum content, QR Code and human-readable information . 18
Figure 4 – Typical label locations . 19
Figure A.1 – Adhesion tester . 22
Figure B.1 – Example of encoding data elements in a 2D symbol . 23
Figure C.1 – Smartphone with P2P App for access to P2P information. 26
Figure E.1 – Examples for intimate/inner packages . 28
Figure E.2 – Example for outer package with more than one inner package. . 28
Figure E.3 – Example of "unit loads" or "handling units" or "overpacks" . 29
Figure E 4 – Examples of transport packages . 29

Table 1 – Data identifiers . 11
Table 2 – Mandatory data elements and their representations . 13
Table 3 – Valid combinations of representation of optional data elements . 14
Table 4 – Product package label symbol requirements − Code 39 . 15
Table 5 – Product package label symbol requirements − Code 128 . 16
Table C.1 – How to use the URL DI “33L”. . 24
Table C.2 – How to use the P2P URL DI “34L” . 25
Table C.3 –ASC DIs used for the P2P code example: . 26
Table D.1 – Examples of data element short titles. 27

– 4 – IEC 62090:2017 © IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PRODUCT PACKAGE LABELS FOR ELECTRONIC COMPONENTS
USING BAR CODE AND TWO-DIMENSIONAL SYMBOLOGIES

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62090 has been prepared by IEC technical committee 91:
Electronics assembly technology.
This second edition cancels and replaces the first edition published in 2002. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) Applicable data elements have been added. Data identifiers of those data elements are
“10D”, “14D”, ”2P”, “25L”, “18V”, “V”, “J”, “3S”, “13E”, “33L” and “34L”.
b) The following new informative annexes have been added:
– Annex C, URL;
– Annex D, Examples of data element short titles;
– Annex E, Package levels for component package labels.

The text of this International Standard is based on the following documents:
CDV Report on voting
91/1394/CDV 91/1430/RVC
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC 62090:2017 © IEC 2017
PRODUCT PACKAGE LABELS FOR ELECTRONIC COMPONENTS
USING BAR CODE AND TWO-DIMENSIONAL SYMBOLOGIES

1 Scope
This document applies to labels on the packaging of electronic components for automatic
handling in B2B processes. These labels use linear bar code and two-dimensional (2D)
symbols. Labels for direct product marking and shipping labels are excluded. Labels required
on the packaging of electronic components that are intended for the retail channel of
distribution in B2C processes are also excluded from this document.
Bar code and 2D symbol markings are used, in general, for automatic identification and
automatic handling of components in electronics assembly lines. Intended applications include
systems that automate the control of component packages during production, inventory and
distribution.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
ISO/IEC 15417, Information technology – Automatic identification and data capture
techniques – Code 128 bar code symbology specification
ISO/IEC 15418, Information technology – Automatic identification and data capture
techniques – GS1 Application Identifiers and ASC MH 10 Data Identifiers and maintenance
ISO/IEC 15434, Information technology – Automatic identification and data capture
techniques – Syntax for high-capacity ADC media
ISO/IEC 15459 (all parts), Information technology – Automatic identification and data capture
techniques – Unique identification
ISO/IEC 16022, Information technology – Automatic identification and data capture
techniques – Data Matrix bar code symbology specification
ISO/IEC 16388, Information technology – Automatic identification and data capture
techniques – Code 39 bar code symbology specification
ISO/IEC 18004, Information technology – Automatic identification and data capture
techniques – QR Code bar code symbology specification
ISO/IEC 19762, Information technology – Automatic Identification and data capture (AIDC)
techniques – Harmonized vocabulary
ISO 8601, Data elements and interchange formats – Information interchange – Represen-
tation of dates and times
ANSI MH10.8.2, Data Identifier and Application Identifier Standard

3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 19762 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
component
electronic or electrical parts (e.g. bare printed circuit boards, integrated circuits, capacitors,
diodes, electronic modules, switches, heat sinks, resistors, electronic/electrical connectors,
etc.) used in a first level assembly
3.2
component package
commercial unit of components defined by the supplier including, if applicable, their means for
protection, structured alignment or for automated assembly
Note 1 to entry Typical examples are shown in Figure 4.
Note 2 to entry For the purposes of this document, the term “component package” includes a multiple of the
elements depicted in Figure 4, e.g. four reels in one box.
3.3
country of origin
manufacturing country where the product obtained its present identity as a part, subassembly,
or finished product
Note 1 to entry: The definition of “country of origin” should be in line with local regulations.
4 Label data content and requirements
4.1 Data elements – general
This document allows mutual agreements between the supplier and the customer to alter or
enhance any of the specifications done in this document.
The label format accommodates mandatory, optional and mutually agreed data elements.
Examples of data element short titles are given in Annex D.
This document does not supersede or replace any applicable safety or regulatory marking or
labelling requirements. This document is to be applied in addition to any other mandated
labelling requirements. The labelling requirements of this document and other documents may
be combined into one label or appear as separate labels.
Approval and conformity markings, branding elements and other information can be added
when applicable. Typically, these are not relevant for automatic processing, and therefore not
further outlined in this document.
The number included in the character count is exclusive of overhead characters such as start
and stop characters, data identifiers and any other characters required by a standard
symbology specification for properly encoded data.
All data elements encoded in a machine-readable medium shall be preceded by the
appropriate ISO/IEC 15418 or ANSI MH10.8.2 Data Identifier.

– 8 – IEC 62090:2017 © IEC 2017
The manufacturer may add any data on the label. Additional linear bar codes or data elements
in the 2D symbol shall use the appropriate data identifiers.
If the optional data specified in 4.3 are indicated on the labels, they should be used as
described below.
Any further additional data or specific formats or anything else may mutually be agreed
between the supplier and the customer. Mutual agreements between trading partners are not
restricted by this document.
Data elements where global uniqueness is relevant shall follow the ISO/IEC 15459 series'
rules, or be combined with the ISO/IEC 15459 series' compliant company ID with data
identifier “18V” and be unique within the scope in this company.
4.2 Mandatory data elements
4.2.1 Manufacturer item identification – DI “1P” and “25P”
The manufacturer-assigned item identification is mandatory.
If “1P” is used, the conformity to the ISO/IEC 15459 series is achieved by its combination with
the globally unique company ID “18V”.
4.2.2 Customer product code – DI “P”
The customer product code is the code assigned to the product by the customer, and may be
transmitted together with the order.
NOTE Customer product codes on component packages are relatively widely adopted. But when manufacturing
on stock or selling via distributors, this information is not yet known.
Adding customer information on the label is subject to a purchase agreement between the supplier and the
customer. If there is no specific purchase agreement, it is up to the manufacturer to add this information or not.
4.2.3 Manufacturer identification – DI “18V” and “21V”
The manufacturer identification shall uniquely identify the manufacturer to which the
component is traceable.
“18V” is the default manufacturer identification.
In case the manufacturer’s organizational sub unit is required, e.g. to indicate a
manufacturing location, then DI “21V” is used in addition to “18V”. In case of mutual
agreement between trading partners, “21V” can be used instead of “18V”.
In human-readable form, the manufacturer identification is the full manufacturer name or its
logo. In machine-readable form, the manufacturer identification is assigned by a recognized
body that assigns company identification according to the ISO/IEC 15459 series.
The human-readable manufacturer identification and the machine-readable manufacturer
identification are different. It is recommended that there be a 1:1 relation between human-
readable and machine-readable manufacturer identification.
4.2.4 Quantity – DI “Q” and “7Q”
The quantity shall be the quantity in the package or container to which the label is affixed.
The default unit of measure for data identifier “Q” is “EACH” or “PIECES”.

When a different unit of measure is required, as agreed between trading partners, data
identifier “7Q” shall be used with the quantity followed by two alphanumeric characters
representing the unit of measurement code defined in Annex D of ANSI MH10.8.2.
It is recommended to use the quantity with a unit of measure only if the unit is different from
“piece”.
Print only the significant digits for the human-readable quantity. Do not print leading zeros.
4.2.5 Traceability identification – DI “S” and “25S”, “1T” and “25T”
4.2.5.1 General
The traceability identification shall be assigned by the manufacturer. This category of
identification includes serial numbers and lot/batch numbers.
Traceability identification should be either a serial number (using data identifier “S” or “25S”)
or a lot/batch number (using data identifier “1T” or “25T”).
In certain circumstances, both the serial number and the lot/batch number may be shown on
the label. In this case, at least one of the two shall be encoded in a linear bar code and both
shall be included in the 2D symbol.
4.2.5.2 Serial number – DI “S” and “25S”
A serial number is a unique code assigned by the supplier to an entity for its lifetime. The
format for the serial number is to be defined by the manufacturer.
4.2.5.3 Lot/batch number – DI “1T” and “25T”
A lot/batch number is a code assigned by the supplier to identify or trace a unique group
of entities (e.g. manufacturing lot, batch, inspection lot). The format for the lot/batch number
is to be defined by the manufacturer.
4.2.6 Country of origin – DI “4L”
The country of origin shall be shown in human-readable information using the full country
name.
This shall be in addition to the two-character country codes as per ISO 3166 data being
encoded in a machine-readable symbol.
4.2.7 Production date – DI “16D”
Date code shall be in accordance with ISO 8601. When encoded in a machine-readable
symbol, either the data identifiers “10D”, “11D” or “16D” shall be used. Preference should be
given to “16D”.
The production date is determined by the manufacturer in an appropriate manner for the
specific product.
NOTE ISO 22742 recommends the format “16D” for the production date.
4.2.8 Package identification – DI “J” and “3S”
Unique package identification (i.e. licence plate) shall be in accordance with the
ISO/IEC 15459 series.
A licence plate with data identifier “J” is the recommended format.

– 10 – IEC 62090:2017 © IEC 2017
If there are several layers of packages with a 1:1 relation each, then the same package ID is
to be used for the labels on the different levels of packaging. If there is more than one
package in a package, then there shall be different package IDs.
EXAMPLE 1 A reel in a dry pack in a pizza box all have the same package ID on their respective labels.
EXAMPLE 2 Multiple reels in one pizza box each have different package IDs, and the pizza box itself has another
ID, too.
NOTE 1 However, as there is also the unique company code according to the ISO/IEC 15459 series with data
identifier “18V” as mandatory data element, global uniqueness can be achieved by the combination of this unique
company ID and a package ID unique within the domain of this company with data identifier “3S”.
NOTE 2 When using “3S”, this element is not suited to be used as primary key in an RFID tag in case of future
RFID marking of the component package.
4.3 Optional data elements
4.3.1 Expiration date – DI “14D”
An expiration date may be shown on a package label when the packaged items need to be
consumed/processed (e.g. soldered) before a certain date, when stored under conditions
defined by the manufacturer.
The data format of the expiration date is YYYYMMDD.
4.3.2 Revision level – DI “2P”
The revision level specifies the revision or version of an item, e.g. engineering change level,
edition, or revision.
4.3.3 EIAJ ID – DI “3N”
Data identifier “3N” is a coding structure in accordance with the format defined by the
Electronic Industries Association of Japan (EIAJ).
Refer to Electronic Commerce Alliance for Global Business Activity (ECALGA) Standards.
4.3.4 Manufacturer location – DI “25L”
The global unique location code according to the ISO/IEC 15459 series is structured as a
sequence of three concatenated data elements: the issuing agency code (IAC), followed by
the company identification number (CIN), followed by the physical internal location code that
is unique within the CIN holder's domain, shall be used to identify a manufacturer’s location.
EXAMPLE 1 Using IAC LE (EDIFICE):  25LLEIBMABCDE
EXAMPLE 2 Using IAC UN (Dun&Bradstreet): 25LUN123456789ABCDE
NOTE The extension to the DUNS # for different locations is not needed when each location has its own DUNS #.
4.3.5 Customer assigned supplier code – DI “V”
Some customers use their own assigned codes for suppliers, and require this information also
on component packages.
It is to be considered that a customer-assigned vendor/supplier code is specific for this one
customer. Labels with customer-specific content cause additional efforts and challenges, e.g.
in case of production on stock, distribution via resellers or customer returns. Some distribution
models may not work when customer data is required on labels. Returning packages with
customer specific data usually will imply re-labelling. Therefore, using a customer-assigned
vendor/supplier code is allowed but not recommended by this document.

4.3.6 Moisture sensitivity level – DI “13E”
The moisture sensitivity level is a class of time period in which a moisture-sensitive device
can be exposed to ambient room conditions, according to IPC/JEDEC J-STD-020 and
IEC 61760-4. This is important information, especially for components exposed to soldering
processes. At least the moisture sensitivity level should be indicated for such components.
4.3.7 URL – DI “33L” and “34L”
A link to further information accessible via the internet for this specific package can be added
in a dedicated data element using data identifier and corresponding data structure “33L”, or
using the data identifier and corresponding data structure “34L”. See Annex C “URL” for
details.
NOTE 1 These DIs are used upon agreement between the supplier and the customer.
NOTE 2 Whether additional data or information is provided, what kind of data and how data is provided, is at the
discretion of the party owning the data.
4.4 Data semantics and formats defined by the data identifiers
Table 1 lists all the relevant data elements sorted by their respective data identifier.
Table 1 – Data identifiers
Data identifier Mandatory Data field Data Description
(M)/optional characteristics
(O) type/length
10D Date an3 + n4 Format YYWW
a
11D M Date an3 + n6 Format YYYYWW
16D Production date an3 + n8 Format YYYYMMDD
14D O Expiration date an3 + n8 Format YYYYMMDD
4L M Country code an2 + an2 two-character country code
assigned by ISO. The country of
origin is defined as the manufac-
turing country where the product
obtained its present identity as a
part, sub-assembly, or finished
product. With the agreement of
the trading partners and when
the country of origin is mixed,
country code “AA” shall be used.
The country code is found in
ISO 3166.
EXAMPLE 4L US
1P Manufacturer part
number
b
M
25P Product number an3 + an.32 Combined IAC/CIN and item
code assigned by the supplier
2P O Revision level Code assigned to specify the
revision level for an item
P M Customer product an1 + an…25 Code assigned to the product by
code the customer
Mandatory only in case the
customer product code is
available to the manufacturer at
the time of manufacturing.
Subject to the purchase
agreement between
manufacturer and customer.
– 12 – IEC 62090:2017 © IEC 2017
Data identifier Mandatory Data field Data Description
(M)/optional characteristics
(O) type/length
25L O Manufacturer an3 + an.25 Globally unique location ID,
location ID assigned by the manufacturer
according to the rules of the
ISO/IEC 15459 series
18V M Manufacturer ID an3 + an.25 Default manufacturer ID
according to the ISO/IEC 15459
series
21V O Organizational sub an3 + an.25 Organizational Sub Unit
unit ID according to the rules of the
ISO/IEC 15459 series
V O Customer assigned an1 + an…18 Code assigned to the supplier by
vendor code the customer
J Licence plate, an2 + an…25
c package ID
M
3S Package ID an2 + an…25
S Serial number an1+ an.25 Serial number or code assigned
by the supplier to an entity for its
lifetime
d
M
25S Serial number an3 + an.32 Combined IAC/CIN and the serial
number assigned by the
c
supplier
1T M Lot/batch number an2 + an.25 Lot/batch number defined by the
manufacturer
25T M Lot/batch number an3 + an.32 Combined IAC/CIN and entity
identification and lot/batch
number assigned by the supplier
e
7Q Quantity with unit of an2 + n.8 + an2 The quantity with qualifier of
measure products in the product package

(CR = cubic metre)
EXAMPLE 7Q1CR
e
M (This includes an encoded
decimal point, if necessary)
Q Quantity in package an1 + n.8 The number of products (pcs) in
the product package.
EXAMPLE Q2000
13E O Moisture sensitivity an3 + an1…3 MSL indicator defined in
level IEC 61760-4 or IPC/JEDEC J-
STD-020 should be used based
on mutual agreement between
trading partners.
EXAMPLE 13E2a
33L O Uniform resource Includes all Complete URL linking to an
locator (URL) characters that internet destination determined
form a URL, by the labeller.
including header
See Annex C: URL
data such as e.g.
HTTP://.
Character set as
listed in RFC 1738.
Data identifier Mandatory Data field Data Description
(M)/optional characteristics
(O) type/length
34L O Pointer to process Includes all Pointer to process URL (P2P
URL (P2P URL) characters that URL) is setting the rules for
form a URL, generating a URL out of item
including header data in conjunction with a portal
data such as e.g. address encoded in AIDC media
HTTP://. jointly with other data.
Character set as The rules are described with
listed in RFC 1738. ANSI MH10.8.2 (34L).
See Annex C: URL
a
One of the date formats “10D”, “11D” or “16D” shall be used. Although format “16D” with “YYYYMMDD” is
recommended, the manufacturer may choose one of the other date formats.

b
One of the manufacturer assigned product code formats “1P” or “25P” shall be used.

c
Either “J” or “3S” applies. If “3S” is used, global uniqueness is achieved by combining this element with the
company ID “18V”.
d
One of the manufacturer assigned serial number formats “S” or “25S” shall be used.

e
Either quantity in format “7Q” or “Q” applies. Refer to Annex D of ANSI MH10.8.2.

4.5 Data representation
4.5.1 General formatting
All data elements shall be represented on the label as human-readable text. Mandatory data
shall be encoded in a 2D machine-readable symbol. In addition, some of the data should be
encoded in linear bar codes. See Table 2.
Table 2 – Mandatory data elements and their representations
a
Data Human readable Linear bar code Two-dimensional symbol
Item identification code M M M
assigned by the
manufacturer
Manufacturer M O M
Quantity M M M
Traceability information M M M
Country of origin M O M
Production date M O M
Package ID M O M
Key
M: mandatory
O: optional
Mandatory information of linear bar code in this table shall be encoded in linear bar code whenever there is
enough free space on the label for these linear bar codes.

a
EIAJ has prescribed special data semantic rules and requirements for a linear bar code for component
packages intended to meet EIAJ requirements.

If the optional elements are used, then they shall be at least human-readable. And if they are
also machine-readable, then they shall be presented in a 2D symbol and optionally be
presented in a linear bar code. See Table 3.

– 14 – IEC 62090:2017 © IEC 2017
Table 3 – Valid combinations of representation of optional data elements
Optional data
Human-readable 2D symbol Linear bar code
elements included
No Not applicable Not applicable Not applicable
Yes Required No No
Yes Required Yes No
Yes Required Yes Yes
4.5.2 General formatting for machine-readable symbols
4.5.2.1 General
In this document, machine-readable symbols are linear bar code symbols or 2D symbols.
4.5.2.2 Maximum symbol length
The maximum symbol length of a linear bar code symbol should be no more than 8 cm.
NOTE Depending on the choice of the scanning device: Only imagers can read 2D symbols and some imagers
have issues with longer linear bar codes.
4.5.2.3 Syntax in linear bar code
If linear bar codes are used, it is strongly recommended not to concatenate them. Each bar
code starts with the appropriate data identifier.
If concatenation is done, it shall be in accordance with ANSI MH10.8.2 (as referenced in
ISO/IEC 15418).
4.5.2.4 Syntax in 2D symbols
The encoding shall be as described in ISO/IEC 15434. See also Annex B.
4.5.3 General formatting for human-readable information
4.5.3.1 General
Human-readable information can be human interpretation, human translation, data titles or
free text and data.
4.5.3.2 Human-readable interpretation
A human-readable interpretation (HRI) of each linear bar code symbol shall be provided
adjacent to the bar code. Such human-readable interpretation shall represent the encoded
data. See Figure 1.
The HRI shall represent the encoded data, exclusive of the data identifier. The data identifier
appears in parentheses as part of the data title, e.g. “(S) Serial #.”
The HRI of the linear bar code symbol shall be printed above the bar code symbol.
For 2D symbols, human translation (see 4.5.3.3) should be used.
4.5.3.3 Human translation
In addition to the HRI, human translation of machine-readable data may be provided in a
separate section of the label.

4.5.3.4 Data titles
Data titles for linear bar code symbols may be presented with a full data element title, e.g. “(S)
Serial Number 123456”, or an abbreviated data element title, e.g. “(S) Ser. No. 123456”. The
data element title is following the data identifier. It is recommended to put the data identifier in
round brackets and have one or few space characters between the data identifier and the rest
of the data area title.
If the real estate available for marking is insufficient to support the marking of the data
element title and the data identifier, the data title may be abbreviated to only include the data
identifier enclosed in parentheses, e.g. (S) 123456.
4.5.3.5 Free text and data
Human-readable information that is not a translation of machine-readable information may be
added. These data titles should not include data identifiers.
4.6 Data carrier selection
4.6.1 Linear bar code symbols
The linear bar code symbologies to be used in this document are as follows:
• Code 39 (reference: ISO/IEC 16388);
• Code 128 (reference: ISO/IEC 15417).
Code 128 requires less space than Code 39, and supports a wider character set. The choice
of any of the linear bar code symbologies above is up to the manufacturer.
Recommended symbol parameters of the bar code symbols are shown in Table 4 and Table 5
below.
For the Code 39 symbology, the optional check digit shall not be encoded.
This document recommends a minimum narrow element width of 0,25 mm, but in no case
shall the minimum narrow element be less than 0,17 mm. If narrow element widths of less
than 0,25 mm are used, trading partners shall acknowledge the need to use scanning
equipment suitable to read this small narrow element width. Regardless of the narrow element
width, the linear symbol shall meet the minimum print quality requirements (see Table 4 and
Table 5).
Table 4 – Product package label symbol requirements − Code 39
Recommended Recommended
Code 39
minimum maximum
Dimensions (nominal) Ratio of wide to narrow 2,25:1 3:1
Narrow element width “X” 0,25 mm
Wide element width refer to ISO/IEC 16388
Intercharacter gap 1X to 5,3X
Height of bar code 5 mm or greater

a
Minimum print quality 1,5 / 05 / 660
a
reference: ISO/IEC 15416
– 16 – IEC 62090:2017 © IEC 2017
Table 5 – Product package label symbol requirements − Code 128
Code 128 Recommended minimum
Dimensions (nominal) Module/element width 0,25 mm
Height of bar code 5 mm or greater

a
Minimum print quality 1,5 / 05 / 660

a
reference: ISO/IEC 15416
4.6.2 Two-dimensional (2D) symbols
4.6.2.1 General
The 2D symbologies for use in this document are as follows:
• Data Matrix ECC 200 (reference: ISO/IEC 16022; includes also some rectangular formats);
• QR Code (reference: ISO/IEC 18004).
PDF417 is still used on packages, and shall be supported too. However, processing all labels
according to this document does require imager readers. For imager readers, real matrix
codes such as Data Matrix or QR Code are much better suited than PDF417 and require
significantly less space. Therefore, this document does not recommend PDF417 for new
applications.
The choice of any of the 2D symbologies above is up to the manufacturer.
4.6.2.2 “X” dimension
The recommended minimum “X” dimensions for each of the cell sizes for Data Matrix ECC 200
and QR Code are 0,17 mm.
The X dimension shall be determined by the printing capability of the manufacturer/printer
of the label.
4.6.2.3 Print quality
Print quality shall be tested in acco
...
