CEN/TS 16637-1:2018
(Main)Construction products - Assessment of release of dangerous substances - Part 1: Guidance for the determination of leaching tests and additional testing steps
Construction products - Assessment of release of dangerous substances - Part 1: Guidance for the determination of leaching tests and additional testing steps
(1) This document allows the identification of the appropriate leaching test method for the determination of the release of RDS from construction products into soil, surface water and groundwater. This document provides a stepwise procedure for the determination of appropriate release tests, including:
a) determination of the test method based on general product properties;
b) choice of the test method using specific product properties.
(2) Furthermore, this Technical Specification gives general guidance for CEN Technical Product Committees and EOTA WGs on basic aspects (sampling, sample preparation and storage, eluate treatment, analysis of eluates and documentation) to be specified in the relevant product standards or ETAs.
(3) Metallic products and coatings on metallic products are not considered in the determination scheme of this Technical Specification since the test methods in CEN/TS 16637-2 (tank test) and CEN/TS 16637-3 (column test) are not appropriate for the testing of these construction products due to a different release mechanism (solubility control).
NOTE See Annex F.
(4) It is assumed that intermittent contact with water (e. g. exposure to rainwater) is tested — by convention — as permanent contact. For some coatings, (e. g. some renders with organic binders according to EN 15824 [4]) in intermittent contact to water, physical and chemical properties might be altered in permanent contact with water. These products are not considered in the determination scheme of this Technical Specification since the test method in CEN/TS 16637-2 is not appropriate for the testing of these construction products (in this case EN 16105 [5] might be an alternative method).
Bauprodukte - Bewertung der Freisetzung von gefährlichen Stoffen - Teil 1: Leitfaden für die Festlegung von Auslaugprüfungen und zusätzlichen Prüfschritten
(1) Dieses Dokument ermöglicht die Identifizierung des geeigneten Auslaugprüfverfahrens für die Bestimmung der Freisetzung regulierter gefährlicher Stoffe aus Bauprodukten in den Boden, das Oberflächenwasser und das Grundwasser. Das vorliegende Dokument enthält ein schrittweises Verfahren zur Ermittlung geeigneter Freisetzungsprüfungen, einschließlich:
a) Bestimmung des Prüfverfahrens auf der Grundlage allgemeiner Produkteigenschaften;
b) Wahl des Prüfverfahrens durch Anwendung spezieller Produkteigenschaften.
(2) Darüber hinaus enthält diese Technische Spezifikation einen Leitfaden für die Technischen Produktkomitees des CEN und Arbeitsgruppen (WG) der Europäische Organisation für Technische Bewertung EOTA zu grundlegenden Aspekten (Probenahme, Probenvorbereitung und -lagerung, Eluatbehandlung, Analyse von Eluaten und Dokumentation), die in den maßgebenden Produktnormen oder Europäischen Technischen Bewertungen (ETA) festzulegen sind.
(3) Metallische Produkte und Beschichtungen auf metallischen Produkten werden in dieser Technischen Spezifikation nicht berücksichtigt, da die Prüfverfahren in CEN/TS 16637-2 (Trog-Prüfverfahren) und CEN/TS 16637-3 (Perkolationsprüfung) für die Prüfung dieser Bauprodukte aufgrund eines anderen Freisetzungsmechanismus (Löslichkeitssteuerung) nicht geeignet sind.
ANMERKUNG Siehe Anhang F.
(4) Es wird angenommen, dass der zeitweilige Kontakt mit Wasser (z. B. Beanspruchung durch Regenwasser) nach Vereinbarung als dauerhafter Kontakt geprüft wird. Bei einigen Beschichtungen (z. B. einige Putze mit organischen Bindemitteln nach EN 15824 [4]), die zeitweilig mit Wasser in Berührung kommen, könnten physikalische und chemische Eigenschaften sich bei dauerhaftem Kontakt mit Wasser ändern. Diese Produkte werden nicht in dieser Technischen Spezifikation berücksichtigt, da das Prüfverfahren in CEN/TS 16637-2 für die Prüfung dieser Bauprodukte nicht geeignet ist. (In diesem Fall könnte EN 16105 [5] ein geeignetes alternatives Prüfverfahren sein.]
Produits de construction - Evaluation de l'émission de substances dangereuses - Partie 1 : Guide pour la spécification des essais de lixiviation et des étapes supplémentaires d'essai
Gradbeni proizvodi - Ocenjevanje sproščanja nevarnih snovi - 1. del: Navodilo za določanje preskusov izluževanja in dodatnih korakov preskušanja
(1) Ta tehnična specifikacija omogoča opredelitev ustrezne preskusne metode izluževanja za določanje sproščanja reguliranih nevarnih snovi (RDS) iz gradbenih proizvodov v tla, površinsko vodo in podtalnico. Ta dokument določa korake postopka za določanje ustreznih preskusov sproščanja, vključno z:
a) določanjem preskusne metode na podlagi splošnih lastnosti proizvodov;
b) izbiro preskusne metode z uporabo posebnih lastnosti proizvodov.
(2) Poleg tega ta tehnična specifikacija določa splošna navodila za tehnične odbore za proizvode CEN in delovne skupine EOTA v zvezi z osnovnimi vidiki (vzorčenje, priprava vzorcev in shramba, obdelava izlužkov, analiza izlužkov in dokumentacija), ki se določijo v ustreznih standardih za proizvode ali evropskih tehničnih soglasjih ETA.
(3) Kovinski proizvodi in premazi na kovinskih proizvodih niso obravnavani v shemi določanja te tehnične specifikacije, saj preskusne metode iz specifikacij CEN/TS 16637 2 (preskus s cisterno) in CEN/TS 16637 3 (preskus v stolpcu) niso primerne za preskušanje teh gradbenih proizvodov zaradi drugačnega mehanizma sproščanja (nadzor topljivosti).
OPOMBA: glej dodatek F.
4) Domneva se, da je občasen stik z vodo (npr. izpostavljenost deževnici) preskušen – po dogovoru – kot stalen stik. Pri nekaterih premazih (npr. nekateri ometi z organskimi vezivi v skladu s standardom EN 15824 [4]) v občasnem stiku z vodo se lahko fizikalne in kemijske lastnosti spremenijo ob stalnem stiku z vodo. Ti proizvodi niso obravnavani v shemi določanja te tehnične specifikacije, saj preskusna metoda iz specifikacije CEN/TS 16637 2 ni primerna za preskušanje teh gradbenih proizvodov (v tem primeru je lahko standard EN 16105 [5] alternativna metoda).
General Information
Relations
Buy Standard
Standards Content (Sample)

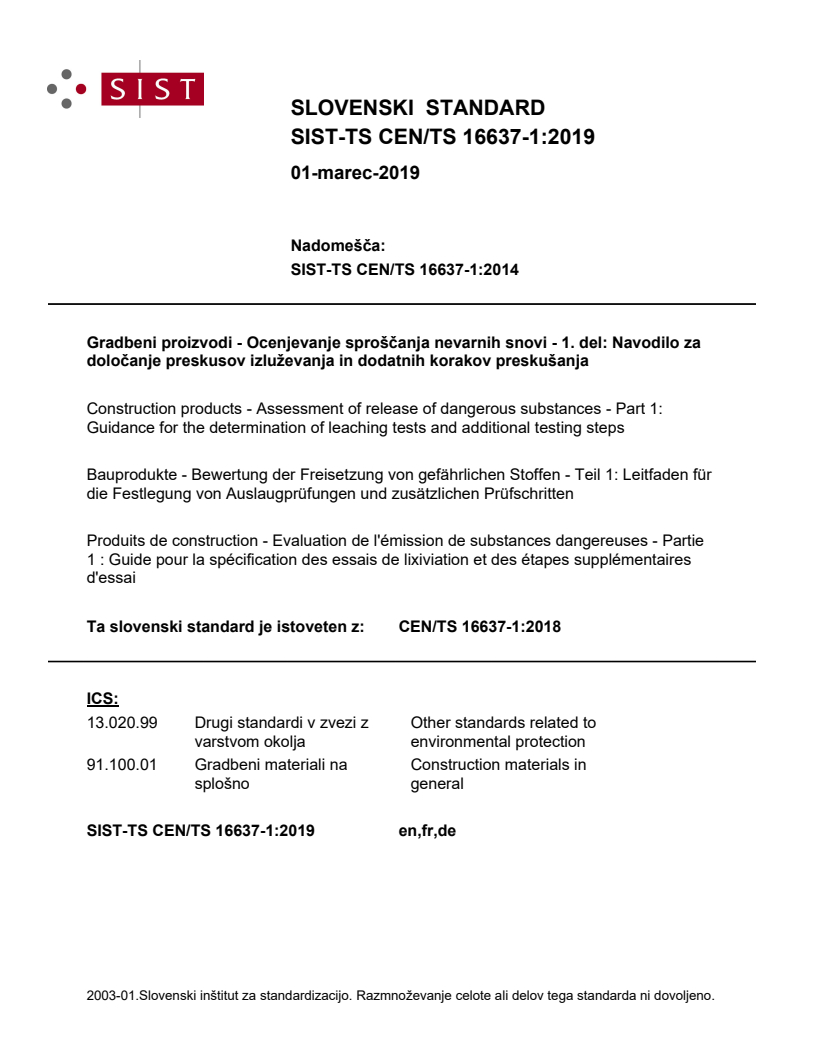

SLOVENSKI STANDARD
01-marec-2019
1DGRPHãþD
SIST-TS CEN/TS 16637-1:2014
*UDGEHQLSURL]YRGL2FHQMHYDQMHVSURãþDQMDQHYDUQLKVQRYLGHO 1DYRGLOR]D
GRORþDQMHSUHVNXVRYL]OXåHYDQMDLQGRGDWQLKNRUDNRYSUHVNXãDQMD
Construction products - Assessment of release of dangerous substances - Part 1:
Guidance for the determination of leaching tests and additional testing steps
Bauprodukte - Bewertung der Freisetzung von gefährlichen Stoffen - Teil 1: Leitfaden für
die Festlegung von Auslaugprüfungen und zusätzlichen Prüfschritten
Produits de construction - Evaluation de l'émission de substances dangereuses - Partie
1 : Guide pour la spécification des essais de lixiviation et des étapes supplémentaires
d'essai
Ta slovenski standard je istoveten z: CEN/TS 16637-1:2018
ICS:
13.020.99 Drugi standardi v zvezi z Other standards related to
varstvom okolja environmental protection
91.100.01 Gradbeni materiali na Construction materials in
splošno general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

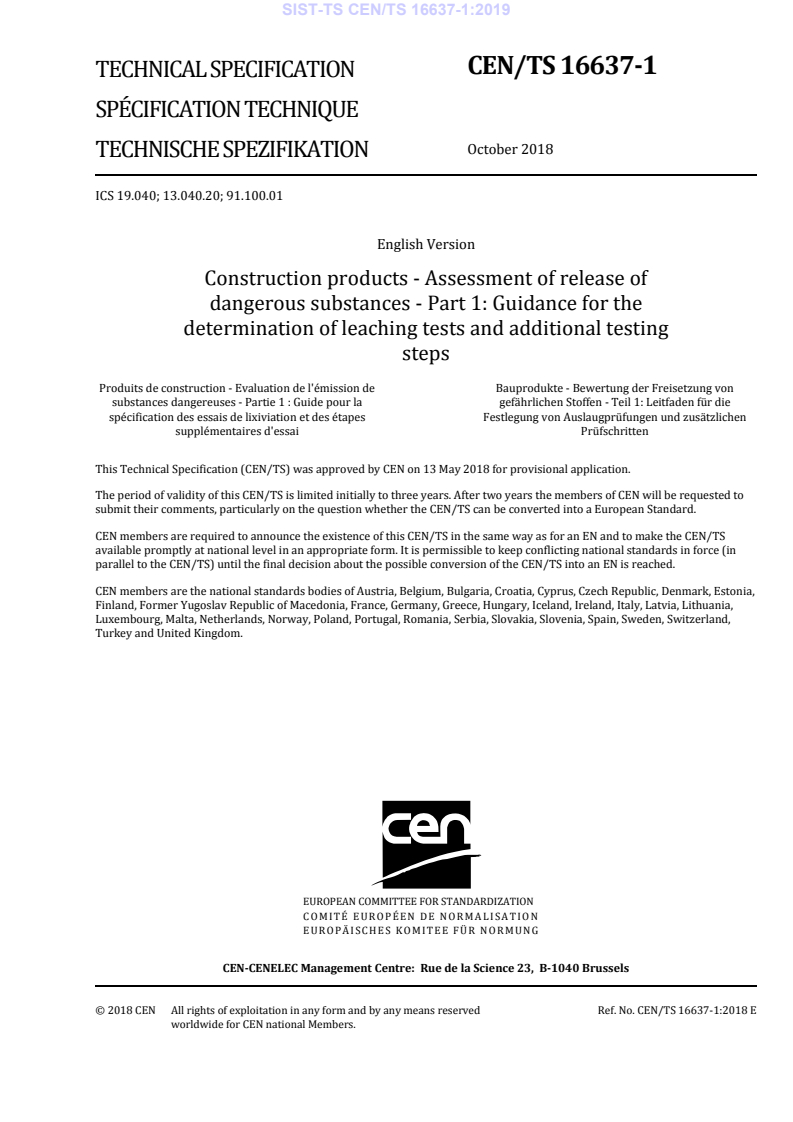

CEN/TS 16637-1
TECHNICAL SPECIFICATION
SPÉCIFICATION TECHNIQUE
October 2018
TECHNISCHE SPEZIFIKATION
ICS 19.040; 13.040.20; 91.100.01
English Version
Construction products - Assessment of release of
dangerous substances - Part 1: Guidance for the
determination of leaching tests and additional testing
steps
Produits de construction - Evaluation de l'émission de Bauprodukte - Bewertung der Freisetzung von
substances dangereuses - Partie 1 : Guide pour la gefährlichen Stoffen - Teil 1: Leitfaden für die
spécification des essais de lixiviation et des étapes Festlegung von Auslaugprüfungen und zusätzlichen
supplémentaires d'essai Prüfschritten
This Technical Specification (CEN/TS) was approved by CEN on 13 May 2018 for provisional application.
The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to
submit their comments, particularly on the question whether the CEN/TS can be converted into a European Standard.
CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS
available promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in
parallel to the CEN/TS) until the final decision about the possible conversion of the CEN/TS into an EN is reached.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 16637-1:2018 E
worldwide for CEN national Members.

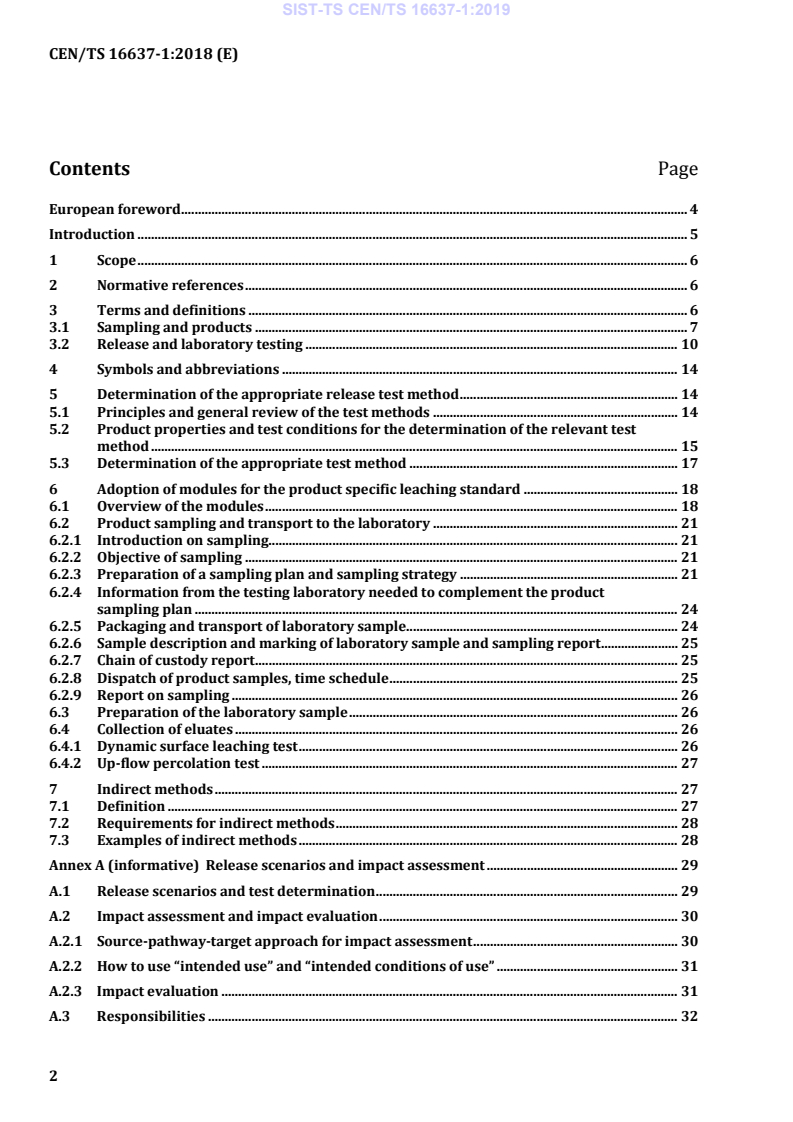

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
3.1 Sampling and products . 7
3.2 Release and laboratory testing . 10
4 Symbols and abbreviations . 14
5 Determination of the appropriate release test method . 14
5.1 Principles and general review of the test methods . 14
5.2 Product properties and test conditions for the determination of the relevant test
method . 15
5.3 Determination of the appropriate test method . 17
6 Adoption of modules for the product specific leaching standard . 18
6.1 Overview of the modules . 18
6.2 Product sampling and transport to the laboratory . 21
6.2.1 Introduction on sampling. 21
6.2.2 Objective of sampling . 21
6.2.3 Preparation of a sampling plan and sampling strategy . 21
6.2.4 Information from the testing laboratory needed to complement the product
sampling plan . 24
6.2.5 Packaging and transport of laboratory sample. 24
6.2.6 Sample description and marking of laboratory sample and sampling report . 25
6.2.7 Chain of custody report . 25
6.2.8 Dispatch of product samples, time schedule . 25
6.2.9 Report on sampling . 26
6.3 Preparation of the laboratory sample . 26
6.4 Collection of eluates . 26
6.4.1 Dynamic surface leaching test . 26
6.4.2 Up-flow percolation test . 27
7 Indirect methods . 27
7.1 Definition . 27
7.2 Requirements for indirect methods . 28
7.3 Examples of indirect methods . 28
Annex A (informative) Release scenarios and impact assessment . 29
A.1 Release scenarios and test determination . 29
A.2 Impact assessment and impact evaluation . 30
A.2.1 Source-pathway-target approach for impact assessment . 30
A.2.2 How to use “intended use” and “intended conditions of use” . 31
A.2.3 Impact evaluation . 31
A.3 Responsibilities . 32
Annex B (informative) Different types of leaching tests. 33
B.1 General . 33
B.2 Reference tests and indirect test . 33
B.3 Leaching tests for products exposed to carbonation and oxidation . 33
Annex C (informative) Key concepts for product sampling. 35
C.1 Representativeness . 35
C.2 Uncertainty . 36
C.3 Sampling under various stages of production control . 37
C.4 Objective of sampling . 37
C.5 Preparation of a sampling plan . 38
C.6 Considerations on sampling strategy . 40
C.6.1 General . 40
C.6.2 Sampling approach . 40
C.6.3 Population and sub-population . 41
C.6.4 Scale . 41
C.6.5 Size of increments and samples . 45
C.6.6 Sampling of complex, composite and large products . 45
C.6.7 Sampling location and moment . 45
Annex D (informative) Example of a chain of custody report . 47
Annex E (informative) Example of a sampling report . 48
Annex F (informative) Metallic products . 49
Bibliography . 50
European foreword
This document (CEN/TS 16637-1:2018) has been prepared by Technical Committee CEN/TC 351
“Construction Products - Assessment of release of dangerous substances”, the secretariat of which is
held by NEN.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes CEN/TS 16637-1:2014.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association.
This Technical Specification deals with the determination and use of test methods for leaching of
construction products taking specific situations into account. It specifies preconditions under which
leaching tests for monolithic products and for granular products need to be selected.
Background information on characterization of leaching behaviour of construction products can be
found in Technical Reports provided by CEN/TC 351 (i.e. CEN/TR 16098 [1], and CEN/TR 16496 [2]).]
According to the CEN/CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to announce this Technical Specification: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
Introduction
This informative introduction describes the interactions and interrelations between the release tests
...
