EN 13478:2001+A1:2008

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Safety of machinery - Fire prevention and protectionSécurité des machines - Prévention et protection contre l'incendieSicherheit von Maschinen - Brandschutz13.220.01Varstvo pred požarom na splošnoProtection against fire in general13.110Varnost strojevSafety of machineryICS:SIST EN 13478:2002+A1:2008en,frTa slovenski standard je istoveten z:EN 13478:2001+A1:200801-julij-2008SIST EN 13478:2002+A1:2008SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13478:2001+A1
April 2008 ICS 13.110; 13.220.01 Supersedes EN 13478:2001 English Version
Safety of machinery - Fire prevention and protection
Sécurité des machines - Prévention et protection contre l'incendie
Sicherheit von Maschinen - Brandschutz This European Standard was approved by CEN on 3 October 2001 and includes Amendment 1 approved by CEN on 18 March 2008.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36
B-1050 Brussels © 2008 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13478:2001+A1:2008: E

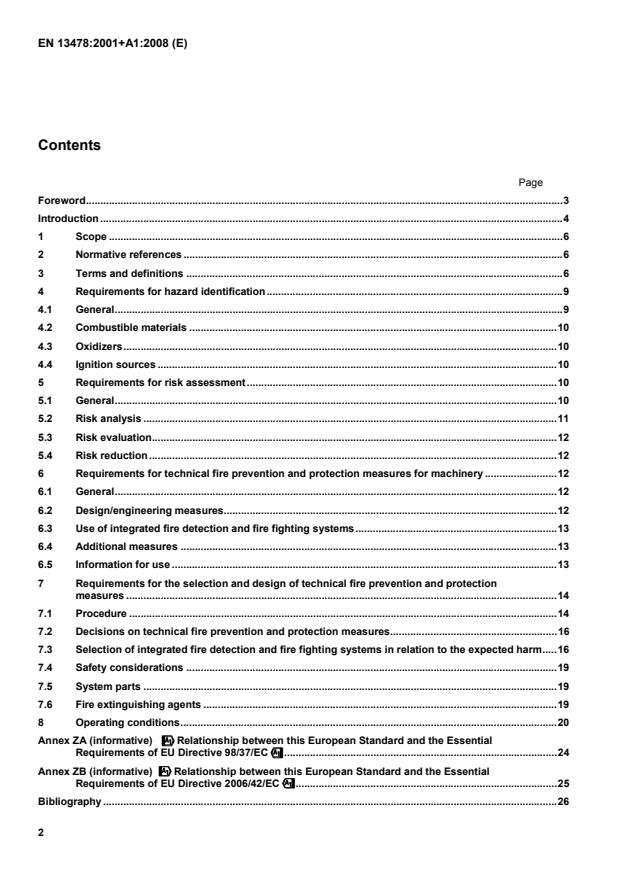

!!!!Relationship between this European Standard and the Essential Requirements of EU Directive 98/37/EC"""".24 Annex ZB (informative)
!!!!Relationship between this European Standard and the Essential Requirements of EU Directive 2006/42/EC"""".25 Bibliography.26

Figure 1 — Fire risk reduction measures Fire risk reduction measuresFire prevention and protection Fire fighting 1Technical measures for machinerydesign/engineering measures integrated fire fighting and fire detection systems pre-fire alarm systems fire alarm systems manually released extinguishing equipment and systems additional measures information for use automatically released extinguishing systems 2 Structural features of buildings 3Organizational measures 4Works fire fighting 5Public fire fighting fire brigade fire extinguishing agent etc. trained personnel works fire brigade construction materials and componentsfire sections
complex separation distance between buildings approach ramps and set up areas for fire brigades fire water supply and containmentmeasuressmoke and heat protectioninstallationsfire prevention and protection regulation alarm plans predetermined fire plan
etc. fire safety advisor fire extinguishing agent etc. smoke and heat control systemescaperoutes

[ISO/IEC Guide 52] 3.3 combustion exothermic reaction of a substance with an oxidizer, generally accompanied by flames and/or glowing and/or emission of smoke [ISO/IEC Guide 52]

[ISO 8421-1] 3.8 fire load sum of the calorific energies which could be released by the complete combustion of all the combustible materials involved in the machine and process, including raw and process materials [ISO/IEC Guide 52] 3.9 fire hazard potential for loss of life (or injury) and/or damage to property and/or environment by fire
[ISO/IEC Guide 52] 3.10 fire general term for intended combustion (useful fire) as well as for uncontrolled combustion (damaging fire) 3.11 fire alarm system system which detects the onset of fire and initiates an emergency response 3.12 fire risk combination of the probability of occurrence of harm from fire and the severity of that harm 3.13 fire safety advisor employee or consultant who assesses the fire prevention and protection measures for all or parts of business undertaking 3.14 flame retardant substance added or treatment applied to a material in order to suppress or delay the appearance of a flame and/or reduce its propagation rate 3.15 flame zone of combustion in the gaseous phase from which light is emitted [ISO/IEC Guide 52]

[ISO/IEC Guide 52] 3.21 ignition energy energy necessary to initiate ignition 3.22 organizational measures all fire prevention and protection measures applied to assign tasks and responsibilities, to manage the emergency plan in case of fire; and assist the fire brigade in developing and implementing its own fire fighting procedures 3.23 overheating uncontrolled temperature increase 3.24 pre-fire alarm system system which detects the potential onset of fire and initiates an emergency response in respect of this 3.25 public fire fighting all measures implemented by a community to fight fires by means of the fire brigades with capacities in accordance with the local conditions [ISO/IEC Guide 52] 3.26 safety component component of the machinery, provided that it is not interchangeable equipment, which fulfils a safety function when in use and the failure or malfunctioning of which endangers the safety or health of exposed persons NOTE see Directive 98/37/EC, clause 1, article 1, 2b. 3.27 self-ignition ignition resulting from self heating [ISO/IEC Guide 52]

[ISO/IEC Guide 52] 3.29 smoke visible suspension of solid and/or liquid particles in gases resulting from combustion or pyrolysis [ISO/IEC Guide 52] 3.30 structural features of buildings all fire prevention and protection measures related to the design, construction and functional planning of a building to reduce fire spread; facilitate escape of occupants; provide access to the fire brigade and safe fire fighting conditions; and reduce damage to the building, its contents and the environment 3.31 works fire fighting all measures implemented by plant management for the user of the machinery to fight any outbreak of fire using own personnel 4 Requirements for hazard identification 4.1 General A fire hazard occurs if combustible materials, oxidizer and ignition energy are available in sufficient quantities at the same place and at the same time (see Figure 2).
Figure 2 — Fire-Triangle
a) heat energy;
b) electrical energy;
c) mechanical energy;
d) chemical energy. 5 Requirements for risk assessment
5.1 General Determination and evaluation of the fire risk requires a sequence of logical steps allowing systematic examination of the fire hazards arising from the machinery and/or the work process according to the procedures outlined in EN 1050. It includes risk analysis and risk evaluation. The risk evaluation establishes if risk reduction measures are required. see annex A for examples

Figure 3 — Risk analysis and evaluation Intended operational conditions, foreseeable misuse and human errorsList of materials Ignitability Flammability Combustibility Fire supporting effect Toxicity of materials and fire effluents Fire load Ignition sources Determination of fire scenarios according to the fire loads and ignition sources Severity of possible harm Risk analysisRisk evaluation
...
