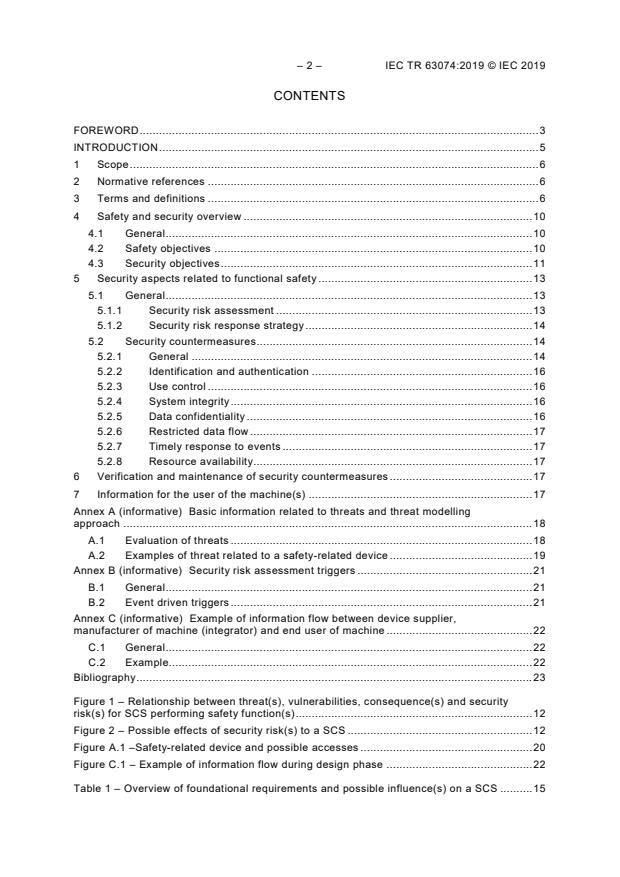

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Safety and security overview . 10
4.1 General . 10
4.2 Safety objectives . 10
4.3 Security objectives . 11
5 Security aspects related to functional safety . 13
5.1 General . 13
5.1.1 Security risk assessment . 13
5.1.2 Security risk response strategy . 14
5.2 Security countermeasures . 14
5.2.1 General . 14
5.2.2 Identification and authentication . 16
5.2.3 Use control . 16
5.2.4 System integrity . 16
5.2.5 Data confidentiality . 16
5.2.6 Restricted data flow . 17
5.2.7 Timely response to events . 17
5.2.8 Resource availability . 17
6 Verification and maintenance of security countermeasures . 17
7 Information for the user of the machine(s) . 17
Annex A (informative) Basic information related to threats and threat modelling
approach . 18
A.1 Evaluation of threats . 18
A.2 Examples of threat related to a safety-related device . 19
Annex B (informative) Security risk assessment triggers . 21
B.1 General . 21
B.2 Event driven triggers . 21
Annex C (informative) Example of information flow between device supplier,
manufacturer of machine (integrator) and end user of machine . 22
C.1 General . 22
C.2 Example. 22
Bibliography . 23

Figure 1 – Relationship between threat(s), vulnerabilities, consequence(s) and security
risk(s) for SCS performing safety function(s) . 12
Figure 2 – Possible effects of security risk(s) to a SCS . 12
Figure A.1 –Safety-related device and possible accesses . 20
Figure C.1 – Example of information flow during design phase . 22

Table 1 – Overview of foundational requirements and possible influence(s) on a SCS . 15

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SAFETY OF MACHINERY –
SECURITY ASPECTS RELATED TO FUNCTIONAL
SAFETY OF SAFETY-RELATED CONTROL SYSTEMS

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC
Publication(s)"). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. However, a
technical committee may propose the publication of a technical report when it has collected
data of a different kind from that which is normally published as an International Standard, for
example "state of the art".
Technical Report IEC TR 63074 has been prepared by IEC technical committee 44: Safety of
machinery – Electrotechnical aspects.
The text of this Technical Report is based on the following documents:
DTR Report on voting
44/842/DTR 44/843/RVDTR
Full information on the voting for the approval of this Technical Report can be found in the
report on voting indicated in the above table.

– 4 – IEC TR 63074:2019 © IEC 2019
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
INTRODUCTION
Industrial automation systems can be exposed to security attacks due to the fact that:
– access to the control system is possible, e.g. re-programming of machine functions
(including safety);
– "convergence" between standard IT and industrial systems is increasing;
– operating systems have become present in embedded systems, e.g. IP-based protocols
are replacing proprietary network protocols and data is exchanged directly from the
SCADA network into the office world;
– software is developed by reusing existing third party software components;
– remote access from suppliers has become the standard way of operations / maintenance,
with an increased cyber security risk regarding e.g. unauthorized access, availability and
integrity.
As part of an industrial automation system, safety-related control systems of machines can
also be subject to security attacks that can result in a loss of the ability to maintain safe
operation of a machine.
NOTE 1 The risk potential of attack opportunities is significant seeing the trends and developments of threats and
the amount of known vulnerabilities. Security objectives are mainly described in terms of confidentiality, integrity
and availability, which in general need to be identified and prioritized by using a risk based approach.
Functional safety objectives consider the risk by estimating the severity of harm and the
probability of occurrence of that harm: The effects of any risk (hazardous event) determine
the requirements for safety integrity, (Safety Integrity Level (SIL) according to IEC 62061 or
IEC 61508 or Performance Level (PL) according to ISO 13849-1).
With respect to the safety function, the security threats (internal or external) might influence
the safety integrity and the overall system availability.
NOTE 2 In order to ensure the security objectives, IEC 62443-3-3 defines and recommends security requirements
("foundational requirements") to be fulfilled by the relevant system.
NOTE 3 The overall security strategy is not covered in this standard, further information is provided e.g. in
IEC 62443 (all parts) or ISO/IEC 27001.
Misuse by physical manipulation is covered in some machinery functional safety standards
(e.g. IEC 61496 (all parts) and ISO 14119).
NOTE 4 "Misuse by physical manipulation" is not considered to be the same as physical security in the IEC 62443
(all parts), for example in IEC 62443-2-1:2010, 4.3.3.3. Physical security means for example control (restriction) of
access by means of physical obstruction.

– 6 – IEC TR 63074:2019 © IEC 2019
SAFETY OF MACHINERY –
SECURITY ASPECTS RELATED TO FUNCTIONAL
SAFETY OF SAFETY-RELATED CONTROL SYSTEMS

1 Scope
This Technical Report gives guidance on the use of IEC 62443 (all parts) related to those
aspects of security threats and vulnerabilities that could influence functional safety
implemented and realized by safety-related control systems (SCS) and could lead to the loss
of the ability to maintain safe operation of a machine.
NOTE 1 For example, an attack on a machine (safety function) such that it affects the availability of the machine
and can result in a safety function being bypassed.
Considered security aspects of the machine with potential relation to SCS are:
– vulnerabilities of the SCS either directly or indirectly through the other parts of the
machine which can be exploited by security threats that can result in security attacks
(security breach);
– influence on the safety characteristics and ability of the SCS to properly perform its
function(s);
– typical use case definition and application of a corresponding threat model.
NOTE 2 For other aspects of security threats and vulnerabilities, the provisions of the IEC 62443 (all parts) can
apply.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 62061, Safety of machinery - Functional safety of safety-related electrical, electronic and
programmable electronic control systems
ISO 12100:2010, Safety of machinery – General principles for design — Risk assessment and
risk reduction
ISO 13849-1:2015, Safety of machinery – Safety-related parts of control systems – Part 1:
General principles for design
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp

3.1.1
asset
physical or logical object having either a perceived or actual value to a control system
[SOURCE: IEC 62443-3-3:2013, 3.1.1 modified –"the IACS" replaced by "a control system",
removal of Note 1 to entry]
3.1.2
attack
assault on a system that derives from an intelligent threat
[SOURCE: IEC 62443-3-3:2013, 3.1.3, modified – removal of Notes 1 and 2 to entry]
3.1.3
availability
ability of an item to be in a state to perform a required function under given conditions at a
given instant or over a given time interval, assuming that the required external resources are
provided
Note 1 to entry: This ability depends on the combined aspects of the reliability performance, the maintainability
performance and the maintenance support performance.
Note 2 to entry: Required external resources, other than maintenance resources do not affect the availability
performance of the item.
Note 3 to entry: In French the term "disponibilité" is also used in the sense of "instantaneous availability". In
German the term "Verfügbarkeit" is also used in the sense of "instantaneous availability".
[SOURCE: IEC TS 62443-1-1:2009, 3.2.16, modified – addition of information about German
terminology in Note 3]
3.1.4
confidentiality
assurance that information is not disclosed to unauthorized individuals, processes, or devices
[SOURCE: IEC TS 62443-1-1:2009, 3.2.28]
3.1.5
control system
system which responds to an input from, for example, the process, other machine elements,
an operator, external control equipment, and generates an output(s) causing the machine to
behave in the intended manner
3.1.6
dangerous failure
failure of an element and/or subsystem and/or system that plays a part in implementing the
safety function that:
a) prevents a safety function from operating when required (demand mode) or causes a
safety function to fail (continuous mode) such that the machine is put into a hazardous or
potentially hazardous state; or
b) decreases the probability that the safety function operates correctly when required.
[SOURCE: IEC 61508-4:2010, 3.6.7, modified – "EUC" replaced by "machine"]
3.1.7
functional safety
part of the safety of the machine and the machine control system which depends on the
correct functioning of the safety-related control system, other technology safety-related
systems and external risk reduction facilities

– 8 – IEC TR 63074:2019 © IEC 2019
[SOURCE: IEC 61508-4:2010, 3.1.12, modified – "EUC" replaced by "machine", "E/E/PE"
deleted]
3.1.8
machinery
machine
assembly, fitted with or intended to be fitted with a drive system consisting of linked parts or
components, at least one of which moves, and which are joined together for a specific
application
Note 1 to entry: The term "machinery" also covers an assembly of machines which, in order to achieve the same
end, are arranged and controlled so that they function as an integral whole.
[SOURCE: ISO 12100-1:2010, 3.1, modified – removal of Note 2]
3.1.9
protective measure
measure intended to achieve risk reduction, implemented
– by the designer (inherently safe design, safeguarding and complementary protective
measures, information for use) and/or
– by the user (organization: safe working procedures, supervision, permit-to-work systems;
provision and use of additional safeguards; use of personal protective equipment; training)
[SOURCE: ISO 12100:2010, 3.19, modified – removal of Note]
3.1.10
risk
combination of the probability of occurrence of harm and the severity of that harm
[SOURCE: ISO 12100:2010, 3.12]
3.1.11
safety
freedom from risk which is not tolerable
[SOURCE: ISO/IEC Guide 51:2014, 3.14]
3.1.12
safety function
function of a machine whose failure can result in an immediate increase of the risk(s)
[SOURCE: ISO 12100, 3.30]
3.1.13
safety integrity
probability of a safety-related control system satisfactorily performing the specified safety
functions under all the stated conditions within a stated period of time
[SOURCE: IEC 61508-4:2010, 3.5.4, modified –"an E/E/PE safety-related system" replaced by
"a safety-related control system", removal of Notes]
3.1.14
SCS
Safety-related Control System
part of the control system of a machine which implements a safety function
Note 1 to entry: This is equivalent to SRECS of IEC 62061:2015 or one or several SRP/CS of ISO 13849-1.

[SOURCE: MT 62061, 3.2.3, modified – Note 1 removed]
3.1.15
security
a) measures taken to protect a system
b) condition of a system that results from the establishment and maintenance of measures to
protect the system
c) condition of system resources being free from unauthorized access and from unauthorized
or accidental change, destruction, or loss
d) capability of a computer-based system to provide adequate confidence that unauthorized
persons and systems can neither modify the software and its data nor gain access to the
system functions, and yet to ensure that this is not denied to authorized persons and
systems
e) prevention of illegal or unwanted penetration of, or interference with, the proper and
intended operation of an industrial automation and control system
Note 1 to entry: Measures can be controls related to physical security (controlling physical access to computing
assets) or logical security (capability to login to a given system and application).
[SOURCE: IEC TS 62443-1-1:2009, 3.2.99]
3.1.16
countermeasure
security countermeasure
action, device, procedure, or technique that reduces a threat, a vulnerability, or an attack by
eliminating or preventing it, by minimizing the harm it can cause, or by discovering and
reporting it so that corrective action can be taken
[SOURCE: IEC TS 62443-1-1:2009, 3.2.33, modified – addition of second preferred term
"security countermeasure", removal of Note]
3.1.17
Security Level
SL
measure of confidence that the IACS (industrial automation control system) is free from
vulnerabilities and functions in the intended manner
[SOURCE: IEC 62443-3-3:2013, 3.1.38, modified – addition of second preferred term "SL",
removal of Note]
3.1.18
security risk
expectation of loss expressed as the probability that a particular threat will exploit a particular
vulnerability with a particular consequence
[SOURCE: IEC TS 62443-1-1:2009, 3.2.87, modified – "risk" replaced by "security risk"]
3.1.19
security risk assessment
process that systematically identifies potential vulnerabilities to valuable system resources
and threats to those resources, quantifies loss exposures and consequences based on
probability of occurrence, and (optionally) recommends how to allocate resources to
countermeasures to minimize the exposure
[SOURCE: IEC TS 62443-1-1:2009, 3.2.88, modified –"risk assessment" replaced by "security
risk assessment", "total exposure" replaced by "the exposure", removal of Notes]

– 10 – IEC TR 63074:2019 © IEC 2019
3.1.20
subsystem
entity of the top-level architectural design of a safety-related system where a dangerous
failure of the subsystem results in dangerous failure of a safety function
[SOURCE: IEC 61508-4:2010, 3.4.4, modified – removal of references to 3.6.7 a) within the
definition]
3.1.21
threat
circumstance or event with the potential to adversely affect operations (including mission,
functions, image or reputation), assets, control systems or individuals via unauthorized
access, destruction, disclosure, modification of data and/or denial of service
[SOURCE: IEC 62443-3-3:2013, 3.1.44]
3.1.22
user of the machine
entity with the overall responsibility for the machine
3.1.23
vulnerability
flaw or weakness in a system's design, implementation, or operation and management that
could be exploited to violate the system's integrity or security policy
Note 1 to entry: Vulnerabilities can be the result of intentional design choices or may be unintentional, resulting
from the failure to understand the operational environment. They can also emerge as equipment ages and
eventually becomes obsolete, which occurs in a shorter time than is typical for the underlying process or equipment
under control. Vulnerabilities are not limited to the electronic or network systems.
Machine that initially has limited vulnerability can become more vulnerable with situations such as changing
environment, changing technology, system component failure, unavailability of component replacements, personnel
turnover, and greater threat intelligence.
[SOURCE: IEC/TS 62443-1-1:2009, 3.2.135, modified – addition of Note]
3.1.24
vulnerability assessment
formal description and evaluation of the vulnerabilities in a system
[SOURCE: IEC 62443-2-1:2010, 3.1.44]
4 Safety and security overview
4.1 General
The relationship between safety and security aspects can be characterized as follows:
– a machine has appropriate protective measures;
– security countermeasures applied for a machine are to be appropriate in order to avoid
degradation of the performance of protective measures that implement safety function(s).
NOTE Persons who are qualified to implement security countermeasures are not necessarily the same people
who are qualified to implement SCS. Therefore it is reasonable to mutually exchange information and support.
4.2 Safety objectives
Safety of machinery is based on (safety) risk assessment according to ISO 12100, or by
following a type-C standard for specific machine types, in combination with the derived risk
reduction measures which can be performed by safety function(s).

NOTE The risk assessment including the implemented risk reduction measures is applied by the designers during
the development of machinery to enable the design of machines that are safe for their intended use.
Safety function(s) that are performed by a SCS shall achieve a safety integrity level
equivalent to SIL according to IEC 62061 or PL according to ISO 13849-1.
4.3 Security objectives
I
...
