IEC 60335-2-118:2020

IEC 60335-2-118 ®
Edition 1.0 2020-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-118: Particular requirements for professional ice-cream makers

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-118: Exigences particulières pour les fabriques de crème glacée
à usage professionnel
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

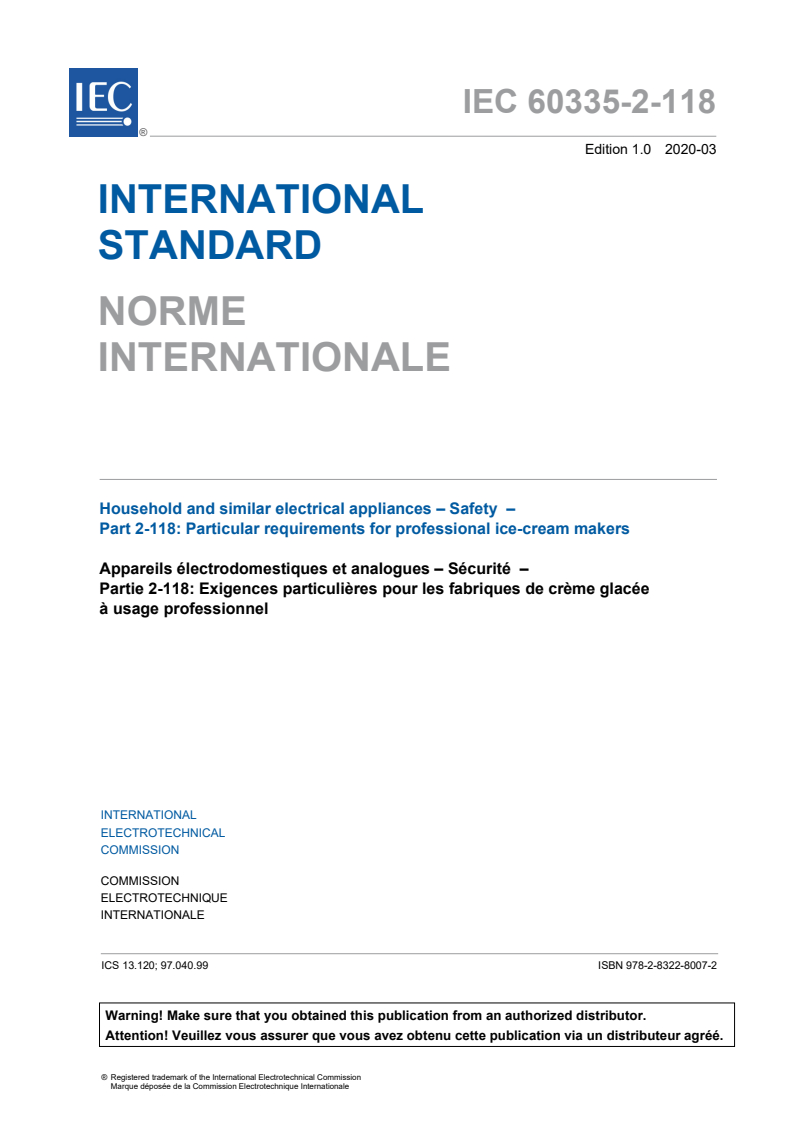

IEC 60335-2-118 ®
Edition 1.0 2020-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –

Part 2-118: Particular requirements for professional ice-cream makers

Appareils électrodomestiques et analogues – Sécurité –

Partie 2-118: Exigences particulières pour les fabriques de crème glacée

à usage professionnel
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.120; 97.040.99 ISBN 978-2-8322-8007-2

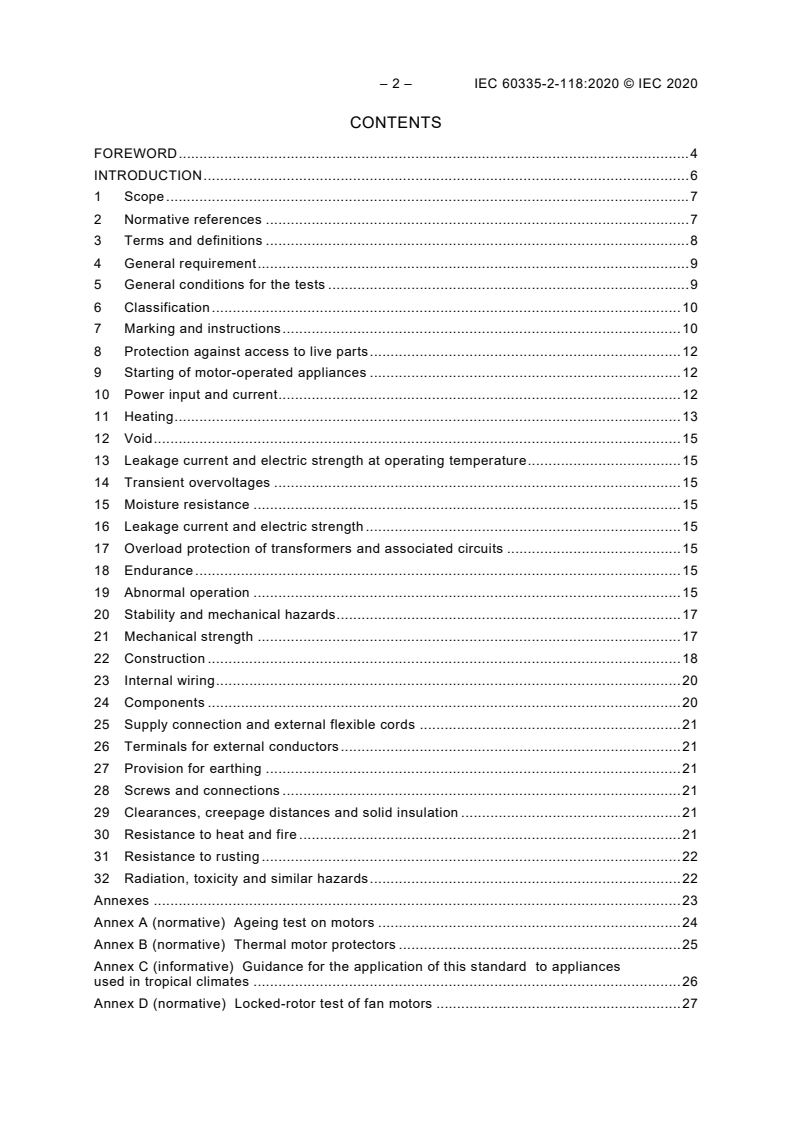

– 2 – IEC 60335-2-118:2020 © IEC 2020
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 General requirement . 9
5 General conditions for the tests . 9
6 Classification . 10
7 Marking and instructions . 10
8 Protection against access to live parts . 12
9 Starting of motor-operated appliances . 12
10 Power input and current . 12
11 Heating . 13
12 Void . 15
13 Leakage current and electric strength at operating temperature . 15
14 Transient overvoltages . 15
15 Moisture resistance . 15
16 Leakage current and electric strength . 15
17 Overload protection of transformers and associated circuits . 15
18 Endurance . 15
19 Abnormal operation . 15
20 Stability and mechanical hazards . 17
21 Mechanical strength . 17
22 Construction . 18
23 Internal wiring . 20
24 Components . 20
25 Supply connection and external flexible cords . 21
26 Terminals for external conductors . 21
27 Provision for earthing . 21
28 Screws and connections . 21
29 Clearances, creepage distances and solid insulation . 21
30 Resistance to heat and fire . 21
31 Resistance to rusting . 22
32 Radiation, toxicity and similar hazards . 22
Annexes . 23
Annex A (normative) Ageing test on motors . 24
Annex B (normative) Thermal motor protectors . 25
Annex C (informative) Guidance for the application of this standard to appliances
used in tropical climates . 26
Annex D (normative) Locked-rotor test of fan motors . 27

Figure AA.1 – Supply circuit for locked-rotor test of a single-phase fan motor . 27

Table 101 – Maximum temperatures for motor-compressors . 14

– 4 – IEC 60335-2-118:2020 © IEC 2020
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES – SAFETY –

Part 2-118: Particular requirements for professional ice-cream makers

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60335-2-118 has been prepared by subcommittee 61C: Safety of
refrigeration appliances for household and commercial use, of IEC technical committee 61:
Safety of household and similar electrical appliances.
The text of this International Standard is based on the following documents:
CDV Report on voting
61C/798/CDV 61C/823A/RVC
Full information on the voting for the approval of this International Standard can be found in the
report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 60335 series, under the general title Household and similar electrical
appliances – Safety, can be found on the IEC website.
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fifth edition (2010) of that standard.

NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to convert
that publication into the IEC standard: Safety requirements for professional ice-cream makers.
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies as
far as is reasonable. When this standard states “addition”, “modification” or “replacement”, the
relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – IEC 60335-2-118:2020 © IEC 2020
INTRODUCTION
It has been assumed in the drafting of this international standard that the execution of its
provisions is entrusted to appropriately qualified and experienced persons.
This standard recognizes the internationally accepted level of protection against hazards such
as electrical, mechanical, thermal, fire and radiation of appliances when operated as in normal
use taking into account the manufacturer's instructions. It also covers abnormal situations that
can be expected in practice and takes into account the way in which electromagnetic
phenomena can affect the safe operation of appliances.
This standard takes into account the requirements of IEC 60364 as far as possible so that there
is compatibility with the wiring rules when the appliance is connected to the supply mains.
However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with in
Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features that impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of the
requirements and, if found to be substantially equivalent, may be considered to comply with the
standard.
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES – SAFETY

Part 2-118: Particular requirements for professional ice-cream makers

1 Scope
This clause of Part 1 is replaced by the following.
This part of IEC 60335 deals with the safety of appliances for making ice cream and artisan
gelato.
Appliances taken into account are those intended for commercial use and similar appliances
not intended for normal household use but which may nevertheless be a source of danger to
the public, such as appliances intended to be used by laymen in shops, stores, by artisans or
on farms, which rated voltage is not more than 250 V for single-phase appliances and 480 V for
other appliances.
Appliances covered by this standard are provided with a refrigerant condensing unit which is
usually incorporated, but for some appliances may be remote.
This standard also applies to following types of appliances:
• mixers to make ice cream and similar pastry products in which, for the preparation of the
product, an heating process is made within the appliance before the cooling process;
• appliances for storing whipping cream mix in a refrigerated tank and for whipping the cream
for the delivery process.
NOTE 101 Attention is drawn to the fact that:
– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements can be
necessary;
– in many countries, additional requirements are specified by the national health authorities, the national
authorities responsible for the protection of labour, the national water supply authorities and similar authorities.
This standard does not apply to:
– appliances with a refrigerating system operating with flammable refrigerant;
– ice cream appliances for household use (IEC 60335-2-24);
– appliances intended exclusively for industrial purposes;
– appliances intended to be used in locations where special conditions prevail, such as the
presence of a corrosive or explosive atmosphere (dust, vapour or gas).
2 Normative references
This clause of Part 1 is applicable except as follows.
Addition:
IEC 60335-2-34:2012, Household and similar electrical appliances – Safety – Part 2-34:
Particular requirements for motor-compressors
IEC 60335-2-34:2012/AMD1:2015
IEC 60335-2-34:2012/AMD2:2016
IEC 60598-1:2014, Luminaires – Part 1: General requirements and tests
IEC 60598-1:2014/AMD1:2017
IEC 60947-5-1, Low-voltage switchgear and controlgear – Part 5-1: Control circuit devices and
switching elements – Electromechanical control circuit devices

– 8 – IEC 60335-2-118:2020 © IEC 2020
IEC 61770, Electric appliances connected to the water mains – Avoidance of backsiphonage
and failure of hose-sets
ISO 817:2014, Refrigerants – Designation and safety classification
3 Terms and definitions
This clause of Part 1 is applicable except as follows.
3.1.9  Addition:
3.1.9.101
normal operation for ice cream making appliances
ice cream making appliances operated under the following conditions:
The appliance uses the maximum quantity of the mixture of ingredients indicated in the
instructions which gives the most unfavourable results, the mixture being at an initial
temperature of 23 °C ± 2 °C.
Appliances are operated the time necessary to reach steady state conditions.
For appliances connected to a water supply, the water other than cooling water, is at a
temperature of 15 °C ± 2 °C and at and the most unfavourable pressure specified in the
instructions. The cooling water is at the temperature specified in 5.7.
For appliances with a separate refrigerant unit, the refrigerant unit is connected to the cabinet
in accordance with the manufacturer’s instructions.
3.1.9.102
normal operation for pasteurising ice cream making appliances
pasteurising ice cream making appliances operated under the following conditions:
Appliances are operated at ambient temperature as indicated in 5.7.
The appliance is filled using the maximum quantity of the mixture of ingredients indicated in the
instructions which gives the most unfavourable results, the mixture being at an initial
temperature of 23 °C ± 2 °C.
The appliance shall be operated for the time necessary for the mix to reach the maximum
pasteurisation temperature and then, for the cooling process, for the number of cycles needed
to reach steady state conditions.
3.1.9.103
normal operation for cream whipping appliances
cream whipping appliances operated under the following conditions:
Appliances are operated at an ambient temperature as indicated in 5.7.
The appliance is filled with liquid cream being kept at preservation temperature of 4 °C ± 1 °C
in the maximum quantity prescribed by the instructions and shall be operated the time
necessary to reach steady state conditions.
The appliance is operated in continuous or cyclic mode, following the instructions for user.
3.101
compression-type appliance
appliance in which refrigeration is effected by the vaporisation at low pressure in a heat
exchanger (evaporator) of a liquid refrigerant, the vapour thus formed being restored to the
liquid state by mechanical compression at a higher pressure and subsequent cooling in another
heat exchanger (condenser)
3.102
condenser
heat exchanger in which, after compression, vaporised refrigerant is liquefied by rejecting heat
to an external cooling medium
3.103
evaporator
heat exchanger in which, after pressure reduction, the liquid refrigerant is vaporised by
absorbing heat from the medium to be refrigerated
3.104
refrigerant unit
factory assembled unit for performing part of the refrigeration cycle (compressing gas,
condensation or gas cooling) comprising one or more refrigerant compressors with motors,
condensers, liquid receivers, interconnecting pipe work and ancillary equipment all mounted on
a common base
3.105
heating system
heating element with associated components such as timers, switches, thermostats and other
controls
3.106
ancillary heating element
heating device which performs an auxiliary function, such as a defrost heater, door heater or
anti-condensation heater
3.107
pasteurising cycle
cycle during which the mixture is brought to the pasteurising temperature and then immediately
cooled down to a preservation temperature ≤ 5 °C
3.108
skilled person
person having the appropriate training and experience necessary to be aware of hazards to
which they are exposed in performing a task and of measures to minimise the danger to
themselves or other persons
3.109
free space
any space with a volume exceeding 60 l where a child can be entrapped and which is accessible
after opening any door, lid or drawer and removing any detachable internal parts, including
shelves, containers or drawers which are only accessible after opening any door, lid or drawer
In calculating the volume, a space with any single dimension not exceeding 150 mm or any two
orthogonal dimensions each of which do not exceed 200 mm is ignored.
4 General requirement
This clause of part 1 is applicable.
5 General conditions for the tests
This clause of part 1 is applicable except as follows.
5.2 Addition:
NOTE 101 Separate samples of the motor-compressor can be needed for the tests of 19.1.
5.3 Addition:
The test of 15.101 is carried out immediately after the test of 15.2.
5.4 Replacement:
For appliances intended to be connected to water supply, water is supplied at the appropriate
rated pressure, according to the instructions.

– 10 – IEC 60335-2-118:2020 © IEC 2020
5.7 Addition:
Tests according to Clauses 10, 11, 13 and 19.103 are carried out at an ambient temperature
of:
– 32 °C ± 1 °C on appliances of extended temperate (SN) and temperate (N) classes;
– 38 °C ± 1 °C on appliances of subtropical (ST) class;
– 43 °C ± 1 °C on appliances of tropical (T) class.
and for appliances connected to a water supply for cooling at a water temperature
– 20 °C ± 1 °C on appliances of extended temperate (SN) and temperate (N) classes;
– 25 °C ± 1 °C on appliances of subtropical (ST) class;
– 30 °C ± 1 °C on appliances of tropical (T) class.
Other tests are carried out at an ambient temperature of 20 °C ± 5 °C and with cooling water at
a temperature of 15 °C ± 2 °C.
Appliances classified for several climatic classes are tested at the ambient temperature relevant
to the highest climatic class.
NOTE 101 Steady conditions are considered to be established when three successive readings of the temperature,
taken at approximately 60 min intervals, at the same point of any operating cycle, do not differ by more than1 K.

5.101 Compression-type appliances with heating systems are tested as combined
appliances.
6 Classification
This clause of part 1 is applicable except as follows.
6.1 Replacement:
For appliances provided with hoses and water outlets for cleaning internal parts designed for
ice cream production, the protection against harmful ingress of water shall be at least IPX1.
6.101 Appliances shall be of one or more of the following climatic classes:
– appliances of extended temperate class (SN);
– appliances of temperate class (N);
– appliances of subtropical class (ST);
– appliances of tropical class (T).
Compliance is checked by inspection.
NOTE The climatic classes are specified in IEC 62552-1:2015.
7 Marking and instructions
This clause of part 1 is applicable except as follows.
7.1 Modification:
Replace the third dash by:
– rated current in watts and/or amperes;
Addition:
Appliances shall also be marked with:
– the power input, in watts and/or amperes, of heating systems, if greater than 100 W;
– the letters SN, N, ST or T indicating the climatic class of the appliance;

– the total mass of the refrigerant for each separate refrigerant circuit;
– for a single component refrigerant, at least one of the following:
• the chemical name,
• the chemical formula,
• the refrigerant number;
– for a blended refrigerant, at least one of the following:
• the chemical name and nominal proportion of each of the components,
• the chemical formula and nominal proportion of each of the components,
• the refrigerant number and nominal proportion of each of the components,
• the refrigerant number of the refrigerant blend;
– the chemical name or refrigerant number of the principal component of the insulation
blowing gas;
Refrigerant numbers shall be designated in accordance with ISO 817.
– serial number and year of construction.
NOTE 101 Pipe insulation or small items of insulation are not required to be marked.
Appliances without automatic water level control shall be marked with the maximum permissible
water level. Appliances shall be marked with details of the source of supply other than electrical,
if any.
7.2 Addition:
NOTE 101 As an alternative, temperature values in degrees Celsius can be indicated on a control scale.
7.12 Modification:
The instructions concerning persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge and children playing with the appliance
are not required.
7.12.1 Addition:
For appliances with a separate refrigerant unit, the instructions shall include a statement
containing the substance of the following:
The installation of the appliance and the refrigerant unit must only be made by the
manufacturer's service personnel or similarly skilled person.
The information provided with an appliance without an incorporated refrigerant unit shall
include the substance of the following:
– information on the type of separate refrigerant unit to which the cabinet shall be connected;
– an electrical diagram showing the electrical terminals for connections and the functions of
the control system;
– the recommended evaporating pressure and heat extraction rate;
– the maximum input current of each connection.
Instructions shall include the method for replacing illuminating lamps.
The instructions shall include information on the installation of ancillary devices which are
available as optional accessories and intended to be installed by the user. lf it is intended that
incorporated ancillary devices are to be installed only by the manufacturer or its service agent,
this shall be stated.
The instructions for appliances intended to be connected to the water supply shall state:
– the maximum permissible inlet water pressure, in pascals or bars;
– the minimum permissible inlet water pressure, in pascals or bars, if this is necessary for the
correct operation of the appliance;

– 12 – IEC 60335-2-118:2020 © IEC 2020
– the substance of the following warning:
WARNING – connect to potable water supply only,
lf the appliance is constructed so that it is not protected against water jets, clear and detailed
instructions for the user shall be delivered together with the appliance. lt shall be stated in the
instructions that these appliances shall not be cleaned with a water jet.
7.15 Addition:
The marking of the maximum rated wattage of illuminating lamps shall be easily discernible
while the lamp is being replaced.
Equipotential bonding terminals shall be indicated by symbol number 5021 as specified in
IEC 60417-5021 (2002-10).
These indications shall not be placed on screws, removable washers or other parts which can
be removed when conductors are being connected.
Compliance is checked by inspection.
8 Protection against access to live parts
This clause of part 1 is applicable except as follows.
8.1.1 Addition:
Where an appliance has parts which require adjustment under operating conditions by a skilled
person after removal of non-detachable parts, live parts shall not be accessible and they
shall be protected at least by basic insulation.
NOTE 101 Examples of adjustable parts are inaccessible thermostats, temperature limiters and thermostatic
expansion valves.
9 Starting of motor-operated appliances
This clause of Part 1 is not applicable.
10 Power input and current
This clause of part 1 is applicable except as follows.
10.1 Modification:
Replace the third dash item of the first paragraph of the test specification by the following:
– the appliance being operated under normal operation except that user adjustable
temperature controls are set to give the lowest temperature allowed by the instruction
manual.
Addition:
The input to be considered is the maximum power input measured, excluding starting power
input but including the power input of the incorporated ancillary devices, if any.
10.2 Modification:
Replace the third dash item of the first paragraph of the test specification by the following:
– the appliance being operated under normal operation except that user adjustable
temperature controls are set to give the lowest temperature allowed by the instruction
manual.
Addition:
The current to be considered is the maximum current measured, excluding starting current but
including the current of the incorporated ancillary devices, if any.

NOTE 101 Starting current is considered to be excluded if the first current measurement is made approximately
1 min after starting.
10.101 The power input of any heating system shall not deviate from the power input of these
systems marked on the appliance by more than the deviation shown in Table 1.
Compliance is checked by operating the appliance at rated voltage and measuring the power
input of the heating system after the power input has stabilised.
11 Heating
This clause of part 1 is applicable except as follows.
11.1 Addition:
Compliance is checked by determining the temperature rise of the various parts under the
conditions specified in 11.2 to 11.7.
lf the winding temperatures of motor-compressors exceed the values given in Table 101,
compliance is checked by the test of 11.101.
The winding temperatures of motor-compressors complying with lEC 60335-2-34:2012
including its Annex AA are not measured.
11.2 Replacement:
Built-in appliances are installed in accordance with the instructions for installation.
Other appliances normally placed on a floor or table in use are placed on the floor of a test
corner as near to the walls as possible, unless the manufacturer indicates in the instructions
for installation that a free distance shall be observed from the walls or the ceiling, in which case
this distance is observed during the test.
The appliance installed as above is placed in a room maintained at an ambient temperature
according to 5.7 with the doors or lids open until the whole assembly is at room temperature.
11.7 Replacement:
The appliance is operated for a number of cycles such that at least one hour running is obtained,
or until steady conditions are established, whichever is the most unfavourable.
11.8 Modification:
Replace the paragraphs above Table 3 by the following.
During the test, protective devices other than self-resetting thermal motor-protectors for
motor-compressors shall not operate. When steady conditions are established, thermal motor-
protectors for motor-compressors shall not operate.
During the test, sealing compound, if any, shall not flow out.
During the test, temperature rises are monitored continuously.
For appliances of extended temperate (SN) or temperate (N) class, the temperature rises shall
not exceed the values given in Table 3.
For appliances of subtropical (ST) or tropical (T) class, the temperature rises shall not exceed
the values given in Table 3 reduced by 7 K.
Addition:
For motor-compressors not conforming to IEC 60335-2-34:2012 (including its Annex AA), the
temperatures of:
– housings of motor-compressors, and
– windings of motor-compressors
shall not exceed the values given in Table 101.

– 14 – IEC 60335-2-118:2020 © IEC 2020
For motor-compressors conforming to IEC 60335-2-34:2012 (including its Annex AA), the
temperatures of their
– housings of motor-compressors,
– windings of motor-compressors, and
– other parts such as its protection system and control system, and all other components that
have been tested together with the motor-compressor during the tests of
IEC 60335-2-34:2012 and its Annex AA
are not measured.
The entry in Table 3 relating to the temperature rise of the external enclosure of motor operated
appliances is applicable to all appliances covered by this standard. However, it is not
applicable to those parts of the external enclosure of the appliance that are,
– for built-in appliances, not accessible parts after installation in accordance with the
instructions for installation;
– for other appliances, on that part of the appliance that according to the instructions for
installation is intended to be placed against a wall with a free distance not exceeding 75 mm.
Table 101 – Maximum temperatures for motor-compressors
Part of the motor-compressor Temperature
°C
Windings with:
– synthetic insulation 140
– cellulosic insulation or the like 130
Housing 150
The temperature of ballast windings and their associated wiring shall not exceed the values
specified in 12.4 of IEC 60598-1:2014, when measured under the conditions stated.
11.101  lf the temperature of any parts of the appliance is higher than the required limits given
in 11.8, the test is performed again, the thermostats or similar control devices being set at the
lowest temperature with the short-circuit removed.
11.102  Heating systems incorporated in appliances shall not give rise to excessive
temperatures.
Compliance is checked by the following test:
Heating systems are energised as follows:
– for compression-type appliances in which the heating system can be energised with the
rest of the appliance non energised, the supply voltage is as specified in 11.4;
– for other compression-type appliances, the supply voltage is as specified in 11.6.
The test is continued until steady conditions are established.
Temperature rises are measured by means of thermocouples fixed on the outside surface of
the insulation of the heating systems. Temperature rises shall not exceed the values given in
11.8.
11.103 Ancillary heating elements are energised, with the refrigerating system switched off,
if this is possible in normal use. They are supplied at 1,15 times their power input rating, until
steady conditions are reached.
Temperature rises are measured by thermocouples fixed on the outside surface of the insulation
of the ancillary heating element.
Temperature rises shall not exceed the values specified in 11.8.

12 Void
13 Leakage current and electric strength at operating temperature
This clause of part 1 is applicable.
14 Transient overvoltages
This clause of Part 1 is applicable.
15 Moisture resistance
This clause of part 1 is applicable except as follows.
15.2 Addition:
Furthermore, if the inspection shows that water is in contact with the defrost heating element
or its insulation, then the apparatus shall withstand the test of 22.102.
15.101 For appliances which are directly connected to the water supply, the container, or that
part of the appliance which serves as the container, is filled with water as in normal use. The
inlet valve is then held open and the filing is continued for 1 min after the first evidence of
overflow.
Where no spillage occurs due to operation of a device that prevents such spillage, the inlet
valve is held open for a further 5 min following the operation of this device.
Immediately after the test, the appliance shall withstand the electric strength test of 16.3 and
inspection shall show that there is no trace of water on insulation which could result in a
reduction of creepage distances and clearances below the values specified in Clause 29.
15.102 Appliances, other than built-in appliances, are tilted at an angle of up to 2° the position
of normal use in the direction which is likely to be the most unfavourable for this test.
The appliance is disconnected from the supply and the controls are set to the on position. From
a height of approximately 50 mm, 0,5 l of the solution as specified in 15.2 is poured uniformly
in approximately 60 s over any surfaces with less than 2° inclination to the horizontal. Only
surfaces measuring more than 60 mm in at least one direction, and less than 2,2 m above the
floor are taken into consideration.
Immediately after the test, the appliance shall withstand the electric strength test of 16.3 and
inspection shall show that there is no trace of water on insulation which could result in a
reduction of clearances and creepage distances below the values specified in Clause 29.
16 Leakage current and electric strength
This clause of part 1 is applicable.
17 Overload protection of transformers and associated circuits
This clause of part 1 is applicable.
18 Endurance
This clause of part 1 is not applicable.
19 Abnormal operation
This clause of part 1 is applicable except as follows.
19.1 Addition:
Subclauses 19.2 and 19.3 do not apply to heating systems.

– 16 – IEC 60335-2-118:2020 © IEC 2020
In addition, fan motors and their thermal motor-protectors, if any, are subjected to the test of
Annex AA.
NOTE 101 For a given type of fan motor, thermal motor-protector combination, this test is performed only once.
Motor-compressors not complying with IEC 60335-2-34 are subjected to the tests of 19.101 and
19.102 of IEC 60335-2-34:2012 and compliance with these tests is checked in accordance with
19.104 of that standard. Unless otherwise specified, compliance with the tests of Clause 19 is
checked as described in
...
