oSIST prEN 13001-3-8:2022

SLOVENSKI STANDARD
oSIST prEN 13001-3-8:2022
01-februar-2022
Žerjavi - Konstrukcija, splošno - Mejna stanja in dokaz varnosti mehanizma - 3-8.
del: Gredi
Cranes - General design - Limit states and proof competence of machinery - Part 3-8:
Shafts
Krane - Konstruktion allgemein - Teil 3-8: Grenzzustände und Sicherheitsnachweise für
Maschinenbauteile - Wellen
Appareils de levage à charge suspendue - Conception générale - Partie 3-8 : États
limites et vérification d’aptitude des éléments de mécanismes - Arbres
Ta slovenski standard je istoveten z: prEN 13001-3-8
ICS:
21.120.10 Gredi Shafts
53.020.20 Dvigala Cranes
oSIST prEN 13001-3-8:2022 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 13001-3-8:2022

---------------------- Page: 2 ----------------------
oSIST prEN 13001-3-8:2022


DRAFT
EUROPEAN STANDARD
prEN 13001-3-8
NORME EUROPÉENNE

EUROPÄISCHE NORM

December 2021
ICS 21.120.10; 53.020.20
English Version

Cranes - General design - Limit states and proof
competence of machinery - Part 3-8: Shafts
Appareils de levage à charge suspendue - Conception Krane - Konstruktion allgemein - Teil 3-8:
générale - Partie 3-8 : États limites et vérification Grenzzustände und Sicherheitsnachweise für
d'aptitude des éléments de mécanismes - Arbres Maschinenbauteile - Wellen
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 147.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.


EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 13001-3-8:2021 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------
oSIST prEN 13001-3-8:2022
prEN 13001-3-8:2021 (E)

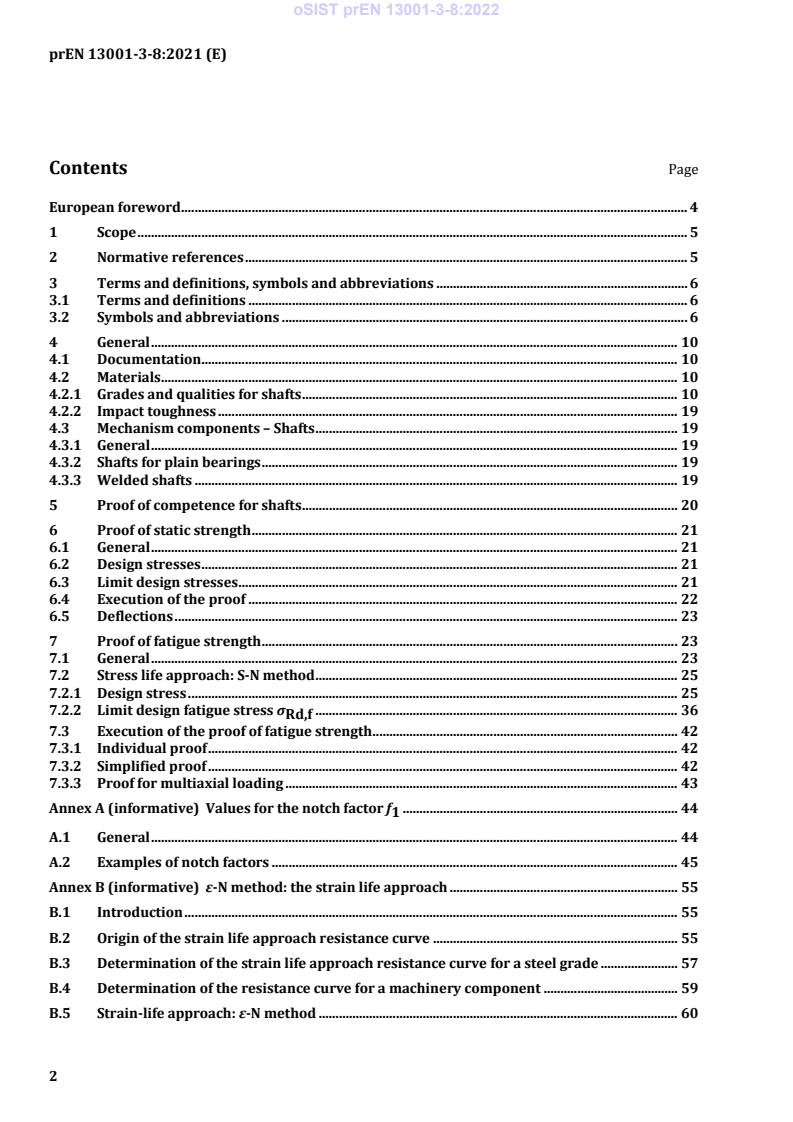

Contents Page
European foreword . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions, symbols and abbreviations . 6
3.1 Terms and definitions . 6
3.2 Symbols and abbreviations . 6
4 General . 10
4.1 Documentation . 10
4.2 Materials . 10
4.2.1 Grades and qualities for shafts . 10
4.2.2 Impact toughness . 19
4.3 Mechanism components – Shafts . 19
4.3.1 General . 19
4.3.2 Shafts for plain bearings . 19
4.3.3 Welded shafts . 19
5 Proof of competence for shafts . 20
6 Proof of static strength . 21
6.1 General . 21
6.2 Design stresses . 21
6.3 Limit design stresses . 21
6.4 Execution of the proof . 22
6.5 Deflections . 23
7 Proof of fatigue strength . 23
7.1 General . 23
7.2 Stress life approach: S-N method . 25
7.2.1 Design stress . 25
7.2.2 Limit design fatigue stress σ . 36
Rd,f
7.3 Execution of the proof of fatigue strength . 42
7.3.1 Individual proof . 42
7.3.2 Simplified proof . 42
7.3.3 Proof for multiaxial loading . 43
Annex A (informative) Values for the notch factor f . 44
1
A.1 General . 44
A.2 Examples of notch factors . 45
Annex B (informative) ε-N method: the strain life approach . 55
B.1 Introduction . 55
B.2 Origin of the strain life approach resistance curve . 55
B.3 Determination of the strain life approach resistance curve for a steel grade . 57
B.4 Determination of the resistance curve for a machinery component . 59
B.5 Strain-life approach: ε-N method . 60
2

---------------------- Page: 4 ----------------------
oSIST prEN 13001-3-8:2022
prEN 13001-3-8:2021 (E)
B.5.1 General . 60
B.5.2 Determination of strain history . 60
B.5.3 Determination of the design fatigue damage due to the strain history . 63
B.5.4 Determination of the total fatigue damage due to combined normal and/or shear
stresses . 64
B.6 Strain-life approach (ε-N method): proof of fatigue strength of a shaft (example) . 67
B.6.1 Introduction. 67
B.6.2 Proof of fatigue strength . 67
Annex C (informative) Selection of a suitable set of crane standards for a given application . 73
Annex D (informative) List of hazards . 75
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2006/42/EC aimed to be covered . 76
Bibliography . 77

3

---------------------- Page: 5 ----------------------
oSIST prEN 13001-3-8:2022
prEN 13001-3-8:2021 (E)
European foreword
This document (prEN 13001-3-8:2021) has been prepared by Technical Committee CEN/TC 147 “Cranes
– Safety”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
This document has been prepared under a standardization request given to CEN by the European
Commission and the European Free Trade Association, and supports essential requirements of
EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this
document.
This European Standard is one part of the EN 13001 series. The other parts are as follows:
— Part 1: General principles and requirements
— Part 2: Load actions
— Part 3-1: Limit states and proof of competence of steel structures
— Part 3-2: Limit states and proof of competence of wire ropes in reeving systems
— Part 3-3: Limit states and proof of competence of wheel/rail contacts
— Part 3-4: Limit states and proof of competence of machinery — Bearings
— Part 3-5: Limit states and proof of competence of forged hooks
— Part 3-6: Limit states and proof of competence of machinery — Hydraulic cylinders
— Part 3-7: Limit states and proof of competence of machinery — Gears
4

---------------------- Page: 6 ----------------------
oSIST prEN 13001-3-8:2022
prEN 13001-3-8:2021 (E)
1 Scope
This document is intended to be used together with the other generic parts of the EN 13001 series of
standards, see Annex C, and as such, they specify general conditions, requirements and methods to
prevent mechanical hazards of cranes by design and theoretical verification.
Specific requirements for particular types of cranes are given in the appropriate European standard for
the particular crane type.
This document covers specific shafts and rotating or non-rotating axles as an integrated part of cranes,
that are not dealt with by other EN 13001 standards (e.g. pinned connections in EN 13001-3-1). It is not
applicable to shafts or axles being part of standard equipment (e.g. gearboxes, motors).
The significant hazardous situations and hazardous events that could result in risks to persons during
intended use and reasonably foreseeable misuse are identified by Annex D. Clauses 4 to 7 of this
document are necessary to reduce or eliminate these risks.
Clauses 4 to 7 of this document are necessary to reduce or eliminate these risks associated with the
following hazards:
— exceeding the limits of strength (yield, ultimate, fatigue);
— exceeding temperature limits of material or components.
This standard does not deal with the proofs of strength of welded and cast shafts.
This document is not applicable to cranes that are manufactured before the date of its publication as
EN and serves as reference base for the European standards for particular crane types (see Annex C).
NOTE prEN 13001-3-8:2021 deals only with limit state method in accordance with EN 13001-1:2015.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 10025-2:2019, Hot rolled products of structural steels - Part 2: Technical delivery conditions for non-
alloy structural steels
EN 10025-3:2019, Hot rolled products of structural steels - Part 3: Technical delivery conditions for
normalized/normalized rolled weldable fine grain structural steels
EN 10025-4:2019, Hot rolled products of structural steels - Part 4: Technical delivery conditions for
thermomechanical rolled weldable fine grain structural steels
EN 10088-3:2014, Stainless steels - Part 3: Technical delivery conditions for semi-finished products, bars,
rods, wire, sections and bright products of corrosion resisting steels for general purposes
EN 13001-1:2015, Cranes - General design - Part 1: General principles and requirements
EN 13001-2:2021, Crane safety - General design - Part 2: Load actions
EN 13001-3-1:2012+A2:2018, Cranes - General Design - Part 3-1: Limit States and proof competence of
steel structure
EN 13001-3-4:2018, Cranes - General design - Part 3-4: Limit states and proof of competence of machinery
- Bearings
5

---------------------- Page: 7 ----------------------
oSIST prEN 13001-3-8:2022
prEN 13001-3-8:2021 (E)
EN ISO 683-1:2018, Heat-treatable steels, alloy steels and free-cutting steels - Part 1: Non-alloy steels for
quenching and tempering (ISO 683-1:2016)
EN ISO 683-2:2018, Heat-treatable steels, alloy steels and free-cutting steels - Part 2: Alloy steels for
quenching and tempering (ISO 683-2:2016)
EN ISO 683-3:2019, Heat-treatable steels, alloy steels and free-cutting steels - Part 3: Case-hardening steels
(ISO 683-3:2019)
EN ISO 683-5:2021, Heat treatable steels, alloy steels and free-cutting steels - Part 5: Nitriding steels (ISO
683-5:2017)
EN ISO 12100:2010, Safety of machinery - General principles for design - Risk assessment and risk reduction
(ISO 12100:2010)
ISO 4306-1:2007, Cranes — Vocabulary — Part 1: General
3 Terms and definitions, symbols and abbreviations
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in EN ISO 12100:2010 and the
following apply. For the definitions of loads, ISO 4306-1:2007, Clause 6 applies.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
3.1.1
shaft
cylindrical rotating rod for the transmission of motion or power and on which are fixed parts for the
transmission of motion or power
3.1.2
axle
spindle on which a component (e.g. wheel, sheave) revolves or which rotates with a component (or
components) attached to it
3.2 Symbols and abbreviations
The symbols and abbreviations used in this document are given in Table 1.
6

---------------------- Page: 8 ----------------------
oSIST prEN 13001-3-8:2022
prEN 13001-3-8:2021 (E)
Table 1 — Symbols and abbreviations
Symbols, abbreviations Description
A
Minimum impact toughness
v
b Fatigue strength exponent, for a material (ε-N method)
bp Fatigue strength exponent, for a component (ε-N method)
c Fatigue ductility exponent, for a material (ε-N method)
C Total number of working cycles (see EN 13001-1:2015)
cp Fatigue ductility exponent, for a component (ε-N method)
D
Design fatigue damage
Sd
D
Limit design fatigue damage
Rd
d Diameter
d
Equivalent diameter
equ
E Modulus of elasticity
f
Limit design normal stress
Rd,σ
f
Limit design shear stress
Rd,τ
f
Ultimate strength of material
u
f
Yield strength of material
y
f
Notch factor
1
f
Size factor
2
f
Surface roughness factor
3
f
Surface treatment factor
4
′ Factor of cyclic resistance (ε-N method)
K
K
Stress concentration factor
t
k
Stress spectrum factor (see EN 13001-1:2015)
m
k
Shaft stress spectrum factor
s
l
Design number of shaft sets
s
m
Inverse slope of σ/N-curve (or S-N curve) for normal stresses
σ
m
Inverse slope of σ/N-curve (or S-N curve) for shear stresses
τ
′ Second inverse slope of σ/N-curve
m
n
Number of stress cycles, of range i
i
′ Cyclic strain-hardening exponent (ε-N method)
n
ˆ
Total number of stress cycles (see EN 13001-1:2015)
n
N
Number of stress cycles to failure, for stress of range i
fi
7

---------------------- Page: 9 ----------------------
oSIST prEN 13001-3-8:2022
prEN 13001-3-8:2021 (E)
Symbols, abbreviations Description
N; N
Number of stress cycles to failure
f
N
Reference number of stress cycles
Ref
r Notch radius
R Stress ratio
R
Design resistance
d
R
Average depth of surface profile according to EN ISO 4287:1998
a
S
Design stress or design force
d
s
Shaft stress history parameter
s
T Operation temperature
z Adaptation factor
'
Fatigue ductility factor (ε-N method)
ε

f
ε
Total strain amplitude (ε-N method)
a
ε
Elastic strain amplitude (ε-N method)
ae
ε
Plastic strain amplitude (ε-N method)
ap
ε
Amplitude of elastic strain (ε-N method)
e,a
ε
Elastic local strain value (ε-N method)
e,loc
ε
Real strain value (ε-N method)
r
ε
Amplitude of strain value (ε-N method)
r,a
ε
Amplitude of strain value, of range i (ε-N method)
r,i
ε
Real local strain value (ε-N method)
r,loc
γ
Safety factor for fatigue
ff
γ
General resistance factor
m
γ
Fatigue strength specific resistance factor
Mf
γ
Partial safety factor (see EN 13001-2:2021)
p
γ
Resulting resistance factor
Rm
γ
Specific resistance factor
sm
υ
Relative total number of stress cycles
s
σ
Design stress amplitude
a,i
ˆ
σ
Maximal design stress amplitude
ai,
σ
Material fatigue strength (normal stress)
d,ref
σ
Component fatigue strength (normal stress)
d
8

---------------------- Page: 10 ----------------------
oSIST prEN 13001-3-8:2022
prEN 13001-3-8:2021 (E)
Symbols, abbreviations Description
σ
Alternating fatigue strength (normal stress)
dtr
σ
Elastic local stress (ε-N method)
e,loc
σ
Nominal elastic stress (ε-N method)
e,nom
σ
Mean equivalent elastic local stress (ε-N method)
eq,e,loc,m
σ
Amplitude of equivalent elastic local stress (ε-N method)
eq,e,loc,a
σ
Maximal equivalent elastic local stress (ε-N method)
eq,e,loc,max
σ
Minimal equivalent elastic local stress (ε-N method)
eq,e,loc,min
σ
Equivalent normal stress
eq
σ
Amplitude of equivalent normal stress
eq,a
'
Fatigue resistance factor (ε-N method)
σ

f
σ
Mean stress
m
σ
Amplitude of real local stress (ε-N method)
r,a
σ
Real local stress (ε-N method)
r,loc
σ
Mean real local stress (ε-N method)
r,m
σ
Limit design normal stress for fatigue
Rd,f
σ
Design normal stress
Sd
σ
Design normal stress for fatigue
Sd,f
σ
Equivalent design normal stress
Sd,eq
τ
Limit design shear stress for fatigue
Rd,f
τ
Design shear stress
Sd
9

---------------------- Page: 11 ----------------------
oSIST prEN 13001-3-8:2022
prEN 13001-3-8:2021 (E)
4 General
4.1 Documentation
The documentation of the proof of competence shall include:
— design assumptions;
— applicable loads and load combinations;
— material grades and qualities;
— relevant limit states;
— results of the proof of competence calculations and, when applicable, tests.
4.2 Materials
4.2.1 Grades and qualities for shafts
European and International Standards specify materials and specific values. This document gives a
preferred selection of materials with their mechanical properties.
For shafts, steel in accordance with following European Standards shall be used, alternatively grades and
qualities other than those mentioned in the above standards may be used if the mechanical properties
and the chemical composition are specified in a manner corresponding to relevant European standards:
— steels for quenching and tempering (see Table 2):
— non alloy steels: EN ISO 683-1:2018;
— alloy steels: EN ISO 683-2:2018;
— structural steels (see Table 2);
— non-alloy structural steels: EN 10025-2:2019;
— weldable fine grain structural steels in conditions:
1) normalized (N) EN 10025-3:2019;
2) thermomechanical (M) EN 10025-4:2019;
— stainless steels (see Table 2);
— semi-finished (bars, rods …): EN 10088-3:2014;
— steels with heat treatment;
— case hardening: EN ISO 683-3:2019;
— nitriding (see Table 2): EN ISO 683-5:2021.
Table 2 shows specific values for the nominal value of strength f , f . For more information see the specific
u y
European standards listed above.
10

---------------------- Page: 12 ----------------------
oSIST prEN 13001-3-8:2022
prEN 13001-3-8:2021 (E)
Table 2 — Specific values of a selection of steels
Steels for quenching and tempering, in the quenched and tempered condition (+QT)
Nominal strength
Steel Standard Diameter d/Thickness t f f
y u
Yield Ultimate
2 2
 mm N/mm N/mm
C22E d ≤ 16 or t ≤ 8 340 500
C22R 16 < d ≤ 40 or 8 < t ≤ 20 290 470
C35E d ≤ 16 or t ≤ 8 430 630
C35R 16 < d ≤ 40 or 8 < t ≤ 20 380 600
C35 40 < d ≤ 100 or 20 < t ≤ 60 320 550
C40E d ≤ 16 or t ≤ 8 460 650
C40R 16 < d ≤ 40 or 8 < t ≤ 20 400 630
C40 40 < d ≤ 100 or 20 < t ≤ 60 350 600
C45E d ≤ 16 or t ≤ 8 490 700
C45R 16 < d ≤ 40 or 8 < t ≤ 20 430 650
C45 40 < d ≤ 100 or 20 < t ≤ 60 370 630
EN ISO 683-1:2018
d ≤ 16 ou t ≤ 8 520 750
C50E
16 < d ≤ 40 or 8 < t ≤ 20 460 700
C50R
40 < d ≤ 100 or 20 < t ≤ 60 400 650
C55E d ≤ 16 or t ≤ 8 550 800
C55R 16 < d ≤ 40 or 8 < t ≤ 20 490 750
C55 40 < d ≤ 100 or 20 < t ≤ 60 420 700
C60E d ≤ 16 or t ≤ 8 580 850
C60R 16 < d ≤ 40 or 8 < t ≤ 20 520 800
C60 40 < d ≤ 100 or 20 < t ≤ 60 450 750
d ≤ 16 or t ≤ 8 590 800
28Mn6 16 < d ≤ 40 or 8 < t ≤ 20 490 700
40 < d ≤ 100 or 20 < t ≤ 60 440 650
11

---------------------- Page: 13 ----------------------
oSIST prEN 13001-3-8:2022
prEN 13001-3-8:2021 (E)
Steels for quenching and tempering, in the quenched and tempered condition (+QT)
Nominal strength
Steel Standard Diameter d/Thickness t f f
y u
Yield Ultimate
2 2
 mm N/mm N/mm
d ≤ 16 or t ≤ 8 550 800
38Cr2 16 < d ≤ 40 or 8 < t ≤ 20 450 700
40 < d ≤ 100 or 20 < t ≤ 60 350 600
d ≤ 16 or t ≤ 8 650 900
46Cr2 16 < d ≤ 40 or 8 < t ≤ 20 550 800
40 < d ≤ 100 or 20 < t ≤ 60 400 650
d ≤ 16 or t ≤ 8 700 900
34Cr4
16 < d ≤ 40 or 8 < t ≤ 20 590 800
34CrS4
40 < d ≤ 100 or 20 < t ≤ 60 460 700
d ≤ 16 or t ≤ 8 750 950
37Cr4
16 < d ≤ 40 or 8 < t ≤ 20 630 850
37CrS4
40 < d ≤ 100 or 20 < t ≤ 60 510 750
EN ISO 683-2:2018
d ≤ 16 or t ≤ 8 800 1000
41Cr4
16 < d ≤ 40 or 8 < t ≤ 20 660 900
41CrS4
40 < d ≤ 100 or 20 < t ≤ 60 560 800
d ≤ 16 or t ≤ 8 700 900
25CrMo4 16 < d ≤ 40 or 8 < t ≤ 20 600 800
25CrMoS4 40 < d ≤ 100 or 20 < t ≤ 60 450 700
100 < d ≤ 160 or 60 < t ≤ 100 400 650
d ≤ 16 or t ≤ 8 800 1000
16 < d ≤ 40 or 8 < t ≤ 20 650 900
34CrMo4
40 < d ≤ 100 or 20 < t ≤ 60 550 800
34CrMoS4
100 < d ≤ 160 or 60 < t ≤ 100 500 750
160 < d ≤ 250 or 100 < t ≤ 160 450 700
d ≤ 16 or t ≤ 8 900 1100
16 < d ≤ 40 or 8 < t ≤ 20 750 1000
42CrMo4
EN ISO 683-2:2018 40 < d ≤ 100 or 20 < t ≤ 60 650 900
42CrMoS4
100 < d ≤ 160 or 60 < t ≤ 100 550 800
160 < d ≤ 250 or 100 < t ≤ 160 500 750
12

---------------------- Page: 14 ----------------------
oSIST prEN 13001-3-8:2022
prEN 13001-3-8:2021 (E)
Steels for quenching and tempering, in the quenched and tempered condition (+QT)
Nominal strength
Steel Standard Diameter d/Thickness t f f
y u
Yield Ultimate
2 2
 mm N/mm N/mm
d ≤ 16 or t ≤ 8 900 1100
16 < d ≤ 40 or 8 < t ≤ 20 780 1000
50CrMo4 40 < d ≤ 100 or 20 < t ≤ 60 700 900
100 < d ≤ 160 or 60 < t ≤ 100 650 850
160 < d ≤ 250 or 100 < t ≤ 160 550 800
d ≤ 16 or t ≤ 8 1000 1200
16 < d ≤ 40 or 8 < t ≤ 20 900 1100
34CrNiMo6 40 < d ≤ 100 or 20 < t ≤ 60 800 1000
100 < d ≤ 160 or 60 < t ≤ 100 700 900
160 < d ≤ 250 or 100 < t ≤ 160 600 800
d ≤ 16 or t ≤ 8 1050 1250
EN ISO 683-2:2018 16 < d ≤ 40 or 8 < t ≤ 20 1050 1250
30CrNiMo8 40 < d ≤ 100 or 20 < t ≤ 60 900 1000
100 < d ≤ 160 or 60 < t ≤ 100 800 1000
160 < d ≤ 250 or 100 < t ≤ 160 700 900
d ≤ 16 or t ≤ 8 740 880
35NiCr6 16 < d ≤ 40 or 8 < t ≤ 20 740 880
40 < d ≤ 100 or 20 < t ≤ 60 640 780
d ≤ 16 or t ≤ 8 1050 1250
16 < d ≤ 40 or 8 < t ≤ 20 1050 1250
36NiCrMo16 40 < d ≤ 100 or 20 < t ≤ 60 900 1100
100 < d ≤ 160 or 60 < t ≤ 100 800 1000
160 < d ≤ 250 or 100 < t ≤ 160 800 1000
13

---------------------- Page: 15 ----------------------
oSIST prEN 13001-3-8:2022
prEN 13001-3-8:2021 (E)
Steels for quenching and tempering, in the quenched and tempered condition (+QT)
Nominal strength
Steel Standard Diameter d/Thickness t f f
y u
Yield Ultimate
2 2
 mm N/mm N/mm
d ≤ 16 or t ≤ 8 785 980
16 < d ≤ 40 or 8 < t ≤ 20 735 930
39NiCrMo3 40 < d ≤ 100 or 20 < t ≤ 60 685 880
100 < d ≤ 160 or 60 < t ≤ 100 635 830
160 < d ≤ 250 or 100 < t ≤ 160 540 740
d ≤ 16 or t ≤ 8 880 1080
16 < d ≤ 40 or 8 < t ≤ 20 880 1080
30NiCrMo16-6 40 < d ≤ 100 or 20 < t ≤ 60 880 1080
100 < d ≤ 160 or 60 < t ≤ 100 790 900
160 < d ≤ 250 or 100 < t ≤ 160 880 900
d ≤ 16 or t ≤ 8 900 1100
16 < d ≤ 40 or 8 < t ≤ 20 800 1000
51CrV4 40 < d ≤ 100 or 20 < t ≤ 60 700 900
100 < d ≤ 160 or 60 < t ≤ 100 650 850
160 < d ≤ 250 or 100 < t ≤ 160 600 800
d ≤ 16 or t ≤ 8 700 900
20MnB5
16 < d ≤ 40 or 8 < t ≤ 20 600 750
d ≤ 16 or t ≤ 8 800 950
EN ISO 683-2:2018
30MnB5
16 < d ≤ 40 or 8 < t ≤ 20 650 800
d ≤ 16 or t ≤ 8 900 1050
38MnB5
16 < d ≤ 40 or 8 < t ≤ 20 700 850
d ≤ 16 or t ≤ 8 800 1000
27MnCrB5-2 16 < d ≤ 40 or 8 < t ≤ 20 750 900
40 < d ≤ 100 or 20 < t ≤ 60 700 800
d ≤ 16 or t ≤ 8 850 1050
33MnCrB5-2 16 < d ≤ 40 or 8 < t ≤ 20 800 950
40 < d ≤ 100 or 20 < t ≤ 60 750 900
d ≤ 16 or t ≤ 8 900 1100
39MnCrB6-2 16 < d ≤ 40 or 8 < t ≤ 20 850 1050
40 < d ≤ 100 or 20 < t ≤ 60 800 1000
14

---------------------- Page: 16 ----------------------
oSIST prEN 13001-3-8:2022
prEN 13001-3-8:2021 (E)
Steels for quenching and tempering, in the normalized condition (+N)
Nominal strength
Steel Standard Diameter d/Thickness t f f
y u
Yield Ultimate
2 2
 mm N/mm N/mm
C22E d ≤ 16 or t ≤ 16 240 430
C22R 16 < d ≤ 100 or 16 < t ≤ 100 210 410
C35E d ≤ 16 or t ≤ 16 300 550
C35R 16 < d ≤ 100 or 16 < t ≤ 100 270 520
C35 100 < d ≤ 250 or 100 < t ≤ 250 245 500
C40E d ≤ 16 or t ≤ 16 320 580
C40R 16 < d ≤ 100 or 16 < t ≤ 100 290 550
C40 100 < d ≤ 250 or 100 < t ≤ 250 260 530
C45E d ≤ 16 or t ≤ 16 340 620
C45R 16 < d ≤ 100 or 16 < t ≤ 100 305 580
C45 100 < d ≤ 250 or 100 < t ≤ 250 275 560
EN ISO 683-1:2018
d ≤ 16 or t ≤ 16 355 650
C50E
16 < d ≤ 100 or 16 < t ≤ 100 320 610
C50R
100 < d ≤ 250 or 100 < t ≤ 250 290 590
C55E d ≤ 16 or t ≤ 16 370 680
C55R 16 < d ≤ 100 or 16 < t ≤ 100 330 640
C55 100 < d ≤ 250 or 100 < t ≤ 250 300 620
C60E d ≤ 16 or t ≤ 16 380 710
C60R 16 < d ≤ 100 or 16 < t ≤ 100 340 670
C60 100 < d ≤ 250 or 100 < t ≤ 250 310 650
d ≤ 16 or t ≤ 16 345 630
28Mn6 16 < d ≤ 100 or 16 < t ≤ 100 310 600
100 < d ≤ 250 or 100 < t ≤ 250 290 590
15

---------------------- Page: 17 ----------------------
oSIST prEN 13001-3-8:2022
prEN 13001-3-8:2021 (E)
Structural steels and stainless steels
Nominal strength
Steel Standard Diameter d/Thickness t f f
y u
...
