ISO 8153-1:2009

INTERNATIONAL ISO

STANDARD 8153-1

First edition
2009-06-15
Aerospace fluid systems and
components — Vocabulary —
Part 1:
Hose assemblies
Systèmes aérospatiaux de fluides et éléments constitutifs —
Vocabulaire —
Partie 1: Assemblages de tuyaux flexibles




Reference number
ISO 8153-1:2009(E)

©
ISO 2009

---------------------- Page: 1 ----------------------
ISO 8153-1:2009(E)

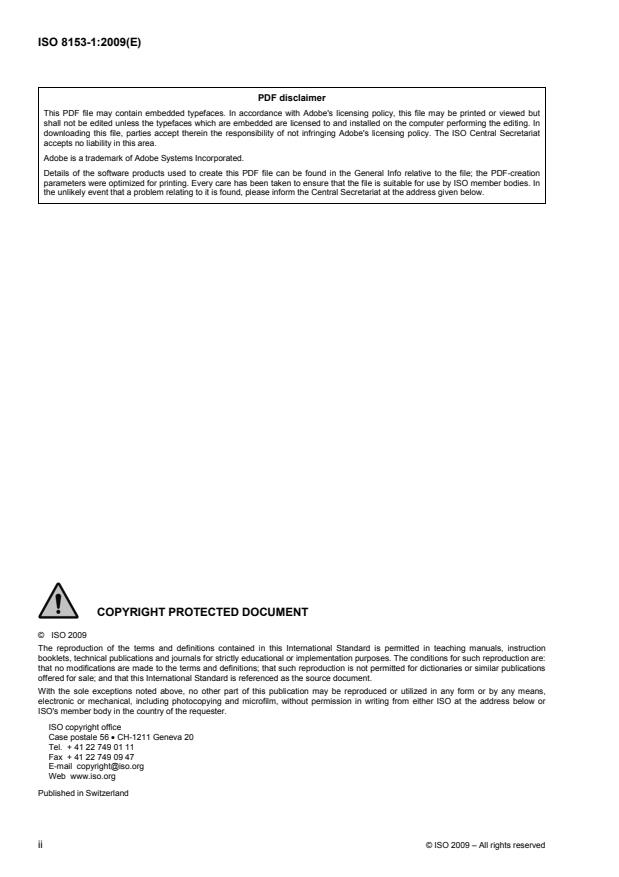

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.



COPYRIGHT PROTECTED DOCUMENT


©  ISO 2009
The reproduction of the terms and definitions contained in this International Standard is permitted in teaching manuals, instruction
booklets, technical publications and journals for strictly educational or implementation purposes. The conditions for such reproduction are:
that no modifications are made to the terms and definitions; that such reproduction is not permitted for dictionaries or similar publications
offered for sale; and that this International Standard is referenced as the source document.
With the sole exceptions noted above, no other part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2009 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 8153-1:2009(E)
Contents Page
Foreword .iv
Scope.1
1 General terms.1
2 Terms related to hose material .2
3 Terms related to hose design .2
4 Terms related to hose application.3
5 Terms related to hose construction.3
6 Terms related to hose assembly .4
7 Terms related to hose/hose assembly dimensions.9
8 Terms related to hose/hose assembly conductivity.12
9 Terms related to hose/hose assembly protection .12
10 Terms related to hose/hose assembly defects .13
Bibliography.17
Alphabetical index.18

© ISO 2009 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 8153-1:2009(E)

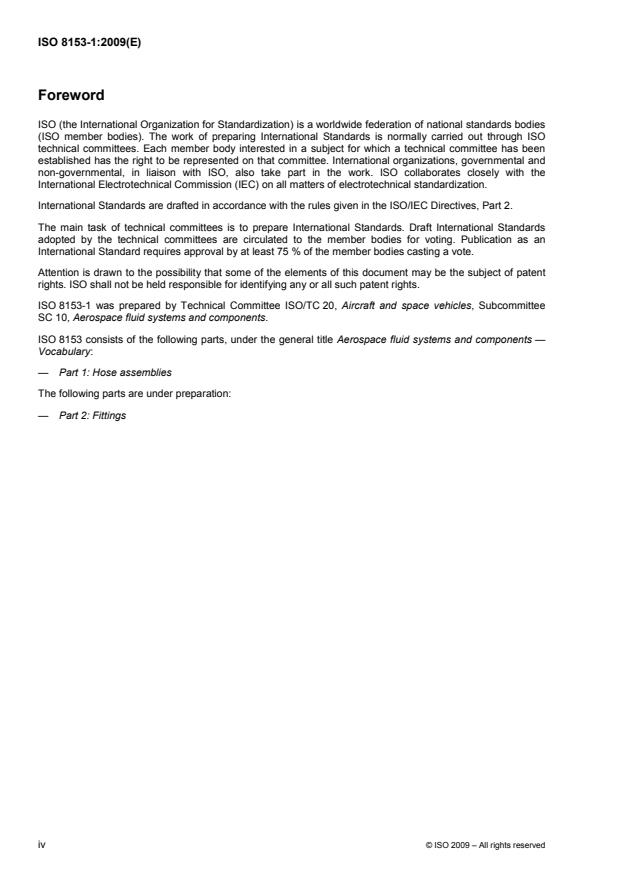

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 8153-1 was prepared by Technical Committee ISO/TC 20, Aircraft and space vehicles, Subcommittee
SC 10, Aerospace fluid systems and components.
ISO 8153 consists of the following parts, under the general title Aerospace fluid systems and components —
Vocabulary:
— Part 1: Hose assemblies
The following parts are under preparation:
— Part 2: Fittings


iv © ISO 2009 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 8153-1:2009(E)

Aerospace fluid systems and components — Vocabulary —
Part 1:
Hose assemblies

Scope
This part of ISO 8153 defines terms used for all types of hose assemblies.
General terms can be made more precise through the addition of supplementary terminology relating to the
design, range of application and/or the material of the hose/hose assembly.
Terms and definitions specific to metallic hose assemblies are given in ISO 7369.
NOTE Certain concepts used in this part of ISO 8153 are not applicable to all types of hose assemblies, but only to
specific types, e.g. the term “insert” does not apply to a flexible metal hose without an insert as defined by this part of
ISO 8153.
1 General terms
1.1
hose assembly
hose, ready for use, equipped with hose fittings at ends
NOTE See Figure 1.

Figure 1 — Hose assembly
1.2
hose line
series of several hose assemblies connected to each other
NOTE See Figure 2.

Figure 2 — Hose line
© ISO 2009 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 8153-1:2009(E)
1.3
hose
flexible tubular product consisting of an inner tube and generally equipped with a reinforcement, wrap(s)
and/or braid(s)
NOTE 1 In US English, the common term for a hose consisting of one layer only is “tubing”.
NOTE 2 See Figure 3.

Key
1 inner tube
2 intermediate layer
3 hose cover
4 braid
5 hose wall
Figure 3 — Hose
2 Terms related to hose material
2.1
elastomeric hose
hose with inner tube made of elastomeric materials
2.2
polytetrafluoroethylene hose
PTFE hose
hose with inner tube made of polytetrafluoroethylene (PTFE)
2.3
plastic hose
hose with inner tube made of plastic material other than PTFE
2.4
metal hose
hose with inner tube made from helical or annular convoluted metallic material
NOTE See ISO 7369.
3 Terms related to hose design
3.1
braided hose
hose with reinforcement consisting of one or more braids
2 © ISO 2009 – All rights reserved

---------------------- Page: 6 ----------------------
ISO 8153-1:2009(E)
3.2
spiral hose
hose with reinforcement consisting of one or more wraps, each alternate wrap being wound in the opposite
direction
3.3
braided and spiral hose
hose with reinforcement consisting of one or more wraps and braids
3.4
convoluted flexible PTFE hose
hose with corrugated inner liner fabricated from PTFE tube, or PTFE tape, helically formed to the axis of the
hose
NOTE 1 Flexibility is obtained by bending the corrugations.
NOTE 2 See ISO 7313.
4 Terms related to hose application
4.1
sleeve hose
hose for sleeve attachment
socketless hose of specific length which can be slipped over rigid tube ends
4.2
preformed hose
hose of which part is permanently set to meet installation requirements
4.3
suction hose
hose that is usable under positive and relative negative pressure
5 Terms related to hose construction
5.1
hose wall
composition of the hose between its inner and outer diameter
NOTE See Figure 3.
5.2
layer
part of the hose wall with a uniform structure
5.2.1
inner tube
layer core
inner part of the hose which performs the function of containing fluid
NOTE See Figure 3.
5.2.2
intermediate layer
layer incorporated between the inner tube and the outermost layer of the hose, made of various reinforcement
elements
NOTE See Figure 3.
© ISO 2009 – All rights reserved 3

---------------------- Page: 7 ----------------------
ISO 8153-1:2009(E)
5.2.3
hose cover
outer layer
outermost layer of the hose if it is not covered by reinforcement
NOTE See Figure 3.
5.2.4
outer protective cover
layer forming the outer part of the hose wall
EXAMPLE Outer braids or spirals.
NOTE See protective sleeve (9.1).
5.2.5
reinforcement
one or more braids or wraps or helices rendering the hose sufficiently resistant to withstand pressure and/or
vacuum
5.2.6
braid
reinforcement texture made from cross-linked yarn or wire
NOTE See Figure 3.
5.2.7
helix
helical wire placed in the hose wall to ensure form stability of the hose in the event of a vacuum or external
loads
5.2.8
wrap
reinforcement made up of an assembly of yarns or wires helically wrapped to ensure resistance to pressure
6 Terms related to hose assembly
6.1
hose fitting
component, or subassembly of a hose assembly, whose purpose is to connect hoses to an appropriate fluid
circuit
NOTE 1 The terms defined in Clause 6 apply to flexible metal hose assemblies only under certain conditions, in view of
the fact that these are generally supplied completely mounted.
NOTE 2 A clear designation includes the following (in the order given):
— hose side configuration;
— connecting end configuration.
The end fitting can be equipped with a bend or an elbow. Some end fittings can be equipped with a swivel nut, which can
be designed with or without a thrust wire.
6.2 Configuration of hose side of fitting
NOTE See Figure 4.
4 © ISO 2009 – All rights reserved

---------------------- Page: 8 ----------------------
ISO 8153-1:2009(E)
6.2.1
separable end fitting
hose fitting which consists of screwed components and which can be assembled without special tools
6.2.2
swaged fitting
crimped fitting
fitting consisting mainly of an insert held by a swaged or crimped socket on the hose
NOTE Reuse is not possible – except perhaps for the insert. Special tools are required for assembly.
6.2.3
clamp fitting
segment fitting
hose fitting consisting mainly of an insert held by externally mounted clamp segments
NOTE It is reusable and can be assembled without special tools.
6.2.4
band clamp fitting
fitting consisting mainly of an insert held by an externally mounted band clamp
NOTE It is reusable and can be assembled without special tools.
6.2.5
socketless fitting
fitting consisting of an insert without socket or clamp
NOTE The hose is simply slipped over the insert and is held by its elastic deformation.

Key
1 hose fitting
2 connection end
3 hose side
4 female swivel nut
5 insert
6 socket
7 hose
Figure 4 — Example of hose with toric sealing fitting and swivel nut with thrust wire
© ISO 2009 – All rights reserved 5

---------------------- Page: 9 ----------------------
ISO 8153-1:2009(E)
6.3 Configuration of connecting end of fitting
6.3.1
globe seal end female fitting
fitting with spherically-shaped, toric or tapered, sealing end and female swivel nut
NOTE 1 See Figure 5.
NOTE 2 Figure 5 a) shows a wired-on swivel nut with thrust wire; Figure 5 b) shows an entrapped swivel nut

a)  With a swivel nut with thrust wire

b)  With an entrapped swivel nut
Figure 5 — Globe seal end female fitting with a toric fitting and a swivel nut
6.3.2
male thread end
hose fitting with stationary male thread
NOTE See Figure 6.

Figure 6 — Male thread end with internal cone
6.3.3
male thread end for port connection
hose fitting with stationary male thread for port holes
NOTE See Figure 7.

Figure 7 — Male thread end with an external flat sealing for port hole connection
6 © ISO 2009 – All rights reserved

---------------------- Page: 10 ----------------------
ISO 8153-1:2009(E)
6.3.4
stand pipe end
hose fitting with tubular end
NOTE See Figure 8.

Figure 8 — Stand pipe end
6.3.5
flange end
hose fitting with fixed or loose flange
NOTE See Figure 9.

Figure 9 — Flange end with a fixed flange
6.3.6
banjo end
hose fitting with banjo configuration
NOTE See Figure 10.

Figure 10 — Banjo end
6.4 Fitting
...
