870-1-2 © IEC - 3 -
CONTENTS
Page
FOREWORD
PREFACE 5
INTRODUCTION
Clause
1. Scope 9
2 Object 9
3. Description of the telecontrol system and its functions
3.1 Description of the telecontrolled (or relemonitored)
process
3.2 Functions of telecontrol systems 11
3.3 Data quantities
3.4 Man-machine interface
3.5 Characteristics of the data flow 23
Specification of the data transmission network 23
4.
4.1 Data network configuration 23
4.2 Specification of telecontrol data transmission 25
4.3 Representation of the planned data network in a block
diagram 27
5. Equipment specifications 27
5.1 Overview of the equipment of telecontrol systems 27
5.2 Specifications of the environmental conditions 29
5.3 Specifications of interfaces between the different equip-
ment of telecontrol systems 31
5.4 Specifications of the power supply equipment 33
5.5 Mechanical specifications 33
5.6 Specifications of transport conditions 35
5.7 System tests and commissioning procedures 35
5.8 Operational conditions, guarantees 35
5.9 Documentation (under consideration) 35
Figure
1 Block diagram of the data flow (example) 37
©
870-1-2 IEC - 5 -
INTERNATIONAL ELECTROTECHNICAL COMMISSION
TELECONTROL EQUIPMENT AND SYSTEMS
Part 1: General considerations
Section Two - Guide for specifications
FOREWORD
1) The formal decisions or agreements of the IEC on technical matters,
prepared by Technical Committees on which all the National Committees
having a special interest therein are represented, express, as nearly
as possible, an international consensus of opinion on the subjects
dealt with.
2) They have the form of recommendations for international use and they
are accepted by the National Committees in that sense.
3) Jn order to promote international unification, the IEC expresses the
wish that all National Committees should adopt the text of the IEC
recommendation for their national rules in so far as national con-
ditions will permit. Any divergence between the IEC recommendation and
the corresponding national rules should, as far as possible, be clearly
indicated in the latter.
PREFACE
This report has been prepared by IEC Technical Committee No. 57:
Telecontrol, teleprotection and associated telecommunications for electric
power systems.
The text of this report is based upon the following documents:
Six Months' Rule Report on Voting
57(C0)44
57(C0)51
Full information on the voting for the approval of this report can be
found in the Voting Report indicated in the above table.
The following IEC publications are quoted in this report:
Publications Nos. 495 (1974): Recommended values for characteristic
input and output quantities of single
sideband power line carrier systems.
870-1
-2 © IEC - 7 -
870-1-1 (1988): Telecontrol equipment and systems,
Part 1: General considerations -
Section One: General principles.
870-2-1 (1987): Part 2: Operating conditions -
Section
One: Environmental conditions
and power supplies.
870-3 (1989): Part 3: Interfaces (electrical charac-
teristics).
870-4 (19.): Part 4: Performance requirements.
870-5 (19.): Part 5: Transmission protocols.
870-6: Part 6: Telecontrol protocols compat-
ible with ISO standards and CCITT
recommendations.
870-1-2 © IEC - 9 -
TELECONTROL EQUIPMENT AND SYSTEMS
Part 1: General considerations
Section Two - Guide for specifications
INTRODUCTION
Planning of telecontrol systems and defining the specifications of a
system and of its equipment are complex and demand a large amount of
detailed information. There are not only application functions of the
system to be defined but also the operational parameters, the local
environmental conditions and the data transmission paths available as
well as their characteristics. The interfaces between the components of
the system and other equipment facilities such as power supply require-
ments shall also be specified.
Many aspects of this field are covered by standards within the
IEC 870 series on telecontrol equipment and s, stems but many deci-
sions are still left to the engineers who have to plan a system and
establish the specifications.
1. Scope
This series of standards applies to telecontrol equipment and systems
with coded bit serial data transmission for monitoring and control of
geographically widespread processes.
2. Object
This section presents guidelines but not standards for establishing
specifications for telecontrol systems and equipment following the other
IEC standards on telecontrol systems and other relevant international
standards and recommendations such as CCITT recommendations. It
also facilitates the comparison of equipment of different manufacturers.
The planning of telecontrol systems should be subdivided into clearly
defined steps:
- The first step involves a consideration of the operational require-
ments of telecontrol systems (clause 3 of this section) .
-
In the second step, the conditions and limitations of the data
transmission network are considered and the most suitable utili-
zation is specified (clause 4 of this section) .
870-1-2 © IEC - 11 -
Thirdly, the required facilities for the telecontrol equipment and
other equipment of telecontrol systems are specified. This includes
considerations of whether it is useful to include existing local
control equipment (clause 5 of this section) .
The guidelines given in this section are applicable also if only parts
of telecontrol systems are needed. In this case only the relevant
clauses need be considered.
3.
Description of the telecontrol system and its functions
Design aim of the system, for example:
"Main (or regional) control system." (name of the power company
or of the region), or
"District telecontrol system." (name of the district itself or of
the district control centre), or
"Telecontrol system for power station." (name of the controlled
station) .
3.1 Description of the telecontrolled (or telemonitored) process
3.1.1 Purpose of process to be controlled
(Short explanation only as far as necessary for planning telecontrol
systems.)
3.1.2 Name of master stations and control centres
Description of the function, e. g. dispatching centre, regional control
centre, etc.
3.1.3 Number and names of outstations
Description of their functions, e.g. "Power station.", "Transformer
station.", etc.
3.1.4 Geographical configuration of the system
System block diagram and site description.
Location and distances between interconnected stations
3.1.5
Functions of telecontrol systems
3.2
3.2.1 Survey of application functions
3.2.1.1 Basic functions
flow, generated power, sum-
- Telemetering of the transfer power
mation of the power consumption, line voltage, frequency, tempera-
ture, water-levels, etc.;
telecounting of the generated energy, energy consumption, energy
-
transfer, etc.;
870-1-2 © IEC - 13 -
- teleindication of the circuit-breaker, protection functions, alarms,
etc;
- telecommand of the circuit-breaker, etc.;
- time synchronization between outstations and master station;
- time tagging of information.
3.2.1.2 Extended processing functions
Teleregulation of the generated power (manually or automatically
-
controlled);
automatic power/frequency regulation;
- state estimation;
- automatic load shedding;
- switching programmes;
operator interface (such as system operation, information display);
- information logging and reporting;
data storage (short term/long term) ;
- etc.
3.2.2 Requirements for operational parameters
The following operational parameters are specified within Publi-
cation 870-4:
- reliability;
- availability;
maintainability;
- security;
- data integrity;
- time parameters;
- accuracy.
In specifying the time parameters, particular consideration should be
given to the:
- overall transfer time (sum of the times taken by the information
passing through the individual sections of telecontrol systems, but
also influenced by the network configuration, priority, accumu-
lation of events, etc.);
- parameters for state information, such as separating capability,
time resolution, suppression time, etc.;
- updating time for measured values and set point commands;
etc.
It should be emphasized that in specifying the above-mentioned
parameters the requirements of the process should be considered.
870-1-2 © IEC - 15 -
3.2.3 Detailed specification
The facilities required should be listed and briefly described.
Below is a list of the standard facilities found in telecontrol systems.
Input and acquisition of monitored information
3.2.3.1
- Single point information;
for alarms, state information, faulty state information, etc.
(fleeting information or persistent information);
double point information with or without acquisition of the inter-
-
mediate state
for circuit-breakers, isolators, etc.;
integrated values
for telecounting of energy values, etc.;
incremental information
for flow values, etc.;
measured values (analog or digital) with cyclic or periodic trans-
mission or transmission on demand
for telemetering of electric values, hydraulic values, etc.;
time tagging requirements;
group alarms or common alarms derived from digital or analog
-
information;
information related to the telecontrol system itself, e.g. trans-
-
mission error alarms, equipment failure alarms, etc.;
other types of information.
-
Output and presentation of information
3.2.3.2
State information;
-
double point information with or without indicating the intermediate
state;
alarms, group alarms, common alarms;
-
pulse output or persistent indication of integrated values;
-
analog or digital display or measured values;
-
- information logging;
data storage functions.
-
3.2.3.3 Command input
Switching commands, single commands
-
to change the state of an operational equipment in one direction
(pulse commands or persistent commands);
- switching commands, double commands
for circuit-breakers, isolators, etc.
(pulse commands or maintained commands);
- 17 -
870-1-2 © IEC
- set point commands
values which are transmitted to the controlled equipment;
adjusting commands
for changing the state of operational equipment having more than
two states;
regulating commands (analog or digital)
for closed loop telemonitoring and telecommand
(regulating step commands or persistent regulating commands);
select and execute commands;
- instruction commands
for indicating a standard instruction to operators in the control
room of a manually operated remote station,
e.g. "Start generators";
- command sequences;
- group commands
addressed to several items of equipment at an outstation;
- broadcast commands
addressed to operational equipment at several or all outstations of
a telecontrol system;
- commands related to the telecontrol system itself;
- interrogation commands;
- check commands
e.g. for the purpose of ensuring that the telecontro
...
IEC 61837-2 ®
Edition 2.1 2014-03
CONSOLIDATED
VERSION
VERSION
CONSOLIDÉE
colour
inside
Surface mounted piezoelectric devices for frequency control and selection –
Standard outlines and terminal lead connections –
Part 2: Ceramic enclosures
Dispositifs piézoélectriques à montage en surface pour la commande et le choix
de la fréquence – Encombrements normalisés et connexions des sorties –
Partie 2: Enveloppes en céramique
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,
77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
14 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 55 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des
CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 61837-2 ®
Edition 2.1 2014-03
CONSOLIDATED
VERSION
VERSION
CONSOLIDÉE
colour
inside
Surface mounted piezoelectric devices for frequency control and selection –
Standard outlines and terminal lead connections –
Part 2: Ceramic enclosures
Dispositifs piézoélectriques à montage en surface pour la commande et le choix
de la fréquence – Encombrements normalisés et connexions des sorties –
Partie 2: Enveloppes en céramique
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.140 ISBN 978-2-8322-1488-6
IEC 61837-2 ®
Edition 2.1 2014-03
REDLINE VERSION
VERSION REDLINE
colour
inside
Surface mounted piezoelectric devices for frequency control and selection –
Standard outlines and terminal lead connections –
Part 2: Ceramic enclosures
Dispositifs piézoélectriques à montage en surface pour la commande et le choix
de la fréquence – Encombrements normalisés et connexions des sorties –
Partie 2: Enveloppes en céramique

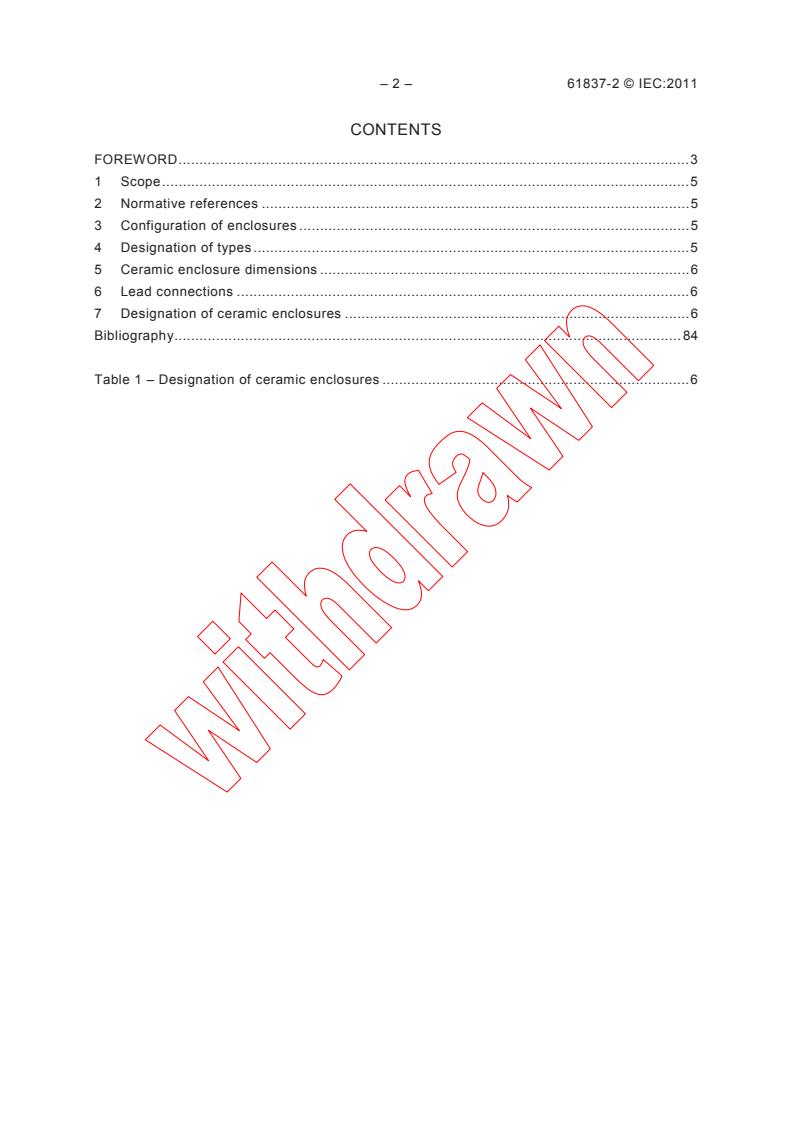

– 2 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Configuration of enclosures . 5
4 Designation of types . 5
5 Ceramic enclosure dimensions . 6
6 Lead connections . 6
7 Designation of ceramic enclosures . 6
Bibliography . 86
Table 1 – Designation of ceramic enclosures . 6
+AMD1:2014 © IEC 2014
INTERNATIONAL ELECTROTECHNICAL COMMISSION
_____________
SURFACE MOUNTED PIEZOELECTRIC DEVICES
FOR FREQUENCY CONTROL AND SELECTION –
STANDARD OUTLINES AND TERMINAL LEAD CONNECTIONS –
Part 2: Ceramic enclosures
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in
addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses
arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
This Consolidated version of IEC 61837-2 bears the edition number 2.1. It consists of the
second edition (2011-05) [documents 49/884/CDV and 49/908/RVC] and its amendment 1
(2014-03) [documents 49/1078/CDV and 49/1094/RVC]. The technical content is identical
to the base edition and its amendment.
In this Redline version, a vertical line in the margin shows where the technical content is
modified by amendments 1. Additions and deletions are displayed in red, with deletions
being struck through. A separate Final version with all changes accepted is available in
this publication.
This publication has been prepared for user convenience.
– 4 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
lnternational Standard IEC 61837-2 has been prepared by lEC technical committee 49:
Piezoelectric, dielectric and electrostatic devices and associated materials for frequency control,
selection and detection.
In this edition, types of enclosures are renamed to express their features in their names for
better understanding. The relative comparison of new types with old ones is listed in Table. 1.
New names of enclosures express configuration type, terminal lead numbers, sizes and
arrangement of terminal pads. The details of definition are shown in Clause 3: Configuration of
enclosures, and Clause 4: Designation of types.
Enclosures in this new edition are based on IEC 61240. In this standard, 27 enclosures are
added to the first edition of IEC 61837-2, as follows:
QCC-12/1407A, DCC-2/1206A, QCC-10/9272A, DCC-4/9070A, DCC-2-8045B, DCC-6/7834B,
DCC-6/7050A, QCC-10/7050A, DCC-4/6035C, DCC-2/6035C, QCC-8/5045A, DCC-4/5032A,
DCC-4/5032C, DCC-2/4818C, DCC-2/4115C, QCC-8/3838A, DCC-6/3838A, DCC-4/3225C,
DCC-2/3215C, QCC-8/3030B, DCC-6/3030A, DCC-6/2520A, DCC-4/2520C, DCC-4/2020C,
DCC-4/2016C, DCC-4/1612C, DCC-2/1612C.
As a result, the new version (the second edition) contains a total of 38 enclosure types, which
are listed in Table 1 – Designation of ceramic enclosures.
This standard is to be read in conjunction with IEC 61240.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 3.
A list of all parts of the IEC 61837 series, published under the general title: Surface mounted
piezoelectric devices for frequency control and selection – Standard outlines and terminal lead
connections, can be found on the IEC website.
The committee has decided that the contents of the base publication and its amendment will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The “colour inside” logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this publication using a colour printer.
+AMD1:2014 © IEC 2014
SURFACE MOUNTED PIEZOELECTRIC DEVICES
FOR FREQUENCY CONTROL AND SELECTION –
STANDARD OUTLINES AND TERMINAL LEAD CONNECTIONS –
Part 2: Ceramic enclosures
1 Scope
This part of IEC 61837 deals with standard outlines and terminal lead connections as they apply
to surface-mounted devices (SMD) for frequency control and selection in ceramic enclosures,
and is based on IEC 61240.
2 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of the
referenced document (including any amendments) applies.
IEC 61240, Piezoelectric devices – Preparation of outline drawings of surface-mounted devices
(SMD) for frequency control and selection – General rules
3 Configuration of enclosures
The enclosures of the surface-mounted devices are made of ceramic materials with the
terminals of deposited metal film (leadless type) based on descriptive designation system for
semiconductors – devices package.
The configuration symbols are shown as follows:
– DCC (dual chip carrier);
– QCC (quad chip carrier).
4 Designation of types
The designation of types is shown on four parts as follows:
E
B C
A D D’
A: Configuration symbol of enclosures:
– DCC (dual chip carrier);
– QCC (quad chip carrier).
B: Structure of terminal leads: leadless type has no mark.
C: Number of terminal leads
– 6 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
D: Serial number of both figures
E: Arrangement of terminal land:
– A (arranges to the width direction side);
– B (arranges in the length direction side);
– C (arranges in both the width and the length direction side).
5 Ceramic enclosure dimensions
The dimensions given in this standard apply to all completed SMD-devices for frequency control
and selection. Only those dimensions which meet the requirements of IEC 61240 are given.
6 Lead connections
Recommendations for the lead connections of all completed SMD-devices for frequency control
and selection are given in the following individual sheets. Lead connections shall always be
given in the detail specification.
7 Designation of ceramic enclosures
Table 1 is a list which includes all new enclosure types with their sheet numbers and brief
descriptions. Old enclosure names are also listed as references.
Table 1 – Designation of ceramic enclosures
No. Type Old type Sheet No. Description
1 QCC-18/1809A QCC-18/01 Sheet 1 Ceramic, welded, eighteen leadless SMD outline
2 QCC-12/1407A Sheet 2 Ceramic, welded, twelve leadless SMD outline
3 DCC-4/1206A DCC-4/01 Sheet 3 Ceramic, four leadless SMD outline
4 DCC-2/1206A Sheet 4 Ceramic, two leadless SMD outline
5 QCC-10/9272A Sheet 5 Ceramic, welded, ten leadless SMD outline
6 DCC-4/9070A Sheet 6 Ceramic, welded, four leadless SMD outline
7 DCC-4/8045B DCC-04/02, 03 Sheet 7 Ceramic, welded, four leadless SMD outline
8 DCC-2/8045B Sheet 8 Ceramic, welded, two leadless SMD outline
9 DCC-6/7834B Sheet 9 Ceramic, welded, six leadless SMD outline
10 DCC-6/7050A Sheet 10 Ceramic, welded, six leadless SMD outline
11 DCC-4/7050A DCC-4/08 Sheet 11 Ceramic, welded, four leadless SMD outline
12 DCC-4/7050B DCC-4/04, 05 Sheet 12 Ceramic, welded, four leadless SMD outline
13 QCC-10/7050A Sheet 13 Ceramic, welded, ten leadless SMD outline
14 QCC-6/7050A QCC-6/01, 02 Sheet 14 Ceramic, welded, six leadless SMD outline
15 DCC-6/6035A DCC-4/06, 07 Sheet 15 Ceramic, welded, six leadless SMD outline
16 DCC-4/6035C Sheet 16 Ceramic, welded, four leadless SMD outline
17 DCC-2/6035C Sheet 17 Ceramic, welded, two leadless SMD outline
18 QCC-8/5050A QCC-8/02 Sheet 18 Ceramic, welded, eight leadless SMD outline
19 QCC-12/5045A QCC-12/02 Sheet 19 Ceramic, welded, twelve leadless SMD outline
20 QCC-8/5045A Sheet 20 Ceramic, welded, eight leadless SMD outline
+AMD1:2014 © IEC 2014
No. Type Old type Sheet No. Description
21 DCC-4/5032A Sheet 21 Ceramic, welded, four leadless SMD outline
22 DCC-4/5032C Sheet 22 Ceramic, welded, four leadless SMD outline
23 DCC-2/5032B DCC-2/01 Sheet 23 Ceramic, welded, two leadless SMD outline
24 DCC-2/4818C Sheet 24 Ceramic, welded, two leadless SMD outline
25 DCC-2/4115C Sheet 25 Ceramic, welded, two leadless SMD outline
26 DCC-4/4025C DCC-6/01 Sheet 26 Ceramic, welded, four leadless SMD outline
27 QCC-8/3838A Sheet 27 Ceramic, welded, eight leadless SMD outline
28 DCC-6/3838A Sheet 28 Ceramic, welded, six leadless SMD outline
29 DCC-2/3215C Sheet 29 Ceramic, welded, two leadless SMD outline
30 DCC-4/3225C Sheet 30 Ceramic, welded, four leadless SMD outline
31 QCC-8/3030B Sheet 31 Ceramic, welded, eight leadless SMD outline
32 DCC-6/3030A Sheet 32 Ceramic, welded, six leadless SMD outline
33 DCC-6/2520A Sheet 33 Ceramic, welded, six leadless SMD outline
34 DCC-4/2520C Sheet 34 Ceramic, welded, four leadless SMD outline
35 DCC-4/2020C Sheet 35 Ceramic, welded, four leadless SMD outline
36 DCC-4/2016C Sheet 36 Ceramic, welded, four leadless SMD outline
37 DCC-4/1612C Sheet 37 Ceramic, welded, four leadless SMD outline
38 DCC-2/1612C Sheet 38 Ceramic, welded, two leadless SMD outline
– 8 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (18,0) 18,30
―
B (9,0) 9,30
―
G 2,00
― ―
K
0,50 ― 1,10
L 1,20 1,80 Note 1
B ―
e 2,54
― ―
y 0,10
― ―
IEC 853/11
NOTE 1 Dimension L max. can be increased to 2,10mm for lead 1 to identity the orientation.
B
Scale
Ceramic, welded, eighteen leadless SMD outline –
3: 1
Type QCC-18/1809A
Sheet 1
+AMD1:2014 © IEC 2014
Terminal land connections of Type QCC-18/1809A
Crystal
No. Crystal unit Crystal filter SAW devices
oscillator
1 Ground
2 Option
3 Option
4 Option
5 Option
6 Ground
7 Input/Output
8 Ground
9 Input/Output /Ground
10 Ground
11 Option
12 Option
13 Option
14 Option
15 Ground
16 Output/Input
17 Ground
18 Output/Input /Ground
– 10 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (14,0) 14,30
―
B (6,5) 6,80
―
G 2,00
― ―
K 0,50 1,10
―
L 1,80 2,30 Note 1
B ―
e 2,54
― ―
y 0,10
― ―
IEC 854/11
NOTE 1 Dimension L max. can be increased to 2,10 mm for lead 1 to identify the orientation.
B
Scale
Ceramic, welded, twelve leadless SMD outline –
3: 1
Type QCC-12/1407A
Sheet 2
+AMD1:2014 © IEC 2014
Terminal land connections of Type QCC-12/1407A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Option
2 Option
3 Ground
4 Option
5 Output/Input
6 Output/Input /Ground
7 Option
8 Ground
9 Option
10 Option
11 Input/Output
12 Input/Output /Ground
– 12 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
(12,0) 12,30
―
B (5,5) 5,80
―
G 2,30
― ―
K 1,80 2,20
―
L 1,30 1,90
B ―
e 5,08
― ―
e 3,90
1 ― ―
y 0,10
― ―
IEC 855/11
Scale
Ceramic, welded, four leadless SMD outline –
3: 1
Type DCC-4/1206A
Sheet 3
+AMD1:2014 © IEC 2014
Terminal land connections of Type DCC-4/1206A
Crystal
No. Crystal unit Crystal filter SAW devices
oscillator
1 Terminal 1 Control voltage
2 NC Ground
3 Terminal 2 Output
4 NC DC supply
– 14 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (12,0) 12,30
―
B (5,5) 5,80
―
G 2,70
― ―
K 1,60 2,20
―
L 5,20 5,80
B ―
e 5,08
― ―
y 0,10
― ―
IEC 856/11
Scale
Ceramic, welded, two leadless SMD outline –
3: 1
Type DCC-2/1206A
Sheet 4
+AMD1:2014 © IEC 2014
Terminal land connections of Type DCC-2/1206A
Crystal
No. Crystal unit Crystal filter SAW devices
oscillator
1 Terminal 1
2 Terminal 2
– 16 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A ― (9,2) 9,50
B ― (7,2) 7,50
G ― ― 2,00
K 0,60 ― 1,20
L 0,80 ― 1,40 Note 1
B
e ― 2,54 ―
y ― ― 0,10
IEC 857/11
NOTE 1 Dimension L max. can be increased to 2,00 mm for lead 1 to identify the orientation.
B
Scale
Ceramic, welded, ten leadless SMD outline –
5: 1
Type QCC-10/9272A
Sheet 5
+AMD1:2014 © IEC 2014
Terminal land connections of Type QCC-10/9272A
Crystal
No. Crystal unit Crystal filter SAW devices
oscillator
1 Input/Output /Ground
2 Input/Output
3 Ground
4 Ground
5 Ground
6 Output/Input /Ground
7 Output/Input
8 Option
9 Ground
10 Ground
– 18 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (9,0) 9,30
―
B (7,0) 7,30
―
G 2,00
― ―
K 1,10 1,70
―
L 0,90 1,50
B
―
e 5,08
― ―
e 5,80
1 ― ―
y 0,10
― ―
IEC 858/11
Scale
Ceramic, welded, four leadless SMD outline –
5: 1
Type DCC-4/9070A
Sheet 6
+AMD1:2014 © IEC 2014
Terminal land connections of Type DCC-4/9070A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Control voltage
2 Ground
3 Output
4 DC supply
– 20 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (8,0) 8,30
―
B (4,5) 4,80
―
G 2,00
― ―
K 0,70 1,30
―
L 0,80 1,40
B
―
e 2,54
― ―
e 6,90
1 ― ―
y 0,10
― ―
IEC 859/11
Scale
Ceramic, welded, four leadless SMD outline –
5: 1
Type DCC-4/8045B
Sheet 7
+AMD1:2014 © IEC 2014
Terminal land connections of Type DCC-4/8045B
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1 Control voltage
2 Option Ground
3 Terminal 2 Output
4 Option DC supply
– 22 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min.
m. Max
A (8,0) 8,30
―
B (4,5) 4,80
―
G 1,60
― ―
K 1,60 2,20
―
L 0,70 1,30
B ―
e 7,0
― ―
y 0,10
― ―
IEC 860/11
Scale
Ceramic, welded, two leadless SMD outline –
5: 1
Type DCC-2/8045B
Sheet 8
+AMD1:2014 © IEC 2014
Terminal land connections of Type DCC-2/8045B
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1
2 Terminal 2
– 24 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (7,8) 8,10
―
B (3,4) 3,70
―
G 1,20
― ―
K 0,70 1,30
1 ―
K 0,30 0,90
―
L 1,10 1,70
B1
―
L 0,80 1,40
B2 ―
e 2,80
1 ― ―
e 6,70
― ―
y 0,10
― ―
IEC 861/11
Scale
Ceramic, welded, six leadless SMD outline –
5: 1
Type DCC-6/7834B
Sheet 9
+AMD1:2014 © IEC 2014
Terminal land connections of Type DCC-6/7834B
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Option
2 Option
3 Teminal 1
4 Option
5 Option
6 Teminal 2
– 26 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (7,0) 7,30
―
B (5,0) 5,30
―
G 2,00
― ―
K 1,10 1,70
―
L 0,80 1,40
B ―
e 2,54
― ―
e1 3,90
― ―
y 0,10
― ―
IEC 862/11
Scale
Ceramic, welded, six leadless SMD outline –
5: 1
Type DCC-6/7050A
Sheet 10
+AMD1:2014 © IEC 2014
Terminal land connections of Type DCC-6/7050A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Output enable
2 NC
3 Ground
4 Output
5 Output
6 DC supply
– 28 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (7,0) 7,30
―
B (5,0) 5,30
―
G 1,90
― ―
K 1,10 1,70
―
L 0,90 1,50
B ―
e 5,08
― ―
e 3,80
― ―
0,10
― ―
IEC 863/11
Scale
Ceramic, welded, four leadless SMD outline –
5: 1
Type DCC-4/7050A
Sheet 11
+AMD1:2014 © IEC 2014
Terminal land connections of Type DCC-4/7050A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Control voltage
2 Ground
3 Output
4 DC supply
– 30 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (7,0) 7,30
―
B (5,0) 5,30
―
G 1,50
― ―
K 0,70 1, 30
―
L 0,70 1,3
B ―
e 2,54
― ―
e 6,00
― ―
y 0,10
― ―
IEC 864/11
Scale
Ceramic, welded, four leadless SMD outline –
5: 1
Type DCC-4/7050B
Sheet 12
+AMD1:2014 © IEC 2014
Terminal land connections of Type DCC-4/7050B
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1
2 Option
3 Terminal 2
4 Option
– 32 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (7,0) 7,30
―
B (5,0) 5,30
―
G 2,00
― ―
K 0,40 1,00
―
L 0,80 1,20 Note 1
B ―
e 1,27
― ―
e 4,00
― ―
y 0,10
― ―
IEC 865/11
NOTE 1 Dimension L max. can be increased to 1,60 mm for lead 1 to identify the orientation.
B
Scale
Ceramic, welded, ten leadless SMD outline –
5: 1
Type QCC-10/7050A
Sheet 13
+AMD1:2014 © IEC 2014
Terminal land connections of Type QCC-10/7050A
Crystal
No. Crystal unit Crystal oscillator SAW devices
filter
1 Option Option
2 Option Output/Input
3 Option Option
4 Ground Option
5 Output Option
6 Option Option
7 Option Input/Output
8 Option Option
9 DC supply Ground
Option/Control
10 Ground
voltage
– 34 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (7,0) 7,30
―
B (5,0) 5,30
―
G 1,50
― ―
K 0,70 1,30
―
L 0,70 1,30
B
―
e 2,54
― ―
e 6,00
1 ― ―
y 0,10
― ―
IEC 866/11
Ceramic, welded, six leadless SMD outline – Scale
Type QCC-6/7050A 5: 1
Sheet 14
+AMD1:2014 © IEC 2014
Terminal land connections of Type QCC-6/7050A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Ground
2 Option
3 Output/Input
4 Ground
5 Option
6 Input/Output
– 36 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (6,0) 6,20
―
B (3,5) 3,70
―
G 1,25
― ―
K 0,80 1,20
1 ―
K 0,80 1,20
―
L 1,30 1,70
B
e 4,50
1 ― ―
e 2,50
2 ― ―
y 0,10
― ―
IEC 867/11
Scale
Ceramic, welded, six leadless SMD outline –
5: 1
Type DCC-6/6035A
Sheet 15
+AMD1:2014 © IEC 2014
Terminal land connections of Type DCC-6/6035A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Ground Ground
2 Ground Input/Output
3 Output/Input Ground
4 Ground Ground
5 Ground Output/Input
6 Input/Output Ground
– 38 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (6,0) 6,20
―
B (3,5) 3,70
―
G 1,20
― ―
K 0,86 1,16
―
L 1,30 1,70
B
e 2,54
― ―
e 4,50
1 ― ―
y 0,10
― ―
IEC 868/11
Scale
Ceramic, welded, four leadless SMD outline –
5: 1
Type DCC-4/6035C
Sheet 16
+AMD1:2014 © IEC 2014
Terminal land connections of Type DCC-4/6035C
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1 Control voltage
2 Option Ground
3 Terminal 2 Output
4 Option DC supply
– 40 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (6,0) 6,20
―
B (3,5) 3,70
―
G 1,60
― ―
K 3,30 3,70
―
L 1,30 1,70
B
e1 4,50
― ―
y 0,10
― ―
IEC 869/11
Scale
Ceramic, welded, two leadless SMD outline –
5: 1
Type DCC-2/6035C
Sheet 17
+AMD1:2014 © IEC 2014
Terminal land connections of Type DCC-2/6035C
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1
2 Terminal 2
– 42 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max
A (5,0) 5,20
―
B (5,0) 5,20
―
G 2,00
― ―
K 0,50 0,90
―
L 1,00 1,40 Note 1
B
―
e 1,27
― ―
e 3,80
1 ― ―
y 0,10
― ―
IEC 870/11
NOTE 1 Dimension L max. can be increased to 1.90 mm for lead 8 to identify the orientation.
B
Scale
Ceramic, welded, eight leadless SMD outline –
5: 1
Type QCC-8/5050A
Sheet 18
+AMD1:2014 © IEC 2014
Terminal land connections of Type QCC-8/5050A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Ground
2 Input/Output
3 Ground
4 Ground
5 Ground
6 Output/Input
7 Ground
8 Ground
– 44 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (5,0) 5,20
―
B (4,5) 4,70
―
G 2,00
― ―
K 0,40 0,80
―
L 0,60 1,00
B ―
e 1,27
― ―
y 0,10
― ―
IEC 871/11
Scale
Ceramic, welded, twelve leadless SMD outline –
5: 1
Type QCC-12/5045A
Sheet 19
+AMD1:2014 © IEC 2014
Terminal land connections of Type QCC-12/5045A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Ground
2 To be specified
3 Ground
4 Input/Output /Ground
5 Output/Input
6 Output/Input /Ground
7 Ground
8 To be specified
9 Ground
10 Output/Input /Ground
11 Output/Input
12 Output/Input /Ground
– 46 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (5,0) 5,20
―
B (4,5) 4,70
―
G 2,00
― ―
K 0,50 0,90
―
L 0,60 1,00
B ―
e 1,27
― ―
e 4,20
1 ― ―
y 0,10
― ―
IEC 872/11
Scale
Ceramic, welded, eight leadless SMD outline –
5: 1
Type QCC-8/5045A
Sheet 20
+AMD1:2014 © IEC 2014
Terminal land connections of Type QCC-8/5045A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Control voltage Ground Ground
2 Option Ground Ground
3 Ground Ground Ground
4 Option Input/Output Input/Output
5 Output Ground Ground
6 Option Ground Ground
7 DC supply Ground Ground
8 Option Output/Input Output/Input
– 48 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (5,0) 5,20
―
B (3,2) 3,40
―
G 1,20
― ―
K 1,00 1,40
―
L 0,80 1,20
B ―
e 2,54
― ―
e 2,20
― ―
y 0,10
― ―
IEC 873/11
Scale
Ceramic, welded, four leadless SMD outline –
5: 1
Type DCC-4/5032A
Sheet 21
+AMD1:2014 © IEC 2014
Terminal land connections of Type DCC-4/5032A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Control voltage
2 Ground
3 Output
4 DC supply
– 50 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
M
n.
om. Max.
A (5,0) 5,20
―
B (3,2) 3,40
―
G 0,90
― ―
K 0,70 1,10
―
L 1,00 1,40
B
―
e 2,30
1 ― ―
e 3,80
2 ― ―
y 0,10
― ―
IEC 874/11
Scale
Ceramic, welded, four leadless SMD outline –
5: 1
Type DCC-4/5032C
Sheet 22
+AMD1:2014 © IEC 2014
Terminal land connections of Type DCC-4/5032C
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1 Option
2 Ground Ground
3 Terminal 2 Output
4 Ground DC supply
– 52 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (5,0) 5,20
―
B (3,2) 3,40
―
G 1,10
― ―
K 1,80 2,20
―
L 1,20 1,60
B ―
e 3,60
― ―
y 0,10
― ―
IEC 875/11
Scale
Ceramic, welded, two leadless SMD outline –
5: 1
Type DCC-2/5032B
Sheet 23
+AMD1:2014 © IEC 2014
Terminal land connections of Type DCC-2/5032B
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1
2 Terminal 2
– 54 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (4,8) 5,00
―
B (1,8) 2,00
―
G 0,90
― ―
K 1,60 2,00
―
L 0,70 1,10
B ―
e1 3,90
― ―
y 0,10
― ―
IEC 876/11
Scale
Ceramic, welded, two leadless SMD outline –
10: 1
Type DCC-2/4818C
Sheet 24
+AMD1:2014 © IEC 2014
Terminal land connections of Type DCC-2/4818C
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1
2 Terminal 2
– 56 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (4,1) 4,30
―
B (1,5) 1,70
―
G 0,90
― ―
K 1,30 1,70
―
L 0,50 0,90
B ―
e 3,40
1 ― ―
y 0,10
― ―
IEC 877/11
Scale
Ceramic, welded, two leadless SMD outline –
10: 1
Type DCC-2/4115C
Sheet 25
+AMD1:2014 © IEC 2014
Terminal land connections of Type DCC-2/4115C
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1
2 Terminal 2
– 58 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (4,0) 4,20
―
B (2,5) 2,70
―
G 1,00
― ―
K 0,80 1,20
―
L 0,90 1,30
B ―
e 1,50
1 ― ―
e 2,90
2 ― ―
y 0,10
― ―
IEC 878/11
Scale
Ceramic, welded, four leadless SMD outline – Type
DCC-4/4025C
10: 1
Sheet 26
+AMD1:2014 © IEC 2014
Terminal land connections of Type DCC-4/4025C
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1 Control Voltage
2 Ground Ground
3 Terminal 2 Output
4 Ground DC supply
– 60 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (3,8) 3,90
―
B (3,8) 3,90
―
G 1,10
― ―
K 0,50 0,70
―
L 0,80 1,00
ote 1
B ―
e 1,27
― ―
e1 2,90
― ―
y 0,10
― ―
IEC 879/11
NOTE 1 Dimension L max. can be increased to 2,00 mm for lead 4 to identify the orientation.
B
Scale
Ceramic, welded, eight leadless SMD outline –
10: 1
Type QCC-8/3838A
Sheet 27
+AMD1:2014 © IEC 2014
Terminal land connections of Type QCC-8/3838A
SAW
No. Crystal unit Crystal oscillator Crystal filter
devices
1 Input/Output Input/Output
2 Ground Ground
3 Ground Option
4 Ground Ground
5 Output/Input Option
6 Ground Ground
7 Ground Output/Input
8 Ground Ground
– 62 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (3,8) 3,90
―
B (3,8) 3,90
―
G 1,50
― ―
K 0,50 0,70
―
L 0,90 1,10 Note 1
B
―
e 1,27
― ―
e 2,80
1 ― ―
y 0,10
― ―
IEC 880/11
NOTE 1 Dimension L max. can be increased to 2,05 mm for lead 1 to identify the orientation.
B
Scale
Ceramic, welded, six leadless SMD outline –
10: 1
Type DCC-6/3838A
Sheet 28
+AMD1:2014 © IEC 2014
Terminal land connections of Type DCC-6/3838A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Ground
2 Input/Output
3 Ground
4 Ground
5 Output/Input
6 Ground
– 64 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (3,2) 3,30
―
B 1,50 1,60
―
G 0,90
― ―
K 1,40 1,60
―
L 0,60 0,80
B ―
e 2,50
1 ― ―
y 0,10
― ―
IEC 881/11
Scale
Ceramic, welded, four leadless SMD outline –
10: 1
Type DCC-2/3215C
Sheet 29
+AMD1:2014 © IEC 2014
Terminal land connections of Type DCC-2/3215C
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1
2 Terminal 2
– 66 – IEC 61837-2:2011
+AMD1:2014 © IEC 2014
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (3,2) 3,30
―
B
― (2,5) 2,60
G 0,70
― ―
K 0,65 0,85
―
L 0,90 1,10
B ―
1,75
― ―
e
2,20
― ―
e
y 0,10
― ―
...
IEC 61837-2 ®
Edition 2.0 2011-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Surface mounted piezoelectric devices for frequency control and selection –
Standard outlines and terminal lead connections –
Part 2: Ceramic enclosures
Dispositifs piézoélectriques à montage en surface pour la commande et le choix
de la fréquence – Encombrements normalisés et connexions des sorties –
Partie 2: Enveloppes en céramique
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.
IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 61837-2 ®
Edition 2.0 2011-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Surface mounted piezoelectric devices for frequency control and selection –
Standard outlines and terminal lead connections –
Part 2: Ceramic enclosures
Dispositifs piézoélectriques à montage en surface pour la commande et le choix
de la fréquence – Encombrements normalisés et connexions des sorties –
Partie 2: Enveloppes en céramique
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX XC
ICS 31.140 ISBN 978-2-88912-494-7
– 2 – 61837-2 © IEC:2011
CONTENTS
FO R EW O RD . 3
1 Sc op e . 5
2 Normative references . 5
3 Configuration of enclosures . 5
4 Designation of types . 5
5 Ceramic enclosure dimensions . 6
6 Lead connections . 6
7 Designation of ceramic enclosures . 6
Bibliography . 84
Table 1 – Designation of ceramic enclosures . 6
61837-2 © IEC:2011 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
_____________
SURFACE MOUNTED PIEZOELECTRIC DEVICES
FOR FREQUENCY CONTROL AND SELECTION –
STANDARD OUTLINES AND TERMINAL LEAD CONNECTIONS –
Part 2: Ceramic enclosures
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in
addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses
arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
lnternational Standard IEC 61837-2 has been prepared by lEC technical committee 49:
Piezoelectric, dielectric and electrostatic devices and associated materials for frequency control,
selection and detection.
This second edition cancels and replaces the first edition published in 2000. It constitutes a
technical revision.
In this edition, types of enclosures are renamed to express their features in their names for
better understanding. The relative comparison of new types with old ones is listed in Table. 1.
New names of enclosures express configuration type, terminal lead numbers, sizes and
arrangement of terminal pads. The details of definition are shown in Clause 3: Configuration of
enclosures, and Clause 4: Designation of types.
Enclosures in this new edition are based on IEC 61240. In this standard, 27 enclosures are
added to the first edition of IEC 61837-2, as follows:
– 4 – 61837-2 © IEC:2011
QCC-12/1407A, DCC-2/1206A, QCC-10/9272A, DCC-4/9070A, DCC-2-8045B, DCC-6/7834B,
DCC-6/7050A, QCC-10/7050A, DCC-4/6035C, DCC-2/6035C, QCC-8/5045A, DCC-4/5032A,
DCC-4/5032C, DCC-2/4818C, DCC-2/4115C, QCC-8/3838A, DCC-6/3838A, DCC-4/3225C,
DCC-2/3215C, QCC-8/3030B, DCC-6/3030A, DCC-6/2520A, DCC-4/2520C, DCC-4/2020C,
DCC-4/2016C, DCC-4/1612C, DCC-2/1612C.
As a result, the new version (the second edition) contains a total of 38 enclosure types, which
are listed in Table 1 – Designation of ceramic enclosures.
This standard is to be read in conjunction with IEC 61240.
The text of this standard is based on the following documents:
CDV Report on Voting
49/884/CDV 49/908/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 3.
A list of all parts of the IEC 61837 series, published under the general title: Surface mounted
piezoelectric devices for frequency control and selection – Standard outlines and terminal lead
connections, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until the
stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to
the specific publication. At this date, the publication will be
‡ reconfirmed,
‡ withdrawn,
‡ replaced by a revised edition, or
‡ amended.
61837-2 © IEC:2011 – 5 –
SURFACE MOUNTED PIEZOELECTRIC DEVICES
FOR FREQUENCY CONTROL AND SELECTION –
STANDARD OUTLINES AND TERMINAL LEAD CONNECTIONS –
Part 2: Ceramic enclosures
1 Scope
This part of IEC 61837 deals with standard outlines and terminal lead connections as they apply
to surface-mounted devices (SMD) for frequency control and selection in ceramic enclosures,
and is based on IEC 61240.
2 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of the
referenced document (including any amendments) applies.
IEC 61240, Piezoelectric devices – Preparation of outline drawings of surface-mounted devices
(SMD) for frequency control and selection – General rules
3 Configuration of enclosures
The enclosures of the surface-mounted devices are made of ceramic materials with the
terminals of deposited metal film (leadless type) based on descriptive designation system for
semiconductors – devices package.
The configuration symbols are shown as follows:
– DCC (dual chip carrier);
– QCC (quad chip carrier).
4 Designation of types
The designation of types is shown on four parts as follows:
E
B C
A D D’
A: Configuration symbol of enclosures:
– DCC (dual chip carrier);
– QCC (quad chip carrier).
B: Structure of terminal leads: leadless type has no mark.
C: Number of terminal leads
– 6 – 61837-2 © IEC:2011
D: Serial number of both figures
E: Arrangement of terminal land:
– A (arranges to the width direction side);
– B (arranges in the length direction side);
– C (arranges in both the width and the length direction side).
5 Ceramic enclosure dimensions
The dimensions given in this standard apply to all completed SMD-devices for frequency control
and selection. Only those dimensions which meet the requirements of IEC 61240 are given.
6 Lead connections
Recommendations for the lead connections of all completed SMD-devices for frequency control
and selection are given in the following individual sheets. Lead connections shall always be
given in the detail specification.
7 Designation of ceramic enclosures
Table 1 is a list which includes all new enclosure types with their sheet numbers and brief
descriptions. Old enclosure names are also listed as references.
Table 1 – Designation of ceramic enclosures
No. Type Old type Sheet No. Description
1 QCC-18/1809A QCC-18/01 Sheet 1 Ceramic, welded, eighteen leadless SMD outline
2 QCC-12/1407A Sheet 2 Ceramic, welded, twelve leadless SMD outline
3 DCC-4/1206A DCC-4/01 Sheet 3 Ceramic, four leadless SMD outline
4 DCC-2/1206A Sheet 4 Ceramic, two leadless SMD outline
5 QCC-10/9272A Sheet 5 Ceramic, welded, ten leadless SMD outline
6 DCC-4/9070A Sheet 6 Ceramic, welded, four leadless SMD outline
7 DCC-4/8045B DCC-04/02, 03 Sheet 7 Ceramic, welded, four leadless SMD outline
8 DCC-2/8045B Sheet 8 Ceramic, welded, two leadless SMD outline
9 DCC-6/7834B Sheet 9 Ceramic, welded, six leadless SMD outline
10 DCC-6/7050A Sheet 10 Ceramic, welded, six leadless SMD outline
11 DCC-4/7050A DCC-4/08 Sheet 11 Ceramic, welded, four leadless SMD outline
12 DCC-4/7050B DCC-4/04, 05 Sheet 12 Ceramic, welded, four leadless SMD outline
13 QCC-10/7050A Sheet 13 Ceramic, welded, ten leadless SMD outline
14 QCC-6/7050A QCC-6/01, 02 Sheet 14 Ceramic, welded, six leadless SMD outline
15 DCC-6/6035A DCC-4/06, 07 Sheet 15 Ceramic, welded, six leadless SMD outline
16 DCC-4/6035C Sheet 16 Ceramic, welded, four leadless SMD outline
17 DCC-2/6035C Sheet 17 Ceramic, welded, two leadless SMD outline
18 QCC-8/5050A QCC-8/02 Sheet 18 Ceramic, welded, eight leadless SMD outline
19 QCC-12/5045A QCC-12/02 Sheet 19 Ceramic, welded, twelve leadless SMD outline
20 QCC-8/5045A Sheet 20 Ceramic, welded, eight leadless SMD outline
61837-2 © IEC:2011 – 7 –
No. Type Old type Sheet No. Description
21 DCC-4/5032A Sheet 21 Ceramic, welded, four leadless SMD outline
22 DCC-4/5032C Sheet 22 Ceramic, welded, four leadless SMD outline
23 DCC-2/5032B DCC-2/01 Sheet 23 Ceramic, welded, two leadless SMD outline
24 DCC-2/4818C Sheet 24 Ceramic, welded, two leadless SMD outline
25 DCC-2/4115C Sheet 25 Ceramic, welded, two leadless SMD outline
26 DCC-4/4025C DCC-6/01 Sheet 26 Ceramic, welded, four leadless SMD outline
27 QCC-8/3838A Sheet 27 Ceramic, welded, eight leadless SMD outline
28 DCC-6/3838A Sheet 28 Ceramic, welded, six leadless SMD outline
29 DCC-2/3215C Sheet 29 Ceramic, welded, two leadless SMD outline
30 DCC-4/3225C Sheet 30 Ceramic, welded, four leadless SMD outline
31 QCC-8/3030B Sheet 31 Ceramic, welded, eight leadless SMD outline
32 DCC-6/3030A Sheet 32 Ceramic, welded, six leadless SMD outline
33 DCC-6/2520A Sheet 33 Ceramic, welded, six leadless SMD outline
34 DCC-4/2520C Sheet 34 Ceramic, welded, four leadless SMD outline
35 DCC-4/2020C Sheet 35 Ceramic, welded, four leadless SMD outline
36 DCC-4/2016C Sheet 36 Ceramic, welded, four leadless SMD outline
37 DCC-4/1612C Sheet 37 Ceramic, welded, four leadless SMD outline
38 DCC-2/1612C Sheet 38 Ceramic, welded, two leadless SMD outline
– 8 – 61837-2 © IEC:2011
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (18,0) 18,30
ʊ
B (9,0) 9,30
ʊ
G
ʊ ʊ 2,00
K 0,50 1,10
ʊ
L 1,20 1,80 Note 1
B ʊ
e 2,54
ʊ ʊ
y
ʊ ʊ 0,10
IEC 853/11
NOTE 1 Dimension L max. can be increased to 2,10mm for lead 1 to identity the orientation.
B
Scale
Ceramic, welded, eighteen leadless SMD outline –
3: 1
Type QCC-18/1809A
Sheet 1
61837-2 © IEC:2011 – 9 –
Terminal land connections of Type QCC-18/1809A
Crystal
No. Crystal unit Crystal filter SAW devices
oscillator
1 Ground
2 Option
3 Option
4 Option
5 Option
6 Ground
7 Input/Output
8 Ground
9 Input/Output /Ground
10 Ground
11 Option
12 Option
13 Option
14 Option
15 Ground
16 Output/Input
17 Ground
18 Output/Input /Ground
– 10 – 61837-2 © IEC:2011
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (14,0) 14,30
ʊ
B (6,5) 6,80
ʊ
G 2,00
ʊ ʊ
K 0,50 1,10
ʊ
L 1,80 2,30 Note 1
B ʊ
e 2,54
ʊ ʊ
y 0,10
ʊ ʊ
IEC 854/11
NOTE 1 Dimension L max. can be increased to 2,10 mm for lead 1 to identify the orientation.
B
Scale
Ceramic, welded, twelve leadless SMD outline –
3: 1
Type QCC-12/1407A
Sheet 2
61837-2 © IEC:2011 – 11 –
Terminal land connections of Type QCC-12/1407A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Option
2 Option
3 Ground
4 Option
5 Output/Input
6 Output/Input /Ground
7 Option
8 Ground
9 Option
10 Option
11 Input/Output
12 Input/Output /Ground
– 12 – 61837-2 © IEC:2011
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
(12,0) 12,30
ʊ
B (5,5) 5,80
ʊ
G 2,30
ʊ ʊ
K 1,80 2,20
ʊ
L 1,30 1,90
B ʊ
e 5,08
ʊ ʊ
e 3,90
1 ʊ ʊ
y 0,10
ʊ ʊ
IEC 855/11
Scale
Ceramic, welded, four leadless SMD outline –
3: 1
Type DCC-4/1206A
Sheet 3
61837-2 © IEC:2011 – 13 –
Terminal land connections of Type DCC-4/1206A
Crystal
No. Crystal unit Crystal filter SAW devices
oscillator
1 Terminal 1 Control voltage
2 NC Ground
3 Terminal 2 Output
4 NC DC supply
– 14 – 61837-2 © IEC:2011
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (12,0) 12,30
ʊ
B (5,5) 5,80
ʊ
G 2,70
ʊ ʊ
K 1,60 2,20
ʊ
L 5,20 5,80
B
ʊ
e 5,08
ʊ ʊ
y 0,10
ʊ ʊ
IEC 856/11
Scale
Ceramic, welded, two leadless SMD outline –
3: 1
Type DCC-2/1206A
Sheet 4
61837-2 © IEC:2011 – 15 –
Terminal land connections of Type DCC-2/1206A
Crystal
No. Crystal unit Crystal filter SAW devices
oscillator
1 Terminal 1
2 Terminal 2
– 16 – 61837-2 © IEC:2011
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A ʊ (9,2) 9,50
B ʊ (7,2) 7,50
G ʊ ʊ 2,00
K 0,60 ʊ 1,20
L 0,80 ʊ 1,40 Note 1
B
e ʊ 2,54 ʊ
y ʊ ʊ 0,10
IEC 857/11
NOTE 1 Dimension L max. can be increased to 2,00 mm for lead 1 to identify the orientation.
B
Scale
Ceramic, welded, ten leadless SMD outline –
5: 1
Type QCC-10/9272A
Sheet 5
61837-2 © IEC:2011 – 17 –
Terminal land connections of Type QCC-10/9272A
Crystal
No. Crystal unit Crystal filter SAW devices
oscillator
1 Input/Output /Ground
2 Input/Output
3 Ground
4 Ground
5 Ground
6 Output/Input /Ground
7 Output/Input
8 Option
9 Ground
10 Ground
– 18 – 61837-2 © IEC:2011
Dimensions (mm)
Ref. Notes
Min. Nom. Max.
A (9,0) 9,30
ʊ
B (7,0) 7,30
ʊ
G 2,00
ʊ ʊ
K 1,10 1,70
ʊ
L 0,90 1,50
B
ʊ
e 5,08
ʊ ʊ
e 5,80
1 ʊ ʊ
y 0,10
ʊ ʊ
IEC 858/1 1
Scale
Ceramic, welded, four leadless SMD outline –
5: 1
Type DCC-4/9070A
Sheet 6
61837-2 © IEC:2011 – 19 –
Terminal land connections of Type DCC-4/9070A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Control voltage
2 Ground
3 Output
4 DC supply
– 20 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (8,0) 8,30
ʊ
B (4,5) 4,80
ʊ
G 2,00
ʊ ʊ
K 0,70 1,30
ʊ
L 0,80 1,40
B
ʊ
e 2,54
ʊ ʊ
e 6,90
1 ʊ ʊ
y 0,10
ʊ ʊ
IEC 859/11
Scale
Ceramic, welded, four leadless SMD outline –
5: 1
Type DCC-4/8045B
Sheet 7
61837-2 © IEC:2011 – 21 –
Terminal land connections of Type DCC-4/8045B
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1 Control voltage
2 Option Ground
3 Terminal 2 Output
4 Option DC supply
– 22 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. m. Max
A (8,0) 8,30
ʊ
B (4,5) 4,80
ʊ
G 1,60
ʊ ʊ
K 1,60 2,20
ʊ
L 0,70 1,30
B ʊ
e 7,0
ʊ ʊ
y 0,10
ʊ ʊ
IEC 860/11
Scale
Ceramic, welded, two leadless SMD outline –
5: 1
Type DCC-2/8045B
Sheet 8
61837-2 © IEC:2011 – 23 –
Terminal land connections of Type DCC-2/8045B
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1
2 Terminal 2
– 24 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (7,8) 8,10
ʊ
B (3,4) 3,70
ʊ
G 1,20
ʊ ʊ
K 0,70 1,30
1 ʊ
K 0,30 0,90
ʊ
L 1,10 1,70
B1 ʊ
L 0,80 1,40
B2 ʊ
e 2,80
1 ʊ ʊ
e 6,70
ʊ ʊ
y 0,10
ʊ ʊ
IEC 861/11
Scale
Ceramic, welded, six leadless SMD outline –
5: 1
Type DCC-6/7834B
Sheet 9
61837-2 © IEC:2011 – 25 –
Terminal land connections of Type DCC-6/7834B
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Option
2 Option
3 Teminal 1
4 Option
5 Option
6 Teminal 2
– 26 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (7,0) 7,30
ʊ
B (5,0) 5,30
ʊ
G 2,00
ʊ ʊ
K 1,10 1,70
ʊ
L 0,80 1,40
B
ʊ
e 2,54
ʊ ʊ
e 3,90
1 ʊ ʊ
y 0,10
ʊ ʊ
IEC 862/11
Scale
Ceramic, welded, six leadless SMD outline –
5: 1
Type DCC-6/7050A
Sheet 10
61837-2 © IEC:2011 – 27 –
Terminal land connections of Type DCC-6/7050A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Output enable
2 NC
3 Ground
4 Output
5 Output
6 DC supply
– 28 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (7,0) 7,30
ʊ
B (5,0) 5,30
ʊ
G 1,90
ʊ ʊ
K 1,10 1,70
ʊ
L 0,90 1,50
B
ʊ
e 5,08
ʊ ʊ
e 3,80
1 ʊ ʊ
0,10
ʊ ʊ
IEC 863/11
Scale
Ceramic, welded, four leadless SMD outline –
5: 1
Type DCC-4/7050A
Sheet 11
61837-2 © IEC:2011 – 29 –
Terminal land connections of Type DCC-4/7050A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Control voltage
2 Ground
3 Output
4 DC supply
– 30 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (7,0) 7,30
ʊ
B (5,0) 5,30
ʊ
G 1,50
ʊ ʊ
K 0,70 1, 30
ʊ
L 0,70 1,3
B
ʊ
e 2,54
ʊ ʊ
e 6,00
1 ʊ ʊ
y 0,10
ʊ ʊ
IEC 864/11
Scale
Ceramic, welded, four leadless SMD outline –
5: 1
Type DCC-4/7050B
Sheet 12
61837-2 © IEC:2011 – 31 –
Terminal land connections of Type DCC-4/7050B
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1
2 Option
3 Terminal 2
4 Option
– 32 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (7,0) 7,30
ʊ
B (5,0) 5,30
ʊ
G 2,00
ʊ ʊ
K 0,40 1,00
ʊ
L 0,80 1,20 Note 1
B
ʊ
e 1,27
ʊ ʊ
e 4,00
1 ʊ ʊ
y 0,10
ʊ ʊ
IEC 865/11
NOTE 1 Dimension L max. can be increased to 1,60 mm for lead 1 to identify the orientation.
B
Scale
Ceramic, welded, ten leadless SMD outline –
5: 1
Type QCC-10/7050A
Sheet 13
61837-2 © IEC:2011 – 33 –
Terminal land connections of Type QCC-10/7050A
Crystal
No. Crystal unit Crystal oscillator SAW devices
filter
1 Option Option
2 Option Output/Input
3 Option Option
4 Ground Option
5 Output Option
6 Option Option
7 Option Input/Output
8 Option Option
9 DC supply Ground
Option/Control
10 Ground
voltage
– 34 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (7,0) 7,30
ʊ
B (5,0) 5,30
ʊ
G 1,50
ʊ ʊ
K 0,70 1,30
ʊ
L 0,70 1,30
B
ʊ
e 2,54
ʊ ʊ
e 6,00
1 ʊ ʊ
y 0,10
ʊ ʊ
IEC 866/11
Ceramic, welded, six leadless SMD outline – Scale
Type QCC-6/7050A 5: 1
Sheet 14
61837-2 © IEC:2011 – 35 –
Terminal land connections of Type QCC-6/7050A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Ground
2 Option
3 Output/Input
4 Ground
5 Option
6 Input/Output
– 36 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (6,0) 6,20
ʊ
B (3,5) 3,70
ʊ
G 1,25
ʊ ʊ
K 0,80 1,20
1 ʊ
K 0,80 1,20
2 ʊ
L 1,30 1,70
B
e 4,50
1 ʊ ʊ
e 2,50
2 ʊ ʊ
y 0,10
ʊ ʊ
IEC 867/11
Scale
Ceramic, welded, six leadless SMD outline –
5: 1
Type DCC-6/6035A
Sheet 15
61837-2 © IEC:2011 – 37 –
Terminal land connections of Type DCC-6/6035A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Ground Ground
2 Ground Input/Output
3 Output/Input Ground
4 Ground Ground
5 Ground Output/Input
6 Input/Output Ground
– 38 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (6,0) 6,20
ʊ
B (3,5) 3,70
ʊ
G 1,20
ʊ ʊ
K 0,86 1,16
ʊ
L 1,30 1,70
B
e 2,54
ʊ ʊ
e 4,50
1 ʊ ʊ
y 0,10
ʊ ʊ
IEC 868/11
Scale
Ceramic, welded, four leadless SMD outline –
5: 1
Type DCC-4/6035C
Sheet 16
61837-2 © IEC:2011 – 39 –
Terminal land connections of Type DCC-4/6035C
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1 Control voltage
2 Option Ground
3 Terminal 2 Output
4 Option DC supply
– 40 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (6,0) 6,20
ʊ
B (3,5) 3,70
ʊ
G 1,60
ʊ ʊ
K 3,30 3,70
ʊ
L 1,30 1,70
B
e 4,50
1 ʊ ʊ
y 0,10
ʊ ʊ
IEC 869/11
Scale
Ceramic, welded, two leadless SMD outline –
5: 1
Type DCC-2/6035C
Sheet 17
61837-2 © IEC:2011 – 41 –
Terminal land connections of Type DCC-2/6035C
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1
2 Terminal 2
– 42 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max
A (5,0) 5,20
ʊ
B (5,0) 5,20
ʊ
G 2,00
ʊ ʊ
K 0,50 0,90
ʊ
L 1,00 1,40 Note 1
B
ʊ
e 1,27
ʊ ʊ
e 3,80
1 ʊ ʊ
y 0,10
ʊ ʊ
IEC 870/11
NOTE 1 Dimension L max. can be increased to 1.90 mm for lead 8 to identify the orientation.
B
Scale
Ceramic, welded, eight leadless SMD outline –
5: 1
Type QCC-8/5050A
Sheet 18
61837-2 © IEC:2011 – 43 –
Terminal land connections of Type QCC-8/5050A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Ground
2 Input/Output
3 Ground
4 Ground
5 Ground
6 Output/Input
7 Ground
8 Ground
– 44 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (5,0) 5,20
ʊ
B (4,5) 4,70
ʊ
G 2,00
ʊ ʊ
K 0,40 0,80
ʊ
L 0,60 1,00
B
ʊ
e 1,27
ʊ ʊ
y 0,10
ʊ ʊ
IEC 871/11
Scale
Ceramic, welded, twelve leadless SMD outline –
5: 1
Type QCC-12/5045A
Sheet 19
61837-2 © IEC:2011 – 45 –
Terminal land connections of Type QCC-12/5045A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Ground
2 To be specified
3 Ground
4 Input/Output /Ground
5 Output/Input
6 Output/Input /Ground
7 Ground
8 To be specified
9 Ground
10 Output/Input /Ground
11 Output/Input
12 Output/Input /Ground
– 46 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (5,0) 5,20
ʊ
B (4,5) 4,70
ʊ
G 2,00
ʊ ʊ
K 0,50 0,90
ʊ
L 0,60 1,00
B
ʊ
e 1,27
ʊ ʊ
e 4,20
1 ʊ ʊ
y 0,10
ʊ ʊ
IEC 872/11
Scale
Ceramic, welded, eight leadless SMD outline –
5: 1
Type QCC-8/5045A
Sheet 20
61837-2 © IEC:2011 – 47 –
Terminal land connections of Type QCC-8/5045A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Control voltage Ground Ground
2 Option Ground Ground
3 Ground Ground Ground
4 Option Input/Output Input/Output
5 Output Ground Ground
6 Option Ground Ground
7 DC supply Ground Ground
8 Option Output/Input Output/Input
– 48 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (5,0) 5,20
ʊ
B (3,2) 3,40
ʊ
G 1,20
ʊ ʊ
K 1,00 1,40
ʊ
L 0,80 1,20
B
ʊ
e 2,54
ʊ ʊ
e 2,20
1 ʊ ʊ
y 0,10
ʊ ʊ
IEC 873/11
Scale
Ceramic, welded, four leadless SMD outline –
5: 1
Type DCC-4/5032A
Sheet 21
61837-2 © IEC:2011 – 49 –
Terminal land connections of Type DCC-4/5032A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Control voltage
2 Ground
3 Output
4 DC supply
– 50 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. 1om. 0ax.
A (5,0) 5,20
ʊ
B (3,2) 3,40
ʊ
G 0,90
ʊ ʊ
K 0,70 1,10
ʊ
L 1,00 1,40
B
ʊ
e 2,30
1 ʊ ʊ
e 3,80
2 ʊ ʊ
y 0,10
ʊ ʊ
IEC 874/11
Scale
Ceramic, welded, four leadless SMD outline –
5: 1
Type DCC-4/5032C
Sheet 22
61837-2 © IEC:2011 – 51 –
Terminal land connections of Type DCC-4/5032C
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1 Option
2 Ground Ground
3 Terminal 2 Output
4 Ground DC supply
– 52 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (5,0) 5,20
ʊ
B (3,2) 3,40
ʊ
G 1,10
ʊ ʊ
K 1,80 2,20
ʊ
L 1,20 1,60
B
ʊ
e 3,60
1 ʊ ʊ
y 0,10
ʊ ʊ
IEC 875/11
Scale
Ceramic, welded, two leadless SMD outline –
5: 1
Type DCC-2/5032B
Sheet 23
61837-2 © IEC:2011 – 53 –
Terminal land connections of Type DCC-2/5032B
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1
2 Terminal 2
– 54 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (4,8) 5,00
ʊ
B (1,8) 2,00
ʊ
G 0,90
ʊ ʊ
K 1,60 2,00
ʊ
L 0,70 1,10
B
ʊ
e 3,90
1 ʊ ʊ
y 0,10
ʊ ʊ
IEC 876/11
Scale
Ceramic, welded, two leadless SMD outline –
10: 1
Type DCC-2/4818C
Sheet 24
61837-2 © IEC:2011 – 55 –
Terminal land connections of Type DCC-2/4818C
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1
2 Terminal 2
– 56 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (4,1) 4,30
ʊ
B (1,5) 1,70
ʊ
G 0,90
ʊ ʊ
K 1,30 1,70
ʊ
L 0,50 0,90
B
ʊ
e 3,40
1 ʊ ʊ
y 0,10
ʊ ʊ
IEC 877/11
Scale
Ceramic, welded, two leadless SMD outline –
10: 1
Type DCC-2/4115C
Sheet 25
61837-2 © IEC:2011 – 57 –
Terminal land connections of Type DCC-2/4115C
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1
2 Terminal 2
– 58 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (4,0) 4,20
ʊ
B (2,5) 2,70
ʊ
G 1,00
ʊ ʊ
K 0,80 1,20
ʊ
L 0,90 1,30
B
ʊ
e 1,50
1 ʊ ʊ
e 2,90
2 ʊ ʊ
y 0,10
ʊ ʊ
IEC 878/11
Scale
Ceramic, welded, four leadless SMD outline – Type
DCC-4/4025C
10: 1
Sheet 26
61837-2 © IEC:2011 – 59 –
Terminal land connections of Type DCC-4/4025C
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1 Control Voltage
2 Ground Ground
3 Terminal 2 Output
4 Ground DC supply
– 60 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (3,8) 3,90
ʊ
B (3,8) 3,90
ʊ
G 1,10
ʊ ʊ
K 0,50 0,70
ʊ
L 0,80 1,00 ote 1
B
ʊ
e 1,27
ʊ ʊ
e 2,90
1 ʊ ʊ
y 0,10
ʊ ʊ
IEC 879/11
NOTE 1 Dimension L max. can be increased to 2,00 mm for lead 4 to identify the orientation.
B
Scale
Ceramic, welded, eight leadless SMD outline –
10: 1
Type QCC-8/3838A
Sheet 27
61837-2 © IEC:2011 – 61 –
Terminal land connections of Type QCC-8/3838A
SAW
No. Crystal unit Crystal oscillator Crystal filter
devices
1 Input/Output Input/Output
2 Ground Ground
3 Ground Option
4 Ground Ground
5 Output/Input Option
6 Ground Ground
7 Ground Output/Input
8 Ground Ground
– 62 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (3,8) 3,90
ʊ
B (3,8) 3,90
ʊ
G 1,50
ʊ ʊ
K 0,50 0,70
ʊ
L 0,90 1,10 Note 1
B
ʊ
e 1,27
ʊ ʊ
e 2,80
1 ʊ ʊ
y 0,10
ʊ ʊ
IEC 880/11
NOTE 1 Dimension L max. can be increased to 2,05 mm for lead 1 to identify the orientation.
B
Scale
Ceramic, welded, six leadless SMD outline –
10: 1
Type DCC-6/3838A
Sheet 28
61837-2 © IEC:2011 – 63 –
Terminal land connections of Type DCC-6/3838A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Ground
2 Input/Output
3 Ground
4 Ground
5 Output/Input
6 Ground
– 64 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (3,2) 3,30
ʊ
B 1,50 1,60
ʊ
G 0,90
ʊ ʊ
K 1,40 1,60
ʊ
L 0,60 0,80
B ʊ
e 2,50
1 ʊ ʊ
y 0,10
ʊ ʊ
IEC 881/11
Scale
Ceramic, welded, four leadless SMD outline –
10: 1
Type DCC-2/3215C
Sheet 29
61837-2 © IEC:2011 – 65 –
Terminal land connections of Type DCC-2/3215C
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1
2 Terminal 2
– 66 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A ʊ (3,2) 3,30
B
ʊ (2,5) 2,60
G 0,70
ʊ ʊ
K 0,65 0,85
ʊ
L 0,90 ʊ 1,10
B
1,75
ʊ ʊ
e
2,20
e ʊ ʊ
y 0,10
ʊ ʊ
IEC 882/11
Scale
Ceramic, welded, four leadless SMD outline –
10: 1
Type DCC-4/3225C
Sheet 30
61837-2 © IEC:2011 – 67 –
Terminal land connections of Type DCC-4/3225C
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1 Control voltage
2 Option Ground
3 Terminal 2 Output
4 Option DC supply
– 68 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (3,0) 3,10
ʊ
B (3,0) 3,10
ʊ
G 1,15
ʊ ʊ
K 0,60 0,80
1 ʊ
K 0,50 0,70
ʊ
L 0,70 0,90 te 1
B ʊ
2,20
e
1 ʊ ʊ
e 1,15
2 ʊ ʊ
y 0,10
ʊ ʊ
IEC 883/11
NOTE 1 Dimension L max. can be increased to 1,60 mm for lead 4 to identify the orientation.
B
Ceramic, welded, eight leadless SMD outline – Scale
Type QCC-8/3030B 10: 1
Sheet 31
61837-2 © IEC:2011 – 69 –
Terminal land connections of Type QCC-8/3030B
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Input/Output Input/Output l
2 Ground Ground
3 Ground Option
4 Ground Ground
5 Output/Input Option
6 Ground Ground
7 Ground Output/Input
8 Ground Ground
– 70 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (3,0) 3,10
ʊ
B (3,0) 3,10
ʊ
G 1,40
ʊ ʊ
K 0,50 0,70
ʊ
L 0,70 0,90 Note 1
B
ʊ
2,20
e
1 ʊ ʊ
e 1,20
2 ʊ ʊ
y 0,10
ʊ ʊ
IEC 884/11
NOTE 1 Dimension L max. can be increased to 1,60 mm for lead 6 to identify the orientation.
B
Scale
Ceramic, welded, six leadless SMD outline –
10: 1
Type DCC-6/3030A
Sheet 32
61837-2 © IEC:2011 – 71 –
Terminal land connections of Type DCC-6/3030A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Ground
2 Input/Output
3 Ground
4 Ground
5 Output/Input
6 Ground
– 72 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. Nom. Max.
A (2,5) 2,60
ʊ
B (2,0) 2,10
ʊ
G 0,70
ʊ ʊ
K 0,40 0,60
1 ʊ
K 0,35 0,55
2 ʊ
L 0,55 0,75
B
ʊ
1,35
e
1 ʊ ʊ
e 1,00
2 ʊ ʊ
y 0,10
ʊ ʊ
IEC 885/11
Scale
Ceramic, welded, six leadless SMD outline –
10: 1
Type DCC-6/2520A
Sheet 33
61837-2 © IEC:2011 – 73 –
Terminal land connections of Type DCC-6/2520A
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Option
2 Ground
3 Output/Input
4 Option
5 Ground
6 Input/Output
– 74 – 61837-2 © IEC:2011
Dimensions (mm
Ref. Notes
Min. om. Max.
A (2,5) 2,60
ʊ
B (2,0) 2,10
ʊ
G 0,70
ʊ ʊ
K 0,60 0,80
ʊ
L 0,70 0,90
B
ʊ
1,30
e
1 ʊ ʊ
e 1,70
2 ʊ ʊ
y 0,10
ʊ ʊ
IEC 886/11
Scale
Ceramic, welded, four leadless SMD outline –
10: 1
Type DCC-4/2520C
Sheet 34
61837-2 © IEC:2011 – 75 –
Terminal land connections of Type DCC-4/2520C
No. Crystal unit Crystal oscillator Crystal filter SAW devices
1 Terminal 1 Control voltage
2 Ground Ground
3 Terminal 2 Output
4 Ground DC supply
– 76 – 61837-2 © IEC:2011
Dimensions (mm
Ref. N tes
Min. Nom. Max.
A (2,0) 2,10
ʊ
B (2,0) 2,10
ʊ
G 1,20
ʊ ʊ
K 0,50 0
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
