IEC 60245-4:1994/AMD1:1997
(Amendment)Amendment 1 - Rubber insulated cables - Rated voltages up to and including 450/750 V - Part 4: Cords and flexible cables
Amendment 1 - Rubber insulated cables - Rated voltages up to and including 450/750 V - Part 4: Cords and flexible cables
This standard defines the test methods used for the determination of the following geometrical characteristics of magnetic steel sheet and strip: flatness, residual curvature, edge camber, deviation from the shearing line, burr height of cut edges.
Amendement 1 - Conducteurs et câbles isolés au caoutchouc - Tension assignée au plus égale à 450/750 V - Partie 4: Câbles souples
Cette norme définit les méthodes d'essai à utiliser pour la détermination des caractéristiques géométriques suivantes des tôles magnétiques en acier: planéité, courbure résiduelle, rectitude, déviation par rapport à la ligne de cisaillage, hauteur de bavure des rives cisaillées.
General Information
- Status
- Published
- Publication Date
- 23-Jun-1997
- Technical Committee
- TC 20 - Electric cables
- Drafting Committee
- WG 17 - TC 20/WG 17
- Current Stage
- DELPUB - Deleted Publication
- Start Date
- 29-Sep-2011
- Completion Date
- 26-Oct-2025
Relations
- Effective Date
- 05-Sep-2023
- Effective Date
- 05-Sep-2023
Overview
IEC 60245-4:1994/AMD1:1997 is an important international amendment issued by the International Electrotechnical Commission (IEC) focused on rubber insulated cables with rated voltages up to and including 450/750 V. This amendment, Part 4 of the series, specifically addresses cords and flexible cables, providing updated and precise specifications for dimensions, insulation, and sheath thicknesses of these cable types.
The amendment updates several tables with new dimensional requirements for Type 245 cables (based on IEC 51, 53, 57, 58, and 66), ensuring enhanced uniformity, safety, and performance in flexible rubber insulated cables used widely in electrical installations.
Key Topics
Scope and Purpose
The amendment refines the dimensional characteristics of rubber insulated flexible cords and cables, focusing on rated voltages up to 450/750 V. It defines precise values for:- Number and nominal cross-sectional area of conductors
- Thickness of insulation and sheath layers
- Mean overall diameter (including lower and upper limits)
Updated Dimensional Tables
Several key tables are revised in this amendment to specify:- Thickness specifications for insulation and sheaths
- Minimum and maximum diameters for cables with varying conductor counts and cross-sectional areas
- Layer structure of sheaths including single and double-layer configurations
Cable Types Covered
The tables provide detailed dimensional data for Type 245 flexible cables per IEC 51, 53, 57, 58, and 66 standards, covering:- Single conductor cables
- Multi-conductor configurations (e.g., 2-core, 3-core)
- Varied cross-sectional conductor sizes from 0.75 mm² up to 400 mm²
Technical Committee and Document Origin
Prepared by IEC Technical Committee 20, Subcommittee 20B, which specializes in low-voltage electric cables. This amendment was based on consensus voting and technical reviews (Documents 20B/230/FDIS and 20B/245/RVD).
Applications
Electrical Wiring and Power Distribution
Ensures cables used for flexible power connections comply with internationally recognized dimensions, crucial for electrical safety and performance.Flexible Cable Manufacturing
Manufacturers can use this standard to design and produce rubber insulated flexible cords and cables that meet strict IEC requirements. This supports consistent quality and compatibility in the global market.Product Testing and Quality Assurance
The amendment defines parameters that facilitate standardized inspection, mechanical testing, and certification processes during quality control of flexible cables.Industrial, Commercial, and Domestic Environments
Flexibility and durability of rubber insulated cables specified here suit applications ranging from household appliances to industrial machinery, where cables may undergo bending and mechanical stress.
Related Standards
IEC 60245 Series
Other parts of IEC 60245 cover different voltage ratings, cable types, and insulation materials for rubber insulated cables beyond the flexible cords addressed in Part 4.IEC 60502
Standard for power cables with extruded insulation, complementing rubber insulated cables for different voltage ranges and installation methods.IEC 60332 Series
Standards specifying fire resistance and flame propagation properties for electrical cables, often used in conjunction with dimensional and mechanical standards such as IEC 60245-4.ISO/IEC 80079
For cables used in explosive atmospheres, ensuring additional safety compliance beyond the dimensional scope of IEC 60245-4.
Keywords: IEC 60245-4 amendment, rubber insulated flexible cables, cords, rated voltage 450/750 V, low voltage cables, cable dimensions, insulation thickness, sheath thickness, Type 245 cables, IEC cable standards, electrical cable manufacturing, cable quality assurance.
Frequently Asked Questions
IEC 60245-4:1994/AMD1:1997 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Amendment 1 - Rubber insulated cables - Rated voltages up to and including 450/750 V - Part 4: Cords and flexible cables". This standard covers: This standard defines the test methods used for the determination of the following geometrical characteristics of magnetic steel sheet and strip: flatness, residual curvature, edge camber, deviation from the shearing line, burr height of cut edges.
This standard defines the test methods used for the determination of the following geometrical characteristics of magnetic steel sheet and strip: flatness, residual curvature, edge camber, deviation from the shearing line, burr height of cut edges.
IEC 60245-4:1994/AMD1:1997 is classified under the following ICS (International Classification for Standards) categories: 29.030 - Magnetic materials; 29.060.20 - Cables; 77.140.50 - Flat steel products and semi-products. The ICS classification helps identify the subject area and facilitates finding related standards.
IEC 60245-4:1994/AMD1:1997 has the following relationships with other standards: It is inter standard links to IEC 60245-4:1994, IEC 60245-4:2011. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
IEC 60245-4:1994/AMD1:1997 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
NORME
CEI
INTERNATIONALE
IEC
60245-4
INTERNATIONAL
STANDARD
AMENDEMENT 1
AMENDMENT 1
1997-06
Amendement 1
Conducteurs et câbles isolés au caoutchouc –
Tension assignée au plus égale à 450/750 V –
Partie 4:
Câbles souples
Amendment 1
Rubber insulated cables –
Rated voltages up to and including 450/750 V –
Part 4:
Cords and flexible cables
IEC 1997 Droits de reproduction réservés Copyright - all rights reserved
International Electrotechnical Commission 3, rue de Varembé Geneva, Switzerland
Telefax: +41 22 919 0300 e-mail: inmail@iec.ch IEC web site http: //www.iec.ch
CODE PRIX
Commission Electrotechnique Internationale
PRICE CODE G
International Electrotechnical Commission
Pour prix, voir catalogue en vigueur
For price, see current catalogue

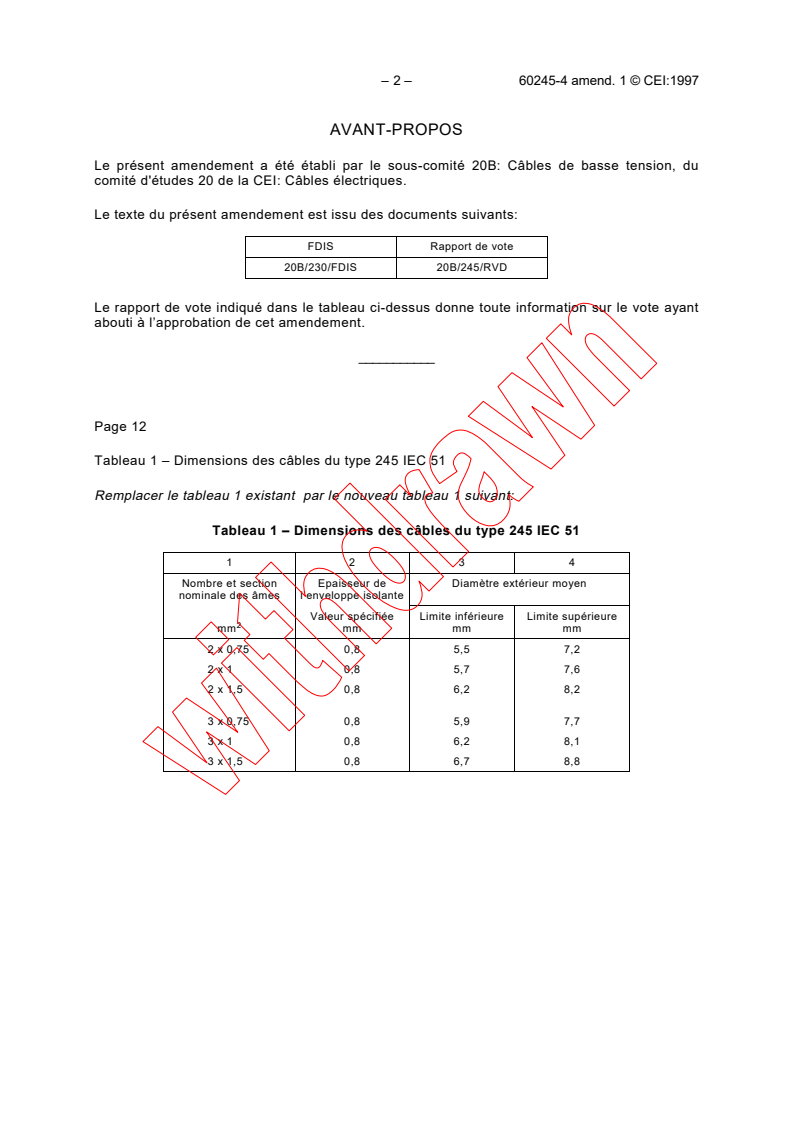

– 2 – 60245-4 amend. 1 © CEI:1997
AVANT-PROPOS
Le présent amendement a été établi par le sous-comité 20B: Câbles de basse tension, du
comité d'études 20 de la CEI: Câbles électriques.
Le texte du présent amendement est issu des documents suivants:
FDIS Rapport de vote
20B/230/FDIS 20B/245/RVD
Le rapport de vote indiqué dans le tableau ci-dessus donne toute information sur le vote ayant
abouti à l’approbation de cet amendement.
___________
Page 12
Tableau 1 – Dimensions des câbles du type 245 IEC 51
Remplacer le tableau 1 existant par le nouveau tableau 1 suivant:
Tableau 1 – Dimensions des câbles du type 245 IEC 51
12 3 4
Nombre et section Epaisseur de Diamètre extérieur moyen
nominale des âmes l’enveloppe isolante
Valeur spécifiée Limite inférieure Limite supérieure
mm mm mm mm
2 x 0,75 0,8 5,5 7,2
2 x 1 0,8 5,7 7,6
2 x 1,5 0,8 6,2 8,2
3 x 0,75 0,8 5,9 7,7
3 x 1 0,8 6,2 8,1
3 x 1,5 0,8 6,7 8,8
60245-4 Amend. 1 © IEC:1997 – 3 –
FOREWORD
This amendment has been prepared by subcommittee 20B: Low-voltage cables, of IEC
technical committee 20: Electric cables.
The text of this amendment is based on the following documents:
FDIS Report on voting
20B/230/FDIS 20B/245/RVD
Full information on the voting for the approval of this amendment can be found in the report on
voting indicated in the above table.
___________
Page 13
Table 1 – Dimensions of type 245 IEC 51
Replace the existing table 1 by the following new table 1:
Table 1 – Dimensions of type 245 IEC 51
12 3 4
Number and nominal Thickness of Mean overall diameter
cross-sectional area of insulation
conductors
Specified value Lower limit Upper limit
mm mm mm mm
2 x 0,75 0,8 5,5 7,2
2 x 1 0,8 5,7 7,6
2 x 1,5 0,8 6,2 8,2
3 x 0,75 0,8 5,9 7,7
3 x 1 0,8 6,2 8,1
3 x 1,5 0,8 6,7 8,8
– 4 – 60245-4 amend. 1 © CEI:1997

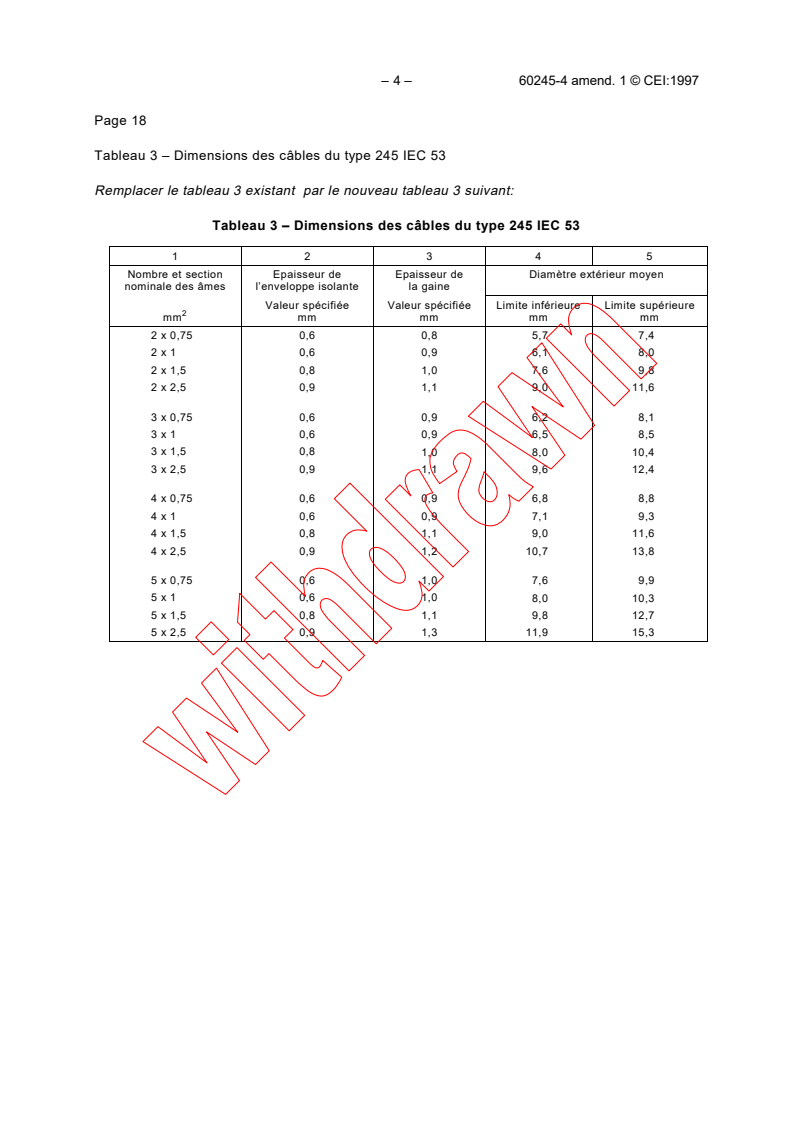

Page 18
Tableau 3 – Dimensions des câbles du type 245 IEC 53
Remplacer le tableau 3 existant par le nouveau tableau 3 suivant:
Tableau 3 – Dimensions des câbles du type 245 IEC 53
12 3 4 5
Nombre et section Epaisseur de Epaisseur de Diamètre extérieur moyen
nominale des âmes l’enveloppe isolante la gaine
Valeur spécifiée Valeur spécifiée Limite inférieure Limite supérieure
mm mm mm mm mm
2 x 0,75 0,6 0,8 5,7 7,4
2 x 1 0,6 0,9 6,1 8,0
2 x 1,5 0,8 1,0 7,6 9,8
2 x 2,5 0,9 1,1 9,0 11,6
3 x 0,75 0,6 0,9 6,2 8,1
3 x 1 0,6 0,9 6,5 8,5
3 x 1,5 0,8 1,0 8,0 10,4
3 x 2,5 0,9 1,1 9,6 12,4
4 x 0,75 0,6 0,9 6,8
8,8
4 x 1 0,6 0,9 7,1 9,3
4 x 1,5 0,8 1,1 9,0 11,6
4 x 2,5 0,9 1,2 10,7 13,8
5 x 0,75 0,6 1,0 7,6 9,9
5 x 1 0,6 1,0 8,0 10,3
5 x 1,5 0,8 1,1 9,8 12,7
5 x 2,5 0,9 1,3 11,9 15,3
60245-4 Amend. 1 © IEC:1997 – 5 –
Page 19
Table 3 – Dimensions of type 245 IEC 53
Replace the existing table 3 by the following new table 3:
Table 3 – Dimensions of type 245 IEC 53
12 3 4 5
Number and nominal Thickness of insulation Thickness of Mean overall diameter
cross-sectional area sheath
of conductors
Specified value Specified value Lower limit Upper limit
mm mm mm mm mm
2 x 0,75 0,6 0,8 5,7 7,4
2 x 1 0,6 0,9 6,1 8,0
2 x 1,5 0,8 1,0 7,6 9,8
2 x 2,5 0,9 1,1 9,0 11,6
3 x 0,75 0,6 0,9 6,2 8,1
3 x 1 0,6 0,9 6,5 8,5
3 x 1,5 0,8 1,0 8,0 10,4
3 x 2,5 0,9 1,1 9,6 12,4
4 x 0,75 0,6 0,9 6,8
8,8
4 x 1 0,6 0,9 7,1 9,3
4 x 1,5 0,8 1,1 9,0 11,6
4 x 2,5 0,9 1,2 10,7 13,8
5 x 0,75 0,6 1,0 7,6 9,9
5 x 1 0,6 1,0 8,0 10,3
5 x 1,5 0,8 1,1 9,8 12,7
5 x 2,5 0,9 1,3 11,9 15,3
– 6 – 60245-4 amend. 1 © CEI:1997
Page 24
Tableau 5 – Dimensions des câbles du type 245 IEC 57
Remplacer le tableau 5 existant par le nouveau tableau 5 suivant:
Tableau 5 – Dimensions des câbles du type 245 IEC 57
12 3 4 5
Nombre et section Epaisseur de Epaisseur de Diamètre extérieur moyen
nominale des âmes l’enveloppe isolante la gaine
Valeur spécifiée Valeur spécifiée Limite inférieure Limite supérieure
mm mm mm mm mm
2 x 0,75 0,6 0,8 5,7 7,4
2 x 1 0,6 0,9 6,1 8,0
2 x 1,5 0,8 1,0 7,6 9,8
2 x 2,5 0,9 1,1 9,0 11,6
3 x 0,75 0,6 0,9 6,2 8,1
3 x 1 0,6 0,9 6,5 8,5
3 x 1,5 0,8 1,0 8,0 10,4
3 x 2,5 0,9 1,1 9,6 12,4
4 x 0,75 0,6 0,9 6,8 8,8
4 x 1 0,6 0,9 7,1 9,3
4 x 1,5 0,8 1,1 9,0 11,6
4 x 2,5 0,9 1,2 10,7 13,8
5 x 0,75 0,6 1,0 7,6 9,9
5 x 1 0,6 1,0 8,0 10,3
5 x 1,5 0,8 1,1 9,8 12,7
5 x 2,5 0,9 1,3 11,9 15,3
60245-4 Amend. 1 © IEC:1997 – 7 –
Page 25
Table 5 – Dimensions of type 245 IEC 57
Replace the existing table 5 by the following new table 5:
Table 5 – Dimensions of type 245 IEC 57
12 3 4 5
Number and nominal Thickness of Thickness of Mean overall diameter
cross-sectional area insulation sheath
of conductors
Specified value Specified value Lower limit Upper limit
mm mm mm mm mm
2 x 0,75 0,6 0,8 5,7 7,4
2 x 1 0,6 0,9 6,1 8,0
2 x 1,5 0,8 1,0 7,6 9,8
2 x 2,5 0,9 1,1 9,0 11,6
3 x 0,75 0,6 0,9 6,2 8,1
3 x 1 0,6 0,9 6,5 8,5
3 x 1,5 0,8 1,0 8,0 10,4
3 x 2,5 0,9 1,1 9,6 12,4
4 x 0,75 0,6 0,9 6,8 8,8
4 x 1 0,6 0,9 7,1 9,3
4 x 1,5 0,8 1,1 9,0 11,6
4 x 2,5 0,9 1,2 10,7 13,8
5 x 0,75 0,6 1,0 7,6 9,9
5 x 1 0,6 1,0 8,0 10,3
5 x 1,5 0,8 1,1 9,8 12,7
5 x 2,5 0,9 1,3 11,9 15,3
– 8 – 60245-4 amend. 1 © CEI:1997
Page 32
Tableau 7 – Dimensions des câbles du type 245 IEC 66
Remplacer le tableau 7 existant par le nouveau tableau 7 suivant:
Tableau 7 – Dimensions des câbles du type 245 IEC 66
1 234 5 6 7
Nombre et Epaisseur de Epaisseur de la gaine Diamètre extérieur
section nominale l’enveloppe moyen
des âmes isolante Valeur spécifiée
Valeur spécifiée Une couche Deux couches
...
