EN 62196-1:2012

SLOVENSKI STANDARD
01-julij-2012
1DGRPHãþD
SIST EN 62196-1:2004
9WLþLYWLþQLFHNRQHNWRUMLLQXYRGQLFHQDYR]LOLK.DEHOVNRQDSDMDQMHHOHNWULþQLK
YR]LOGHO6SORãQH]DKWHYH,(&
Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of
electric vehicles - Part 1: General requirements (IEC 62196-1:2011)
Stecker, Steckdosen, Fahrzeugkupplungen und Fahrzeugstecker - Konduktives Laden
von Elektrofahrzeugen - Teil 1: Allgemeine Anforderungen (IEC 62196-1:2011)
Prises de courant et connecteurs de véhicule - Charge conductive de véhicules
électriques - Partie 1: Règles générales (CEI 62196-1:2011)
Ta slovenski standard je istoveten z: EN 62196-1:2012
ICS:
29.120.30 9WLþLYWLþQLFHVSRMNH Plugs, socket-outlets,
couplers
43.120 (OHNWULþQDFHVWQDYR]LOD Electric road vehicles
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 62196-1
NORME EUROPÉENNE
May 2012
EUROPÄISCHE NORM
ICS 29.120.30; 43.120 Supersedes EN 62196-1:2003

English version
Plugs, socket-outlets, vehicle connectors and vehicle inlets -
Conductive charging of electric vehicles -
Part 1: General requirements
(IEC 62196-1:2011)
Fiches, socles de prise de courant, prises Stecker, Steckdosen,
mobiles et socles de connecteur de Fahrzeugkupplungen und
véhicule - Fahrzeugstecker -
Charge conductive des véhicules Konduktives Laden von Elektrofahrzeugen
électriques - -
Partie 1: Règles générales Teil 1: Allgemeine Anforderungen
(CEI 62196-1:2011) (IEC 62196-1:2011)

This European Standard was approved by CENELEC on 2012-02-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 62196-1:2012 E

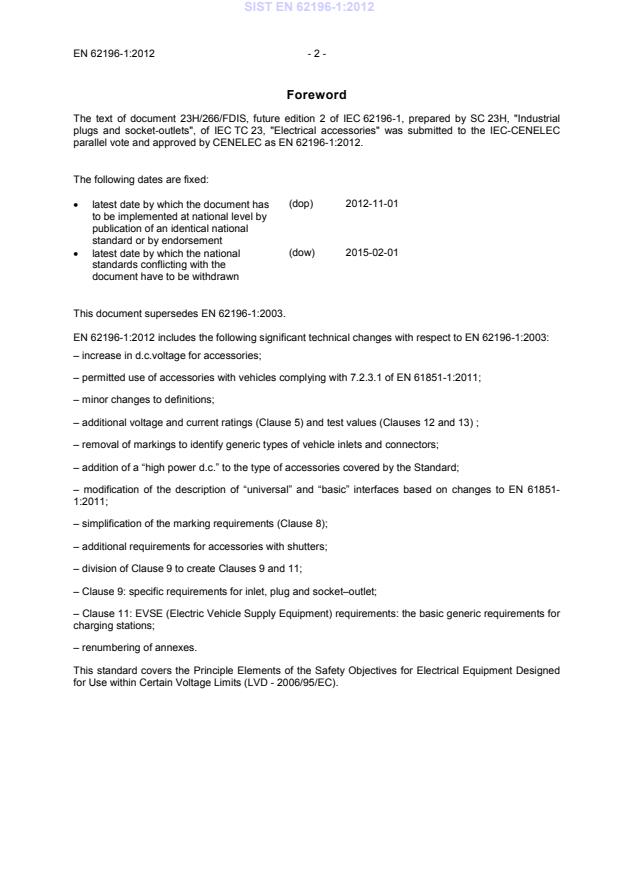

Foreword
The text of document 23H/266/FDIS, future edition 2 of IEC 62196-1, prepared by SC 23H, "Industrial
plugs and socket-outlets", of IEC TC 23, "Electrical accessories" was submitted to the IEC-CENELEC
parallel vote and approved by CENELEC as EN 62196-1:2012.

The following dates are fixed:
(dop) 2012-11-01
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2015-02-01
• latest date by which the national
standards conflicting with the
document have to be withdrawn
This document supersedes EN 62196-1:2003.
– increase in d.c.voltage for accessories;
– permitted use of accessories with vehicles complying with 7.2.3.1 of EN 61851-1:2011;
– minor changes to definitions;
– additional voltage and current ratings (Clause 5) and test values (Clauses 12 and 13) ;
– removal of markings to identify generic types of vehicle inlets and connectors;
– addition of a “high power d.c.” to the type of accessories covered by the Standard;
– modification of the description of “universal” and “basic” interfaces based on changes to EN 61851-
1:2011;
– simplification of the marking requirements (Clause 8);
– additional requirements for accessories with shutters;
– division of Clause 9 to create Clauses 9 and 11;
– Clause 9: specific requirements for inlet, plug and socket–outlet;
– Clause 11: EVSE (Electric Vehicle Supply Equipment) requirements: the basic generic requirements for
charging stations;
– renumbering of annexes.
This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment Designed
for Use within Certain Voltage Limits (LVD - 2006/95/EC).

- 3 - EN 62196-1:2012
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent
rights.
Endorsement notice
The text of the International Standard IEC 62196-1:2011 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60068-2-75:1997 NOTE  Harmonized as EN 60068-2-75:1997 (not modified).
IEC 60309-1 NOTE  Harmonized as EN 60309-1.
IEC 61008-1 NOTE  Harmonized as EN 61008-1.
IEC 61009-1 NOTE  Harmonized as EN 61009-1.
__________
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60112 2003 Method for the determination of the proof and EN 60112 2003
+ corr. October 2003 the comparative tracking indices of solid + A1 2009
+ corr. June 2003 insulating materials
+ A1 2009
IEC 60227 Series Polyvinyl chloride insulated cables of rated - -
voltages up to and including 450/750 V

IEC 60228 2004 Conductors of insulated cables EN 60228 2005
+ corr. May 2005
1)
IEC 60245-4 (mod) 1994 Cables of rated voltages up to and including HD 22.4 S3 1995
+ A1 1997 450/750 V and having cross-linked insulation -+ A1 1999

+ A2 2003 Part 4: Cords and flexible cables + A2 2002

IEC 60269-1 2006 Low-voltage fuses - EN 60269-1 2007
+ A1 2009 Part 1: General requirements + A1 2009

IEC 60269-2 (mod) 2010 Low-voltage fuses - HD 60269-2 2010
Part 2: Supplementary requirements for fuses
for use by authorized persons (fuses mainly
for industrial application) - Examples of
standardized systems of fuses A to J

IEC 60309-4 - Plugs, socket-outlets and couplers for EN 60309-4 -
industrial purposes -
Part 4: Switched socket-outlets and
connectors with or without interlock

IEC 60529 1989 Degrees of protection provided by enclosures EN 60529 1991
+ A1 1999 (IP Code) + corr. May 1993
+ A1 2000
IEC 60664-1 2007 Insulation coordination for equipment within EN 60664-1 2007
low-voltage systems -
Part 1: Principles, requirements and tests

IEC 60664-3 2003 Insulation coordination for equipment within EN 60664-3 2003
low-voltage systems -
Part 3: Use of coating, potting or moulding for
protection against pollution
IEC 60695-2-11 2000 Fire hazard testing - EN 60695-2-11 2001
+ corr. January 2001 Part 2-11: Glowing/hot-wire based test
methods - Glow-wire flammability test method
for end-products
IEC 60695-10-2 - Fire hazard testing - EN 60695-10-2 -
Part 10-2: Abnormal heat - Ball pressure test

1)
HD 22.4 S3 is superseded by HD 22.4 S4:2004.

- 5 - EN 62196-1:2012
Publication Year Title EN/HD Year

IEC 60947-1 - Low-voltage switchgear and controlgear - EN 60947-1 -
Part 1: General rules
IEC 60999-1 1999 Connecting devices - Electrical copper EN 60999-1 2000
conductors - Safety requirements for screw-
type and screwless-type clamping units -
Part 1: General requirements and particular
requirements for clamping units for conductors
from 0,2 mm² up to 35 mm² (included)

IEC 60999-2 2003 Connecting devices - Electrical copper EN 60999-2 2003
conductors - Safety requirements for screw-
type and screwless-type clamping units -
Part 2: Particular requirements for clamping
units for conductors above 35 mm² up to 300
mm² (included)
IEC 61851-1 2010 Electric vehicle conductive charging system - EN 61851-1 2011
Part 1: General requirements
ISO 1456 - Metallic and other inorganic coatings - EN ISO 1456 -
Electrodeposited coatings of nickel, nickel
plus chromium, copper plus nickel and of
copper plus nickel plus chromium

ISO 2081 - Metallic and other inorganic coatings - EN ISO 2081 -
Electroplated coatings of zinc with
supplementary treatments on iron or steel

ISO 2093 - Electroplated coatings of tin - Specification - -
and test methods
__________
Annex ZB
(normative)
Special national conditions
Special national condition: National characteristic or practice that cannot be changed even over a long
period, e.g. climatic conditions, electrical earthing conditions.

NOTE  If it affects harmonization, it forms part of the European Standard / Harmonization Document.

For the countries in which the relevant special national conditions apply these provisions are normative,
for other countries they are informative.

Clause Special national condition
1 Finland
In Finland, accessories and cable assemblies according to this standard are to be used in
an ambient temperature between –35 °C and +50 °C.
1 United Kingdom
Mode 1 is considered unsafe and will not be used in the United Kingdom.
26.1 Finland
In Finland, a temperature of a chamber is (–35 ± 2) °C.
__________
IEC 62196-1 ®
Edition 2.0 2011-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Plugs, socket-outlets, vehicle connectors and vehicle inlets – Conductive
charging of electric vehicles –
Part 1: General requirements
Fiches, socles de prise de courant, prises mobiles et socles de connecteur de
véhicule – Charge conductive des véhicules électriques –
Partie 1: Règles générales
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX XC
ICS 29.120.30; 43.120 ISBN 978-2-88912-724-5

– 2 – 62196-1 © IEC:2011
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 9
4 General . 13
5 Ratings . 14
6 Connection between the power supply and the electric vehicle . 15
7 Classification of accessories . 17
8 Marking . 18
9 Dimensions . 20
10 Protection against electric shock . 20
11 Size and colour of earthing conductors . 22
12 Provision for earthing . 22
13 Terminals . 24
14 Interlocks . 29
15 Resistance to ageing of rubber and thermoplastic material . 29
16 General construction . 30
17 Construction of socket-outlets . 33
18 Construction of plugs and vehicle connectors . 35
19 Construction of vehicle inlets . 36
20 Degrees of protection . 37
21 Insulation resistance and dielectric strength .
...
