EN 62196-1:2014
(Main)Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 1: General requirements
Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 1: General requirements
IEC 62196-1:2014 is applicable to plugs, socket-outlets, vehicle connectors, vehicle inlets and cable assemblies for electric vehicles, herein referred to as "accessories", intended for use in conductive charging systems which incorporate control means, with a rated operating voltage not exceeding: - 690 V a.c. 50 Hz to 60 Hz, at a rated current not exceeding 250 A; - 1 500 V d.c. at a rated current not exceeding 400 A. This third edition cancels and replaces the second edition published in 2011 and constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a) addition of a preferred operating voltage of 1 000 V d.c.; b) addition of a preferred rated current of 80 A d.c.; c) addition of a provision for a combined interface a.c./d.c.; d) description of d.c. configurations (previously under consideration); e) addition of requirements pertaining to the locking mechanism, the interlock and the latching device; f) addition of a test for accessories not suitable for making and breaking an electrical circuit under load; g) addition of requirements and tests for insulated end caps.
Stecker, Steckdosen, Fahrzeugkupplungen und Fahrzeugstecker - Konduktives Laden von Elektrofahrzeugen – Teil 1: Allgemeine Anforderungen
Fiches, socles de prise de courant, prises mobiles de véhicule et socles de connecteur de véhicule – Charge conductive des véhicules électriques – Partie 1: Règles générales
L'IEC 62196-1:2014 est applicable aux fiches, socles de prise de courant, prises mobiles de véhicule, socles de connecteur de véhicules et câbles de charge pour véhicules électriques, ci-après dénommé "appareils", destinés à être utilisés dans les systèmes de charge conductive qui comprennent des moyens de contrôle, avec une tension d'emploi assignée n'excédant pas: - 690 V c.a.50 Hz à 60 Hz, à un courant assigné n'excédant pas 250 A; - 1 500 V c.c., à un courant assigné n'excédant pas 400 A. Cette troisième édition annule et remplace la deuxième édition parue en 2011 et constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: a) ajout de la tension d'emploi preferentielle de 1 000 V c.c.; b) ajout du courant assigne preferentiel de 80 A c.c.; c) ajout de dispositions pour interface combinee c.a./c.c.; d) descriptions des configurations pour c.c. (précédemment à l'étude); e) ajout d'exigences relatives au mecanisme de verrouillage, dispositif de verrouillage et dispositif d'accrochage; f) ajout d'un essai pour les appareils ne convenant pas à l'établissement et à la coupure d'un circuit électrique en charge; g) ajout d'exigences et d'essais pour les embouts isolants.
Vtiči, vtičnice, konektorji in uvodnice na vozilih - Kabelsko napajanje električnih vozil - 1. del: Splošne zahteve (IEC 62196-1:2014, spremenjen)
Ta del standarda IEC 62196 se uporablja za vtiče, vtičnice, konektorje, uvodnice in kabelske sestave na električnih vozilih (v nadaljnjem besedilu: »priključki«), ki so namenjena za sisteme kabelskega napajanja, ki vključujejo krmilno sredstvo z nazivno obratovalno napetostjo, ki ne presega napetosti
– 690 V za izmenični tok, 50–60 Hz, pri nazivnem toku, ki ne presega 250 A,
– 1500 V za enosmerni tok pri nazivnem toku, ki ne presega 400 A.
Te priključke lahko namestijo le poučene osebe (IEC 60050-195:1998, IEC 60050-195/AMD1:2001, 195-04-02) ali ustrezno usposobljene osebe (IEC 60050-195:1998, IEC 60050- 195/AMD1:2001, 195-04-01).
Ti priključki in kabelski sestavi so namenjeni za uporabo pri tokokrogih, navedenih v standardu IEC 61851-1, ki delujejo pri različnih napetostih in frekvencah ter lahko vključujejo malo napetost in komunikacijske signale.
Ti priključki in kabelski sestavi so namenjeni za uporabo pri temperaturi okolja, in sicer med
-30 °C in +50 °C.
OPOMBA 1 V nekaterih državah lahko obstajajo drugačne zahteve.
OPOMBA 2 V naslednji državi velja –35 °C: SE.
Ti priključki se lahko priključijo samo na kable z vodniki iz bakra ali bakrove zlitine.
Priključki, ki jih zajema ta del standarda IEC 62196, se uporabljajo pri nekaterih načinih polnjenja električnih vozil. Ti načini so določeni v standardu IEC 61851-1. Te definicije in ti opisi vrst povezav (primeri A, B in C) so opisani v standardu IEC 61851-1:2010, 6.2 in 6.3.1.
OPOMBA 3 Način 1 ne bo dovoljen v naslednjih državah: ZK, ZDA, CA, SG.
Ta del standarda IEC 62196 ne velja za tiste standardizirane priključke, ki se uporabljajo v polnilnih sistemih, pri katerih je dovoljena uporaba teh priključkov, izdelanih glede na zahteve drugih standardov (npr. v načinu 1 in 2). Taki standardizirani priključki se lahko uporabljajo v situacijah (način in primer), določenih v standardu IEC 61851-1.
Ta del standarda IEC 62196 se lahko uporabi kot vodilo za priključke z manjšim številom kontaktov in nižjimi ocenami za uporabo z lahkimi tovornimi vozili.
General Information
Relations
Standards Content (Sample)

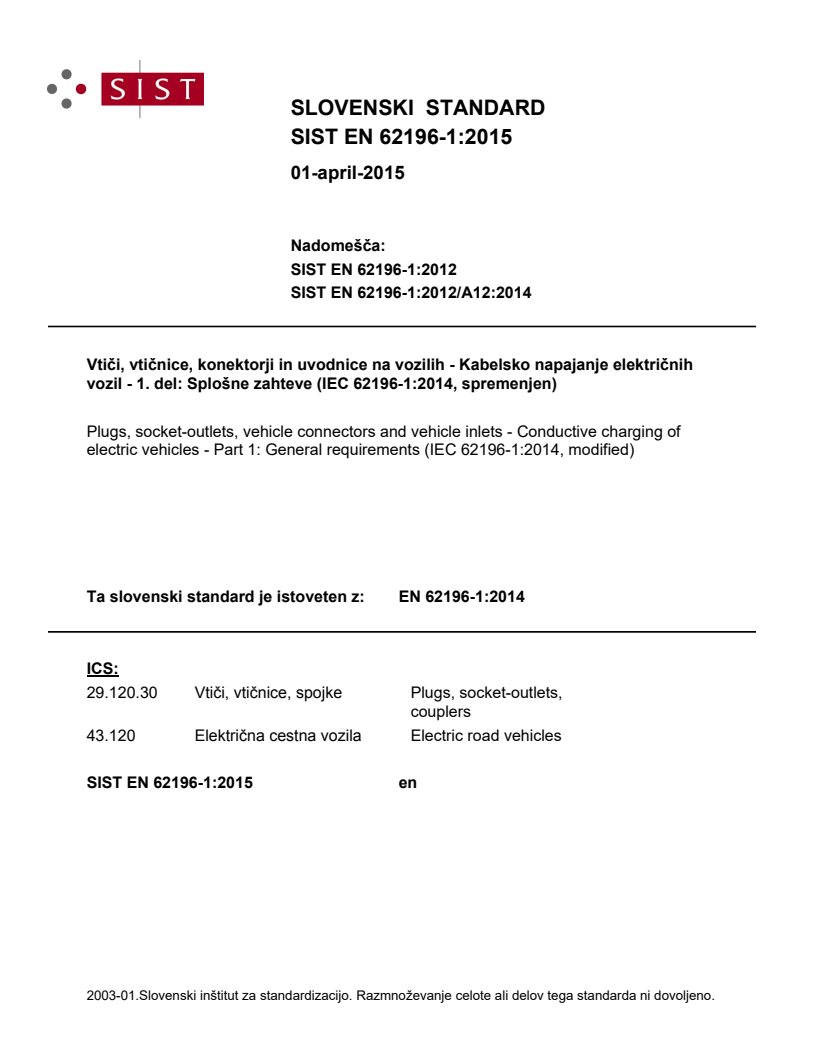

SLOVENSKI STANDARD
01-april-2015
1DGRPHãþD
SIST EN 62196-1:2012
SIST EN 62196-1:2012/A12:2014
9WLþLYWLþQLFHNRQHNWRUMLLQXYRGQLFHQDYR]LOLK.DEHOVNRQDSDMDQMHHOHNWULþQLK
YR]LOGHO 6SORãQH]DKWHYH ,(& VSUHPHQMHQ
Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of
electric vehicles - Part 1: General requirements (IEC 62196-1:2014, modified)
Ta slovenski standard je istoveten z: EN 62196-1:2014
ICS:
29.120.30 9WLþLYWLþQLFHVSRMNH Plugs, socket-outlets,
couplers
43.120 (OHNWULþQDFHVWQDYR]LOD Electric road vehicles
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN 62196-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2014
ICS 29.120.30; 43.120 Supersedes EN 62196-1:2012
English Version
Plugs, socket-outlets, vehicle connectors and vehicle inlets -
Conductive charging of electric vehicles - Part 1: General
requirements
(IEC 62196-1:2014 , modified)
Fiches, socles de prise de courant, prises mobiles de Stecker, Steckdosen, Fahrzeugkupplungen und
véhicule et socles de connecteur de véhicule - Charge Fahrzeugstecker - Konduktives Laden von
conductive des véhicules électriques - Partie 1: Règles Elektrofahrzeugen - Teil 1: Allgemeine Anforderungen
générales (IEC 62196-1:2014 , modifiziert)
(CEI 62196-1:2014 , modifiée)
This European Standard was approved by CENELEC on 2014-10-06. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62196-1:2014 E

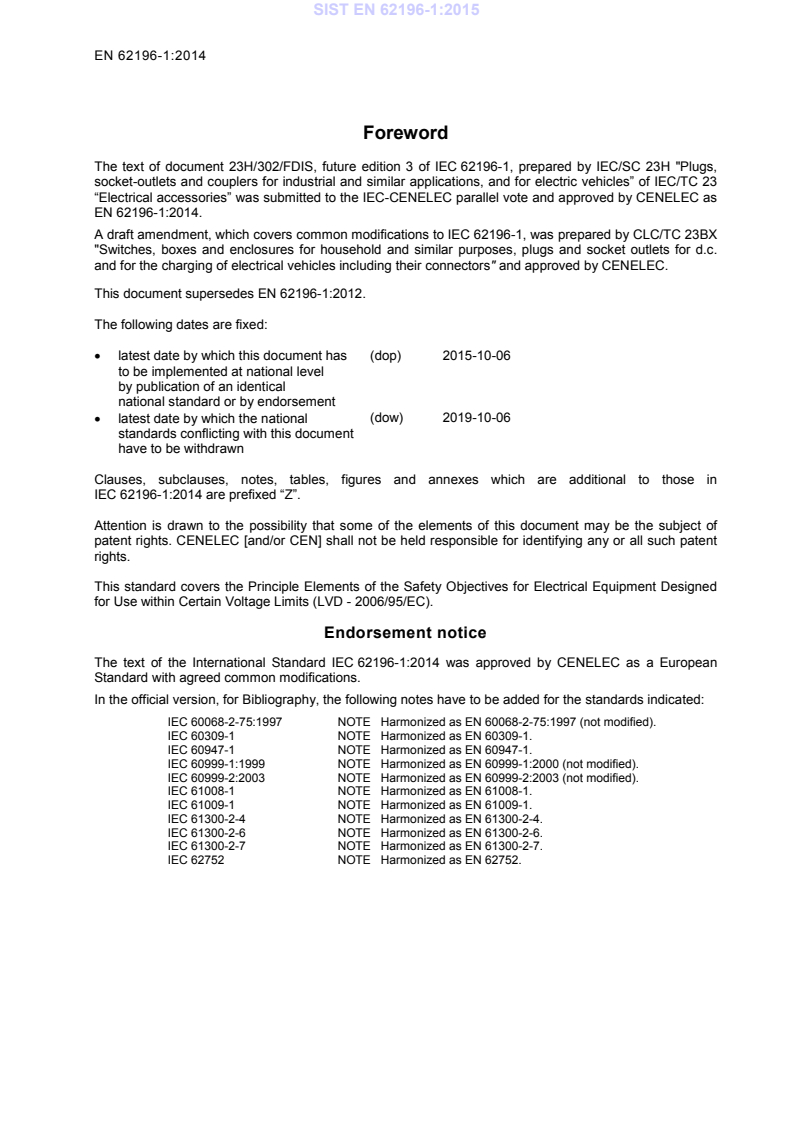

Foreword
The text of document 23H/302/FDIS, future edition 3 of IEC 62196-1, prepared by IEC/SC 23H "Plugs,
socket-outlets and couplers for industrial and similar applications, and for electric vehicles” of IEC/TC 23
“Electrical accessories” was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
A draft amendment, which covers common modifications to IEC 62196-1, was prepared by CLC/TC 23BX
"Switches, boxes and enclosures for household and similar purposes, plugs and socket outlets for d.c.
and for the charging of electrical vehicles including their connectors" and approved by CENELEC.
This document supersedes EN 62196-1:2012.
The following dates are fixed:
(dop) 2015-10-06
• latest date by which this document has
to be implemented at national level
by publication of an identical
national standard or by endorsement
(dow) 2019-10-06
• latest date by which the national
standards conflicting with this document
have to be withdrawn
Clauses, subclauses, notes, tables, figures and annexes which are additional to those in
IEC 62196-1:2014 are prefixed “Z”.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent
rights.
This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment Designed
for Use within Certain Voltage Limits (LVD - 2006/95/EC).
Endorsement notice
The text of the International Standard IEC 62196-1:2014 was approved by CENELEC as a European
Standard with agreed common modifications.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60068-2-75:1997 NOTE Harmonized as EN 60068-2-75:1997 (not modified).
IEC 60309-1 NOTE Harmonized as EN 60309-1.
IEC 60947-1 NOTE Harmonized as EN 60947-1.
IEC 60999-1:1999 NOTE Harmonized as EN 60999-1:2000 (not modified).
IEC 60999-2:2003 NOTE Harmonized as EN 60999-2:2003 (not modified).
IEC 61008-1 NOTE Harmonized as EN 61008-1.
IEC 61009-1 NOTE Harmonized as EN 61009-1.
IEC 61300-2-4 NOTE Harmonized as EN 61300-2-4.
IEC 61300-2-6 NOTE Harmonized as EN 61300-2-6.
IEC 61300-2-7 NOTE Harmonized as EN 61300-2-7.
IEC 62752 NOTE Harmonized as EN 62752.
COMMON MODIFICATIONS
9 Dimensions
Addition to subclause 9.2:
9.2.Z1 If other non-EV standardized accessories may be physically joined together with the EV
accessories, these shall not be able to function.
EXAMPLE No function can be achieved by switching off the main contacts when no appropriate EV plug and vehicle inlet is
inserted (see EN 61851-1).
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60068-2-14 - Environmental testing -- Part 2-14: Tests - EN 60068-2-14 -
Test N: Change of temperature
IEC 60112 - Method for the determination of the proof EN 60112 -
and the comparative tracking indices of solid
insulating materials
IEC 60227 series Polyvinyl chloride insulated cables of rated - -
voltages up to and including 450/750
IEC 60228 2004 Conductors of insulated cables EN 60228 2005
+corrigendum May 2005
IEC 60245-4 - Rubber insulated cables - Rated voltages up - -
to and including 450/750 V - Part 4: Cords
and flexible cables
IEC 60269-1 - Low-voltage fuses -- Part 1: General EN 60269-1 -
requirements
IEC 60269-2 - Low-voltage fuses -- Part 2: Supplementary HD 60269-2 -
requirements for fuses for use by authorized
persons (fuses mainly for industrial
application) - Examples of standardized
systems of fuses A to K
IEC 60309-4 (mod) 2006 Plugs, socket-outlets and couplers for EN 60309-4 2007
industrial purposes -- Part 4: Switched
socket-outlets and connectors with or
without interlock
IEC 60449 - Voltage bands for electrical installations of HD 193 S2 -
buildings
IEC 60529 1989 Degrees of protection provided by EN 60529 1991
enclosures (IP Code)
+corrigendum May 1993
IEC 60664-1 2007 Insulation coordination for equipment within EN 60664-1 2007
low-voltage systems -- Part 1: Principles,
requirements and tests
IEC 60664-3 - Insulation coordination for equipment within EN 60664-3 -
low-voltage systems -- Part 3: Use of
coating, potting or moulding for protection
against pollution
IEC 60695-2-11 - Fire hazard testing -- Part 2-11: Glowing/hot-EN 60695-2-11 -
wire based test methods - Glow-wire
flammability test method for end-products
(GWEPT)
IEC 60695-10-2 - Fire hazard testing -- Part 10-2: Abnormal EN 60695-10-2 -
heat - Ball pressure test method
IEC 61851-1 2010 Electric vehicle conductive charging system EN 61851-1 2011
-- Part 1: General requirements
IEC 61851-23 2014 Electric vehicle conductive charging system EN 61851-23 2014
-- Part 23: D.C. electric vehicle charging
station
ISO 1456 - Metallic and other inorganic coatings - EN ISO 1456 -
Electrodeposited coatings of nickel, nickel
plus chromium, copper plus nickel and of
copper plus nickel plus chromium
ISO 2081 - Metallic and other inorganic coatings_- EN ISO 2081 -
Electroplated coatings of zinc with
supplementary treatments on iron or steel
ISO 2093 - Electroplated coatings of tin; Specification - -
and test methods
IEC 62196-1 ®
Edition 3.0 2014-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Plugs, socket-outlets, vehicle connectors and vehicle inlets – Conductive
charging of electric vehicles –
Part 1: General requirements
Fiches, socles de prise de courant, prises mobiles de véhicule et socles de
connecteur de véhicule – Charge conductive des véhicules électriques –
Partie 1: Règles générales
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX XC
ICS 29.120.30, 43.120 ISBN 978-2-8322-1666-8
– 2 – IEC 62196-1:2014 © IEC 2014
CONTENTS
FOREWORD . 6
INTRODUCTION . 8
1 Scope . 9
2 Normative references . 9
3 Terms and definitions . 11
4 General . 19
4.1 General requirements . 19
4.2 General notes on tests . 19
5 Ratings . 20
5.1 Preferred rated operating voltage ranges . 20
5.2 Preferred rated currents . 20
5.2.1 General . 20
5.2.2 Rated current for signal or control purposes . 20
5.2.3 Accessories not suitable for making and breaking an electrical circuit
under load . 21
5.2.4 Accessories suitable for, or not suitable for, making and breaking an
electrical circuit under load . 21
6 Connection between the power supply and the electric vehicle . 21
6.1 General . 21
6.2 Types of vehicle inlets . 21
6.3 Types of vehicle connectors . 21
6.4 Universal interface . 22
6.5 Basic interface . 23
6.6 D.C. configurations . 24
6.7 Combined interface . 25
6.8 Contact sequencing . 26
7 Classification of accessories. 26
7.1 According to purpose . 26
7.2 According to the method of connecting the conductors . 27
7.3 According to serviceability . 27
7.4 According to electrical operation . 27
7.5 According to interface . 27
7.6 According to use with cable management systems . 27
7.7 According to the locking and interlock functions: . 27
7.7.1 Acco
...
