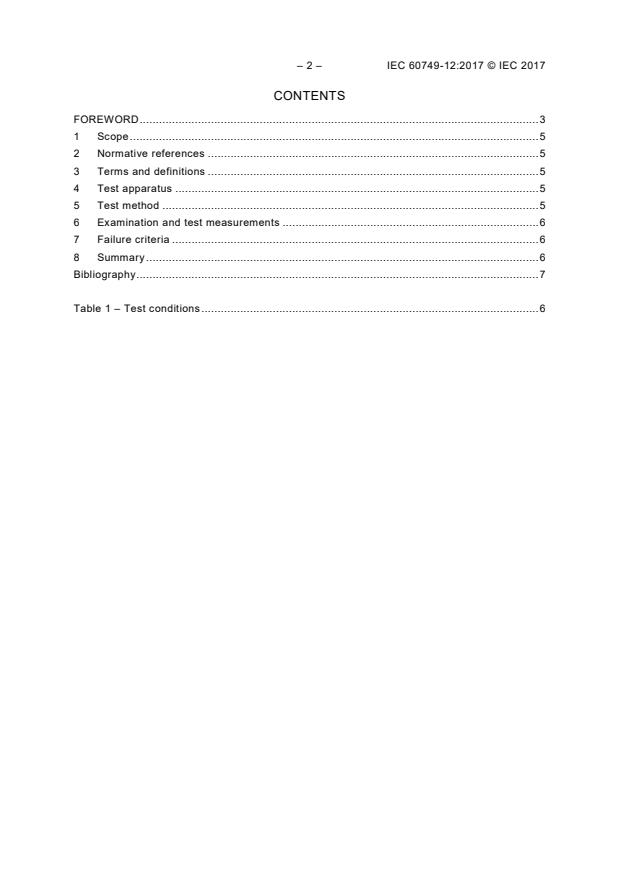

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Test apparatus . 5
5 Test method . 5
6 Examination and test measurements . 6
7 Failure criteria . 6
8 Summary . 6
Bibliography . 7

Table 1 – Test conditions . 6

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SEMICONDUCTOR DEVICES – MECHANICAL
AND CLIMATIC TEST METHODS –
Part 12: Vibration, variable frequency

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60749-12 has been prepared by IEC technical committee 47:
Semiconductor devices.
This second edition cancels and replaces the first edition published in 2002. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) alignment with MIL-STD-883J Method 2007, Vibration, variable frequency.
The text of this International Standard is based on the following documents:
CDV Report on voting
47/2386/CDV 47/2434/RVC
– 4 – IEC 60749-12:2017 © IEC 2017

Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 60749 series, published under the general title Semiconductor
devices – Mechanical and climatic test methods, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
SEMICONDUCTOR DEVICES – MECHANICAL
AND CLIMATIC TEST METHODS –
Part 12: Vibration, variable frequency

1 Scope
This part of IEC 60749 describes a test to determine the effect of variable frequency vibration,
within the specified frequency range, on internal structural elements. This is a destructive test.
It is normally applicable to cavity-type packages.
NOTE This test method describes a swept sine test. A random vibration test is described in JEDEC document
JESD 22-B103.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Test apparatus
The apparatus for this test shall include equipment capable of providing the required variable
frequency vibration at the specified level and the necessary optical and electrical equipment
for post-test measurements.
5 Test method
The device shall be rigidly fastened on the vibration platform and the leads or cables
adequately secured to avoid excessive lead resonance. The device shall be vibrated with
simple harmonic motion having either a peak to peak amplitude of 1,5 mm (±10 %) or a peak
acceleration of the specified test condition A, B, or C in Table 1, below.
Unless required by the relevant specification, the test conditions detailed in Table 1 below
shall be applied. Test conditions shall be amplitude controlled below the crossover frequency
and acceleration level controlled above. The vibration fr
...
