IEC 62056-6-1:2015

IEC 62056-6-1 ®
Edition 2.0 2015-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electricity metering data exchange – The DLMS/COSEM suite –
Part 6-1: Object Identification System (OBIS)

Échange des données de comptage de l'électricité – La suite DLMS/COSEM –
Partie 6-1: Système d’identification des objets (OBIS)

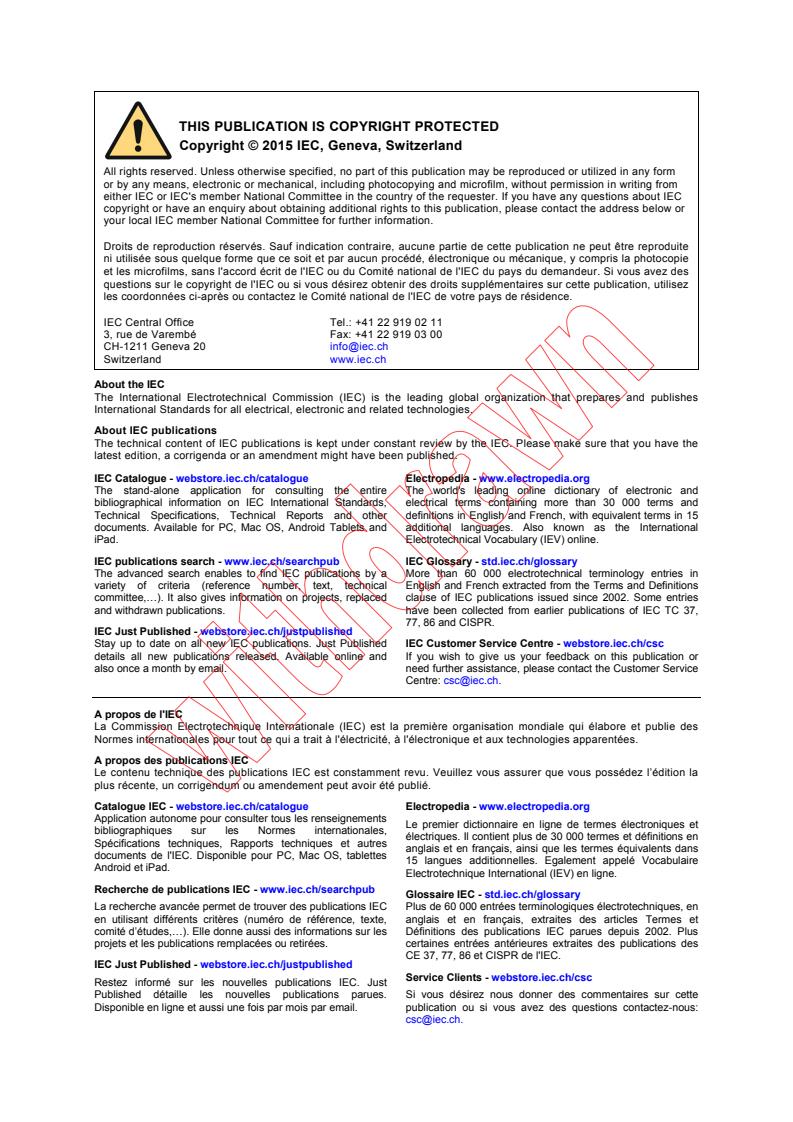

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC Plus de 60 000 entrées terminologiques électrotechniques, en
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 62056-6-1 ®
Edition 2.0 2015-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electricity metering data exchange – The DLMS/COSEM suite –

Part 6-1: Object Identification System (OBIS)

Échange des données de comptage de l'électricité – La suite DLMS/COSEM –

Partie 6-1: Système d’identification des objets (OBIS)

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 17.220; 35.110; 91.140.50 ISBN 978-2-8322-3011-4

– 2 – IEC 62056-6-1:2015 © IEC 2015

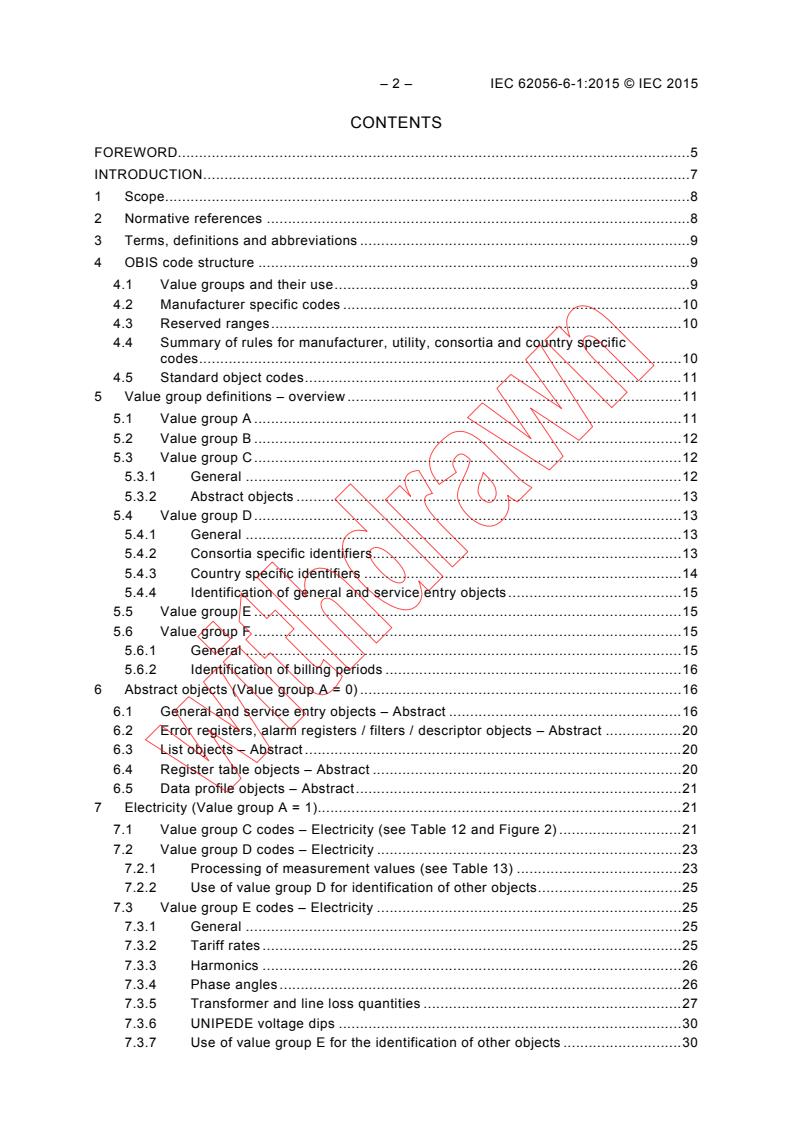

CONTENTS
FOREWORD. 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 8
3 Terms, definitions and abbreviations . 9
4 OBIS code structure . 9
4.1 Value groups and their use . 9
4.2 Manufacturer specific codes . 10
4.3 Reserved ranges . 10
4.4 Summary of rules for manufacturer, utility, consortia and country specific
codes . 10
4.5 Standard object codes . 11
5 Value group definitions – overview . 11
5.1 Value group A . 11
5.2 Value group B . 12
5.3 Value group C . 12
5.3.1 General . 12
5.3.2 Abstract objects . 13
5.4 Value group D . 13
5.4.1 General . 13
5.4.2 Consortia specific identifiers . 13
5.4.3 Country specific identifiers . 14
5.4.4 Identification of general and service entry objects . 15
5.5 Value group E . 15
5.6 Value group F . 15
5.6.1 General . 15
5.6.2 Identification of billing periods . 16
6 Abstract objects (Value group A = 0) . 16
6.1 General and service entry objects – Abstract . 16
6.2 Error registers, alarm registers / filters / descriptor objects – Abstract . 20
6.3 List objects – Abstract . 20
6.4 Register table objects – Abstract . 20
6.5 Data profile objects – Abstract . 21
7 Electricity (Value group A = 1). 21
7.1 Value group C codes – Electricity (see Table 12 and Figure 2) . 21
7.2 Value group D codes – Electricity . 23
7.2.1 Processing of measurement values (see Table 13) . 23
7.2.2 Use of value group D for identification of other objects . 25
7.3 Value group E codes – Electricity . 25
7.3.1 General . 25
7.3.2 Tariff rates . 25
7.3.3 Harmonics . 26
7.3.4 Phase angles . 26
7.3.5 Transformer and line loss quantities . 27
7.3.6 UNIPEDE voltage dips . 30
7.3.7 Use of value group E for the identification of other objects . 30

7.4 Value group F codes – Electricity . 30
7.4.1 Billing periods . 30
7.4.2 Multiple thresholds . 31
7.5 OBIS codes – Electricity . 31
7.5.1 General and service entry objects – Electricity . 31
7.5.2 Error register objects – Electricity . 34
7.5.3 List objects – Electricity. 35
7.5.4 Data profile objects – Electricity . 35
7.5.5 Register table objects – Electricity . 35
8 Other media (Value group A= 15) . 36
8.1 General . 36
8.2 Value group C codes – Other media . 36
8.3 Value group D codes – Other media . 36
8.4 Value group E codes – Other media . 36
8.5 Value group F codes – Other media . 36
Annex A (normative) Code presentation . 37
A.1 Reduced ID codes (e.g. for IEC 62056-21) . 37
A.2 Display . 37
A.3 Special handling of value group F . 37
A.4 COSEM . 38
Annex B (informative)  Significant technical changes with respect to IEC 62056-6-
1:2013 . 39
Bibliography . 40
Index . 41

Figure 1 – OBIS code structure and use of value groups . 10
Figure 2 – Quadrant definitions for active and reactive power . 23
Figure 3 – Model of the line and the transformer for calculation of loss quantities . 27
Figure A.1 – Reduced ID code presentation . 37

Table 1 – Rules for manufacturer, utility, consortia and country specific codes . 11
Table 2 – Value group A codes . 12
Table 3 – Value group B codes . 12
Table 4 – Value group C codes – Abstract objects . 13
Table 5 – Value group D codes – Consortia specific identifiers . 13
Table 6 – Value group D codes – Country specific identifiers . 14
Table 7 – OBIS codes for general and service entry objects . 16
Table 8 – OBIS codes for error registers, alarm registers and alarm filters – Abstract . 20
Table 9 – OBIS codes for list objects – Abstract . 20
Table 10 – OBIS codes for register table objects – Abstract . 20
Table 11 – OBIS codes for data profile objects – Abstract . 21
Table 12 – Value group C codes – Electricity . 21
Table 13 – Value group D codes – Electricity . 23
Table 14 – Value group E codes – Electricity – Tariff rates . 26
Table 15 – Value group E codes – Electricity – Harmonics . 26
Table 16 – Value group E codes – Electricity – Extended phase angle measurement. 27

– 4 – IEC 62056-6-1:2015 © IEC 2015
Table 17 – Value group E codes – Electricity – Transformer and line losses . 28
Table 18 – Value group E codes – Electricity – UNIPEDE voltage dips . 30
Table 19 – OBIS codes for general and service entry objects – Electricity . 31
Table 20 – OBIS codes for error register objects – Electricity . 34
Table 21 – OBIS codes for list objects – Electricity . 35
Table 22 – OBIS codes for data profile objects – Electricity . 35
Table 23 – OBIS codes for register table objects – Electricity . 35
Table 24 – Value group C codes – Other media . 36
Table A.1 – Example of display code replacement . 37
Table A.2 – Value group F – Billing periods . 38

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRICITY METERING DATA EXCHANGE –
THE DLMS/COSEM SUITE –
Part 6-1: Object Identification System (OBIS)

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The International Electrotechnical Commission (IEC) draws attention to the fact that it is claimed that compliance
with this International Standard may involve the use of a maintenance service concerning the stack of protocols on
which the present standard IEC 62056-6-1 is based.
The IEC takes no position concerning the evidence, validity and scope of this maintenance service.
The provider of the maintenance service has assured the IEC that he is willing to provide services under
reasonable and non-discriminatory terms and conditions for applicants throughout the world. In this respect, the
statement of the provider of the maintenance service is registered with the IEC. Information may be obtained from:
DLMS User Association
Zug/Switzerland
www.dlms.com
International Standard IEC 62056-6-1 has been prepared by IEC technical committee 13:
Electrical energy measurement and control.

– 6 – IEC 62056-6-1:2015 © IEC 2015
This second edition cancels and replaces the first edition of IEC 62056-6-1, published in
2013. It constitutes a technical revision.
The main technical changes with respect to the previous edition are listed in Annex B
(informative).
The text of this standard is based on the following documents:
FDIS Report on voting
13/1649FDIS 13/1658/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all the parts in the IEC 62056 series, published under the general title Electricity
metering data exchange – The DLMS/COSEM suite, can be found on the IEC website.
Future standards in this series will carry the new general title as cited above. Titles of existing
standards in this series will be updated at the time of the next edition.
The numbering scheme has changed from IEC 62056-XY to IEC 62056-X-Y. For example
IEC 62056-61 becomes IEC 62056-6-1.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
INTRODUCTION
This second edition of IEC 62056-6-1 has been prepared by IEC TC13 WG14 with a
significant contribution of the DLMS User Association, its D-type liaison partner.
This edition is in line with the DLMS UA Blue Book Edition 11.0. This edition specifies new
OBIS codes related to new applications and includes some editorial improvements.
In 2014, the DLMS UA has published Blue Book Edition 12.0 adding several new features
regarding functionality, efficiency and security while keeping full backwards compatibility.
The intention of the DLMS UA is to bring also these latest developments to international
standardization. Therefore, IEC TC13 WG14 launched a project to bring these new elements
also to the IEC 62056 series that will lead to Edition 3.0 of the standard
Data identification
The competitive electricity market requires an ever-increasing amount of timely information
concerning the usage of electrical energy. Recent technology developments enable to build
intelligent static metering equipment, which is capable of capturing, processing and
communicating this information to all parties involved.
To facilitate the analysis of metering information, for the purposes of billing, load, customer
and contract management, it is necessary to uniquely identify data items, whether collected
manually or automatically, via local or remote data exchange, in a manufacturer-independent
way. The definition of identification codes to achieve this – the OBIS codes – is based on
DIN 43863-3:1997, Electricity meters – Part 3: Tariff metering device as additional equipment
for electricity meters – EDIS – Energy Data Identification System.

– 8 – IEC 62056-6-1:2015 © IEC 2015
ELECTRICITY METERING DATA EXCHANGE –
THE DLMS/COSEM SUITE –
Part 6-1: Object Identification System (OBIS)

1 Scope
This part of IEC 62056 specifies the overall structure of the OBject Identification System
(OBIS) and the mapping of all commonly used data items in metering equipment to their
identification codes.
OBIS provides a unique identifier for all data within the metering equipment, including not only
measurement values, but also abstract values used for configuration or obtaining information
about the behaviour of the metering equipment. The ID codes defined in this standard are
used for the identification of:
• logical names of the various instances of the ICs, or objects, as defined in IEC 62056-6-2;
• data transmitted through communication lines;
• data displayed on the metering equipment, see Clause A.2.
This standard applies to all types of metering equipment, such as fully integrated meters,
modular meters, tariff attachments, data concentrators, etc.
To cover metering equipment measuring energy types other than electricity, combined
metering equipment measuring more than one type of energy or metering equipment with
several physical measurement channels, the concepts of medium and channels are
introduced. This allows meter data originating from different sources to be identified. While
this standard fully defines the structure of the identification system for other media, the
mapping of non-electrical energy related data items to ID codes needs to be completed
separately.
NOTE EN 13757-1 defines identifiers for metering equipment other than electricity: heat cost allocators, cooling,
heating, gas, cold water and hot water.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC TR 61000-2-8:2002, Electromagnetic compatibility (EMC) – Part 2-8: Environment –
Voltage dips and short interruptions on public electric power supply systems with statistical
measurement results
IEC TR 62051:1999, Electricity metering – Glossary of terms
IEC TR 62051-1:2004, Electricity metering – Data exchange for meter reading, tariff and load
control – Glossary of terms – Part 1: Terms related to data exchange with metering equipment
using DLMS/COSEM
IEC 62053-23:2003, Electricity metering equipment (a.c.) – Particular requirements – Part 23:
Static meters for reactive energy (classes 2 and 3)

IEC 62056-21:2002, Electricity metering – Data exchange for meter reading, tariff and load
control – Part 21: Direct local data exchange
IEC 62056-6-2:—, Electricity metering data exchange – The DLMS/COSEM suite – Part 6-2:
COSEM interface classes
EN 13757-1:2002, Communication system for meters and remote reading of meters – Part 1:
Data exchange
3 Terms, definitions and abbreviations
For the purposes of this document, the terms and definitions given in IEC TR 62051:1999 and
IEC TR 62051-1:2004 as well as the following apply.
COSEM Companion Specification for Energy Metering
COSEM object An instance of a COSEM interface class
DLMS Device Language Message Specification
DLMS UA DLMS User Association
GSM Global System for Mobile Communications
IC Interface Class
IEC International Electrotechnical Commission
ISO International Organization for Standardization
OBIS OBject Identification System
VZ Billing period counter
4 OBIS code structure
4.1 Value groups and their use
OBIS codes identify data items used in energy metering equipment, in a hierarchical structure
using six value groups A to F, see Figure A.1.
_______________
To be published.
– 10 – IEC 62056-6-1:2015 © IEC 2015
Value
Use of the value group
group
Identifies the media (energy type) to which the metering is related. Non-media related information is
A
handled as abstract data.
Generally, identifies the measurement channel number, i.e. the number of the input of a metering
equipment having several inputs for the measurement of energy of the same or different types (for
example in data concentrators, registration units). Data from different sources can thus be identified.
B
It may also identify the communication channel, and in some cases it may identify other elements.
The definitions for this value group are independent from the value group A.
Identifies abstract or physical data items related to the information source concerned, for example
current, voltage, power, volume, temperature. The definitions depend on the value in the value group A.
C Further processing, classification and storage methods are defined by value groups D, E and F.
For abstract data, value groups D to F provide further classification of data identified by value groups A
to C.
Identifies types, or the result of the processing of physical quantities identified by values in value
D groups A and C, according to various specific algorithms. The algorithms can deliver energy and
demand quantities as well as other physical quantities.
E Identifies further processing or classification of quantities identified by values in value groups A to D.
Identifies historical values of data, identified by values in value groups A to E, according to different
F
billing periods. Where this is not relevant, this value group can be used for further classification.
IEC
Figure 1 – OBIS code structure and use of value groups
4.2 Manufacturer specific codes
In value groups B to F, the following ranges are available for manufacturer-specific purposes:
• group B: 128…199;
• group C: 128…199, 240;
• group D: 128…254;
• group E: 128…254;
• group F: 128…254.
If any of these value groups contain a value in the manufacturer specific range, then the
whole OBIS code shall be considered as manufacturer specific, and the value of the other
groups does not necessarily carry a meaning defined in this standard or in IEC 62056-6-2.
In addition, manufacturer specific ranges are defined in Table 7 with A = 0, C = 96 and in
Table 19 with A = 1, C = 96.
4.3 Reserved ranges
By default, all codes not allocated are reserved.
4.4 Summary of rules for manufacturer, utility, consortia and country specific codes
Table 1 summarizes the rules for manufacturer specific codes specified in 4.2, utility specific
codes specified in 5.2, consortia specific codes specified in 5.4.2 and country specific codes
specified in 5.4.3.
_______________
Administered by the DLMS User Association.

Table 1 – Rules for manufacturer, utility, consortia and country specific codes
Code type Value group
A B C D E F
128…199 c d e f
128…
b d e f
199, 240
0, 1, 4.9,
Manufacturer specific
F b c 128…254 e f
b c d 128…254 f
b c d e 128…254
Manufacturer specific
0 0…64 96 50…99 0…255 0…255
abstract
Manufacturer specific,
media related general 1, 4…9, F 0…64 96 50…99 0…255 0…255
purpose
Utility specific 0, 1, 4.9,
65…127 0…255 0…255 0…255 0…255
F
Consortia specific 0…64 93 See Table 5.
0, 1, 4.9,
F
Country specific 0…64 94 See Table 6.
“b”, “c”, “d”, “e”, “f” means any value in the relevant value group.
The range D = 50…99 is available for identifying objects, which are not represented by another defined
code, but need representation on the display as well. If this is not required, the range D = 128…254 should
be used.
If the value in value group B is 65…127, the whole OBIS code should be considered as utility specific and
the value of other groups does not necessarily carry a meaning defined neither in this standard nor in
IEC 62056-6-2.
The usage of value groups E and F are defined in consortia specific documents.
The usage of value groups E and F are defined in country specific documents.

Objects for which this standard defines standard identifiers shall not be re-identified by
manufacturer, utility, consortia or country specific identifiers.
On the other hand, an object previously identified by a manufacturer, utility, consortia or
country- specific identifier may receive a standard identifier in the future, if its use is of
common interest for the users of this standard.
4.5 Standard object codes
Standard object codes are meaningful combinations of defined values of the six value groups.
In the following tables, in the various value groups, “b”, “c”, ”d”, “e”, “f” signifies any value in
the respective value group. If only one object is instantiated, the value shall be 0. If a value
group is shaded, then this value group is not used.
NOTE The DLMS UA maintains a list of standard COSEM object definitions at www.dlms.com. The validity of the
combination of OBIS codes and class_id-s as well as the data types of the attributes are tested during
conformance testing.
5 Value group definitions – overview
5.1 Value group A
The range for value group A is 0 to 15; see Table 2.

– 12 – IEC 62056-6-1:2015 © IEC 2015
Table 2 – Value group A codes
Value group A
0 Abstract objects
1 Electricity related objects
…
4 Heat cost allocator related objects
5, 6 Thermal energy related objects
7 Gas related objects
8 Cold water related objects
9 Hot water related objects
…
15 Other media
All other Reserved
The following subclauses contain value group definitions B to F common for all values of
value group A.
5.2 Value group B
The range for value group B is 0 to 255; see Table 3.
Table 3 – Value group B codes
Value group B
0 No channel specified
1…64 Channel 1.64
65…127 Utility specific codes
128…199 Manufacturer specific codes
200…255 Reserved
If channel information is not essential, the value 0 shall be assigned.
The range 65…127 is available for utility specific use. If the value of value group B is in this
range, the whole OBIS code shall be considered as utility specific and the value of other
groups does not necessarily carry a meaning defined neither in this standard nor in
IEC 62056-6-2.
5.3 Value group C
5.3.1 General
The range for value group C is 0 to 255. The definitions depend on the value in value group A.
The codes for abstract objects are specified in 5.3.2. See also:
• electricity related codes specified in 7.1;
• heat cost allocator, thermal energy, gas and water related codes sepecified in
EN 13757-1;
• other media related codes specified in 8.2.

5.3.2 Abstract objects
Abstract objects are data items, which are not related to a certain type of physical quantity.
See Table 4.
Table 4 – Value group C codes – Abstract objects
Value group C
Abstract objects (A = 0)
a
0…89 Context specific identifiers

93 Consortia specific identifiers (See 5.4.2).
94 Country specific identifiers (See 5.4.3)

96 General and service entry objects – Abstract (See 6.1)
97 Error register objects – Abstract (See 6.2)
98 List objects – Abstract (See 6.3, 6.4)
99 Data profile objects – Abstract (See 6.5)
…
b
127 Inactive objects
128…199, 240 Manufacturer specific codes
All other Reserved
a
Context specific identifiers identify objects specific to a certain protocol and/or application. For the COSEM

context, the identifiers are defined in IEC 62056-6-2:–, 6.2.
b
An inactive object is an object, which is defined and present in a meter, but which has no assigned

functionality.
5.4 Value group D
5.4.1 General
The range for value group D is 0 to 255.
5.4.2 Consortia specific identifiers
Table 5 specifies the use of value group D for consortia specific applications. In this table,
there are no reserved ranges for manufacturer specific codes. The usage of value group E
and F are defined in consortia specific documents.
Objects that are already identified in this standard shall not be re-identified by consortia
specific identifiers.
Table 5 – Value group D codes – Consortia specific identifiers
Value group D
Consortia specific identifiers (A = any, C = 93)
All values Reserved
NOTE At the time of the publication of this standard, no consortia specific
identifiers are allocated.
– 14 – IEC 62056-6-1:2015 © IEC 2015
5.4.3 Country specific identifiers
Table 6 specifies the use of value group D for country specific applications. Wherever
possible, the country calling codes are used. In this table, there are no reserved ranges for
manufacturer specific codes. The usage of value group E and F are defined in country
specific documents.
Objects that are already identified in this standard shall not be re-identified by country specific
identifiers.
Table 6 – Value group D codes – Country specific identifiers
Value group D
a
Country specific identifiers (A = any, C = 94)
00 Finland (Country calling code = 358) 50
01 USA (= Country calling code) 51 Peru (= Country calling code)
02 Canada (Country calling code = 1) 52 South Korea (Country calling code = 82)
03 Serbia (Country calling code = 381) 53 Cuba (= Country calling code)
04 54 Argentina (= Country calling code)
05 55 Brazil (= Country calling code)
06 56 Chile (= Country calling code)
07 Russia (Country calling code = 7) 57 Colombia (= Country calling code)
08 58 Venezuela (= Country calling code)
09 59
10 Czech Republic (Country calling code = 420) 60 Malaysia (= Country calling code)
11 Bulgaria (Country calling code = 359) 61 Australia (= Country calling code)
12 Croatia (Country calling code = 385) 62 Indonesia (= Country calling code)
13 Ireland (Country calling code = 353) 63 Philippines (= Country calling code)
14 Israel (Country calling code = 972) 64 New Zealand (= Country calling code)
15 Ukraine (Country calling code = 380) 65 Singapore (= Country calling code)
a
16 Yugoslavia 66 Thailand (= Country calling code)
17 67
18 68
19 69
20 Egypt (= Country calling code) 70
21 71
22 72
23 73 Moldova (Country calling code = 373)
24 74
25 75 Belarus (Country calling code = 375)
26 76
27 South Africa (= Country calling code) 77
28 78
29 79
30 Greece (= Country calling code) 80
31 Netherlands (= Country calling code) 81 Japan (= Country calling code)
32 Belgium (= Country calling code) 82
33 France (= Country calling code) 83

Value group D
a
Country specific identifiers (A = any, C = 94)
34 Spain (= Country calling code) 84
35 Portugal (Country calling code = 351) 85 Hong Kong (Country calling code = 852)
36 Hungary (= Country calling code) 86 China (= Country calling code)
37 Lithuania (Country calling code = 370) 87 Bosnia and Herzegovina (Country calling code
= 387)
38 Slovenia (Country calling code = 386) 88
39 Italy (= Country calling code) 89
40 Romania (= Country calling code) 90 Turkey (= Country calling code)
41 Switzerland (= Country calling code) 91 India (= Country calling code)
42 Slovakia (Country calling code = 421) 92 Pakistan (= Country calling code)
43 Austria (= Country calling code) 93
44 United Kingdom (= Country calling code) 94
45 Denmark (= Country calling code) 95
46 Sweden (= Country calling code) 96 Saudi Arabia (Country calling code = 966)
47 Norway (= Country calling code) 97 United Arab Emirates (Country calling code =
971)
48 Poland (= Country calling code) 98 Iran (= Country calling code)
49 Germany (= Country calling code) 99
All other codes are reserved
a
With the dissolution of the former Yugoslavia into separate nations, country code 38 was decommissioned.
5.4.4 Identification of general and service entry objects
For the use of value group D to identify:
• abstract general and service entry objects, see Clause 6, Table 7;
• heat cost allocator, thermal energy, gas and water related objects see EN 13757-1;
• electricity related general and service entry objects, see Table 19.
5.5 Value group E
The range for value group E is 0 to 255. It can be used for identifying further classification or
processing of values defined by values in value groups A to D, as specified in the relevant
energy type specific clauses. The various classifications and processing methods are
exclusive.
For the use of value group E to identify:
• abstract general and service entry objects, see Clause 6, Table 7;
• heat cost allocator, thermal energy gas and water related objects see EN 13757-1;
• electricity related general and service entry objects, see Table 19.
5.6 Value group F
5.6.1 General
The range for value group F is 0 to 255. In all cases, if value group F is not used, it is set to
255.
– 16 – IEC 62056-6-1:2015 © IEC 2015
5.6.2 Identification of billing periods
Value group F specifies the allocation to different billing periods (sets of historical values) for
the objects defined by value groups A to E, where storage of historical values is relevant. A
billing period scheme is identified with its billing period counter, number of available billing
periods, time stamp of the billing period and billing period length. Several billing period
schemes may be possible. For more, see 7.4.1, Clause A.3 and IEC 62056-6-2:–, 6.2.2.
6 Abstract objects (Value group A = 0)
6.1 General and service entry objects – Abstract
Table 7 below specifies OBIS codes for abstract objects. See also IEC 62056-6-2:–, Table 19.
Table 7 – OBIS codes for general and service entry objects
OBIS code
General and service entry objects
A B C D E F
Billing period values/reset counter entries

(First billing period scheme if there are two)
Billing period counter (1) 0 b 0 1 0 VZ
or
Number of available billing periods (1) 0 b 0 1 1
Time stamp of the most recent billing period (1) 0 b 0 1 2
Time stamp of the billing period (1) VZ (last reset) 0 b 0 1 2 VZ
Time stamp of the billing period (1) VZ 0 b 0 1 2 VZ
-1 -1
… … … … … … .
Time stamp of the billing period (1
...
