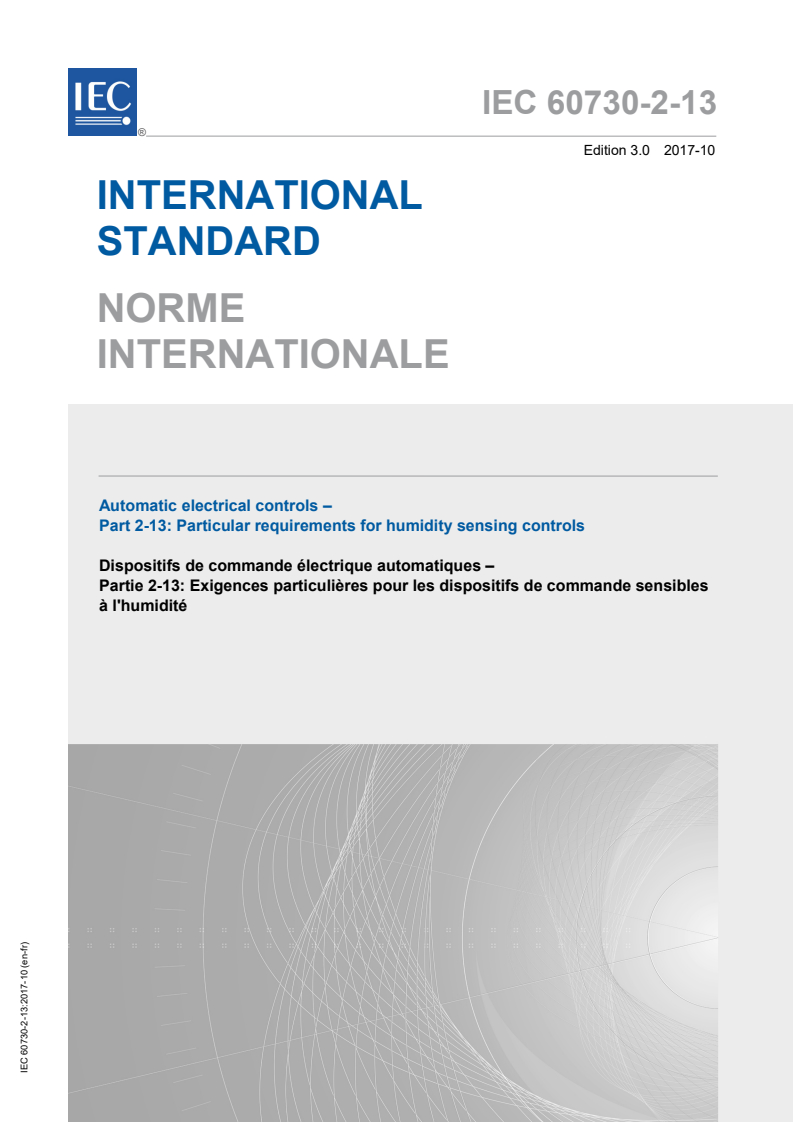

IEC 60730-2-13:2017

IEC 60730-2-13 ®
Edition 3.0 2017-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Automatic electrical controls –
Part 2-13: Particular requirements for humidity sensing controls

Dispositifs de commande électrique automatiques –
Partie 2-13: Exigences particulières pour les dispositifs de commande sensibles
à l'humidité

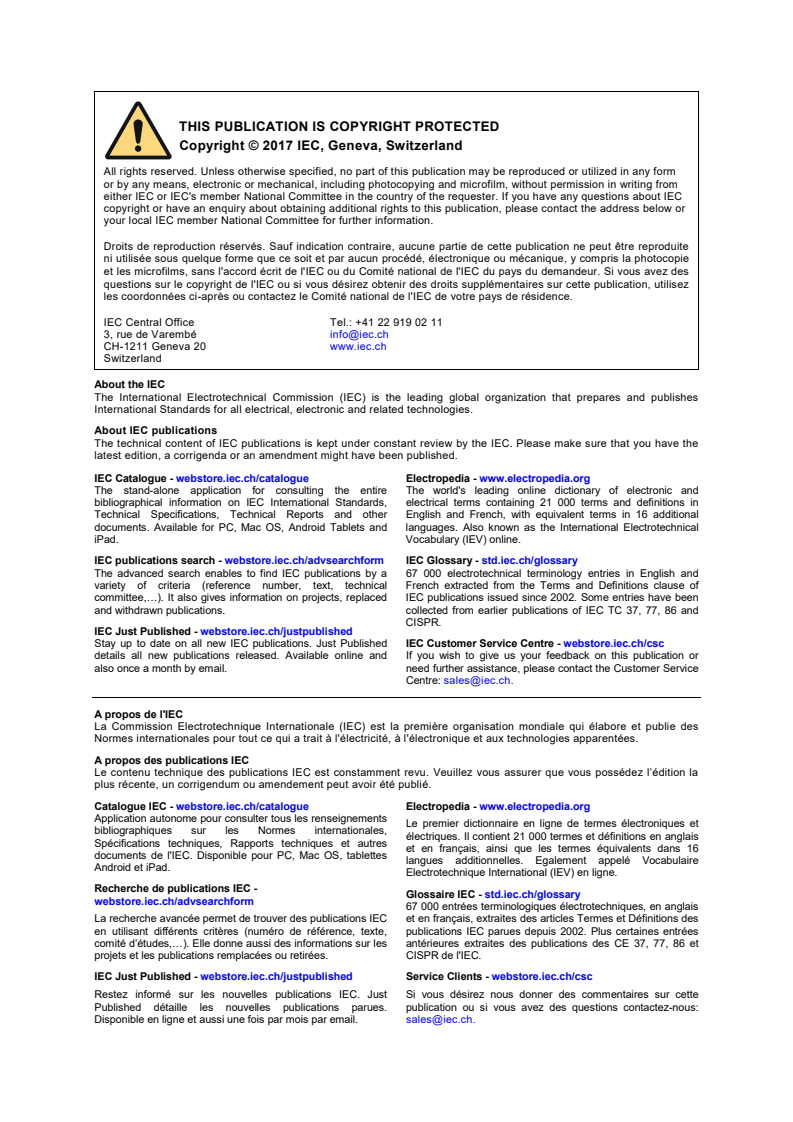

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des
en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées
comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et
projets et les publications remplacées ou retirées. CISPR de l'IEC.

IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette
Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:
Disponible en ligne et aussi une fois par mois par email. sales@iec.ch.

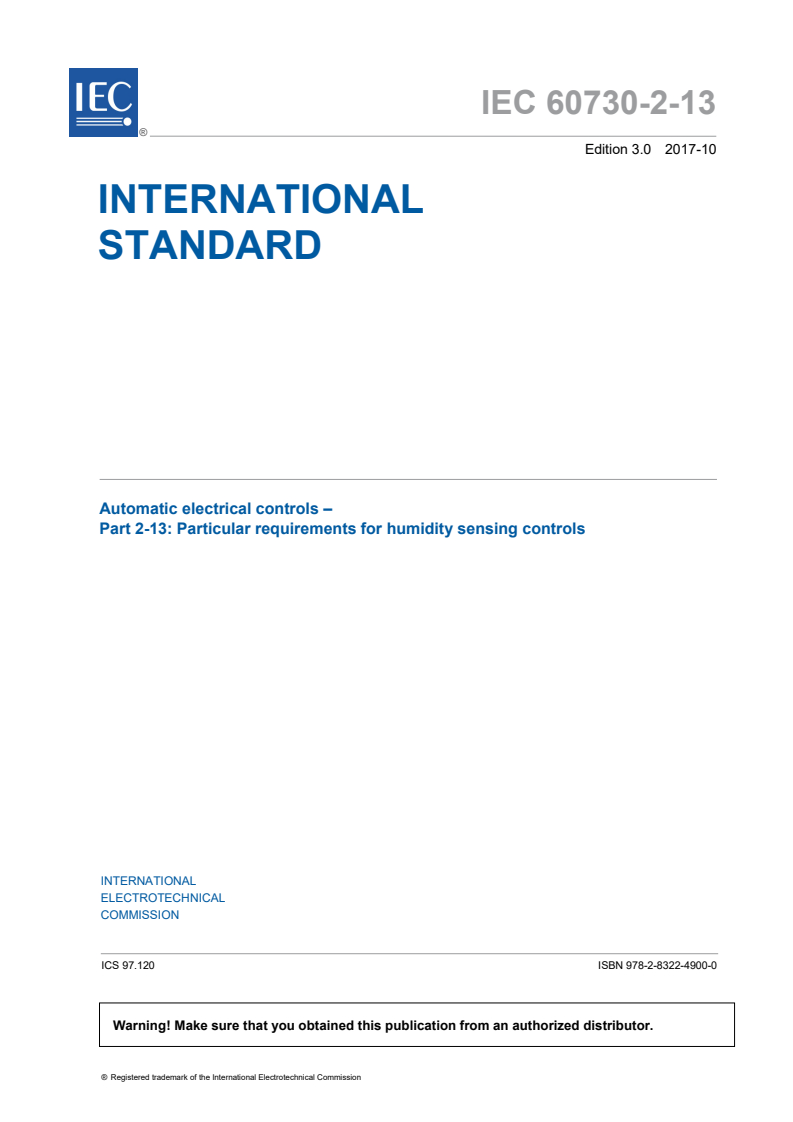

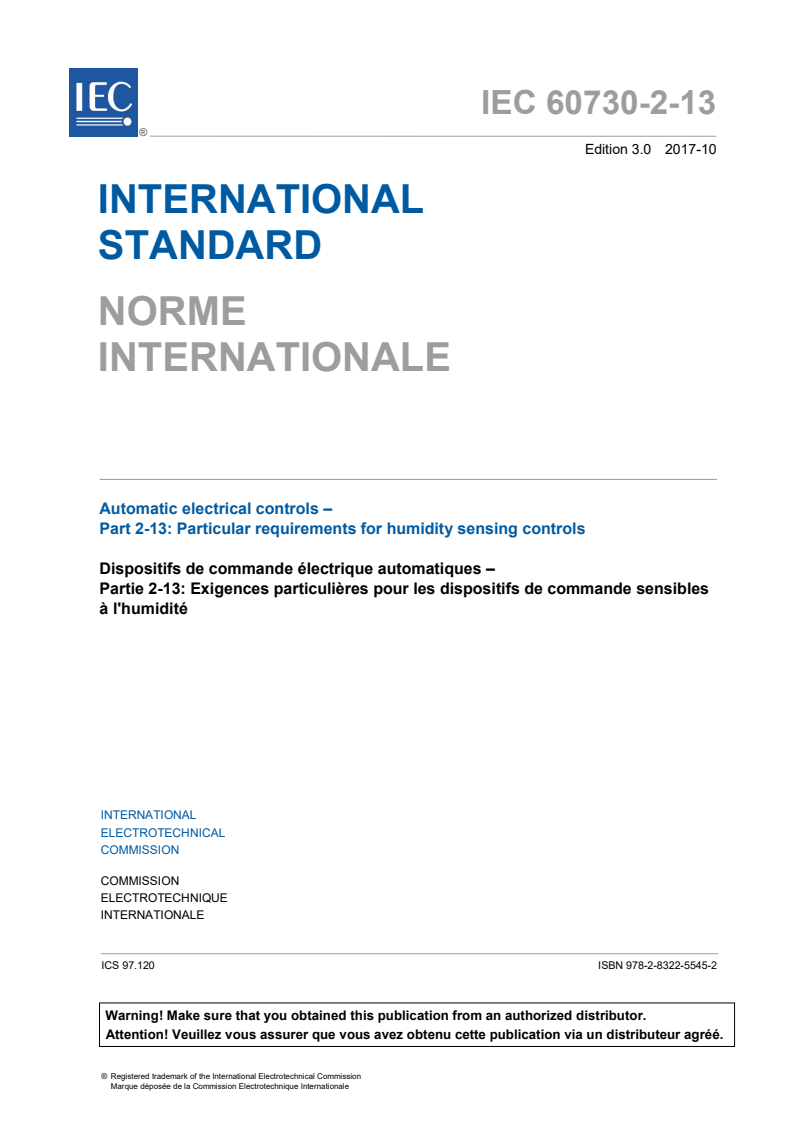

IEC 60730-2-13 ®
Edition 3.0 2017-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Automatic electrical controls –

Part 2-13: Particular requirements for humidity sensing controls

Dispositifs de commande électrique automatiques –

Partie 2-13: Exigences particulières pour les dispositifs de commande sensibles

à l'humidité
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 97.120 ISBN 978-2-8322-5545-2

– 2 – IEC 60730-2-13:2017 © IEC 2017

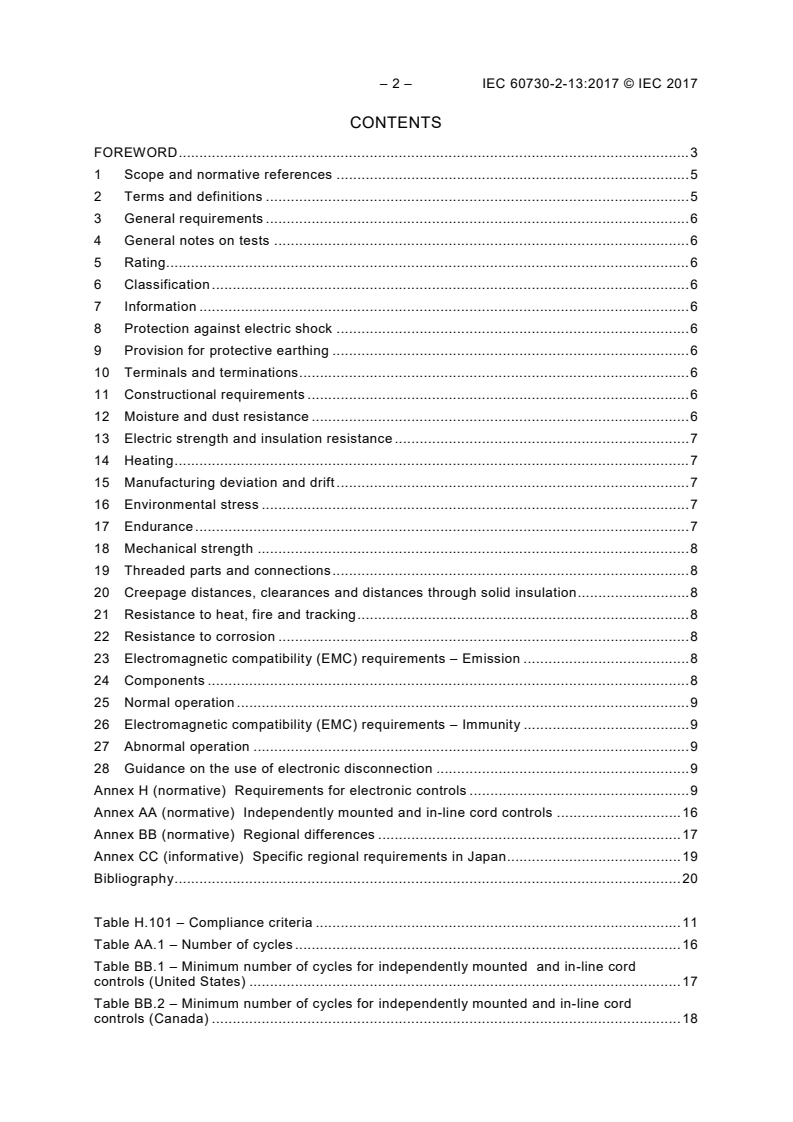

CONTENTS
FOREWORD . 3
1 Scope and normative references . 5
2 Terms and definitions . 5
3 General requirements . 6
4 General notes on tests . 6
5 Rating. 6
6 Classification . 6
7 Information . 6
8 Protection against electric shock . 6
9 Provision for protective earthing . 6
10 Terminals and terminations . 6
11 Constructional requirements . 6
12 Moisture and dust resistance . 6
13 Electric strength and insulation resistance . 7
14 Heating . 7
15 Manufacturing deviation and drift . 7
16 Environmental stress . 7
17 Endurance . 7
18 Mechanical strength . 8
19 Threaded parts and connections . 8
20 Creepage distances, clearances and distances through solid insulation . 8
21 Resistance to heat, fire and tracking . 8
22 Resistance to corrosion . 8
23 Electromagnetic compatibility (EMC) requirements – Emission . 8
24 Components . 8
25 Normal operation . 9
26 Electromagnetic compatibility (EMC) requirements – Immunity . 9
27 Abnormal operation . 9
28 Guidance on the use of electronic disconnection . 9
Annex H (normative) Requirements for electronic controls . 10
Annex AA (normative) Independently mounted and in-line cord controls . 17
Annex BB (normative) Regional differences . 18
Annex CC (informative) Specific regional requirements in Japan . 20
Bibliography . 21

Table H.101 – Compliance criteria . 12
Table AA.1 – Number of cycles . 17
Table BB.1 – Minimum number of cycles for independently mounted and in-line cord
controls (United States) . 18
Table BB.2 – Minimum number of cycles for independently mounted and in-line cord
controls (Canada) . 19

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
AUTOMATIC ELECTRICAL CONTROLS –

Part 2-13: Particular requirements for humidity sensing controls

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60730-2-13 has been prepared by IEC technical committee 72:
Automatic electrical controls.
This bilingual version (2018-04) corresponds to the monolingual English version, published in
2017-10.
The text of this standard is based on the following documents:
FDIS Report on voting
72/1078/FDIS 72/1108/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
The French version of this standard has not been voted upon.

– 4 – IEC 60730-2-13:2017 © IEC 2017
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
This third edition cancels and replaces the second edition published in 2006. This edition
constitutes a technical revision. This edition includes alignment with the text of 60730-1 fifth
edition and the following significant technical changes with respect to the previous edition:
a) alignment of the EMC requirements in Clause H.26 to those in other part 2 standards;
b) addition of requirements in Clause H.27 to cover class B and C control functions of
humidity sensing controls.
This Part 2-13 is intended to be used in conjunction with IEC 60730-1. It was established on
the basis of the fifth edition of that standard (2013). Consideration may be given to future
editions of, or amendments to, IEC 60730-1.
This Part 2-13 supplements or modifies the corresponding clauses in IEC 60730-1, so as to
convert that publication into the IEC standard: Particular requirements for humidity sensing
controls.
Where this Part 2-13 states "addition", "modification" or "replacement", the relevant
requirement, test specification or explanatory matter in Part 1 should be adapted accordingly.
Where no change is necessary, this Part 2-13 indicates that the relevant clause or subclause
applies.
In the development of a fully international standard it has been necessary to take into
consideration the differing requirements resulting from practical experience in various parts of
the world and to recognize the variation in national electrical systems and wiring rules.
In this publication, the following print types are used:
• Requirements proper: in roman type.
• Test specifications: in italic type.
• Explanatory matter: in smaller roman type.
Subclauses, notes or items which are additional to those in Part 1 are numbered starting from
101, additional annexes are lettered AA, BB, etc.
A list of all parts of the IEC 60730 series, under the general title Automatic electrical controls
can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
AUTOMATIC ELECTRICAL CONTROLS –

Part 2-13: Particular requirements for humidity sensing controls

1 Scope and normative references
This clause of Part 1 is applicable except as follows:
1.1 Scope
Replacement:
This part of IEC 60730 applies to automatic electrical humidity sensing controls for use in, on
or in association with equipment, including controls for heating, air-conditioning and similar
applications. The equipment may use electricity, gas, oil, solid fuel, solar thermal energy, etc.
or a combination thereof.
NOTE Throughout this standard, the word "equipment" includes "appliance" and "control system".
This International Standard is applicable to automatic electrical humidity sensing controls
forming part of a building automation control system within the scope of ISO 16484.
This standard also applies to automatic electrical humidity sensing controls for equipment that
may be used by the public, such as equipment intended to be used in shops, offices,
hospitals, farms and commercial and industrial applications.
This standard does not apply to automatic electrical humidity sensing controls intended
exclusively for industrial process applications unless explicitly mentioned in the equipment
standard.
1.1.2 Replacement:
This standard applies to automatic electrical controls, mechanically or electrically operated,
responsive to or controlling humidity.
1.1.3 Not applicable.
2 Terms and definitions
This clause of Part 1 is applicable except as follows:
2.2 Definitions of types of control according to purpose
2.2.19 Addition:
Note 1 to entry: In general, a humidity sensing control is an operating control.
Additional definitions:
2.2.101
humidity sensing control
automatic electrical control which is either intended to keep the controlled humidity above,
below or between a particular value(s)

– 6 – IEC 60730-2-13:2017 © IEC 2017
2.2.102
room humidistat
independently mounted or incorporated humidity sensing control intended to control the
humidity of habitable space
3 General requirements
This clause of Part 1 is applicable.
4 General notes on tests
This clause of Part 1 is applicable.
5 Rating
This clause of Part 1 is applicable.
6 Classification
This clause of Part 1 is applicable except as follows:
6.3.9 Additional subclauses:
6.3.9.101 – humidity sensing control;
6.3.9.102 – room humidistat;
7 Information
This clause of Part 1 is applicable.
8 Protection against electric shock
This clause of Part 1 is applicable.
9 Provision for protective earthing
This clause of Part 1 is applicable.
10 Terminals and terminations
This clause of Part 1 is applicable.
11 Constructional requirements
This clause of Part 1 is applicable.
12 Moisture and dust resistance
This clause of Part 1 is applicable.

13 Electric strength and insulation resistance
This clause of Part 1 is applicable except as follows:
Table 12 (13.2 of edition 3) – Insulation or disconnection test voltages
Addition to footote p:
In the case of humidity sensing controls, it may be necessary to provide specially calibrated samples to enable
this test to be performed.
14 Heating
This clause of Part 1 is applicable.
15 Manufacturing deviation and drift
This clause of Part 1 is applicable except as follows:
15.4 Addition:
Alternatively, the declared manufacturing deviation and drift may be expressed separately
as a tolerance value to the declared operating value.
15.5.3 Additional subclauses:
15.5.3.101 Controls intended for setting by the user shall be set at the maximum humidity
value permitted by the adjustment unless otherwise declared by the manufacturer.
15.5.3.102 The operation of the control shall be sensed by a suitable device with a sensing
current not exceeding 0,05 A.
The circuit voltage may be any convenient value that will give reliable indication of the
function being monitored.
15.5.4 Not applicable.
16 Environmental stress
This clause of Part 1 is applicable.
17 Endurance
This clause of Part 1 is applicable except as follows:
17.1.3 Test sequence and conditions
Additional subclause:
17.1.3.101 For humidity sensing controls, the tests of Clause 17 are conducted with the
activating quantity agreed between the manufacturer and testing authority.

– 8 – IEC 60730-2-13:2017 © IEC 2017
17.8 Test of automatic action at accelerated rate
Additional subclause:
17.8.4.101 The number of automatic and manual cycles for independently mounted and
in-line cord controls shall be as indicated in Clause AA.1, unless a higher number is
declared by the manufacturer.
17.16 Tests for particular purpose controls
Additional subclause and note:
17.16.101 Humidity sensing controls
• Subclauses 17.1 to 17.5 inclusive are applicable.
• 17.6 is applicable to actions classified as type 1.M or 2.M, the value of "X" being agreed
between manufacturer and testing authority.
• 17.7 is applicable.
• 17.8 is applicable.
• 17.9 is applicable, except:
• 17.9.3.1 is not applicable.
• 17.10 to 17.14 inclusive are applicable.
18 Mechanical strength
This clause of Part 1 is applicable.
19 Threaded parts and connections
This clause of Part 1 is applicable.
20 Creepage distances, clearances and distances through solid insulation
This clause of Part 1 is applicable.
21 Resistance to heat, fire and tracking
This clause of Part 1 is applicable.
22 Resistance to corrosion
This clause of Part 1 is applicable.
23 Electromagnetic compatibility (EMC) requirements – Emission
This clause of Part 1 is applicable.
24 Components
This clause of Part 1 is applicable.

25 Normal operation
This clause of Part 1 is applicable.
26 Electromagnetic compatibility (EMC) requirements – Immunity
This clause of Part 1 is applicable. See also Annex H.
27 Abnormal operation
This clause of Part 1 is applicable. See also Annex H.
28 Guidance on the use of electronic disconnection
This clause of Part 1 is applicable.
Figures
The figures of Part 1 are applicable.
Annexes
The annexes of Part 1 are applicable except as follows:

– 10 – IEC 60730-2-13:2017 © IEC 2017
Annex H
(normative)
Requirements for electronic controls
This annex of Part 1 is applicable except as follows:
H.2 Terms and definitions
H.2.23 Definitions relating to functional safety
Additional definitions:
H.2.101
permanent operation
continuous monitoring of the protective function during the operation of the appliance or
system for longer than 24 h
Note 1 to entry: 24 h is considered the typical time interval between a first and a second fault.
H.2.102
non-permanent operation
continuous monitoring of the protective function during the operation of the appliance or
system for less than 24 h
Note 1 to entry: 24 h is considered the typical time interval between a first and a second fault.
H.6 Classification
H.6.18 According to classes of control functions
H.6.18.1
Additional note:
NOTE 101 In general, humidity sensing controls perform class A control functions.
H.7 Information
Additional requirements to Table 1:
Information Clause or Method
subclause
58a See footnote a of Table H.101
101 The output condition of Type 2 humidity sensing controls after H.26.2.103, X
operation H.26.2.104,
H.26.2.105
102 Frequency of the defined state test function H.27.1.2.2.2, X
H.27.1.2.3.2,
H.27.1.2.3.3
103 The control is for permanent or non-permanent operation H.2.101.1, X
H.2.101.2,
H.27.1.2.2.2,
H.27.1.2.3.2
Additional footnote:
For example, conducting or non-conducting, as applicable.

H.11 Constructional requirements
H.11.12 Controls using software
H.11.12.2.6 Modification:
Replace the second paragraph by the following note:
NOTE The values declared in Table 1, requirement 71, may be given in the applicable appliance standard.
H.11.12.2.7 Additional note:
NOTE 101 The values declared in Table 1, requirement 72, may be given in the applicable appliance standard.
H.23 Electromagnetic compatibility (EMC) requirements – Emission
H.23.1.2 Radio frequency emission
Addition:
Integrated and incorporated electronic humidity sensing controls are not subjected to the
tests of H.23.1.2, as the results of these tests are influenced by the incorporation of the
humidity sensing control into the equipment and the use of measures to control emissions
used therein. They may, however, be carried out under declared conditions if so requested by
the manufacturer.
H.26 Electromagnetic compatibility (EMC) requirements – Immunity
H.26.2 Addition:
After each test, one or more of the following criteria (see Subclauses H.26.2.101 to
H.26.2.106) shall apply, as permitted in Table H.101.
Additional subclauses:
H.26.2.101 The control shall remain in its current condition and thereafter shall continue to
operate as declared within the limits verified in Clause 15, if applicable.
H.26.2.102 The control shall assume the condition declared in Table 1, requirement 101
and thereafter shall operate as in H.26.2.101.
H.26.2.103 The control shall assume the condition declared in Table 1, requirement 101,
such that it cannot be reset automatically or manually. The output waveform shall be
sinusoidal or as declared in Table 1, requirement 53 for normal operation.
H.26.2.104 The control shall remain in the condition declared in Table 1, requirement 101.
A non-self-resetting control shall be such that it can only reset manually. After the humidity
which caused cut-out to occur is removed, it shall operate as in H.26.2.101 or shall remain in
the declared condition as in H.26.2.103.
H.26.2.105 The control may return to its initial state and thereafter shall operate as in
H.26.2.101.
NOTE If a control is in the condition declared in Table 1, requirement 101, it may reset but shall resume the
declared condition again if the humidity which caused it to operate is still present.

– 12 – IEC 60730-2-13:2017 © IEC 2017
H.26.2.106 The output and functions shall be as declared in Table 1, requirement 58a or 58b
and the control shall comply with the requirement of 17.5.
Table H.101 – Compliance criteria
Applicable Compliance criteria permitted
Clause H.26 tests
a
Type 2 humidity H.26.2.101 H.26.2.102 H.26.2.103 H.26.2.104 H.26.2.105 H.26.2.106
sensing controls
H.26.4 to H.26.14 B B B A A X
inclusive
a
Other humidity H.26.2.101 H.26.2.102 H.26.2.103 H.26.2.104 H.26.2.105 H.26.2.106
sensing controls
H.26.8, H.26.9 X  X X
X = Permitted
A = Permitted when the disturbance is applied after operation
B = Permitted when the disturbance is applied before operation
a
This compliance criterion is permitted only for integrated or incorporated controls, since the acceptability
of the output must be judged in the appliance.

H.26.5 Voltage dips, voltage interruptions and voltage variations in the power supply
network
H.26.5.2 Voltage variation test
H.26.5.2.2 Test procedure
Replacement of the last paragraph:
The humidity sensing control is subjected to each of the specified voltage test cycles three
times with 10 s intervals between each test cycle. For a humidity sensing control declared
under Table 1, requirement 101, each test cycle is performed three times when the control is
in the declared condition and three times when it is not.
H.26.8 Surge immunity test
H.26.8.3 Test procedure
Additional subclause:
H.26.8.3.101 For controls declared under Table 1, requirement 101, the tests are performed
when the control is in the declared condition and when it is not.
H.26.9 Electrical fast transient/burst immunity test
H.26.9.3 Test procedure
Additional subclause:
H.26.9.3.101 The control is subjected to five tests. For controls declared under Table 1,
requirement 101, the tests are performed when the control is in the declared condition and
when it is not.
H.26.10 Ring wave immunity test
H.26.10.5 Test procedure
Additional subclause:
H.26.10.5.101 For controls declared under Table 1, requirement 101, the tests are
performed when the control is in the declared condition and when it is not.
H.26.12 Radio-frequency electromagnetic field immunity
H.26.12.2 Immunity to conducted disturbances
H.26.12.2.2 Test procedure
Additional subclause:
H.26.12.2.2.101 For controls declared under Table 1, requirement 101, sweeping is
performed when the control is in the declared position and when it is not.
H.26.12.3 Immunity to radiated disturbances
H.26.12.3.2 Test procedure
Additional subclause:
H.26.12.3.2.101 For controls declared under Table 1, requirement 101, sweeping is
performed when the control is in the declared condition and when it is not.
H.26.13 Test of influence of supply frequency variations
H.26.13.3 Test procedure
Additional subclause:
H.26.13.3.101 For controls declared under Table 1, requirement 101, the test shall be
performed when the control is in the declared condition and when it is not.
H.26.14 Power frequency magnetic field immunity test
H.26.14.3 Test procedure
Additional subclause:
H.26.14.3.101 For controls declared under Table 1, requirement 101, the test shall be
performed when the control is in the declared condition and when it is not.
H.26.15 Evaluation of compliance
H.26.15.2 Addition:
See Table H.101 for compliance criteria.
H.26.15.4 Addition:
See Table H.101 for compliance criteria.

– 14 – IEC 60730-2-13:2017 © IEC 2017
H.27 Abnormal operation
H.27.1.1.2 Modification:
Replace the first line by the following:
The control shall be operated under the following conditions. In addition, controls
declared under Table 1, requirement 101 shall be tested when the control is in the declared
condition and when it is not.
H.27.1.1.3 Modification:
This subclause of Part 1 is applicable except item c).
H.27.1.2.2 Class B control function
This subclause of Part 1 is applicable except as follows:
H.27.1.2.2.2 First fault
Modification:
Replace item b) as follows:
b) the control shall react within the fault reaction time (see Table 1, requirement 91) by
proceeding to the defined state provided that a subsequent restart under the same fault
conditions results in the system returning to the same defined state condition;
Replace item c) as follows:
c) for systems with non-permanent operation only, the control shall continue to operate as
intended, the fault shall be detected during the next start-up sequence. The compliance
criteria shall be a) or b).
NOTE 101 Requirements for systems with permanent operation are under consideration.
Replace item d) as follows:
d) the control shall continue to operate as intended.
Replace the last two paragraphs with the following:
The fault reaction time shall be declared by the manufacturer (see Table 1, requirement 91).
For permanent operation as declared by the manufacturer (see Table 1, requirement 103),
item c) is under consideration.
For a control function, where a mechanical actuator is part of a circuit that characterizes the
defined state, a test up to, but not including, the switching contacts is sufficient. If the test of
the defined state fails, the control shall initiate the safety shut-down. Frequency of test is
as declared by the manufacturer (see Table 1, requirement 102). Internal faults of the
components of the checking circuits are not considered.
H.27.1.2.2.3 Fault introduced during defined state
Not applicable.
H.27.1.2.3 Class C control function
This subclause of Part 1 is applicable except as follows:
H.27.1.2.3.2 First fault
Modification:
Replace item b) as follows:
b) the control reacting within the fault reaction time (see Table 1, requirement 91) by
proceeding to defined state provided that subsequent restart under the same fault
condition results in the system returning to the defined state condition;
Replace item c) follows:
c) for systems with non-permanent operation, the control shall continue to operate as
intended, the fault shall be detected during the next start-up sequence. The compliance
criteria shall be a) or b).
NOTE Requirements for systems with permanent operation are under consideration.
Replace item d) as follows:
d) The control shall continue to operate as intended.
Replace the last sentence with the following:
The fault reaction time shall be declared by the manufacturer (see Table 1, requirement 91).
For permanent operation as declared by the manufacturer (see Table 1, requirement 103),
item c) is under consideration.
For a control function, where a mechanical actuator is part of a circuit that characterizes the
defined state, a test up to, but not including, the switching contacts is sufficient. If the test of
the defined state fails, the control shall initiate the safety shut-down. Frequency of test is
as declared by the manufacturer (see Table 1, requirement 102). Internal faults of the
components of the checking circuits are not considered.
H.27.1.2.3.3 Second fault
Modification:
Replace second sentence and items a) and b) with the following:
During assessment, for systems with non-permanent operation, the second fault shall only
be considered to occur when a start-up sequence has been performed after the first fault. For
systems with permanent operation, the second fault occurs 24 h after the first fault.
Replace the last two sentences with the following:
The fault reaction time, as well as the applicability of c), shall be as declared by the
manufacturer.
For a control function, where a mechanical actuator is part of a circuit that characterizes the
defined state, a test up to, but not including, the switching contacts is sufficient. If the test of
the defined state fails, the control shall initiate the safety shut-down. Frequency of test is
as declared by the manufacturer (see Table 1, requirement 102). Internal faults of the
components of the checking circuits are not considered.

– 16 – IEC 60730-2-13:2017 © IEC 2017
H.27.1.2.4 Faults during defined state
Under consideration.
Additional annexes:
Annex AA
(normative)
Independently mounted and in-line cord controls
Table AA.1 gives the number of cycles.
Table AA.1 – Number of cycles
Type of control Automatic action Manual action
Humidity sensing 6 000 600
Room humidistat
60 000 600
– 18 – IEC 60730-2-13:2017 © IEC 2017
Annex BB
(normative)
Regional differences
CENELEC countries
Annex H – Requirements for electronic controls
H.26.10 Ring wave immunity test
Delete and replace by “Void”.
United States
11 Constructional requirements
11.4.5 Addition:
A capacitor may not be connected across the contacts of a control with a type 1.B or type 2.B
action.
17.8 Test of automatic action at accelerated rate
17.8.4.101 Addition:
The cycles are as indicated in Table BB.1.
Table BB.1 – Minimum number of cycles for independently mounted
and in-line cord controls (United States)
Humidity sensing controls for
a a
Humidification Dehumidification
Type 1 Type 2 Type 1 Type 2
Self-resetting action 6 000 100 000 30 000 100 000
First 6 000 75 000 24 000 75 000
b
Maximum cycles per minute 1 6 6 6
Last 25 000 6 000 25 000
b b b
Maximum cycles per minute 1 1 1
Non-self-resetting action 6 000 6 000 6 000 6 000
First 6 000 1 000 6 000 1 000
b b b b
Maximum cycles per minute 1 1 1 1
Last 5 000 5 000
c c
Maximum cycles per minute
Manual action 6 000 6 000
Maximum cycles per minute 6 6
a
Magnetic, manual and motor-operated switches, or the like, and switches that snap with lost motion and do
not creep may be tested at the rate of six cycles per minute.
b
For all controls, the test is to be conducted with (50 ± 20) % ON time. A humidity operated control is to be
so tested, using a slow rate of change.
c
Tested without current, cycle rate may be at any convenient speed.

17.16.101 Addition:
If a control has two or more electrical ratings (for example, inductive and resistive, or
different currents at different voltages), it may be tested for not less than 25 % of its declared
endurance (if equal to or greater than 30 000 cycles) at each rating, but the total number of
cycles on any one sample is not to be more than its declared endurance. However, at least
one sample shall be tested for a total number of cycles equal to its declared endurance.

Canada
11 Constructional requirements
11.4.5 Addition:
A capacitor may not be connected across the contacts of a control with a type 1.B or type 2.B
action.
17.8 Test of automatic action at accelerated rate
17.8.4.101 Addition:
The cycles are as indicated in Table BB.2.
Table BB.2 – Minimum number of cycles for independently
mounted and in-line cord controls (Canada)
Humidification Dehumidification
Type 1 Type 2 Type 1 Type 2
Self-resetting action 6 000 100 000 30 000 100 000
Non-self-resetting action 6 000 6 000 6 000 6 000
1 000 1 000
a a
5 000 5 000
a
Tested without current, cycle rate may be at any convenient speed.

– 20 – IEC 60730-2-13:2017 © IEC 2017
Annex CC
(informative)
Specific regional requirements in Japan
CC.1 General
For the purposes of this International Standard, the specific regional requirements given as
follows are applicable in Japan.
CC.1.1 Addition:
NOTE 4 This regional Annex CC shows that JIS C 9730-2-13:2010 is identical to IEC 60730-2-13/Ed.3 based on
ISO/IEC Guide 21-1,8.2 Table 1, as Designation “identical” a) and b), Abbreviation “IDT” .
CC.1.2 Normative references
Subclause 1.2 is applicable with the following modifications:
Reference in clause 1.2 Replaced by IDT/MOD
IEC 60947 JIS C 8201 MOD
IEC 60730-1 Ed. 5.0:2013 JIS C 9730-1:2016 MOD

CC.17.16
This subclause is not applicable in Japan.
CC.17.8.4.101
This subclause is not applicable in Japan.
Annexes
Annex H – Requirements for electronic controls
H.26.10 Ring wave immunity test
This subclause is not applicable in Japan.

Bibliography
Bibliography of Part 1 is applicable except as follows:
Addition:
ISO/IEC Guide 21-1:2005, Regional or national adoption of International Standards and other
International Deliverables – Part 1: Adoption of International Standards
JIS C 9730-2-13:2010, Automatic electrical controls for household and similar use –
Part 2-13: Particular requirements for humidity sensing controls

___________
– 22 – IEC 60730-2-13:2017 © IEC 2017
SOMMAIRE
AVANT-PROPOS . 24
1 Domaine d'application et références normatives . 26
2 Termes et définitions . 26
3 Exigences générales . 27
4 Généralités sur les essais. 27
5 Caractéristiques assignées . 27
6 Classification . 27
7 Information . 27
8 Protection contre les chocs électriques . 27
9 Dispositions en vue de la mise à la terre de protection . 27
10 Bornes et connexions . 27
11 Exigences de construction . 28
12 Résistance à l'humidité et à la poussière . 28
13 Résistance d'isolement et rigidité diélectrique . 28
14 Échauffements. 28
15 Tolérances de fabrication et dérive . 28
16 Contraintes climatiques . 28
17 Endurance . 29
18 Résistance mécanique . 29
19 Pièces filetées et connexions. 29
20 Lignes de fuite, distances dans l'air et distances à travers l'isolation . 29
21 Résistance à la chaleur, au feu et aux courants de cheminement . 29
22 Résistance à la corrosion . 30
23 Exigences de compatibilité élect
...
