EN 12999:2011+A2:2018

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Žerjavi - Nakladalni žerjaviKrane - LadekraneAppareils de levage à charge suspendue - Grues de chargementCranes - Loader cranes53.020.20DvigalaCranesICS:Ta slovenski standard je istoveten z:EN 12999:2011+A2:2018SIST EN 12999:2011+A2:2018en,fr,de01-julij-2018SIST EN 12999:2011+A2:2018SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12999:2011+A2
February
t r s z ICS
w uä r t rä t r English Version
Cranes æ Loader cranes Appareils de levage à charge suspendue æ Grues de chargement
Krane æ Ladekrane This European Standard was approved by CEN on
s u May
t r s t and includes Amendment
t approved by CEN on
s r March
t r s yä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels
t r s z CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s t { { {ã t r s s ªA tã t r s z ESIST EN 12999:2011+A2:2018

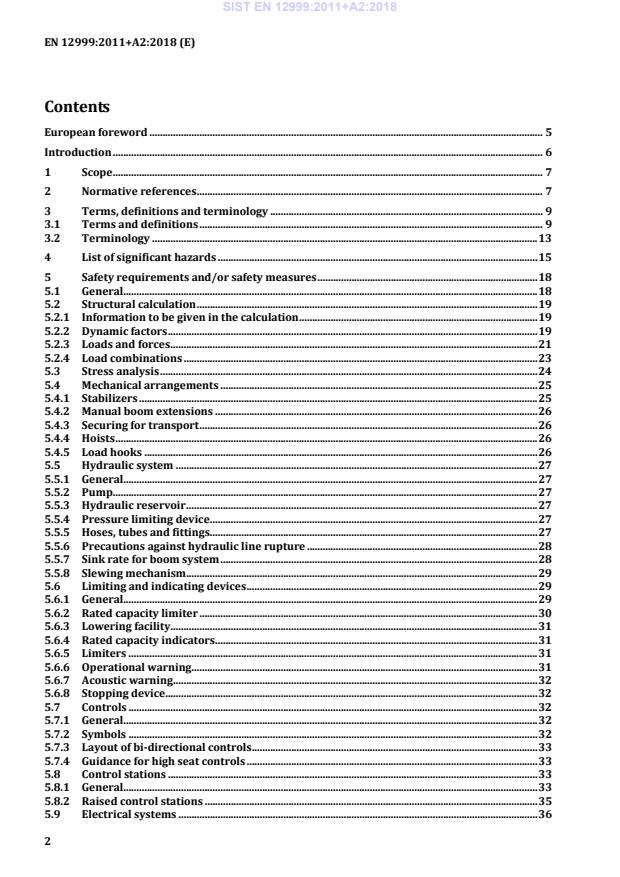

Examples of configurations and mountings . 55 A.1 Boom systems . 55 A.1.1 Loader cranes with straight boom system . 55 A.1.2 Loader cranes with articulated boom system . 55 A.2 Examples of loader crane mountings . 56 Annex B (informative)
Stress history parameter s and stress history classes S . 60 Annex C (informative)
Explanatory notes. 64 C.1 Rated capacity limiters . 64 C.2 Timber handling cranes - Line rupture . 64 C.3 Control stations . 64 SIST EN 12999:2011+A2:2018

Examples of dangerous movements . 65 Annex E (normative)
Symbols for working and setting-up functions . 67 Annex F (informative)
Control system – Preferred vertical layout for controls operated from the ground . 69 Annex G (informative)
Control system - Horizontal layout order . 71 Annex H (informative)
Control levers for high seats and remote controls . 74 H.1 High seat controls . 74 H.1.1 Multidirectional (joy-stick) controls . 74 H.1.2 Bi-directional controls . 74 H.2 Remote controls . 74 Annex I (not used) . 77 Annex J (normative)
Cabins fitted on vehicle mounted loader cranes up to a net lifting moment of 250 kNm . 78 Annex K (informative)
Examples of raised control stations . 81 Annex L (normative)
Raised control stations - Measures regarding hand rails and hand holds, ladders and steps . 83 Annex M (informative)
Installation of a loader crane on a vehicle . 86 M.1 General . 86 M.2 Installation: minimum data . 86 M.2.1 Crane dimensions in transport position: data . 86 M.2.2 Crane data (see Figure M.2) . 87 M.2.3 Mounting data . 87 M.2.4 Power requirements . 87 M.2.5 Stability calculations: data . 87 M.3 Power take off (PTO) and pump displacement . 88 M.4 Calculation method for determination of sub-frame dimensions. 88 M.4.1 General considerations . 88 M.4.2 Stresses . 89 M.4.3 Material and limit states . 89 M.4.4 Symbols and equations . 89 Annex N (informative)
Selection of a suitable set of crane standards for a given application . 92 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 2006/42/EC . 94 Bibliography . 95
!". The start and finish of text introduced or altered by amendment is indicated in the text by tags
#$. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 12999:2011+A2:2018

1) For convenience of reference the definitions are - with the exception of 3.1.1 loader crane - grouped in alphabetical order in the English version. SIST EN 12999:2011+A2:2018

The largest load appearing in the load plate. 3.1.25 maximum working pressure maximum pressure in pump circuit or individual working function 3.1.26 net lifting moment rated capacity multiplied by outreach 3.1.27 non-fixed load lifting attachment lifting accessory which can be fitted directly or indirectly to the hook or any other coupling device of a crane by the user without affecting its integrity 3.1.28 outreach horizontal distance between the axis of rotation of the column and point of load attachment 3.1.29 outreach, hydraulic outreach which can be obtained with hydraulically actuated parts of the boom system 3.1.30 payload load which is lifted by the crane and suspended from the non-fixed load-lifting attachment(s) or, if such an attachment is not used, directly from the fixed load-lifting attachment(s) 3.1.31 port relief valve valve which limits the pressure supplied to a hydraulic actuator SIST EN 12999:2011+A2:2018

Key 1 base 7 1st boom cylinder 13 hook 19 boom extension, hydraulic 2 stabilizer extension 8 2nd boom 14 controls 20 extension cylinders 3 stabilizer leg 9 2nd boom cylinder 15 stabilizer foot 21 hook 4 slewing mechanism #e.g. rack and pinion, 10 boom extension, hydraulic 16 3rd boom adapter 22 boom extension, manual SIST EN 12999:2011+A2:2018

6 1st boom 12 boom extension, manual 18 3rd boom cylinder
Figure 1 — Main parts of a loader crane 4 List of significant hazards Table 1 shows a list !deleted text" of significant hazardous situations and hazardous events that could result in risks to persons during intended use and foreseeable misuse. It also contains corresponding cross-references to the relevant clauses in this European Standard that are necessary to reduce or eliminate the risks associated with those hazards. Before using this European Standard it is important to carry out a risk assessment of the crane. As a minimum the hazards covered by Table 1 should be included in the risk assessment. Table 1 — List of significant hazards and associated requirements No. Hazards Relevant clause(s) in this European Standard 1 Mechanical hazards due to:
- Inadequacy of mechanical strength of the crane and its parts 5.1, 5.2, 5.3, 5.4, 5.5.1, 5.5.4, 5.5.5, 5.5.8, 5.8.2.1, 5.8.2.2, 5.10.2 1.1 Crushing hazard 5.8.1, 5.8.2.2, 5.8.2.3, 5.10.2.3 1.2 Shearing hazard
1.3 Cutting or severing hazard
1.4 Entanglement hazard
1.5 Drawing-in or trapping hazard
1.6 Impact hazard
1.7 Stabbing or puncture hazard
1.8 Friction or abrasion hazard
1.9 High pressure fluid injection or ejection hazard 5.5.1, 5.5.5, 5.10.7, 7.2.3.6, 7.2.4.2 1.10 Ejection of parts 5.4.1.2, 5.4.1.3, 5.4.2, 5.4.3 1.11 Loss of stability 5.4.1, 5.6.1.1, 5.6.1.2, 5.6.1.8, 5.6.3, 5.10.2.1, 5.10.3 1.12 Slip, trip, fall 5.8.2.2, 5.8.2.3, 5.8.2.4, 5.10.8 2 Electrical hazards due to:
2.1 Contact of persons with live parts (direct contact) 5.9, 5.10.6, 7.2.3.1 d) 2.2 Contact of persons with parts which have become live under faulty conditions (indirect contact)
No. Hazards Relevant clause(s) in this European Standard 2.3 Approach to live parts under high voltage 5.6.1.3 2.4 Electrostatic phenomena Not applicable. 2.5 Thermal radiation or other phenomena such as the projection of molten particles and chemical effects from short circuits, overloads, etc. Not applicable. 3 Thermal hazards, resulting in:
3.1 Burns, scalds and other injuries by possible contact of persons with objects or materials with an extreme high or low temperature, by flames or explosions and also by radiation of heat sources 5.5.5, 5.10.2.3 3.2 Damage to health by hot or cold working environment 7.2.3.8 4 Hazards generated by noise 5.10.4, 7.2.3.9 5 Hazards generated by vibration 5.10.5 7 Hazards generated by materials and substances (and their constituent elements) processed or used by the machinery 5.10.2.3 7.1 Hazards from contact with or inhalation of harmful fluids, gases, mists, fumes and dusts 7.2.4.1 8 Hazards generated by neglecting ergonomic principles in machinery design, as e.g. hazards from:
8.1 Unhealthy postures or excessive effort 5.4.1.3, 5.4.2, 5.7, 5.8, 5.10.8 8.2 Inadequate consideration of hand-arm or foot-leg anatomy 5.7, 5.8 8.3 Neglected use of personal protective equipment
8.4 Inadequate local lighting 7.2.3.7 f) 8.6 Human error, human behaviour 5.6, 5.7.1, 5.7.2, 7.2.3, 7.2.4 SIST EN 12999:2011+A2:2018

No. Hazards Relevant clause(s) in this European Standard 8.7 Inadequate design, location or identification of manual controls 5.4.1.3, 5.4.3, 5.7, 5.8 8.8 Inadequate design or location of visual display units 5.6.1.1 9 Combination of hazards
10 Unexpected start-up, unexpected overrun/overspeed (or any similar malfunction) from:
10.1 Failure/disorder of the control system 5.5.6.1, 5.5.6.2, 5.5.7, 5.6.6, 5.6.8, 5.7.1 11 Hazards caused by missing and/or incorrectly positioned safety related measures/ means
11.1 Guards 5.5.5, 5.7.1, 5.8.2.2, 5.8.2.3, 5.10.2.3 11.2 Safety related (protection) devices 5.4.1, 5.4.3, 5.6.3, 5.6.6, 5.6.7 11.4 Safety signs, signals, symbols 5.4.1.3, 5.6.7, 5.7.2, 7.3.4, 7.3.5 11.5 Information or warning devices 5.6.1, 5.6.4, 5.6.7, 7.1, 7.2, 7.3 11.6 Visibility 5.4.3, 5.8.1, 7.3.4.1 11.7 Emergency devices 5.6.3, 5.6.8 15 Assembly errors 7.2.2, 7.2.4 18 Loss of stability/overturning of machine 5.4.1, 5.6.1, 5.6.2, 5.6.4, 5.6.5, 5.6.6, 5.10.3 SIST EN 12999:2011+A2:2018

No. Hazards Relevant clause(s) in this European Standard Additional hazards, hazardous situations and hazardous events due to lifting 27 Mechanical hazards and hazardous events
27.1 From load falls, collisions, machine tipping caused by:
27.1.1 Lack of stability 5.10.3, 6.2.5 27.1.2 Uncontrolled loading – overloading – stabilizing moment exceeded 5.5.4, 5.6.1, 5.6.2, 5.6.3, 5.6.4, 5.6.5 27.1.3 Uncontrolled amplitude of movements 5.6.6 27.1.4 Unexpected/unintended movement of loads 5.5.6, 5.5.7, 5.5.8 27.1.5 Inadequate holding devices/ accessories 5.4.2, 7.2.3.7 27.2 From access of persons to load support 7.2.3.1 e) 27.4 From insufficient mechanical strength of parts 5.1, 5.2, 5.3, 5.5.8, 5.10.2 27.8 From abnormal conditions of assembly/testing/use/maintenance 5.10, 7.1, 7.2. 7.3 29 Hazards generated by neglecting ergonomic principles
29.1 Insufficient visibility from the driving position 5.8.1 5 Safety requirements and/or safety measures 5.1 General Machinery shall conform to the safety requirements and/or measures of this clause. In addition, the machine shall be designed in accordance with the principles of EN ISO 12100 for hazards relevant but not significant which are not dealt with by this European Standard. The rated capacity shall be calculated from the following: a) the working pressure in the cylinders; b) the area of the load carrying cylinders; c) the geometry; d) dead loads; e) load combinations. For the purpose of the calculations rated capacity is equal to gross load. SIST EN 12999:2011+A2:2018

Figure 2 — Dynamic effect when hoisting a load $ The factor Ö 2 shall be taken as follows: Ö 2 = Ö 2,min + 2 × vh Ö 2,min and 2 are given in Table 2a for
...
