EN 1305:2018
(Main)Inland navigation vessels - Connections for the discharge of oily mixture
Inland navigation vessels - Connections for the discharge of oily mixture
This European Standard specifies the design, dimensions, technical requirements and testing of connections for the discharge of oily mixture produced by inland navigation vessels.
It is not applicable to the disposal of cargo residues from cargo tanks.
This standard specifies:
- a connection of a design common on inland navigation vessels which consists of a threaded pipe and quick-release coupling;
- a connection for vessels with flange ISO 7608 - A1, consisting of an adapter with matching flange and welded threaded pipe and quick-release coupling.
Fahrzeuge der Binnenschiffahrt - Anschlüsse für die Abgabe von Ölrückständen
Diese Europäische Norm legt Bauart, Maße, technische Anforderungen und Prüfungen von Anschlüssen für die Abgabe von Ölrückständen von Fahrzeugen der Binnenschifffahrt fest.
Sie gilt nicht für die Beseitigung von Ladungsresten aus Ladetanks.
Die Norm legt fest:
- einen Anschluss in der für Binnenschiffe üblichen Ausführung, bestehend aus Rohr mit Gewindestutzen und Schnellkupplung;
- einen Anschluss für Schiffe mit Flansch ISO 7608 - A1, bestehend aus Adapter mit dazu passenden Flansch mit angeschweißten Rohr mit Gewindestutzen und Schnellkupplung.
Bateaux de navigation intérieure - Raccords d'évacuation de résidus d'huile
La présente Norme européenne définit le type, les dimensions, les exigences techniques et les essais des raccords destinés à l’évacuation de résidus d’huile des bateaux de navigation intérieure.
Elle ne s’applique pas à l’évacuation des résidus provenant des cargos.
Cette norme définit :
- un raccord de conception courante pour les bateaux de navigation intérieure, composé d’un embout fileté et d’un accouplement rapide ;
- un raccord conçu pour les navires avec bride ISO 7608 - A1, composé d’un adaptateur avec une bride adaptée et un embout fileté soudé et d’un accouplement rapide.
Plovila za celinske vode - Priključki za odvajanje oljnih zmesi
Ta evropski standard določa projektiranje, dimenzije, tehnične zahteve in preskušanje priključkov za odvajanje oljnih zmesi, ki jih proizvedejo plovila za celinske vode.
Ne uporablja se za odstranjevanje ostankov tovora iz rezervoarjev.
Ta standard določa:
– priključek z zasnovo, ki je pogosta pri plovilih za celinske vode, ki vključuje cev z navojem in spoj za hitro sprostitev;
– priključek za plovila s prirobnico ISO 7608 – A1, ki vključuje vmesnik z ujemajočo se prirobnico, zavarjeno cev z navojem in spoj za hitro sprostitev.
General Information
- Status
- Published
- Publication Date
- 27-Mar-2018
- Withdrawal Date
- 29-Sep-2018
- Technical Committee
- CEN/TC 15 - Inland navigation vessels
- Drafting Committee
- CEN/TC 15 - Inland navigation vessels
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 20-Dec-2023
- Completion Date
- 14-Apr-2025
Relations
- Effective Date
- 04-Apr-2018
Overview
EN 1305:2018 - "Inland navigation vessels - Connections for the discharge of oily mixture" is a CEN European Standard that specifies the design, dimensions, technical requirements and testing of connections used to discharge oily mixture from inland navigation vessels. It covers two common connection forms:
- Design R: threaded pipe with quick‑release coupling permanently installed on the vessel;
- Design F: adapter with ISO 7608 – A1 flange and welded threaded pipe with quick‑release coupling.
The standard is not applicable to disposal of cargo residues from cargo tanks and supersedes EN 1305:1996.
Key topics and technical requirements
- Connection type and components
- Quick‑release coupling with nominal diameter DN 50 (as per EN 14420-6).
- Pipe with threaded neck, adapter (flange ISO 7608 – A1) and blanking cap with chain.
- Dimensions and configuration
- Coupling and adapter geometry to avoid spillage on disconnection.
- Hose compatibility: design must allow a hose with 1 500 mm bend radius to be connected easily.
- Operational clearance: minimum 175 mm radius and 60 mm depth behind the coupling for operation.
- Materials
- Pipes and adapters: steel (manufacturer to select suitable grade).
- Coupling bodies: brass (CuZn39Pb3 CW614N or CuZn40Pb2 CW617N) per EN 12420.
- Blanking caps: wrought aluminium EN AW-6106 (EN 573-3).
- Testing, designation and marking
- Acceptance by visual inspection and measurement.
- Designation example: “Connection EN 1305 - R”.
- Permanent marking: brown paint on pipe neck and nearby sign “Discharge connection for oily mixture EN 1305” (min. 7 mm font).
- Installation
- Protect connections from damage and ensure they do not restrict adjacent walkways.
Applications and who uses it
EN 1305:2018 is used by professionals involved in inland vessel equipment, safety and environmental compliance:
- Shipbuilders and naval architects specifying bilge and oily discharge systems
- Equipment manufacturers and coupling suppliers producing quick‑release couplings and adapters
- Vessel operators, maintenance crews and port reception facilities for safe discharge operations
- Classification societies and regulatory bodies assessing conformity with European standards
Practical benefits include standardized interfaces for safe, leak‑free discharge, easier maintenance and interoperability between vessels and shore suction equipment.
Related standards
Normative references and related documents referenced by EN 1305:2018 include: ISO 7608, EN 14420-6, EN 573-3, EN 12420, EN ISO 228-1, EN ISO 4018, EN ISO 4034, EN 22768-1. These cover flange dimensions, coupling specifications, materials and general tolerances.
Frequently Asked Questions
EN 1305:2018 is a standard published by the European Committee for Standardization (CEN). Its full title is "Inland navigation vessels - Connections for the discharge of oily mixture". This standard covers: This European Standard specifies the design, dimensions, technical requirements and testing of connections for the discharge of oily mixture produced by inland navigation vessels. It is not applicable to the disposal of cargo residues from cargo tanks. This standard specifies: - a connection of a design common on inland navigation vessels which consists of a threaded pipe and quick-release coupling; - a connection for vessels with flange ISO 7608 - A1, consisting of an adapter with matching flange and welded threaded pipe and quick-release coupling.
This European Standard specifies the design, dimensions, technical requirements and testing of connections for the discharge of oily mixture produced by inland navigation vessels. It is not applicable to the disposal of cargo residues from cargo tanks. This standard specifies: - a connection of a design common on inland navigation vessels which consists of a threaded pipe and quick-release coupling; - a connection for vessels with flange ISO 7608 - A1, consisting of an adapter with matching flange and welded threaded pipe and quick-release coupling.
EN 1305:2018 is classified under the following ICS (International Classification for Standards) categories: 47.020.30 - Piping systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 1305:2018 has the following relationships with other standards: It is inter standard links to EN 1305:1996. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN 1305:2018 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

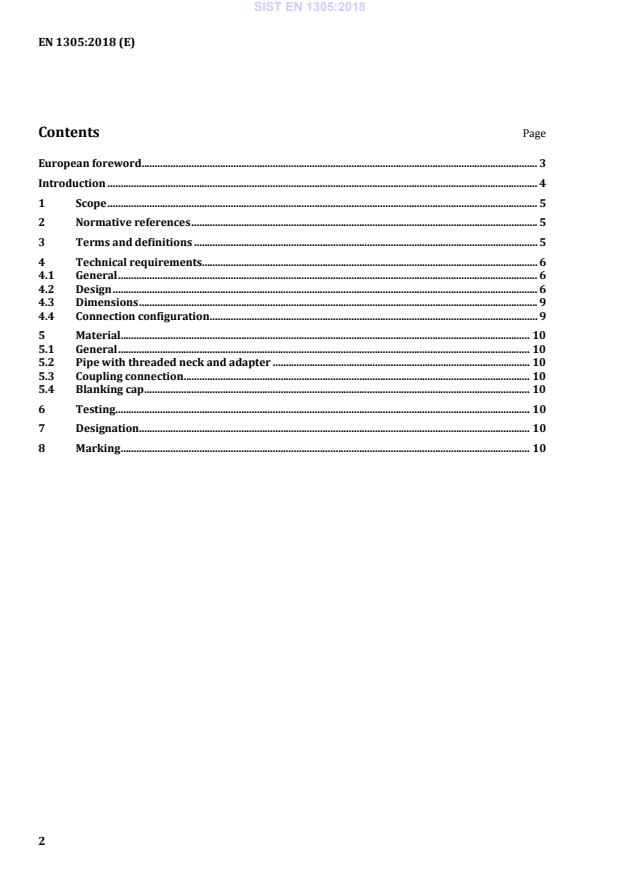

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Fahrzeuge der Binnenschiffahrt - Anschlüsse für die Abgabe von ÖlrückständenBateaux de navigation intérieure - Raccords d'évacuation de résidus d'huileInland navigation vessels - Connections for the discharge of oily mixture47.060Inland navigation vessels47.020.30Sistemi ceviPiping systemsICS:Ta slovenski standard je istoveten z:EN 1305:2018SIST EN 1305:2018en,fr,de01-junij-2018SIST EN 1305:2018SLOVENSKI
STANDARDSIST EN 1305:20001DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1305
March
t r s z ICS
v yä r t rä u r Supersedes EN
s u r wã s { { xEnglish Version
Inland navigation vessels æ Connections for the discharge of oily mixture Bateaux de navigation intérieure æ Raccords d 5évacuation de résidus d 5huile
Fahrzeuge der Binnenschiffahrt æ Anschlüsse für die Abgabe von Ölrückständen This European Standard was approved by CEN on
s z January
t r s zä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels
t r s z CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s u r wã t r s z ESIST EN 1305:2018
...
