EN 10216-2:2002+A2:2007

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Nahtlose Stahlrohre für Druckbeanspruchungen - Technische Lieferbedingungen - Teil 2: Rohre aus unlegierten und legierten Stählen mit festgelegten Eigenschaften bei erhöhten TemperaturenTubes sans soudure en acier pour service sous pression - Conditions techniques de livraison - Partie 2: Tubes en acier non allié et allié avec caractéristiques spécifiées a température élevéeSeamless steel tubes for pressure purposes - Technical delivery conditions - Part 2: Non-alloy and alloy steel tubes with specified elevated temperature properties77.140.75Jeklene cevi in cevni profili za posebne nameneSteel pipes and tubes for specific use23.020.30MHNOHQNHPressure vessels, gas cylindersICS:Ta slovenski standard je istoveten z:EN 10216-2:2002+A2:2007SIST EN 10216-2:2003+A2:2007en,de01-december-2007SIST EN 10216-2:2003+A2:2007SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 10216-2:2002+A2
August 2007 ICS 23.040.10; 77.140.75 Supersedes EN 10216-2:2002 English Version
Seamless steel tubes for pressure purposes -Technical delivery conditions - Part 2: Non-alloy and alloy steel tubes with specified elevated temperature properties
Tubes sans soudure en acier pour service sous pression - Conditions techniques de livraison - Partie 2: Tubes en acier non allié et allié avec caractéristiques spécifiées à température élevée
Nahtlose Stahlrohre für Druckbeanspruchungen - Technische Lieferbedingungen - Teil 2: Rohre aus unlegierten und legierten Stählen mit festgelegten Eigenschaften bei erhöhten Temperaturen This European Standard was approved by CEN on 25 April 2002 and includes Amendment 1 approved by CEN on 2 January 2004 and Amendment 2 approved by CEN on 30 June 2007.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36
B-1050 Brussels © 2007 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 10216-2:2002+A2:2007: ESIST EN 10216-2:2003+A2:2007

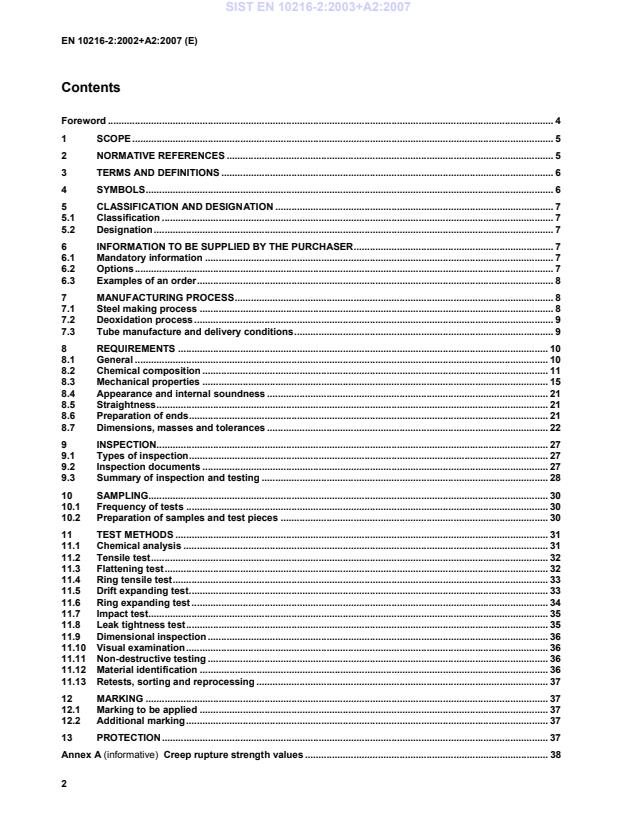

Creep rupture strength values.38 SIST EN 10216-2:2003+A2:2007

#Relationship between this European Standard and the Essential Requirements of EU Directive 97/23/EC.44 Bibliography.45
# $. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document. Other Parts of EN 10216 are: Part 1 : Non-alloy steel tubes with specified room temperature properties. Part 3 : Alloy fine grain steel tubes Part 4 : Non-alloy and alloy steel tubes with specified low temperature properties Part 5 : Stainless steel tubes Another European Standard series covering tubes for pressure purposes is: EN 10217: Welded steel tubes for pressure purposes According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom. SIST EN 10216-2:2003+A2:2007

1 SCOPE This Part of EN 10216 specifies the technical delivery conditions in two test categories for seamless tubes of circular cross section, with specified elevated temperature properties, made of non-alloy and alloy steel. NOTE This Part of EN 10216 may also be applied for tubes of non-circular cross section; necessary modification should be agreed #at$ the time of enquiry and order. 2 NORMATIVE REFERENCES This European Standard incorporates by date or undated reference, provisions from other publications. These normative references are cited at the appropriate places in the text and the publications are listed hereafter. For date references, subsequent amendments to or revisions of, any of these publications apply to this European Standard only when incorporated in it by amendment or revision. For undated references the latest edition of the publication referred to applies (including amendments). The requirements of this European Standard rule when they differ from those in the standards and documents referred to below: EN 10002-1, Metallic materials - Tensile testing - Part 1: Method of test (at ambient temperature) EN 10002-5, Metallic materials - Tensile testing - Part 5: Method of testing (at elevated temperature) EN 10020, Definitions and classification of grades of steel EN 10021, General technical delivery requirements for steel and iron products EN 10027-1, Designation systems for steels - Part 1: Steel names, principle symbols EN 10027-2, Designation systems for steels - Part 2: Numerical systems EN 10045-1, Metallic materials - Charpy impact test - Part 1: Test method EN 10052, Vocabulary of heat treatment terms for ferrous products EN 10204, Metallic products - Types of inspection documents #EN 10220$, Seamless and welded steel tubes - Dimensions and masses per unit length EN 10233, Metallic materials - Tubes - Flattening test EN 10234, Metallic materials - Tubes - Drift expanding test EN 10236, Metallic materials - Tubes - Ring expanding test EN 10237, Metallic materials - Tubes - Ring tensile test EN 10246-1, Non-Destructive Testing of steel tubes - Part 1: Automatic electromagnetic testing of seamless and welded (except submerged arc welded) ferromagnetic steel tubes for verification of hydraulic leak-tightness EN 10246-5, Non-Destructive Testing of steel tubes - Part 5: Automatic full peripheral magnetic transducer/flux leakage testing of seamless and welded (except submerged arc-welded) ferromagnetic steel tubes for the detection of longitudinal imperfections EN 10246-6, Non-Destructive Testing of steel tubes - Part 6: Automatic full peripheral ultrasonic testing of seamless steel tubes for the detection of transverse imperfections SIST EN 10216-2:2003+A2:2007

Non-Destructive Testing (NDT) services. 4 SYMBOLS For the purpose of this Part of EN 10216, the symbols given in #EN 10266$ and the following apply:  d
specified inside diameter;  dmin
specified minimum inside diameter;  Tmin
specified minimum wall thickness;  Dc
calculated outside diameter;  dc
calculated inside diameter;  Tc
calculated wall thickness;  TC
test category SIST EN 10216-2:2003+A2:2007

the steel number allocated in accordance with EN 10027-2. 5.2.2 The steel name of non-alloy steel grades is designated by:  the capital letter P for pressure purposes;  the indication of the specified minimum yield strength at room temperature for wall thickness less than or equal to 16 mm, expressed in MPa
(see Table 4):  the symbols GH for elevated temperature. 5.2.3 The steel name of alloy steel grades is designated by the chemical composition (see Table 2) and the symbols for the heat treatment, where specified in column 3 and footnote 3 of Table 1. 6 INFORMATION TO BE SUPPLIED BY THE PURCHASER 6.1 Mandatory information The following information shall be supplied by the purchaser at the time of enquiry and order: a) the quantity (mass or total length or number); b) the term "tube"; c) the dimensions (outside diameter D and wall thickness T or a set of dimensions covered by Option 11) (see Table 6); d) the designation of the steel grade in accordance with this Part of EN 10216 (see 5.2);
e) the test category for non-alloy steel (see 9.3). 6.2 Options A number of options are specified in this Part of EN 10216 and these are listed below. In the event that the purchaser does not indicate a wish to implement any of these options at the time of enquiry and order, the tubes shall be supplied in accordance with the basic specification (see 6.1). 1) Cold finishing (see 7.3.2). SIST EN 10216-2:2003+A2:2007

EN 10216-2, made of steel grade P265GH, to test category 1 with a 3.1.C inspection certificate in accordance with EN 10204: 100 t - Tube - 168,3 x 4,5 - EN 10216-2 - P265GH - TC1 - Option 13: 3.1.C
6.3.2 Example 2 100 m of seamless tube with a minimum inside diameter of 240 mm, a minimum wall thickness of 40 mm in accordance with Part of EN 10216, made of steel grade 10CrMo9-10, with a 3.1.C inspection certificate in accordance with EN 10204: 100 m - Tube - dmin 240 x Tmin 40 - EN 10216-2 - 10CrMo9-10 - Option 13: 3.1.C 7 MANUFACTURING PROCESS 7.1 Steel making process The steel making process is at the discretion of the manufacturer. SIST EN 10216-2:2003+A2:2007

air 580 to 680 air 7CrWVMoNb9-6 1.8201 +NT d 1 040 to
1 080 air 730 to 780 air 7CrMoVTiB10-10 1.7378 +NT d 980 to 1 020 air 730 to 770 air X11CrMo5+I 1.7362+I +I 890 to 950
Furnace atmosphere - - X11CrMo5+NT1 1.7362+NT1 +NT1 930 to 980 Air 730 to 770 air X11CrMo5+NT2 1.7362+NT2 +NT2 c 930 to 980 air 710 to 750 air X11CrMo9-1+I 1.7386+I +I 950 to 980 Furnace atmosphere - - X11CrMo9-1+NT 1.7386+NT +NT c 890 to 950 air 720 to 800 air X10CrMoVNb9-1 1.4903 +NT c 1 040 to
1 090 air 730 to 780 air X10CrWMoVNb9-2 1.4901 +NT c 1 040 to
1 090 Air 730 to 780 air X11CrMoWVNb9-1-1 1.4905 +NT c 1 040 to
1 080 Air 740 to 780 air X20CrMoV11-1 1.4922 +NT c 1 020 to
1 080 air 730 to 780 air a +N = Normalising, +NT = Normalising + Tempering, +QT = Quenching + Tempering (air or liquid), +I = Isothermal Annealing. b Normalising includes Normalising Forming. c For these steel grades it may be necessary in the case of wall thickness T above 25 mm or T/D > 0,15 to apply quenching and tempering in order to achieve the intended structure and material properties . The decision shall be left to the discretion of the manufacturer but shall be stated to the customer at the time of enquiry and order. Steel tubes treated in such a way shall be designated by the steel name supplemented by the symbol “+QT “. d For these steel grades it may be necessary in case of wall thickness T above 16 mm or T/D > 0,15 to apply quenching and tempering in order to achieve the intended structure and material properties. The decision shall be left to the discretion of the manufacturer but shall be stated to the customer at the time of enquiry and order. Steel tubes treated in such a way shall be designated by the steel name supplemented by the symbol “+QT”. $ 8 REQUIREMENTS 8.1 General When supplied in a delivery condition indicated in clause 7.3 and inspected in accordance with clauses 9, 10 and 11, the tubes shall conform to the requirements of this Part of EN 10216. In addition, the general technical delivery requirements specified in EN 10021 shall apply. Tubes shall be suitable for hot and cold bending provided the bending is carried out in an appropriate manner. When tubes are specified in the order by d, dmin or Tmin the following equations, with all terms in mm, shall apply for the calculation of outside diameter Dc, inside diameter dc and wall thickness Tc, instead of D, d and T for the SIST EN 10216-2:2003+A2:2007

= Tdoftoleranced22minmin+⋅⋅+
(2) dc = 2minmindoftoleranced⋅⋅+
(3) Tc = 2minminToftoleranceT⋅⋅+
(4) For tolerance see Tables 8, 9 and 10. 8.2 Chemical composition 8.2.1 Cast analysis The cast analysis reported by the steel producer shall apply and conform to the requirements of Table 2. NOTE When welding tubes produced in accordance with this Part of this EN 10216, account should be taken of the fact that the behaviour of the steel during and after welding is dependent not only on the steel, but also on the applied heat treatment and the conditions of preparing for and carrying out the welding. 8.2.2 Product analysis Option 3 : Product analysis for the tubes shall be supplied. Table 3 specifies the permissible deviations of the product analysis from the specified limits on cast analysis given in Table 2. #deleted text$
C Si Mn P max S max Cr Mo Ni Al tot Cu Nb Ti max V Cr+Cu +Mo+Ni Others Steel name Steel number
P195GH 1.0348 ≤ 0,13 ≤ 0,35 ≤ 0,70 0,025 0,020 ≤ 0,30≤ 0,08≤ 0,30 ≥ 0,020 b ≤ 0,30 c ≤ 0,010d 0,040 d ≤ 0,02 d ≤ 0,70 - P235GH 1.0345 ≤ 0,16 ≤ 0,35 ≤ 1,20 0,025 0,020 ≤ 0,30≤ 0,08≤ 0,30 ≥ 0,020 b ≤ 0,30 c ≤ 0,010 d 0,040 d ≤ 0,02 d ≤ 0,70 - P265GH 1.0425 ≤ 0,20 ≤ 0,40 ≤ 1,40 0,025 0,020 ≤ 0,30≤ 0,08≤ 0,30 ≥ 0,020 b ≤ 0,30 c ≤ 0,010 d 0,040 d ≤ 0,02 d ≤ 0,70 - 20MnNb6 1.0471 ≤ 0,22 0,15 to 0,35 1,00 to 1,50 0,025 0,020 - - - ≤ 0,060 ≤ 0,30 c 0,015 to 0,10 - - - - 16Mo3 1.5415 0,12 to 0,20 e ≤ 0,35 0,40 to 0,90 0,025 0,020 ≤ 0,300,25to 0,35 ≤ 0,30 ≤ 0,040 ≤ 0,30 c - - - - - 8MoB5-4 1.5450 0,06 to 0,10 0,10 to 0,35 0,60 to 0,80 0,025 0,020 ≤ 0,200,40to 0,50 - ≤ 0,060 ≤ 0,30 c - 0,060 - - B =0,002 to 0,006 14MoV63 1.7715 0,10 to 0,15 0,15 to 0,35 0,40 to 0,70 0,025 0,020 0,30to 0,60 0,50to 0,70 ≤ 0,30 ≤ 0,040 ≤ 0,30 c - - 0,22 to 0,28 - - 10CrMo5-5 1.7338 ≤ 0,15 0,50 to 1,00 0,30 to 0,60 0,025 0,020 1,00to 1,50 0,45to 0,65 ≤ 0,30 ≤ 0,040 ≤ 0,30 c - - - - - 13CrMo4-5 1.7335 0,10 to 0,17 e ≤ 0,35 0,40 to 0,70 0,025 0,020 0,70to 1,15 0,40to 0,60 ≤ 0,30 ≤ 0,040 ≤ 0,30 c - - - - - 10CrM09-10 1.7380 0,08 to 0,14 ≤ 0,50 0,30 to 0,70 0,025 0,020 2,00to 2,50 0,90to 1,10 ≤ 0,30 ≤ 0,040 ≤ 0,30 c - - . - - 11CrMo9-10 1.7383 0,08 to 0,15 ≤ 0,50 0,40 to 0,80 0,025 0,020 2,00to 2,50 0,90to 1,10 ≤ 0,30 ≤ 0,040 ≤ 0,30 c - - . - - SIST EN 10216-2:2003+A2:2007

25CrMo4 1.7218 0,22 to 0,29 ≤ 0,40 0,60 to 0,90 0,025 0,020 0,90 to 1,20 0,15to 0,30 ≤ 0,30 ≤ 0,040 ≤ 0,30 c - - - - - 20CrMoV13-5-5 1.7779 0,17 to 0,23 0,15 to 0,35 0,30 to 0,50 0,025 0,020 3,00
to 3,30 0,50to 0,60 ≤ 0,30 ≤ 0,040 ≤ 0,30 c - - 0,45 to 0,55 - - 15NiCuMoNb5-6-4 1.6368 ≤ 0,17 0,25 to 0,50 0,80 to 1,20 0,025 0,020 ≤ 0,30 0,25to 0,50 1,00 to 1,30 ≤ 0,050 0,50 to 0,80 0,015to 0,045 - - - - 7CrWVMoNb9-6 1.8201 0,04 to 0,10 ≤ 0,50 0,10 to 0,60 0,030 0,010 1,90 to 2,60 0,05 to 0,30 - ≤ 0,030 - 0,02 to 0,08 - 0,20 to 0,30 - N ≤ 0,03 B = 0,0005 to 0,006 W = 1,45 to 1,75 7CrMoVTiB10-10 1.7378 0,05 to 0,10 0,15 to 0,45 0,30 to 0,70 0,020 0,010 2,20 to 2,60 0,90 to 1,10 - ≤ 0,020 - - 0,05 to 0,10 0,20 to 0,30 - N ≤ 0,010 B = 0,0015 to 0,0070 X11CrMo5+I X11CrMo5+NT1 X11CrMo5+NT2 1.7362+I 1.7362+NT1 1.7362+NT2 0,08 to 0,15 0,15 to 0,50 0,30 to 0,60 0,025 0,020 4,00 to 6,00 0,45to 0,65 - ≤ 0,040 ≤ 0,30 c - - - - - X11CrMo9-1+I X11CrMo9-1+NT 1.7386+I
1.7386+NT 0,08 to 0,15 0,25 to 1,00 0,30 to 0,60 0,025 0,020 8,00 to 10,00 0,90to 1.10 - ≤ 0,040 ≤ 0,30 c - - - - - X10CrMoVNb9-1 1.4903 0,08 to 0,12 0,20 to 0,50 0,30 to 0,60 0,020 0,010 8,00 to 9,50 0,85to 1,05 ≤ 0,40 ≤ 0,040 ≤ 0,30 c 0,06to 0,10 - 0,18 to 0,25 - N = 0,030 to 0,070
X10CrWMoVNb9-2 1.4901 0,07 to 0,13 ≤ 0,50 0,30 to 0,60 0,020 0,010 8,50 to 9,50 0,30 to 0,60 ≤ 0,40 ≤ 0,040 - 0,04 to 0,09
- 0,15 to 0,25 - N = 0,030 to 0,070 B = 0,001 to 0,006 W = 1,50 to 2,00 X11CrMoWVNb9-1-1 1.4905 0,09 to 0,13 0,10 to 0,50 0,30 to 0,60 0,020 0,010 8,50 to 9,50 0,90 to 1,10 0,10 to 0,40 ≤ 0,040 - 0,06 to 0,10 - 0,18 to 0,25 - N = 0,050 to 0,090 B = 0,0005 to 0,005 W = 0,90 to 1,10 X20CrMoV11-1 1.4922 0,17 to 0,23f 0,15 to 0,50 ≤ 1,00 0,025 0,020 10,00to 12,50 0,80to 1,20 0,30 to 0,80 ≤ 0,040 ≤ 0,30 c - - 0,25 to 0.35 - - a Elements not included in this table shall not be intentionally added to the steel without the agreement of the purchaser, except for elements which may be added for finishing the cast. All appropriate measures shall be taken to prevent the addition of undesirable elements from scrap or other materials used in the steel making process. b This requirement is not applicable provided the steel contains a sufficient amount of other nitrogen binding elements which shall be reported. When using titanium, the producer shall verify that (Al+Ti/2) ≥ 0,020 %. c Option 2: In order to facilitate subsequent forming operations, an agreed maximum copper content lower than indicated and an agreed specified maximum tin content shall apply d The content of these elements need not to be reported unless intentionally added to the cast. e For wall thickness T ≥ 30 mm the carbon content may be increased by 0,02 % for cast and product analysis. f The upper carbon value of 0,23 % shall not be exceeded for product analysis.
0,02 ≤ 0,40 ±
0,05 Si > 0,40
to
≤ 1,00 ±
0,06 ≤ 1,00 ±
0,05 Mn > 1,00
to
≤ 1,50 ±
0,10 P ≤ 0,030 + 0,005 ≤ 0,010 + 0,003 S > 0,010
to
≤ 0,020 + 0,005 Al ≤ 0,060 ±
0,005 B ≤ 0,007 ±
0,001 ≤ 1,00 ±
0,05 > 1,00
to
≤ 10,00 ±
0,10 Cr > 10,00
to
≤ 12,50 ±
0,15 Cu ≤ 0,80 ±
0,05 ≤ 0,35 ±
0,03 Mo > 0,35
to
≤ 1,20 ±
0,04 N ≤ 0,070 ±
0,01 Nb ≤ 0,10 ±
0,005 ≤ 0,35 ±
0,05 Ni > 0,35
to
≤ 1,30 ±
0,07 Ti ≤ 0,060 + 0,010 ≤ 0,10 +
0,01 V > 0,10
to
≤ 0,55 ±
0,03 W ≤ 2,00 ±
0,10 $ 8.3 Mechanical properties 8.3.1 Mechanical properties at and below room temperature The mechanical properties at and below room temperature of the tubes shall conform to the requirements in Table 4 and in clauses 11.3, 11.4, 11.5 and 11.6. 8.3.2 Proof strength at elevated temperature The minimum proof strength Rp0,2 values at elevated temperature are given in Table 5. SIST EN 10216-2:2003+A2:2007

Steel name
Steel number Upper yield strength or proof strength ReH or Rp0,2
for wall thickness T min. Tensile strength Rm Elongation A min. % a Minimum average absorbed energy KV J at a temperature of °C
T ≤≤≤≤ 16 16 <<<< T ≤≤≤≤ 40 40 <<<< T ≤≤≤≤ 60 60 <<<< T ≤≤≤≤ 100
l t l t
MPa g MPa g MPa g MPa g MPa g
20 0 -10 20 0 P195GH 1.0348 195 - - - 320 to 440 27 25 - 40 c 28 d - 27 c P235GH 1.0345 235 225 215 - 360 to 500 25 23 - 40 c 28 d - 27 c P265GH 1.0425 265 255 245 - 410 to 570 23 21 - 40 c 28 d - 27 c 20MnNb6 1.0471 355 345 335 - 500 to 650 22 20 . 40 c - - 27 c 16Mo3 1.5415 280 270 260 - 450 to 600 22 20 40 c - - 27 c - 8MoB5-4 1.5450 400 - - - 540 to 690 19 17 40 c - - 27 c - 14MoV6-3 1.7715 320 320 310 - 460 to 610 20 18 40 c f - - 27 c - 10CrMo5-5 1.7338 275 275 265 - 410 to 560 22 20 40 c - - 27 c - 13CrMo4-5 1.7335 290 290 280 - 440 to 590 22 20 40 c - - 27 c - 10CrMo9-10 1.7380 280 280 270 - 480 to 630 22 20 40 c - - 27 c - 11CrMo9-10 1.7383 355 355 355 - 540 to 680 20 18 40 c - - 27 c - 25CrMo4 1.7218 345 345 345 - 540 to 690 18 15 40 c f - - 27 c - 20CrMoV13-5-5 1.7779 590 590 590 - 740 to 880 16 14 40 c f - - 27 c - 15NiCuMoNb5-6-4 1.6368 440 440 440 440 e 610 to 780 19 17 40 c f - - 27 c - 7CrWVMoNb9-6 1.8201 400 400 400 - 510 to 740 20 18 40 c f - - 27 c -
for wall thickness T min. Tensile strength Rm Elongation A min. % a Minimum average absorbed energy KV J at a temperature of °C
T ≤≤≤≤ 16 16 <<<< T ≤≤≤≤ 40 40 <<<< T ≤≤≤≤ 60 60 <<<< T ≤≤≤≤ 100
l t l t
MPa g MPa g MPa g MPa g MPa g
20 0 -10 20 0 7CrMoVTiB10-10 1.7378 450 430 430 h - 565 to 840 17 15 40 c f - - 27 c - X11CrMo5+I 1.7362+I 175 175 175 175 430 to 580 22 20 40 c - - 27 c - X11CrMo5+NT1 1.7362+NT1 280 280 280 280 480 to 640 20 18 40 c - - 27 c - X11CrMo5+NT2 1.7362+NT2 390 390 390 390 570 to 740 18 16 40 c - - 27 c - X11CrMo9-1+I 1.7386+I 210 210 210 - 460 to 640 20 18 40 c - - 27 c - X11CrMo9-1+NT 1.7386+NT 390 390 390 - 590 to 740 18 16 40 c - - 27 c - X10CrMoVNb9-1 1.4903 450 450 450 450 630 to 830 19 17 40 c f - - 27 c - X10CrWMoVNb9-2 1.4901 440 440 440 440 620 to 850 19 17 40 c f - - 27 c - X11CrMoWVNb9-1-1 1.4905 450 450 450 450 620 to 850 19 17 40 c f - - 27 c - X20CrMoV11-1 1.4922 490 490 490 490 690 to 840 17 14 40 c f - - 27 c - a l = longitudinal
t = transverse b To be verified when options 4 and/or 5 are/is specified, unless footnote f applies. c Option 4: Impact energy shall be verified. d Option 5: Longitudinal impact energy shall be verified. e For wall thickness 60 mm < T ≤ 80 mm. f Impact test verification mandatory for wall thickness T ≥ 16 mm. g 1 MPa = 1 N/mm2 h For wall thickness T ≤ 50 mm. SIST EN 10216-2:2003+A2:2007

Table 5 — Minimum proof strength Rp0,2 at elevated temperature Steel grade Wall thickness mm Minimum proof strength Rp0,2 MPa a at a temperature of °C Steel name Steel number
100 150 200 250 300 350 400 450 500 550 600 P195GH 1.0348 ≤16 175 165 150 130 113 102 94 - - - - P235GH 1.0345 ≤ 60 198 187 170 150 132 120 112 108 - - - P265GH 1.0425 ≤ 60 226 213 192 171 154 141 134 128 - - - 20MnNb6 1.0471 ≤ 60 312 292 264 241 219 200 186 174 - - - 16Mo3 1.5415 ≤ 60 243 237 224 205 173 159 156 150 146 - - 8MoB5-4 1.5450 ≤ 16 368 368 368 368 368 368 368 - - - - 14MoV6-3 1.7715 ≤ 60 282 276 267 241 225 216 209 203 200 197 - 10CrMo5-5 1.7338 ≤ 60 240 228 219 208 165 156 148 144 143 - - 13CrMo4-5 1.7335 ≤ 60 264 253 245 236 192 182 174 168 166 - - 10CrMo9-10 1.7380 ≤ 60 249 241 234 224 219 212 207 193 180 - - 11CrMo9-10 1.7383 ≤ 60 323 312 304 296 289 280 275 257 239 - - 25CrMo4 1.7218 ≤ 60 - 315 305 295 285 265 225 185 - - - 20CrMoV13-5-5 1.7779 ≤ 60 - 575 570 560 550 510 470 420 370 - - 15NiCuMoNb5-6-4 1.6368 ≤ 80 422 412 402 392 382 373 343 304 - - - 7CrWVMoNb9-6 1.8201 ≤ 60 379 370 363 361 359 351 345 338 330 299 266 7CrMoVTiB10-10 1.7378 ≤ 50 397 383 373 366 359 352 345 336 324 301 248 X11CrMo5+I 1.7362+I ≤ 100 156 150 148 147 145 142 137 129 116 - - X11CrMo5+NT1 1.7362+NT1 ≤ 100 245 237 230 223 216 206 196 181 167 - - X11CrMo5+NT2 1.7362+NT2 ≤ 100 366 350 334 332 309 299 289 280 265 - - SIST EN 10216-2:2003+A2:2007

100 150 200 250 300 350 400 450 500 550 600 X11CrMo9-1+I 1.7386+I ≤ 60 187 186 178 177 175 171 164 153 142 120 - X11CrMo9-1+NT 1.7386+NT ≤ 60 363 348 334 330 326 322 316 311 290 235 - X10CrMoVNb9-1 1.4903 ≤ 100 410 395 380 370 360 350 340 320 300 270 215 X10CrWMoVNb9-2 1.4901 ≤ 100 420 412 405 400 392 382 372 360 340 300 248 X11CrMoWVNb9-1-1 1.4905 ≤ 100 412 401 390 383 376 367 356 342 319 287 231 X20CrMoV11-1 1.4922 ≤ 100 - - 430 415 390 380 360 330 290 250
a 1 MPa = 1 N/mm2. $
3 mm whichever is the smaller, shall be dressed. This requirement does not apply to surface imperfection with a depth equal or less 0,3 mm. 8.4.1.5 Surface imperfections which encroach on the specified minimum wall thickness shall be considered defects and tubes containing these shall be deemed not to conform to this Part of EN 10216. 8.4.2 Internal soundness 8.4.2.1 Leak Tightness The tubes shall pass
a hydrostatic test (see 11.8.1) or electromagnetic test (see 11.8.2) for leak-tightness. Unless option 7 is specified, the choice of the test method is at the discretion of the manufacturer. Option 7: The test method for verification of leak-tightness in accordance with 11.8.1 or 11.8.2 is specified by the purchaser. 8.4.2.2 Non-Destructive Testing The tubes of test category 2 shall be subjected to a non-destructive testing for the detection of longitudinal imperfections, in accordance with 11.11.1. Option 8: The tubes of test category 2 shall subjected to a non-destructive testing for the detection of transverse imperfections in accordance with 11.11.2. Option 9: The tubes of test category 2 shall be subjected to a non-destructive testing for the detection of the laminar imperfections in accordance with 11.11.3. 8.5 Straightness The deviation from straightness of any tube length L shall not exceed 0,001 5 L.
Deviations from straightness over any one metre length shall not exceed 3 mm. 8.6 Preparation of ends Tubes shall be delivered with square cut ends. The ends shall be free from excessive burrs. Option10: The tubes shall be delivered with bevelled ends (see figure 1). The bevel shall have an angle α of 30° °+°50with a root face C of 1,6 mm ± 0,8 mm, except that for wall thickness T greater than 20 mm, an agreed alternative bevel may be specified SIST EN 10216-2:2003+A2:2007

Figure 1 — Tube end bevel 8.7 Dimensions, masses and tolerances 8.7.1 Diameter and wall thickness Unless option 11 is specified, tubes shall be delivered by outside diameter D and wall thickness T. Preferred outside diameters D and wall thicknesses T have been selected from #EN 10220$ and are given in Table 6. NOTE Dimensions which are different from those in Table 6 may be agreed. Option 11: The tubes shall be delivered in accordance with one of the following sets of dimensions as specified at the time of enquiry and order:  outside diameter D and minimum wall thickness Tmin;  inside diameter d and wall thickness T for d ≥ 220 mm;  inside diameter d and minimum wall thickness Tmin for d ≥ 220 mm;  minimum inside diameter dmin and wall thickness T for dmin ≥ 220 mm;  minimum inside diameter dmin and minimum wall thickness Tmin for dmin ≥ 220 mm.
Wall thickness T 1 2 3 1,6 1,8 2 2,3 2,6 2,9 3,2 3,6 4 4,5 5 5,6 6,3 7,1 8 8,8 10 11 12,514,210,2
12,7
13,5
17,2
21,3
25,4
26,9
31,8
33,7
42,4
44,5
48,3
60,3
63,5
76,1
82,5
88,9
101,6
114,3
139,7
141,3
152,4
168,3
177,8
193,7
219,1
244,5
323,9
355,6
406,4
Wall thickness T 1 2 3 16 17,5 20 22,2 25 28 30 32 36 40 45 50 55 60 65 70 80 90 100 10,2
12,7
13,5
17,2
21,3
25,4
26,9
31,8
33,7
42,4
44,5
48,3
60,3
63,5
76,1
82,5
88,9
101,6
114,3
139,7
141,3
152,4
168,3
177,8
193,7
244,5
323,9
355,6
406,4
a series 1 = diameter for which all the accessories needed for the construction of piping system are standardised;
series 2 = diameter for which not all the accessories are standardised;
series 3 = diameter for special application for which very few standardised accessories exist. SIST EN 10216-2:2003+A2:2007

8.7.2 Mass For the mass per unit length the provisions of #EN 10220$ apply except that for the steel grade X11CrMo9-1+I, X11CrMo9-1+NT, X10CrMoVNb9-1 and X20CrMoV11-1 a density of 7,77 kg/dm3 shall be used. 8.7.3 Lengths Unless option 12 is specified, the tubes shall be delivered in random length. The delivery length range shall be agreed at the time of enquiry and order. Option 12: The tubes shall be delivered in exact lengths and the length shall be specified at the time of enquiry and order. For the tolerances see 8.7.4.2. 8.7.4 Tolerances 8.7.4.1 Tolerances on diameter and thickness The diameter and the wall thickness of the tubes shall be within the relevant tolerance limits given in Tables 7, 8, 9, 10 or 11. Out of roundness is included in the tolerances on diameter and eccentricity is included in the tolerances on wall thickness. Table 7 — Tolerances on outside diameter and wall thickness Outside Diameter D Tolerances
on D Tolerances on T for a T/D ratio
mm
≤≤≤≤ 0,025 > 0,02
...
