EN 10216-2:2013

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Nahtlose Stahlrohre für Druckbeanspruchungen - Technische Lieferbedingungen - Teil 2: Rohre aus unlegierten und legierten Stählen mit festgelegten Eigenschaften bei erhöhten TemperaturenTubes sans soudure en acier pour service sous pression - Conditions techniques de livraison - Partie 2 : Tubes en acier non allié et allié avec caractéristiques spécifiées à température élevéeSeamless steel tubes for pressure purposes - Technical delivery conditions - Part 2: Non-alloy and alloy steel tubes with specified elevated temperature properties77.140.75Jeklene cevi in cevni profili za posebne nameneSteel pipes and tubes for specific use23.020.30MHNOHQNHPressure vessels, gas cylindersICS:Ta slovenski standard je istoveten z:EN 10216-2:2013SIST EN 10216-2:2014en,fr,de01-julij-2014SIST EN 10216-2:2014SLOVENSKI
STANDARDSIST EN 10216-2:2003+A2:20071DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 10216-2
December 2013 ICS 23.040.10; 77.140.75 Supersedes EN 10216-2:2002+A2:2007English Version
Seamless steel tubes for pressure purposes - Technical delivery conditions - Part 2: Non-alloy and alloy steel tubes with specified elevated temperature properties
Tubes sans soudure en acier pour service sous pression - Conditions techniques de livraison - Partie 2: Tubes en acier non allié et allié avec caractéristiques spécifiées à température élevée
Nahtlose Stahlrohre für Druckbeanspruchungen - Technische Lieferbedingungen - Teil 2: Rohre aus unlegierten und legierten Stählen mit festgelegten Eigenschaften bei erhöhten Temperaturen This European Standard was approved by CEN on 17 August 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 10216-2:2013 ESIST EN 10216-2:2014

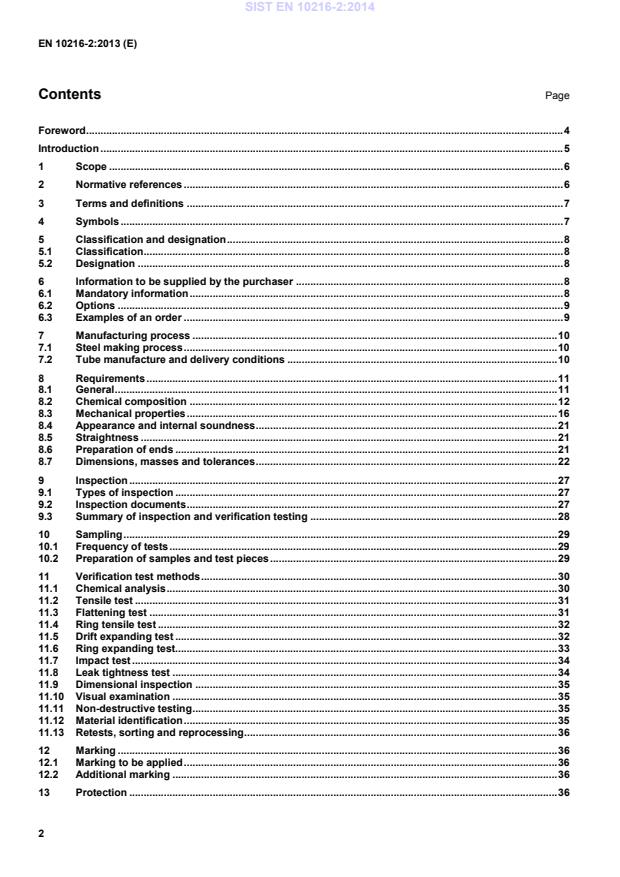

Creep rupture strength values . 37 Annex B (informative)
Technical changes from the previous edition . 43 B.1 Introduction . 43 B.2 Technical changes . 43 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 97/23/EC . 44 Bibliography . 45
Introduction The European Committee for Standardization (CEN) draws attention to the fact that it is claimed that compliance with this document may involve the use of a patent concerning steel grade 1.7378. CEN takes no position concerning the evidence, validity and scope of this patent right. The holder of this patent right has assured CEN that he/she is willing to negotiate licenses either free of charge or under reasonable and non-discriminatory terms and conditions with applicants throughout the world. In this respect, the statement of the holder of this patent right is registered with CEN. Information may be obtained from: Vallourec & Mannesmann Tubes V&M Deutschland Gmbh Theodorstrasse 90 D-40472 Düsseldorf Attention is draw to the possibility that some of the elements of this document may be the subject of patent rights other than those indicated above. CEN shall not be held responsible for identifying any or all such patent rights. CEN (http://www.cen.eu/cen/WorkArea/IPR/Pages/default.aspx) and CENELEC (http://www.cenelec.eu/membersandexperts/toolsandapplications/index.html) maintain on-line lists of patents relevant to their standards. Users are encouraged to consult the lists for the most up to date information concerning patents. SIST EN 10216-2:2014

specified inside diameter  dmin
specified minimum inside diameter  Tmin
specified minimum wall thickness  Dc
calculated outside diameter SIST EN 10216-2:2014

calculated inside diameter  Tc
calculated wall thickness  TC
test category 5 Classification and designation 5.1 Classification In accordance with the classification system in EN 10020, the steel grades P195GH, P235GH and P265GH are classified as non-alloy quality steels and the other steel grades are classified as alloy special steels. 5.2 Designation 5.2.1 For the tubes covered by this Part of EN 10216, the steel designation consists of:  the number of this Part of EN 10216; plus either:  the steel name in accordance with EN 10027-1; or:
 the steel number allocated in accordance with EN 10027-2. 5.2.2 The steel name of non-alloy steel grades is designated by:  the capital letter P for pressure purposes;  the indication of the specified minimum yield strength at room temperature for wall thickness less than or equal to 16 mm, expressed in MPa
(see Table 4);  the symbols GH for elevated temperature. 5.2.3 The steel name of alloy steel grades is designated by the chemical composition (see Table 2) and the symbols for the heat treatment, where specified in column 3 and footnote c of Table 1. 6 Information to be supplied by the purchaser 6.1 Mandatory information The following information shall be supplied by the purchaser at the time of enquiry and order: a) the quantity (mass or total length or number); b) the term "tube"; c) the dimensions (outside diameter D and wall thickness T or a set of dimensions covered by Option 11) (see Table 6); d) the designation of the steel grade in accordance with this Part of EN 10216 (see 5.2);
Unless option 1 is specified, the tubes may be either hot or cold finished at the discretion of the manufacturer. The terms “ hot finished “ and “ cold finished “ apply to the condition of the tube before it is heat treated in accordance with7.3.3. Option 1: The tubes shall be cold finished before heat treatment. 7.2.3 The tubes shall be supplied in the relevant heat treatment conditions as specified in Table 1. SIST EN 10216-2:2014

air 580 to 680 air 7CrWVMoNb9-6 1.8201 +NT d 1 040 to 1 080 air 730 to 780 air 7CrMoVTiB10-10 1.7378 +NT d 980 to 1 020 air 730 to 770 air X11CrMo5+I 1.7362+I +I 890 to 950
Furnace atmosphere - - X11CrMo5+NT1 1.7362+NT1 +NT1 930 to 980 Air 730 to 770 air X11CrMo5+NT2 1.7362+NT2 +NT2 c 930 to 980 air 710 to 750 air X11CrMo9-1+I 1.7386+I +I 950 to 980 Furnace atmosphere - - X11CrMo9-1+NT 1.7386+NT +NT c 890 to 950 air 720 to 800 air X10CrMoVNb9-1 1.4903 +NT c 1 040 to 1 090 air 730 to 780 air X10CrWMoVNb9-2 1.4901 +NT c 1 040 to 1 090 Air 730 to 780 air X11CrMoWVNb9-1-1 1.4905 +NT c 1 040 to 1 080 Air 740 to 780 air X20CrMoV11-1 1.4922 +NT c 1 020 to 1 080 air 730 to 780 air a
+N = Normalizing, +NT = Normalizing + Tempering, +QT = Quenching + Tempering (air or liquid), +I = Isothermal Annealing. b
Normalizing includes Normalizing Forming. Normalized Forming shall be carried out in a temperature range from 880 °C to 1 000 °C. c
For these steel grades it may be necessary in the case of wall thickness T above 10 mm or T/D > 0,15 to apply quenching and tempering in order to achieve the intended structure and material properties. The decision shall be left to the discretion of the manufacturer but shall be stated to the customer at the time of enquiry and order. Steel tubes treated in such a way shall be designated by the steel name supplemented by the symbol “+QT “. d
For these steel grades it may be necessary in case of wall thickness T above 16 mm or T/D > 0,15 to apply quenching and tempering in order to achieve the intended structure and material properties. The decision shall be left to the discretion of the manufacturer but shall be stated to the customer at the time of enquiry and order. Steel tubes treated in such a way shall be designated by the steel name supplemented by the symbol “+QT”. 8 Requirements 8.1 General When supplied in a delivery condition indicated in 7.2 and inspected in accordance with Clauses 9, 10 and 11, the tubes shall conform to the requirements of this Part of EN 10216. In addition, the general technical delivery requirements specified in EN 10021 shall apply. SIST EN 10216-2:2014

= Tdoftoleranced22minmin+⋅⋅+ (2) dc = 2minmindoftoleranced⋅⋅+ (3) Tc = 2minminToftoleranceT⋅⋅+ (4) For tolerances, see Tables 8, 9 and 10. 8.2 Chemical composition 8.2.1 Cast analysis The cast analysis reported by the steel producer shall apply and conform to the requirements of Table 2. When welding tubes produced in accordance with this Part of this EN 10216, account should be taken of the fact that the behaviour of the steel during and after welding is dependent not only on the steel, but also on the applied heat treatment and the conditions of preparing for and carrying out the welding. 8.2.2 Product analysis Option 3: Product analysis for the tubes shall be supplied. Table 3 specifies the permissible deviations of the product analysis from the specified limits on cast analysis given in Table 2.
Table 2 — Chemical composition (cast analysis) a, in % by mass Steel grade C Si Mn P max S max Cr Mo Ni Al tot Cu Nb Ti max V Cr+Cu +Mo+Ni Others Steel name Steel number P195GH 1.0348 ≤ 0,13 ≤ 0,35 ≤ 0,70 0,025 0,010 ≤ 0,30 ≤ 0,08 ≤ 0,30 ≥ 0,020 b ≤ 0,30 c ≤ 0,010d 0,040 d ≤ 0,02 d ≤ 0,70 - P235GH 1.0345 ≤ 0,16 ≤ 0,35 ≤ 1,20 0,025 0,010 ≤ 0,30 ≤ 0,08 ≤ 0,30 ≥ 0,020 b ≤ 0,30 c ≤ 0,020 d 0,040 d ≤ 0,02 d ≤ 0,70 - P265GH 1.0425 ≤ 0,20 ≤ 0,40 ≤ 1,40 0,025 0,010 ≤ 0,30 ≤ 0,08 ≤ 0,30 ≥ 0,020 b ≤ 0,30 c ≤ 0,020 d 0,040 d ≤ 0,02 d ≤ 0,70 - 20MnNb6 1.0471 ≤ 0,22 0,15 to 0,35 1,00 to 1,50 0,025 0,010 - - - ≤ 0,060 ≤ 0,30 c 0,015 to 0,10 - - - - 16Mo3 1.5415 0,12 to 0,20 e ≤ 0,35 0,40 to 0,90 0,025 0,010 ≤ 0,30 0,25 to 0,35 ≤ 0,30 ≤ 0,040 ≤ 0,30 c - - - - - 8MoB5-4 1.5450 0,06 to 0,10 0,10 to 0,35 0,60 to 0,80 0,025 0,010 ≤ 0,20 0,40 to 0,50 - ≤ 0,060 ≤ 0,30 c - 0,060 - - B = 0,002 to 0,006 14MoV6-3 1.7715 0,10 to 0,15 0,15 to 0,35 0,40 to 0,70 0,025 0,010 0,30 to 0,60 0,50 to 0,70 ≤ 0,30 ≤ 0,040 ≤ 0,30 c - - 0,22 to 0,28 - - 10CrMo5-5 1.7338 ≤ 0,15 0,50 to 1,00 0,30 to 0,60 0,025 0,010 1,00 to 1,50 0,45 to 0,65 ≤ 0,30 ≤ 0,040 ≤ 0,30 c - - - - - 13CrMo4-5 1.7335 0,10 to 0,17 e ≤ 0,35 0,40 to 0,70 0,025 0,010 0,70 to 1,15 0,40 to 0,60 ≤ 0,30 ≤ 0,040 ≤ 0,30 c - - - - - 10CrMo9-10 1.7380 0,08 to 0,14 ≤ 0,50 0,30 to 0,70 0,020 0,010 2,00 to 2,50 0,90 to 1,10 ≤ 0,30 ≤ 0,040 ≤ 0,30 c - - . - - 11CrMo9-10 1.7383 0,08 to 0,15 ≤ 0,50 0,40 to 0,80 0,025 0,010 2,00 to 2,50 0,90 to 1,10 ≤ 0,30 ≤ 0,040 ≤ 0,30 c - - . - - SIST EN 10216-2:2014

(continued) Steel grade C Si Mn P max S max Cr Mo Ni Al tot Cu Nb Ti V Cr+Cu +Mo+Ni Others Steel Grade Steel Number 25CrMo4 1.7218 0,22 to 0,29 ≤ 0,40 0,60 to 0,90 0,025 0,010 0,90 to 1,20 0,15 to 0,30 ≤ 0,3 ≤ 0,040 ≤ 0,30 c - - - - - 20CrMoV13-5-5 1.7779 0,17 to 0,23 0,15 to 0,35 0,30 to 0,50 0,025 0,010 3,00
to 3,30 0,50 to 0,60 ≤ 0,3 ≤ 0,040 ≤ 0,30 c - - 0,45 to 0,55 - - 15NiCuMoNb5-6-4 1.6368 ≤ 0,17 0,25 to 0,50 0,80 to 1,20 0,025 0,010 ≤ 0,30 0,25 to 0,50 1,00 to 1,30 ≤ 0,050 0,50 to 0,80 0,015 to 0,045 - - - - 7CrWVMoNb9-6 1.8201 0,04 to 0,10 ≤ 0,50 0,10 to 0,60 0,030 0,010 1,90 to 2,60 0,05 to 0,30 - ≤ 0,030 - 0,02 to 0,08 0,005 to 0,060 0,20 to 0,30 - N ≤ 0,015 B = 0,0010 to 0,006 W = 1,45 to 1,75 Ti/N ≥3,5g 7CrMoVTiB10-10 1.7378 0,05 to 0,10 0,15 to 0,45 0,30 to 0,70 0,020 0,010 2,20 to 2,60 0,90 to 1,10 - ≤ 0,020 - - 0,05 to 0,10 0,20 to 0,30 - N ≤ 0,010 B = 0,0015 to 0,0070 X11CrMo5+I X11CrMo5+NT1 X11CrMo5+NT2 1.7362+I 1.7362+NT1 1.7362+NT2 0,08 to 0,15 0,15 to 0,50 0,30 to 0,60 0,025 0,010 4,0 to 6,0 0,45 to 0,65 - ≤ 0,040 ≤ 0,30 c - - - - - X11CrMo9-1+I X11CrMo9-1+NT 1.7386+I
1.7386+NT 0,08 to 0,15 0,25 to 1,00 0,30 to 0,60 0,025 0,010 8,0 to 10,0 0,90 to 1.10 - ≤ 0,040 ≤ 0,30 c - - - - - X10CrMoVNb9-1 1.4903 0,08 to 0,12 0,20 to 0,50 0,30 to 0,60 0,020 0,005 8,0 to 9,5 0,85 to 1,05 ≤ 0,40 ≤ 0,02 ≤ 0,30 c 0,06 to 0,10 0,01 max 0,18 to 0,25 - N = 0,030 to 0,070 Zr = 0,01 max
(concluded) Steel grade C Si Mn P max S max Cr Mo Ni Al tot Cu Nb Ti V Cr+Cu +Mo+Ni Others Steel name Steel number X10CrWMoVNb9-2 1.4901 0,07 to 0,13 ≤ 0,50 0,30 to 0,60 0,020 0,010 8,5 to 9,5 0,30 to 0,60 ≤ 0,40 ≤ 0,02 - 0,04 to 0,09
0,01 max 0,15 to 0,25 - N = 0,030 to 0,070 B = 0,001 to 0,006 W = 1,50 to 2,00 Zr = 0,01 max X11CrMoWVNb9-1-1 1.4905 0,09 to 0,13 0,10 to 0,50 0,30 to 0,60 0,020 0,010 8,5 to 9,5 0,90 to 1,10 0,10 to 0,40 ≤ 0,02 - 0,06 to 0,10 0,01 max 0,18 to 0,25 - N = 0,050 to 0,090 B = 0,0005 to 0,005 W = 0,90 to 1,10 Zr = 0,01 max X20CrMoV11-1 1.4922 0,17 to 0,23f 0,15 to 0,50 ≤ 1,00 0,025 0,010 10,0 to 12,5 0,80 to 1,20 0,30 to 0,80 ≤ 0,040 ≤ 0,30 c - - 0,25 to 0.35 - - a Elements not included in this table shall not be intentionally added to the steel without the agreement of the purchaser, except for elements which may be added for finishing the cast. All appropriate measures shall be taken to prevent the addition of undesirable elements from scrap or other materials used in the steel making process. b This requirement is not applicable provided the steel contains a sufficient amount of other nitrogen binding elements which shall be reported. When using titanium, the producer shall verify that (Al+Ti/2) ≥ 0,020 %. c Option 2: In order to facilitate subsequent forming operations, an agreed maximum copper content lower than indicated and an agreed specified maximum tin content shall apply. d The content of these elements need not to be reported unless intentionally added to the cast. e For wall thickness T ≥ 30 mm the carbon content may be increased by 0,02 % for cast and product analysis. f The upper carbon value of 0,23 % shall not be exceeded for product analysis. g Alternatively, in lieu of the minimum ratio the material shall a have a minimum hardness of 275 HV in the hardened condition, defined as after austenitizing and cooling to room temperature, but before tempering. Hardness testing shall be performed at mid thickness of the product. The resting frequency shall be two samples of product per heat treatment lot and the hardness testing results shall be reported. SIST EN 10216-2:2014

0,02 Si ≤ 0,40 ±
0,05 [ 0,40
to
≤ 1,00 ±
0,06 Mn ≤ 1,00 ±
0,05 [ 1,00
to
≤ 1,50 ±
0,10 P ≤ 0,030 + 0,005 S ≤ 0,010 + 0,003 [ 0,010
to
≤ 0,020 + 0,005 Al ≤ 0,060 ±
0,005 B ≤ 0,007 +
0,000 5 Cr ≤ 1,00 ±
0,05 [ 1,00
to
≤ 10,0 ±
0,10 [ 10,0
to
≤ 12,5 ±
0,15 Cu ≤ 0,80 ±
0,05 Mo ≤ 0,35 ±
0,03 [ 0,35
to
≤ 1,20 ±
0,04 N ≤ 0,070 ±
0,01 Nb ≤ 0,10 ±
0,005 Ni ≤ 0,35 ±
0,05 [ 0,35
to
≤ 1,30 ±
0,07 Ti ≤ 0,060 + 0,010 V ≤ 0,10 +
0,01 [ 0,10
to
≤ 0,55 ±
0,03 W ≤ 2,00 ±
0,10 8.3 Mechanical properties 8.3.1 Mechanical properties at and below room temperature The mechanical properties at and below room temperature of the tubes shall conform to the requirements in Table 4 and in 11.3, 11.4, 11.5 and 11.6 irrespective of whether they are verified or not (see Table 13). 8.3.2 Proof strength at elevated temperature The minimum proof strength Rp0,2 values at elevated temperature are given in Table 5. Option 6: Proof strength Rp0,2 shall be verified. The test temperature shall be specified at the time of enquiry and order. 8.3.3 Creep rupture strength The creep rupture strength values are given in Annex A for information. SIST EN 10216-2:2014

l t l t MPa g MPa g MPa g MPa g MPa g 20 0 -10 20 0 P195GH 1.0348 195 - - - 320 to 440 27 25 - 40 c 28 d - 27 c P235GH 1.0345 235 225 215 - 360 to 500 25 23 - 40 c 28 d - 27 c P265GH 1.0425 265 255 245 - 410 to 570 23 21 - 40 c 28 d - 27 c 20MnNb6 1.0471 355 345 335 - 500 to 650 22 20 . 40 c - - 27 c 16Mo3 1.5415 280 270 260 - 450 to 600 22 20 40 c - - 27 c - 8MoB5-4 1.5450 400 - - - 540 to 690 19 17 40 c - - 27 c - 14MoV6-3 1.7715 320 320 310 - 460 to 610 20 18 40 c f - - 27 c f - 10CrMo5-5 1.7338 275 275 265 - 410 to 560 22 20 40 c - - 27 c - 13CrMo4-5 1.7335 290 290 280 - 440 to 590 22 20 40 c - - 27 c - 10CrMo9-10 1.7380 280 280 270 - 480 to 630 22 20 40 c - - 27 c - 11CrMo9-10 1.7383 355 355 355 - 540 to 680 20 18 40 c - - 27 c - 25CrMo4 1.7218 345 345 345 - 540 to 690 18 15 40 c f - - 27 c f - 20CrMoV13-5-5 1.7779 590 590 590 - 740 to 880 16 14 40 c f - - 27 c f - 15NiCuMoNb5-6-4 1.6368 440 440 440 440 e 610 to 780 19 17 40 c f - - 27 c f - 7CrWVMoNb9-6 1.8201 400 400 400 - 510 to 740 20 18 40 c f - - 27 c f -
l t l t MPa g MPa g MPa g MPa g MPa g
20 0 -10 20 0 7CrMoVTiB10-10 1.7378 450 430 430
- 565 to 840 17 15 40 c f - - 27 c f - X11CrMo5+I 1.7362+I 175 175 175 175 430 to 580 22 20 40 c - - 27 c - X11CrMo5+NT1 1.7362+NT1 280 280 280 280 480 to 640 20 18 40 c - - 27 c - X11CrMo5+NT2 1.7362+NT2 390 390 390 390 570 to 740 18 16 40 c - - 27 c - X11CrMo9-1+I 1.7386+I 210 210 210 - 460 to 640 20 18 40 c - - 27 c - X11CrMo9-1+NT 1.7386+NT 390 390 390 - 590 to 740 18 16 40 c - - 27 c - X10CrMoVNb9-1 1.4903 450 450 450 450 630 to 830 19 17 40 c f - - 27 c f - X10CrWMoVNb9-2 1.4901 440 440 440 440 620 to 850 19 17 40 c f - - 27 c f - X11CrMoWVNb9-1-1 1.4905 450 450 450 450 620 to 850 19 17 40 c f - - 27 c f - X20CrMoV11-1 1.4922 490 490 490 490 690 to 840 17 14 40 c f - - 27 c f - a l = longitudinal; t = transverse. b To be verified when options 4 and/or 5 are/is specified, unless footnote f applies. c Option 4: In addition to the test in Table 13, impact energy shall be verified at -10 °C. d Option 5: Longitudinal impact energy shall be verified. e For wall thickness 60 mm < T ≤ 80 mm. f Impact test verification (longitudinal or transversal) is mandatory for wall thickness T ≥ 16 mm. g 1 MPa = 1 N/mm2. h Observe that the Amin value 14 % and the minimum average KV value 27 J is exactly on the design requirements levels according to Directive 97/23/EC on pressure equipment. SIST EN 10216-2:2014

Table 5 — Minimum proof strength Rp0,2 at elevated temperature Steel grade Wall thickness mm Minimum proof strength Rp0,2 MPa a at a temperature of °C Steel name Steel number
100 150 200 250 300 350 400 450 500 550 600 P195GH 1.0348 ≤16 175 165 150 130 113 102 94 - - - - P235GH 1.0345 ≤ 60 198 187 170 150 132 120 112 108 - - - P265GH 1.0425 ≤ 60 226 213 192 171 154 141 134 128 - - - 20MnNb6 1.0471 ≤ 60 312 292 264 241 219 200 186 174 - - - 16Mo3 1.5415 ≤ 60 243 237 224 205 173 159 156 150 146 - - 8MoB5-4 1.5450 ≤ 16 368 368 368 368 368 368 368 - - - - 14MoV6-3 1.7715 ≤ 60 282 276 267 241 225 216 209 203 200 197 - 10CrMo5-5 1.7338 ≤ 60 240 228 219 208 165 156 148 144 143 - - 13CrMo4-5 1.7335 ≤ 60 264 253 245 236 192 182 174 168 166 - - 10CrMo9-10 1.7380 ≤ 60 249 241 234 224 219 212 207 193 180 - - 11CrMo9-10 1.7383 ≤ 60 323 312 304 296 289 280 275 257 239 - - 25CrMo4 1.7218 ≤ 60 - 315 305 295 285 265 225 185 - - - 20CrMoV13-5-5 1.7779 ≤ 60 - 575 570 560 550 510 470 420 370 - - 15NiCuMoNb5-6-4 1.6368 ≤ 80 422 412 402 392 382 373 343 304 - - - 7CrWVMoNb9-6 1.8201 ≤ 60 379 370 363 361 359 351 345 338 330 299 266 7CrMoVTiB10-10 1.7378 ≤ 50 397 383 373 366 359 352 345 336 324 301 248 X11CrMo5+I 1.7362+I ≤ 100 156 150 148 147 145 142 137 129 116 - - X11CrMo5+NT1 1.7362+NT1 ≤ 100 245 237 230 223 216 206 196 181 167 - - X11CrMo5+NT2 1.7362+NT2 ≤ 100 366 350 334 332 309 299 289 280 265 - - SIST EN 10216-2:2014

100 150 200 250 300 350 400 450 500 550 600 X11CrMo9-1+I 1.7386+I ≤ 60 187 186 178 177 175 171 164 153 142 120 - X11CrMo9-1+NT 1.7386+NT ≤ 60 363 348 334 330 326 322 316 311 290 235 - X10CrMoVNb9-1 1.4903 ≤ 100 410 395 380 370 360 350 340 320 300 270 215 X10CrWMoVNb9-2 1.4901 ≤ 100 420 412 405 400 392 382 372 360 340 300 248 X11CrMoWVNb9-1-1 1.4905 ≤ 100 412 401 390 383 376 367 356 342 319 287 231 X20CrMoV11-1 1.4922 ≤ 100 - - 430 415 390 380 360 330 290 250
a 1 MPa = 1 N/mm2.
...
