EN 1993-2:2006

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Eurocode 3 - Design of steel structures - Part 2: Steel BridgesEvrokod 3: Projektiranje jeklenih konstrukcij – 2. del: MostoviEurocode 3 - Calcul des structures en acier - Partie 2: Ponts métalliquesEurocode 3 - Bemessung und konstruktion von Stahlbauten - Teil 2: StahlbrückenTa slovenski standard je istoveten z:EN 1993-2:2006SIST EN 1993-2:2007en93.040Gradnja mostovBridge construction91.080.10Kovinske konstrukcijeMetal structures91.010.30Technical aspectsICS:SIST ENV 1993-2:20011DGRPHãþDSLOVENSKI
STANDARDSIST EN 1993-2:200701-marec-2007

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 1993-2October 2006ICS 91.010.30; 91.080.10; 93.040Supersedes ENV 1993-2:1997
English VersionEurocode 3 - Design of steel structures - Part 2: Steel BridgesEurocode 3 - Calcul des structures en acier - Partie 2:Ponts métalliquesEurocode 3 - Bemessung und konstruktion von Stahlbauten- Teil 2: StahlbrückenThis European Standard was approved by CEN on 9 January 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 1993-2:2006: E

EN 1993-2: 2006 (E)

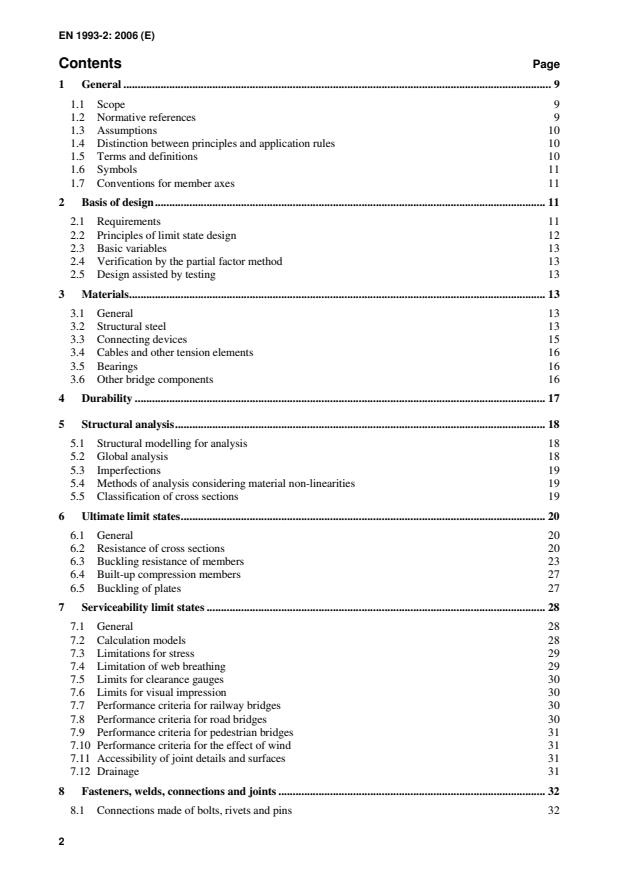

2 Contents Page 1 General.9 1.1 Scope 9 1.2 Normative references 9 1.3 Assumptions 10 1.4 Distinction between principles and application rules 10 1.5 Terms and definitions 10 1.6 Symbols 11 1.7 Conventions for member axes 11 2 Basis of design.11 2.1 Requirements 11 2.2 Principles of limit state design 12 2.3 Basic variables 13 2.4 Verification by the partial factor method 13 2.5 Design assisted by testing 13 3 Materials.13 3.1 General 13 3.2 Structural steel 13 3.3 Connecting devices 15 3.4 Cables and other tension elements 16 3.5 Bearings 16 3.6 Other bridge components 16 4 Durability.17 5 Structural analysis.18 5.1 Structural modelling for analysis 18 5.2 Global analysis 18 5.3 Imperfections 19 5.4 Methods of analysis considering material non-linearities 19 5.5 Classification of cross sections 19 6 Ultimate limit states.20 6.1 General 20 6.2 Resistance of cross sections 20 6.3 Buckling resistance of members 23 6.4 Built-up compression members 27 6.5 Buckling of plates 27 7 Serviceability limit states.28 7.1 General 28 7.2 Calculation models 28 7.3 Limitations for stress 29 7.4 Limitation of web breathing 29 7.5 Limits for clearance gauges 30 7.6 Limits for visual impression 30 7.7 Performance criteria for railway bridges 30 7.8 Performance criteria for road bridges 30 7.9 Performance criteria for pedestrian bridges 31 7.10 Performance criteria for the effect of wind 31 7.11 Accessibility of joint details and surfaces 31 7.12 Drainage 31 8 Fasteners, welds, connections and joints.32 8.1 Connections made of bolts, rivets and pins 32

EN 1993-2: 2006 (E)
3 8.2 Welded connections 34 9 Fatigue assessment.36 9.1 General 36 9.2 Fatigue loading 37 9.3 Partial factors for fatigue verifications 37 9.4 Fatigue stress range 38 9.5 Fatigue assessment procedures 40 9.6 Fatigue strength 47 9.7 Post weld treatment 48 10 Design assisted by testing.48 10.1 General 48 10.2 Types of tests 48 10.3 Verification of aerodynamic effects on bridges by testing 48 Annex A [informative] – Technical specifications for bearings.50 A.1 Scope 50 A.2 Symbols 51 A.3 General 51 A.4 Preparation of the bearing schedule 54 A.5 Supplementary rules for particular types of bearings 64 Annex B [informative] – Technical specifications for expansion joints for road bridges.66 B.1 Scope 66 B.2 Technical specifications 67 B.3 Imposed loads, displacements and rotations from bridge movements 69 Annex C [informative] – Recommendations for the structural detailing of steel bridge decks.70 C.1 Highway bridges 70 C.2 Railway bridges 80 C.3 Tolerances for semi-finished products and fabrication 83 Annex D [informative] – Buckling lengths of members in bridges and assumptions for geometrical imperfections.91 D.1 General 91 D.2 Trusses 91 D.3 Arched Bridges 96 Annex E [informative] – Combination of effects from local wheel and tyre loads and from global traffic loads on road bridges.101 E.1 Combination rule for global and local load effects 101 E.2 Combination factor 102

EN 1993-2: 2006 (E)
4 Foreword
This European Standard EN 1993-2, Eurocode 3: Design of steel structures Part 2: Steel bridges, has been prepared by Technical Committee CEN/TC250 « Structural Eurocodes », the Secretariat of which is held by BSI. CEN/TC250 is responsible for all Structural Eurocodes.
This European Standard shall be given the status of a National Standard, either by publication of an identical text or by endorsement, at the latest by April 2007 and conflicting National Standards shall be withdrawn at latest by March 2010.
This Eurocode supersedes ENV 1993-2.
According to the CEN-CENELEC Internal Regulations, the National Standard Organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Background of the Eurocode programme
In 1975, the Commission of the European Community decided on an action programme in the field of construction, based on article 95 of the Treaty. The objective of the programme was the elimination of technical obstacles to trade and the harmonisation of technical specifications.
Within this action programme, the Commission took the initiative to establish a set of harmonised technical rules for the design of construction works which, in a first stage, would serve as an alternative to the national rules in force in the Member States and, ultimately, would replace them.
For fifteen years, the Commission, with the help of a Steering Committee with Representatives of Member States, conducted the development of the Eurocodes programme, which led to the first generation of European codes in the 1980’s.
In 1989, the Commission and the Member States of the EU and EFTA decided, on the basis of an agreement1 between the Commission and CEN, to transfer the preparation and the publication of the Eurocodes to the CEN through a series of Mandates, in order to provide them with a future status of European Standard (EN). This links de facto the Eurocodes with the provisions of all the Council’s Directives and/or Commission’s Decisions dealing with European standards (e.g. the Council Directive 89/106/EEC on construction products – CPD – and Council Directives 93/37/EEC, 92/50/EEC and 89/440/EEC on public works and services and equivalent EFTA Directives initiated in pursuit of setting up the internal market).
The Structural Eurocode programme comprises the following standards generally consisting of a number of Parts: EN 1990 Eurocode 0: Basis of structural design EN 1991 Eurocode 1: Actions on structures EN 1992 Eurocode 2: Design of concrete structures EN 1993 Eurocode 3: Design of steel structures EN 1994 Eurocode 4: Design of composite steel and concrete structures EN 1995 Eurocode 5: Design of timber structures EN 1996 Eurocode 6: Design of masonry structures EN 1997 Eurocode 7: Geotechnical design
1 Agreement between the Commission of the European Communities and the European Committee for Standardisation (CEN) concerning the work on EUROCODES for the design of building and civil engineering works (BC/CEN/03/89).

EN 1993-2: 2006 (E)
5 EN 1998 Eurocode 8: Design of structures for earthquake resistance EN 1999 Eurocode 9: Design of aluminium structures Eurocode standards recognise the responsibility of regulatory authorities in each Member State and have safeguarded their right to determine values related to regulatory safety matters at national level where these continue to vary from State to State. Status and field of application of Eurocodes
The Member States of the EU and EFTA recognise that Eurocodes serve as reference documents for the following purposes : – as a means to prove compliance of building and civil engineering works with the essential requirements of Council Directive 89/106/EEC, particularly Essential Requirement N°1 - Mechanical resistance and stability - and Essential Requirement N°2 - Safety in case of fire; – as a basis for specifying contracts for construction works and related engineering services; – as a framework for drawing up harmonised technical specifications for construction products (ENs and ETAs)
The Eurocodes, as far as they concern the construction works themselves, have a direct relationship with the Interpretative Documents2 referred to in Article 12 of the CPD, although they are of a different nature from a harmonised product standard3. Therefore, technical aspects arising from the Eurocodes work need to be adequately considered by CEN Technical Committees and/or EOTA Working Groups working on product standards with a view to achieving a full compatibility of these technical specifications with the Eurocodes.
The Eurocode standards provide common structural design rules for everyday use for the design of whole structures and component products of both a traditional and an innovative nature. Unusual forms of construction or design conditions are not specifically covered and additional expert consideration will be required by the designer in such cases. National Standards implementing Eurocodes
The National Standards implementing Eurocodes will comprise the full text of the Eurocode (including any annexes), as published by CEN, which may be preceded by a National title page and National foreword, and may be followed by a National annex (informative). The National Annex (informative) may only contain information on those parameters which are left open in the Eurocode for national choice, known as Nationally Determined Parameters, to be used for the design of buildings and civil engineering works to be constructed in the country concerned, i.e. : – values for partial factors and/or classes where alternatives are given in the Eurocode, – values to be used where a symbol only is given in the Eurocode, – geographical and climatic data specific to the Member State, e.g. snow map, – the procedure to be used where alternative procedures are given in the Eurocode, – references to non-contradictory complementary information to assist the user to apply the Eurocode.
2 According to Art. 3.3 of the CPD, the essential requirements (ERs) shall be given concrete form in interpretative documents for the creation of the necessary links between the essential requirements and the mandates for hENs and ETAGs/ETAs.
3 According to Art. 12 of the CPD the interpretative documents shall : a) give concrete form to the essential requirements by harmonising the terminology and the technical bases and indicating classes or levels for each requirement where necessary ; b) indicate methods of correlating these classes or levels of requirement with the technical specifications, e.g. methods of calculation and of proof, technical rules for project design, etc. ; c) serve as a reference for the establishment of harmonised standards and guidelines for European technical approvals. The Eurocodes, de facto, play a similar role in the field of the ER 1 and a part of ER 2.

EN 1993-2: 2006 (E)
Links between Eurocodes and product harmonised technical specifications (ENs and ETAs)
There is a need for consistency between the harmonised technical specifications for construction products and the technical rules for works4. Furthermore, all the information accompanying the CE Marking of the construction products which refer to Eurocodes should clearly mention which Nationally Determined Parameters have been taken into account. Additional information specific to EN 1993-2
EN 1993-2 is the second part of six parts of EN 1993 – Design of Steel Structures – and describes the principles and application rules for the safety and serviceability and durability of steel structures for bridges.
EN 1993-2 gives design rules which are supplementary to the generic rules in EN 1993-1-1.
EN 1993-2 is intended to be used with Eurocodes EN 1990 – Basis of design, EN 1991 – Actio
...
