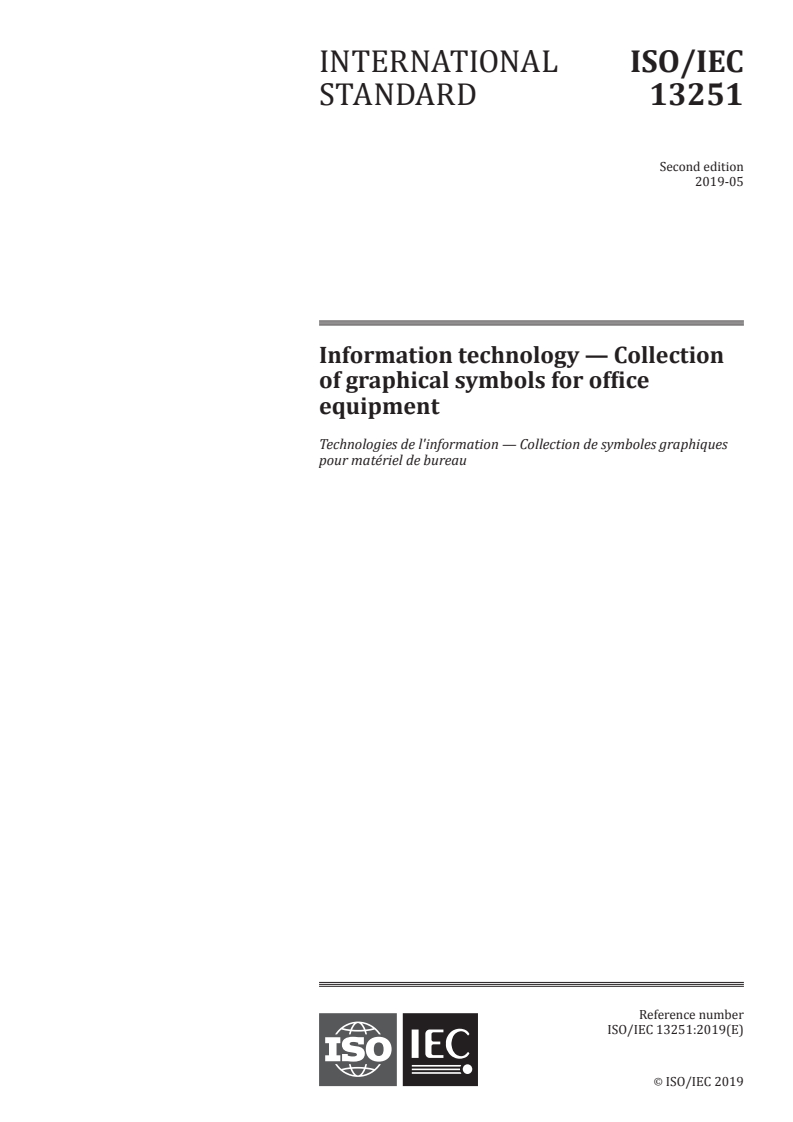

INTERNATIONAL ISO/IEC
STANDARD 13251
Second edition
2019-05
Information technology — Collection
of graphical symbols for office
equipment
Technologies de l'information — Collection de symboles graphiques
pour matériel de bureau
Reference number
©
ISO/IEC 2019
© ISO/IEC 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2019 – All rights reserved

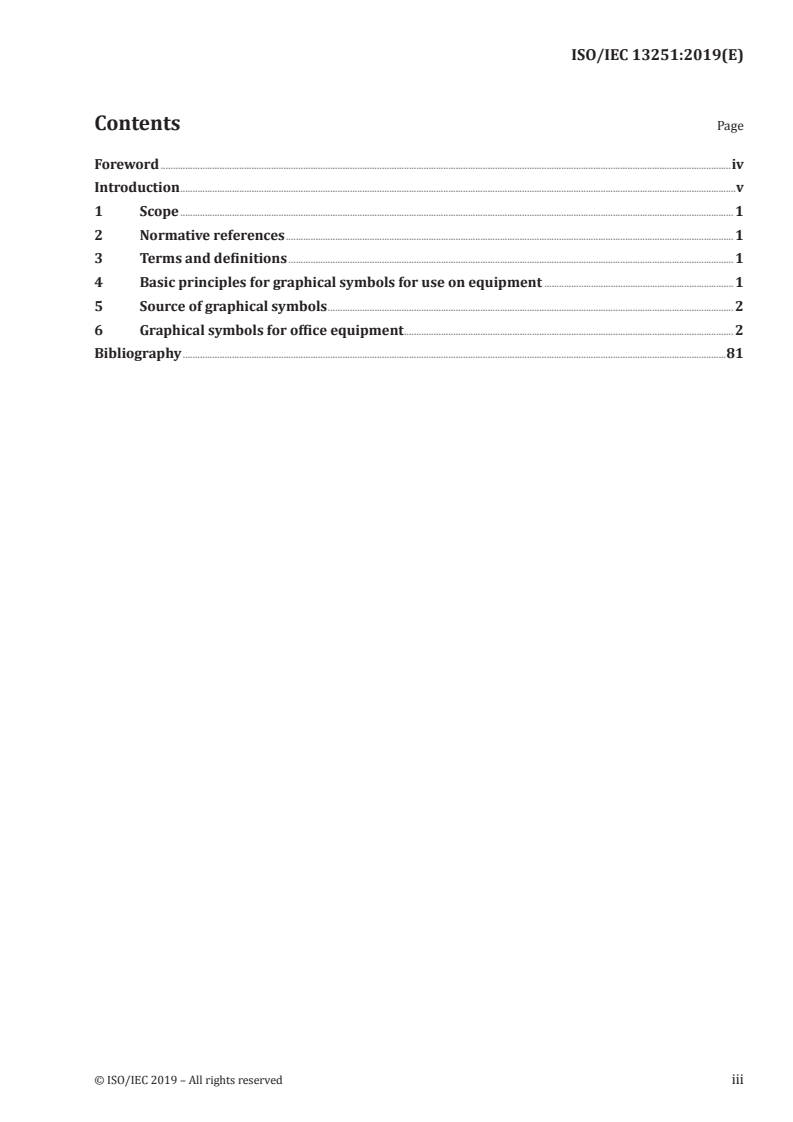

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Basic principles for graphical symbols for use on equipment . 1
5 Source of graphical symbols . 2
6 Graphical symbols for office equipment . 2
Bibliography .81
© ISO/IEC 2019 – All rights reserved iii

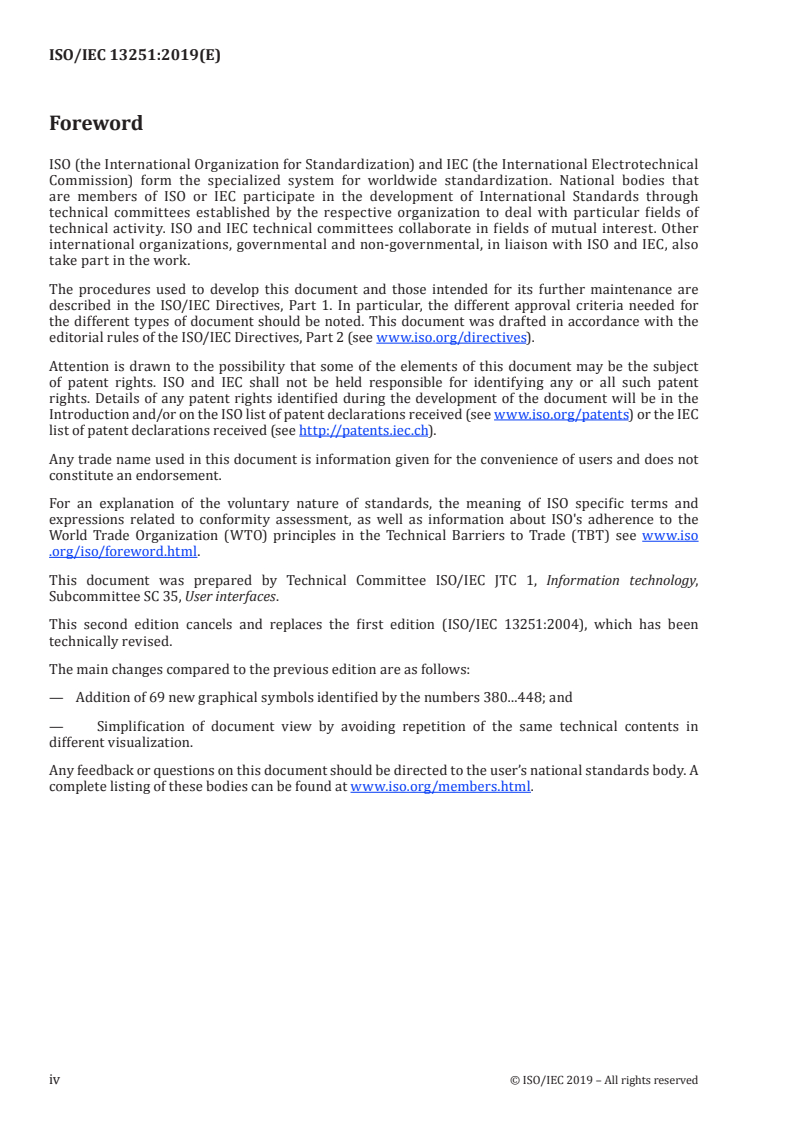

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that
are members of ISO or IEC participate in the development of International Standards through
technical committees established by the respective organization to deal with particular fields of
technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other
international organizations, governmental and non-governmental, in liaison with ISO and IEC, also
take part in the work.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www .iso .org/patents) or the IEC
list of patent declarations received (see http: //patents .iec .ch).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 35, User interfaces.
This second edition cancels and replaces the first edition (ISO/IEC 13251:2004), which has been
technically revised.
The main changes compared to the previous edition are as follows:
— Addition of 69 new graphical symbols identified by the numbers 380.448; and
— Simplification of document view by avoiding repetition of the same technical contents in
different visualization.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO/IEC 2019 – All rights reserved
Introduction
A graphical symbol is defined as a visually perceptible figure used to transmit information
independently of language. It may be produced by drawing, printing or other means. The principles for
the creation of graphical symbols for use on equipment are described in IEC 80416-1.
To respond to the increasing international interest in the design and use of graphical symbols, this
collection presents a certain number of graphical symbols for use on office equipment.
Reference should be made to IEC 80416-3 for rules for the application and modification of the graphical
symbols and for supplementary information.
The process of creating new symbols is described in ISO/IEC Directives, Part 1 and Consolidated
ISO Supplement: 2018, Annex SH and IEC Supplement (Annex SL, Processes for the validation of new
graphical symbols for use on equipment).
© ISO/IEC 2019 – All rights reserved v
INTERNATIONAL STANDARD ISO/IEC 13251:2019(E)
Information technology — Collection of graphical symbols
for office equipment
1 Scope
This document provides a collection of graphical symbols which are used typically on office equipment
to aid in the user operation of, for example, personal computers, printers, telephones and copying
machines.
These graphical symbols are also used in other application areas if appropriate.
NOTE The graphical symbols in this document are collections of relevant graphical symbols standardized in
IEC 60417 and ISO 7000.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
IEC 80416-1, Basic principles for graphical symbols for use on equipment — Part 1: Creation of graphical
symbols for registration
ISO 80416-2, Basic principles for graphical symbols for use on equipment — Part 2: Form and use of arrows
IEC 80416-3, Basic principles for graphical symbols for use on equipment — Part 3: Guidelines for the
application of graphical symbols
ISO 80416-4, Basic principles for graphical symbols for use on equipment — Part 4: Guidelines for the
application of graphical symbols on screens and displays (icons)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http: //www .electropedia .org/
— ISO Online browsing platform: available at https: //www .iso .org/obp
3.1
graphical symbol
visually perceptible figure with a particular meaning used to transmit information independently of
language
[SOURCE: IEC 80416-1:2008, 3.4]
4 Basic principles for graphical symbols for use on equipment
For the basic principles given in creation of a new graphical symbol, IEC 80416-1 and ISO 80416-2 shall
be followed.
In the application of standardized graphical symbols, IEC 80416-3 and ISO 80416-4 shall be followed.
© ISO/IEC 2019 – All rights reserved 1
5 Source of graphical symbols
All graphical symbols in this document are taken from IEC 60417 and ISO 7000. For the latest
updates, IEC 60417 (published and maintained in a database format at http: //www .graphical -symbols
.info/equipment) and https: //www .iso .org/obp (which contains all graphical symbols in ISO 7000) shall
be consulted.
6 Graphical symbols for office equipment
001 “ON” (power)
To indicate connection to the mains, at least for mains switches or their positions, and all those cases
where safety is involved.
The meaning of this graphical symbol depends upon its orientation.
See also symbol IEC 60417-5264.
IEC 60417-5007
002 “OFF” (power)
To indicate disconnection from the mains, at least for mains switches or their positions, and all those
cases where safety is involved.
See also symbol IEC 60417-5265.
IEC 60417-5008
003 “ON”/“OFF” (push-push)
To indicate connection to or disconnection from the mains, at least for mains switches or their positions,
and all those cases where safety is involved. Each position, “ON” or “OFF”, is a stable position.
IEC 60417-5010
004 “ON”/“OFF” (push button)
To indicate connection to the mains, at least for mains switches or their positions, and all those cases
where safety is involved. “OFF” is a stable position, whilst the “ON” position only remains during the time
the button is depressed.
IEC 60417-5011
005 “ON” for a part of equipment
To indicate the "ON” condition for a part of equipment, if the symbol IEC 60417-5007 cannot be used, for
example, to identify the “ON” position of a switch.
To be used in association with the symbol IEC 60417-5265.
IEC 60417-5264
2 © ISO/IEC 2019 – All rights reserved
006 “OFF” for a part of equipment
To indicate the “OFF” condition for a part of equipment, if the symbol IEC 60417-5008 cannot be used, for
example, to identify the “OFF” position of a switch.
To be used in association with the symbol IEC 60417-5264.
IEC 60417-5265
007 Stand-by or preparatory state for a part of equipment
To indicate the stand-by or preparatory state for a part of equipment, if the symbol IEC 60417-5009 cannot
be used, for example, to identify the “STAND-BY” position of a switch.
IEC 60417-5266
008 Electric energy
To signify any source of electric energy, for example on devices starting or stopping the production or use
of electric energy.
ISO 7000-0232
009 Ready (to operate)
To indicate the machine is ready for operation.
ISO 7000-1140
010 Stand-by
To identify the switch or switch position by means of which part of the equipment is switched on in order
to bring it into the stand-by condition, and to identify the control to shift to or to indicate the state of low
power consumption.
Each of different states of power consumption may be indicated using a corresponding colour.
See also symbol IEC 60417-5266.
IEC 60417-5009
011 Pause; interruption
To identify the control device by means of which the run (e. g of a tape) is interrupted by means of a break
mechanism and mechanical disconnection from the driving mechanism which continues to run.
IEC 60417-5111
© ISO/IEC 2019 – All rights reserved 3
012 Start (of action)
To identify the start button.
See also symbols IEC 60417-5177 and IEC 60417-5659
IEC 60417-5104
013 Fast start
To identify the control by means of which, for example, a process, a programme, a tape is started such that
the operational speed is attained without significant delay.
To be used particularly when symbol IEC 60417-5104 is also used on the same equipment.
See also symbol IEC 60417-5659.
IEC 60417-5177
014 Stop (of action)
To identify the control device by means of which an action is stopped.
This means stopping only by partial electrical disconnection.
See also symbol IEC 60417-5178.
IEC 60417-5110
015 Fast stop
To identify the control by means of which for example a process, a programme, a tape is stopped without
significant delay.
To be used particularly when symbol IEC 60417-5110 is also used on the same equipment.
IEC 60417-5178
016 Ready (finished); acknowledgement
To indicate the machine is ready to proceed.
ISO 7000-0422
017 Movement in one direction
To indicate that a control, or an object by means of a control, can be moved in the indicated direction.
Only the linear version is given, since the radius of the arrow of the curved version depends on the diame-
ter of the control concerned. The curved version is shown in ISO 7000-0004.
IEC 60417-5022
4 © ISO/IEC 2019 – All rights reserved
018 Direction of continuous rotation
To indicate that a control, or an object by means of a control, can be moved in a clockwise rotary motion.
ISO 7000-0004
019 Movement in both directions
To indicate that a control or an object, by means of a control, can be moved in both the indicated directions.
Only the linear version is given, since the radius of the arrow of the curved version depends on the diame-
ter of the control concerned. The curved version is shown in ISO 7000-0005.
IEC 60417-5023
020 Rotation in two directions
To indicate that a control, or an object by means of a control, can be moved in clockwise and anticlockwise
rotation.
ISO 7000-0005
021 Movement limited in both directions
To indicate that a control, or an object by means of a control, can be moved in both the indicated directions
within certain limits.
Only the linear version is given, since the radius of the arrow of the curved version depends on the diame-
ter of the control concerned.
IEC 60417-5024
022 Effect or action away from a reference
...
INTERNATIONAL ISO/IEC
STANDARD 13251
Second edition
2019-05
Information technology — Collection
of graphical symbols for office
equipment
Technologies de l'information — Collection de symboles graphiques
pour matériel de bureau
Reference number
©
ISO/IEC 2019
© ISO/IEC 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2019 – All rights reserved
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Basic principles for graphical symbols for use on equipment . 1
5 Source of graphical symbols . 2
6 Graphical symbols for office equipment . 2
Bibliography .81
© ISO/IEC 2019 – All rights reserved iii
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that
are members of ISO or IEC participate in the development of International Standards through
technical committees established by the respective organization to deal with particular fields of
technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other
international organizations, governmental and non-governmental, in liaison with ISO and IEC, also
take part in the work.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www .iso .org/patents) or the IEC
list of patent declarations received (see http: //patents .iec .ch).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 35, User interfaces.
This second edition cancels and replaces the first edition (ISO/IEC 13251:2004), which has been
technically revised.
The main changes compared to the previous edition are as follows:
— Addition of 69 new graphical symbols identified by the numbers 380.448; and
— Simplification of document view by avoiding repetition of the same technical contents in
different visualization.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO/IEC 2019 – All rights reserved
Introduction
A graphical symbol is defined as a visually perceptible figure used to transmit information
independently of language. It may be produced by drawing, printing or other means. The principles for
the creation of graphical symbols for use on equipment are described in IEC 80416-1.
To respond to the increasing international interest in the design and use of graphical symbols, this
collection presents a certain number of graphical symbols for use on office equipment.
Reference should be made to IEC 80416-3 for rules for the application and modification of the graphical
symbols and for supplementary information.
The process of creating new symbols is described in ISO/IEC Directives, Part 1 and Consolidated
ISO Supplement: 2018, Annex SH and IEC Supplement (Annex SL, Processes for the validation of new
graphical symbols for use on equipment).
© ISO/IEC 2019 – All rights reserved v
INTERNATIONAL STANDARD ISO/IEC 13251:2019(E)
Information technology — Collection of graphical symbols
for office equipment
1 Scope
This document provides a collection of graphical symbols which are used typically on office equipment
to aid in the user operation of, for example, personal computers, printers, telephones and copying
machines.
These graphical symbols are also used in other application areas if appropriate.
NOTE The graphical symbols in this document are collections of relevant graphical symbols standardized in
IEC 60417 and ISO 7000.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
IEC 80416-1, Basic principles for graphical symbols for use on equipment — Part 1: Creation of graphical
symbols for registration
ISO 80416-2, Basic principles for graphical symbols for use on equipment — Part 2: Form and use of arrows
IEC 80416-3, Basic principles for graphical symbols for use on equipment — Part 3: Guidelines for the
application of graphical symbols
ISO 80416-4, Basic principles for graphical symbols for use on equipment — Part 4: Guidelines for the
application of graphical symbols on screens and displays (icons)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http: //www .electropedia .org/
— ISO Online browsing platform: available at https: //www .iso .org/obp
3.1
graphical symbol
visually perceptible figure with a particular meaning used to transmit information independently of
language
[SOURCE: IEC 80416-1:2008, 3.4]
4 Basic principles for graphical symbols for use on equipment
For the basic principles given in creation of a new graphical symbol, IEC 80416-1 and ISO 80416-2 shall
be followed.
In the application of standardized graphical symbols, IEC 80416-3 and ISO 80416-4 shall be followed.
© ISO/IEC 2019 – All rights reserved 1
5 Source of graphical symbols
All graphical symbols in this document are taken from IEC 60417 and ISO 7000. For the latest
updates, IEC 60417 (published and maintained in a database format at http: //www .graphical -symbols
.info/equipment) and https: //www .iso .org/obp (which contains all graphical symbols in ISO 7000) shall
be consulted.
6 Graphical symbols for office equipment
001 “ON” (power)
To indicate connection to the mains, at least for mains switches or their positions, and all those cases
where safety is involved.
The meaning of this graphical symbol depends upon its orientation.
See also symbol IEC 60417-5264.
IEC 60417-5007
002 “OFF” (power)
To indicate disconnection from the mains, at least for mains switches or their positions, and all those
cases where safety is involved.
See also symbol IEC 60417-5265.
IEC 60417-5008
003 “ON”/“OFF” (push-push)
To indicate connection to or disconnection from the mains, at least for mains switches or their positions,
and all those cases where safety is involved. Each position, “ON” or “OFF”, is a stable position.
IEC 60417-5010
004 “ON”/“OFF” (push button)
To indicate connection to the mains, at least for mains switches or their positions, and all those cases
where safety is involved. “OFF” is a stable position, whilst the “ON” position only remains during the time
the button is depressed.
IEC 60417-5011
005 “ON” for a part of equipment
To indicate the "ON” condition for a part of equipment, if the symbol IEC 60417-5007 cannot be used, for
example, to identify the “ON” position of a switch.
To be used in association with the symbol IEC 60417-5265.
IEC 60417-5264
2 © ISO/IEC 2019 – All rights reserved
006 “OFF” for a part of equipment
To indicate the “OFF” condition for a part of equipment, if the symbol IEC 60417-5008 cannot be used, for
example, to identify the “OFF” position of a switch.
To be used in association with the symbol IEC 60417-5264.
IEC 60417-5265
007 Stand-by or preparatory state for a part of equipment
To indicate the stand-by or preparatory state for a part of equipment, if the symbol IEC 60417-5009 cannot
be used, for example, to identify the “STAND-BY” position of a switch.
IEC 60417-5266
008 Electric energy
To signify any source of electric energy, for example on devices starting or stopping the production or use
of electric energy.
ISO 7000-0232
009 Ready (to operate)
To indicate the machine is ready for operation.
ISO 7000-1140
010 Stand-by
To identify the switch or switch position by means of which part of the equipment is switched on in order
to bring it into the stand-by condition, and to identify the control to shift to or to indicate the state of low
power consumption.
Each of different states of power consumption may be indicated using a corresponding colour.
See also symbol IEC 60417-5266.
IEC 60417-5009
011 Pause; interruption
To identify the control device by means of which the run (e. g of a tape) is interrupted by means of a break
mechanism and mechanical disconnection from the driving mechanism which continues to run.
IEC 60417-5111
© ISO/IEC 2019 – All rights reserved 3
012 Start (of action)
To identify the start button.
See also symbols IEC 60417-5177 and IEC 60417-5659
IEC 60417-5104
013 Fast start
To identify the control by means of which, for example, a process, a programme, a tape is started such that
the operational speed is attained without significant delay.
To be used particularly when symbol IEC 60417-5104 is also used on the same equipment.
See also symbol IEC 60417-5659.
IEC 60417-5177
014 Stop (of action)
To identify the control device by means of which an action is stopped.
This means stopping only by partial electrical disconnection.
See also symbol IEC 60417-5178.
IEC 60417-5110
015 Fast stop
To identify the control by means of which for example a process, a programme, a tape is stopped without
significant delay.
To be used particularly when symbol IEC 60417-5110 is also used on the same equipment.
IEC 60417-5178
016 Ready (finished); acknowledgement
To indicate the machine is ready to proceed.
ISO 7000-0422
017 Movement in one direction
To indicate that a control, or an object by means of a control, can be moved in the indicated direction.
Only the linear version is given, since the radius of the arrow of the curved version depends on the diame-
ter of the control concerned. The curved version is shown in ISO 7000-0004.
IEC 60417-5022
4 © ISO/IEC 2019 – All rights reserved
018 Direction of continuous rotation
To indicate that a control, or an object by means of a control, can be moved in a clockwise rotary motion.
ISO 7000-0004
019 Movement in both directions
To indicate that a control or an object, by means of a control, can be moved in both the indicated directions.
Only the linear version is given, since the radius of the arrow of the curved version depends on the diame-
ter of the control concerned. The curved version is shown in ISO 7000-0005.
IEC 60417-5023
020 Rotation in two directions
To indicate that a control, or an object by means of a control, can be moved in clockwise and anticlockwise
rotation.
ISO 7000-0005
021 Movement limited in both directions
To indicate that a control, or an object by means of a control, can be moved in both the indicated directions
within certain limits.
Only the linear version is given, since the radius of the arrow of the curved version depends on the diame-
ter of the control concerned.
IEC 60417-5024
022 Effect or action away from a reference
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
