IEC 62485-5:2020

IEC 62485-5 ®
Edition 1.0 2020-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Safety requirements for secondary batteries and battery installations –
Part 5: Safe operation of stationary lithium ion batteries

Exigences de sécurité pour les batteries d'accumulateurs et les installations
de batteries –
Partie 5: Fonctionnement en toute sécurité des batteries ions-lithium
stationnaires
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

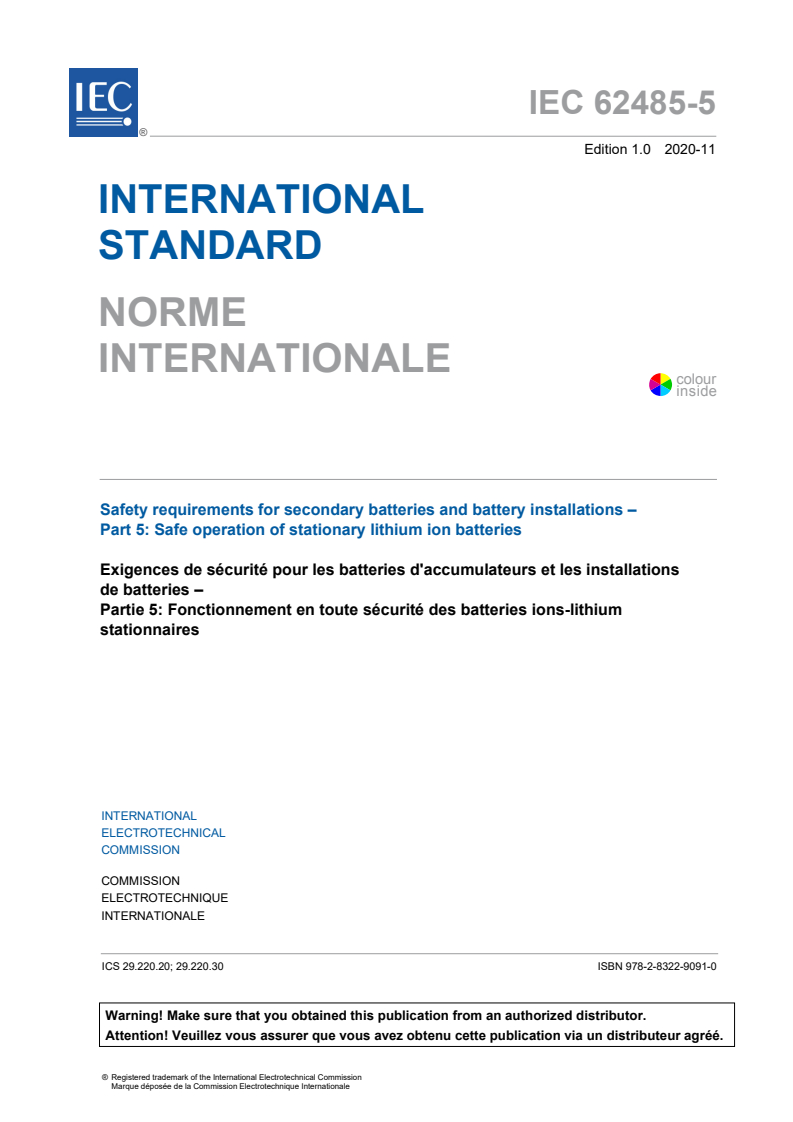

IEC 62485-5 ®
Edition 1.0 2020-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Safety requirements for secondary batteries and battery installations –

Part 5: Safe operation of stationary lithium ion batteries

Exigences de sécurité pour les batteries d'accumulateurs et les installations

de batteries –
Partie 5: Fonctionnement en toute sécurité des batteries ions-lithium

stationnaires
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.220.20; 29.220.30 ISBN 978-2-8322-9091-0

– 2 – IEC 62485-5:2020 © IEC 2020

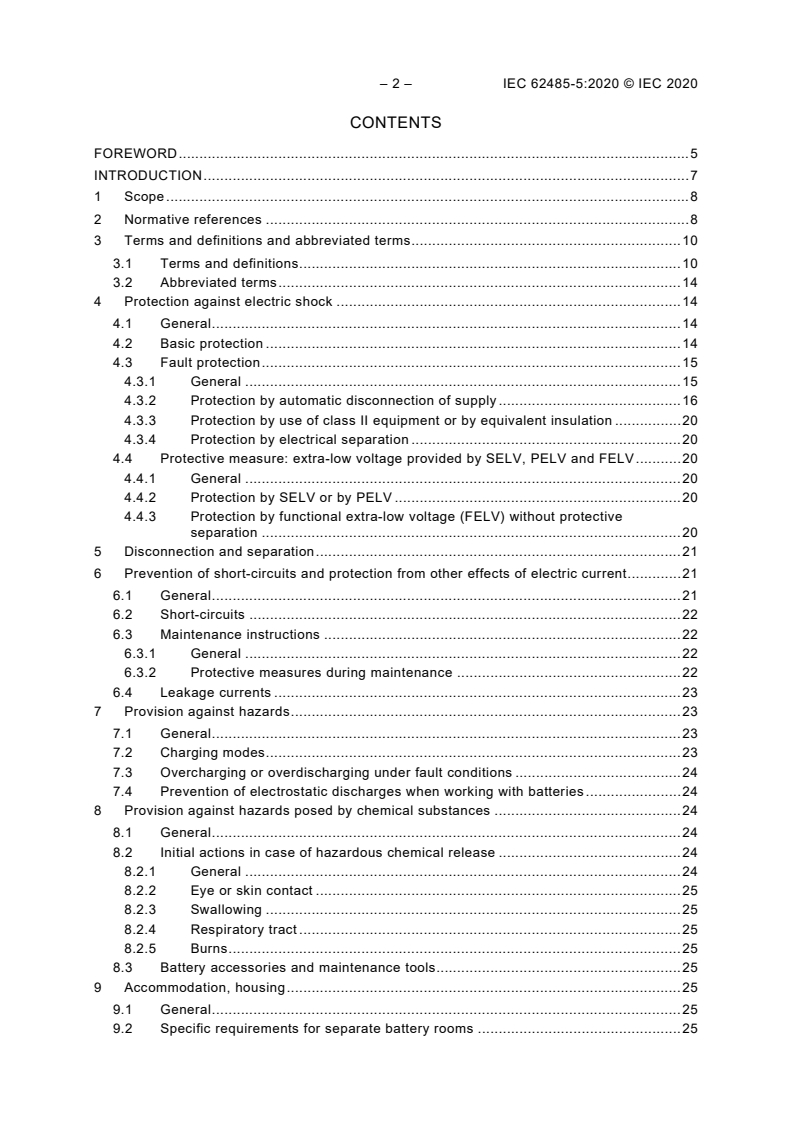

CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 8
3 Terms and definitions and abbreviated terms . 10
3.1 Terms and definitions . 10
3.2 Abbreviated terms . 14
4 Protection against electric shock . 14
4.1 General . 14
4.2 Basic protection . 14
4.3 Fault protection . 15
4.3.1 General . 15
4.3.2 Protection by automatic disconnection of supply . 16
4.3.3 Protection by use of class II equipment or by equivalent insulation . 20
4.3.4 Protection by electrical separation . 20
4.4 Protective measure: extra-low voltage provided by SELV, PELV and FELV . 20
4.4.1 General . 20
4.4.2 Protection by SELV or by PELV . 20
4.4.3 Protection by functional extra-low voltage (FELV) without protective
separation . 20
5 Disconnection and separation . 21
6 Prevention of short-circuits and protection from other effects of electric current . 21
6.1 General . 21
6.2 Short-circuits . 22
6.3 Maintenance instructions . 22
6.3.1 General . 22
6.3.2 Protective measures during maintenance . 22
6.4 Leakage currents . 23
7 Provision against hazards . 23
7.1 General . 23
7.2 Charging modes . 23
7.3 Overcharging or overdischarging under fault conditions . 24
7.4 Prevention of electrostatic discharges when working with batteries . 24
8 Provision against hazards posed by chemical substances . 24
8.1 General . 24
8.2 Initial actions in case of hazardous chemical release . 24
8.2.1 General . 24
8.2.2 Eye or skin contact . 25
8.2.3 Swallowing . 25
8.2.4 Respiratory tract . 25
8.2.5 Burns . 25
8.3 Battery accessories and maintenance tools. 25
9 Accommodation, housing . 25
9.1 General . 25
9.2 Specific requirements for separate battery rooms . 25

9.3 Specific requirements for the specially separated areas in rooms
accommodating electrical equipment. 26
9.4 Battery enclosures . 26
9.5 Working on or near batteries . 26
9.5.1 Working distances within battery rooms . 26
9.5.2 Remarks on special work in battery rooms . 27
9.6 Accommodation of lithium ion batteries in combination with batteries
containing aqueous electrolyte (e.g. lead-acid and NiCd batteries) in the
same room . 27
10 Charge current requirements . 27
10.1 General . 27
10.2 Superimposed ripple current . 27
10.3 Maximum ripple current . 27
11 Identification labels, warning notices and instructions for use, installation and
maintenance . 28
11.1 Warning labels and notices in rooms . 28
11.2 Identification labels or marking on cell, module, battery pack or battery
system . 28
11.3 Instructions for use, installation and maintenance . 28
12 Transportation, storage and environmental aspects . 28
13 Inspection and monitoring . 29
14 EMC for stationary application . 29
Annex A (informative) Charging methods and modes of operation. 31
A.1 Parallel operation mode . 31
A.1.1 General . 31
A.1.2 Battery "stand-by" operation mode . 31
A.1.3 Battery "buffer" operation mode . 31
A.1.4 Shallow cycling operation mode . 32
A.2 Response mode operation . 32
A.3 Charging methods . 32
A.3.1 General . 32
A.3.2 Temperature compensation of the charge voltage and limiting of charge
currents . 33
A.4 Discharge . 33
Annex B (normative) Electromagnetic compatibility (EMC) . 34
B.1 Case 1 – EMC requirements for battery systems depending on each end-
device application . 34
B.2 Case 2 – EMC requirements for testing battery system as an end-device . 34
Annex C (informative) Cell behaviour inside and outside of operating region . 35
Bibliography . 36

Figure 1 – TN system with separate protective conductor (PE) in the entire system
(TN-S network) . 16
Figure 2 – TN system with functional earthing and protective earthing (FPE, PEN)
combined with an external line conductor (TN-C system) . 17
Figure 3 – TT system . 18
Figure 4 – IT system . 19
Figure 5 – Converters with intermediate DC circuit (IT system) (example) . 19
Figure A.1 – Parallel operation mode circuit . 31

– 4 – IEC 62485-5:2020 © IEC 2020
Figure A.2 – Example of battery charge current interlaced with frequent temporary
discharge events due to a load current exceeding the current supply capability . 32
Figure A.3 – Response mode operation circuit . 32
Figure A.4 – Constant current/constant voltage charge . 33
Figure C.1 – An example for operating region of lithium ion cell . 35

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SAFETY REQUIREMENTS FOR SECONDARY
BATTERIES AND BATTERY INSTALLATIONS –

Part 5: Safe operation of stationary lithium ion batteries

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC
Publication(s)"). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62485-5 has been prepared by IEC technical committee 21:
Secondary cells and batteries.
The text of this International Standard is based on the following documents:
FDIS Report on voting
21/1069/FDIS 21/1076/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 6 – IEC 62485-5:2020 © IEC 2020
A list of all parts in the IEC 62485 series, published under the general title Safety
requirements for secondary batteries and battery installations, can be found on the IEC
website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
INTRODUCTION
The described safety requirements comprise the protective measures to protect from hazards
generated by electricity and chemical substances when using secondary batteries. In addition
measures are described to maintain the functional safety of batteries and battery installations.
For electrical safety (protection against electric shock) under Clause 4, this document refers
to IEC 60364-4-41. The pilot function of this document is fully observed by indication of cross-
reference numbers of the relevant clauses, but interpretation is given where adoption to direct
current (DC) circuits is required.
This document comes into force with the date of publication and applies to all new batteries
and battery installations. Previous installations are intended to conform to the existing
national standards at the time of installation. In the case of the redesign of old installations,
this document applies.
Lithium ion cells/batteries used in stationary industrial applications are intended to fulfil safety
requirements in accordance with IEC 62619.

– 8 – IEC 62485-5:2020 © IEC 2020
SAFETY REQUIREMENTS FOR SECONDARY
BATTERIES AND BATTERY INSTALLATIONS –

Part 5: Safe operation of stationary lithium ion batteries

1 Scope
This part of IEC 62485 applies to the installation of one or more stationary secondary
batteries having a maximum aggregate DC voltage of 1 500 V to any DC part of the power
network, and describes the principal measures for protections during normal operation or
under expected fault conditions against hazards generated from:
– electricity,
– short-circuits,
– electrolyte,
– gas emission,
– fire,
– explosion.
This document provides requirements on safety aspects associated with the installation, use,
inspection, and maintenance and disposal of lithium ion batteries used in stationary
applications.
This document covers stationary batteries for industrial applications that are installed in
separate closed buildings or housings as well as stationary batteries that are installed in
public buildings, offices and private residences. This document also covers the maintenance
and disposal of lithium ion batteries used in stationary applications.
Batteries containing lithium metal are not covered by this document.
Examples of the main applications are:
– telecommunications,
– power station operation,
– central emergency lighting and alarm systems,
– uninterruptible power supplies (UPS),
– stationary engine starting,
– photovoltaic systems.
In general, the safety requirements for secondary batteries and battery installations – General
safety information and definitions are specified for lead-acid, nickel-cadmium and nickel-metal
hybrid batteries in accordance with IEC 62485-1.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60050-482, International Electrotechnical Vocabulary (IEV) – Part 482: Primary and
secondary cells and batteries
IEC 60364-4-41:2005, Low-voltage electrical installations – Part 4-41: Protection for safety –
Protection against electric shock
IEC 60364-4-41:2005/AMD1:2017
IEC 60364-4-43, Low-voltage electrical installations – Part 4-43: Protection for safety –
Protection against overcurrent
IEC 60364-5-53, Low-voltage electrical installations – Part 5-53: Selection and erection of
electrical equipment – Devices for protection for safety, isolation, switching, control and
monitoring
IEC 60364-5-54, Low-voltage electrical installations – Part 5-54: Selection and erection of
electrical equipment – Earthing arrangements and protective conductors
IEC 60417, Graphical symbols for use on equipment (available at http://www.graphical-
symbols.info/equipment)
IEC 60529, Degrees of protection provided by enclosures (IP Code)
IEC 60664-1:2020, Insulation coordination for equipment within low-voltage systems – Part 1:
Principles, requirements and tests
IEC 60755, General safety requirements for residual current operated protective devices
IEC 61000-1-2, Electromagnetic compatibility (EMC) – Part 1-2: General – Methodology for
the achievement of functional safety of electrical and electronic systems including equipment
with regard to electromagnetic phenomena
IEC 61000-6-1, Electromagnetic compatibility (EMC) – Part 6-1: Generic standards –
Immunity standard for residential, commercial and light-industrial environments
IEC 61000-6-2, Electromagnetic compatibility (EMC) – Part 6-2: Generic standards –
Immunity standard for industrial environments
IEC 61000-6-3, Electromagnetic compatibility (EMC) – Part 6-3: Generic standards –
Emission standard for residential, commercial and light-industrial environments
IEC 61000-6-4, Electromagnetic compatibility (EMC) – Part 6-4: Generic standards –
Emission standard for industrial environments
IEC 61000-6-7, Electromagnetic compatibility (EMC) – Part 6-7: Generic standards –
Immunity requirements for equipment intended to perform functions in a safety-related system
(functional safety) in industrial locations
IEC 61140, Protection against electric shock – Common aspects for installation and
equipment
IEC/TR 61340-1, Electrostatics – Part 1: Electrostatic phenomena – Principles and
measurements
IEC 61340-5-1, Electrostatics – Part 5-1: Protection of electronic devices from electrostatic
phenomena – General requirements

– 10 – IEC 62485-5:2020 © IEC 2020
IEC 61660-1, Short-circuit currents in d.c. auxiliary installations in power plants and
substations – Part 1: Calculation of short-circuit currents
IEC 61660-2, Short-circuit currents in d.c. auxiliary installations in power plants and
substations – Part 2: Calculation of effects
IEC 62133-2, Secondary cells and batteries containing alkaline or other non-acid electrolytes
– Safety requirements for portable sealed secondary cells, and for batteries made from them,
for use in portable applications – Part 2: Lithium systems
IEC 62485-1, Safety requirements for secondary batteries and battery installations – Part 1:
General safety information
IEC 62619:2017, Secondary cells and batteries containing alkaline or other non-acid
electrolytes – Safety requirements for secondary lithium cells and batteries, for use in
industrial applications
IEC 62620:2014, Secondary cells and batteries containing alkaline or other non-acid
electrolytes –Secondary lithium cells and batteries for use in industrial applications
ISO/IEC Guide 51, Safety aspects – Guidelines for their inclusion in standards
ISO 3864 (all parts), Graphical symbols – Safety colours and safety signs
ISO 7010, Graphical symbols – Safety colours and safety signs – Registered safety signs
3 Terms and definitions and abbreviated terms
For the purposes of this document, the terms and definitions given in IEC 60050-482,
ISO/IEC Guide 51, and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1 Terms and definitions
3.1.1
secondary lithium cell
cell
secondary cell where electrical energy is derived from the insertion/extraction reactions of
lithium ions or oxidation/reduction reaction of lithium between the negative electrode and the
positive electrode
Note 1 to entry: The cell typically has an electrolyte that consists of a lithium salt and organic solvent compound
in liquid, gel or solid form and has a metal or a laminate film casing.
Note 2 to entry: A cell is not ready for use in an application because it is not yet fitted with its final housing,
terminal arrangement and electronic control device.
3.1.2
home energy storage system
HESS
stationary battery system used in or next to a single or multi-family dwelling or in internal
home energy storage installations

Note 1 to entry: The system is typically installed in rooms which are not designed as electrical service rooms or
battery rooms.
3.1.3
battery energy storage system
BESS
stationary system to store and convert back electrical energy, which contains components
necessary for this function, especially the battery, the power conversion system and the
energy management system
Note 1 to entry: In general, the safety functions and the enclosure are also part of BESS.
Note 2 to entry: The power conversion system can be an AC/DC converter or DC/DC converter to charge or
discharge the battery.
3.1.4
battery system
battery
system which comprises one or more cells, modules or battery packs and has a battery
management system capable of controlling current in case of overcharge, overcurrent,
overdischarge and overheating
Note 1 to entry: Overdischarge cut off is not mandatory if there is an agreement on this between the cell
manufacturer and the customer.
Note 2 to entry: The battery system may have cooling or heating units. A larger battery system may comprise
more than one battery system. The battery system is sometimes also referred to as a battery.
3.1.5
stationary battery
battery system which is designed for service in a fixed location and is not habitually moved
from place to place during the service life
Note 1 to entry: Overdischarge cut off is not mandatory if there is an agreement on this between the cell
manufacturer and the customer.
Note 2 to entry: The function of the BMS can be assigned to the battery pack or to equipment that uses the
battery.
Note 3 to entry: The BMS can be divided and it can be found partially in the battery pack and partially on the
equipment that uses the battery.
Note 4 to entry: The BMS is sometimes also referred to as a BMU (battery management unit).
3.1.6
electrolyte
liquid or solid substance containing mobile ions which render it ionically conductive
Note 1 to entry: The electrolyte may be liquid, solid or a gel.
[SOURCE: IEC 60500-482:2004, 482-02-29]
3.1.7
battery management system
BMS
electronic system associated with a battery which has functions to control current in case of
overcharge, overcurrent, overdischarge, and overheating, and which monitors and/or
manages the state of the battery, calculates secondary data, reports that data and/or controls
its environment to influence the battery's safety, performance and/or service life
Note 1 to entry: Overcharge cut off is not mandatory if there is an agreement on this between the cell
manufacturer and the customer.
Note 2 to entry: The function of the BMS can be assigned to the battery pack or to equipment that uses the
battery.
– 12 – IEC 62485-5:2020 © IEC 2020
Note 3 to entry: The BMS can be divided and it can be found partially in the battery pack and partially on the
equipment that uses the battery.
Note 4 to entry: The BMS is sometimes also referred to as a BMU (battery management unit).
3.1.8
charging of a battery
operation during which a secondary cell or battery is supplied with electric energy from an
external circuit which results in chemical changes within a cell and thus storage of energy as
chemical energy
[SOURCE: IEC 60500-482:2004, 482-05-27]
3.1.9
battery on float (charge)
battery whose terminals are permanently connected to a source of constant voltage sufficient
to maintain the battery approximately fully charged, and which is intended to supply power to
an electrical circuit, if the normal supply is temporarily interrupted
Note 1 to entry: In order to increase the lifetime of a lithium ion battery, the state of charge during float charge is
sometimes < 100 %.
[SOURCE: IEC 60500-482:2004, 482-05-35, modified – The deprecated term "floating battery"
has been omitted, along with "secondary" from the definition; the note has been added.]
3.1.10
float charge voltage
constant voltage needed to keep the secondary cell or battery fully charged or at the intended
state of charge
3.1.11
float charge current
current resulting from the float charge
Note 1 to entry: This float charge current may be zero once the charge process is terminated (if specified by the
manufacturer).
3.1.12
overcharge
overcharging
continued charging after the full charge of a secondary cell or battery
Note 1 to entry: Overcharge is also the act of charging beyond a certain limit specified by the manufacturer.
[SOURCE: IEC 60500-482:2004, 482-05-44, modified – The term "overcharging" and the
domain have been added and the wording "of a fully charged" has been replaced with "after
the full charge of" in the definition.]
3.1.13
nominal voltage
suitable approximate value of the voltage used to designate or identify a cell, a battery or an
electrochemical system
Note 1 to entry: The cell or battery manufacturer may provide the nominal voltage.
Note 2 to entry: The nominal voltage of a battery of n cells connected in series is equal to n times the nominal
voltage of a single cell.
[SOURCE: IEC 60050-482:2004, 482-03-31, modified – Addition of Notes 1 and 2.]

3.1.14
lower limit discharging voltage
lowest discharging voltage in the cell operating region specified by the cell manufacturer
3.1.15
overdischarge
state of the battery when one or more cells of a battery are discharged below their lower limit
discharge voltage
3.1.16
maximum voltage of battery system
highest voltage of the battery system in which the maximum voltage of any individual cell is
below or equal to the upper limit charging voltage and components operate in their
specified/permissible operating range under all operating conditions
3.1.17
upper limit charging voltage
highest charging voltage in the cell operating region specified by the cell manufacturer
Note 1 to entry: The charging process should be terminated before reaching the upper limit charging voltage.
3.1.18
external short-circuit
abnormally high current discharge due to a conductive fault over parts at opposite polarity
either within the battery circuitry or over the external terminals
3.1.19
internal short-circuit
electrical conduction through insulation within the cell due to cell manufacturing defects, cell
design faults or damage due to abuse of the cell during its use
3.1.20
cell block
group of cells connected together in parallel configuration with or without protective devices
(e.g. fuse or positive temperature coefficient device (PTC)) and monitoring circuitry
Note 1 to entry: It is not ready for use in an application because it is not yet fitted with its final housing, terminal
arrangement and electronic control device.
3.1.21
module
group of cells connected together either in a series and/or parallel configuration with or
without protective devices (e.g. fuse or positive temperature coefficient device (PTC)) and
monitoring circuitry
3.1.22
battery pack
energy storage device comprised of one or more cells or modules electrically connected, and
has monitoring circuitry which provides information (e.g. cell voltage) to a battery system to
influence the battery's safety, performance and/or service life
Note 1 to entry: It may incorporate a protective housing and be provided with terminals or other interconnection
arrangements.
3.1.23
thermal runaway
uncontrolled intensive increase in the temperature of a cell driven by exothermic reaction
[SOURCE: IEC 62619:2017, 3.21]

– 14 – IEC 62485-5:2020 © IEC 2020
3.2 Abbreviated terms
Abbreviated Full term
term
DOD Depth of discharge
ESD Electrostatic discharge
FELV Functional extra low voltage
BESS Battery energy storage system
BMS Battery management system
BMU Battery management unit
HESS Home energy storage system
PELV Protective extra low voltage
PTC Positive temperature coefficient device
RCD Residual current protective device
SOC State of charge
UPS Uninterruptible power supply

4 Protection against electric shock
4.1 General
Safety provisions for batteries and battery installations shall be in accordance with
IEC 62485-1. Measures shall be taken in stationary battery charging installations for
protection against direct contact (basic protection) and against indirect contact (fault
protection) with hazardous voltages.
These measures are described in detail in IEC 60364-4-41 and IEC 61140. The following
subclauses describe the typical measures to be taken for battery installations and the
resulting adaptions.
The appropriate equipment standard IEC 61140 applies to batteries and direct current
distribution circuits located inside the equipment.
4.2 Basic protection
In battery installations, basic protection against contact with live parts shall be ensured in
accordance with IEC 60364-4-41.
The following protective measures apply:
– protection by insulation of live parts;
– protection by barriers or enclosures;
– protection by obstacles;
– protection by placing out of reach.

Protection by obstacles or by placing out of reach is expressly permitted in battery
installations. It requires however that batteries with maximum voltages greater than U 60 V
DC
but not exceeding U 120 V between terminals and/or with maximum voltages greater than
DC
U 60 V but not exceeding U 120 V with respect to earth shall be located in
DC DC
accommodation with restricted access, and batteries with a maximum voltage above U
DC
120 V shall be located in accommodation with restricted access achieved by locks or other
equivalent means. Doors to battery rooms and cabinets are regarded as obstacles and shall
be marked with the warning labels according to 11.1.
Basic protection is not required for batteries with maximum voltages up to or equal to U
DC.
60 V as long the whole installation corresponds to the conditions for SELV (safety extra-low
voltage) and PELV (protective extra-low voltage) (see 4.4.2).
If protection by barriers or enclosures is applied, the minimum degree of protection required
shall be according to IEC 60529, IP2X or IPXXB.
4.3 Fault protection
4.3.1 General
In battery installations, fault protection shall be applied in accordance with IEC 60364-4-41.
One or more of the following measures shall be selected:
– "protection by automatic disconnection of supply";
– "protection by use of class II equipment or by equivalent insulation";
– "protection by non-conducting locations" (used in specific applications only);
– "protection by earth-free local equipotential bonding" (used in specific applications only);
– "protection by electrical separation".
A maximum touch voltage of 120 V DC shall not be exceeded (according to IEC 60449,
IEC 60364-4-41 and IEC/TS 61201). Beyond this voltage other suitable protection schemes
shall be implemented. Under normal operating conditions, abnormal operating conditions and
single fault conditions (except for a safeguard fault), touch voltage or touch current shall be
measured from all unearthed accessible conductive parts.
Certain of these methods of protection require a protective conductor. Protective conductors
or conductors with a protective function shall not be disconnected by a switching device. No
switching device is permitted in a protective conductor. Protective conductors shall not
contain overcurrent protection devices (according to IEC 60364-4-41). For dimensioning the
cross-sectional areas of protective conductors, see according to IEC 60364-5-54.
Battery stands or battery cabinets made from metal shall either be connected to the protective
conductor or insulated from the battery and the place of installation. This insulation shall
correspond to the conditions for protection by insulation according to IEC 60364-4-41. For
requirements on creepage distances and clearances, according to IEC 60664-1, using a value
of rated impulse withstand voltage for operating resource of overvoltage category II for the
used nominal voltage of the power supply system (according to IEC 60664-1:2020, Annex F,
see Table F.1 – Rated impulse withstand voltage for equipment energized directly from the
mains supply).
NOTE For equipment powered from alternative current (AC) mains, the test is performed with a voltage equal to
the rated voltage of the equipment or to the upper voltage of the rated voltage range. For equipment powered from
DC mains, the test is performed with a voltage equal to the rated voltage of the equipment or to the upper voltage
of the rated voltage range.
The test is performed with a voltage equal to the highest nominal voltage of the AC mains in the region where the
equipment is to be used (for example, 230 V for Europe or 120 V for North America).

– 16 – IEC 62485-5:2020 © IEC 2020
The following protective devices, rated for direct current, shall be used with direct current, as
applicable to the type of power system:
a) fuses;
b) overcurrent protective devices;
c) residual current protective devices in accordance with IEC 60755 shall be of type B
suitable for DC fault current;
d) insulation monitoring devices (e.g. in IT systems);
e) fault-voltage operated protective devices (according to IEC 60364-4-41).
4.3.2 Protection by automatic disconnection of supply
4.3.2.1 TN-system
In a TN system (according to IEC 60364-4-41) t
...
