IEC TS 62965:2016
(Main)Fibre optic interconnecting devices and passive components - Ferrule assembly and fusion splicer interface dimensions for a fusion splice on connector
Fibre optic interconnecting devices and passive components - Ferrule assembly and fusion splicer interface dimensions for a fusion splice on connector
IEC TS 62965:2016 which is a Technical Specification, specifies a minimum set of dimensional requirements for fusion splice on connectors (FSOCs) ferrule assemblies and the interface dimensions of splicing tools to ensure that a compliant ferrule assembly is compatible with a compliant fusion splicer. This fusion splicer interface also provides an example of the dimensional requirements for a universal holder, into which an FSOC can be mounted. This fusion splicer interface applies to FSOCs with a cylindrical ferrule of 2,5 mm diameter or 1,25 mm diameter. Keywords: FSOC, fusion splicer interface
Dispositifs d'interconnexion et composants passifs à fibres optiques - Dimensions de la férule équipée et de l'interface de l'épissureur par fusion relatives à une épissure par fusion sur connecteur
L'IEC TS 62965:2016 qui est une Spécification technique, spécifie un ensemble minimal d'exigences dimensionnelles relatives aux férules équipées pour les épissures par fusion sur connecteurs (FSOC) et les dimensions de l'interface des outils d'épissurage, afin de s'assurer qu'une férule équipée conforme est compatible avec un épissureur par fusion conforme. Cette interface d'épissureur par fusion fournit également un exemple des exigences dimensionnelles relatives à un support universel, dans lequel peut être monté un FSOC. Cette interface d'épissureur par fusion s'applique aux FSOC dont la férule cylindrique mesure 2,5 mm ou 1,25 mm de diamètre. Mots clés: FSOC, interface d'épissureur par fusion
General Information
Standards Content (Sample)

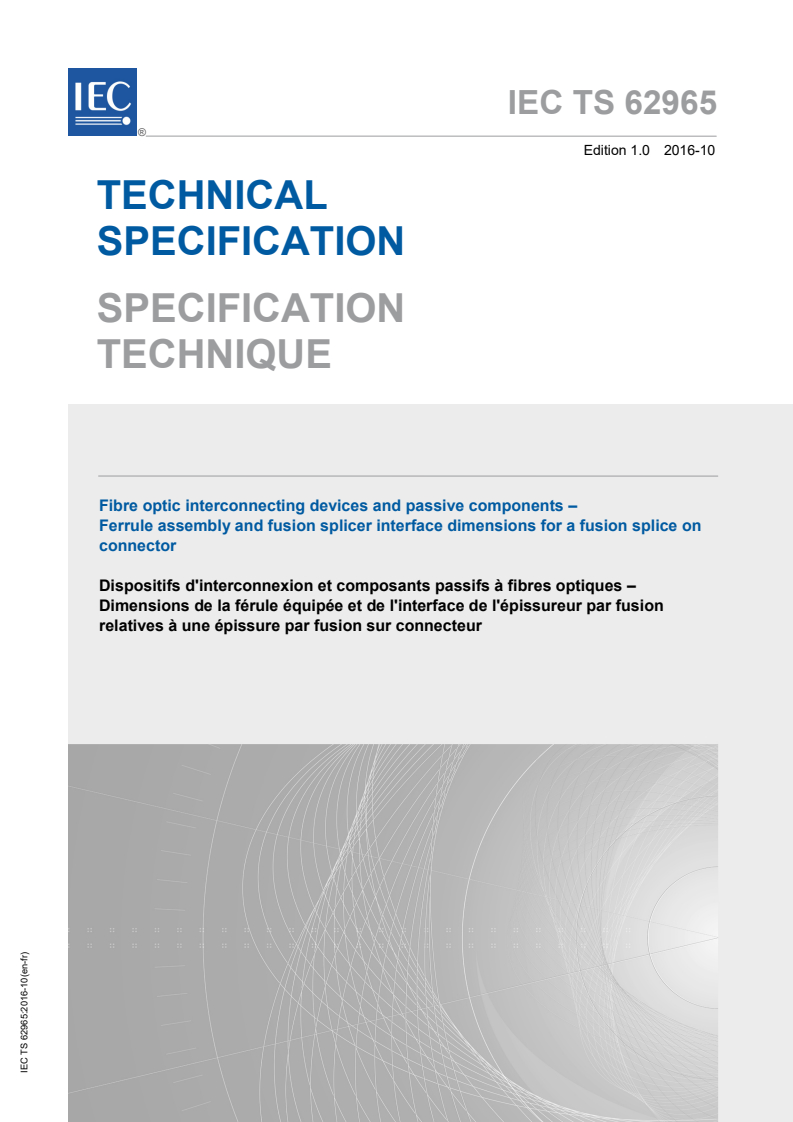

IEC TS 62965 ®
Edition 1.0 2016-10
TECHNICAL
SPECIFICATION
SPECIFICATION
TECHNIQUE
Fibre optic interconnecting devices and passive components –
Ferrule assembly and fusion splicer interface dimensions for a fusion splice on
connector
Dispositifs d'interconnexion et composants passifs à fibres optiques –
Dimensions de la férule équipée et de l'interface de l'épissureur par fusion
relatives à une épissure par fusion sur connecteur
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and
CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
65 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et
CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.

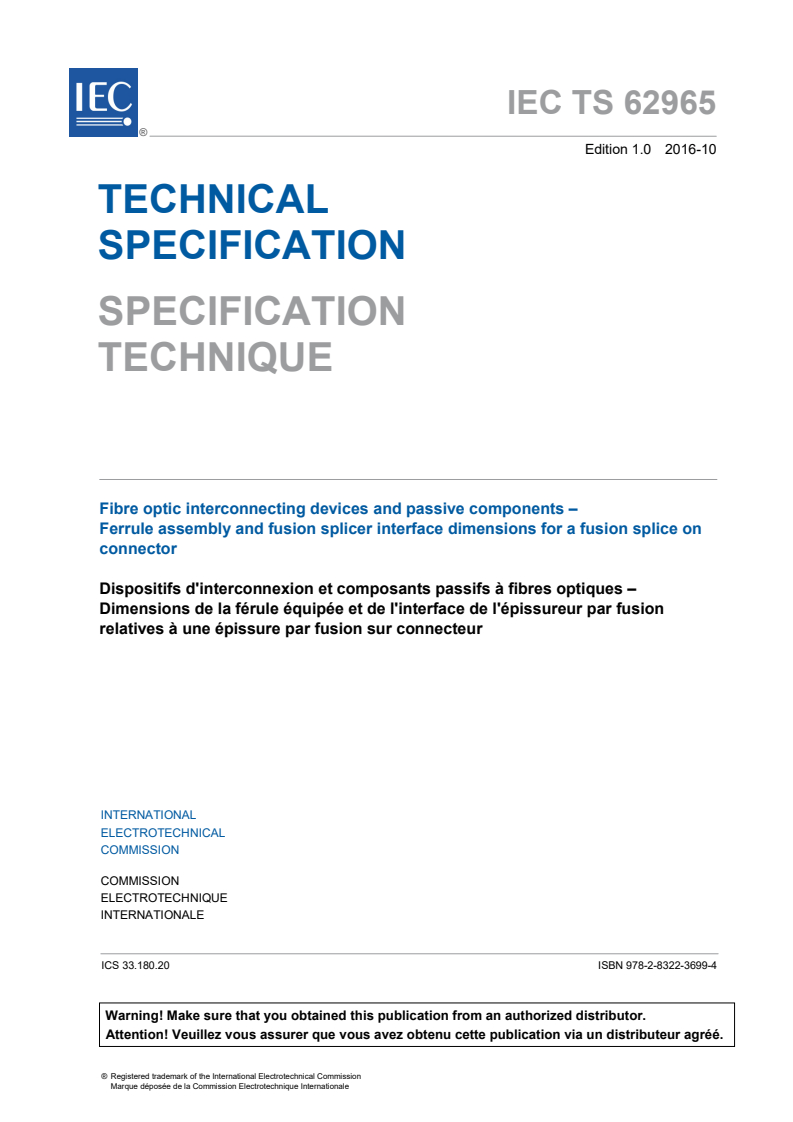

IEC TS 62965 ®
Edition 1.0 2016-10
TECHNICAL
SPECIFICATION
SPECIFICATION
TECHNIQUE
Fibre optic interconnecting devices and passive components –
Ferrule assembly and fusion splicer interface dimensions for a fusion splice on
connector
Dispositifs d'interconnexion et composants passifs à fibres optiques –
Dimensions de la férule équipée et de l'interface de l'épissureur par fusion
relatives à une épissure par fusion sur connecteur
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.20 ISBN 978-2-8322-3699-4
– 2 – IEC TS 62965:2016 © IEC 2016

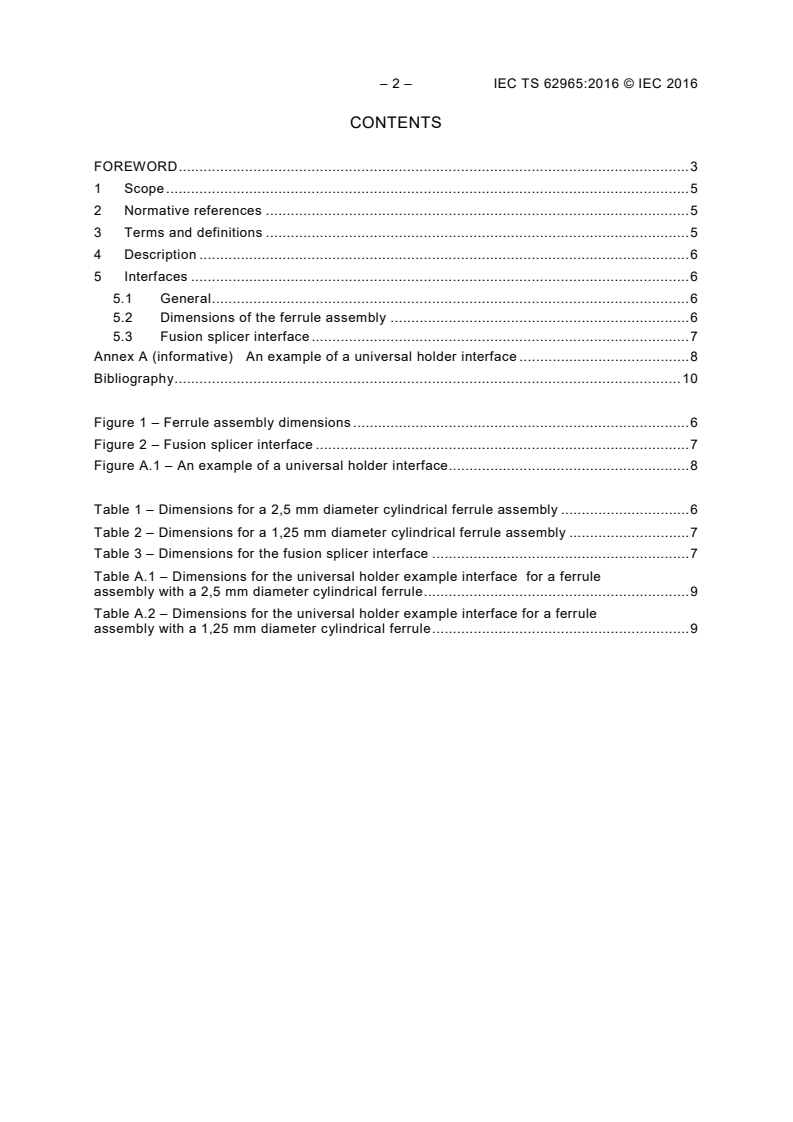

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Description . 6
5 Interfaces . 6
5.1 General . 6
5.2 Dimensions of the ferrule assembly . 6
5.3 Fusion splicer interface . 7
Annex A (informative) An example of a universal holder interface . 8
Bibliography . 10
Figure 1 – Ferrule assembly dimensions . 6
Figure 2 – Fusion splicer interface . 7
Figure A.1 – An example of a universal holder interface . 8
Table 1 – Dimensions for a 2,5 mm diameter cylindrical ferrule assembly . 6
Table 2 – Dimensions for a 1,25 mm diameter cylindrical ferrule assembly . 7
Table 3 – Dimensions for the fusion splicer interface . 7
Table A.1 – Dimensions for the universal holder example interface for a ferrule
assembly with a 2,5 mm diameter cylindrical ferrule . 9
Table A.2 – Dimensions for the universal holder example interface for a ferrule
assembly with a 1,25 mm diameter cylindrical ferrule . 9
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC INTERCONNECTING DEVICES
AND PASSIVE COMPONENTS –
Ferrule assembly and fusion splicer interface
dimensions for a fusion splice on connector
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. In
exceptional circumstances, a technical committee may propose the publication of a technical
specification when
• the required support cannot be obtained for the publication of an International Standard,
despite repeated efforts, or
• the subject is still under technical development or where, for any other reason, there is the
future but no immediate possibility of an agreement on an International Standard.
Technical specifications are subject to review within three years of publication to decide
whether they can be transformed into International Standards.
IEC TS 62965, which is a Technical Specification, has been prepared by subcommittee 86B:
Fibre optic interconnecting devices and passive components, of IEC technical committee 86:
Fibre optics.
– 4 – IEC TS 62965:2016 © IEC 2016
The text of this Technical Specification is based on the following documents:
Enquiry draft Report on voting
86B/3971/DTS 86B/3986/RVC
Full information on the voting for the approval of this technical specification can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• transformed into an International standard,
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
FIBRE OPTIC INTERCONNECTING DEVICES
AND PASSIVE COMPONENTS –
Ferrule assembly and fusion splicer interface
dimensions for a fusion splice on connector
1 Scope
IEC TS 62965, which is a Technical Specification, specifies a minimum set of dimensional
requirements for fusion splice on connectors (FSOCs) ferrule assemblies and the interface
dimensions of splicing tools to ensure that a compliant ferrule assembly is compatible with a
compliant fusion splicer. This fusion splicer interface also provides an example of the
dimensional requirements for a universal holder, into which an FSOC can be mounted. This
fusion splicer interface applies to FSOCs with a cylindrical ferrule of 2,5 mm diameter or
1,25 mm diameter.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
ferrule assembly
component of an FSOC, which consists of a factory polished cylindrical ferrule, a flange and a
pre-installed fibre fixed to the ferrule
3.2
fusion splice on connector
FSOC
optical connector which can be installed in the field by fusion splicing the pre-installed fibre of
the ferrule assembly onto the fibre to be terminated
3.3
pre-installed fibre
portion of optical fibre where one end is fixed to the ferrule and factory polished with the
endface of the ferrule, and the another end extends out of the flange and has a cleaved
endface
– 6 – IEC TS 62965:2016 © IEC 2016
4 Description
This fusion splicer interface defines the minimum dimensional limits and relative locations of
an FSOC ferrule assembly within a fusion splicer to ensure that the fusion splicer is able to
complete the splicing process.
This document also provides information on an example universal holder to accommodate the
FSOC ferrule assembly. Other FSOC components such as connector housings, dust caps or
reinforcing sleeve do not affect the compatibility, so their dimensions are not addressed in this
fusion splicer interface.
It should be noted that this fusion splicer interface ensures only the compatibility between the
FSOC ferrule assembly and fusion splicing tools, and does not ensure the compatibility of
FSOC components of different models.
5 Interfaces
5.1 General
This document defines a minimum set of dimensional requirements for the ferrule assembly
and the fusion splicer. The dimensions of the ferrule assembly are given in Figure 1 and
Table 1 (for the 2,5 mm diameter type) and Table 2 (for the 1,25 mm diameter type). The
interface of the fusion splicer is given in Figure 2 and Table 3.
5.2 Dimensions of the ferrule assembly
C B
f f
A
f
Fibre
Ferrule
Buffer
E
f
Flange
IEC
Figure 1 – Ferrule assembly dimensions
Table 1 – Dimensions for a 2,5 mm diameter cylindrical ferrule assembly
Dimensions in millimetres
Reference Dimensions Remarks
Minimum Maximum
a
A 4,7 11,75 Length of the bare fibre portion
f
a
B 9,65 16,2
f
C – 11,5 The boundary between B and C is at the rear
f f f
end of the largest flange
D – 5,6 The overall dimension of the flange
f
E
– 3,35
f
a
A shall be less than B .
f f
D
f
Table 2 – Dimensions for a 1,25 mm diameter cylindrical ferrule assembly
Dimensions in millimetres
Reference Dimensions Remarks
Minimum Maximum
a
A 4,7 11,75 Length of the bare fibre portion
f
a
B 8,3 15,2
f
C – 7,65 The boundary between B and C is at the rear
f f f
end of the largest flange
D – 5,25 The overall dimension of the flange
f
E – 2,55
f
a
A shall be less than B
f f
5.3 Fusion splicer interface
Fibre alignment block
A-A
Top view
A
D
s
A
s
A
Area to be reserved
for ferrule assembly holders
Electrode Fibre centre Holder stage
IEC
Figure 2 – Fusion splicer interface
Table 3 – Dimensions for the fusion splicer interface
Dimensions in millimetres
Reference Dimensions Remarks
Minimum Maximum
A 3,5 4,6
s
D 3,5 – Applicable vertical position of the fibre from
s
the top surface of the area for holders
The area to be reserved for ferrule assembly holders shall be ≥ 11,5 mm in length and ≥ 5,6 mm in width and
≥ 2,8 mm in depth (except for the structure for aligning and/or fixing the holder) to accommodate all ferrule
assemblies compliant with this document.
– 8 – IEC TS 62965:2016 © IEC 2016
Annex A
(informative)
An example of a universal holder interface
Typically, each FSOC model has its original holder interface, i.e. a combination of a dedicated
ferrule assembly holder design and one of its applicable fusion splicer models, so that the
installation is optimised. This annex is provided as a guideline for users who plan to
design/use a universal holder for various FSOC ferrule assemblies. It should be noted that the
use of a universal holder may adversely affect the installation of the FSOC ferrule assembly in
comparison to using the original purpose-designed ferrule holder, but not the performance of
the assembled FSOC.
In conjunction with Figure A.1, examples of two universal holder interfaces are given in
Table A.1 (for a 2,5 mm diameter ferrule type) and in Table A.2 (for a 1,25 mm ferrule type).
These two examples are provided as sets of dimensional limits for a combination of the
2,5 mm or 1,25 mm ferrule assembly holders and the fusion splicer. Universal holders
complying with these interfaces can accommodate any of the ferrule assemblies with their
corresponding ferrule diameters as specified in this document.
In Figure A.1, dimension B varies during the fusion splicing process as the holder stage of
h
the fusion splicer moves. In this fusion splicer interface, the B basic dimension is defined as
h
the distance at the time of fusion splicing. Any value greater than B basic is allowed for B
h h
before the holder stage moves, as long as B can become equal to B basic at some point
h h
within the range of the holder stage movement.
The minimum limits for C and E have some margin against corresponding maximum limits
h h
for the ferrule assembly, C and E , respectively, shown in Figure 1. These margins allow
f f
positional adjustment of the ferrule assembly in its holder to achieve fibre end placement
between the electrodes and the fibre alignment block prior to fusion splicing.
This fusion splicer inter face does not define the means to fix the ferrule assembly holder onto
the fusion splicer holder stage.
Reference plane
Fibre alignment block
C B
h h
E
h
Area to be reserved
for ferrule assembly
Electrode
Ferrule assembly holder
Holder stage
IEC
Figure A.1 – An example of a universal holder interface
D
h
Table A.1 – Dimensions for the universal holder example interface
for a ferrule assembly with a 2,5 mm diameter cylindrical ferrule
Dimensions in millimetres
Reference Dimensions Remarks
Minimum Basic Maximum
a
B At the time of fusion splicing
b
h
C 18,1 50
h
D 5,6 10
h
E 9,9 50
h
a
The fusion splicer shall allow sufficien
...
