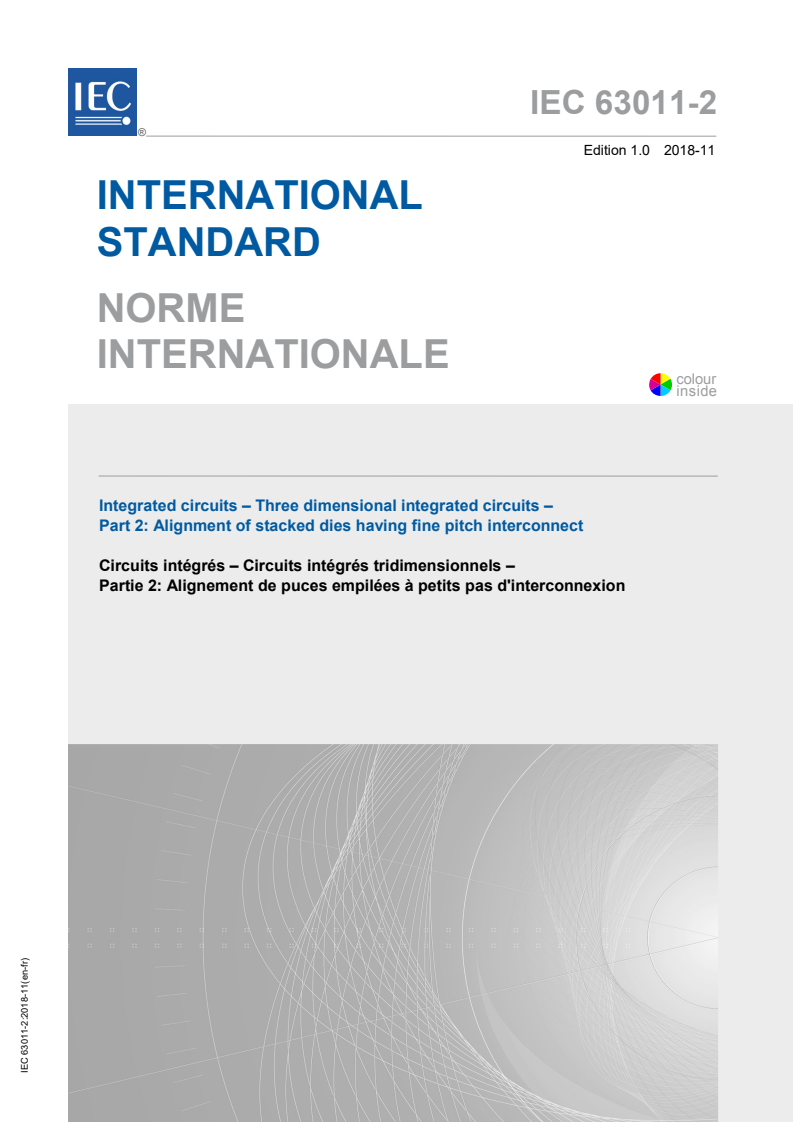

IEC 63011-2:2018

IEC 63011-2 ®
Edition 1.0 2018-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Integrated circuits – Three dimensional integrated circuits –
Part 2: Alignment of stacked dies having fine pitch interconnect

Circuits intégrés – Circuits intégrés tridimensionnels –
Partie 2: Alignement de puces empilées à petits pas d'interconnexion

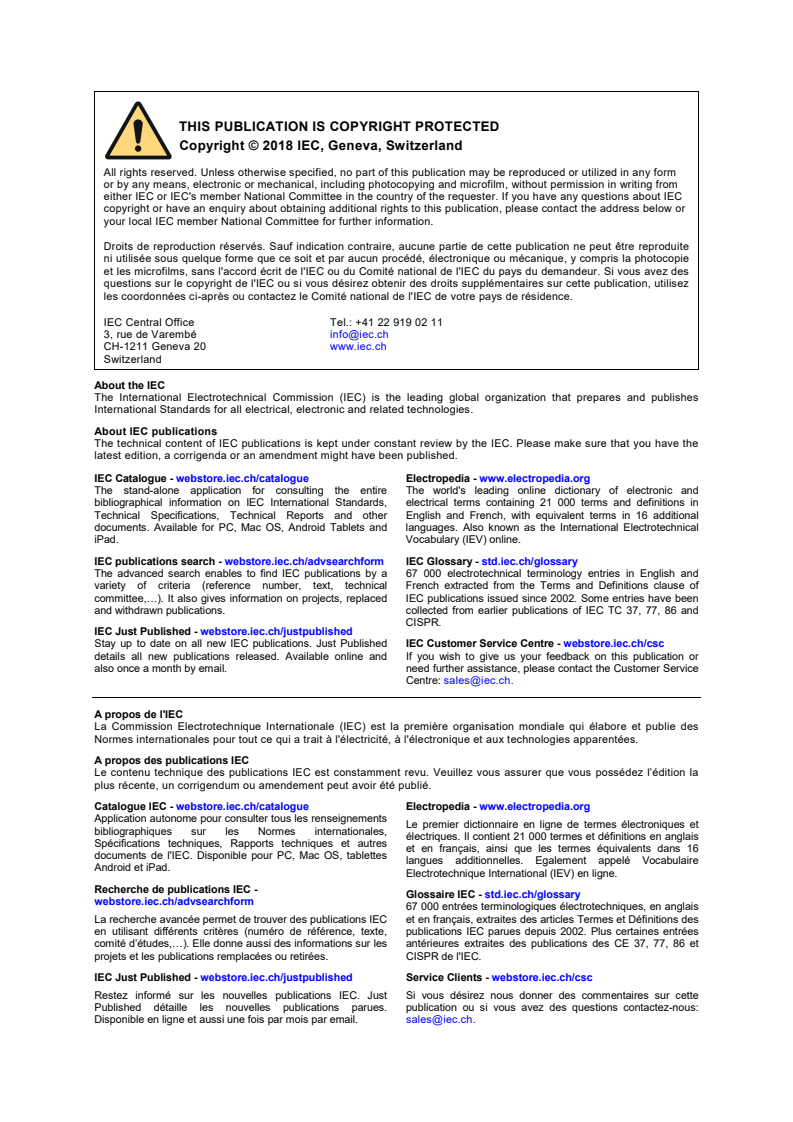

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des
en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées
comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et
projets et les publications remplacées ou retirées. CISPR de l'IEC.

IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette
Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:
Disponible en ligne et aussi une fois par mois par email. sales@iec.ch.

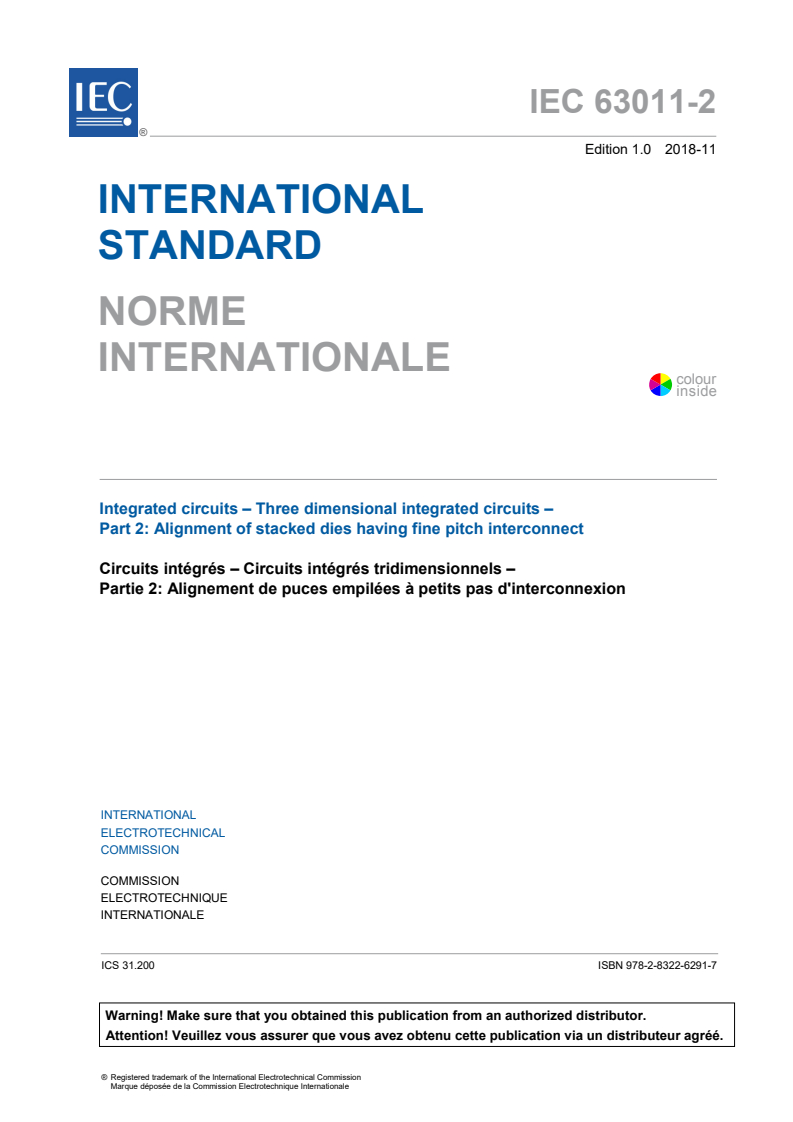

IEC 63011-2 ®
Edition 1.0 2018-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Integrated circuits – Three dimensional integrated circuits –

Part 2: Alignment of stacked dies having fine pitch interconnect

Circuits intégrés – Circuits intégrés tridimensionnels –

Partie 2: Alignement de puces empilées à petits pas d'interconnexion

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.200 ISBN 978-2-8322-6291-7

– 2 – IEC 63011-2:2018  IEC 2018

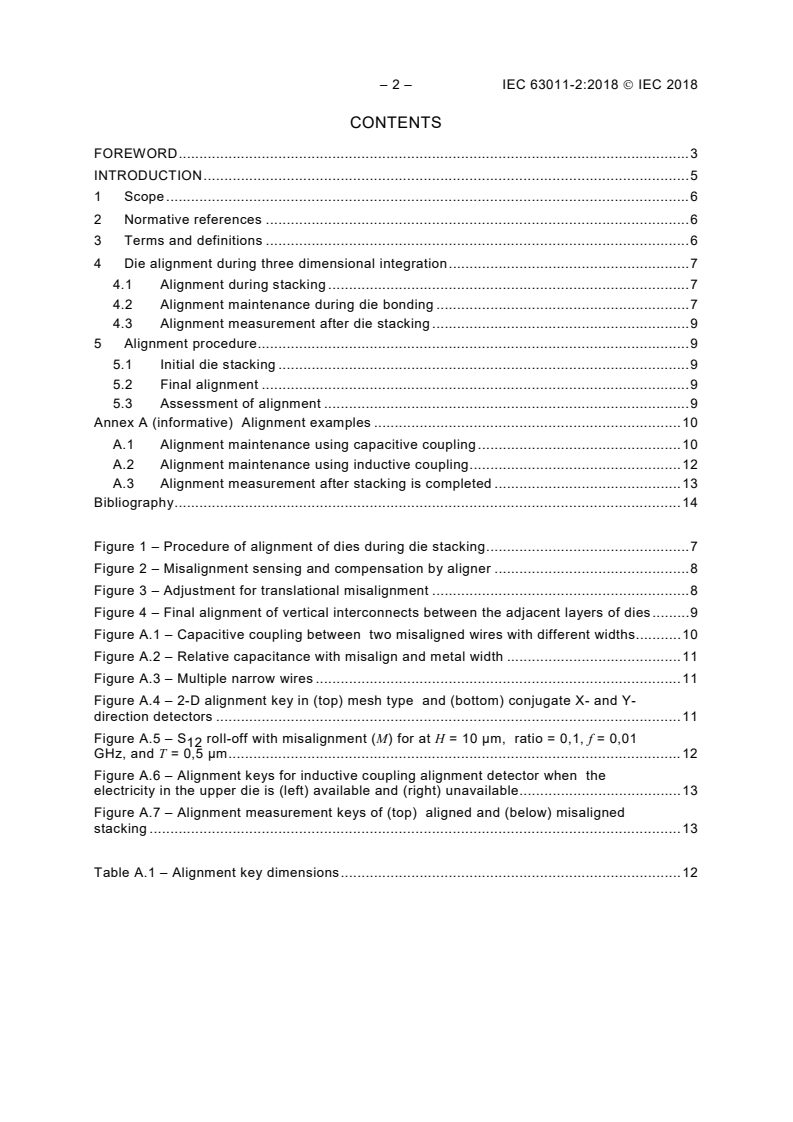

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Die alignment during three dimensional integration . 7
4.1 Alignment during stacking . 7
4.2 Alignment maintenance during die bonding . 7
4.3 Alignment measurement after die stacking . 9
5 Alignment procedure . 9
5.1 Initial die stacking . 9
5.2 Final alignment . 9
5.3 Assessment of alignment . 9
Annex A (informative) Alignment examples . 10
A.1 Alignment maintenance using capacitive coupling . 10
A.2 Alignment maintenance using inductive coupling . 12
A.3 Alignment measurement after stacking is completed . 13
Bibliography . 14

Figure 1 – Procedure of alignment of dies during die stacking . 7
Figure 2 – Misalignment sensing and compensation by aligner . 8
Figure 3 – Adjustment for translational misalignment . 8
Figure 4 – Final alignment of vertical interconnects between the adjacent layers of dies . 9
Figure A.1 – Capacitive coupling between two misaligned wires with different widths. 10
Figure A.2 – Relative capacitance with misalign and metal width . 11
Figure A.3 – Multiple narrow wires . 11
Figure A.4 – 2-D alignment key in (top) mesh type and (bottom) conjugate X- and Y-
direction detectors . 11
Figure A.5 – S roll-off with misalignment (M) for at H = 10 µm, ratio = 0,1, f = 0,01
GHz, and T = 0,5 µm . 12
Figure A.6 – Alignment keys for inductive coupling alignment detector when the
electricity in the upper die is (left) available and (right) unavailable . 13
Figure A.7 – Alignment measurement keys of (top) aligned and (below) misaligned
stacking . 13

Table A.1 – Alignment key dimensions . 12

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
INTEGRATED CIRCUITS –
THREE DIMENSIONAL INTEGRATED CIRCUITS –

Part 2: Alignment of stacked dies having fine pitch interconnect

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 63011-2 has been prepared by subcommittee 47A: Integrated
circuits, of IEC technical committee 47: Semiconductor devices.
The text of this International Standard is based on the following documents:
FDIS Report on voting
47A/1061/FDIS 47A/1065/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – IEC 63011-2:2018  IEC 2018
A list of all parts in the IEC 63011 series, published under the general title Integrated circuits
– Three dimensional integrated circuits, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
INTRODUCTION
Three-dimensional (3-D) integration of integrated circuits using through-silicon via (TSV)
technology is an innovative solution to simultaneously achieve a greater performance, an
improved versatility and a higher density of integrated circuits without miniaturization of
feature sizes on a die. Die alignment during the die bonding is the key enabler of the fine
pitch 3-D wiring between vertically stacked dies for proper physical contact. Maintenance of
the alignment during the bonding process and afterward is as important as the precise overlap
prior to die bonding. This standard describes a method of initial alignment and maintenance of
alignment throughout the die bonding process that can be involved with mechanical shaking.
The initial alignment is performed using the optical means. During the maintenance period,
however, relative amount of the misalignment is converted to an electrical signal for on-the-fly
alignment monitoring without the visual image.

– 6 – IEC 63011-2:2018  IEC 2018
INTEGRATED CIRCUITS –
THREE DIMENSIONAL INTEGRATED CIRCUITS –

Part 2: Alignment of stacked dies having fine pitch interconnect

1 Scope
This part of IEC 63011 provides specifications of initial alignment and alignment maintenance
between multiple stacked integrated circuits during the die bonding process. These
specifications define the alignment keys and operating procedures of the keys. These
specifications apply only if electrical coupling method of die-to-die alignment is used in the die
stacking.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 63011-1, Integrated circuits − Three dimensional Integrated Circuits – Part 1:
Terminology
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 63011-1 apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
die bonding
assembly step to adhere physically or chemically a die to another
3.2
bonder
apparatus performing die bonding
3.3
signal generator
apparatus generating electrical signals
3.4
alignment key
apparatus to monitor or adjust the alignment of the overlaid dies
3.5
aligner
apparatus to perform the alignment of the overlaid dies

4 Die alignment during three dimensional integration
4.1 Alignment during stacking
Once the upper die covers the bottom one, the patterns including align key on the bottom die
are not seen any longer. Therefore, the image of the bottom die is stored in the memory. As
the upper die is moved above the bottom die, the patterns on the upper die are compared with
the stored patterns to be precisely aligned. The procedure is illustrated in Figure 1. The cross-
patters indicate alignment keys, and they are placed at the same location on every die. The
alignment keys are also used as a positioning reference for all other patterns on the die. The
position of patters on the upper die is compared with memorized images of the lower die
because the pattern on the lower die is covered by the upper one and no longer seen by
general alignment tools.
IEC IEC
Figure 1 – Procedure of alignment of dies during die stacking
4.2 Alignment maintenance during die bonding
After the upper die is placed on top of the bottom one, the bonding process is proceeded to
give the permanent physical contact on the bonder as shown in Figure 2. The bonding
process is involved with thermal and mechanical agitation to provide the adhesive contact
between the TSV and micro bump. Physical agitation destroys the alignment. The image of
the bottom die is not observed by optical microscope using visible light. Although the infrared
light penetrates the solid to the limited depth, the resolution deteriorates drastically as the
thickness of the top die increases. In addition, the metallic piece of die holder blocks images
in the infrared microscope. Another alignment sensor is desired to monitor the deviation from
the perfect alignment using the electrical signal. The misalign information is, then, fed back to
the aligner to compensate the misalignment. The aligner shall be capable of recovering the
translational misalignment along the two principle axes parallel to the die surface, and
rotational misalignment perpendicular to the die surface. The signal generator provides the
source signal to be supplied to the die through the transmitter. The receiver collects the
transmitted signal that is distorted by the amount of misalignment as depicted by a curve in
Figure 2 below.
– 8 – IEC 63011-2:2018  IEC 2018
Signal
Misalignment
Aligner
RX
TX
Signal
generator
Bonder
IEC
Figure 2 – Misalignment sensing and compensation by aligner
In order to convert the physical misalignment to the electrical signal during the die bonding
step, the alignment keys shall sense the alignment when they are not in contact. The
electrical or magnetic coupling is an efficient medium of alignment information. Figure 3
illustrates a possible example of alignment key deployment in the stacked two dies. The
intensity of the received signal becomes strong when active alignment keys are placed on the
facing surfaces of the two stacked dies, i.e. bottom of the upper die and top of the lower die.
Both transmitter and receiver are located on the bottom die and the upper die does not have
any active device so that the upper die does not need to have electricity. The power is
provided through the fixed bottom die and the top floated upper die provides passive bridges.
Then, the upper die is free to move for alignment recovery and bonding. The signal is emitted
by the alignment key connected to the transmitter on bottom die, and it is coupled by left part
of the bridge on bottom surface of the upper die. The signal travels to the right half of the
bridge and couples back to the transponder that is connected to the receiver on the top
surface of the bottom die. The attenuation of the received signal from the transmitted one is
determined by the distance and misalignment of align keys. If the upper die shakes constantly,
the amount of attenuation tells which direction is for the perfect alignment. The bridge on the
upper die is exposed to the ambient, but the transponder on bottom die is covered with thin
dielectric film to avoid direct contact between the alignment keys and to maximize the
received signal as well. Clauses A.1 and A.2 show an example of the shape of a typical
sensor element and the strength of coupling to misalignment.
IEC
Figure 3 – Adjustment for translational misalignment

4.3 Alignment measurement after die stacking
The alignment of the two dies may be disrupted by the mechanical or thermal agitation during
the die bonding process. The typical cross-section view of the stacked dies with misalignment
in the vertical interconnects is shown in Figure 4. After the upper die is completely bonded
onto the lower die mechanically and electrically, the alignment is once again measured by an
appropriate instrument. The quality of the final alignment of the three dimensional integrated
circuits is delivered in the form of amount of misalignment. An example of a structure for
detecting misalignment after bonding is shown in Annex A.3.
IEC
Figure 4 – Final alignment of vertical interconnects between
the adjacent layers of dies
5 Alignment procedure
5.1 Initial die stacking
Place the bottom die and store the image of alignment key in the memory before the top die is
brought above the bottom one. Then, compare the image of alignment key on the top die and
that in the memory to make the initial alignment. The accuracy of the alignment shall be better
than a half of spacing of alignment unit in the coupling alignment keys.
5.2 Final alignment
Turn on the electrical alignment key to track the alignment with electrical signal during the
subsequent bonding process. Shake the upper die in X direction to get the best alignment
along that direction using one of coupling alignment methods. And repeat the alignment check
along Y direction. Rotate the upper die around the axis perpendicular to the die surface to
compensate the rotational misalignment. Repeat translational and rotational alignment until
the misalignment is small enough.
5.3 Assessment of alignment
Whenever a layer of die is stacked, the quality of final alignment shall be measured using an
appropriate method, e.g. resistance measurement as described in IEC 63011-3.

– 10 – IEC 63011-2:2018  IEC 2018
Annex A
(informative)
Alignment examples
A.1 Alignment maintenance using capacitive coupling
Capacitive coupling between the two wires separated vertically by ‘H’, and misaligned
horizontally by ‘M’ is modelled in Figure A.1. Two pairs of wires with different aspect ratio of
the cross-section, W/T, are shown in Figure A.1 below.
IEC
Key
M misalignment in horizontal
H wafer space in vertical
W1 width of narrow wire
W2 width of wide wire
T thickness of unit alignment key
W1 and W2 to be discriminated.
Figure A.1 – Capacitive coupling between
two misaligned wires with different widths
The relative attenuation of capacitance by the misalignment is significant when wires are
narrow as shown on the left in Figure A.2. However, the absolute intensity of capacitive
coupling becomes strong when the wires are wide. It is described on the right in Figure A.2
below.
IEC
Figure A.2 – Relative capacitance with misalign and metal width
In order to have both coupling strength and alignment sensitivity, multiple narrow wires are
necessary as illustrated in Figure A.3.
IEC
Key
H wafer space in vertical
W width of wire
T thickness of unit alignment key
Figure A.3 – Multiple narrow wires
Using the analysis of the capacitive coupling, the two types of alignment keys can be used as
illustrated in Figure A.4.
IEC
Figure A.4 – 2-D alignment key in (top) mesh type
and (bottom) conjugate X- and Y-direction detectors

– 12 – IEC 63011-2:2018  IEC 2018
The attenuation of the received signal is function of the vertical separation of coupling pairs
(H), W/O ratio, the number wires (N) and the dimension of the alignment keys. Figure A.5
shows the field simulation results of conjugate align keys with different dimensions.
IEC
Figure A.5 – S roll-off with misalignment (M) for at H = 10 µm,
ratio = 0,1, f = 0,01 GHz, and T = 0,5 µm
For proper functionality of the alignment sensor in different technologies the following
parameters that are listed in the Table A.1 are desired to be specified. In some cases,
different classes of dimensions of alignment keys may be specified.
Table A.1 – Alignment key dimensions
Parameter Name Class-1 Class-2
Side length of unit alignment key(L)
Thickness of unit alignment key(T)
Wafer space (H)
Ratio of W/O (ratio)
Number of holes (N)
Frequency (f)
