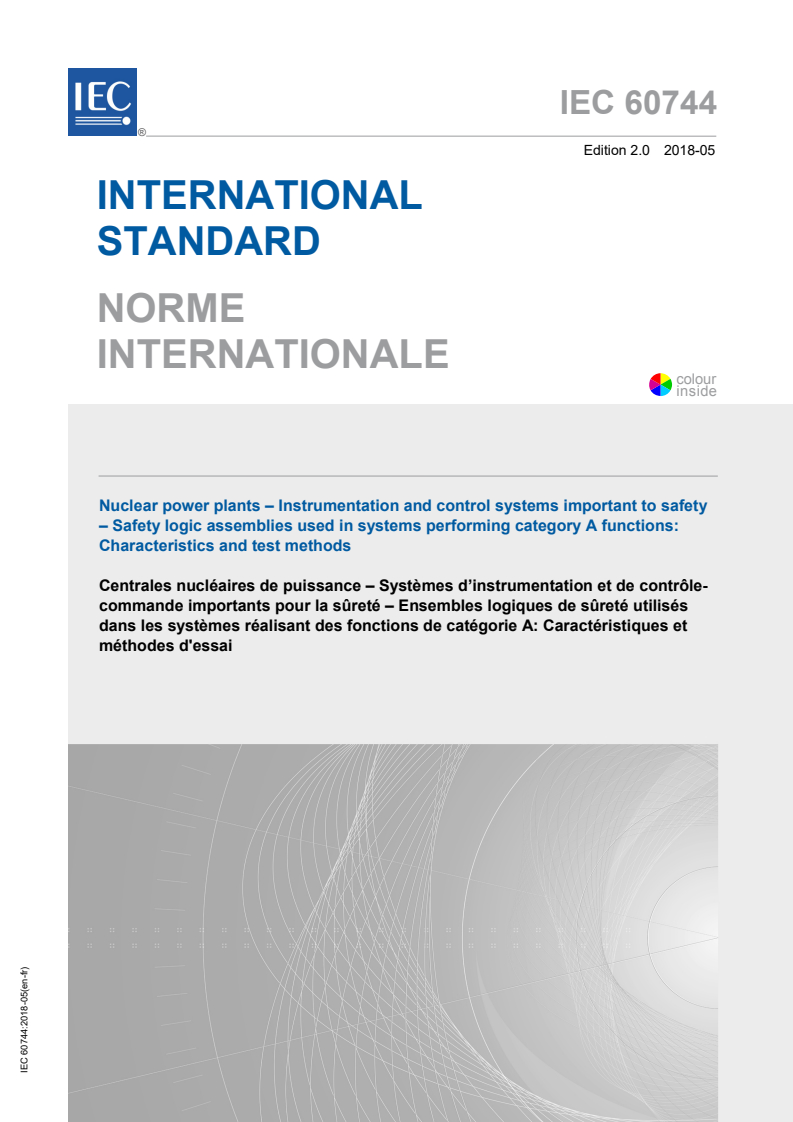

IEC 60744:2018

IEC 60744 ®
Edition 2.0 2018-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Nuclear power plants – Instrumentation and control systems important to safety
– Safety logic assemblies used in systems performing category A functions:
Characteristics and test methods

Centrales nucléaires de puissance – Systèmes d’instrumentation et de contrôle-
commande importants pour la sûreté – Ensembles logiques de sûreté utilisés
dans les systèmes réalisant des fonctions de catégorie A: Caractéristiques et
méthodes d'essai
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des
en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées
comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et
projets et les publications remplacées ou retirées. CISPR de l'IEC.

IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette
Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:
Disponible en ligne et aussi une fois par mois par email. sales@iec.ch.

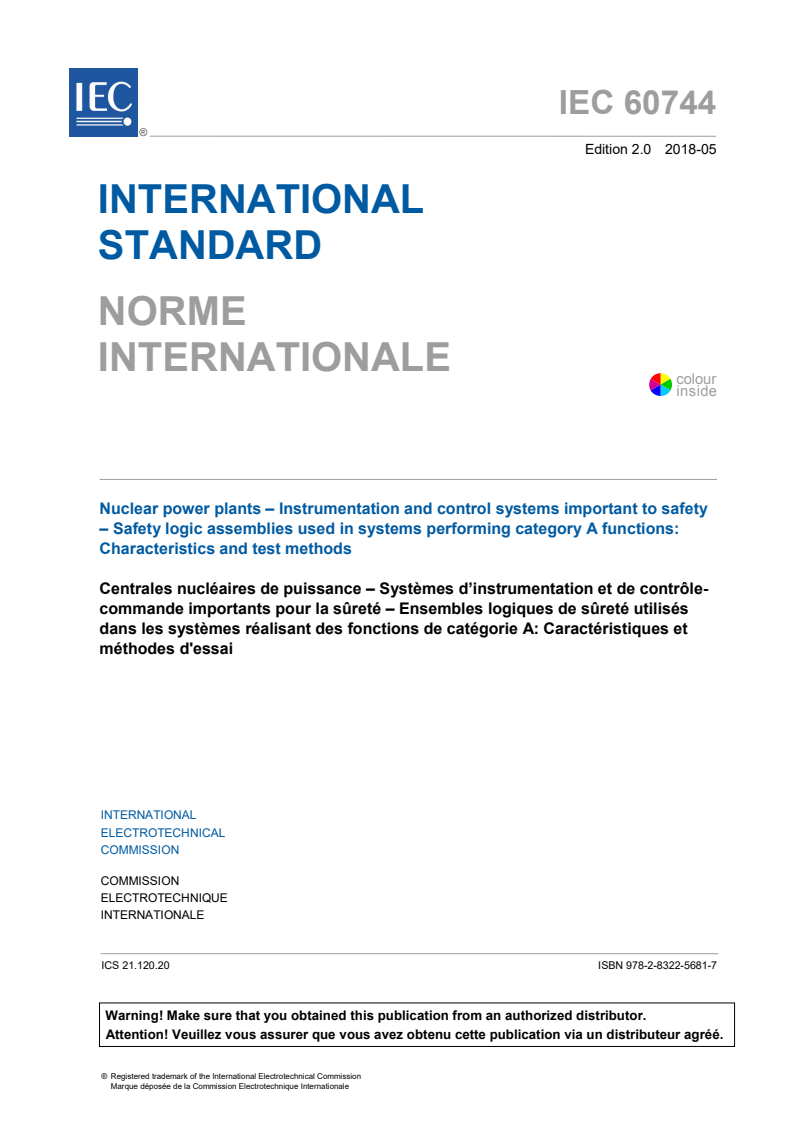

IEC 60744 ®
Edition 2.0 2018-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Nuclear power plants – Instrumentation and control systems important to safety

– Safety logic assemblies used in systems performing category A functions:

Characteristics and test methods

Centrales nucléaires de puissance – Systèmes d’instrumentation et de contrôle-

commande importants pour la sûreté – Ensembles logiques de sûreté utilisés

dans les systèmes réalisant des fonctions de catégorie A: Caractéristiques et

méthodes d'essai
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 21.120.20 ISBN 978-2-8322-5681-7

– 2 – IEC 60744:2018  IEC 2018

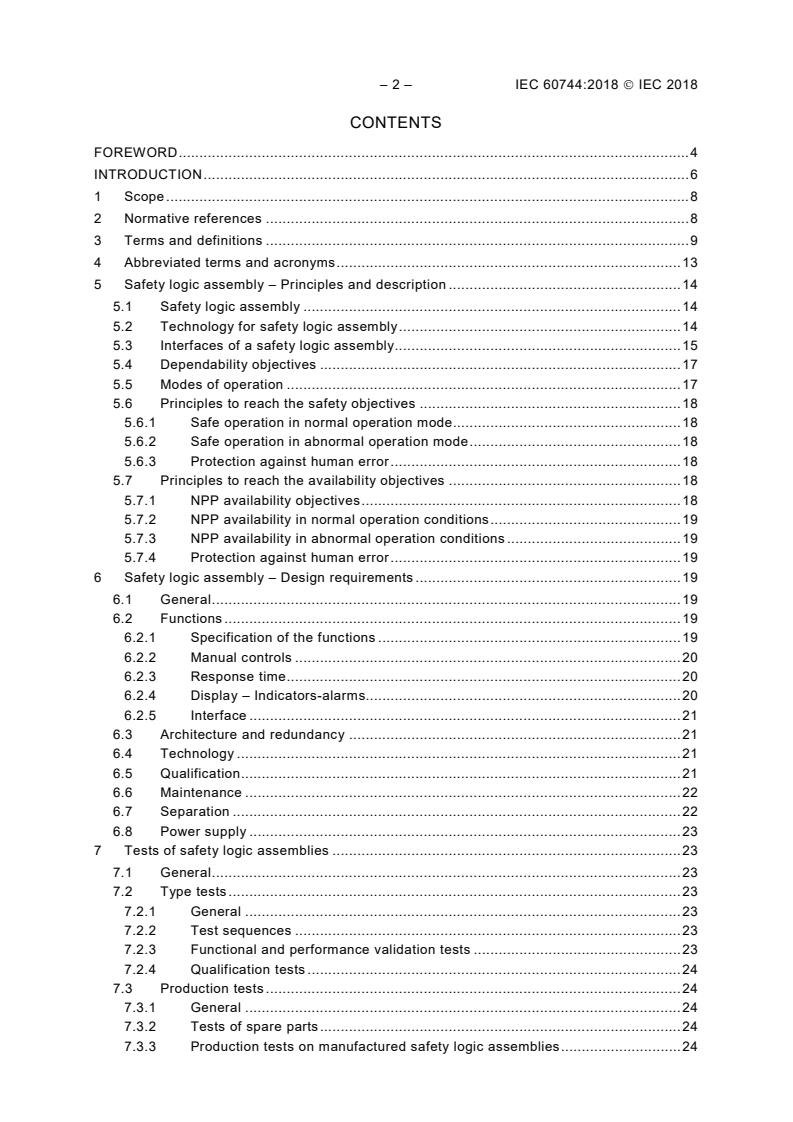

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 8
2 Normative references . 8
3 Terms and definitions . 9
4 Abbreviated terms and acronyms . 13
5 Safety logic assembly – Principles and description . 14
5.1 Safety logic assembly . 14
5.2 Technology for safety logic assembly . 14
5.3 Interfaces of a safety logic assembly. 15
5.4 Dependability objectives . 17
5.5 Modes of operation . 17
5.6 Principles to reach the safety objectives . 18
5.6.1 Safe operation in normal operation mode. 18
5.6.2 Safe operation in abnormal operation mode . 18
5.6.3 Protection against human error . 18
5.7 Principles to reach the availability objectives . 18
5.7.1 NPP availability objectives . 18
5.7.2 NPP availability in normal operation conditions . 19
5.7.3 NPP availability in abnormal operation conditions . 19
5.7.4 Protection against human error . 19
6 Safety logic assembly – Design requirements . 19
6.1 General . 19
6.2 Functions . 19
6.2.1 Specification of the functions . 19
6.2.2 Manual controls . 20
6.2.3 Response time . 20
6.2.4 Display – Indicators-alarms. 20
6.2.5 Interface . 21
6.3 Architecture and redundancy . 21
6.4 Technology . 21
6.5 Qualification . 21
6.6 Maintenance . 22
6.7 Separation . 22
6.8 Power supply . 23
7 Tests of safety logic assemblies . 23
7.1 General . 23
7.2 Type tests . 23
7.2.1 General . 23
7.2.2 Test sequences . 23
7.2.3 Functional and performance validation tests . 23
7.2.4 Qualification tests . 24
7.3 Production tests . 24
7.3.1 General . 24
7.3.2 Tests of spare parts . 24
7.3.3 Production tests on manufactured safety logic assemblies . 24

7.3.4 Tests on substitute components / modules . 25
7.3.5 Tests on assembled cabinets . 25
7.4 Tests on site . 25
7.4.1 Equipment health checks before installation . 25
7.4.2 Installation validation tests. 25
7.4.3 Periodic tests . 26
8 Quality assurance . 26
Annex A (informative) Examples of safety logic assembly applications . 27
Annex B (normative) Safety logic assembly – Hardwired technological solutions . 28
B.1 Overview. 28
B.1.1 General . 28
B.1.2 Relays . 28
B.1.3 Electromechanical relays . 28
B.1.4 Solid state relays . 29
B.2 Magnetic amplifiers . 29
B.3 Fail-safe – dynamic logic . 30
B.4 Solid state circuits. 30
B.4.1 General . 30
B.4.2 Discrete components . 30
B.4.3 Integrated components – HPD . 31
Annex C (informative) Dependability and its attributes . 32
C.1 General . 32
C.2 Qualitative and quantitative attributes associated with dependability . 32
Bibliography . 34

Figure 1 – Safety logic assembly: typical interface arrangement in a protection system . 16
Figure C.1 – Attributes of dependability – Relationship between reliability and the final
risk regarding safety . 32

– 4 – IEC 60744:2018  IEC 2018
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
NUCLEAR POWER PLANTS – INSTRUMENTATION AND CONTROL
SYSTEMS IMPORTANT TO SAFETY – SAFETY LOGIC ASSEMBLIES
USED IN SYSTEMS PERFORMING CATEGORY A FUNCTIONS:
CHARACTERISTICS AND TEST METHODS

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60744 has been prepared by subcommittee 45A: Instrumentation,
control and electrical power systems of nuclear facilities, of IEC technical committee 45:
Nuclear instrumentation.
This second edition cancels and replaces the first edition published in 1983. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) update of the references to standards published or revised since the issue of the first
edition of the current standard, including IEC 61513 and IEC 61226;
b) additional requirements for operational and maintenance bypass use; requirements of
voting logic; requirements for interfacing with the MCR and SCR.

The text of this International Standard is based on the following documents:
FDIS Report on voting
45A/1188/FDIS 45A/1200/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC 60744:2018  IEC 2018
INTRODUCTION
a) Technical background, main issues and organisation of the Standard
This standard IEC 60744 specifically focuses on safety logic assemblies used in NPPs
(Nuclear Power Plants). Safety logic assemblies were originally hardwired parts of protection
systems mainly used to control actuators. IEC 60744 specifically focuses on the design,
including technology, interfaces with MCR and SCR, tests and qualification. It gives
requirements for display of the safety system inputs and state.
IEC 60744 is the document concerning safety logic assembly functions and performance.
The use of a computer based equipment or software is covered comprehensively by other
standards. The technology used to design SLAs therefore involves mainly hard-wired
technologies and submicronic highly integrated components (HPDs), the implementation of
which is limited due to the very high safety requirements.
The document addresses the design and test characteristics of safety logic assemblies,
especially regarding functional requirements, reliability issues, and associated control means
including alarm, indication and control. Also it suggests the requirements for performance,
testing and qualification for safety logic assemblies, and the interface requirements for
communication between assemblies.
It is intended that the document be used by operators of NPPs (utilities), systems evaluators
and licensors.
b) Situation of the current Standard in the structure of the IEC SC 45A standard series
IEC 60744 is the third level IEC SC 45A document tackling the specific issue of testing and
design characteristics of safety logic assemblies.
IEC 60744 is to be read in association with IEC 61513 which is the appropriate IEC SC 45A
document which provides guidance on I&C safety system, and IEC 60964 which is the
appropriate document for guidance on the Control Rooms, since the safety system has
extensive interfaces with the MCR and SCR.
For more details on the structure of the IEC SC 45A standard series, see item d) of this
introduction.
c) Recommendations and limitations regarding the application of the Standard
It is important to note that this document establishes no additional functional requirements at
safety system level.
Aspects for which special recommendations have been provided in this document are:
• The voting of partial trips to identify each safety actuation
• The output assemblies that provide the trips and actuations
• The design and test characteristics of functional requirements
• The reliability issue of safety logic assemblies
• The performance characteristics of logic assemblies
• Testing, qualification and interface requirements of safety logic assemblies
To ensure that the document will continue to be relevant in future years, the emphasis has
been placed on issues of principle, rather than specific technologies.

d) Description of the structure of the IEC SC 45A standard series and relationships
with other IEC documents and other bodies documents (IAEA, ISO)
The top-level documents of the IEC SC 45A standard series are IEC 61513 and IEC 63046.
IEC 61513 provides general requirements for I&C systems and equipment that are used to
perform functions important to safety in NPPs. IEC 63046 provides general requirements for
electrical power systems of NPPs; it covers power supply systems including the supply
systems of the I&C systems. IEC 61513 and IEC 63046 are to be considered in conjunction
and at the same level. IEC 61513 and IEC 63046 structure the IEC SC 45A standard series
and shape a complete framework establishing general requirements for instrumentation,
control and electrical systems for nuclear power plants.
IEC 61513 and IEC 63046 refer directly to other IEC SC 45A standards for general topics
related to categorization of functions and classification of systems, qualification, separation,
defense against common cause failure, control room design, electromagnetic compatibility,
cybersecurity, software and hardware aspects for programmable digital systems, coordination
of safety and security requirements and management of ageing. The standards referenced
directly at this second level should be considered together with IEC 61513 and IEC 63046 as
a consistent document set.
At a third level, IEC SC 45A standards not directly referenced by IEC 61513 or by IEC 63046
are standards related to specific equipment, technical methods, or specific activities. Usually
these documents, which make reference to second-level documents for general topics, can be
used on their own.
A fourth level extending the IEC SC 45 standard series, corresponds to the Technical Reports
which are not normative.
The IEC SC 45A standards series consistently implements and details the safety and security
principles and basic aspects provided in the relevant IAEA safety standards and in the
relevant documents of the IAEA nuclear security series (NSS). In particular this includes the
IAEA requirements SSR-2/1, establishing safety requirements related to the design of nuclear
power plants (NPPs), the IAEA safety guide SSG-30 dealing with the safety classification of
structures, systems and components in NPPs, the IAEA safety guide SSG-39 dealing with the
design of instrumentation and control systems for NPPs, the IAEA safety guide SSG-34
dealing with the design of electrical power systems for NPPs and the implementing guide
NSS17 for computer security at nuclear facilities. The safety and security terminology and
definitions used by SC 45A standards are consistent with those used by the IAEA.
IEC 61513 and IEC 63046 have adopted a presentation format similar to the basic safety
publication IEC 61508 with an overall life-cycle framework and a system life-cycle framework.
Regarding nuclear safety, IEC 61513 and IEC 63046 provide the interpretation of the general
requirements of IEC 61508-1, IEC 61508-2 and IEC 61508-4, for the nuclear application
sector. In this framework IEC 60880, IEC 62138 and IEC 62566 correspond to IEC 61508-3
for the nuclear application sector. IEC 61513 and IEC 63046 refer to ISO as well as to IAEA
GS-R-3 and IAEA GS-G-3.1 and IAEA GS-G-3.5 for topics related to quality assurance (QA).
At level 2, regarding nuclear security, IEC 62645 is the entry document for the IEC SC 45A
security standards. It builds upon the valid high level principles and main concepts of the
generic security standards, in particular ISO/IEC 27001 and ISO/IEC 27002; it adapts them
and completes them to fit the nuclear context and coordinates with the IEC 62443 series. At
level 2, regarding control rooms, IEC 60964 is the entry document for the IEC SC 45A control
rooms standards and IEC 62342 is the entry document for the IEC SC 45A ageing
management standards.
NOTE 1 It is assumed that for the design of I&C systems in NPPs that implement conventional safety functions
(e.g. to address worker safety, asset protection, chemical hazards, process energy hazards) international or
national standards would be applied.
NOTE 2 IEC SC 45A domain was extended in 2013 to cover electrical systems. In 2014 and 2015 discussions
were held in IEC SC 45A to decide how and where general requirement for the design of electrical systems were to
be considered. IEC SC 45A experts recommended that an independent standard be developed at the same level as
IEC 61513 to establish general requirements for electrical systems. Project IEC 63046 is now launched to cover
this objective. When IEC 63046 is published this NOTE 2 of the introduction of IEC SC 45A standards will be
suppressed.
– 8 – IEC 60744:2018  IEC 2018
NUCLEAR POWER PLANTS – INSTRUMENTATION AND CONTROL
SYSTEMS IMPORTANT TO SAFETY – SAFETY LOGIC ASSEMBLIES
USED IN SYSTEMS PERFORMING CATEGORY A FUNCTIONS:
CHARACTERISTICS AND TEST METHODS

1 Scope
This document provides requirements and recommendations for the design, construction and
test of safety logic assemblies used in safety systems to perform category A safety functions
(in accordance with IEC 61226). Safety logic assemblies include logic such as the hardwired
logic assembly interfacing computer-based systems to switchgear, actuators or contactors to
provide trip or engineered safety feature actuations. Safety logic assemblies are significant
parts of a safety system and may include voting logic between redundant channels.
This document provides a general description of safety logic assemblies for safety actuators
control. The principles to meet dependability objectives are presented. The main features
relating to the design requirements are described and explained.
Various tests and their requirements are given in order to validate the design (including the
qualification tests), the manufacturing and the correct installation on site.
Annex A (informative) gives a list of possible applications of safety logic assemblies.
Annex B (normative) suggests a list of possible hardwired technologies with their respective
requirements to design safety logic assemblies.
Annex C (informative) gives explanations on dependability and its attributes to improve
reliability and to reduce the final risk which compromises the safety and the availability of the
NPP.
The scope of this document does not address the design of a protection system, it covers only
the technological and architectural solutions required to design a safety logic assembly. The
design of safety systems using safety logic assemblies is covered by IEC 61513.
The detailed and specific functions implemented in a safety logic assembly strongly depend
on the design of each reactor and are not addressed in this document.
As this document is focused on I&C part of the system, the final voting logic made with power
breakers is excluded from the scope of this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60255 (all parts), Measuring relays and protection equipment
IEC 60671, Nuclear power plants – Instrumentation and control systems important to safety –
Surveillance testing
IEC 60709, Nuclear power plants – instrumentation and control systems important to safety –
Separation
IEC/IEEE 60780-323, Nuclear facilities – Electrical equipment important to safety –
Qualification
IEC 60812, Analysis techniques for system reliability – Procedure for failure mode and effects
analysis (FMEA)
IEC 60964, Nuclear power plants – Control rooms – Design
IEC 60965, Nuclear power plants – Control rooms – Supplementary control room for reactor
shutdown without access to the main control room
IEC 60980, Recommended practices for seismic qualification of electrical equipment of the
safety system for nuclear generating stations
IEC 61000 (all parts), Electromagnetic compatibility (EMC)
IEC 61225, Nuclear power plants – Instrumentation and control systems important to safety –
Requirements for electrical supplies
IEC 61226, Nuclear power plants – Instrumentation and control systems important to safety –
Classification of instrumentation and control functions
IEC 61227, Nuclear power plants – Control rooms – Operator controls
IEC 61513, Nuclear power plants – Instrumentation and control for systems important to
safety – General requirements for systems
IEC 62003, Nuclear power plants – Instrumentation and control important to safety –
Requirements for electromagnetic compatibility testing
IEC 62241, Nuclear power plants – Main control room – alarm functions and presentation
IEC 62566:2012, Nuclear power plants – Instrumentation and control important to safety –
Development of HDL-programmed integrated circuits for systems performing category A
functions
IAEA-GSR Part 2, Leadership and Management for Safety
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
availability
ability of an item or a system to be in a state to perform a required function under given
conditions at a given instant of time or over a given time interval, given that the necessary
external resources are provided

– 10 – IEC 60744:2018  IEC 2018
[SOURCE: IAEA Safety Glossary, 2016 edition]
3.2
channel
arrangement of interconnected components within a system that initiates a single output. A
channel loses its identity where the single-output signals are combined with signals from
another channels (eg; from a monitoring channel or a safety actuation channel)
[SOURCE: IAEA Safety Glossary, 2016 edition]
3.3
dependability
general term describing the overall trustworthiness of a system; i.e. the extent to which
reliance can justifiably be placed on this system. Reliability, availability and safety are
attributes of dependability
Note 1 to entry: Annex C gives clarifications on this definition.
[SOURCE: IAEA Safety Glossary, 2016 edition]
3.4
dynamic logic equipment
system assembly or subassembly employing dynamic logic signals
3.5
dynamic logic signal
periodically changing voltage or current, the frequency being consistent with the required
system response time. The different logic states are associated with different values of one or
more parameters of the periodic change, for example, amplitude, slope, repetition rate of
pulses or alternations, or pulse coding
Note 1 to entry: One logic state may be associated with the absence of periodic change of such a signal.
3.6
engineered safety feature
actuating part of a safety actuation system (actuator associated with its electrical and driving
part)
Note 1 to entry: Engineered safety features need energy to operate (valves, motors, etc.). Generally, they are
compared with reactor trip breakers which do not need energy to operate.
3.7
failure
loss of the ability of a structure, system or component to function within acceptance criteria
Note 1 to entry: The structure, system or component is considered to fail when it becomes incapable of
functioning, whether or not this is needed at that time. A failure in, for example, a backup system may not be
manifest until the system is called upon to function, either during testing or on failure of the system it is backing up.
Note 2 to entry: A failure of a structure, system or component is an event that results in a fault of that structure,
system or component.
[SOURCE: IAEA Safety Glossary, 2016 edition]
3.8
Field Programmable Gate Array
FPGA
integrated circuit that can be programmed in the field by the I&C manufacturer. It includes
programmable logic blocks (combinatorial and sequential), programmable interconnections
between them and programmable blocks for input and/or outputs. The function is then defined
by the I&C designer, not by the integrated circuit supplier

Note 1 to entry: While FPGAs are essentially digital devices, some of them may integrate analogue input/outputs
and analogue to digital converters. FPGAs may include advanced digital functions such as hardware multipliers,
dedicated memory and embedded processor cores.
[SOURCE: IEC 62566:2012, 3.5]
3.9
hardware description language
HDL
language used to formally describe the functions and/or the structure of an electronic
component for documentation, simulation or synthesis
[SOURCE: IEC 62566:2012, 3.6]
3.10
HDL-Programmed Device
HPD
integrated circuit configured (for NPP I&C systems) with hardware description languages and
related software tools
[SOURCE: IEC 62566:2012, 3.7]
3.11
operational states
states defined under normal operation and anticipated operational occurrences
[SOURCE: IAEA Safety Glossary, 2016 edition]
3.12
partial trip signal
binary signal provided by a channel of a safety system after processing the signals received
from the sensors of this channel, before it has been processed by the final voting logic to give
a scram requirement or ESF actuation requirement
3.13
programmable logic device
PLD
integrated circuit that consists of logic elements with an interconnection pattern, parts of
which are user programmable
Note 1 to entry: Different kinds of PLDs exist, e.g. Erasable PLD or Complex PLD (CPLD).
Note 2 to entry: The differences between “FPGA” and “PLD” are not well defined, but “PLD” usually refers to a
simpler device than “FPGA”.
[SOURCE: IEC 62566:2012, 3.13]
3.14
qualified life
period for which a structure, system or component has been demonstrated, through testing,
analysis or experience, to be capable of functioning within acceptance criteria during specific
operating conditions while retaining the ability to perform its safety functions in accident
conditions for a design basis accident or a design basis earthquake
[SOURCE: IAEA Safety Glossary, 2016 edition]

– 12 – IEC 60744:2018  IEC 2018
3.15
redundancy
provision of alternative (identical or diverse) structures, systems and components, so that any
single structure, system or component can perform the required function regardless of the
state of operation or failure of any other
Note 1 to entry: This definition has to be clarified for the needs of this document:
• Non-diverse redundancy – to address the risk of single (random) failure.
• Diverse redundancy – to address the risk of random failure or common mode failure.
[SOURCE: IAEA Safety Glossary, 2016 edition]
3.16
reliability
probability that a device, system, component or facility will meet its minimum performance
requirements when called upon to do so
[SOURCE: IAEA Safety Glossary, 2016 edition]
3.17
safety (nuclear)
protection of people and the environment against radiation risks, and the safety of facilities
and activities that give rise to radiation risks
[SOURCE: IAEA Safety Glossary, 2016 edition]
3.18
safety function
specific purpose that must be accomplished for safety for a facility or activity to prevent or to
mitigate radiological consequences of normal operation, anticipated operational occurrences
and accident conditions
Note 1 to entry: IAEA SSR2/1 establishes requirements on safety functions to be fulfilled by the design of a
nuclear power plant in order to meet three general safety requirements:
a) the capability to safely shut down the reactor and maintain it in a safe shutdown condition during and after
appropriate operational states and accident conditions;
b) the capability to remove residual heat from the reactor core, the reactor and nuclear fuel in storage after
shutdown, and during and after appropriate operational states and accident conditions;
c) the capability to reduce the potential for the release of radioactive material and to ensure that any releases are
within prescribed limits during and after operational states and within acceptable limits during and after design
basis accidents.
Note 2 to entry: IEC 61226 gives recommendations related to categories of safety functions.
[SOURCE: IAEA Safety Glossary, 2016 edition]
3.19
safety logic assembly
equipment, part of a protection system performing simple category A logic functions with a
very high level of dependability and generally used to send commands to safety actuators or
signals to another safety logic assembly
Note 1 to entry: A simple logic function is combinatory and/or sequential. Consequently, such a function is fully
testable.
3.20
safety system
system important to safety, provided to ensure the safe shutdown of the reactor or the
residual heat removal from the reactor core, or to limit the consequences of anticipated
operational occurrences and design basis accidents

[SOURCE: IAEA Safety Glossary, 2016 edition]
3.21
scram
rapid shutdown of a nuclear reactor in an emergency
Note 1 to entry: The term scram is associated with the trip unit which is the part of a circuit breaker that opens the
circuit. Then a scram is often called a reactor trip.
[SOURCE: IAEA Safety Glossary, 2016 edition]
3.22
single failure
failure which results in the loss of capability of a single system or component to perform its
intended safety function(s), and any consequential failure(s) which result from it
Note 1 to entry: A single failure is generally caused by effects such as corrosion, thermal stressing and wear-out
which applies to hardware components within a system.
Note 2 to entry: Single failure is also called: ”random failure”.
Note 3 to entry: Due to their random nature, statistical information can be produced from testing and historical
data. Thus, the average probability, and hence the risk, associated with the occurrence of a random failure can be
calculated.
[SOURCE: IAEA Safety Glossary, 2016 edition]
3.23
trip
rapid reduction in the power of a nuclear reactor
Note 1 to entry: A reactor trip is also called “scram”.
[SOURCE: IEC 60050-395:2014, 395-07-91]
4 Abbreviated terms and acronyms
CCF Common Cause Failure
CPLD Complex Programmable Logic Device
EMC Electro Magnetic Compatibility
EMR Electro Magnetic Relay
EMI/RFI Electromagnetic Interference / Radiofrequency Interference
ESF Engineered Safety Feature (and post-trip actions and sequences)
ESFAS Engineered Safety Feature Actuating System
FMEA Failure Mode and Effect Analysis
FPGA Field Programmable Gate Array
HDL Hardware Description Language
HPD HDL-Programmed Device
IAEA International Atomic Energy Agency
I&C Instrumentation and Control
MCR Main Control Room
NPP Nuclear Power Plant
PIE Postulated Initiating Event
PLD Programmable Logic Device
– 14 – IEC 60744:2018  IEC 2018
PWR Pressurised Water Reactor
QA Quality Assurance
SCP Supplementary Control Points
SCR Safety Control Room / Emergency Control Room
SLA Safety Logic Assembly
SSR Solid State Relay
V&V Verification and Validation
2oo3 Voting logic: 2 out of 3
2oo4 Voting logic: 2 out of 4
5 Safety logic assembly – Principles and description
5.1 Safety logic assembly
The protection system is generally designed with software based technology to perform safety
functions with digital means.
Usually, it has multiple redundant and sometimes diverse divisions to, among other things,
meet the single failure criteria, achieve the target reliability and allow on line testing and
maintenance.
The outputs from the multiple divisions are subject to some additional processing, made by a
safety logic assembly, before sending the final
...
