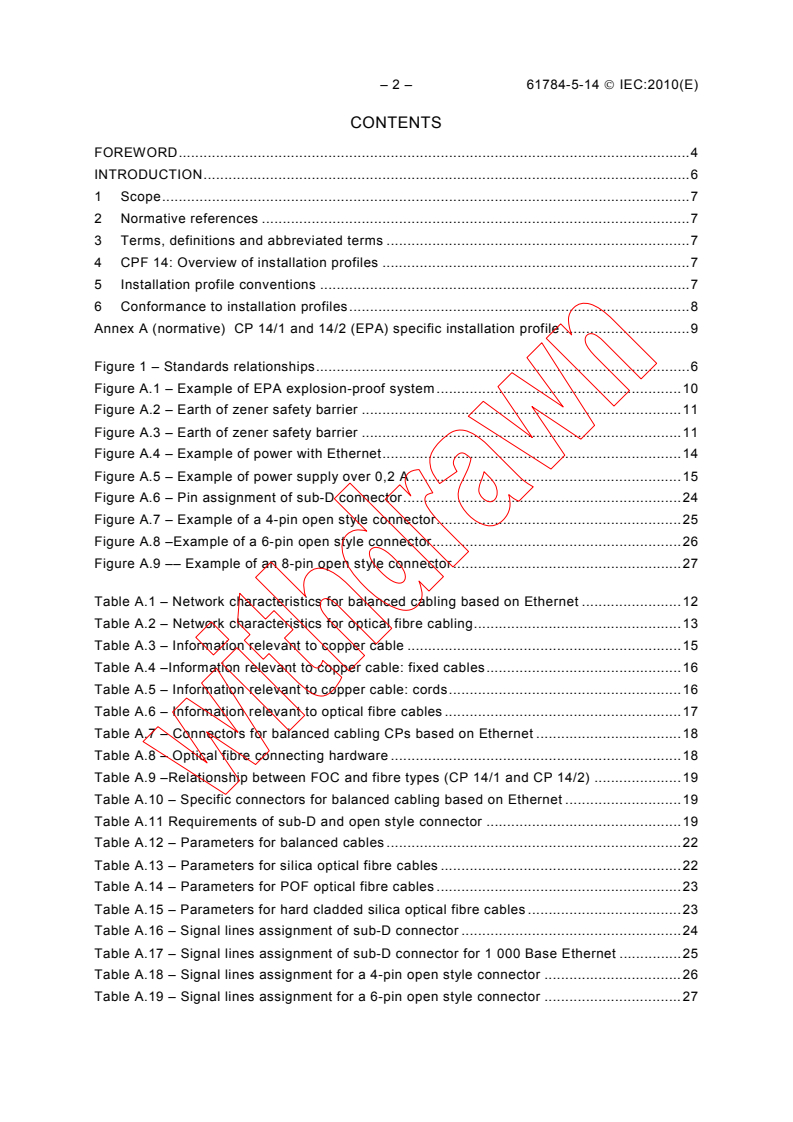

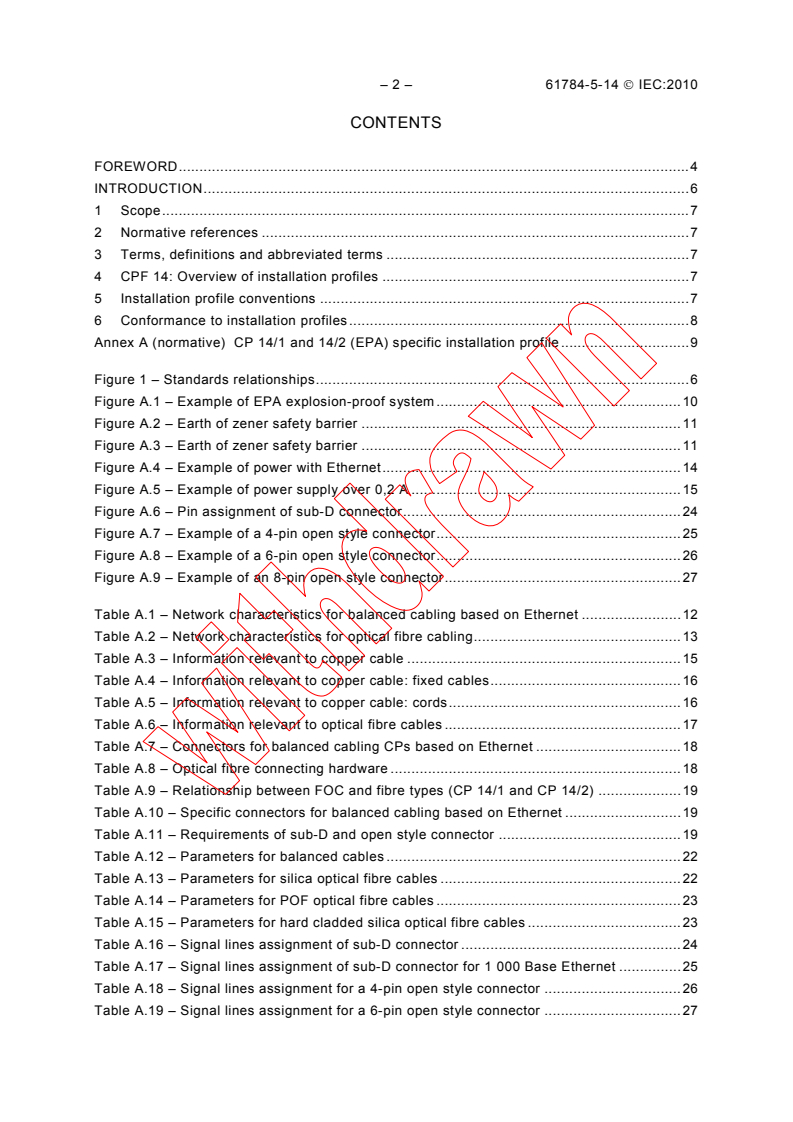

– 2 – 61784-5-14  IEC:2010
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms, definitions and abbreviated terms . 7
4 CPF 14: Overview of installation profiles . 7
5 Installation profile conventions . 7
6 Conformance to installation profiles . 8
Annex A (normative) CP 14/1 and 14/2 (EPA) specific installation profile . 9

Figure 1 – Standards relationships . 6
Figure A.1 – Example of EPA explosion-proof system . 10
Figure A.2 – Earth of zener safety barrier . 11
Figure A.3 – Earth of zener safety barrier . 11
Figure A.4 – Example of power with Ethernet . 14
Figure A.5 – Example of power supply over 0,2 A . 15
Figure A.6 – Pin assignment of sub-D connector . 24
Figure A.7 – Example of a 4-pin open style connector . 25
Figure A.8 – Example of a 6-pin open style connector . 26
Figure A.9 – Example of an 8-pin open style connector . 27

Table A.1 – Network characteristics for balanced cabling based on Ethernet . 12
Table A.2 – Network characteristics for optical fibre cabling . 13
Table A.3 – Information relevant to copper cable . 15
Table A.4 – Information relevant to copper cable: fixed cables . 16
Table A.5 – Information relevant to copper cable: cords . 16
Table A.6 – Information relevant to optical fibre cables . 17
Table A.7 – Connectors for balanced cabling CPs based on Ethernet . 18
Table A.8 – Optical fibre connecting hardware . 18
Table A.9 – Relationship between FOC and fibre types (CP 14/1 and CP 14/2) . 19
Table A.10 – Specific connectors for balanced cabling based on Ethernet . 19
Table A.11 – Requirements of sub-D and open style connector . 19
Table A.12 – Parameters for balanced cables . 22
Table A.13 – Parameters for silica optical fibre cables . 22
Table A.14 – Parameters for POF optical fibre cables . 23
Table A.15 – Parameters for hard cladded silica optical fibre cables . 23
Table A.16 – Signal lines assignment of sub-D connector . 24
Table A.17 – Signal lines assignment of sub-D connector for 1 000 Base Ethernet . 25
Table A.18 – Signal lines assignment for a 4-pin open style connector . 26
Table A.19 – Signal lines assignment for a 6-pin open style connector . 27

61784-5-14  IEC:2010 – 3 –
Table A.20 – Signal lines assignment for an 8-pin open style connector(10/100 Mbit/s) . 28
Table A.21 – Signal lines assignment for an 8-pin open style connector(1 000 Mbit/s) . 28

– 4 – 61784-5-14  IEC:2010
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
INDUSTRIAL COMMUNICATION NETWORKS –
PROFILES –
Part 5-14: Installation of fieldbuses –
Installation profiles for CPF 14

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61784-5-14 has been prepared by subcommittee 65C: Industrial
networks, of IEC technical committee 65: Industrial-process measurement, control and
automation.
This standard is to be used in conjunction with IEC 61918:2010.
This bilingual version (2012-02) corresponds to the monolingual English version, published in
2010-07.
61784-5-14  IEC:2010 – 5 –
The text of this standard is based on the following documents:
FDIS Report on voting
65C/602/FDIS 65C/616/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 61784-5 series, published under the general title Industrial
communication networks – Profiles – Installation of fieldbuses, can be found on the IEC
website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – 61784-5-14  IEC:2010
INTRODUCTION
This International Standard is one of a series produced to facilitate the use of communication
networks in industrial control systems.
IEC 61918:2010 provides the common requirements for the installation of communication
networks in industrial control systems. This installation profile standard provides the
installation profiles of the communication profiles (CP) of a specific communication profile
family (CPF) by stating which requirements of IEC 61918 fully apply and, where necessary, by
supplementing, modifying, or replacing the other requirements (see Figure 1).
For general background on fieldbuses, their profiles, and relationship between the installation
profiles specified in this standard, see IEC/TR 61158-1.
Each CP installation profile is specified in a separate annex of this standard. Each annex is
structured exactly as the reference standard IEC 61918 for the benefit of the persons
representing the roles in the fieldbus installation process as defined in IEC 61918 (planner,
installer, verification personnel, validation personnel, maintenance personnel, administration
personnel). By reading the installation profile in conjunction with IEC 61918, these persons
immediately know which requirements are common for the installation of all CPs and which
are modified or replaced. The conventions used to draft this standard are defined in Clause 5.
The provision of the installation profiles in one standard for each CPF (for example
IEC 61784-5-14 for CPF 14), allows readers to work with standards of a convenient size.
PLANNING
DESIGN AND
INSTALLATION
Offices
GENERIC
OFFICE PREMISES ISO/IEC 11801
Annex
CABLING
Home
HOMES ISO/IEC 15018
Annex
ISO/IEC Data centre
DATA CENTRES ISO/IEC 24764
14763-2 Annex
BETWEEN
Industrial
AUTOMATION ISO/IEC 24702
Annex
ISLANDS
BETWEEN
AUTOMATION
Installation
INDUSTRIAL PREMISES IEC 61158 IEC 61918
ISLANDS
Profiles
series
IEC 61784-5 series
and
(Common
(Selection +
WITHIN
requirements)
IEC 61784-1, -2
Add/Repl/Mod)
AUTOMATION
ISLANDS
Com m on structure
APPLICATION-SPECIFIC
CABLING
Figure 1 – Standards relationships

61784-5-14  IEC:2010 – 7 –
INDUSTRIAL COMMUNICATION NETWORKS –
PROFILES –
Part 5-14: Installation of fieldbuses –
Installation profiles for CPF 14

1 Scope
This part of IEC 61784 specifies the installation profiles for CPF 14 (EPA) .
The installation profiles are specified in the annex. This annex is read in conjunction with
IEC 61918:2010.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 61918:2010 Industrial communication networks – Installation of communication networks
in industrial premises
The normative references of IEC 61918:2010, Clause 2, apply.
3 Terms, definitions and abbreviated terms
For the purposes of this document, the terms, definitions and abbreviated terms of
IEC 61918 :2010, Clause 3, apply.
4 CPF 14: Overview of installation profiles
CPF 14 consists of two communication profiles as specified in IEC 61784-2.
The installation requirements for CP 14/1 and CP 14/2 (EPA) are specified in Annex A.
5 Installation profile conventions
The numbering of the clauses and subclauses in the annexes of this standard corresponds to
the numbering of IEC 61918 main clauses and subclauses.
The annex clauses and subclauses of this standard supplement, modify, or replace the
respective clauses and subclauses in IEC 61918.
Where there is no corresponding subclause of IEC 61918in the normative annexes in this
standard, the subclause of IEC 61918 applies without modification.
———————
EPA is the technology name of the CPF14. EPA is the trade name of Zhejiang SUPCON Technology Group Co.
Ltd, China. This information is given for the convenience of users of this International Standard and does not
constitute an endorsement by IEC of the trademark holder or any of its products. Compliance to this profile
does not require use of the trade name. Use of the trade name requires permission of the trade name holder.

– 8 – 61784-5-14  IEC:2010
The annex heading letter represents the installation profile assigned in Clause 4. The annex
(sub)clause numbering following the annex letter shall represent the corresponding
(sub)clause numbering of IEC 61918.
EXAMPLE “Annex B.4.4” in IEC 61784-5-3 means that CP 3/2 specifies the Subclause 4.4 of IEC 61918.
All main clauses of IEC 61918 are cited and apply in full unless otherwise stated in each
normative installation profile annex.
If all subclauses of a (sub)clause are omitted, then the corresponding IEC 61918 (sub)clause
applies.
If in a (sub)clause it is written “Not applicable”, then the corresponding IEC 61918 (sub)clause
does not apply.
If in a (sub)clause it is written “Addition:”, then the corresponding IEC 61918 (sub)clause
applies with the additions written in the profile.
If in a (sub)clause it is written “Replacement:”, then the text provided in the profile replaces
the text of the corresponding IEC 61918 (sub)clause.
NOTE A replacement can also comprise additions.
If in a (sub)clause it is written “Modification:”, then the corresponding IEC 61918 (sub)clause
applies with the modifications written in the profile.
If all (sub)clauses of a (sub)clause are omitted but in this (sub)clause it is written
“(Sub)clause x has addition:” (or “replacement:”) or “(Sub)clause x is not applicable.”, then
(sub)clause x becomes valid as declared and all the other corresponding
IEC 61918 (sub)clauses apply.
6 Conformance to installation profiles
Each installation profile within this standard includes part of IEC 61918:2010. It may also
include defined additional specifications.
as either
A statement of compliance to an installation profile of this standard shall be stated
Compliance to IEC 61784-5-14:2010 for CP 14/m or
Compliance to IEC 61784-5-14 (Ed.1.0) for CP 14/m
where the name within the angle brackets < > is optional and the angle brackets are not to be
included. The m within CP 14/m shall be replaced by the profile number 1 to 2.
NOTE The name may be the name of the profile, for example EPA.
If the name is a trade name then the permission of the trade name holder shall be required.
Product standards shall not include any conformity assessment aspects (including quality
management provisions), neither normative nor informative, other than provisions for product
testing (evaluation and examination).
———————
In accordance with ISO/IEC Directives
The date should not be used when the edition number is used.

61784-5-14  IEC:2010 – 9 –
Annex A
(normative)
CP 14/1 and 14/2 (EPA) specific installation profile

A.1 Installation profile scope
Addition:
This standard specifies the installation profile for Communication Profile CP 14/1 and CP 14/2
(EPA). The CP 14/1 and CP 14/2 are specified in IEC 61784-2.
A.2 Normative references
A.3 Installation profile terms, definitions, and abbreviated terms
A.3.1 Terms and definitions
A.3.2 Abbreviated terms
A.3.3 Conventions for installation profiles
Not applicable.
A.4 Installation planning
A.4.1 Introduction
A.4.1.1 Objective
A.4.1.2 Cabling in industrial premises
A.4.1.3 The planning process
A.4.1.4 Specific requirements for CPs
Not applicable.
A.4.1.5 Specific requirements for generic cabling in accordance with ISO/IEC 24702
A.4.2 Planning requirements
A.4.2.1 Safety
A.4.2.1.1 General
A.4.2.1.2 Electric safety
A.4.2.1.3 Functional safety
A.4.2.1.4 Intrinsic safety
Addition:
Intrinsic safety functionality may be required for the devices mounted in the area with
flammable gases or fuels according to the relevant national, or local regulations.

– 10 – 61784-5-14  IEC:2010
Power Operator PC
EPA Bridge
Switch
Safe area
Safety Barrier
Dangerous area
Switch
Intrinsic
safety
device
Switch
Intrinsic
safety
device
Intrinsic
safety
device
Figure A.1 – Example of EPA explosion-proof system
For example (see Figure A.1), among EPA explosion-proof systems, switches are in
explosion-proof field boxes, and field devices are intrinsically safe. In intrinsic safety system,
each intrinsically safe device should be connected with three safety barriers. Two of them are
connected with the sending signal pairs (TX+/TX-) and the receiving signal pairs (RX+/RX-),
and the other one is connected with the power supply. Power cable to explosion-proof field
box should be protected by flexible pipes.
Intrinsic safety devices shall be connected to the normal devices in a safe area through a
safety barrier. Either zener safety barriers or isolated safety barriers can be used.
If zener safety barriers are used, the safety barrier and the intrinsic safety device shall be
both connected to intrinsic safety earth, so that the voltage on the cable can be safely
restricted. The intrinsic safety earth can be the same as the functional earth of the devices.

61784-5-14  IEC:2010 – 11 –
Dangerous area Safe area
Intrinsic Zener Device in
safety safety safe area
device barrier
intrinsic safety earth
Figure A.2 – Earth of zener safety barrier
If isolated safety barriers are used, the barriers do not need to be earthed. The intrinsic safety
device may be earthed or not, which is up to the functional request.
Dangerous area Safe area
Intrinsic isolated Device in
safety safety safe area
device barrier
Figure A.3 – Earth of zener safety barrier
A.4.2.1.5 Safety of optical fibre communication systems
A.4.2.2 Security
Addition:
EPA security boundary devices contain an EPA bridge and EPA devices.
Messages from monitor layer to field device should be checked by EPA bridge. EPA bridge
should check the type of protocol, source IP address, source MAC address, destination IP
address, destination MAC address, link object, and password etc.
A.4.2.3 Environmental considerations and EMC

– 12 – 61784-5-14  IEC:2010
A.4.2.4 Specific requirements for generic cabling in accordance with ISO/IEC 24702
A.4.3 Network capabilities
A.4.3.1 Network topology
A.4.3.1.1 Common description
A.4.3.1.2 Basic physical topologies for passive networks
A.4.3.1.3 Basic physical topologies for active networks
A.4.3.1.4 Combination of basic topologies
A.4.3.1.5 Specific requirements for CPs
Not applicable.
A.4.3.1.6 Specific requirements for generic cabling in accordance with
ISO/IEC 24702
A.4.3.2 Network characteristics
A.4.3.2.1 General
A.4.3.2.2 Network characteristics for balanced cabling not based on Ethernet
Not applicable.
A.4.3.2.3 Network characteristics for balanced cabling based on Ethernet
Replacement: Table A.1 provides values based on the template given in IEC 61918:2010,
Table 2.
Table A.1 – Network characteristics for balanced cabling based on Ethernet
Characteristic CP 14/1 CP 14/2
Supported data rates (Mbit/s) 10, 100, 1 000 d
10, 100, 1 000
b 100 100
Supported channel length (m)
a b 4 4
Number of connections in the channel (max.)
a See IEC 61918:2010, See
Patch cord length (m)
Clause 4 and IEC 61918:2010,
ISO/IEC 24702 Clause 4 and
ISO/IEC 24702
b D D
Channel class per ISO/IEC 24702 (min.)
c 5 5
Cable category per ISO/IEC 24702 (min.)
Connecting HW category per ISO/IEC 24702 (min.) 5 5
Cable types No requirement No requirement
a
See 4.4.3.2.
b
For the purpose of this table, the channel class definitions of ISO/IEC 24702 are applicable.
c
For additional information see IEC 61156 series.
d
If system needs power over Ethernet or Intrinsic safety,1 000 Mbit/s data rate should not be
used.
61784-5-14  IEC:2010 – 13 –
A.4.3.2.4 Network characteristics for optical fibre cabling
Replacement: Table A.2 provides values based on the template given in IEC 61918:2010,
Table 3.
Table A.2 – Network characteristics for optical fibre cabling
CP 14/1 and CP14/2
Single mode silica Standard IEC 60793-2-50; Type B1

Attenuation coefficient at 1 310 nm
≤ 1,0 dB/km
Attenuation coefficient at 1 550 nm
≤ 1,0 dB/km
Modal bandwidth (MHz × km) at 1 310 nm
Alternative description
9.10
Core diameter (µm)
Outer diameter (µm) 125
Minimum length (m) 0 for 1 310 nm
0 for 1 550 nm
Maximum length (km)
≥ 2 for 1 310 nm
≥ 2 for 1 550 nm
Multi mode silica Standard IEC 60793-2-10; Type A1a

Attenuation coefficient at 850 nm 3,5 dB/km
Attenuation coefficient at 1 310 nm 1,5 dB/km
Modal bandwidth (MHz × km) at 850 nm 600 MHz × km
Modal bandwidth (MHz × km) at 1 310 nm 800 MHz × km
Alternative description
Core diameter (µm)
Outer diameter (µm) 125
NA
0,2±0,015
Minimum length (m) 0
Maximum length (m)
≥ 550 m for 850 nm
≥ 550 m for 1 300 nm
Multi mode silica Standard IEC 60793-2-10; Type A1b

Attenuation coefficient at 850 nm 3,5 dB/km
Attenuation coefficient at 1 310 nm 1,5 dB/km
Modal bandwidth (MHz × km) At 850 nm 250 MHz × km
Modal bandwidth (MHz × km) at 1 310 nm 500 MHz × km
Alternative description
62,5
Core diameter (µm)
Outer diameter (µm) 125
NA
0,275±0,015
Minimum length (m) 0
Maximum length (m)
≥ 275 m for 850 nm
≥ 550 m for 1 300 nm
POF Standard IEC 60793-2-40; Type A4a.2
Nominal transmission wavelength (nm) 650
Attenuation coefficient at λ(dB/km) ≤ 160

– 14 – 61784-5-14  IEC:2010
CP 14/1 and CP14/2
Modal bandwidth (MHz × km) at λ 35 MHz × 100m
Alternative description
Core diameter (µm) 980
Cladding diameter (µm) 1000
NA 0,5 ± 0,03
Minimum length (m) 0
Maximum length (m) 50
Plastic clad silica Standard IEC 60793-2-30; Type A3c
Nominal transmission wavelength (nm) 650
Attenuation coefficient at λ(dB/km) ≤ 10
Modal bandwidth (MHz × km) at λ
Alternative description
Core diameter (µm) 200
Cladding diameter (µm) 230
NA
0,37 ± 0,04
Minimum length (m) 0
Maximum length (m) 100
A.4.3.2.5 Specific network characteristics
Replacement:
The power supply placement and voltage adjustment shall be determined by the planner
based on the network loading requirements. Power with Ethernet is ranging from 22,8 Vdc to
35 Vdc. The minimum operating voltage for the devices is 18 V. The voltage drop is
dependant on two parameters, the DCR of the cabling and the device current requirements.
The current in any cable is limited to 0,2 A. If any device needs current over 0,2 A, another
power supply should be used.
Connector Connector
3 1
RX
6 2
1 3
TX
2 6
4 4
5 5
Power
Power
Receiving
Supply
7 7
8 8
Figure A.4 – Example of power with Ethernet

61784-5-14  IEC:2010 – 15 –
Connector Connector
3 1
TX
6 2
1 3
RX
2 6
4 4
5 5 Power
Power
Supply Receiving
7 7
8 8
Power
Supply
Figure A.5 – Example of power supply over 0,2 A
Table A.3 – Information relevant to copper cable
Signal name Description
L 22,8 Vdc to 35 Vdc, Main power supply
N 0 Vdc, Main power supply
L 22,8 Vdc to 35 Vdc, Redundant or switched power
supply
N 0 Vdc, Redundant or switched power supply
A.4.3.2.6 Specific requirements for generic cabling in accordance with
ISO/IEC 24702
A.4.4 Selection and use of cabling components
A.4.4.1 Cable selection
A.4.4.1.1 Common description
A.4.4.1.2 Copper cables
A.4.4.1.2.1 Balanced cables for Ethernet based CPs
Replacement: Table A.4 provides values based on the template given in IEC 61918:2010,
Table 4.
– 16 – 61784-5-14  IEC:2010
Table A.4 – Information relevant to copper cable: fixed cables
Characteristic CP 14/1 CP14/2
Nominal impedance of cable (tolerance) 100 Ω ± 15 Ω 100 Ω ± 15 Ω
DCR of conductors
< 9,38 Ω /100 m < 9,38 Ω /100 m
DCR of shield Not defined Not defined
Number of conductors 8 8
Shielding Unshielded U/UTP, shielded SF/UTP or S/FTP
SF/UTP or S/FTP
Colour code for conductor WH/OG, OG, WH/GN, BU, WH/OG, OG, WH/GN, BU,
WH/BU, GN, WH/BN, BN WH/BU, GN, WH/BN, BN
Jacket colour requirements No requirement No requirement
Jacket material No requirement No requirement
Resistance to harsh environment (e.g. No requirement No requirement
UV, oil resist, LS0H)
Agency ratings No requirement No requirement
Transfer impedance
50 mΩ /m @ 10MHz 50 mΩ /m @ 10MHz

Replacement: Table A.5 provides values based on the template given in IEC 61918:2010,
Table 5.
Table A.5 – Information relevant to copper cable: cords
Characteristic CP 14/1 CP14/2
Nominal impedance of cable (tolerance)
100 Ω ± 15 Ω 100 Ω ± 15 Ω
DCR of conductors
< 9,38 Ω /100 m < 9,38 Ω /100 m
DCR of shield Not defined Not defined
Number of conductors 4, 6 or 8 4, 6 or 8
Shielding Unshielded U/UTP, shielded SF/UTP or S/FTP
SF/UTP or S/FTP
Colour code for conductor 2 pairs: 2 pairs:
WH/OG, OC, WH/GN, GN WH/OG, OC, WH/GN, GN
3 pairs: 3 pairs:
WH/OG, OG, WH/GN, GN, WH/OG, OG, WH/GN, GN,
BU, BN BU, BN
4 pairs: 4 pairs:
WH/OG, OG, WH/GN, BU, WH/OG, OG, WH/GN, BU,
WH/BU, GN, WH/BN, BN WH/BU, GN, WH/BN, BN
Jacket colour requirements No requirement No requirement
Jacket material No requirement No requirement
Resistance to harsh environment (e.g. No requirement No requirement
UV, oil resist, LS0H)
Agency ratings No requirement No requirement
Transfer impedance
50 mΩ /m @ 10MHz 50 mΩ /m @ 10MHz

A.4.4.1.2.2 Copper cables for non Ethernet based CPs
Not applicable.
61784-5-14  IEC:2010 – 17 –
A.4.4.1.3 Cables for wireless installation
A.4.4.1.4 Optical fibre cables
Replacement: Table A.6 provides values based on the template given in IEC 61918:2010,
Table 6.
Table A.6 – Information relevant to optical fibre cables
Characteristic 9.10/125 µm 50/125 µm 62,5/125 µm 980/1 000 µm 200/230 µm
single mode multimode multimode step index step index hard
silica silica silica POF clad silica
Attenuation per km (650 – – – ≤160 dB/km ≤10 dB/km
nm)
Attenuation per km (820 – 3,5 dB/km 3,5 dB/km – –
nm)
Attenuation per km (1 310 1,0 dB/km 1,5 dB/km 1,5 dB/km – –
nm)
Number of optical fibres 2 2 2 2 2
Connector type (e.g. duplex SC duplex ， SC duplex ， SC duplex ， SC duplex SC duplex
or simplex)
SC-RJ SC-RJ SC-RJ SC-RJ SC-RJ
FC duplex FC duplex FC duplex
LC duplex LC duplex LC duplex
ST simplex ST simplex ST simplex
Jacket colour requirements YE GN OG BL RD
Jacket material No requirement No No No No requirement
requirement requirement requirement
Resistance to harsh No requirement No No No No requirement
environment (e.g. UV, oil requirement requirement requirement
resist, LS0H)
Breakout (Y/N) Yes Yes Yes Yes Yes

A.4.4.1.5 Special purpose balanced and optical fibre cables
A.4.4.1.6 Specific requirements for CPs
Not applicable.
A.4.4.1.7 Specific requirements for generic cabling in accordance with
ISO/IEC 24702
A.4.4.2 Connecting hardware selection
A.4.4.2.1 Common description
A.4.4.2.2 Connecting hardware for balanced cabling CPs based on Ethernet
Replacement: Table A.7 provides values based on the template given in IEC 61918:2010,
Table 7.
– 18 – 61784-5-14  IEC:2010
Table A.7 – Connectors for balanced cabling CPs based on Ethernet
IEC PAS
IEC 60603-7-x IEC 61076-3-106 IEC 61076-3-117
IEC 61076-2- 61076-2-
a b b
101 109
M12-4 with M12-8 for
(shielded) (unshielded) Variant 1 Variant 6 Variant 14 D-coding 500 MHz
CP Yes Yes No No Yes Yes Yes
14/1
CP Yes No  Yes Yes Yes
14/2
a
For IEC 60603-7-x, the connector selection is based on the desired channel performance.
b
Housings to protect connectors.

A.4.4.2.3 Connecting hardware for copper cabling CPs not based on Ethernet
Not applicable.
A.4.4.2.4 Connecting hardware for wireless installation
A.4.4.2.5 Connecting hardware for optical fibre cabling
Replacement: Table A.8 provides values based on the template given in IEC 61918:2010,
Table 9.
Table A.8 – Optical fibre connecting hardware

IEC 61754-2 IEC 61754-4 IEC 61754-24 IEC 61754-20 IEC 61754-22 IEC 61754-24-11

IP67 Sealed
SC SC-RJ LC F-SMA SC-RJ Duplex
BFOC/2,5
connector
CP
14/1
a
Yes Yes Yes No Yes
Yes
CP
14/2
NOTE IEC 61754 series defines the optical fibre connector mechanical interfaces; performance
specifications for optical fibre connectors terminated to specific fibre types are standardised in the
IEC 61753 series.
a
The LC duplex connector shall only be used in a environment according to M1I1C1Ex See Clause 4.2.3 of
IEC 61918:2010 for further guidance.

Replacement: Table A.9 provides values based on the template given in IEC 61918:2010,
Table 10.
61784-5-14  IEC:2010 – 19 –
Table A.9 – Relationship between FOC and fibre types (CP 14/1 and CP 14/2)

Fibre type
9.10/125 50/125 µm 62,5/125 µm 980/1 000 µm 200/230 µm Others
µm single multimode multimode step index step index
mode silica silica POF hard clad
silica silica
BFOC/2,5 Yes Yes Yes – – –
SC Yes Yes Yes – – –
SC-RJ Yes Yes Yes Yes Yes –
LC Yes Yes Yes – – –
F-SMA – – – – – –
IP67 Yes Yes Yes Yes Yes –
Sealed
SC-RJ
A.4.4.2.6 Specific requirements for CPs
Additions:
Table A.10 and Table A.11 offer two kinds of connectors for optional internal connections
inside devices which can be used additionally to the connectors specified in Clause A.4.4.2.2.
The pitch of the open style connector shall be 3,81 mm or less. The usage of these
connectors may have significant detrimental effects on the network performance. Therefore,
their compatibility with the cabling system and equipment shall be considered before use.
Table A.10 – Specific connectors for balanced cabling based on Ethernet

IEC 60807-2
a
Open style connector
or
IEC 60807-3
Sub-D 4 Pin 6 Pin 8 Pin
CP14/1 Yes Yes Yes Yes
CP14/2
a The performance of these connections shall be considered by the user. Attention should especially be

paid to a proper shielding connection and to avoid untwist of the wire pairs.

Table A.11 – Requirements of sub-D and open style connector
Characteristic CP 14/1 and CP14/2
Return loss See ISO/IEC 11801
Insertion loss See ISO/IEC 11801
Near end crosstalk(NEXT) See ISO/IEC 11801
Power sum near end crosstalk(PS NEXT) See ISO/IEC 11801
Far end crosstalk(FEXT) See ISO/IEC 11801
Power sum far end crosstalk(PS FEXT) See ISO/IEC 11801
Maximum input to output resistance(mΩ)
Minimum current carrying capacity(A) 0,75
Propagation delay (ns) 2,5
Delay skew (ns) 1,25
Transverse conversion loss (TCL) See ISO/IEC 11801
Transfer impedance See ISO/IEC 11801

– 20 – 61784-5-14  IEC:2010
Characteristic CP 14/1 and CP14/2
Insulation resistance(MΩ)
Voltage proof See ISO/IEC 11801

A.4.4.2.7 Specific requirements for generic cabling in accordance with
ISO/IEC 24702
A.4.4.3 Connections within a channel/permanent link
A.4.4.3.1 Common description
A.4.4.3.2 Balanced cabling connections and splices for CPs based on Ethernet
A.4.4.3.3 Copper cabling connections and splices for CPs not based on Ethernet
Not applicable.
A.4.4.3.4 Optical fibre cabling connections and splices for CPs based on Ethernet
A.4.4.3.5 Optical fibre cabling connections and splices for CPs not based on
Ethernet
Not applicable.
A.4.4.3.6 Specific requirements for generic cabling in accordance with
ISO/IEC 24702
A.4.4.4 Terminators
Not applicable.
A.4.4.5 Device location and connection
A.4.4.5.1 Common description
A.4.4.5.2 Specific requirements for CPs
Not applicable.
A.4.4.5.3 Specific requirements for wireless installation
A.4.4.5.4 Specific requirements for generic cabling in accordance with
ISO/IEC 24702
A.4.4.6 Coding and labelling
A.4.4.6.1 Common description
A.4.4.6.2 Additional requirements for CPs
A.4.4.6.3 Specific requirements for CPs
Not applicable.
A.4.4.6.4 Specific requirements for generic cabling in accordance with
ISO/IEC 24702
A.4.4.7 Earthing and bonding of equipment and devices and shield cabling

61784-5-14  IEC:2010 – 21 –
A.4.4.7.1 Common description
A.4.4.7.2 Bonding and earthing of enclosures and pathways
A.4.4.7.3 Earthing methods
A.4.4.7.4 Shield earthing
A.4.4.7.5 Specific requirements for CPs
Not applicable.
A.4.4.7.6 Specific requirements for generic cabling in accordance with
ISO/IEC 24702
A.4.4.8 Storage and transportation of cables
A.4.4.9 Routing of cables
A.4.4.10 Separation of circuit
A.4.4.11 Mechanical protection of cabling components
A.4.4.11.1 Common description
A.4.4.11.2 Specific requirements for CPs
Not applicable.
A.4.4.11.3 Specific requirements for generic cabling in accordance with
ISO/IEC 24702
A.4.4.12 Installation in special areas
A.4.4.12.1 Common description
A.4.4.12.2 Specific requirements for CPs
Not applicable.
A.4.4.12.3 Specific requirements for generic cabling in accordance with
ISO/IEC 24702
A.4.5 Cabling planning documentation
A.4.5.1 Common description
A.4.5.2 Cabling planning documentation for CPs
A.4.5.3 Network certification documentation
A.4.5.4 Cabling planning documentation for generic cabling in accordance with
ISO/IEC 24702
A.4.6 Verification of cabling planning specification
A.5 Installation implementation
A.5.1 General requirements
A.5.2 Cable installation
A.5.2.1 General requirements for all cabling types

– 22 – 61784-5-14  IEC:2010
A.5.2.1.1 Storage and installation
A.5.2.1.2 Protecting communication cables against potential mechanical damage
Replacement: Table A.12 provides values based on the template given in IEC 61918:2010,
Table 18.
Table A.12 – Parameters for balanced cables
Characteristic Value
Minimum bending radius, single bending a
20 - 65
(mm)
Bending radius, multiple bending (mm) a
50 - 100
Mechanical
force
Pull forces (N) a
≤ 150
Permanent tensile forces (N) a
≤ 50
Maximum lateral forces (N/cm) -
Temperature range during installation (°C) -20 – +60
a
Depending on cable type: see manufacturer's data sheet.

Replacement: Table A.13 provides values based on the template given in IEC 61918:2010,
Table 19.
Table A.13 – Parameters for silica optical fibre cables
Characteristic Value
Minimum bending radius, single bending a
50 - 200
(mm)
Bending radius, multiple bending (mm) a
Mechanical
30 - 200
force
Pull forces (N) a
500 - 800
Permanent tensile forces (N) a
500 - 800
Maximum lateral forces (N/cm) a
300 - 500
Temperature range during installation (°C) -5 – +50
a
Depending on cable type: see manufacturer's data sheet

Replacement: Table A.14 provides values based on the template given in IEC 61918:2010,
Table 20.
61784-5-14  IEC:2010 – 23 –
Table A.14 – Parameters for POF optical fibre cables
Characteristic Value
Minimum bending radius, single bending a
30 - 100
(mm)
Bending radius, multiple bending (mm) a
50 - 150
Mechanical
force
Pull forces (N) a
50 - 100
Permanent tensile forces (N) Not allowed
Maximum lateral forces (N/cm) a
35 - 100
Temperature range during installation (°C) 0 – +50
a
Depending on cable type: see manufacturers data sheet.

Replacement: Table A.15 provides values based on the template given in IEC 61918:2010,
Table 21.
Table A.15 – Parameters for hard cladded silica optical fibre cables
Characteristic Value
Minimum bending radius, single bending a
75 - 200
(mm)
Bending radius, multiple bending (mm) a
75 - 200
Mechanical
force
Pull forces (N) a
100 - 800
Permanent tensile forces (N) a
≤ 100
Maximum lateral forces (N/cm) a
≤ 75 - 300
Temperature range during installation (°C) -5 – +50
a
Depending on cable type: see manufacturer's data sheet

A.5.2.1.3 Avoid forming loops
A.5.2.1.4 Torsion (twisting)
A.5.2.1.5 Tensile strength (on installed cables)
A.5.2.1.6 Bending radius
A.5.2.1.7 Pull force
A.5.2.1.8 Fitting strain relief
A.5.2.1.9 Installing cables in cabinet and enclosures
A.5.2.1.10 Installation on moving parts
A.5.2.1.11 Cable crush
A.5.2.1.12 Installation of continuous flexing cables
A.5.2.1.13 Additional instructions for the installation of optical fibre cables
A.5.2.2 Installation and routing
A.5.2.3 Specific cable installation requirements for CPs

– 24 – 61784-5-14  IEC:2010
