IEC 62952-3:2017

IEC 62952-3 ®
Edition 1.0 2017-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Power sources for a wireless communication device –
Part 3: Generic energy harvesting adapter module

Sources d’energie pour un appareil de communication sans fil –
Part 3: Module générique d'adaptateur de récupération d'énergie
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
65 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 62952-3 ®
Edition 1.0 2017-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Power sources for a wireless communication device –

Part 3: Generic energy harvesting adapter module

Sources d’energie pour un appareil de communication sans fil –

Part 3: Module générique d'adaptateur de récupération d'énergie

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.220.10; 33.040.40 ISBN 978-2-8322-4426-5

– 2 – IEC 62952-3:2017 © IEC 2017

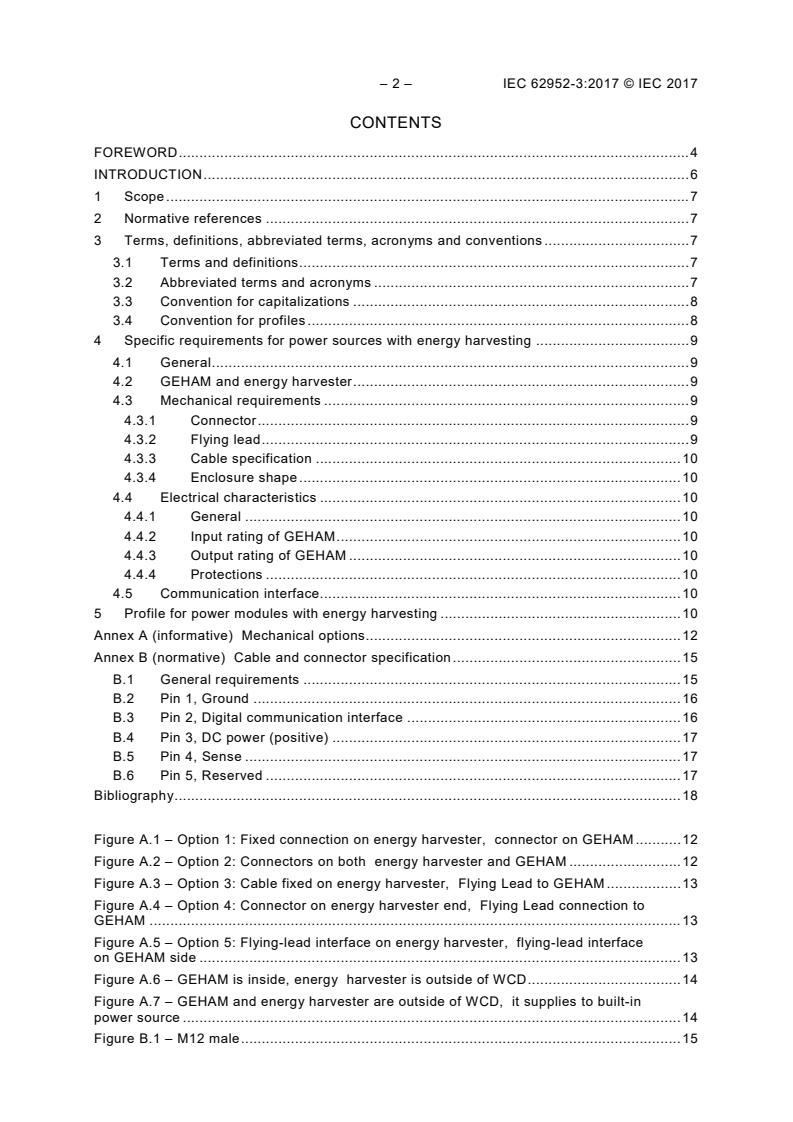

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms, definitions, abbreviated terms, acronyms and conventions . 7
3.1 Terms and definitions . 7
3.2 Abbreviated terms and acronyms . 7
3.3 Convention for capitalizations . 8
3.4 Convention for profiles . 8
4 Specific requirements for power sources with energy harvesting . 9
4.1 General . 9
4.2 GEHAM and energy harvester . 9
4.3 Mechanical requirements . 9
4.3.1 Connector . 9
4.3.2 Flying lead . 9
4.3.3 Cable specification . 10
4.3.4 Enclosure shape . 10
4.4 Electrical characteristics . 10
4.4.1 General . 10
4.4.2 Input rating of GEHAM . 10
4.4.3 Output rating of GEHAM . 10
4.4.4 Protections . 10
4.5 Communication interface. 10
5 Profile for power modules with energy harvesting . 10
Annex A (informative) Mechanical options. 12
Annex B (normative) Cable and connector specification . 15
B.1 General requirements . 15
B.2 Pin 1, Ground . 16
B.3 Pin 2, Digital communication interface . 16
B.4 Pin 3, DC power (positive) . 17
B.5 Pin 4, Sense . 17
B.6 Pin 5, Reserved . 17
Bibliography . 18

Figure A.1 – Option 1: Fixed connection on energy harvester, connector on GEHAM . 12
Figure A.2 – Option 2: Connectors on both energy harvester and GEHAM . 12
Figure A.3 – Option 3: Cable fixed on energy harvester, Flying Lead to GEHAM . 13
Figure A.4 – Option 4: Connector on energy harvester end, Flying Lead connection to
GEHAM . 13
Figure A.5 – Option 5: Flying-lead interface on energy harvester, flying-lead interface
on GEHAM side . 13
Figure A.6 – GEHAM is inside, energy harvester is outside of WCD . 14
Figure A.7 – GEHAM and energy harvester are outside of WCD, it supplies to built-in
power source . 14
Figure B.1 – M12 male . 15

Figure B.2 – M12 female . 16
Figure B.3 – Flying lead . 16

Table 1 – Layout of profile (sub)clause selection tables . 8
Table 2 – Contents of (sub)clause selection tables . 8
Table 3 – General power module profile selection . 11
Table 4 – Power Module Type C profile selection . 11

– 4 – IEC 62952-3:2017 © IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
POWER SOURCES FOR A WIRELESS COMMUNICATION DEVICE –

Part 3: Generic energy harvesting adapter module

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62952-3 has been prepared by subcommittee 65B: Measurement
and control devices, of IEC technical committee 65: Industrial process measurement, control
and automation. ISA-d100.18.01 provided the initial input.
This standard is to be used in conjunction with IEC 62952-1. Is it based on the first edition of
that standard (2016).
The text of this International Standard is based on the following documents:
FDIS Report on voting
65B/1080/FDIS 65B/1084/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts of the IEC 62952, under the general title Power sources for a wireless
communication device can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC 62952-3:2017 © IEC 2017
INTRODUCTION
This document deals with a power module based on energy harvesting. It provides one profile
of IEC 62952-1 and specifics for a generic energy harvesting adapter module (GEHAM) with a
backup battery (Type C). It does not specify a battery specification.

POWER SOURCES FOR A WIRELESS COMMUNICATION DEVICE –

Part 3: Generic energy harvesting adapter module

1 Scope
This part of IEC 62952 specifies requirements and a profile for a power source containing a
generic energy harvesting adapter module (GEHAM) used as power source for wireless
communication devices (WCD).
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60304, Standard colours for insulation for low-frequency cables and wires
IEC 61076-2-101, Connectors for electronic equipment – Product requirements – Part 2-101:
Circular connectors – Detail specification for M12 connectors with screw-locking
IEC 62952-1:2016, Power sources for a wireless communication device – Part 1: General
requirements of power modules
3 Terms, definitions, abbreviated terms, acronyms and conventions
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 62952-1 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1.1
energy harvesting
process by which energy is derived from external sources (e.g., solar power, thermal energy,
wind energy, salinity gradients and kinetic energy), captured, and stored
3.1.2
energy storage capacitor
power capacitor intended to store energy and to release it within a very short time
[SOURCE: IEC 60050-436:1990, 436-02-08]
3.2 Abbreviated terms and acronyms
For the purposes of this document, the abbreviated terms and acronyms given in IEC 62952-1
apply.
– 8 – IEC 62952-3:2017 © IEC 2017
3.3 Convention for capitalizations
Capitalized terms are either based on the rules given in the ISO/IEC Directives Part 2 or
emphasize that these terms have a specific meaning throughout this series of IEC 62952.
3.4 Convention for profiles
The profile is a selection of (sub)clause of one or more documents defined in tables, as
shown in Table 1 and
Table 2. The selected base specifications are indicated just before the selection table(s).
Selection is done at the highest (sub)clause level possible to define the profile selection
unambiguously.
Table 1 – Layout of profile (sub)clause selection tables
Clause Header Presence Constraints

Table 2 – Contents of (sub)clause selection tables
Column Text Meaning
Clause <#> (Sub)clause number of the base specifications
Next clauses Any following clauses up to the last clause of the base specification
Next annexes Any following annexes up to the last annex of the base specification
Header (sub)clause title of the base specifications
Presence NO This (sub)clause is not included in the profile
YES This (sub)clause is fully (100 %) included in the profile
In this case no further detail is given
— Presence is defined in the following subclauses
Partial Parts of this (sub)clause is included in the profile
Constraints See <#> Constraints/remarks are defined in the given subclause, table or figure of this
profile document
— No constraints other than given in the reference document (sub)clause,
or not applicable
The text defines the constraint directly; for longer text, table footnotes or table
notes may be used
If sequences of (sub)clauses do not match the profile, then the numbers are concatenated.
EXAMPLE 1 concatenated subclauses
3.4 – 3.7 — NO —
EXAMPLE 2 concatenated clauses up to the last clause
Next clauses — NO —
EXAMPLE 3 concatenated annexes up to the last annex
Next annexes — NO —
4 Specific requirements for power sources with energy harvesting
4.1 General
IEC 62952-1:2016, Figure 1 shows the possible various types of power modules that can be
used as a power source within a WCD system level and architecture description.
Power modules are elements for WCD to provide power or supplementary power to the WCD.
4.2 GEHAM and energy harvester
Power Module Type C shall consist of GEHAM and energy harvester.
Annex A provides implementation options how the power source can be designed with the
energy harvester and GEHAM as separated or integrated elements.
GEHAM accommodates the following functions.
• GEHAM shall provide the necessary mechanical interface between the energy harvester
and WCD.
• GEHAM should include any power conditioning such as rectification and voltage control to
ensure that the GEHAM output conforms to this standard.
• GEHAM should provide the power management necessary to ensure that power is stored
in a suitable energy storage capacitor or secondary battery.
• GEHAM shall supply energy at a suitable voltage to WCD.
• GEHAM may include batteries (primary or secondary) as backup in case power from the
energy harvester is insufficient.
• GEHAM should ensure that power is used preferentially from the energy harvester before
using power from the backup batteries included in the GEHAM.
• When the energy harvester supplies voltage above the nominal voltage then the GEHAM
can provide intermediate energy storage capacity that is sufficient to power the device
during high-power cycles.
4.3 Mechanical requirements
4.3.1 Connector
Connection shall be downward compatible with respect to capability of connector options (2, 3,
4, 5-pin options).
Example
If a 2-pin male connector is plugged into a 4-pin female cable end between the energy harvester and GEHAM, the
connection shall work without the additional capability/information provided on the pins not connected.
In cases where a connector is used, IEC 61076-2-101 M12 A-Coded connectors shall be used.
Male connectors shall be on both devices, and cable ends shall be female on both ends.
4.3.2 Flying lead
This document shall accommodate flying lead on either end, connecting to a terminal strip or
similar on either or both devices.
If a flying lead is used to connect to the GEHAM/WCD, then the terminals shall be clearly
labeled with text, for example with + and –.

– 10 – IEC 62952-3:2017 © IEC 2017
4.3.3 Cable specification
Cable colors shall be compliant with IEC 60304. In case of a flying lead connection, the cable
shall be between 5 mm and 10 mm in nominal outside diameter.
Wire shall be between 0,3 mm and 1,3 mm in nominal diameter depending on the conductors
in the cable.
4.3.4 Enclosure shape
Enclosed type GEHAMs provide additional mechanical protection through having to fit inside
the WCD similar to Type A and Type B defined in IEC 62952-1.
4.4 Electrical characteristics
4.4.1 General
GEHAM is an interface device between the energy harvester and the WCD. To ensure the
interchangeability, input and output rating of GEHAM shall be complied.
4.4.2 Input rating of GEHAM
Maximum input power (Pi) shall be restricted to the capabilities of the used cable and
connectors according to the regulations for electrical safety.
The maximum voltage (Vi) of the GEHAM shall be 30 V DC.
4.4.3 Output rating of GEHAM
The output voltage of GEHAM shall be DC, non-regulated and the ripple shall not exceed the
stated maximum output voltage.
The maximum output voltage provided may be 5 V DC (for a nominal single battery, 3,6 V
capacity) or 10 V DC (for a nominal dual battery, 7,2 V capacity).
The GEHAM shall be clearly labeled to identify whether it is 3,6 V or 7,2 V nominal.
4.4.4 Protections
It is recommended that WCD have over voltage input protection of >12 V DC for preventing
inadvertent connection of GEHAM.
It is recommended that GEHAM have over voltage input protection of > 30 V DC for
preventing inadvertent connection of harvester and disturbance as for example a surge.
This document does not override or replace the requirements of any hazardous area
certification.
4.5 Communication interface
Pin 2 (see Clause B.3) is available for digital communication interface to provide static and
dynamic information from an energy harvester.
5 Profile for power modules with energy harvesting
The general requirements for the power modules are specified in IEC 62952-1. Table 3
specifies general power module profile selection.

Table 4 specifies the Power Module Type C profile selection within IEC 62952-3.
Table 3 – General power module profile selection
Clause Header Presence Constraints
1 Scope YES —
2 Normative references YES —
3 Terms, definitions, abbreviated terms, acronyms YES —
and conventions
4 General requirements — —
4.1 General YES See also 4.1.
4.2 Compliance YES —
4.3 Design YES —
4.4 Logistics YES —
4.4.1 Storage and marking YES —
4.4.2 Maintenance YES —
4.4.3 Transportation in a plant YES —
4.4.4 Disposal YES —
4.5 Protection for explosive atmospheres YES Optional
4.6 Harsh environment YES Optional
4.7 Interchangeability — —
4.7.1 General YES —
4.7.2 Electrical interface YES —
4.7.3 Mechanical interface YES Subclause 4.3 shall also apply.
4.8 Electrical parameters YES The electrical interface between the
external harvester and the GEHAM
shall be according to 4.4.
Table 4 – Power Module Type C profile selection
Clause Header Presence Constraints
4 Specific requirements for power sources with
energy harvesting
4.1 General YES —
4.2 GEHAM and energy harvester YES —
4.3 Mechanical requirements Partial Depends on design, see Annex A.
4.3.1 Connector
4.3.2 Flying lead
4.3.3 Cable specification
4.3.4 Enclosure shape
4.4 Electrical characteristics YES —
4.4.1 General
4.4.2 Input rating of GEHAM
4.4.3 Output rating of GEHAM
4.4.4 Protections
4.5 Communication interface YES —

– 12 – IEC 62952-3:2017 © IEC 2017
Annex A
(informative)
Mechanical options
This Annex A accommodates a variety of connection options including connectors on either or
both ends of the cable connecting external power source to WCD or a flying lead connection
to either or both end. These options for internal GEHAMs are described in Annex A.
NOTE The order of the options is randomly depicted.
Figure A.1 describes Option 1: Fixed connection on energy harvester, connector on GEHAM
Cable gland
Cable
Energy
harvester GEHAM
M12 female
connector
Fixed / sealed
on cable M12 male
connection,
connector
user cannot
on GEHAM
remove cable
IEC
Figure A.1 – Option 1: Fixed connection on energy harvester,
connector on GEHAM
Figure A.2 describes Option 2: Connectors on both energy harvester and WSN.
M12 male
connector
on Power
Module
Cable
Energy
GEHAM
harvester
M12 female
connector
on cable
M12 male
connector
on GEHAM
IEC
Figure A.2 – Option 2: Connectors on both
energy harvester and GEHAM
Figure A.3 describes Option 3: Cable fixed on energy harvester, Flying Lead to GEHAM.
Cable gland
Terminal block
Energy
GEHAM
harvester
Cable
Fixed / sealed
Flying leads
connection,
(e.g. 3-lead
user cannot
interface)
remove cable
IEC
Figure A.3 – Option 3: Cable fixed on energy harvester,
Flying Lead to GEHAM
Figure A.4 describes Option 4: Connector on energy harvester end, Flying Lead connection to
GEHAM.
M12 male
connector
on Power
Module
Cable gland
Cable
Terminal block
Energy
GEHAM
harvester
M12
connecfemaleto r
on cable
Flying leads
(e.g. 3-lead
interface)
IEC
Figure A.4 – Option 4: Connector on energy harvester end,
Flying Lead connection to GEHAM
Figure A.5 describes Option 5: Flying-lead interface on energy harvester, flying-lead interface
on WCD side.
Cable gland
Terminal block Terminal block
Energy
GEHAM
harvester
Cable
Flying leads
(e.g. 3-lead
interface)
IEC
Figure A.5 – Option 5: Flying-lead interface on energy harvester,
flying-lead interface on GEHAM side

– 14 – IEC 62952-3:2017 © IEC 2017
Power Module Type C can be connected to WCD by 2 methods as follows.
• GEHAM can be mounted inside of a WCD, see Figure A.6. The connection between
GEHAM and energy harvester shall be connected with wires.
• GEHAM is outside of WCD, see Figure A.7. WCD encloses another power source in its
enclosure. The Power Module Type C (GEHAM and Energy Harvester) supplies its energy
to built-in power source.
Wireless
communication device
Energy
GEHAM
harvester
IEC
Figure A.6 – GEHAM is inside, energy
harvester is outside of WCD
Wireless
communication device
Energy
GEHAM Power source
harvester
IEC
Figure A.7 – GEHAM and energy harvester are outside of WCD,
it supplies to built-in power source
Optional architectural features:
• The option of multiple energy harvesters either through multiple connectors on the
GEHAM, or through a multiple input and single output hub, are allowed.
• The option of a power source internal to the WCD can be assisted by the external energy
harvester.
• The option of an energy storage capacitor in the power module or WCD is allowed.
NOTE These features are particularly used for storing sufficient energy from an energy harvester for a WCD duty
cycle.
Annex B
(normative)
Cable and connector specification
B.1 General requirements
Cabling between the external energy harvester, GEHAM and WCD cable and connector shall
be according to Figure B.1, Figure B.2 or Figure B.3.
NOTE Cells marked with a “—“ sign means not connected.

IEC 61076-2-101
M12 A-Coded Connector
Pole 2 poles 3 poles 4 poles 4 poles 5 poles
Pattern 2 ways 3 ways 3 ways 4 ways 5 ways
Pin assign
4 3 4 4 3
3 3
1 1 2
1 1 2 1 2
Pin # Signal
1 Ground Brown Brown Brown Brown Brown
2 Comm — — White White White
3 Power Blue Blue Blue Blue Blue
4 Sense — Black — Black Black
5 Reserved — — — — Grey
IEC
Figure B.1 – M12 male
– 16 – IEC 62952-3:2017 © IEC 2017
IEC 61076-2-101
M12 A-Coded Connector
Pole 2 poles 3 poles 4 poles 4 poles 5 poles
Pattern
2 ways 3 ways 3 ways 4 ways 5 ways
Pin assign
4 4
3 3 3 3 4
1 2 1 2 1 2 1
Pin # Signal
1 Ground Brown Brown Brown Brown Brown
2 Comm — — White White White
3 Power Blue Blue Blue Blue Blue
4 Sense — Black — Black Black
5 Reserved — — — — Grey
IEC
Figure B.2 – M12 female
Flying lead interface
Signal
2-way 3-way 3-way 4-way
v1 v2
Ground Brown Brown Brown Brown
Comm — — White White
Power Blue Blue Blue Blue
Sense — Black — Black
IEC
Figure B.3 – Flying lead
B.2 Pin 1, Ground
Pin 1 shall carry the ground signal (DC power negative). The cable color shall be brown. Pin 1
shall be Isolated from chassis.
Installation personnel of both devices power module Type C and WCD shall consider correct
method of grounding in each installing period.
B.3 Pin 2, Digital communication interface
Pin 2 shall carry the digital communication interface. The cable color shall be white.
Pin 2 may be left unconnected optionally.
If a 3 poles/3 way connection is used, then Pin 2 shall not be used.

If a 4 poles/3 way and 4 poles/4 way connection is used, then Pin 2 connection may be used.
A possible communication interface could be IEEE-1451.4, Class 2.
B.4 Pin 3, DC power (positive)
Pin 3 shall carry the positive DC power.
If a flying lead or M12 connector is used, the blue wire should be used. If any other scheme is
implemented, output wires shall be clearly labeled. The electrical characteristics shall be
according to 4.4.
B.5 Pin 4, Sense
Pin 4 shall carry the sense. The cable color shall be black.
If a 4 poles/3 way connection is used, then the Pin 4 shall not be used.
B.6 Pin 5, Reserved
Pin 5 shall be not connected. If a cable is used, then cable color shall be grey. The meaning
is reserved for future use.
– 18 – IEC 62952-3:2017 © IEC 2017
Bibliography
[1] IEC 60050-436:1990, International Electrotechnical Vocabulary – Chapter 436: Power
capacitors (available at [2] IEEE-1451.4, Digital interface for Transducer Electronic Data Sheet (TEDS) stored on
power module
