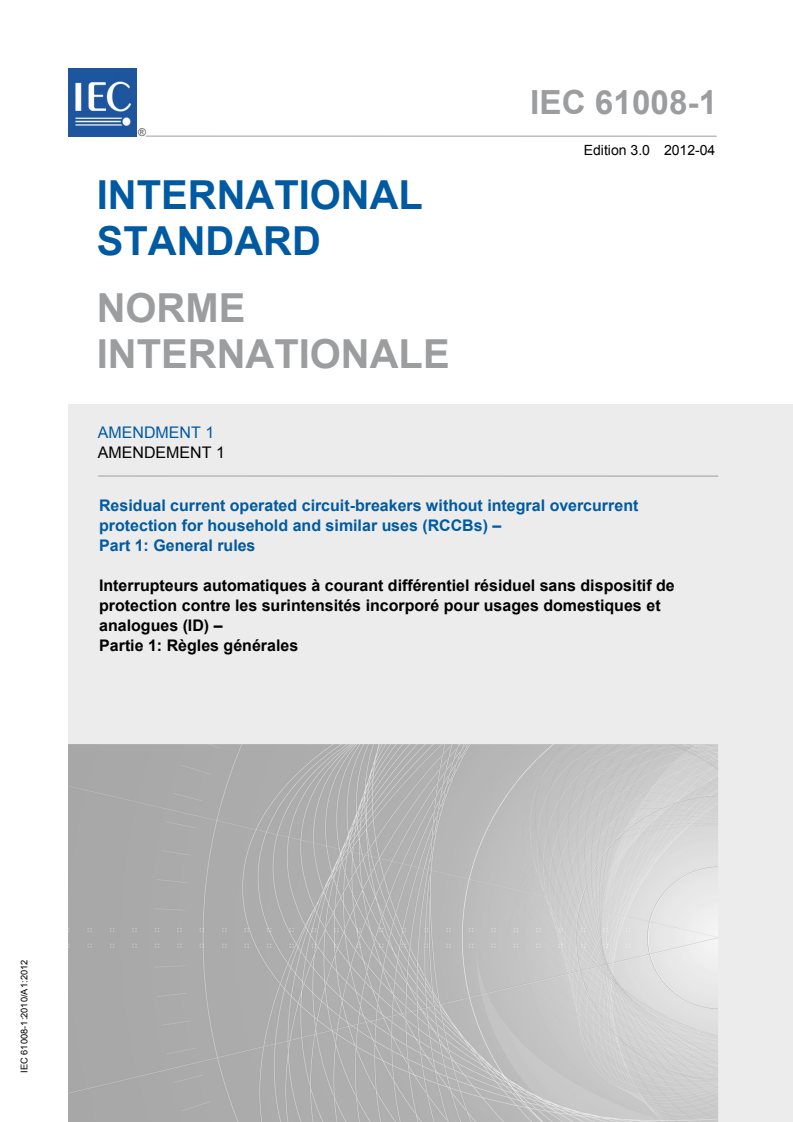

IEC 61008-1:2010/AMD1:2012

IEC 61008-1 ®
Edition 3.0 2012-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 1
AMENDEMENT 1
Residual current operated circuit-breakers without integral overcurrent
protection for household and similar uses (RCCBs) –
Part 1: General rules
Interrupteurs automatiques à courant différentiel résiduel sans dispositif de
protection contre les surintensités incorporé pour usages domestiques et
analogues (ID) –
Partie 1: Règles générales
IEC 61008-1:2010/A1:2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.

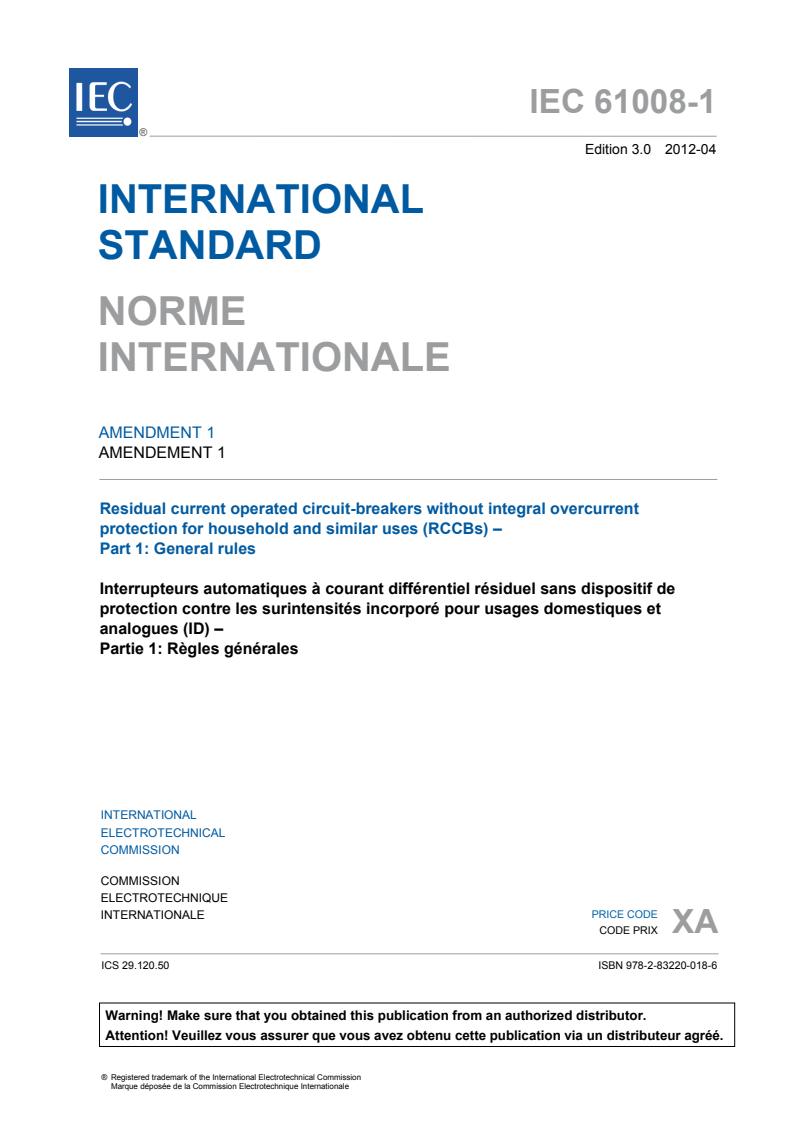

IEC 61008-1 ®
Edition 3.0 2012-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 1
AMENDEMENT 1
Residual current operated circuit-breakers without integral overcurrent

protection for household and similar uses (RCCBs) –

Part 1: General rules
Interrupteurs automatiques à courant différentiel résiduel sans dispositif de

protection contre les surintensités incorporé pour usages domestiques et

analogues (ID) –
Partie 1: Règles générales
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
XA
CODE PRIX
ICS 29.120.50 ISBN 978-2-83220-018-6

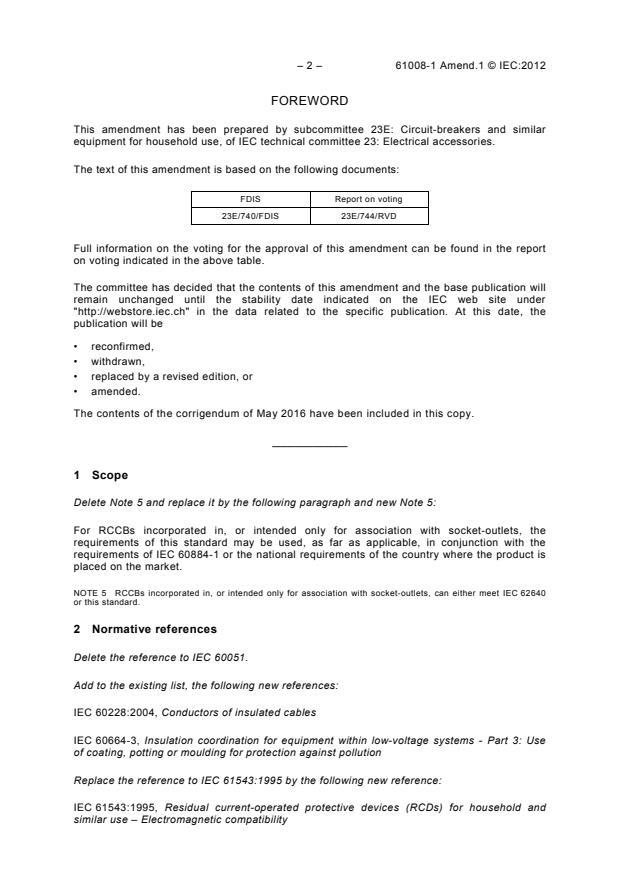

– 2 – 61008-1 Amend.1 © IEC:2012
FOREWORD
This amendment has been prepared by subcommittee 23E: Circuit-breakers and similar
equipment for household use, of IEC technical committee 23: Electrical accessories.
The text of this amendment is based on the following documents:
FDIS Report on voting
23E/740/FDIS 23E/744/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
The contents of the corrigendum of May 2016 have been included in this copy.
_____________
1 Scope
Delete Note 5 and replace it by the following paragraph and new Note 5:
For RCCBs incorporated in, or intended only for association with socket-outlets, the
requirements of this standard may be used, as far as applicable, in conjunction with the
requirements of IEC 60884-1 or the national requirements of the country where the product is
placed on the market.
NOTE 5 RCCBs incorporated in, or intended only for association with socket-outlets, can either meet IEC 62640
or this standard.
2 Normative references
Delete the reference to IEC 60051.
Add to the existing list, the following new references:
IEC 60228:2004, Conductors of insulated cables
IEC 60664-3, Insulation coordination for equipment within low-voltage systems - Part 3: Use
of coating, potting or moulding for protection against pollution
Replace the reference to IEC 61543:1995 by the following new reference:
IEC 61543:1995, Residual current-operated protective devices (RCDs) for household and
similar use – Electromagnetic compatibility

61008-1 Amend.1 © IEC:2012 – 3 –
Amendment 1(2004)
Amendment 2 (2005)
4.10 According to the method of connection
In this subclause, replace the existing text and note by the following:
– RCCBs, the electrical connections of which are not associated with the mechanical
mounting;
– RCCBs, the electrical connections of which are associated with the mechanical mounting.
NOTE Examples of this type are:
– plug-in type;
– bolt-on type;
– screw-in type.
Some RCCBs may be of the plug-in type or bolt-on type on the line side only, the load terminals being usually
suitable for wiring connection.
Add the following new subclause:
4.11 According to the type of terminals:
– RCCBs with screw-type terminals for external copper conductors;
– RCCBs with screwless type terminals for external copper conductors;
NOTE 1 The requirements for RCCBs equipped with this type of terminals are given in Annex J.
– RCCBs with flat quick-connect terminals for external copper conductors;
NOTE 2 The requirements for RCCBs equipped with these types of terminals are given in Annex K.
– RCCBs with screw-type terminals for external aluminium conductors;
NOTE 3 The requirements for RCCBs equipped with these types of terminals are under consideration.
Table 1 – Limit values of break time and non-actuating time for alternating residual
currents (r.m.s values) for type AC and A RCCB
Replace, in this Table, the word “non-operating” by “non-actuating”.
Table 3 – Rated impulse withstand voltage as a function of the nominal voltage of the
installation
Replace, in Note 2, "see Table 15" by "see Table 22".
Replace, in table footnote a), "(see Tables 5 and 15)" by "(see Tables 5 and 22)".
6 Marking and other product information
Replace the contents of item k) by the following:
k) the position of use, if necessary;
Replace in the twelfth paragraph after Note 1, the word “circuit” by “conductor”
Add the following text at the end of Clause 6:
For universal terminals (for rigid-solid, rigid-stranded and flexible conductors):
– no marking.
– 4 – 61008-1 Amend.1 © IEC:2012
For non-universal terminals:
– terminals declared for rigid-solid conductors only shall be marked by the letters “s” or
"sol";
– terminals declared for rigid (solid and stranded) conductors only shall be marked by the
letter "r".
The markings should appear on the RCCB or, if the space available is not sufficient, on the
smallest package unit or in technical information.
8.1.3 Clearances and creepage distances (see Annex B)
Replace the existing text of this subclause by the following:
The minimum required clearances and creepage distances are given in Table 5 which is
based on the RCCB being designed for operating in an environment with pollution degree 2.
Compliance for item 1 in Table 5 is checked by measurement and by the test of 9.7.7.4.1 and
9.7.7.4.2. The test is carried out with samples not submitted to the humidity treatment
described in 9.7.1.
The clearances of items 2, 4 and 5 may be reduced provided that the measured clearances
are not shorter than the minimum allowed in IEC 60664-1 for homogenous field conditions.
In this case, after the humidity treatment described in 9.7.1, compliance for items 2, 4 and 5
and arrangements of 9.7.2 items b), c), d) and e) is checked in the following order:
– Tests according to 9.7.2 to 9.7.6 as applicable,
– Test according to 9.7.7.2 is applied with test voltages given in Table 16 with test
arrangements of 9.7.2 items b), c), d), e).
If measurement does not show any reduced clearance, test in 9.7.7.2 is not applied.
Compliance for item 3 in Table 5 is checked by measurement.
NOTE 1 All measurements required in 8.1.3 are carried out in Test sequence A on one sample and the tests of
9.7.7.2 are carried out before 9.7.1 on three samples of Test sequence B.
Parts of PCBs connected to the live parts protected against pollution by the use of a type 2
protection according to IEC 60664-3 are exempt from this verification.
The insulating materials are classified into material groups on the basis of their comparative
tracking index (CTI) according to 4.8.1 of IEC 60664-1:2007.
NOTE 2 Information on the requirements for design of solid insulation and appropriate testing is provided in
IEC 60664-1:2007, 5.3 and 6.1.3.
NOTE 3 For clearances on printed wiring material, the following Note 3 Table F.2 in 60664-1:2007 can be used:
“For printed wiring material, the values for pollution degree 1 apply except that the value shall not be less than
0,04 mm, as specified in Table F.4.” For creepage distances on printed wiring material, distances in Table F.4 in
60664-1:2007 can be used if protected with a coating meeting IEC 60664-3 requirements and tests.
NOTE 4 The dimensioning of clearances and creepage distances for spacings equal to or less than 2 mm for
printed wiring board may be optimised under certain conditions in case of use of IEC 60664-5. Only humidity levels
HL2 and HL3 are considered.
Table 5 – Minimum clearances and creepage distances
Delete, in this table, point 5 in the first column and the existing Note 3.
e
by the following text:
Replace, in this table, the last sentence of the existing footnote

61008-1 Amend.1 © IEC:2012 – 5 –
When interpolating, linear interpolation shall be used and values shall be rounded to the same number of digits as
the values picked up from the tables. For determination of creepage distances, see Annex B.
8.1.4.4
In the subclause, replace the existing text by the following:
Current-carrying parts including parts intended for protective conductors, if any, shall be
made of a metal having, under the conditions occurring in the equipment, mechanical
strength, electrical conductivity and resistance to corrosion adequate for their intended use.
Examples of suitable materials are given below:
– copper;
– an alloy containing at least 58 % copper for parts worked cold, or at least 50 % copper for
other parts;
– other metal or suitably coated metal, no less resistant to corrosion than copper and having
mechanical properties no less suitable.
Replace the existing note of this subclause by the following text:
In case of using ferrous alloys or suitably coated ferrous alloys, compliance to resistance to
corrosion is checked by a test of resistance to rusting (9.25).
This correction applies to the French text only.

8.1.5.1
Delete the second paragraph and the note in this subclause.
Replace the contents of the last paragraph by the following:
Compliance is checked by inspection, by the tests of 9.5 for screw-type terminals, by specific
tests for plug-in or bolt-on RCCBs included in the standard, or by the tests of Annex J, K or L,
as relevant for the type of connection.
8.1.5.2
Replace the existing text and Table 6 by the following:
RCCBs shall be provided with:
– either terminals which shall allow the connection of copper conductors having nominal
cross sectional areas as shown in Table 6;
NOTE Examples of possible designs of screw-type terminals are given in Annex IC.
– or terminals for external untreated aluminium conductors and with aluminium screw-type
terminals for use with copper or with aluminium conductors according to Annex L.
Compliance is checked by inspection, by measurement and by fitting, in turn, one conductor
of the smallest and one of the largest cross-sectional area as specified.

– 6 – 61008-1 Amend.1 © IEC:2012
Table 6 – Connectable cross-sections of copper conductors for screw-type terminals
b
a) )
Rated current Range of nominal cross-section to be clamped
A mm
c
Rigid (solid or stranded )
Greater than Up to and including Flexible conductors
conductors
– 13 1 to 2,5 1 to 2,5
13 16 1 to 4 1 to 4
16 25 1,5 to 6 1,5 to 6
25 32 2,5 to 10 2,5 to 6
32 50 4 to 16 4 to 10
50 80 10 to 25 10 to 16
80 100 16 to 35 16 to 25
100 125 25 to 50 25 to 35
NOTE Information on AWG is given in Annex ID.
a)
A range of RCCBs having the same fundamental design and having the same design and construction of
terminals, the terminals are fitted with copper conductors of the smallest cross-section for the minimum rated
current and largest cross-section for the maximum rated current, as specified, solid and stranded, as
applicable.
b)
It is required that, for current ratings up to and including 50 A, terminals be designed to clamp solid
conductors as well as rigid stranded conductors. Nevertheless, it is permitted that terminals for conductors
2 2
having cross-sections from 1 mm up to 6 mm be designed to clamp solid conductors only.
c)
2 2
Rigid stranded conductors shall be used for conductors having cross-sections from 1,5 mm up to 50 mm
and shall be in compliance with class 2 of IEC 60228, related to stranded conductors for single-core.

8.3 Dielectric properties and isolating capability
Delete, in the last paragraph, the words “and 9.20”
Table 9 – List of type tests
Replace, in this table, the dashed item “Limiting values of the non-operating current under
overcurrent conditions” by the following new dashed item:
– Verification of limiting value of the non-operating current under overcurrent conditions
Delete, in this table, the dashed item “– Resistance of the insulation against an impulse
voltage”.
Add, in this table, at the end of the existing list, the following dashed item:
– Resistance to rusting
Add, in this table, at the end of the existing list, in the second column, the following subclause
corresponding to “Resistance to rusting”:
9.25
9.5 Test of reliability of terminals for external conductors
Replace the title of this subclause by the following:
9.5 Tests of reliability of screw-type terminals for external copper conductors
9.5.1
Replace the contents of this subclause by the following text:

61008-1 Amend.1 © IEC:2012 – 7 –
The terminals are fitted with copper conductors of the same type (solid, stranded or flexible)
of the smallest and largest cross-sections specified in Table 6.
The terminal shall be suitable for all types of conductors: rigid (solid or stranded) and flexible,
unless otherwise specified by the manufacturer.
Terminals shall be tested with the minimum and maximum cross-section of each type of
conductors on new terminals as follows:
– tests for solid conductors shall use conductors having cross-sections from 1 mm up to
6 mm , as applicable;
– tests for stranded conductors shall use conductors having cross-sections from 1,5 mm up
to 50 mm , as applicable;
– tests for flexible conductors shall use conductors having cross-sections from 1 mm up to
35 mm , as applicable.
NOTE Information on AWG is given in Annex ID.
The conductor is inserted into a new terminal for the minimum distance prescribed or, where
no distance is prescribed, until it just projects from the far side, and in the position most likely
to assist the wire to escape.
The clamping screws are then tightened with a torque equal to two-thirds of that shown in the
appropriate column of Table 11.
Each conductor is then subjected to a pull of the value, in newtons, shown in Table 12,
according to the relevant cross-section of the tested conductor.
The pull is applied without jerks, for 1 min, in the direction of the axis of the conductor space.
When it is necessary, the tested values, for the different cross-sections with the relevant
pulling force, shall be clearly indicated in the test report.
Table 12 – Pulling forces
Replace this table by the following new Table 12:

Cross-section of the 1 up to
Above 4 up Above 6 up Above 10 up Above 16 up
conductor inserted in the and
to and to and to and to and
terminal including
including 6 including 10 including 16 including 50
mm 4
Pull
50 60 80 90 100
N
9.5.3
Replace the first sentence of this subclause by the following:
The terminals are fitted with the largest cross-section area specified in Table 6, for stranded
and/or flexible copper conductor.
Delete Table 13
This correction applies to the French text only.

– 8 – 61008-1 Amend.1 © IEC:2012
This correction applies to the French text only.
9.7.1.4 Condition of the RCCB after the test
Replace the existing text by the following:
After this treatment, the sample shall show no damage within the meaning of this standard
and shall withstand the tests of 9.7.2, 9.7.3, 9.7.4, 9.7.6 and 9.7.7.2 (if applicable).
9.7.7.1 Verification of impulse withstand voltage across the open contacts
(suitability for isolation)
Replace the existing title and text of this subclause by the following:
9.7.7.1 General testing procedure for the impulse withstand voltage tests
The impulses are given by a generator producing positive and negative impulses having a
front time of 1,2 μs, and a time to half-value of 50 μs, the tolerances being as follows:
± 5 % for the peak value;
± 30 % for the front time;
± 20 % for the time to half-value.
For each test, five positive impulses and five negative impulses are applied. The interval
between consecutive impulses being at least 1 s for impulses of the same polarity and being
at least 10 s for impulses of the opposite polarity.
When performing the impulse voltage test on complete RCCB, the attenuation or amplification
of the test voltage shall be taken into account. It needs to be assured that the required value
of the test voltage is applied across the terminals of the equipment under test.
The internal impedance of the test apparatus shall have a nominal value not higher than 500
Ω.
NOTE 1 In 9.7.7.2, for the verification of clearances within the basic insulation, on complete RCCB, a very low
impedance of the generator is needed for the test. For this purpose, a hybrid generator with a virtual impedance of
2 Ω is appropriate if internal components are not disconnected before testing. However, in any case, a
measurement of the correct test voltage directly at the clearance is needed.
The shape of the impulses is adjusted with the RCCB under test connected to the impulse
generator. For this purpose, appropriate voltage dividers and voltage sensors shall be used. It
is recommended to disconnect surge protective components before testing.
NOTE 2 For RCCBs with incorporated surge arresters that cannot be disconnected, the shape of the impulses is
adjusted without connection of the RCCB to the impulse generator.
Small oscillations in the impulses are allowed, provided that their amplitude near the peak of
the impulse is less than 5 % of the peak value.
For oscillations on the first half of the front, amplitudes up to 10 % of the peak value are
allowed.
There shall be no disruptive discharge (sparkover, flashover or puncture) during the tests.
NOTE 3 It is recommended that an oscilloscope be used to observe the impulse voltage in order to detect
disruptive discharge.
9.7.7.2 Verification of impulse withstand voltage for the parts not tested in 9.7.7.1
Replace the existing title and text of this subclause by the following:

61008-1 Amend.1 © IEC:2012 – 9 –
9.7.7.2 Verification of clearances with the impulse withstand voltage
If the measurement of clearances of items 2 and 4 of Table 5 and arrangements given in 9.7.2
b), c) d) and e) shows a reduction of the required length this test applies. This test is carried
out immediately after the measurement of the insulation resistance in 9.7.4.
NOTE The measurement of the clearances can be replaced by this test.
The test is carried out on a RCCB fixed on a metal support and being in the closed position.
The test impulse voltage values shall be chosen in Table 16 in accordance with the rated
impulse withstand voltage of the RCCB as given in Table 3. These values are corrected for
barometric pressure and/or altitude at which the tests are carried out, according to Table 16.
A first series of tests is made applying the impulse voltage between:
– the phase pole(s) and the neutral pole (or path) connected together,
– and the metal support connected to the terminal(s) intended for the protective
conductor(s), if any.
A second series of tests is made applying the impulse voltage between:
– the phase pole(s), connected together,
– and the neutral pole (or path) of the RCCB, as applicable.
A third series of tests is made applying the impulse voltage between arrangements given in
9.7.2 b), c), d) and e) and not tested during the two first sequences described here above.
There shall be no disruptive discharge. If, however, only one such disruptive discharge
occurs, ten additional impulses having the same polarity as that which caused the disruptive
discharge are applied, the connections being the same as those with which the failure
occurred.
No further disruptive discharge shall occur.
Table 16 − Test voltage for verification of impulse withstand voltage for the parts not
tested in 9.7.7.1
Replace the title of this table by the following:
Table 16 − Test voltage for verification of impulse withstand voltage
9.7.7.3 Verification of leakage currents across open contacts (suitability for isolation)
Replace the first paragraph of this subclause by the following text:
Each pole of a RCCB having been submitted to one of the applicable tests of 9.11.2.2,
9.11.2.3, 9.11.2.4a), 9.11.2.4b) 9.11.2.4c) is supplied at a voltage 1,1 times its rated
operational voltage, the RCCB being in the open position.
Add the following new subclauses 9.7.7.4, 9.7.7.4.1, 9.7.7.4.2, 9.7.7.4.3 and 9.7.7.5:
9.7.7.4 Verification of resistance of the insulation of open contacts and basic
insulation against an impulse voltage in normal conditions
9.7.7.4.1 General
These tests are not preceded by the humidity treatment described in 9.7.1.

– 10 – 61008-1 Amend.1 © IEC:2012
NOTE The tests in 9.7.7.4, as stated in requirements of 8.1.3, will be carried out before 9.7.1 on three samples of
Test sequence B.
The test impulse voltage values shall be chosen from Table 22, in accordance with the rated
voltage of the installation for which the RCCB is intended to be used as given in Table 3.
These values are corrected for barometric pressure and/or altitude at which the tests are
carried out, according to Table 22.
Table 22 – Test voltage for verifying the suitability for isolation,
referred to the rated impulse withstand voltage of the RCCB
and the altitude where the test is carried out
Nominal voltage of the Test voltages at corresponding altitude
installation
U a.c. peak
1,2/50
V
kV
Sea level 200 m 500 m 1 000 m 2 000 m
Single-phase system
3,5 3,5 3,4 3,2 3,0
with mid-point earthed
a)
120/240
Single phase system
6,2 6,0 5,8 5,6 5,0
b)
120/240 240
Three-phase systems
6,2 6,0 5,8 5,6 5,0
230/400
a)
For installation practice in Japan.
b)
For installation practice in North American countries.

9.7.7.4.2 RCCB in opened position
The series of tests is carried out on a RCCB fixed on a metal support as in normal use.
The impulses are applied between:
– the line terminals connected together,
– and the load terminals connected together with the contacts in the open position.
There shall be no disruptive discharges during the test.
9.7.7.4.3 RCCB in closed position
The series of tests is carried out on a RCCB fixed on a metal support, wired as in normal use
and being in closed position.
All components bridging the basic insulation have to be disconnected.
NOTE If necessary, separate samples can be prepared by the manufacturer.
A first series of tests is made, the impulses being applied between:
– the phase pole(s) and the neutral pole (or path) connected together,
– and, the metal support connected to the terminal(s) intended for the protective
conductor(s), if any.
A second series of tests is made, the impulses being applied between:
– the phase pole(s), connected together
– and the neutral pole (or path) of the RCCB.

61008-1 Amend.1 © IEC:2012 – 11 –
There shall be no disruptive discharge. If, however, only one such disruptive discharge
occurs, ten additional impulses having the same polarity as that which caused the disruptive
discharge are applied, the connections being the same as those with which the failure
occurred.
No further disruptive discharge shall occur.
Afterwards, a new sample is tested according to 9.7.7.5.
9.7.7.5 Verification of the behaviour of components bridging the basic insulation
A new RCCB sample is tested in order to check that components bridging the basic insulation
would not reduce safety with respect to short term temporary overvoltages.
NOTE 1 Afterward, it is necessary to ensure that components, bridging the basic insulation and having been
disconnected during the impulse voltage test for testing the basic insulation, would not impair the behaviour or the
safety of the basic insulation of the equipment during normal use.
The test voltage has a frequency of 50 Hz/60 Hz. In accordance with IEC 60364-4-44:2007,
Table 44.A.2, and to IEC 60664-1, the r.m.s. value of the test voltage for the basic insulation
is 1 200 V + Uo . Uo being the nominal voltage value between line and neutral.
NOTE 2 This test is performed only on RCBOs, where components bridging the basic insulation have been
disconnected during the impulse voltage test of 9.7.7.4.3.
NOTE 3 As an example, for an RCCB having a rated voltage of U = 250 V, the value of the a.c. test voltage for
basic insulation is 1 200 V + 250 V, thus the r.m.s. test voltage is 1 450 V.
The voltage is applied during 5 s between:
– the phase pole(s) and the neutral pole (or path) connected together,
– and the metal support connected to the terminal(s) intended for the protective
conductor(s), if any.
The equipment is then visually inspected; no component bridging the basic insulation should
show a visible alteration.
NOTE 4 It is accepted to replace a fuse before connecting the equipment to the mains. If a fuse protecting a
surge arrester has blown, it is accepted to replace the surge arrester too.
Then, the equipment is connected to the mains in accordance with the manufacturer’s
instruction. Under the condition of 9.9.2.3, the RCCB shall trip with a test current of 1,25 I .
Δn
One test only is made on one pole, taken at random, without measurement of break time.
This test is not applied to devices with solid neutral.
9.9.1 Test circuit
Replace the last three paragraphs of this subclause by the following:
The instruments for the measurement of the residual current shall show (or permit to
determine) the true r.m.s. value.
NOTE The information for instrument measurement is available at the following CTL webserver:
http://www.iecee.org/ctl/sheet/pdf/CTL%20DSH%20251B%20Beijing%202009_05_15.pdf
For RCCBs having more than one rated frequency, the tests shall be carried out at the lowest
and highest frequency, except for test in 9.9.3 (Verification of the correct operation with load
at the reference temperature), where verification is performed at only one frequency.

– 12 – 61008-1 Amend.1 © IEC:2012
9.11.2.1 General conditions for test
a) Test circuit
Replace, in the existing item a) of this subclause, the words “Figures 8, 9, 10, 11 and 12” by
“Figures 7, 8 and 9”.
Replace the second paragraph of the existing item a) of this subclause by the following text:
The supply S feeds a circuit including impedance Z, the SCPD (if any) (see 3.4.8), the RCCB
under test (D), and the additional impedance Z1 and / or Z2, as applicable.
Replace, in the fourth paragraph of item a), the first sentence by the following text:
The reactors L shall be preferably air-cored.
This correction applies to the French text only.
Replace the contents of the fifth paragraph of item a) by the following text:
Since the transient recovery voltage characteristics of test circuits including large air-cored
reactors are not representative of normal service conditions, the air-cored reactor in any
phase shall be shunted by a resistor R taking approximately 0,6 % of the current through the
reactor (see Figure 9). This resistor may be omitted if agreed by the manufacturer.
Add the following text between the existing fifth and sixth paragraphs of item a):
If iron-core reactors are used, the iron-core power losses of these reactors shall not exceed
the losses that would be absorbed by the resistors connected in parallel with the air-cored
reactors.
Replace, in the existing sixth paragraph of item a) the words “the resistors R and reactors L
are inserted” by “the impedance L is inserted”.
Replace, in the existing seventh paragraph of item a), the words “the resistors R” by “the
impedance Z”.
Replace, in the existing eighth paragraph of item a), the words “The additional impedance Z
3”
The additional impedance Z
by “ 1”.
Add the words “under test” at the end of the existing Note 2.
Replace, in the fifth paragraph after the existing Note 3, the words “resistor R ” by “resistor
R ”.
Replace the existing sixth and seventh paragraphs after Note 3, before the two dashed items,
by the following text:
The voltage sensors are connected:
Replace, in the second paragraph of item e), the words “the resistors R and the reactors L are
adjusted” by “the impedance Z are adjusted”.
Replace, in the second paragraph of item e), the words “the current sensor O ” by “the current
sensor”.
Replace, in the third paragraph of item e), the word “Z ” by “Z ”.
61008-1 Amend.1 © IEC:2012 – 13 –
This correction applies to the French text only.
Replace, in the first paragraph after Note 6, the words “Figures 8 to 12” by “Figures 7 and 8”.
This correction applies to the French text only.
This correction applies to the French text only.
ii) Test in enclosures
This correction applies to the French text only.
Replace, in the existing Note 8, the words “in the appropriate Figures 8 to 12” by “in Figures 7
and 8”.
g) Sequence of operations
Replace, in the third paragraph of this item, the words “the switch T” by “the making switch T”.
Replace, in the fourth paragraph of this item, the words “the switch T” by “the making switch
T”.
h) Behaviour of the RCCB during tests
This correction applies to the French text only.

9.11.2.3 Verification of the rated residual making and breaking capacity (I ) of
Δm
RCCBs and their suitability for use in IT systems
a) Test conditions
Replace, in the second paragraph of this item, the words “the resistors R ” by “the
impedances Z .
1”
b) Test procedure
Replace, in the second paragraph of this item, the words “the auxiliary switch T” by “the
making switch T”.
c) Verification of the suitability in IT systems
Replace, in the second paragraph of this item, the words “in Figure 7” by “in Figure 8”.
Replace, in the fifth paragraph of this item, the words “the auxiliary switch T” by “the making
switch T”.
9.11.2.4 Verification of the coordination between the RCCB and the SCPD
Replace, in the sixth paragraph of this subclause, the words “the auxiliary switch T” by “the
making switch T”.
a) Verification of the coordination at the rated conditional short-circuit current (I )
nc
1) Test conditions
This correction applies to the French text only.

b) Verification of the coordination at the rated making and breaking capacity (I )
m
1) Test conditions
– 14 – 61008-1 Amend.1 © IEC:2012
This correction applies to the French text only.

9.14 Test of resistance to abnormal heat and to fire
Replace the text of the first paragraph of this subclause by the following:
The glow-wire test is performed on a complete RCCB in accordance with IEC 60695-2-10
under the following conditions:
From the fifth to the ninth paragraph, replace the contents by the following:
The test is made on three samples, points of application of glow wire test being different from
one sample to another one.
The glow wire cannot be applied directly to terminals area or arc chamber or magnetic tripping
device area, where the glow-wire cannot protrude far through the outer surface before
touching either relatively big metal parts or even ceramics, which will cool down the glow-wire
quickly and in addition limit the amount of insulating material ever getting in touch with the
glow-wire. In this situation, the parts ensure minimum severity of the test by cooling down the
glow-wire and limiting access to the insulating material under test.
The sample shall be positioned during the test in the most unfavourable position of its
intended use (with the surface tested in a vertical position).
If an internal part of insulation material influences the test with negative result, it is allowed to
remove the relevant identified internal part(s) of insulation material from a new sample. Then,
the glow wire test shall be repeated at the same place on this new sample.
In accordance with the manufacturer, it is acceptable as an alternative method to remove the
part under examination in its entirety and test it separately (see IEC 60695-2-11:2000, Clause
4).
9.19.1 Current surge test for all RCCBs (0,5 μs/100 kHz ring wave test)
In the last dashed item, add “reverse” between the words “successive” and “peak”.
9.20 Verification of resistance of the insulation against an impulse voltage
Replace the whole text of this subclause by “Void”.
Add, before Figure 1, the following new Subclause:
9.25 Test of resistance to rusting
All grease is removed from the parts to be tested by immersion in a cold chemical degreaser
such as methyl-chloroform or refined petrol, for 10 min. The parts are then immersed for
10 min in a 10 % solution of ammonium chloride in water at a temperature of (20 ± 5) °C.
Without drying, but after shaking off any drops, the parts are placed for 10 min in a box
containing air saturated with moisture at a temperature of (20 ± 5) °C.
After the parts have been dried for 10 min in a heating cabinet at a temperature of
(100 ± 5) °C, their surfaces shall show no signs of rust.
NOTE 1 Traces of rust on sharp edges and any yellowish film removable by rubbing are ignored.

61008-1 Amend.1 © IEC:2012 – 15 –
For small springs and the like and for inaccessible parts exposed to abrasion, a layer of
grease may provide sufficient protection against rusting. Such parts are only subjected to the
test if there is a doubt as to the effectiveness of the grease film, and in such a case the test is
made without previous removal of the grease.
NOTE 2 When using the liquid specified for the test, adequate precautions should be taken to prevent inhalation
of the vapour.
Before Figure 7, replace the title “Explanation of letter symbols used in Figures 7 to 12” by the
following:
Explanation of letter symbols used in Figures 7, 8 and 9
Replace the legend of the symbols by the following new legend and add the following new
notes:
N = Neutral conductor
S = Supply
R = Adjustable resistor(s)
Z = Impedance in each phase for the calibration of the rated conditional shor-circuit current. The
reactors shall preferably be air-cored and connected in series with resistors in order to obtain
the required power factor.
Z1 = Adjustable impedance to obtain current below the rated conditional short-circuit current
Z2 = Adjustable impedance for the calibration of I
Δ
D = Device under test
frame = All conductive parts normally earthed in service, including FE, if any
G = Temporary connection(s) for calibration
G = Connection(s) for the test with rated conditional short-circuit current
T = Making switch for the short circuit

I , I , I = Current sensor(s)
1 2 3
May be situated on the supply or on the load side of device under test, but always on the
secondary side of the transformer
I = Additional residual current sensor, if needed
Ur , Ur , Ur = Voltage sensor(s)
1 2 3
F = Device for the detection of a fault current

R = Resistance drawing a current of approximately 10A
R = Resistor limiting the current in the device F
r = Resistor(s) taking approximately 0,6 % of the current (see 9.12.2)
S = Auxiliary switch
B and C = Points for the connections of the grid(s) shown in Annex C
L = Adjustable air cored inductance(s)
P = Short circuit protective device
NOTE 1 The closing device T may alternatively be situated between the load side terminals of the device under
test and current sensors I , I and I as applicable.
1 2 3
NOTE 2 The voltage sensors Ur , Ur and Ur are connected between phase and neutral, as necessary.
1 2 3
NOTE 3 The adjustable load Z may be located at the high-voltage side of the supply circuit.
NOTE 4 Resistances R may be omitted with the agreement of the manufacturer.
– 16 – 61008-1 Amend.1 © IEC:2012
Figure 7 – Test circuit for the verification of the suitability of an RCCB for use in IT
systems
Replace Figure 7 by the following:

S
N
V
Z Z Z
R
R
F S
R
R Z
2 2
T
I
G G G
1 P 1 1
C B
U 1 U 2 U 3
r r r
Frame
D
G G G G
1 1 1 1
I I I
1 2 3
G G G
2 2 2
Z Z Z
1 1 1
IEC  487/12
Figure 7 – Typical diagram for all short circuit tests except for 9.11.2.3 c)

61008-1 Amend.1 © IEC:2012 – 17 –
Figure 8 – Test circuit for the verification of the rated making and breaking capacity and
of the coordination with a SCPD of a single-pole RCCB with two current paths (9.11)
Replace Figure 8 by the following:

S
N
V
Z Z Z
R
R
F
R
R
T
G G G
P
1 1 1
C B
U 1 U 2 U 3
r r r
Frame
D
G
I
Z
IEC  488/12
Figure 8 – Typical diagram for short circuit tests according to 9.11.2.3 c)

– 18 – 61008-1 Amend.1 © IEC:2012
Figure 9 – Test circuit for the verification of the rated making and breaking capacity and
of the coordination with a SCPD of a two-pole RCCB, in case of a single-phase circuit
(9.11)
Replace Figure 9 by the following:

R
r
L
IEC  489/12
Figure 9 – Detail of impedances Z, Z and Z
1 2
Delete Figures 10, 11 and 12 and replace them by “Void”.

61008-1 Amend.1 © IEC:2012 – 19 –
Table A.1 – Test sequences
Replace the existing Table A.1 by the following new table:
Test sequence Clause or subclause Test (or inspection)
A 6 Marking
8.1.1 General
8.1.2 Mechanism
9.3 Indelibility of marking
8.1.3 Clearances and creepage distances (external parts only)
9.1.5 Trip-free mechanism
9.4 Reliability of screws, current-carrying parts and connections
9.5 Reliability of terminals for external conductors
9.6 Protection against electric shock
9.13 Resistance to heat
8.1.3 Clearances and creepage distances (internal parts)
9.25 Resistance to rusting
A 9.14 Resistance to abnormal heat and to fire
B 9.7.7.4 Resistance of the insulation of open contacts and basic
insulation against an impulse voltage in normal conditions
b
Verification of the behaviour of components bridging the
9.7.7.5
basic insulation
9.7.1 Resistance to humidity
9.7.2 Insulation resistance of the main circuit
9.7.3 Dielectric strength of the main circuit
9.7.4 Insulation resistance and dielectric strength of auxiliary
circuits
Verification of clearances with the impulse withstand voltage
9.7.7.2
9.7.5 Secondary circuit of detection transformers
Capability of control circuits connected to the main circuits
9.7.6
etc.
9.8
Temperature-rise
9.22.2
Reliability at 40 °C
9.23
Ageing of electronic components
C 9.10 Mechanical and electrical endurance
D D 9.9 Residual operating characteristics
D 9.17 Behaviour in the case of failure of the line voltage
9.19 Unwanted tripping
Behaviour in the case of surge currents.
9.21 DC components
9.11.2.3a)b) Performance at I
∆m
9.16 Test device
9.12 Resistance to mechanical shock and impact
9.18 Non-operating current under overcurrent conditions
D 9.11.2.3c) Verification of the suitability of RCCBs for use in IT-systems
E 9.11.2.4 a) Coordination at I
nc
9.11.2.2 Performance at I
m
F 9.11.2.4 b) Coordination at I
m
...
