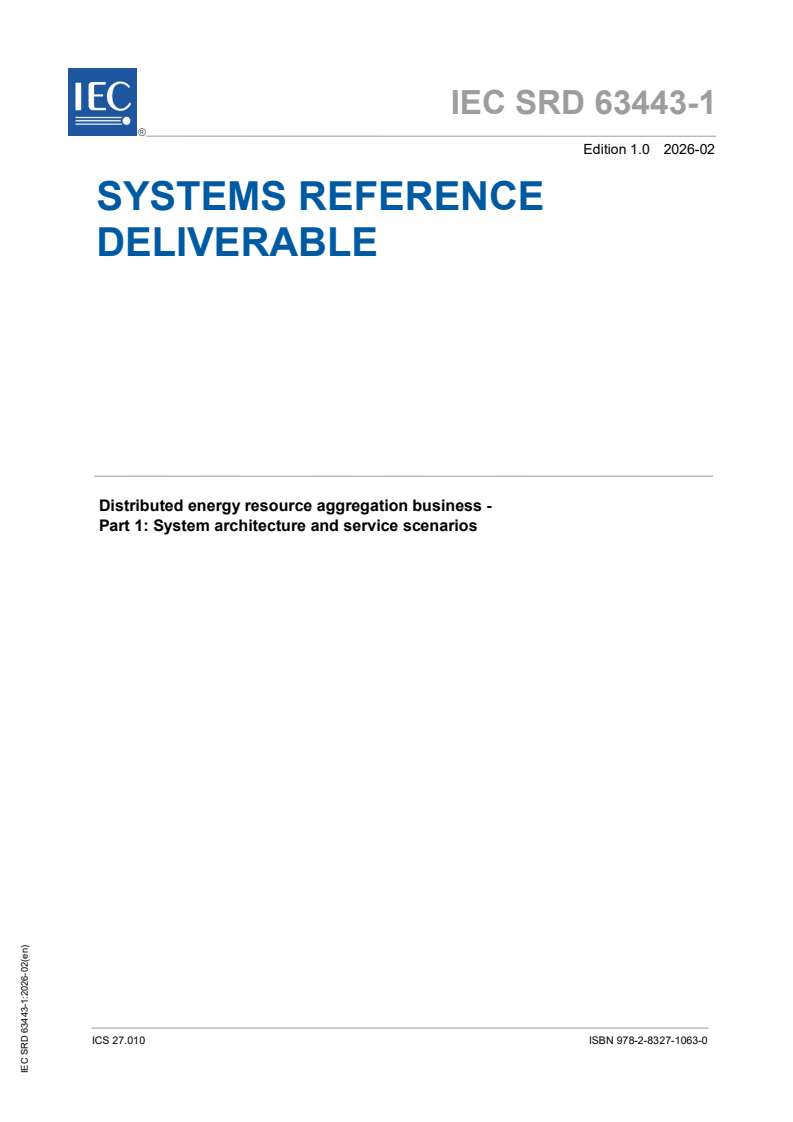

IEC SRD 63443-1:2026

IEC SRD 63443-1 ®
Edition 1.0 2026-02
SYSTEMS REFERENCE
DELIVERABLE
Distributed energy resource aggregation business -
Part 1: System architecture and service scenarios
ICS 27.010  ISBN 978-2-8327-1063-0

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
The advanced search enables to find IEC publications by a
publications previews, graphical symbols and the glossary.
variety of criteria (reference number, text, technical With a subscription you will always have access to up to date
committee, …). It also gives information on projects, content tailored to your needs.
replaced and withdrawn publications.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer
Service Centre: sales@iec.ch.

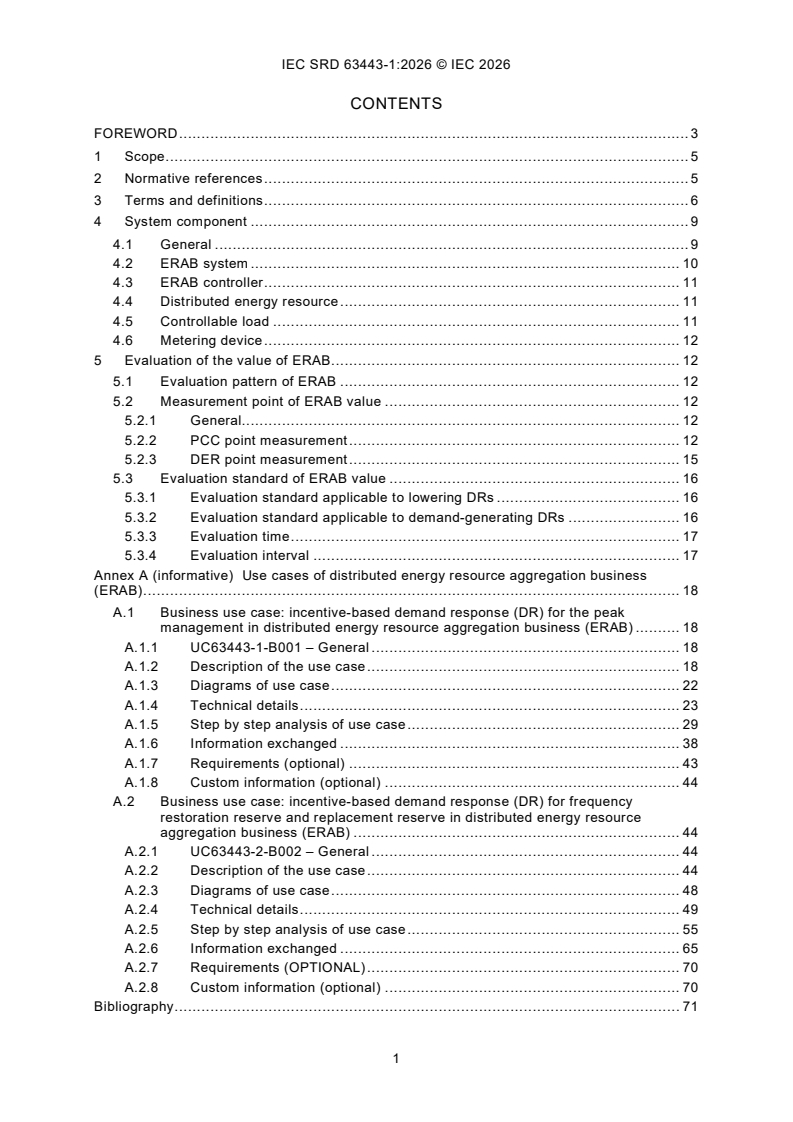

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 System component . 9
4.1 General . 9
4.2 ERAB system . 10
4.3 ERAB controller . 11
4.4 Distributed energy resource . 11
4.5 Controllable load . 11
4.6 Metering device . 12
5 Evaluation of the value of ERAB . 12
5.1 Evaluation pattern of ERAB . 12
5.2 Measurement point of ERAB value . 12
5.2.1 General. 12
5.2.2 PCC point measurement . 12
5.2.3 DER point measurement . 15
5.3 Evaluation standard of ERAB value . 16
5.3.1 Evaluation standard applicable to lowering DRs . 16
5.3.2 Evaluation standard applicable to demand-generating DRs . 16
5.3.3 Evaluation time . 17
5.3.4 Evaluation interval . 17
Annex A (informative) Use cases of distributed energy resource aggregation business
(ERAB) . 18
A.1 Business use case: incentive-based demand response (DR) for the peak
management in distributed energy resource aggregation business (ERAB) . 18
A.1.1 UC63443-1-B001 – General . 18
A.1.2 Description of the use case . 18
A.1.3 Diagrams of use case . 22
A.1.4 Technical details . 23
A.1.5 Step by step analysis of use case . 29
A.1.6 Information exchanged . 38
A.1.7 Requirements (optional) . 43
A.1.8 Custom information (optional) . 44
A.2 Business use case: incentive-based demand response (DR) for frequency
restoration reserve and replacement reserve in distributed energy resource
aggregation business (ERAB) . 44
A.2.1 UC63443-2-B002 – General . 44
A.2.2 Description of the use case . 44
A.2.3 Diagrams of use case . 48
A.2.4 Technical details . 49
A.2.5 Step by step analysis of use case . 55
A.2.6 Information exchanged . 65
A.2.7 Requirements (OPTIONAL) . 70
A.2.8 Custom information (optional) . 70
Bibliography . 71

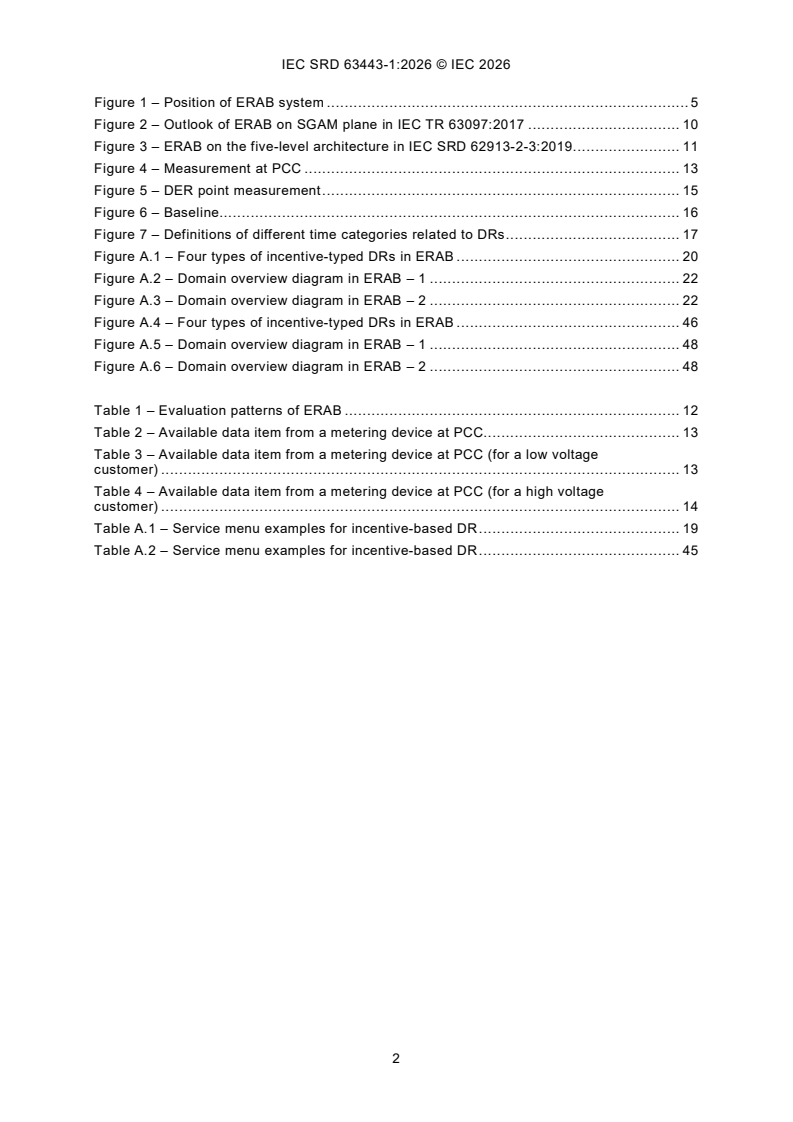

Figure 1 – Position of ERAB system . 5
Figure 2 – Outlook of ERAB on SGAM plane in IEC TR 63097:2017 . 10
Figure 3 – ERAB on the five-level architecture in IEC SRD 62913-2-3:2019 . 11
Figure 4 – Measurement at PCC . 13
Figure 5 – DER point measurement . 15
Figure 6 – Baseline. 16
Figure 7 – Definitions of different time categories related to DRs . 17
Figure A.1 – Four types of incentive-typed DRs in ERAB . 20
Figure A.2 – Domain overview diagram in ERAB – 1 . 22
Figure A.3 – Domain overview diagram in ERAB – 2 . 22
Figure A.4 – Four types of incentive-typed DRs in ERAB . 46
Figure A.5 – Domain overview diagram in ERAB – 1 . 48
Figure A.6 – Domain overview diagram in ERAB – 2 . 48

Table 1 – Evaluation patterns of ERAB . 12
Table 2 – Available data item from a metering device at PCC. 13
Table 3 – Available data item from a metering device at PCC (for a low voltage
customer) . 13
Table 4 – Available data item from a metering device at PCC (for a high voltage
customer) . 14
Table A.1 – Service menu examples for incentive-based DR . 19
Table A.2 – Service menu examples for incentive-based DR . 45

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
Distributed energy resource aggregation business -
Part 1: System architecture and service scenarios

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC SRD 63443-1 has been prepared by IEC systems committee Smart Energy: Smart energy.
It is a Systems Reference Deliverable.
The text of this Systems Reference Deliverable is based on the following documents:
Draft Report on voting
SyCSmartEnergy/330/DTS SyCSmartEnergy/335/RVDTS

Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this Systems Reference Deliverable is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 63443 series, published under the general title Distributed energy
resource aggregation business, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
– reconfirmed,
– withdrawn, or
– revised.
1 Scope
This part of IEC SRD 63443 covers the terms and definitions, system architecture, and service
scenarios of distributed energy resource aggregation business (ERAB), whose definition is to
restrain or elevate the power generation of distributed energy resources (DERs) and power
demands of controllable loads (CLs) at customer premises in accordance with the performance
measurement by the metering device at the point of common coupling (PCC), allowing real-time
data access from customer premises and the request of the transmission service operator
(TSO), distribution system operator (DSO), electricity supplier, and energy exchange, as
illustrated in Figure 1.
Figure 1 – Position of ERAB system
In conventional power systems, the balance between supply and demand is adjusted by the
transmission service operator (TSO) and distribution system operator (DSO) controlling the
power generation facilities on the supplier side, enforcing the same amounts of demand and
supply at the same time on TSO and DSO. However, the widespread use of DERs and CLs with
network access has enabled them to be configured as virtual systems on the demand-side. In
addition, real-time data access to a metering device allows measurement of the performance
of aggregating these devices using trustworthiness data. Similar to the drastic changes in the
electricity system, the ERAB provides a new service scenario that contributes to the balance of
supply and demand within the electricity system.
The ERAB coordinates the requests and reports from/to ERAB participants, such as the TSO,
DSO, and electricity supplier, and manages the remote control of the DERs and CLs executed
through the ERAB controller that provides site-specific DER management. The ERAB provides
two types of services: "demand restraint" and "demand increase." The former model removes
tight supply and demand by effectively shaving or shifting the peak demand. The latter model
contributes to the effective use of energy by shifting the demand against the excessive power
supply owing to the expansion of the introduction of renewable energy, as well as to the
improvement of energy autonomy by aggregating the DERs and CLs with a power storage
function.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
– IEC Electropedia: available at https://www.electropedia.org/
– ISO Online browsing platform: available at https://www.iso.org/obp
3.1
aggregator
party that contracts with several other network users to combine the effects of smaller loads or
distributed energy resources for actions, such as demand response or ancillary services
[SOURCE: IEC 60050-617:2017, 617-02-18]
3.2
advanced metering infrastructure
AMI
a system that uses a smart electric meter or other energy gateway to enable continuous two-
way communication between utilities and HAN-based devices
[SOURCE: IEC TR 63097:2017, 5.9.5.4]
3.3
balancing coordinator
party contractually responsible for the observed differences between the electricity supplied
and electricity consumed within a defined area
[SOURCE: IEC 60050-617:2009, 617-02-13]
3.4
baseline
kW value expected in the absence of a control mandate
3.5
controllable load
load of particular consumers which, under contract, is reduced for a limited period of time at the
request of the distribution supply undertaking
[SOURCE: IEC 60050-603:1986, 603-04-42, modified – The requirement has been removed in
the definition.]
3.6
distributed energy resources
generators (with their auxiliaries, protection, and connection equipment), including loads with a
generating mode (such as electrical energy storage systems), connected to a low-voltage or
medium-voltage network
[SOURCE: IEC 60050-617:2017, 617-04-20]
3.7
demand response
DR
action resulting from management of the electricity demand in response to supply conditions
[SOURCE: IEC 60050-617:2011, 617-04-16]
3.8
delivery point
interface point between an electric power system and a user of electric energy
Note 1 to entry: The user can be the end user or an organization for the distribution of electric energy to the end
users.
[SOURCE: IEC 60050-601:1985, 601-02-33]
3.9
distribution system operator
DSO
party operating a distribution system
[SOURCE: IEC 60050-617:2009, 617-02-10]
3.10
distributed energy resource aggregation business
ERAB
party that restrains or elevates power generation of DERs and demands of CLs by a set of
customer premises in accordance with the performance measurement by the metering data,
allowing a user to access customer premises and requests by the transmission service operator
(TSO), distribution system operator (DSO), electricity supplier, and energy exchange
3.11
energy exchange
marketplace for buying and selling electric power and electric energy to be delivered during a
given time interval, with transparent and non-discriminatory pricing conditions for all authorized
participants and legal independence from the buying and selling business entities
[SOURCE: IEC 60050-217:2009, 617-03-01]
3.12
electricity supplier
party having a contract to supply electric power and energy to a customer
[SOURCE: IEC 60050-617:2009, 617-02-08]
3.13
final customer
party purchasing electric power for a given interval and energy for its own use
[SOURCE: IEC 60050-617:2009, 617-02-04]
3.14
gate close
GC
deadline for submission of supply and demand plans from electricity supplier to TSO/DSO
3.15
metering point
point in an electric power system, where the flow of energy and, when applicable, the flow of
electric power is metered
[SOURCE: IEC 60050-617:2009, 617-04-06]
3.16
point of common coupling
PCC
point in an electric power system, electrically nearest to a particular load, at which other loads
are, or can be, connected
Note 1 to entry: These loads can be devices, equipment, systems, or distinct network users' installations.
[SOURCE: IEC 60050-161:1990, 161-07-15, modified – The words "of a power supply network"
have been replaced with "in an electric power system" and "may" with "can" in the definition;
the word "customer" has been replaced with "network users" in Note 1 to entry; Note 2 to entry
has been deleted.]
3.17
prosumer
network user that consumes and produces electrical energy
[SOURCE: IEC 60050-617:2017, 617-02-16]
3.18
REP/aggregator
aggregator that sends DR service menu to ERAB system according to a DR bidding contract
from TSO/DSO or electricity supplier
Note 1 to entry: See IEC SRD 62913-2-3:2019 A.1.3.
3.19
smart metering
technology for recording usage from metering devices and providing communication and/or
control paths extending from electric power utility to current-using equipment
[SOURCE: IEC 60050-617:2011, 617-04-14]
3.20
supply contract
contract in which an energy supplier provides a consumer, including a prosumer, with electricity
by balancing supply and demand before the GC
3.21
transmission system operator
TSO
party operating a transmission system
[SOURCE: IEC 60050-617:2009, 617-02-11]
3.22
virtual power plant
group of distributed energy resources which combine to function as a dispatchable unit
Note 1 to entry: A virtual power plant can be used to participate in the electricity market or aggregate ancillary
services.
[SOURCE: IEC 60050-617:2017, 617-04-27]
4 System component
4.1 General
The decentralised generation of electrical power, as well as the spread of energy storage and
controllable loads, the management of distributed energy resources (DERs), and controllable
loads (CLs) at the customer premises near the final customer offer economic and ecological
benefits. In addition, information on metering data from advanced metering infrastructure (AMI)
provides a customer with a method to measure the value of aggregating these resources at the
customer premises.
Distributed energy resource aggregation business (ERAB) is a system architecture and service
scenario that restrains or elevates the power generation of DERs and demands of CLs by a set
of customer premises in accordance with the performance measurement by metering data at
the point of common coupling (PCC), allowing real-time access from customer premises and
requests by transmission service operators (TSO), distribution system operators (DSO),
electricity suppliers, and energy exchange. The ERAB is configured by the ERAB server that
manages upward communications such as the TSO, DSO, and electricity supplier and ERAB
controller that manages downward communications such as a metering device, DERs, and CLs.
ERAB was mapped onto the smart grid architecture model (SGAM) in IEC TR 63097:2017, as
shown in Figure 2. ERAB servers were placed in the enterprise zone, configuring the ERAB
controller at the field zone with real-time data access to a metering device at the PCC. The
DER and CL at the field zone are operated by the ERAB controller.
Annex A shows use cases of distributed energy resource aggregation business for information.
Figure 2 – Outlook of ERAB on SGAM plane in IEC TR 63097:2017
4.2 ERAB system
In alignment with the hierarchical approach in SRD 62913-2-3:2019, ERAB is described in five
levels across multiple domains, as illustrated by the five-level hierarchical system architecture
shown in Figure 3.
– Level 1: DERs and CLs are at the bottom level and are described as customer premises.
They are operated autonomously in normal time but are incorporated behind the PCC, in
which a metering device allows real-time data access when ERAB is in process. The remote
operation signal is delivered by the ERAB Controller at level 2.
– Level 2: The ERAB controller is at a higher level in which the operation of the DERs and
CLs and the metering data at the PCC are managed. The controller has been recognised
as a logical function in the field zone in SGAM, so that it appears in commercial and
industrial sites, such as households and buildings.
– Level 3: The ERAB server requests and commands the DERs and CLs through the ERAB
controller that performs specific actions, such as turning on/off and increasing/restraining
the output. The signal managed by the ERAB server, for example, DR, is in accordance with
the commands by the user of ERAB such as, TSO, DSO, electricity supplier, and energy
exchange.
– Level 4: The utility operational grid management in DSO/TSO applies to utility applications
that are required to determine what commands should be issued to the ERAB servers.
– Level 5: Market operations involve a large-energy environment. For example, a balancing
power market is a bid/offer transaction energy market between ERAB and TSO/DSO.
Figure 3 – ERAB on the five-level architecture in IEC SRD 62913-2-3:2019
4.3 ERAB controller
The ERAB controller collects data from the metering device at the PCC, controls various DERs
and CLs, and communicates with them. The controller provides the following key functions:
– data ingestion, cleaning, filtering, positioning, and early analytics before being sent to a
cloud or remote data centre;
– security as a network gateway acts as a buffer between a WAN and devices on customer
premises;
– provision of real-time configuration, control, management, and tracking.
4.4 Distributed energy resource
Distributed energy resource (DER) is a generator (with its auxiliaries, protection, and
connection equipment), including loads with a generating mode (such as electrical energy
storage systems) connected to a low-voltage or medium-voltage network.
4.5 Controllable load
Controllable load (CL) is the load of particular consumers that shall be reduced for a limited
period of time under contract at the request of the distribution supply undertaking. The
controllable loads in ERAB include air conditioning, lighting, and other loads. The controllable
loads exchange information with an aggregator through ERAB, uploading their status and
responding to a control signal such as DR.
4.6 Metering device
A smart metering device is essential for the ERAB. The data accuracy collected at the metering
device ensures the performance of the ERAB, which manages the DR orders from the TSO,
DSO, and electricity supplier. To trade electricity in the ERAB, a metering device measures the
active power at the PCC. Its data interval, for example, every 1 min and 30 min, is in accordance
with the service menu between ERAB and its users. The real-time data access between the
ERAB controller and metering device at the PCC is mapped on the five-layered architecture in
IEC SRD 62913-2-3:2019, as shown by Figure 3.
5 Evaluation of the value of ERAB
5.1 Evaluation pattern of ERAB
To evaluate the value created in the ERAB, it is necessary to define the evaluation procedures
shown by the measurement items (location, interval), criteria (kW and kWh), and time. This
procedure is implemented using the data accessible to a metering device at the PCC. Table 1
illustrates the necessary evaluation items for ERAB as well as the reward/penalty mechanism.
Table 1 – Evaluation patterns of ERAB
Item Abstract
Measurement location to evaluate the amount of balancing
Location
power generation with DR
Measurement
item
Measurement interval to evaluate the amount of balancing
Frequency
power generation with DR
Response Evaluation of capability of balancing power generation value
quality shown (kW) according to the command value.
Evaluation in kW
Criteria
Quantity of Evaluation of capability of balancing power generation value
controlling (kW)
power shown
in kWh
Time subject to response evaluation and controlled amount
Time Timing
evaluation.
Reward to be paid in response to the amount of electricity
Rewards/Penalty provided (kWh) and a pre-shared kW target. Also, a penalty
for failing to meet the DR contract requirements

5.2 Measurement point of ERAB value
5.2.1 General
In general, there are two measurement points for evaluating the amount of supply under control:
point of common coupling (PCC) and DER point measurement. ERAB applies PCC
measurements while also considering DER point measurements for future adaptation.
5.2.2 PCC point measurement
As shown in Figure 4, the point of common coupling (PCC) is a point in an electric power system,
electrically nearest to a particular load, at which other loads are, or can be, connected. The
PCC measurement is applicable for the trade of adjusting power at the energy exchange as
well as the ERAB. The necessary metering data available at PCC is shown in Table 2 for general
purpose, Table 3 for low-voltage customers, and Table 4 for high-voltage customers.
Figure 4 – Measurement at PCC
Table 2 – Available data item from a metering device at PCC
Data item Access role
Installation location ◎
Standard version information ◎
Fault status ◎
Manufacturer code ◎
Production (serial) no. ○
Current time setting
◎
Current date setting
◎
Status change announcement property map ◎
Key
◎ high necessity in ERAB
○ optional
－ not supported
● installation prohibited
Table 3 – Available data item from a metering device at PCC
(for a low voltage customer)
Data item Access role
Operation status ◎
Data exchange point number at PCC ◎
One-minute measured cumulative amount of electric energy (normal and reverse ◎
directions)
Coefficient ○
Number of effective digits for cumulative amount of electric energy ◎
Measured cumulative amount of electric energy (normal direction)
◎
Unit for cumulative amounts of electric energy (normal and reverse directions) ◎
Historical data of measured cumulative amounts of electric energy 1 (normal
◎
direction)
Measured cumulative amounts of electric energy (reverse direction) ○
Historical data of measured cumulative amounts of electric energy 1 (reverse
○
direction)
Day for which the historical data of measured cumulative amounts of electric
◎
energy is to be retrieved 1
Measured instantaneous electric power ◎
Measured instantaneous currents ◎
Data item Access role
Cumulative amounts of electric energy measured at fixed time
◎
(normal direction)
Cumulative amounts of electric energy measured at fixed time
○
(reverse direction)
Historical data of measured cumulative amounts of electric energy 2 (normal and
○
reverse directions)
Day for which the historical data of measured cumulative amounts of electric
○
energy is to be retrieved 2
Historical data of measured cumulative amounts of electric energy 3 (normal and ◎
reverse directions)
Day for which the historical data of measured cumulative amounts of electric ◎
energy is to be retrieved 3
Key
◎ high necessity in ERAB
○ optional
－ not supported
Table 4 – Available data item from a metering device at PCC
(for a high voltage customer)
Data item Access role
Operation status ◎
Data exchange point number at PCC ◎
One-minute measured cumulative amount of active electric energy (normal and
◎
reverse directions)
Coefficient ◎
Multiplying factor for coefficient ◎
Fixed date ◎
Day for which the historical data of measured cumulative amounts of electric
◎
energy is to be retrieved
Measured cumulative amount of active electric energy (normal and reverse
◎
directions)
Cumulative amounts of active electric energy at fixed time (normal and reverse
◎
directions)
Measurement data of cumulative amount of active electric energy for power factor
○
measurement (normal and reverse directions)
Number of effective digits for cumulative amount of active electric energy ◎
Unit for cumulative amounts of active electric energy
◎
Historical data of measured cumulative amount of active electric energy (normal
◎
direction)
Historical data of measured cumulative amount of active electric energy (reverse
◎
directions)
Monthly maximum electric power demand (normal and reverse directions) ◎
Cumulative maximum electric power demand (normal and reverse directions) ○
Electric power demand at fixed time (30-minute average electric power)
◎
(normal and reverse directions)
Number of effective digits of electric power demand ◎
Unit of electric power demand
◎
Historical data of measured electric power demand (normal direction)
◎
Historical data of measured electric power demand (reverse direction) ◎
Data item Access role
Unit of cumulative maximum electric power demand ○
Measurement data of reactive electric energy (lag) for power factor measurement
○
(normal and reverse directions)
Measurement data of cumulative amount of reactive electric energy (lag) at fixed
○
time for power factor measurement (normal and reverse directions)
Number of effective digits for measurement data of cumulative amount of reactive
○
electric energy
Unit of measurement data of cumulative amount of reactive electric energy ○
Historical data of measurement data of cumulative amount of reactive electric
○
energy (lag) for power factor measurement (normal direction)
Historical data of measurement data of cumulative amount of reactive electric
○
energy (lag) for power factor measurement (reverse direction)
Instantaneous measured electric energy ◎
Instantaneous measured currents 2 ◎
Historical data of measured cumulative amount of active electric energy 2 (normal
◎
and reverse directions)
Day for which the historical data of measured cumulative amounts of electric
◎
energy is to be retrieved 2
Key
◎ high necessity in ERAB
○ optional
－ not supported
5.2.3 DER point measurement
The DER point measurement is a method of measuring at a point other than the receiving point.
Figure 5 shows a case in which a meter is embedded in the DERs and CLs. In this measurement,
the performance of ERAB is measured at the point of DER and CL. It is possible to adopt the
DER point measurement only when there is an agreement between ERAB users.

Figure 5 – DER point measurement
5.3 Evaluation standard of ERAB value
5.3.1 Evaluation standard applicable to lowering DRs
Where consideration is paid to the controlled amount of ERAB (amount of electricity delivered
by control, which is measured by kWh and kW values), an evaluation standard is highlighted.
The difference between the amount of electricity that would be expected in the absence of a
control mandate (hereinafter referred to as "baseline") and the actual amount of electricity when
the ERAB is working is evaluated. While the baseline is set on a per-customer basis, there is
nothing preventing ERAB from grouping multiple customers together when setting the baseline.
As a definition of the controlled amount, the controlled amount in a forward power flow is the
"demand-reduced amount". A baseline that can be agreed upon among the concerned parties
of the ERAB is required. The concept behind the controlled amount in incentive-based DR (DR
lowering) is shown in Figure 6.

Figure 6 – Baseline
There are some methods on baseline calculations. For example, the baseline of the high 4 of 5
that presents the total average value for the five most recent days, exclusive of excluded days
is applicable for reducing demand amounts. The temperature of the day, as well as other events,
is an element of the baseline. The average value of the demand data is based on the active
power value in a thirty-minute block accessible at a metering device in the PCC. The demand
data for the four days with the highest average demand amount during the DR in the
implementation period out of the five days prior to a DR is the implementation date (excluding
the date of DR implementation). If there are multiple days with the lowest average demand
amount during the DR implementation period over the five prior days, we exclude the day
furthest from the DR implementation date and use the remaining four days.
5.3.2 Evaluation standard applicable to demand-generating DRs
Demand-generating DR increases the use of grid electricity by reducing the amount of electricity
generated by power-generation resources and charging energy-storage facilities located behind
the meter at the PCC. The high 4 of 5 (with adjustments made on the day in question) is
applicable as a baseline as well as for the lowering DR. The baseline for elevating DRs shall
be set forth through discussions by and among the concerned parties based on the state of
performance of the elevating DR in question.
5.3.3 Evaluation time
The evaluation time is subject to a controlled evaluation. Whether the time subject to an
evaluation is not just the duration from the time at which control commences to the time at which
control ends, but also includes the start-up time (time from when the mandate is issued to when
the duration commences) and recovery time (time from when the duration ends to when normal
operations resume) shall be determined through discussions among the concerned parties, as
shown in Figure 7.
Figure 7 – Definitions of different time categories related to DRs
5.3.4 Evaluation interval
The interval for evaluating the controlled amount should be subject to agreement among units
of 30 min.
Annex A
(informative)
Use cases of distributed energy resource aggregation business (ERAB)
A.1 Business use case: incentive-based demand response (DR) for the peak
management in distributed energy resource aggregation business (ERAB)
A.1.1 UC63443-1-B001 – General
A.1.2 Description of the use case
A.1.2.1 Name of use case
Use case identification
ID Area /Domain(s)/ Name of use case
Zone(s)
B-01 Domain: Customer BUC- incentive based demand response (DR) for peak management in
Premises distributed energy resource aggregation business (ERAB)
Zone: Operation
and Enterprise
A.1.2.2 Version management
Version management
Version no. Date Name of author(s) Changes Approval
status
1.0 2024 SyC SE WG2 CD
2.0 2025 SyC SE WG2 DTS
A.1.2.3 Scope and objectives of use case
Scope and objectives of use case
Scope Decentralized generation of electrical power, as well as the spread of energy storage and
controllable loads, has become increasingly important. The management of these distributed
energy resources (DERs) and controllable loads (CLs) at customer premises near the final
customer offers economic and ecological benefits. In addition, information on metering data,
including advanced metering infrastructure (AMI), provides a customer with a method to
measure the value of aggregating these resources at customer premises.
The distributed energy resource aggregation business (ERAB) restrains or elevates power
generation of distributed energy resources (DERs) and power demands of controllable loads
(CLs) at customer premises in accordance with the performance measurement by the
metering device at the point of common coupling (PCC), allowing real-time data access from
customer premises and the request by the transmission service operator (TSO), distribution
system operator (DSO), electricity supplier, and energy exchange.
NOTE For a definition of a virtual power plant (VPP), refer IEC TS 63189-1.
Objective(s) The business use case describes how distributed energy resource aggregation business
(ERAB) works accordingly to the request by TSO, DSO, electricity supplier, and energy
exchange.
Related – Advanced metering infrastructure
business
– DER management system
a
case(s)
– Demand response/load management system
a
These cases are presented in IEC TR 63097:2017.

A.1.2.4 Narrative of use case
Narrative of use case
Short description
This business use case describes how the distributed energy resource aggregation business (ERAB) works for
restraining or elevating power generation of DERs and demands of CLs in accordance with the performance
evaluation by the metering data, allowing a user to access customer premises and incentives taken by ERAB
participants: TSO, DSO, electricity supplier, and energy exchange, whose role is a marketplace.
Complete description
ERAB implements the incentive-based DR with the service menu examples as shown by Table A.1. This BUC
spotlights peak management.
Table A.1 – Service menu examples for incentive-based DR
Service menu Frequency Replacement Replacement Peak management
example restoration reserve reserve (a :RRa) reserve (b :RRb)
(FRR)
Service type Balancing power Balancing power Balancing power Flexibility service
Provided to TSO/DSO TSO/DSO TSO/DSO Electricity supplier
(Market exchange) (Market exchange) (Market exchange) (Market exchange)
Evaluation criteria kW and kWh kW and kWh kW and kWh kWh
Reaction time Less than 5 min Less than 15 minutes Less than 45 minutes Less than 60 min
Duration time More than 30 min 3 h 3 h More than 30 min
Mandate change 5 min 5 min 30 min 30 min
interval
Triger of mandate Signal by ERAB Signal by ERAB Signal by ERAB Signal by ERAB
change
Measurement interval 1 min 1 min 1 min to 30 min 1 min to 30 min
Minimum capacity 1 MW 1 MW 1 MW By contract with
electricity supplier
Timing of trading After GC After GC After GC Before GC

Narrative of use case
ERAB provides a variety of flexibility services at low (peak management), middle (replacement reserve), and
high (frequency restoration reserve) reaction times, as the service menu example shown in Table A.1. Every
service is implemented in accordance with the signal provided by the ERAB, providing prosumers with
incentives. The four services on ERAB shown by frequency restoration reserve (FRR), replacement reserve (RR)
with RRa and RRb, and peak management are defined as follows.
‒ Pe
...
