All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales, électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes langues additionnelles. Egalement appelé Vocabulaire
Android et iPad. Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC 65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Restez informé sur les nouvelles publications IEC. Just Service Clients - webstore.iec.ch/csc
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 60335-2-2 ®
Edition 6.0 2016-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
AM ENDMENT 2
AM ENDEMENT 2
Household and similar electrical appliances – Safety –

Part 2-2: Particular requirements for vacuum cleaners and water-suction

cleaning appliances
Appareils électrodomestiques et analogues – Sécurité –

Partie 2-2: Exigences particulières pour les aspirateurs et les appareils

de nettoyage à aspiration d'eau

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.120; 97.080 ISBN 978-2-8322-3316-0

– 2 – IEC 60335-2-2:2009/AMD2:2016

© IEC 2016

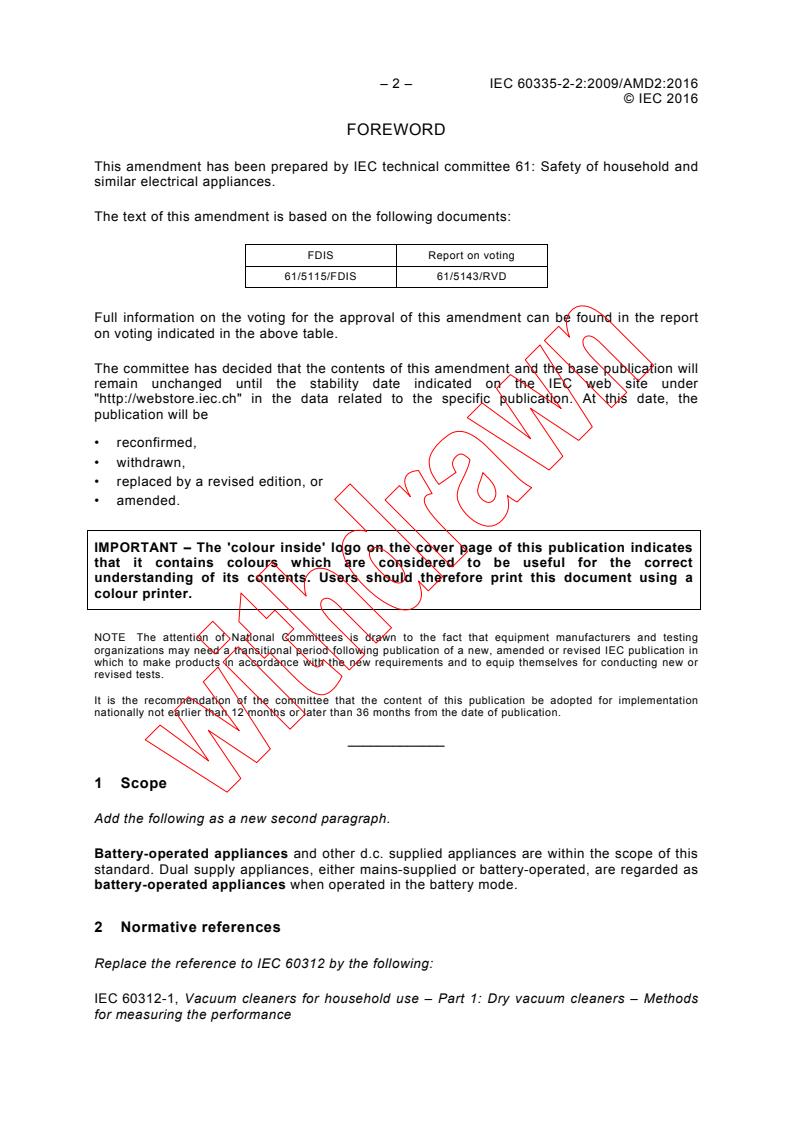

FOREWORD
This amendment has been prepared by IEC technical committee 61: Safety of household and

similar electrical appliances.

The text of this amendment is based on the following documents:

FDIS Report on voting
61/5115/FDIS 61/5143/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
NOTE The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.
_____________
1 Scope
Add the following as a new second paragraph.
Battery-operated appliances and other d.c. supplied appliances are within the scope of this
standard. Dual supply appliances, either mains-supplied or battery-operated, are regarded as
battery-operated appliances when operated in the battery mode.
2 Normative references
Replace the reference to IEC 60312 by the following:
IEC 60312-1, Vacuum cleaners for household use – Part 1: Dry vacuum cleaners – Methods
for measuring the performance
© IEC 2016
Add the following new references:

IEC 60584-1, Thermocouples – Part 1: EMF specifications and tolerances

ISO 216, Writing paper and certain classes of printed matter – Trimmed sizes – A and B

series, and indication of machine direction

ISO 7010:2011, Graphical symbols – Safety colours and safety signs – Registered safety

signs
ISO 14688-1, Geotechnical investigation and testing – Identification and classification of soil –

Part 1: Identification and description
3 Terms and definitions
3.1.9 Add the following text to the description of Pi:
If Pi cannot be measured due to the appliance suction motor stopping before 20 s, the air inlet
+5
is gradually blocked to the extent that the motor stops after 20 s. In this case Pi is the
−0
maximum value of power input in the last two seconds before the motor shuts off.
In the last paragraph replace IEC 60312 by IEC 60312-1.
Add the following new definition:
3.107
ash vacuum cleaner
vacuum cleaner intended to vacuum cold ash from fireplaces, chimneys, ovens, ash-trays and
similar places of ash accumulation
5 General conditions for the test
5.2 Add the following to the addition:
The test of 19.105 may be carried out on a separate appliance.
7 Markings and instructions
7.1 Add the following to the addition.
Ash vacuum cleaners shall be marked with symbol ISO 7000-0434A (2004-01), symbol
ISO 7000-0790 (2004-01) and symbol ISO 7010 W021.
7.6 Replace IEC 60417-5935 (2002-10) by IEC 60417-5935 (2012-09).

– 4 – IEC 60335-2-2:2009/AMD2:2016

© IEC 2016
Add the following new symbol:
[symbol ISO 7010 W021] warning; risk of fire / flammable materials

7.12 In the last paragraph of the addition replace IEC 60417-5935 (2002-10) by

IEC 60417-5935 (2012-09).
Add the following new subclause:
7.12.1 Addition:
The instructions for ash vacuum cleaners shall include the substance of the following:
This appliance is intended to pick up cold ash from fireplaces, chimneys, ovens, ash-trays,
and similar places of ash accumulation.
WARNING: Risk of fire
– do not pick up hot, glowing or burning ash. Pick up cold ash only;
– the dust container must be emptied and cleaned before and after each use;
– do not use paper dust bags or bags made from similar flammable materials;
– do not use any other vacuum cleaner to vacuum ash;
– do not rest the ash vacuum cleaner on flammable or polymeric surfaces, including
carpeting and vinyl tile.
7.14 Replace the first paragraph of the addition by the following:
The height of symbol IEC 60417-5935 (2012-09), symbol ISO 7000-0434A (2004-01), symbol
ISO 7000-0790 (2004-01) and symbol ISO 7010 W021 shall be at least 15 mm.
Add the following new subclause:
7.15 Addition:
Symbol ISO 7000-0434A (2004-01) shall be located next to symbol ISO 7000-0790 (2004-01).

7.101 In the last paragraph of the requirement delete “except those of class III
construction having a working voltage up to 24 V”.
11 Heating
11.3 Add the following to the addition:
Where the accessible external surfaces are suitably flat and access permits, then the test
probe of Figure 105 may be used to measure the temperature rises of accessible external
± 1 N to the surface
surfaces specified in Table 101. The probe is applied with a force of 4 N
in such a way that the best possible contact between the probe and the surface is ensured.
NOTE 102 The probe may be held in place using a laboratory stand clamp or similar device. Any measuring
instrument giving the same results as the probe can be used.

© IEC 2016
Add the following new subclause:

11.8 Addition:
During the test, the temperature rises are monitored continuously and shall not exceed the

values shown in Table 101.
The temperature rise limits in Table 3 specified for “External enclosure of motor-operated

appliances except handles held in normal use” and the corresponding footnotes are not

applicable.
Add the following new table:
Table 101 – Maximum temperature rises for specified
accessible external surfaces under normal operating conditions

c f
Surface Temperature rise of accessible external surfaces
K
Surfaces of portable Surfaces of hand held Surfaces of centrally

appliances situated on appliances and other sited vacuum cleaners

d e
the floor appliances
Bare metal 38 42 48
a
Coated metal 42 49 59
Glass and ceramic 51 56 65
b
Plastic and plastic coating > 0,4 mm 58 62 74
a
Metal is considered coated when a coating having a minimum thickness of 90 µm made by enamel or non-
substantially plastic coating is used.
b
The temperature rise limit of plastic also applies for plastic material having a metal finish of thickness less than
0,1 mm.
c
When the thickness of the plastic coating does not exceed 0,4 mm, the temperature rise limits of the coated metal or
of glass and ceramic material apply.
d
Within 25 mm from air outlets the above values can be increased by 10 K.
e
Within 25 mm from air outlets the above values can be increased by 5 K.
f
Surfaces that are inaccessible to a 75 mm diameter probe having a hemispherical end are not measured.

15 Moisture resistance
15.101 In the third paragraph of the test specification replace “free-fall test procedure 1 of
IEC 60068-2-32” by “test Free fall – Procedure 1 of IEC 60068-2-31”.
19 Abnormal operation
19.1 Add the following as a new last paragraph:
Vacuum cleaners that stop automatically when there is a blockage are also subject to the test
of 19.4.
Add the following new subclause:
19.4 Addition:
– 6 – IEC 60335-2-2:2009/AMD2:2016

© IEC 2016
The appliance is tested under the conditions specified in Clause 11 with the inlet blocked.

Any control that is allowed to disconnect the suction motor during the Pi determination of

3.1.9 is short-circuited.
Add the following new subclause:

19.105 Ash vacuum cleaners shall not cause a risk of fire or electric shock when operated

under the following test conditions:

The ash vacuum cleaner is prepared for operation according the instruction for use, but

switched off.
The empty container of the ash vacuum cleaner is filled up to two-thirds of its useable
volume with paper balls. Each paper ball is made out of crumpled sheets of A4 copy paper
2 2
having a weight in the range 70 g/m to 120 g/m in accordance with ISO 216. Each paper
sheet shall be crumpled to a size so that it fits into a cube having sides of 10 cm.
The paper balls are ignited with a burning paper strip positioned in the centre of the paper
balls top layer. After 1 min the container is closed and kept in this position until steady
conditions are reached.
During the tests, the appliance shall not emit flames or molten material.
Afterwards, this test is repeated with a new sample but with all suction motors switched on
immediately after the closing of the container. If the ash vacuum cleaner has a control for air
flow adjustment, the test shall be done with minimum and maximum air flow settings.
After the test the appliance shall comply with 19.13.
21 Mechanical strength
Add the following new subclause:
21.106 A handle intended for carrying an appliance shall be constructed to withstand the
weight of the appliance without damage. This requirement is not applicable to hand-held
vacuum cleaners or automatic battery operated cleaners.
Compliance is checked by the following test.
The load, consisting of the weight of the appliance with its dust receptacle filled with dry

medium grade sand according to ISO 14688-1 shall be uniformly applied over a 75 mm width
at the centre of the handle without clamping. If the receptacle is marked with a maximum dust
level then the sand is added to this level. The load shall be started at zero and gradually
increased so that the test value is reached in 5 s to 10 s and shall be maintained for 1 min.
When more than one handle is furnished on an appliance, and the appliance is unable to be
carried by one handle, the force shall be distributed between the handles. The distribution of
force shall be determined by measuring the percentage of the appliance weight sustained by
each handle with the appliance in the normal carrying position.
When an appliance is furnished with more than one handle and can be carried by only one
handle, each handle shall sustain the total force. A water-suction cleaning appliance that is
completely supported in the hand or by the body during use shall be filled to maximum normal
capacity with water when determining the weight of the appliance and during the test. For an
appliance with separate tanks for clean solution and recovery, only the largest tank shall be
filled to maximum.
© IEC 2016
After the test, there shall be no damage to the handle, its securing means, or that portion of

the appliance to which the handle is attached. Damage to the finish, small dents and small

chips are ignored.
22 Construction
Add the following new subclauses:

22.102 Ash vacuum cleaners shall be equipped with a finely woven metal pre-filter or a

pre-filter manufactured using flame retardant material with a GWFI as specified in 30.2.101.

All parts including accessories in direct contact with ash located before the pre filter shall be
made out of metal or made of a non-metallic material complying with 30.2.102. Metal
containers shall have a minimum wall thickness of 0,35 mm.
Compliance is checked by inspection, by measurement, by the t
...
