IEC 60204-32:2023
(Main)Safety of machinery - Electrical equipment of machines - Part 32: Requirements for hoisting machines
Safety of machinery - Electrical equipment of machines - Part 32: Requirements for hoisting machines
IEC 60204-32:2023 applies to electrical, electronic, programmable electronic equipment and systems to hoisting machines and related equipment, including a group of hoisting machines working together in a co-ordinated manner. The equipment covered by this document commences at the point of connection of the supply to the electrical equipment of the hoisting machine (crane-supply-switch) and includes systems for power supply and control feeders situated outside of the hoisting machine, for example, flexible cables or conductor wires or conductor bars. This document is applicable to equipment or parts of equipment not exceeding 1 000 V AC or 1 500 V DC between lines and with nominal frequencies not exceeding 200 Hz. This document does not cover all the requirements (for example guarding, interlocking, or control) that are needed or required by other standards or regulations in order to protect persons from hazards other than electrical hazards. Each type of hoisting machine has unique requirements to be accommodated to provide adequate safety. This document does not cover noise risks. Additional and special requirements can apply to the electrical equipment of hoisting machines including those that
– handle or transport potentially explosive material (e.g. paint or sawdust);
– are intended for use in potentially explosive and/or flammable atmospheres;
– have special risks when transporting or moving certain materials;
– are intended for use in mines.
For the purposes of this document, hoisting machines include cranes of all types, winches of all types and storage and retrieval machines. The following product groups are included:
– overhead travelling cranes;
– mobile cranes;
– tower cranes;
– slewing luffing cranes;
– gantry cranes;
– offshore cranes;
– floating cranes;
– winches of all types;
– hoists and accessories;
– loader cranes;
– cable cranes;
– load holding devices;
– storage and retrieval machines;
– monorail hoists;
– straddle carriers;
– rubber tyred gantry cranes (RTGs).
This document does not cover individual items of electrical equipment other than their selection for use and their erection.
IEC 60204-32:2023 cancels and replaces the second edition published in 2008. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) alignment to the IEC 60204-1 sixth edition (2016) especially for:
– requirements for earthing and bonding;
– requirements for circuit protection;
– consideration of use of Power Drive Systems;
– protective bonding requirements and terminology;
– requirements pertaining to safe torque off for PDS, emergency stop, and control circuit protection;
– symbols for actuators of control devices;
b) reference for high voltage electrical equipment;
c) cableless control system requirements;
d) EMC requirements;
e) technical documentation requirements;
f) general updating to current special national conditions, normative standards, and bibliographical references.
Sécurité des machines - Équipement électrique des machines - Partie 32: Exigences pour les appareils de levage
L'IEC 60204-32:2023 s’applique aux équipements et systèmes électriques, électroniques et électroniques programmables des appareils de levage et à leurs équipements associés, y compris un groupe d’appareils de levage travaillant ensemble de manière coordonnée. L'équipement traité dans le présent document a pour origine le point de connexion de l'alimentation à l'équipement électrique de l'appareil de levage (sectionneur d'alimentation de l'appareil de levage), y compris l'alimentation de puissance et les alimentations de commande situées à l'extérieur de l'appareil de levage, par exemple, les câbles souples, les câbles conducteurs ou les barres conductrices. Le présent document s’applique aux équipements ou parties d'équipements dont la tension n'excède pas 1 000 V en courant alternatif et 1 500 V en courant continu entre phases, et dont la fréquence nominale n'excède pas 200 Hz.. Le présent document ne couvre pas toutes les exigences (par exemple, la protection, le verrouillage ou la commande) qui sont nécessaires ou exigées par d'autres normes ou règlements afin de protéger les personnes contre les dangers autres que les dangers électriques. Chaque type d'appareil de levage a des exigences uniques auxquelles il faut répondre pour assurer une sécurité adéquate. Le présent document ne couvre pas les risques liés au bruit. Des exigences complémentaires et particulières peuvent s’appliquer aux équipements électriques des appareils de levage, y compris ceux qui:
– manipulent ou transportent des matériaux potentiellement explosifs (par exemple, de la peinture ou de la sciure);
– sont destinés à être utilisés dans des atmosphères potentiellement explosives et/ou inflammables;
– présentent des risques particuliers lors du transport ou du déplacement de certains matériaux;
– sont destinés à être utilisés dans des mines.
Pour les besoins du présent document, les appareils de levage comprennent les grues de tous types, les treuils de tous types et les machines de stockage et d'extraction. Les familles de produits suivantes sont incluses:
– ponts roulants;
– grues mobiles;
– grues à tour;
– grues pivotantes à flèche relevable;
– portiques;
– grues offshore;
– grues flottantes;
– treuils de tous types;
– palans et accessoires;
– grues de chargement;
– grues à câble (blondins);
– accessoires de suspension de charge;
– machines de stockage et d'extraction;
– treuils suspendus avec rail de translation fixe;
– enjambeurs;
– portiques sur pneus.
Le présent document ne traite pas les éléments particuliers de l'équipement électrique, sauf pour leur choix et leur mise en œuvre.
L'IEC 60204-32:2023 annule et remplace la deuxième édition parue en 2008. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l’édition précédente:
a) L'alignement sur la sixième édition de l’IEC 60204-1 (2016) notamment pour:
– les exigences relatives à la mise à la terre et à la liaison;
– les exigences en matière de protection des circuits;
– l'examen de l'utilisation des entraînements électriques de puissance (PDS);
– les exigences et la terminologie relatives aux liaisons de protection;
– les exigences relatives au couple de sécurité pour les PDS, l'arrêt d'urgence et la protection des circuits de commande;
– les symboles des organes de commande des appareils de commande;
b) la référence pour les équipements électriques à haute tension;
c) les exigences relatives aux systèmes de commande sans fil;
d) les exigences relatives à la CEM;
e) les exigences en matière de documentation technique;
f) la mise à jour générale des conditions spéciales nationales actuelles, des normes et des références bibliographiques.
General Information
- Status
- Published
- Publication Date
- 03-Jul-2023
- Technical Committee
- TC 44 - Safety of machinery - Electrotechnical aspects
- Drafting Committee
- MT 60204-32 - TC 44/MT 60204-32
- Current Stage
- PPUB - Publication issued
- Start Date
- 04-Jul-2023
- Completion Date
- 30-Jun-2023
Relations
- Effective Date
- 05-Sep-2023
Overview
IEC 60204-32:2023 - Safety of machinery - Electrical equipment of machines - Part 32 - specifies electrical requirements for hoisting machines (cranes, winches, storage/retrieval machines and related equipment). The standard applies to electrical, electronic and programmable equipment starting at the point of supply connection (the crane-supply-switch) and includes feeders outside the machine (flexible cables, conductor wires or bars). It covers systems up to 1 000 V AC or 1 500 V DC and nominal frequencies not exceeding 200 Hz. This third edition (2023) replaces the 2008 edition and aligns key topics with IEC 60204-1.
Key topics and technical requirements
The standard focuses on electrical safety and functional integrity of hoisting machines. Major technical topics include:
- Scope of equipment: overhead travelling cranes, mobile cranes, tower cranes, gantry/offshore/floating cranes, winches, hoists, loader and cable cranes, RTGs, monorail hoists, storage and retrieval machines, straddle carriers, load-holding devices.
- Point of supply and feeders: requirements starting from the crane-supply-switch and including external feeders and conductor systems.
- Protection against electric shock: basic and fault protection, PELV where applicable, and residual voltage control.
- Equipotential bonding and protective bonding circuits: earthing, bonding continuity and protective conductor requirements.
- Overcurrent and motor protection: circuit protection for supply, power and control circuits; motor overload/overspeed protections.
- Control systems and functions: start/stop categories, emergency stop, interlocks, operating modes, and measures to minimise risks from failures.
- Power Drive Systems (PDS): consideration of PDS, safe torque off, and control circuit protection.
- Cableless control systems (CCS): requirements and safety considerations for radio or wireless controls.
- Electromagnetic compatibility (EMC): EMC requirements for reliable operation and reduced interference.
- Documentation and technical files: updated technical documentation requirements for design, installation, maintenance and compliance.
- Special conditions: additional requirements where machines handle explosive/flammable materials or are used in mines.
Practical applications and users
IEC 60204-32 is intended for:
- Crane and hoist manufacturers (OEMs)
- Design and electrical engineers specifying hoisting machine systems
- System integrators and control-system suppliers (including PDS and CCS vendors)
- Maintenance teams, safety engineers and plant operators
- Certification bodies and compliance assessors
Applying this standard improves electrical safety, reduces downtime from electrical faults, and supports compliance during installation, commissioning and inspections.
Related standards
- IEC 60204-1 (Safety of machinery - Electrical equipment of machines - General requirements) - alignment for general electrical safety principles
- IEC 60439 series (switchgear selection and erection) - referenced for switchgear considerations
Keywords: IEC 60204-32, hoisting machines, crane electrical safety, cableless control systems, PDS, earthing and bonding, EMC, motor protection, technical documentation.
REDLINE IEC 60204-32:2023 CMV - Safety of machinery - Electrical equipment of machines - Part 32: Requirements for hoisting machines Released:7/4/2023 Isbn:9782832271865
IEC 60204-32:2023 - Safety of machinery - Electrical equipment of machines - Part 32: Requirements for hoisting machines Released:7/4/2023
Frequently Asked Questions
IEC 60204-32:2023 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Safety of machinery - Electrical equipment of machines - Part 32: Requirements for hoisting machines". This standard covers: IEC 60204-32:2023 applies to electrical, electronic, programmable electronic equipment and systems to hoisting machines and related equipment, including a group of hoisting machines working together in a co-ordinated manner. The equipment covered by this document commences at the point of connection of the supply to the electrical equipment of the hoisting machine (crane-supply-switch) and includes systems for power supply and control feeders situated outside of the hoisting machine, for example, flexible cables or conductor wires or conductor bars. This document is applicable to equipment or parts of equipment not exceeding 1 000 V AC or 1 500 V DC between lines and with nominal frequencies not exceeding 200 Hz. This document does not cover all the requirements (for example guarding, interlocking, or control) that are needed or required by other standards or regulations in order to protect persons from hazards other than electrical hazards. Each type of hoisting machine has unique requirements to be accommodated to provide adequate safety. This document does not cover noise risks. Additional and special requirements can apply to the electrical equipment of hoisting machines including those that – handle or transport potentially explosive material (e.g. paint or sawdust); – are intended for use in potentially explosive and/or flammable atmospheres; – have special risks when transporting or moving certain materials; – are intended for use in mines. For the purposes of this document, hoisting machines include cranes of all types, winches of all types and storage and retrieval machines. The following product groups are included: – overhead travelling cranes; – mobile cranes; – tower cranes; – slewing luffing cranes; – gantry cranes; – offshore cranes; – floating cranes; – winches of all types; – hoists and accessories; – loader cranes; – cable cranes; – load holding devices; – storage and retrieval machines; – monorail hoists; – straddle carriers; – rubber tyred gantry cranes (RTGs). This document does not cover individual items of electrical equipment other than their selection for use and their erection. IEC 60204-32:2023 cancels and replaces the second edition published in 2008. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a) alignment to the IEC 60204-1 sixth edition (2016) especially for: – requirements for earthing and bonding; – requirements for circuit protection; – consideration of use of Power Drive Systems; – protective bonding requirements and terminology; – requirements pertaining to safe torque off for PDS, emergency stop, and control circuit protection; – symbols for actuators of control devices; b) reference for high voltage electrical equipment; c) cableless control system requirements; d) EMC requirements; e) technical documentation requirements; f) general updating to current special national conditions, normative standards, and bibliographical references.
IEC 60204-32:2023 applies to electrical, electronic, programmable electronic equipment and systems to hoisting machines and related equipment, including a group of hoisting machines working together in a co-ordinated manner. The equipment covered by this document commences at the point of connection of the supply to the electrical equipment of the hoisting machine (crane-supply-switch) and includes systems for power supply and control feeders situated outside of the hoisting machine, for example, flexible cables or conductor wires or conductor bars. This document is applicable to equipment or parts of equipment not exceeding 1 000 V AC or 1 500 V DC between lines and with nominal frequencies not exceeding 200 Hz. This document does not cover all the requirements (for example guarding, interlocking, or control) that are needed or required by other standards or regulations in order to protect persons from hazards other than electrical hazards. Each type of hoisting machine has unique requirements to be accommodated to provide adequate safety. This document does not cover noise risks. Additional and special requirements can apply to the electrical equipment of hoisting machines including those that – handle or transport potentially explosive material (e.g. paint or sawdust); – are intended for use in potentially explosive and/or flammable atmospheres; – have special risks when transporting or moving certain materials; – are intended for use in mines. For the purposes of this document, hoisting machines include cranes of all types, winches of all types and storage and retrieval machines. The following product groups are included: – overhead travelling cranes; – mobile cranes; – tower cranes; – slewing luffing cranes; – gantry cranes; – offshore cranes; – floating cranes; – winches of all types; – hoists and accessories; – loader cranes; – cable cranes; – load holding devices; – storage and retrieval machines; – monorail hoists; – straddle carriers; – rubber tyred gantry cranes (RTGs). This document does not cover individual items of electrical equipment other than their selection for use and their erection. IEC 60204-32:2023 cancels and replaces the second edition published in 2008. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a) alignment to the IEC 60204-1 sixth edition (2016) especially for: – requirements for earthing and bonding; – requirements for circuit protection; – consideration of use of Power Drive Systems; – protective bonding requirements and terminology; – requirements pertaining to safe torque off for PDS, emergency stop, and control circuit protection; – symbols for actuators of control devices; b) reference for high voltage electrical equipment; c) cableless control system requirements; d) EMC requirements; e) technical documentation requirements; f) general updating to current special national conditions, normative standards, and bibliographical references.
IEC 60204-32:2023 is classified under the following ICS (International Classification for Standards) categories: 29.020 - Electrical engineering in general; 53.020.01 - Lifting appliances in general. The ICS classification helps identify the subject area and facilitates finding related standards.
IEC 60204-32:2023 has the following relationships with other standards: It is inter standard links to IEC 60204-32:2008. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase IEC 60204-32:2023 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of IEC standards.
Standards Content (Sample)

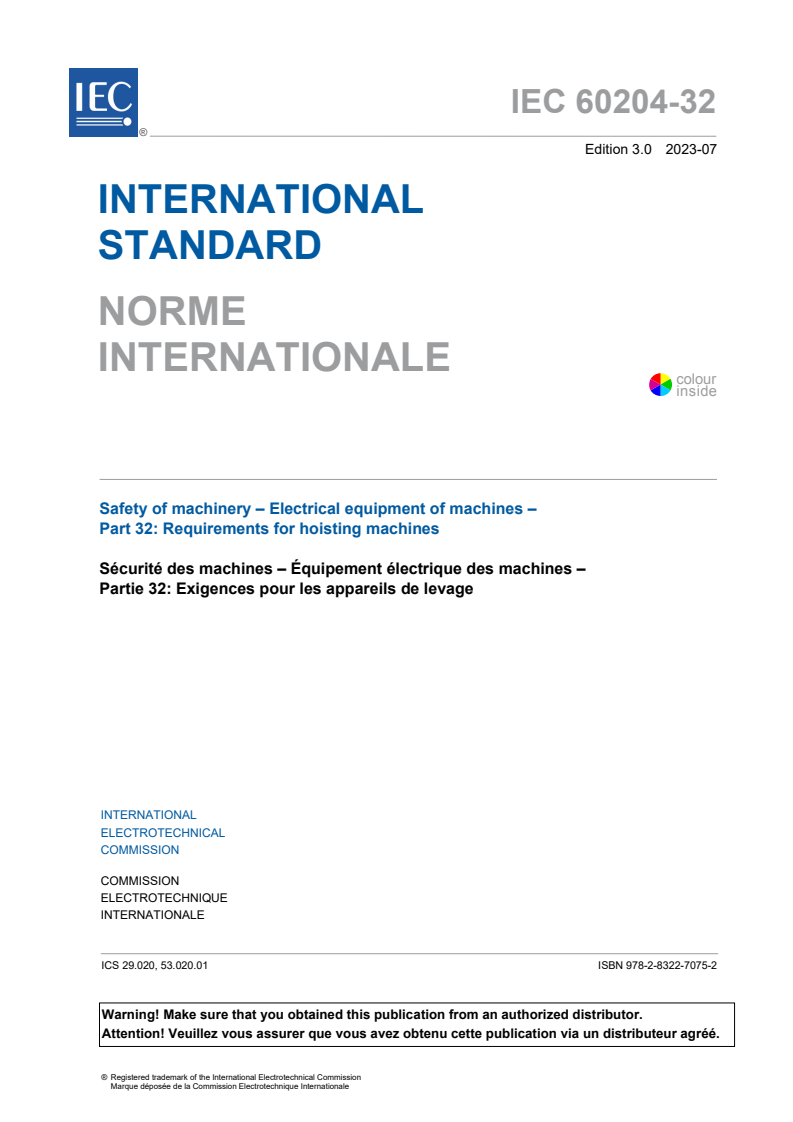

IEC 60204-32 ®
Edition 3.0 2023-07
COMMENTED VERSION
INTERNATIONAL
STANDARD
colour
inside
Safety of machinery – Electrical equipment of machines –
Part 32: Requirements for hoisting machines
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a
Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 19 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 60204-32 ®
Edition 3.0 2023-07
COMMENTED VERSION
INTERNATIONAL
STANDARD
colour
inside
Safety of machinery – Electrical equipment of machines –
Part 32: Requirements for hoisting machines
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.020, 53.020.01 ISBN 978-2-8322-7186-5

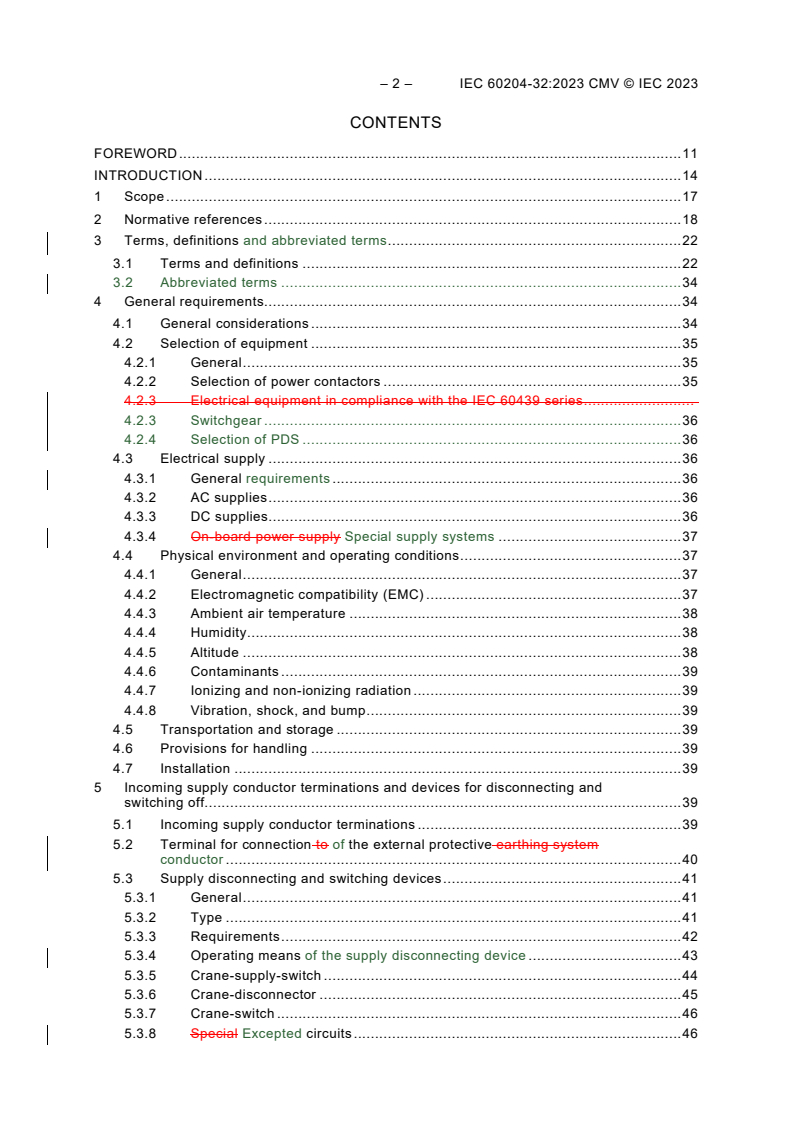

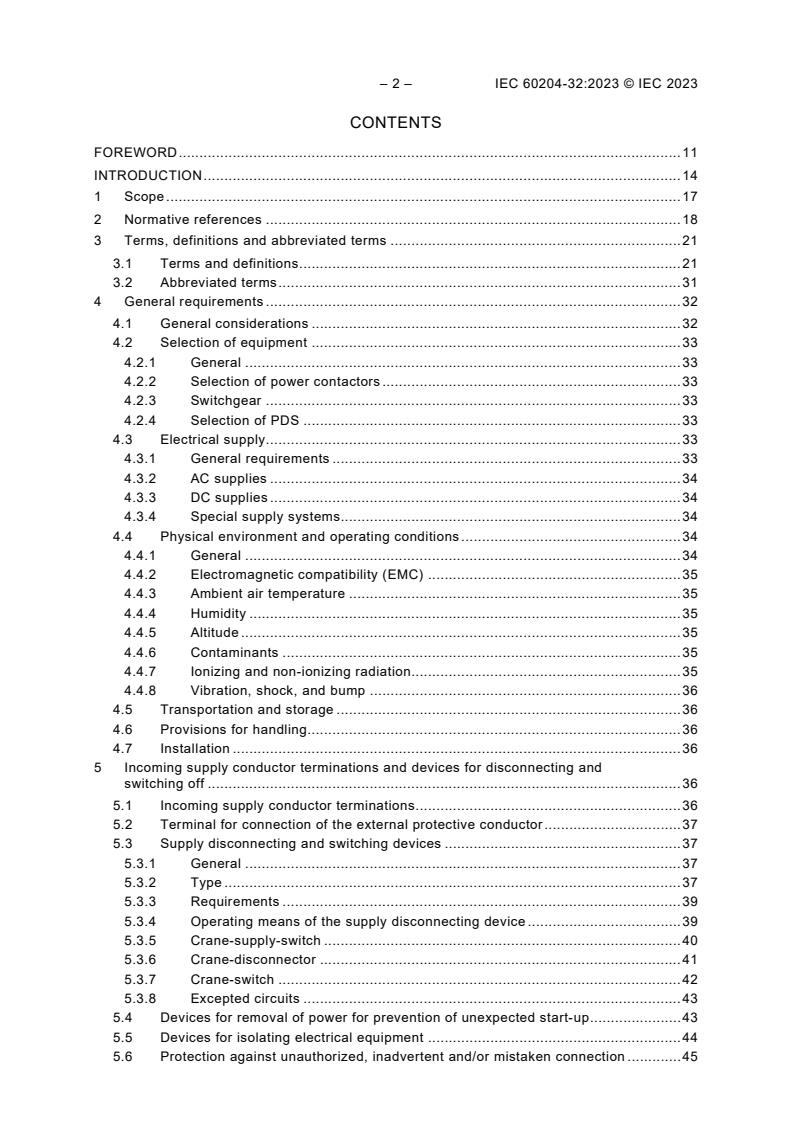

– 2 – IEC 60204-32:2023 CMV © IEC 2023
