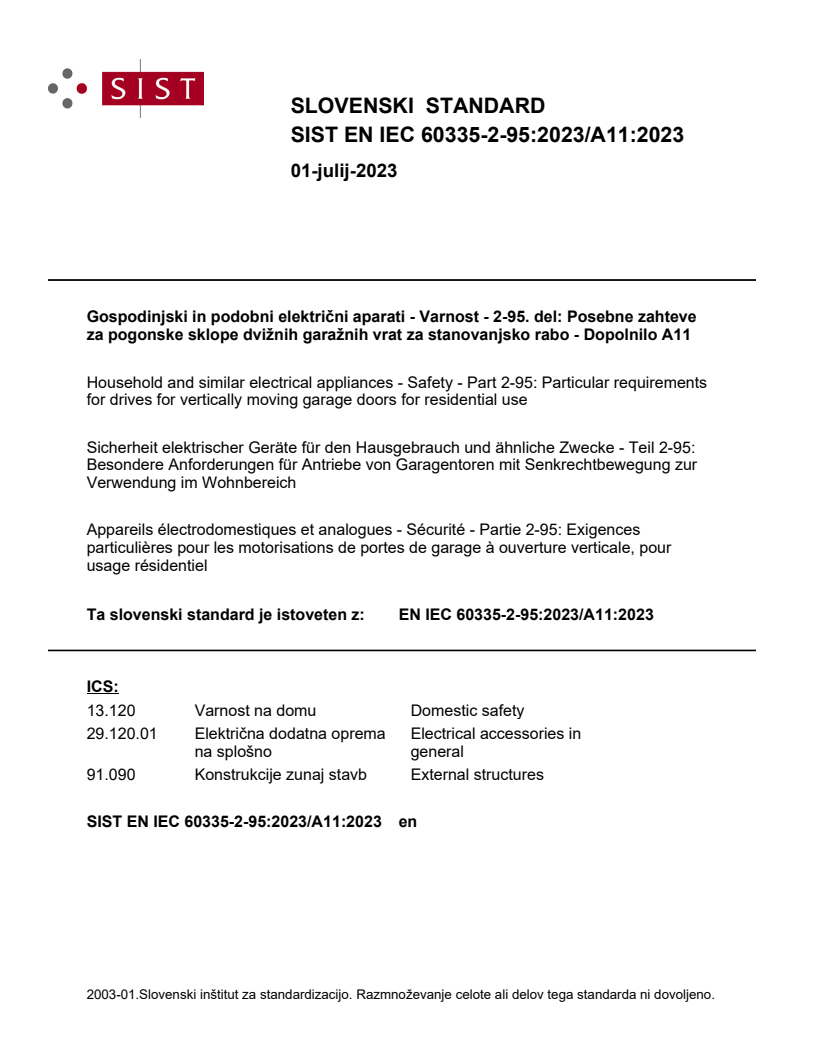

EN IEC 60335-2-95:2023/A11:2023

SLOVENSKI STANDARD
01-julij-2023
Gospodinjski in podobni električni aparati - Varnost - 2-95. del: Posebne zahteve
za pogonske sklope dvižnih garažnih vrat za stanovanjsko rabo - Dopolnilo A11
Household and similar electrical appliances - Safety - Part 2-95: Particular requirements
for drives for vertically moving garage doors for residential use
Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke - Teil 2-95:
Besondere Anforderungen für Antriebe von Garagentoren mit Senkrechtbewegung zur
Verwendung im Wohnbereich
Appareils électrodomestiques et analogues - Sécurité - Partie 2-95: Exigences
particulières pour les motorisations de portes de garage à ouverture verticale, pour
usage résidentiel
Ta slovenski standard je istoveten z: EN IEC 60335-2-95:2023/A11:2023
ICS:
13.120 Varnost na domu Domestic safety
91.060.50 Vrata in okna Doors and windows
91.090 Konstrukcije zunaj stavb External structures
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 60335-2-95:2023/A11
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2023
ICS 13.120; 29.120.01; 91.090
English Version
Household and similar electrical appliances - Safety - Part 2-95:
Particular requirements for drives for vertically moving garage
doors for residential use
Appareils électrodomestiques et analogues - Sécurité - Sicherheit elektrischer Geräte für den Hausgebrauch und
Partie 2-95: Exigences particulières pour les motorisations ähnliche Zwecke - Teil 2-95: Besondere Anforderungen für
de portes de garage à ouverture verticale, pour usage Antriebe von Garagentoren mit Senkrechtbewegung zur
résidentiel Verwendung im Wohnbereich
This amendment A11 modifies the European Standard EN IEC 60335-2-95:2023; it was approved by CENELEC on 2023-03-01. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60335-2-95:2023/A11:2023 E

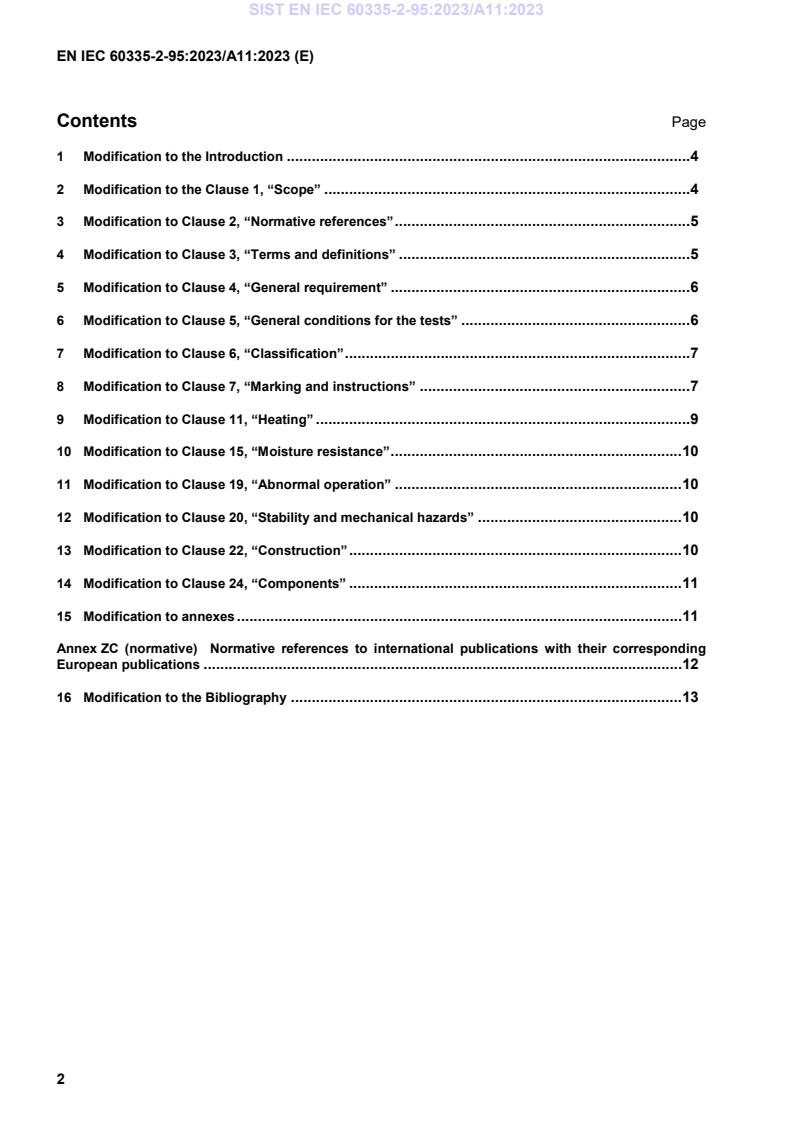

Contents Page
1 Modification to the Introduction . 4
2 Modification to the Clause 1, “Scope” . 4
3 Modification to Clause 2, “Normative references” . 5
4 Modification to Clause 3, “Terms and definitions” . 5
5 Modification to Clause 4, “General requirement” . 6
6 Modification to Clause 5, “General conditions for the tests” . 6
7 Modification to Clause 6, “Classification” . 7
8 Modification to Clause 7, “Marking and instructions” . 7
9 Modification to Clause 11, “Heating” . 9
10 Modification to Clause 15, “Moisture resistance” . 10
11 Modification to Clause 19, “Abnormal operation” . 10
12 Modification to Clause 20, “Stability and mechanical hazards” . 10
13 Modification to Clause 22, “Construction” . 10
14 Modification to Clause 24, “Components” . 11
15 Modification to annexes . 11
Annex ZC (normative) Normative references to international publications with their corresponding
European publications . 12
16 Modification to the Bibliography . 13
European foreword
This document (EN IEC 60335-2-95:2023/A11:2023) has been prepared by CLC/TC 61 “Safety of household
and similar electrical appliances”.
The following dates are fixed:
• latest date by which this document has to be (dop) 2023-11-05
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2026-05-05
conflicting with this document have to be
withdrawn
This document is read in conjunction with EN IEC 60335-2-95:2023.
The numbering system for European clauses, subclauses, notes, tables, figures and annexes that are
additional to those in the IEC standard are prefixed with the letter “Z”.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a Standardization Request given to CENELEC by the European
Commission and the European Free Trade Association.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
1 Modification to the Introduction
Addition:
With European Amendment A11 the EN 60335-2-95:2015+A1:2015+A2:2019 is superseded.
This European Amendment A11, supplements or modifies the corresponding clauses of the standards below:
— EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019+A15:2021+A16:— (Part 1)
— EN IEC 60335-2-95:2022 (Part 2)
The relevant requirements of Annex ZE of Part 1 have been incorporated in the text of this Part 2. Even
though they are not intended for commercial use, garage door drives within the scope of this document are
machines within the meaning of the Machinery Directive 2006/42/EC, and this standard has been written
considering the essential requirements listed in the Directive.
Drives put on the market as machines may be installed by the final user. The requirements of this document
also cover the foreseeable misuse of the power operated garage door.
Drives put on the market as partly completed machines should not be installed by the final user. In case of
partly completed machines, reference should be made to the specific procedures of the Machinery Directive
2006/42/EC; this document can, anyhow, be used as guidance.
2 Modification to the Clause 1, “Scope”
Replacement:
This clause of Part 1 is replaced by the following.
This document deals with the safety of electric drives for garage doors for residential use that open and close
in a vertical direction, the rated voltage of the drives being not more than 250 V for single-phase appliances
and 480 V for other appliances. It also covers the hazards associated with the movement of these electrically
driven garage doors.
NOTE Z101 Examples of types of garage doors are shown in Figure 101.
NOTE Z102 The drive can be supplied with a garage door.
NOTE Z103 This document also applies to entrapment protection devices for use with drives.
NOTE Z104 Within the document the terms drive and appliance are interchangeable.
This document deals with the reasonably foreseeable hazards presented by drives that are encountered by
all persons in and around the installation place. However, in general, it does not take into account:
— children playing with the appliance;
— the use of the appliance by very young children;
— the use of the appliance by young children without supervision.
It is recognized that very vulnerable people can have needs beyond the level addressed in this document.
NOTE Z105 Attention is drawn to the fact that in many countries additional requirements are specified by the national
authorities responsible for the protection of labour and similar authorities.

To be published in 2023. Stage at the time of publication: FprEN 60335-1:2012/A16:2021.
This document also covers automatic drives.
NOTE Z106 This document does not apply to drives
—  for shutters, awnings, blinds and similar equipment (EN IEC 60335-2-97);
—  for gates, doors and windows (EN IEC 60335-2-103);
—  for commercial and industrial purposes;
—  intended to be used in locations where special conditions prevail, such as the presence of a corrosive or explosive
atmosphere (dust, vapour or gas).
This document does not deal with any specific requirements on noise emitted from these drives as the
generated noise is not considered to be a relevant hazard. Thus, the emission sound pressure level LpA is
considered to be LpA ≤ 70 dB(A).
3 Modification to Clause 2, “Normative references”
Add the following reference:
EN 12978:2003 , Industrial, commercial and garage doors and gates - Safety devices for power operated
doors and gates - Requirements and test methods
4 Modification to Clause 3, “Terms and definitions”
3.5.101 Modification:
Replace the text of the note by the following:
Examples of components are gears, controls, brakes, components for power transmission from the drive to
the driven part (e.g. trolleys, rails, levers, etc.) and entrapment protection systems.
3.7.101 Addition:
Note Z101 to entry:  A biased-off switch is also called a hold to run control.
Add the following new definitions:
3.Z101
rated operating time
duration of continuous operation assigned to the drive by the manufacturer
Note 1 to entry: During continuous operation, the drive may reverse its direction.
3.Z102
rated number of operating cycles
number of uninterrupted operating cycles assigned to the drive by the manufacturer
Note 1 to entry: An operating cycle consists of an opening and closing movement of the door.
3.Z103
mode of operation
way the movement of the driven part is initiated

As impacted by EN 12978:2003/A1:2009.
3.Z104
cycle
complete opening and closing movement of the door
3.Z105
tubular drive
drive intended to be used in the tube of the rolling driven part
5 Modification to Clause 4, “General requirement”
Replacement:
This clause of Part 1 is applicable except as follows.
Add to the first paragraph:
Drives shall be constructed in such a way that they ensure transportation, installation, adjusting, maintenance
and be carried out safely.
6 Modification to Clause 5, “General conditions for the tests”
5.3 Addition:
When a drive incorporates a sub-assembly or a part which has already been tested against relevant clause(s)
of this standard, those tests need not be repeated, if the incorporation of the sub-assembly or part into the
drive does not change the performance of the sub-assembly or part.
5.5 In the addition, replace the text by the following:
When a test has to be carried out with a door with a wicket door, this is kept in the safe position during the
tests.
Safe position of a wicket door is the closed position when it travels together with the door or the open position
when it does not travel with the door.
5.7 Addition:
If drives are intended to operate beyond the ambient temperature range of +5 °C to +40 °C, the tests of
Clause 20 are carried out at the most unfavourable marked temperature.
The tests outside the ambient temperature range can be carried out using an artificial load. In this case, the
tests shall be carried out at ambient temperature with the door and additionally at ambient and most
unfavourable marked temperature using an artificial load, in order to have comparable results.
Add one new subclause:
5.Z101 Drives shall be tested for compliance with this document for any of the following modes of operation
as intended by the manufacturer.
Modes of operation are:
—  automatic operation (only one activation needed for at least one cycle);
—  impulse operation (one activation needed for a movement);
—  biased off (hold to run) operation.
Whenever required by the instructions, components shall be added or changed to perform the tests.
7 Modification to Clause 6, “Classification”
6.2 Modification
In the addition add “or part of drives” after “Drives”.
Addition:
Drive or part of drive intended to be exposed to outdoor conditions are su
...
