Aerospace series - Electrical contacts used in elements of connection - Part 034: Contacts, electrical, triaxial, size 08, male, type D, crimp, class R - Product standard

This standard specifies the required characteristics, tests and tooling applicable to male electrical triaxial contacts, size 08, type D, crimp, class R, used in element of connection according to EN 3155-002.
It shall be used together with EN 3155-001.
The associated female contacts are defined in EN 3155-035 and EN 3155-043.

Luft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen -Teil 034: Elektrische triaxiale Stiftkontakte, Größe 08, Typ D, crimpbar, Klasse R - Produktnorm

Série aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie 034 : Contacts électriques triaxiaux, taille 08, mâles, type D, à sertir, classe R - Norme de produit

Aeronavtika - Električni kontakti za uporabo v veznih elementih - 034. del: Kontakti, električni, triaksialni, velikost 08, moški, tip D, nagubani, razred R - Standard za proizvod

General Information

Status
Published
Publication Date
09-Oct-2007
Withdrawal Date
29-Apr-2008
ICS
45.060 - Railway rolling stock

49.060 - Aerospace electric equipment and systems
Technical Committee
ASD-STAN - Aerospace
Drafting Committee
ASD-STAN/D 2 - Electrical
Current Stage
9093 - Decision to confirm - Review Enquiry
Start Date
30-Jun-2017
Completion Date
28-Jan-2026
Ref Project
SIST EN 3155-034:2008 - Aerospace series - Electrical contacts used in elements of connection - Part 034: Contacts, electrical, triaxial, size 08, male, type D, crimp, class R - Product standard

Relations

Refers
EN 3155-042:2006 - Aerospace series - Electrical contacts used in elements of connection - Part 042: Contacts, electrical, triaxial, size 08, male 042, type D, solder, class P - Product standard
Effective Date
28-Jan-2026
Refers
EN 3682-001:2013 - Aerospace series - Connectors, plug and receptacle, electrical, rectangular, interchangeable insert type, rack to panel, operating temperature 150 °C continuous - Part 001: Technical specification
Effective Date
28-Jan-2026
Refers
EN 3155-002:2024 - Aerospace series - Electrical contacts used in elements of connection - Part 002: List and utilization of contacts
Effective Date
28-Jan-2026
Refers
EN 3155-001:2025 - Aerospace series - Electrical contacts used in elements of connection - Part 001: Technical specification
Effective Date
28-Jan-2026
Refers
EN 2591:1992 - Aerospace series - Elements of electrical and optical connection - Test methods - General
Effective Date
28-Jan-2026
Refers
EN 3155-043:2006 - Aerospace series - Electrical contacts used in elements of connection - Part 043: Contacts, electrical, triaxial, size 08, female 043, type D, solder, class P - Product standard
Effective Date
28-Jan-2026
Referred By
EN 4530-002:2006 - Aerospace series - Sealing sleeves used in elements of connection - Part 002: List and utilization of sealing sleeves
Effective Date
28-Jan-2026
Referred By
EN 3155-035:2012 - Aerospace series - Electrical contacts used in elements of connection - Part 035: Contacts, electrical, triaxial, size 08, female, type D, crimp, class R - Product standard
Effective Date
28-Jan-2026
Referred By
EN ISO 13366-2:2006 - Milk - Enumeration of somatic cells - Part 2: Guidance on the operation of fluoro-opto-electronic counters (ISO 13366-2:2006)
Effective Date
28-Jan-2026
Referred By
EN 3682-002:2006 - Aerospace series - Connectors, plug and receptacle, electrical, rectangular, interchangeable insert type, rack to panel, operating temperature 150 °C continuous - Part 002: Specification of performance and contact arrangements
Effective Date
28-Jan-2026
Referred By
EN 3682-002:2013 - Aerospace series - Connectors, plug and receptacle, electrical, rectangular, interchangeable insert type, rack to panel, operating temperature 150 °C continuous - Part 002: Specification of performance and contact arrangements
Effective Date
28-Jan-2026
Referred By
EN 2591-220:2005 - Aerospace series - Elements of electrical and optical connection - Test methods - Part 220: Contact/conductor joint ageing by current and temperature cycling
Effective Date
28-Jan-2026
Referred By
EN 2591-227:2015 - Aerospace series - Elements of electrical and optical connection - Test methods - Part 227: Partial discharges test
Effective Date
28-Jan-2026
Referred By
EN 4530-002:2024 - Aerospace series - Sealing sleeves used in elements of connection - Part 002: List and utilization of sealing sleeves
Effective Date
28-Jan-2026

Overview

EN 3155-034:2007 is a CEN product standard in the Aerospace series that specifies requirements, tests and tooling for male triaxial electrical contacts, size 08, type D, crimp, class R. It applies to contacts used in elements of connection per EN 3155-002 and is intended to be used together with EN 3155-001 (technical specification). These contacts are designed for high‑reliability aerospace and defence applications where a screened (triaxial) contact is required and an operating temperature range of −65 °C to +150 °C (class R) is needed.

Key Topics

  • Contact type and scope
    • Male, triaxial contacts, size 08, type D, crimp termination, class R.
    • Interchangeable with MIL‑C‑39029/96 and EN 3155‑042.
  • Materials and construction
    • Contact bodies, center and intermediate contacts, and crimp ferrules: copper alloys.
    • Dielectric: PTFE. Surface plating: gold over suitable undercoat (selective protection permitted).
    • Maximum mass: 5.2 g.
  • Electrical and environmental requirements
    • Insulation resistance: ≥ 5 000 MΩ at ambient, ≥ 2 000 MΩ at maximum temperature.
    • Withstand voltage at sea level: 1 000 V r.m.s. (centre ↔ intermediate), 500 V r.m.s. (intermediate ↔ outer). Altitude test: 125 V r.m.s. at 4.7 kPa.
    • Contact discontinuity: ≤ 100 ns during vibration/shock tests.
  • Mechanical and crimping
    • Crimping tooling per MIL‑DTL‑22520; insertion/extraction tooling per MIL‑I‑81969/14.
    • Typical crimp length specified (example: 6 mm for outer braid crimp).
    • Minimum tensile values for crimped connections: centre/intermediate 36 N, outer 113 N.
  • Qualification and tests
    • Test regime references EN 2591 series and EN 3155‑001 (visual, dimensional, contact resistance, endurance, thermal cycling, vibration, salt mist, fluid resistance, solderability, coating thickness/adhesion, magnetic permeability, etc.).

Applications

  • Designed for use in aerospace and defence connector systems requiring shielded/triaxial conductors (e.g., avionics, radio frequency subsystems, sensor cabling).
  • Intended for connector manufacturers, avionics engineers, procurement/specification teams, and test laboratories that require standardized, high‑reliability triaxial crimp contacts.
  • Useful where screening and EMI control are critical and where parts must be interchangeable with MIL and other aerospace standards.

Related Standards

  • EN 3155-001 (technical specification)
  • EN 3155-002 (list and utilization of contacts)
  • EN 3155-035 / EN 3155-043 (associated female triaxial contacts)
  • EN 3155-042 (solder type equivalent)
  • EN 2591 series (test methods)
  • MIL‑C‑39029/96, MIL‑DTL‑22520, MIL‑I‑81969/14, EN 3682-001, TR 6058

Keywords: EN 3155-034, triaxial contacts, aerospace electrical contacts, size 08, crimp contacts, type D, class R, connector contacts, aerospace standard.

Get Certified

Connect with accredited certification bodies for this standard

National Aerospace and Defense Contractors Accreditation Program (NADCAP)

Global cooperative program for special process quality in aerospace.

ANAB United States Verified
Visit Website

NSF-ISR

NSF International Strategic Registrations.

ANAB United States Verified
Visit Website

Orion Registrar Inc.

US-based certification body for management systems.

ANAB United States Verified
Visit Website

Sponsored listings

Frequently Asked Questions

EN 3155-034:2007 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Electrical contacts used in elements of connection - Part 034: Contacts, electrical, triaxial, size 08, male, type D, crimp, class R - Product standard". This standard covers: This standard specifies the required characteristics, tests and tooling applicable to male electrical triaxial contacts, size 08, type D, crimp, class R, used in element of connection according to EN 3155-002. It shall be used together with EN 3155-001. The associated female contacts are defined in EN 3155-035 and EN 3155-043.

This standard specifies the required characteristics, tests and tooling applicable to male electrical triaxial contacts, size 08, type D, crimp, class R, used in element of connection according to EN 3155-002. It shall be used together with EN 3155-001. The associated female contacts are defined in EN 3155-035 and EN 3155-043.

EN 3155-034:2007 is classified under the following ICS (International Classification for Standards) categories: 45.060 - Railway rolling stock; 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.

EN 3155-034:2007 has the following relationships with other standards: It is inter standard links to EN 3155-042:2006, EN 3682-001:2013, EN 3155-002:2024, EN 3155-001:2025, EN 2591:1992, EN 3155-043:2006, EN 4530-002:2006, EN 3155-035:2012, EN ISO 13366-2:2006, EN 3682-002:2006, EN 3682-002:2013, EN 2591-220:2005, EN 2591-227:2015, EN 4530-002:2024. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

EN 3155-034:2007 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

Standards Content (Sample)

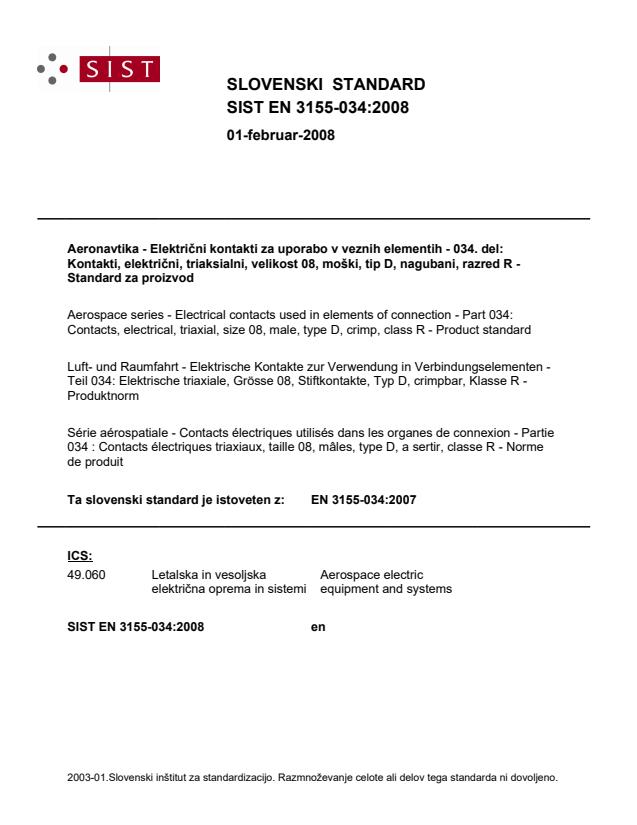

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen -Teil 034: Elektrische triaxiale, Grösse 08, Stiftkontakte, Typ D, crimpbar, Klasse R - ProduktnormSérie aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie 034 : Contacts électriques triaxiaux, taille 08, mâles, type D, a sertir, classe R - Norme de produitAerospace series - Electrical contacts used in elements of connection - Part 034: Contacts, electrical, triaxial, size 08, male, type D, crimp, class R - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 3155-034:2007SIST EN 3155-034:2008en01-februar-2008SIST EN 3155-034:2008SLOVENSKI
STANDARD

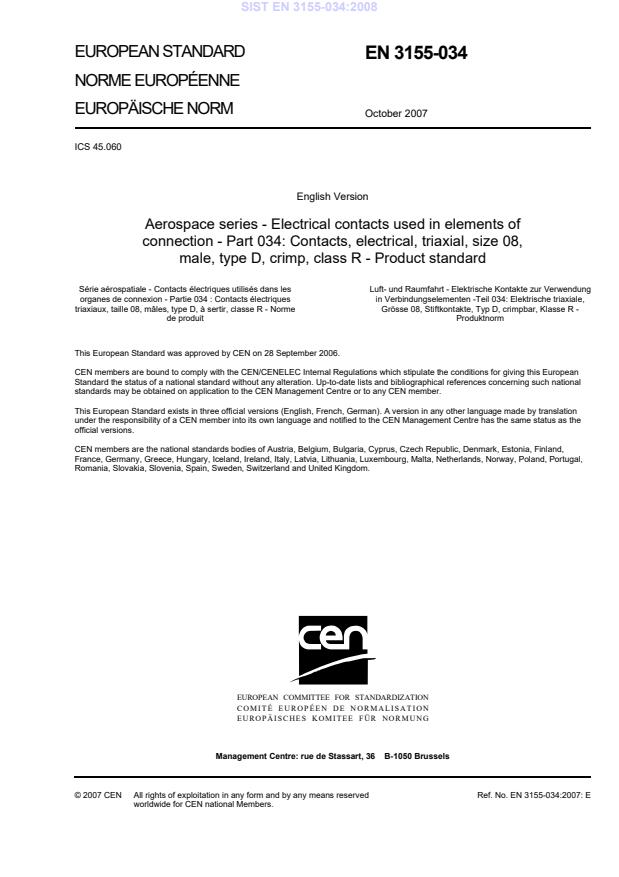

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 3155-034October 2007ICS 45.060 English VersionAerospace series - Electrical contacts used in elements ofconnection - Part 034: Contacts, electrical, triaxial, size 08,male, type D, crimp, class R - Product standardSérie aérospatiale - Contacts électriques utilisés dans lesorganes de connexion - Partie 034 : Contacts électriquestriaxiaux, taille 08, mâles, type D, à sertir, classe R - Normede produitLuft- und Raumfahrt - Elektrische Kontakte zur Verwendungin Verbindungselementen -Teil 034: Elektrische triaxiale,Grösse 08, Stiftkontakte, Typ D, crimpbar, Klasse R -ProduktnormThis European Standard was approved by CEN on 28 September 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2007 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 3155-034:2007: ESIST EN 3155-034:2008

* All parts quoted in this standard. 1) Published as ASD Prestandard at the date of publication of this standard. 2) Published by: Department of Defense (DoD), The Pentagon, Wash
...
