EN 3155-035:2012
(Main)Aerospace series - Electrical contacts used in elements of connection - Part 035: Contacts, electrical, triaxial, size 08, female, type D, crimp, class R - Product standard
Aerospace series - Electrical contacts used in elements of connection - Part 035: Contacts, electrical, triaxial, size 08, female, type D, crimp, class R - Product standard
This European Standard specifies the required characteristics, tests and tooling applicable to female electrical
triaxial contacts, size 08, type D, crimp, class R, used in element of connection according to EN 3155-002.
It should be used together with EN 3155-001.
The associated male contacts are defined in EN 3155-034 and EN 3155-042.
Luft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen - Teil 035: Elektrische triaxiale, Größe 08, Buchsenkontakte, Typ D, crimpbar, Klasse R - Produktnorm
Diese Norm legt die Anforderungen, Prüfungen und Werkzeuge für elektrische, triaxiale Buchsenkontakte, Größe 08, Typ D, crimpbar, Klasse R, zur Verwendung in Verbindungselementen nach EN 3155-002 fest.
Sie sollte in Verbindung mit EN 3155-001 angewendet werden.
Die entsprechenden Stiftkontakte sind in EN 3155-034 und EN 3155-042 definiert.
Série aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie 035: Contacts électriques triaxiaux, taille 08, femelles, type D, à sertir, classe R - Norme de produit
La présente Norme Européenne spécifie les caractéristiques requises, les essais et l’outillage applicables aux contacts triaxiaux électriques femelles, taille 08, type D, à sertir, classe R, utilisés dans les organes de connexion selon l’EN 3155-002.
Elle doit être utilisée conjointement avec l’EN 3155-001.
Les contacts mâles associés sont définis dans les EN 3155-034 et EN 3155-042.
Aeronavtika - Električni kontakti za uporabo v veznih elementih - 035. del: Kontakti, električni, triaksialni, velikost 08, ženski, tip D, nagubani, razred R - Standard za izdelek
Ta evropski standard določa zahtevane značilnosti, preskuse in orodja za ženske električne triaksialne kontakte velikosti 08, tipa D, nagubane, razreda R, ki se uporabljajo v veznih elementih v skladu s standardom EN 3155-002. Uporabljal naj bi se s standardom EN 3155-001. Povezani moški kontakti so določeni v standardih EN 3155-034 in EN 3155-042.
General Information
- Status
- Published
- Publication Date
- 13-Mar-2012
- Withdrawal Date
- 29-Sep-2012
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 30-Jun-2017
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 21-Mar-2012
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview - EN 3155-035:2012 (Aerospace triaxial female contacts)
EN 3155-035:2012 is a CEN product standard for electrical triaxial contacts, size 08, female, type D, crimp, class R, intended for aerospace connector elements. It defines the required characteristics, dimensional and mass limits, materials, surface treatment, tooling and mandatory test program for contacts used with EN 3155-002 connection elements. This standard is to be used together with EN 3155-001 (technical specification) and relates to male counterparts defined in EN 3155-034 and EN 3155-042.
Key topics and technical requirements
- Contact type and class: Triaxial, size 08, female, type D, crimp, class R - class R supports an operating temperature range of −65 °C to 150 °C.
- Materials & plating: Copper-alloy bodies and contacts, PTFE dielectric, gold plating over appropriate undercoat (selective protection permitted).
- Dimensions & mass: Detailed dimensional tolerances given (metric); maximum mass 6.9 g per contact after surface treatment.
- Cable compatibility & ferrules: Defines permissible cable code groups (per TR 6058) and ferrule designs for wiring and crimping.
- Tooling: Specifies crimping and insertion/extraction tooling per MIL standards (e.g., MIL‑DTL‑22520G for crimp tools, specific selector/positioner settings).
- Electrical and mechanical tests: Test suite per EN 2591 series including:
- Contact resistance limits (center & intermediate: ≤15 mΩ initial; ≤30 mΩ after tests)
- Insulation resistance (mated): ≥5 000 MΩ at ambient, ≥2 000 MΩ at high temperature
- Voltage proof: 1 000 V r.m.s. between center and intermediate; 500 V r.m.s. between intermediate and outer (sea level)
- Endurance (temperature): 1 000 h, rapid temperature cycling (150 °C / −65 °C), salt mist, fluid resistance, shock and vibration
- Mechanical tensile strengths (crimped): center/intermediate 36 N min, outer 113 N min
- Microsecond discontinuity requirement: ≤100 ns
- Gauging & insertion/extraction forces: Defined gauge dimensions and limits for extraction/insertion.
Applications and users
- Applicable to aerospace electrical interconnects where screened/triaxial performance and high reliability are required: avionics harnesses, RF/coaxial triaxial signal feeds, sensors, and high‑immunity data links.
- Primary users: connector and contact manufacturers, aerospace design engineers, avionics/harness designers, test laboratories, procurement and quality assurance teams specifying compliant components.
Related standards
- EN 3155-001 (technical specification) - use together
- EN 3155-002 (list & utilisation of contacts)
- EN 3155-034 / EN 3155-042 (male contacts)
- EN 2591 series (test methods)
- EN 3682-001 (connector requirements)
- MIL‑DTL‑22520G, MIL‑I‑81969 (tooling & insertion/extraction)
- TR 6058 (cable code list), SAE AS 39029/95 (interchangeability reference)
This standard is essential when specifying or qualifying triaxial, size 08, female crimp contacts for high‑reliability aerospace interconnect systems.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 3155-035:2012 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Electrical contacts used in elements of connection - Part 035: Contacts, electrical, triaxial, size 08, female, type D, crimp, class R - Product standard". This standard covers: This European Standard specifies the required characteristics, tests and tooling applicable to female electrical triaxial contacts, size 08, type D, crimp, class R, used in element of connection according to EN 3155-002. It should be used together with EN 3155-001. The associated male contacts are defined in EN 3155-034 and EN 3155-042.
This European Standard specifies the required characteristics, tests and tooling applicable to female electrical triaxial contacts, size 08, type D, crimp, class R, used in element of connection according to EN 3155-002. It should be used together with EN 3155-001. The associated male contacts are defined in EN 3155-034 and EN 3155-042.
EN 3155-035:2012 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 3155-035:2012 has the following relationships with other standards: It is inter standard links to EN 3155-035:2006, EN 2591-407:1999, EN 2591-6301:2001, EN 2591-401:1996, EN 2591-6406:2001, EN 2591-427:2001, EN 2591-416:2001, EN 2591-508:2023, EN 2591-502:2001, EN 2591-409:1999, EN 2591-312:1997, EN 2591-208:1996, EN 2591-503:2001, EN 2591-301:1996, EN 2591-708:2001. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 3155-035:2012 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

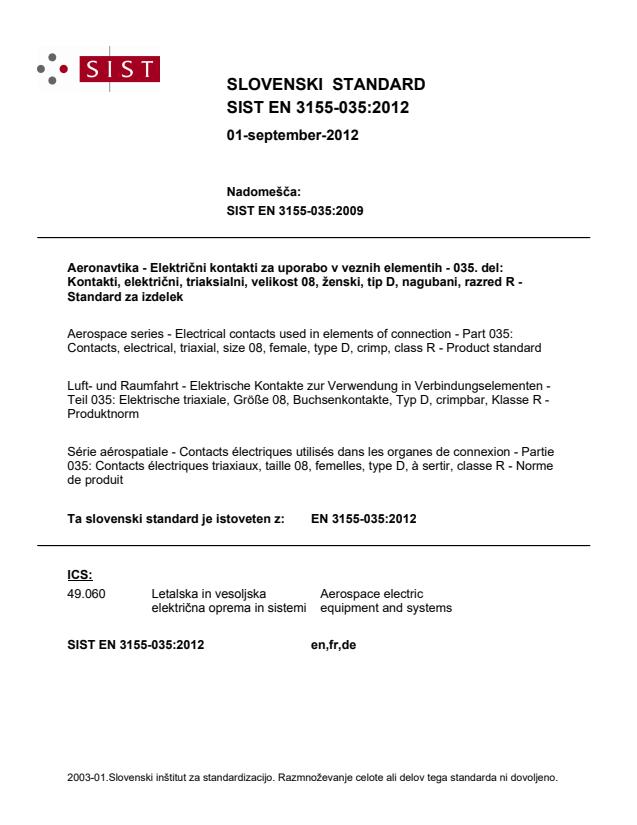

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen - Teil 035: Elektrische triaxiale, Größe 08, Buchsenkontakte, Typ D, crimpbar, Klasse R - ProduktnormSérie aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie 035: Contacts électriques triaxiaux, taille 08, femelles, type D, à sertir, classe R - Norme de produitAerospace series - Electrical contacts used in elements of connection - Part 035: Contacts, electrical, triaxial, size 08, female, type D, crimp, class R - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 3155-035:2012SIST EN 3155-035:2012en,fr,de01-september-2012SIST EN 3155-035:2012SLOVENSKI
STANDARDSIST EN 3155-035:20091DGRPHãþD

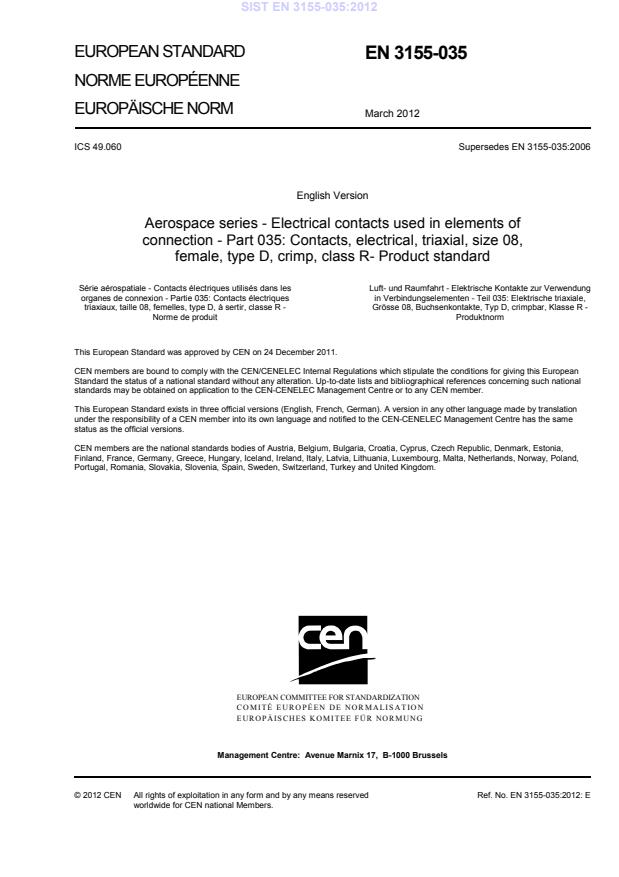

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 3155-035
March 2012 ICS 49.060 Supersedes EN 3155-035:2006English Version
Aerospace series - Electrical contacts used in elements of connection - Part 035: Contacts, electrical, triaxial, size 08, female, type D, crimp, class R- Product standard
Série aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie 035: Contacts électriques triaxiaux, taille 08, femelles, type D, à sertir, classe R - Norme de produit
Luft- und Raumfahrt - Elektrische Kontakte zur Verwendungin Verbindungselementen - Teil 035: Elektrische triaxiale, Grösse 08, Buchsenkontakte, Typ D, crimpbar, Klasse R - Produktnorm This European Standard was approved by CEN on 24 December 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 3155-035:2012: ESIST EN 3155-035:2012
Introduction The electrical contacts defined in this standard are derived from and interchangeable with those of standard SAE AS 39029/95. They are also interchangeable with those of standard EN 3155-043. 1 Scope This European Standard specifies the required characteristics, tests and tooling applicable to female electrical triaxial contacts, size 08, type D, crimp, class R, used in element of connection according to EN 3155-002. It should be used together with EN 3155-001. The associated male contacts are defined in EN 3155-034 and EN 3155-042. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 2591 (all parts), Aerospace series — Elements of electrical and optical connection — Test methods EN 3155-001, Aerospace series — Electrical contacts used in elements of connection — Part 001: Technical specification EN 3155-002, Aerospace series — Electrical contacts used in elements of connection — Part 002: List and utilization of contacts EN 3155-034, Aerospace series — Electrical contacts used in elements of connection — Part 034: Contacts, electrical, triaxial, size 08, male, type D, crimp, class R — Product standard EN 3155-042, Aerospace series — Electrical contacts used in elements of connection — Part 042: Contacts, electrical, triaxial, size 08, male 042, type D, solder, class P — Product standard EN 3155-043, Aerospace series — Electrical contacts used in elements
...
