EN 3155-043:2006
(Main)Aerospace series - Electrical contacts used in elements of connection - Part 043: Contacts, electrical, triaxial, size 08, female 043, type D, solder, class P - Product standard
Aerospace series - Electrical contacts used in elements of connection - Part 043: Contacts, electrical, triaxial, size 08, female 043, type D, solder, class P - Product standard
This standard specifies the required characteristics and tests applicable to female triaxial contacts 043, size 08, type D, solder, class P, used in elements of connection according to EN 3155-002.
The associated male contacts are defined in EN 3155-042.
These contacts are derived from and are interchangeable with those of standard MIL C 39029/95.
Luft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen - Teil 043: Elektrische triaxiale, Buchsenkontakte 043, Größe 08, Typ D, zum Löten, Klasse P - Produktnorm
Diese Norm legt die Anforderungen und Prüfungen für triaxiale Buchsenkontakte 043, Größe 08, Typ D, zum Löten, Klasse P, zur Verwendung in elektrischen Verbindungselementen nach EN 3155 002 fest.
Die zugehörigen Buchsenkontakte sind in EN 3155 042 festgelegt.
Diese Kontakte sind abgeleitet von den Kontakten nach AS 39029/95 und mit diesen austauschbar.
Série aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie 043 : Contacts électriques, triaxiaux, taille 08, femelles 043, type D, à souder, classe P - Norme de produit
Aeronavtika - Električni kontakti za uporabo v veznih elementih - 043. del: Kontakti, električni, triaksialni, velikost 08, ženski 043, tip D, za spajkanje, razred P - Standard za proizvod
General Information
- Status
- Published
- Publication Date
- 11-Apr-2006
- Withdrawal Date
- 30-Oct-2006
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 01-Jun-2017
- Completion Date
- 21-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 3155-043:2006 is a CEN/AECMA product standard specifying the required characteristics and tests for female triaxial electrical contacts (043), size 08, type D, solder termination, class P, used in aerospace connection elements per EN 3155-002. These contacts provide screened (triaxial) signal transmission for avionics and are intended to be interchangeable with legacy military/defence variants (see related references such as MIL C 39029/95 / AS 39029/95).
Key topics and technical requirements
- Contact type and class: Type D triaxial contacts with a screening feature; Class P indicates an operating temperature range of −65 °C to +125 °C.
- Physical characteristics: Dimensions in millimetres are defined (see figure references in the standard); maximum mass 4.80 g. Body material is copper alloy with gold plating over an appropriate undercoat (selective protection permitted; thickness not specified).
- Permitted cables: Covers single-braid, double-braid and high-immunity bifilar cables per EN 3375-003 / -004 / -005.
- Termination and tooling: Solder termination; tooling and insertion/extraction guidance conform to MIL-I-81969 and EN 4008-002 for termination tooling. Extraction tool example: M81969/14-06.
- Electrical and mechanical performance: Specified contact resistance limits for centre and intermediate conductors (initial and after-test thresholds), rated-current resistance figures, and dielectric/insulation requirements.
- Environmental and reliability tests: Visual/dimensional inspection, contact resistance (low level and at rated current), insulation resistance, voltage proof, endurance at temperature, rapid temperature change, salt mist, fluid resistance, shock and vibration (EN 2591 series test methods referenced). Discontinuity requirements (microsecond range) and gauge insertion/extraction forces are specified.
- Gauges and marking: Gauge dimensions, designation format (e.g., EN3155-043F08A), and manufacturer marking per EN 3155-001.
Applications and users
- Aerospace OEMs and suppliers specifying or producing triaxial signal connectors for avionics, flight controls, sensors and RF-shielded signal harnesses.
- Connector manufacturers designing female triaxial contacts and mating systems compatible with EN 3155 series and legacy military types.
- Qualification and test laboratories performing EN 2591- and EN 3155-series tests for acceptance and environmental qualification.
- Procurement, maintenance and repair teams requiring verified interchangeability, environmental performance and tooling information for installation and replacement.
Related standards
- EN 3155-001 (technical specification)
- EN 3155-002 (list and utilisation of contacts)
- EN 3155-042 (male triaxial contacts, mating counterpart)
- EN 2591 series (test methods)
- EN 3375-003 / -004 / -005 (permitted signal cable types)
- EN 4008-002 (termination tooling) and MIL-I-81969 (insertion/extraction tooling references)
This standard is essential when specifying or validating triaxial, size 08, solder-type female contacts for aerospace applications where shielding, environmental ruggedness and interchangeability with established military connector families are required.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 3155-043:2006 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Electrical contacts used in elements of connection - Part 043: Contacts, electrical, triaxial, size 08, female 043, type D, solder, class P - Product standard". This standard covers: This standard specifies the required characteristics and tests applicable to female triaxial contacts 043, size 08, type D, solder, class P, used in elements of connection according to EN 3155-002. The associated male contacts are defined in EN 3155-042. These contacts are derived from and are interchangeable with those of standard MIL C 39029/95.
This standard specifies the required characteristics and tests applicable to female triaxial contacts 043, size 08, type D, solder, class P, used in elements of connection according to EN 3155-002. The associated male contacts are defined in EN 3155-042. These contacts are derived from and are interchangeable with those of standard MIL C 39029/95.
EN 3155-043:2006 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 3155-043:2006 has the following relationships with other standards: It is inter standard links to EN 2591-613:2002, EN 2591-515:2005, EN 2591-217:2002, EN 2591-224:2007, EN 2591-6321:2002, EN 2591-307:2012, EN 2591-507:2002, EN 2591-514:2002, EN 2591-403:2025, EN 2591-225:2007, EN 2591-402:2012, EN 2591-325:2002, EN 2591-100:2024, EN 2591-423:2005, EN 2591-214:2012. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 3155-043:2006 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

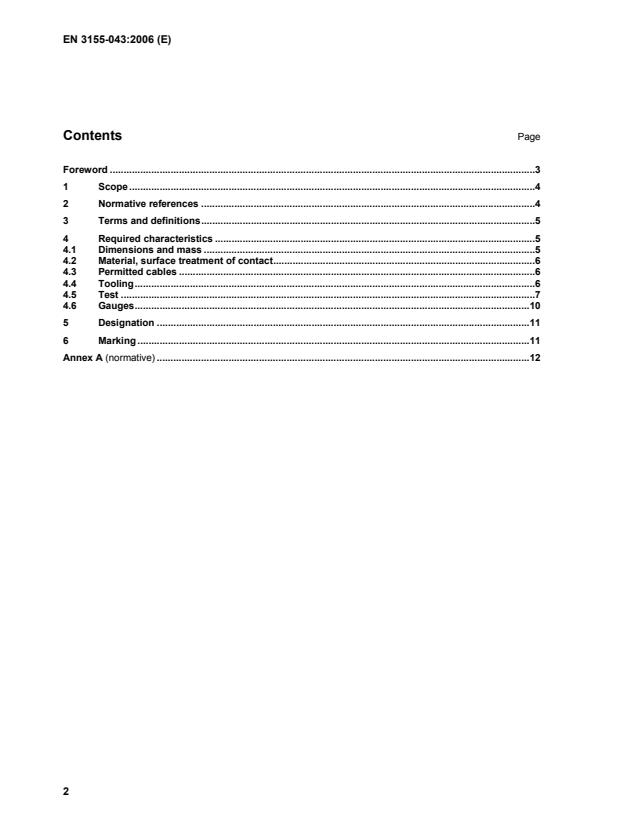

Standards Content (Sample)

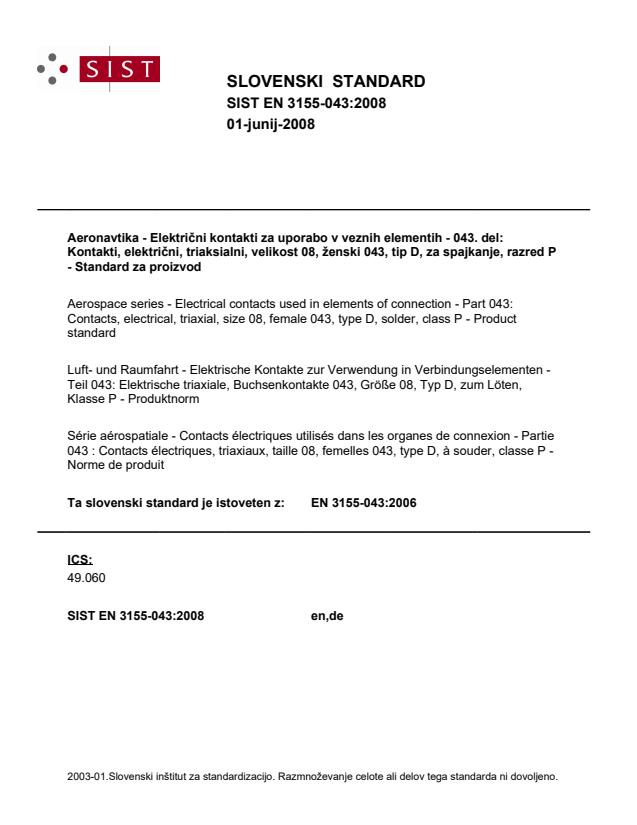

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aerospace series - Electrical contacts used in elements of connection - Part 043: Contacts, electrical, triaxial, size 08, female 043, type D, solder, class P - Product standardSérie aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie 043 : Contacts électriques, triaxiaux, taille 08, femelles 043, type D, à souder, classe P - Norme de produitLuft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen - Teil 043: Elektrische triaxiale, Buchsenkontakte 043, Größe 08, Typ D, zum Löten, Klasse P - ProduktnormTa slovenski standard je istoveten z:EN 3155-043:2006SIST EN 3155-043:2008en,de49.060ICS:SLOVENSKI
