SIST EN 45557:2020

SLOVENSKI STANDARD
oSIST prEN 45557:2019
01-januar-2019
Splošna metoda za ocenjevanje deleža recikliranega materiala v proizvodih,
povezanih z energijo
General method for assessing the proportion of recycled material content in energy
related products
Allgemeines Verfahren zur Bewertung des Anteils an recyceltem Materials von
energieverbrauchsrelevanter Produkte
Méthode générale pour l’évaluation du contenu en matériaux recyclés des produits liés à
l’énergie
Ta slovenski standard je istoveten z: prEN 45557
ICS:
13.020.20 Okoljska ekonomija. Environmental economics.
Trajnostnost Sustainability
oSIST prEN 45557:2019 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 45557:2019

---------------------- Page: 2 ----------------------
oSIST prEN 45557:2019


EUROPEAN STANDARD
DRAFT
prEN 45557
NORME EUROPÉENNE

EUROPÄISCHE NORM

November 2018
ICS 13.020.20

English version

General method for assessing the proportion of recycled
material content in energy related products
Méthode générale pour l'évaluation du contenu en Allgemeines Verfahren zur Bewertung des Anteils an
matériaux recyclés des produits liés à l'énergie recyceltem Materials von energieverbrauchsrelevanter
Produkte
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/CLC/JTC 10.

If this draft becomes a European Standard, CEN and CENELEC members are bound to comply with the CEN/CENELEC Internal
Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any
alteration.

This draft European Standard was established by CEN and CENELEC in three official versions (English, French, German). A
version in any other language made by translation under the responsibility of a CEN and CENELEC member into its own
language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.

CEN and CENELEC members are the national standards bodies and national electrotechnical committees of Austria, Belgium,
Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.Recipients of this draft are invited to submit, with their comments, notification
of any relevant patent rights of which they are aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

---------------------- Page: 3 ----------------------
oSIST prEN 45557:2019
prEN 45557:2018 (E)

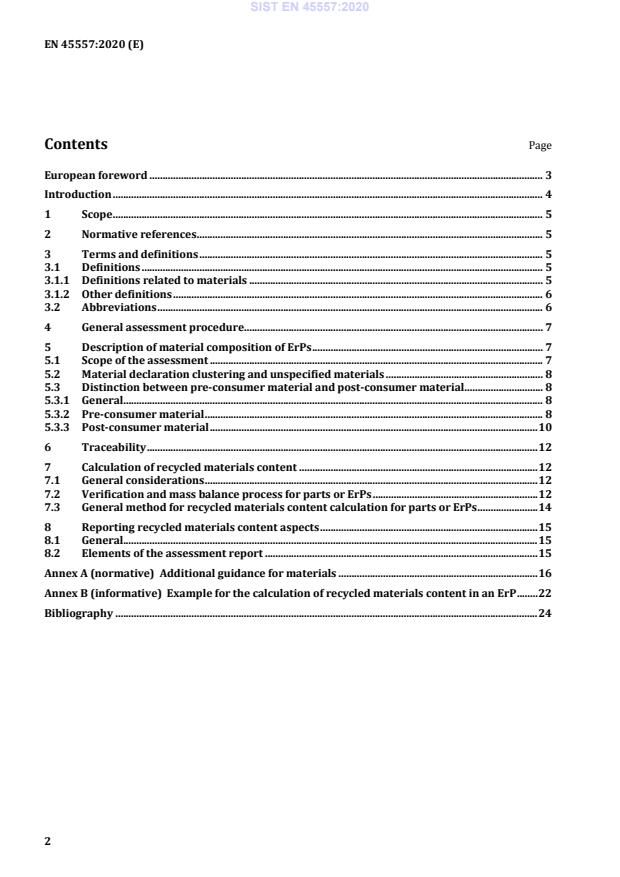

1 Contents Page
2 European foreword . 3
3 Introduction . 4
4 1 Scope . 5
5 2 Normative references . 5
6 3 Terms and definitions . 5
7 4 General assessment procedure. 6
8 5 Assessment of materials composition . 7
9 5.1 Scope of the assessment . 7
10 5.2 Material declaration clustering and unspecified materials . 7
11 5.3 Pre-consumer material and post-consumer material distinction . 8
12 6 Traceability . 10
13 6.1 General considerations . 10
14 6.2 Material provisions . 11
15 6.3 Chain of custody . 11
16 7 Calculation of recycled material content . 12
17 7.1 General considerations . 12
18 7.2 Verification and mass balance process . 12
19 7.3 General method for recycled material content calculation . 14
20 8 Reporting recycled material content aspects . 15
21 8.1 General. 15
22 8.2 Elements of the assessment report . 15
23 Annex A (normative) Additional guidance on specific materials . 17
24 A.1 Plastics . 17
25 A.2 Metals . 18
26 A.3 Glass . 18
27 Bibliography . 20
28
2

---------------------- Page: 4 ----------------------
oSIST prEN 45557:2019
prEN 45557:2018 (E)
29 European foreword
30 This document (prEN 45557:2018) has been prepared by Technical Committee CEN/CENELEC/JTC 10
31 “Energy-related products - Material Efficiency Aspects for Ecodesign”, the secretariat of which is held by
32 NEN.
33 This document is currently submitted to the CEN Enquiry.
34 This document has been prepared under a standardization request given to CEN by the European
35 Commission and the European Free Trade Association.
36 The dual logo CEN-CENELEC standardization deliverables, in the numerical range of 45550 – 45559, have
37 been developed under standardization request M/543 of the European Commission and are intended to
38 potentially apply to any product within the scope of the Directive 2009/125/EC concerning Energy-
39 related Products (ErP).
40 Topics covered in the above standardization request are linked to the following material efficiency
41 aspects:
42 a) Extending product lifetime
43 b) Ability to re-use components or recycle materials from products at end-of-life
44 c) Use of re-used components and/or recycled materials in products
45 These standards are general in nature and describe or define fundamental principles, concepts,
46 terminology or technical characteristics. They can be cited together with other product, or product-group,
47 standards, e.g. developed by product technical committees.
48 This document is intended to be used by technical committees when producing horizontal, generic, and
49 product, or product-group, standards.”
50 Note CEN/CENELEC/JTC 10 is a dual logo TC, and uses either CEN or CENELEC foreword templates, as
51 appropriate. The template for the current document is correct at the time of publication.
3

---------------------- Page: 5 ----------------------
oSIST prEN 45557:2019
prEN 45557:2018 (E)
52 Introduction
53 Beyond the potentials of reusability, recyclability and recoverability, recycled material content of new
54 products is a physical characteristic of a product and its parts and also contributes to material efficiency.
55 For the purpose of an efficient and effective use of natural resources, secondary materials are often able
56 to substitute primary materials, reducing the demand for primary materials, which bring potential
57 environmental, social and economic benefits. Environmental benefits include reduced mining and
58 consumption of natural resources, reduced landfill and emissions as well as energy savings. The overall
59 environmental benefit will depend on the difference in environmental impact of making material from
60 primary sources (oil, ore etc.) vs. processing waste into a secondary material which would directly
61 substitute primary material. The benefit of increasing recycled material content in products incentivises,
62 in many cases, recycling of end-of-life (EoL) waste material by stimulating demand for secondary
63 materials. In other cases, where there is already sufficient demand for secondary materials to use what
64 is already supplied by the market, specification of higher recycled material content will not necessarily
65 incentivise recycling of additional EoL waste material, and so is therefore not always relevant to eco-
66 design e.g. if supply is limited. The rationale for specifying recycled material content, therefore needs to
67 be considered for each material individually depending on the overall market demand/supply situation
68 for each material.
69 This document helps to give substantiated claims of the recycled content in energy-related products
70 (ErPs). Key for substantiated claims for new products is the recognition of the chain of custody, which
71 allows tracing secondary materials from different sources.
4

---------------------- Page: 6 ----------------------
oSIST prEN 45557:2019
prEN 45557:2018 (E)
72 1 Scope
73 This document provides a general method for assessing the proportion of secondary material in an
74 energy-related product, its parts or material(s).
75 This document is applicable as the framework to be used for defining the assessment of recycled material
76 content in specific product groups; however in absence of product specific standards it can be applied
77 directly.
78 This document does not apply to the assessment of reused components.
79 NOTE Reused components are addressed in prEN 45556:2018.
80 2 Normative references
81 The following documents are referred to in the text in such a way that some or all of their content
82 constitutes requirements of this document. For dated references, only the edition cited applies. For
83 undated references, the latest edition of the referenced document (including any amendments) applies.
84 prEN 45559:2018, Methods for providing information relating to material efficiency aspects of energy-
85 related products
86 3 Terms and definitions
87 For the purposes of this document, the following terms and definitions apply.
88 ISO and IEC maintain terminological databases for use in standardization at the following addresses:
89 • IEC Electropedia: available at http://www.electropedia.org/
90 • ISO Online browsing platform: available at http://www.iso.org/obp
91 3.1
92 chain of custody
93 sequence of responsibilities for, or control of products or materials as they move through each step in the
94 relevant supply chain
95 [SOURCE: ISO 13065:2015, modified, “chain” replaced by “sequence”, “products or” added and “of the
96 process or product system under assessment” replaced with “in the relevant supply chain”]
97 3.2
98 pre-consumer material
