ISO 7176-21:2009

INTERNATIONAL ISO
STANDARD 7176-21
Second edition
2009-04-01


Wheelchairs —
Part 21:
Requirements and test methods for
electromagnetic compatibility of
electrically powered wheelchairs and
scooters, and battery chargers
Fauteuils roulants —
Partie 21: Exigences et méthodes d'essai pour la compatibilité des
fauteuils roulants électriques et scooters motorisés





Reference number
ISO 7176-21:2009(E)
©
ISO 2009

---------------------- Page: 1 ----------------------
ISO 7176-21:2009(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


COPYRIGHT PROTECTED DOCUMENT


©  ISO 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2009 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 7176-21:2009(E)
Contents Page
Foreword. iv
Introduction . vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 2
4 Classification of electrically powered wheelchairs. 4
5 Requirements . 4
5.1 General. 4
5.2 Wheelchair drives . 4
5.3 Wheelchairs with an on-board battery charger . 6
5.4 Off-board and carry-on battery chargers . 8
6 Test apparatus . 9
7 Preparation . 10
7.1 Wheelchairs – driving. 10
7.2 Wheelchairs – non-driving. 11
7.3 Wheelchairs with on-board battery chargers . 11
7.4 Off-board and carry-on battery chargers .11
8 Sequence of tests . 11
9 Test methods for emissions . 11
9.1 Mains terminal disturbances . 11
9.2 Radiated emissions . 12
9.3 Harmonic current emissions . 12
9.4 Voltage fluctuations and flicker . 12
10 Test methods for immunity. 13
10.1 Electrostatic discharge immunity . 13
10.2 Radiated r.f. field immunity. 14
10.3 Fast transient/burst immunity . 17
10.4 Surge immunity. 17
10.5 Conducted disturbance immunity. 18
10.6 Power frequency magnetic field immunity. 18
10.7 Voltage dips and short interruptions immunity. 18
11 Wheel speed change calculations . 19
12 Test report . 20
13 Disclosure. 20
14 User manual . 20

© ISO 2009 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 7176-21:2009(E)

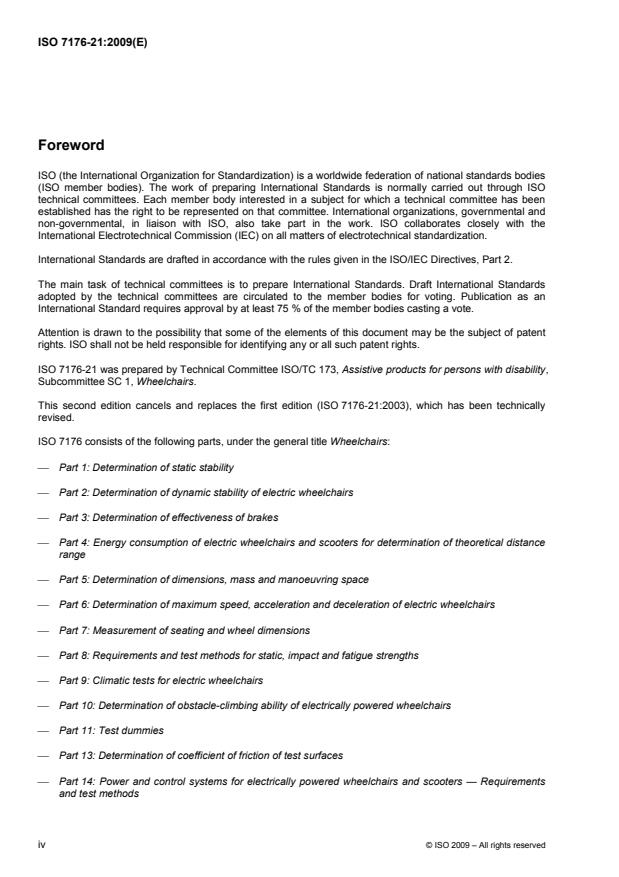

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 7176-21 was prepared by Technical Committee ISO/TC 173, Assistive products for persons with disability,
Subcommittee SC 1, Wheelchairs.
This second edition cancels and replaces the first edition (ISO 7176-21:2003), which has been technically
revised.
ISO 7176 consists of the following parts, under the general title Wheelchairs:
⎯ Part 1: Determination of static stability
⎯ Part 2: Determination of dynamic stability of electric wheelchairs
⎯ Part 3: Determination of effectiveness of brakes
⎯ Part 4: Energy consumption of electric wheelchairs and scooters for determination of theoretical distance
range
⎯ Part 5: Determination of dimensions, mass and manoeuvring space
⎯ Part 6: Determination of maximum speed, acceleration and deceleration of electric wheelchairs
⎯ Part 7: Measurement of seating and wheel dimensions
⎯ Part 8: Requirements and test methods for static, impact and fatigue strengths
⎯ Part 9: Climatic tests for electric wheelchairs
⎯ Part 10: Determination of obstacle-climbing ability of electrically powered wheelchairs
⎯ Part 11: Test dummies
⎯ Part 13: Determination of coefficient of friction of test surfaces
⎯ Part 14: Power and control systems for electrically powered wheelchairs and scooters — Requirements
and test methods
iv © ISO 2009 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 7176-21:2009(E)
⎯ Part 15: Requirements for information disclosure, documentation and labelling
⎯ Part 16: Resistance to ignition of upholstered parts — Requirements and test methods
⎯ Part 19: Wheeled mobility devices for use as seats in motor vehicles
⎯ Part 21: Requirements and test methods for electromagnetic compatibility of electrically powered
wheelchairs and scooters, and battery chargers
⎯ Part 22: Set-up procedures
⎯ Part 23: Requirements and test methods for attendant-operated stair-climbing devices
⎯ Part 24: Requirements and test methods for user-operated stair-climbing devices
⎯ Part 26: Vocabulary
A Technical Report (ISO/TR 13570-1, Wheelchairs — Part 1: Guidelines for the application of the ISO 7176
series on wheelchairs) is also available, giving information on how to use the ISO 7176 standards when
selecting a wheelchair and helping readers to understand the purpose for, and content of, the International
Standards on wheelchairs.
© ISO 2009 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO 7176-21:2009(E)
Introduction
Electrically powered wheelchairs and their battery chargers are meant to operate without introducing
significant electromagnetic disturbances into the environment and without significant degradation of
operational performance in the presence of electromagnetic disturbances expected in normal use.
Wheelchairs are often used near roads and therefore should be immune to radio frequency fields from both
static and mobile communications equipment, as well as from other sources of electromagnetic disturbance.
Injury could occur in the event of unintentional movement or change in direction of movement of a wheelchair.
This part of ISO 7176 specifies requirements and test methods for wheelchairs and their battery chargers to
minimize the risks associated with their exposure to reasonably foreseeable electromagnetic interference and
electrostatic discharge and with their production of electromagnetic fields that could impair the operation of
other devices or equipment in their usual environment.
The upper frequency limit and test level for radiated r.f. immunity requirements are selected according to the
environment in which the wheelchair is used and the related risk. Hence the requirements for a wheelchair
while it is driving are consistent with its use as a medical device, but the requirements for charging are
consistent with use of the wheelchair and charger as domestic electrical equipment.

vi © ISO 2009 – All rights reserved

---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO 7176-21:2009(E)

Wheelchairs —
Part 21:
Requirements and test methods for electromagnetic
compatibility of electrically powered wheelchairs and scooters,
and battery chargers
WARNING — This part of ISO 7176 calls for the use of procedures that can be hazardous if adequate
precautions are not taken. It refers only to technical suitability and does not absolve the manufacturer
or test house from any legal obligations relating to health and safety.
1 Scope
This part of ISO 7176 specifies requirements and test methods for electromagnetic emissions and for
electromagnetic immunity of electrically powered wheelchairs and scooters with a maximum speed of not
more than 15 km/h intended for indoor and/or outdoor use by people with disabilities. It is also applicable to
manual wheelchairs with an add-on power kit. It is not applicable to vehicles designed to carry more than one
person.
This part of ISO 7176 also specifies requirements and test methods for the electromagnetic compatibility of
battery chargers intended for use with electrically powered wheelchairs and scooters.
A reference configuration is specified for adjustable wheelchairs and scooters in order to enable test results to
be used for comparison of performance.
NOTE The term “wheelchair” is used in this part of ISO 7176 to cover electrically powered wheelchairs, scooters and
manual wheelchairs with an add-on power kit.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 7176-5, Wheelchairs — Part 5: Determination of dimensions, mass and manoeuvring space
ISO 7176-9, Wheelchairs — Part 9: Climatic tests for electric wheelchairs
ISO 7176-15, Wheelchairs — Part 15: Requirements for information disclosure, documentation and labelling
ISO 7176-22, Wheelchairs — Part 22: Set-up procedures
IEC 61000-3-2, Electromagnetic compatibility (EMC) — Part 3-2: Limits — Limits for harmonic current
emissions (equipment input current u 16 A per phase)
IEC 61000-3-3, Electromagnetic compatibility (EMC) — Part 3-3: Limits — Limitation of voltage changes,
voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current u 16 A
per phase and not subject to conditional connection
IEC 61000-4-2, Electromagnetic compatibility (EMC) — Part 4-2: Testing and measurement techniques —
Electrostatic discharge immunity test
© ISO 2009 – All rights reserved 1

---------------------- Page: 7 ----------------------
ISO 7176-21:2009(E)
IEC 61000-4-3, Electromagnetic compatibility (EMC) — Part 4-3: Testing and measurement techniques —
Radiated, radio-frequency, electromagnetic field immunity test
IEC 61000-4-4, Electromagnetic compatibility (EMC) — Part 4-4: Testing and measurement techniques —
Electrical fast transient/burst immunity test
IEC 61000-4-5, Electromagnetic compatibility (EMC) — Part 4-5: Testing and measurement techniques —
Surge immunity test
IEC 61000-4-6, Electromagnetic compatibility (EMC) — Part 4-6: Testing and measurement techniques —
Immunity to conducted disturbances, induced by radio-frequency fields
IEC 61000-4-8, Electromagnetic compatibility (EMC) — Part 4-8: Testing and measurement techniques —
Power frequency magnetic field immunity test
IEC 61000-4-11, Electromagnetic compatibility (EMC) — Part 4-11: Testing and measurement techniques —
Voltage dips, short interruptions and voltage variations immunity tests
CISPR 11, Industrial, scientific and medical (ISM) radio-frequency equipment — Electromagnetic disturbance
characteristics — Limits and methods of measurement
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
drive wheel
wheel, or one of a set of wheels, that propels the wheelchair
3.2
front vertical plane
plane normal to the forward direction of travel and tangential to the front edge of the furthest forward wheel
See Figure 1.
3.3
rear vertical plane
plane normal to the forward direction of travel and tangential to the back edge of the rearmost wheel
See Figure 1.
3.4
side vertical plane
plane parallel to the forward direction of travel and tangential to the outer edge of the outermost wheel on the
side of the wheelchair
See Figure 1.
3.5
off-board battery charger
free-standing, self-contained battery charger separate from the wheelchair
3.6
carry-on battery charger
off-board battery charger intended for transportation on the wheelchair
3.7
on-board battery charger
battery charger that is built into the wheelchair and cannot be removed without the use of tools
2 © ISO 2009 – All rights reserved

---------------------- Page: 8 ----------------------
ISO 7176-21:2009(E)

Key
1 rear vertical plane
2 front vertical plane
3 side vertical plane
Figure 1 — Reference planes
© ISO 2009 – All rights reserved 3

---------------------- Page: 9 ----------------------
ISO 7176-21:2009(E)
4 Classification of electrically powered wheelchairs
Electrically powered wheelchairs are classified as follows:
⎯ category A: wheelchairs with electronic differential steering and electronic brake control;
⎯ category B: wheelchairs with electronic speed control, electronic servo steering and electronic brake
control;
⎯ category C: wheelchairs with electronic speed control, manual steering and electronic brake control;
⎯ category D: wheelchairs with electronic differential steering and manual brake control;
⎯ category E: wheelchairs with electronic speed control, electronic servo steering and manual brake control;
⎯ category F: wheelchairs with electronic speed control, manual steering and manual brake control;
⎯ category G: wheelchairs with a simple on-off motor, manual steering and manual brake control.
NOTE A wheelchair can fall into more than one category.
5 Requirements
5.1 General
All wheelchairs shall meet the requirements of 5.2.
Wheelchairs with an on-board battery charger shall also meet the requirements of 5.3.
Off-board and carry-on battery chargers shall meet the requirements of 5.4.
NOTE An observation period of 2 s is specified in many of the requirements of 5.2, 5.3 and 5.4. This is not intended
to imply that it is acceptable for the wheelchair or charger under test to fail after the observation period has elapsed. An
indefinite observation period is impractical and it is assumed that if the wheelchair or charger does fail during a test, it will
fail within 2 s of a test event.
5.2 Wheelchair drives
5.2.1 Radiated emissions
When tested in accordance with 9.2.1, the wheelchair shall meet the radiated emissions limits specified in
CISPR 11 for group 1, class B equipment.
5.2.2 Electrostatic discharge immunity
Prior to and at the conclusion of testing in accordance with 10.1.1.1 and 10.1.1.2, the wheelchair shall meet
the functional requirement specified in ISO 7176-9 (see also Clause 8).
When the wheelchair is tested in accordance with 10.1.1.1, using test levels of ± 2 kV, ± 4 kV and ± 6 kV for
contact discharges and test levels of ± 2 kV, ± 4 kV and ± 8 kV for air discharges, and when the wheelchair is
tested in accordance with 10.1.1.2 using a test level of ± 8 kV:
a) the drive system of the wheelchair shall meet the requirements of 5.2.5 during each discharge and for 2 s
following each discharge or set of discharges if a programmable ESD generator is used;
b) electrically powered devices that are not used for driving (such as servo-assisted leg supports and
seating systems with stand-up functions) shall not move during each discharge and for 2 s following each
discharge or set of discharges if a programmable ESD generator is used.
4 © ISO 2009 – All rights reserved

---------------------- Page: 10 ----------------------
ISO 7176-21:2009(E)
5.2.3 Radiated r.f. field immunity
Prior to and at the conclusion of testing in accordance with 10.2.1, the wheelchair shall meet the functional
requirement specified in ISO 7176-9 (see also Clause 8).
When the wheelchair is tested in accordance with 10.2.1, using a test level of 20 V/m, from 26 MHz to
2,5 GHz:
a) the drive system of the wheelchair shall meet the requirements of 5.2.5 in the presence of the applied
radio frequency (r.f.) field;
b) electrically-powered devices that are not used for driving (such as servo-assisted leg supports and
seating systems with stand-up functions) shall not move in the presence of the applied r.f. field.
5.2.4 Power frequency magnetic field immunity
Prior to and at the conclusion of testing in accordance with 10.6, the wheelchair shall meet the functional
requirement specified in ISO 7176-9 (see also Clause 8).
When the wheelchair is tested in accordance with 10.6, using test level 4 specified in IEC 61000-4-8, at 50 Hz
and 60 Hz:
a) the drive system of the wheelchair shall meet the requirements of 5.2.5 in the presence of the applied
field;
b) electrically-powered devices that are not used for driving (such as servo-assisted leg supports and
seating systems with stand-up functions) shall not move in the presence of the applied field.
NOTE Other magnetic field immunity requirements are under consideration.
5.2.5 Stability of speed and direction
5.2.5.1 Speed
For category A, B, C, D, E and F wheelchairs (wheelchairs with electronic speed control), the average wheel
speed change, ∆S , calculated as specified in Clause 11, shall not exceed ± 20 %.
avg
NOTE A positive value indicates a speed increase, while a negative value indicates a speed decrease.
For category G wheelchairs (wheelchairs without electronic speed control), the speed requirement does not
apply.
5.2.5.2 Steering
For category A and D wheelchairs (wheelchairs with electronic differential steering), the differential wheel
speed change, ∆S , calculated as specified in Clause 11, shall not exceed ± 25 %.
diff
NOTE A positive value corresponds to a right turn, while a negative value corresponds to a left turn.
For category B and E wheelchairs (wheelchairs with electronic servo steering), the maximum permissible
change in steering servo position or steered wheel angle is that corresponding to a turning radius of 4 m, as
specified in ISO 7176-5.
For category C, F and G wheelchairs (wheelchairs with manual steering), the steering requirement does not
apply.
© ISO 2009 – All rights reserved 5

---------------------- Page: 11 ----------------------
ISO 7176-21:2009(E)
5.3 Wheelchairs with an on-board battery charger
5.3.1 Mains terminal disturbances
When tested in accordance with 9.1.1, the wheelchair shall meet the mains terminal disturbance limits
specified in CISPR 11 for group 1, class B equipment.
5.3.2 Radiated emissions
When tested in accordance with 9.2.2, the wheelchair shall meet the radiated emissions limits specified in
CISPR 11 for group 1, class B equipment.
5.3.3 Harmonic current emissions
When tested in accordance with 9.3.1, the wheelchair shall meet the requirements of IEC 61000-3-2.
5.3.4 Voltage fluctuations and flicker
When tested in accordance with 9.4.1, the wheelchair shall meet the requirements of IEC 61000-3-3.
5.3.5 Electrostatic discharge immunity
Prior to and at the conclusion of testing in accordance with 10.1.2, the wheelchair shall meet the functional
requirement specified in ISO 7176-9 (see also Clause 8).
When the wheelchair is tested in accordance with 10.1.2, using test levels of ± 2 kV, ± 4 kV and ± 6 kV for
contact discharges and test levels of ± 2 kV, ± 4 kV and ± 8 kV for air discharges, during each discharge and
for 2 s following each discharge or set of discharges if a programmable ESD generator is used:
a) drive wheels shall not move;
b) automatic brakes shall not release;
c) electrically-powered devices that are not used for driving (such as servo-assisted leg supports and
seating systems with stand-up functions) shall not move.
At the conclusion of testing in accordance with 10.1.2, the battery charger shall continue to operate in
accordance with its specification without operator intervention.
5.3.6 Radiated r.f. field immunity
Prior to and at the conclusion of testing in accordance with 10.2.2, the wheelchair shall meet the functional
requirement specified in ISO 7176-9 (see also Clause 8).
When the wheelchair is tested in accordance with 10.2.2, using a test level of 3 V/m from 80 MHz to 1,0 GHz:
a) drive wheels shall not move;
b) automatic brakes shall not release;
c) electrically-powered devices that are not used for driving (such as servo-assisted leg supports and
seating systems with stand-up functions) shall not move.
At the conclusion of testing in accordance with 10.2.2, the battery charger shall continue to operate in
accordance with its specification without operator intervention.
6 © ISO 2009 – All rights reserved

---------------------- Page: 12 ----------------------
ISO 7176-21:2009(E)
5.3.7 Fast transient/burst immunity
Prior to and at the conclusion of testing in accordance with 10.3.1, the wheelchair shall meet the functional
requirement specified in ISO 7176-9 (see also Clause 8).
When the wheelchair is tested in accordance with 10.3.1, using test level 2 specified in IEC 61000-4-4:
a) drive wheels shall not move;
b) automatic brakes shall not release;
c) electrically-powered devices that are not used for driving (such as servo-assisted leg supports and
seating systems with stand-up functions) shall not move.
At the conclusion of testing in accordance with 10.3.1, the battery charger shall continue to operate in
accordance with its specification without operator intervention.
5.3.8 Surge immunity
Prior to and at the conclusion of testing in accordance with 10.4.1, the wheelchair shall meet the functional
requirement specified in ISO 7176-9 (see also Clause 8).
When the wheelchair is tested in accordance with 10.4.1, using test level 3 specified in IEC 61000-4-5, during
each surge and for 2 s following each surge:
a) drive wheels shall not move;
b) automatic brakes shall not release;
c) electrically-powered devices that are not used for driving (such as servo-assisted leg supports and
seating systems with stand-up functions) shall not move.
At the conclusion of testing in accordance with 10.4.1, the battery charger shall continue to operate in
accordance with its specification without operator intervention.
5.3.9 Conducted disturbance immunity
Prior to and at the conclusion of testing in accordance with 10.5.1, the wheelchair shall meet the functional
requirement specified in ISO 7176-9 (see also Clause 8).
When the wheelchair is tested in accordance with 10.5.1, using test level 2 specified in IEC 61000-4-6, from
150 kHz to 80 MHz:
a) drive wheels shall not move;
b) automatic brakes shall not release;
c) electrically-powered devices that are not used for driving (such as servo-assisted leg supports and
seating systems with stand-up functions) shall not move.
At the conclusion of testing in accordance with 10.5.1, the battery charger shall continue to operate in
accordance with its specification without operator intervention.
5.3.10 Voltage dips and short interruptions immunity
Prior to and at the conclusion of testing in accordance with 10.7.1, the wheelchair shall meet the functional
requirement specified in ISO 7176-9 (see also Clause 8).
© ISO 2009 – All rights reserved 7

---------------------- Page: 13 ----------------------
ISO 7176-21:2009(E)
When the wheelchair is tested in accordance with 10.7.1, using the Class 2 test level specified in
IEC 61000-4-11, during each dip/interruption and for 2 s following each dip/interruption:
a) drive wheels shall not move;
b) automatic brakes shall not release;
c) electrically-powered devices that are not used for driving (such as servo-assisted leg supports and
seating systems with stand-up functions) shall not move.
During and following testing in accordance with 10.7.1, the battery charger may exhibit a temporary loss of
function or degradation of performance, but it shall cease when the disturbance ceases, and the charger shall
recover its normal performance without operator intervention.
5.4 Off-board and carry-on battery chargers
5.4.1 Mains terminal disturbances
When tested in accordance with 9.1.2, the battery charger shall meet the mains terminal disturbance limits
specified in CISPR 11 for group 1, class B equipment.
5.4.2 Radiated emissions
When tested in accordance with 9.2.3, the battery charger shall meet the radiated emissions limits specified in
CISPR 11 for group 1, class B equipment.
5.4.3 Harmonic current emissions
When tested in accordance with 9.3.2, the battery charger shall meet the requirements of IEC 61000-3-2.
5.4.4 Voltage fluctuations and flicker
When tested in accordance with 9.4.2, the battery charger shall meet the requirements of IEC 61000-3-3.
5.4.5 Electrostatic discharge immunity
At the conclusion of testing the battery charger in accordance with 10.1.3, using test levels of ± 2 kV, ± 4 kV
and ± 6 kV for contact discharges and test levels of ± 2 kV, ± 4
...
