IEC 60191-2X:1999/COR1:2000
(Corrigendum)Corrigendum 1 - Mechanical standardization of semiconductor devices - Part 2: Dimensions
Corrigendum 1 - Mechanical standardization of semiconductor devices - Part 2: Dimensions
Corrigendum 1 - Normalisation mécanique des dispositifs à semiconducteurs - Partie 2: Dimensions
General Information
- Status
- Published
- Publication Date
- 30-Jan-2000
- Technical Committee
- SC 47D - Semiconductor devices packaging
- Drafting Committee
- WG 1 - TC 47/SC 47D/WG 1
- Current Stage
- PPUB - Publication issued
- Start Date
- 31-Jan-2000
- Completion Date
- 31-Dec-1999
Relations
- Corrects
IEC 60191-2X:1999 - Mechanical standardization of semiconductor devices - Part 2: Dimensions - Effective Date
- 05-Sep-2023
Frequently Asked Questions
IEC 60191-2X:1999/COR1:2000 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Corrigendum 1 - Mechanical standardization of semiconductor devices - Part 2: Dimensions". This standard covers: Corrigendum 1 - Mechanical standardization of semiconductor devices - Part 2: Dimensions
Corrigendum 1 - Mechanical standardization of semiconductor devices - Part 2: Dimensions
IEC 60191-2X:1999/COR1:2000 is classified under the following ICS (International Classification for Standards) categories: 31.080.01 - Semiconductor devices in general. The ICS classification helps identify the subject area and facilitates finding related standards.
IEC 60191-2X:1999/COR1:2000 has the following relationships with other standards: It is inter standard links to IEC 60191-2X:1999. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
IEC 60191-2X:1999/COR1:2000 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
Publication 60191-2X de la CEI IEC Publication 60191-2X
(Première édition -1999) (First edition -1999)
Normalisation mécanique des dispositifs Mechanical standardization of
à semiconducteurs – semiconductor devices –
Partie 2: Dimensions Part 2: Dimensions
CORRIGENDUM 1
Famille d’encombrements 140E Outline family 140E
P-SOJ 7,62 mm P-SOJ 7,62 mm
Feuille 140E-a Sheet 140E-a
Remplacer la figure 1a par la nouvelle figure Replace figure 1a by the following new figure:
suivante:
A
HE
E
B
n
note 4
n-1
n1 n4
D
n2 n3
Fig. 1a

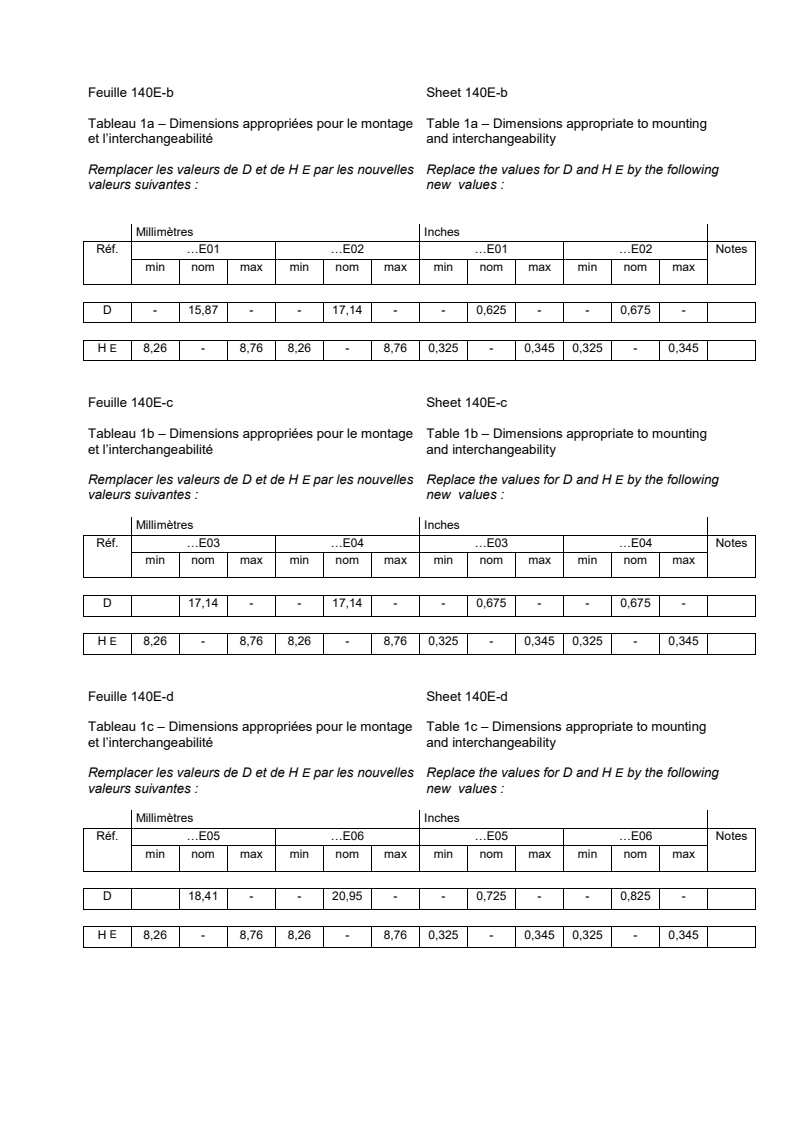

Feuille 140E-b Sheet 140E-b
Tableau 1a – Dimensions appropriées pour le montage Table 1a – Dimensions appropriate to mounting
et l’interchangeabilité and interchangeability
Remplacer les valeurs de D et de H E par les nouvelles Replace the values for D and H E by the following
valeurs suivantes : new values :
Millimètres Inches
Réf. …E01 …E02 …E01 …E02 Notes
min nom max min nom max min nom max min nom max
D - 15,87 - - 17,14 - - 0,625 - - 0,675 -
H E 8,26 - 8,76 8,26 - 8,76 0,325 - 0,345 0,325 - 0,345
Feuille 140E-c Sheet 140E-c
Tableau 1b – Dimensions appropriées pour le montage Table 1b – Dimensions appropriate to mounting
et l’interchangeabilité and interchangeability
Remplacer les valeurs de D et de H E par les nouvelles Replace the values for D and H E by the following
valeurs suivantes : new values :
Millimètres Inches
Réf. …E03 …E04 …E0
...
