IEC 62236-5:2018
(Main)Railway applications - Electromagnetic compatibility - Part 5: Emission and immunity of fixed power supply installations and apparatus
Railway applications - Electromagnetic compatibility - Part 5: Emission and immunity of fixed power supply installations and apparatus
IEC 62236-5:2018 is also available as IEC 62236-5:2018 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.
IEC 62236-5:2018 applies to emission and immunity aspects of EMC for electrical and electronic apparatus and systems intended for use in railway fixed installations for power supply. This includes the power feed to the apparatus, the apparatus itself with its protective control circuits, trackside items such as switching stations, power autotransformers, booster transformers, substation power switchgear and power switchgear to other longitudinal and local supplies. This new edition includes the following significant technical changes with respect to the previous edition: clarification of certain parts of the standard; extension of emission and immunity requirements.
Applications ferroviaires - Compatibilité électromagnétique - Partie 5: Emission et immunité des installations fixes d'alimentation de puissance et des équipements associés
IEC 62236-5:2018 est disponible sous forme de IEC 62236-5:2018 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.
L'IEC 62236-5:2018 s’applique aux aspects d’émission et d’immunité de CEM pour les appareils et les systèmes électriques et électroniques destinés à être utilisés dans les installations fixes associées à l’alimentation. Cela concerne l’alimentation des appareils, les appareils eux-mêmes avec leurs circuits de commande de protection, les composants au bord des voies tels que les stations de sectionnement, les autotransformateurs, les transformateurs suceurs, les appareillages de coupure de sous-station et les appareillages de coupure d’autres alimentations longitudinales et locales. Cette nouvelle édition inclut les changements techniques significatifs suivants par rapport à l’édition précédente: clarification de certaines parties de la norme; extension des exigences d'émission et d'immunité.
General Information
Relations
Buy Standard
Standards Content (Sample)

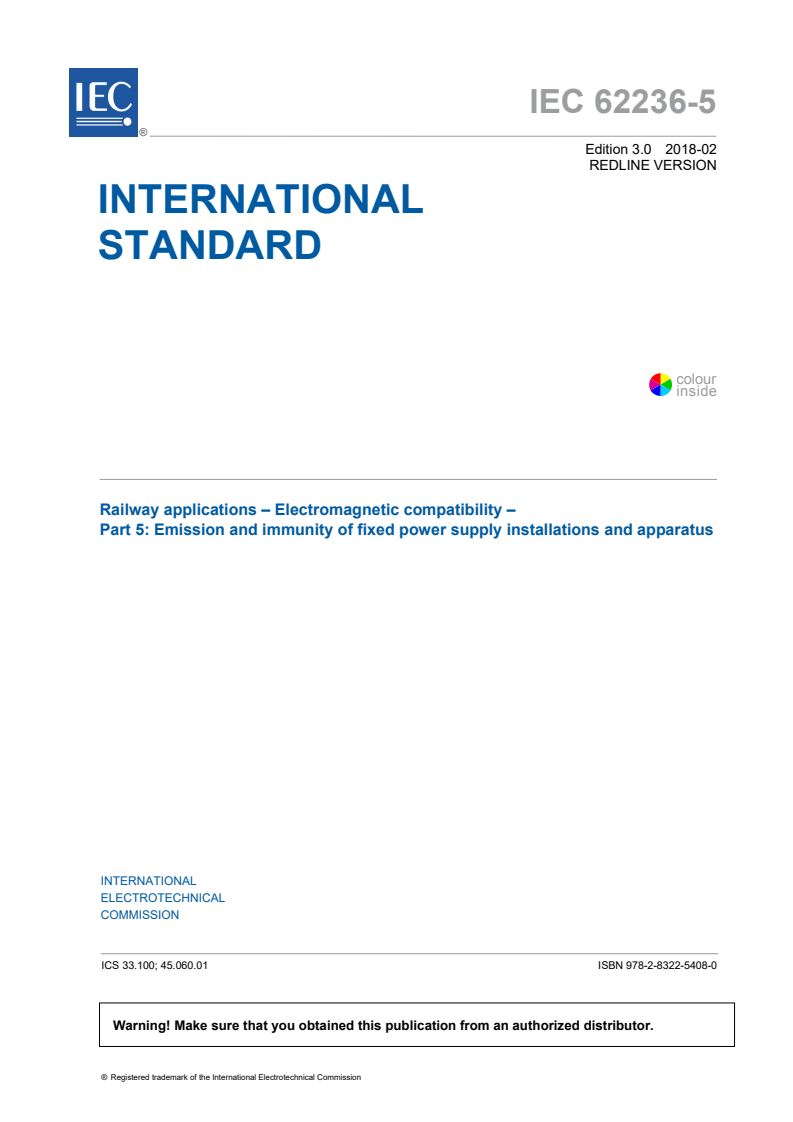

IEC 62236-5 ®
Edition 3.0 2018-02
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Railway applications – Electromagnetic compatibility –
Part 5: Emission and immunity of fixed power supply installations and apparatus
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.
IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and
CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 62236-5 ®
Edition 3.0 2018-02
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Railway applications – Electromagnetic compatibility –
Part 5: Emission and immunity of fixed power supply installations and apparatus
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.100; 45.060.01 ISBN 978-2-8322-5408-0
– 2 – IEC 62236-5:2018 RLV IEC 2018

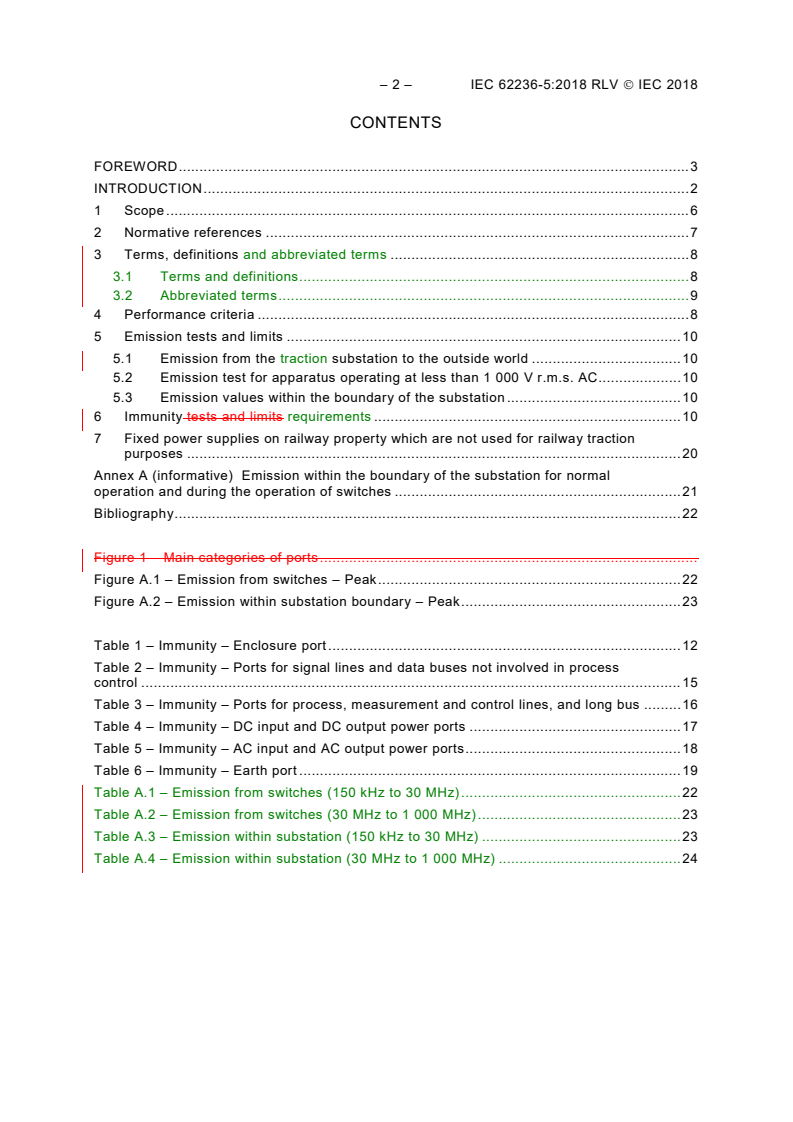

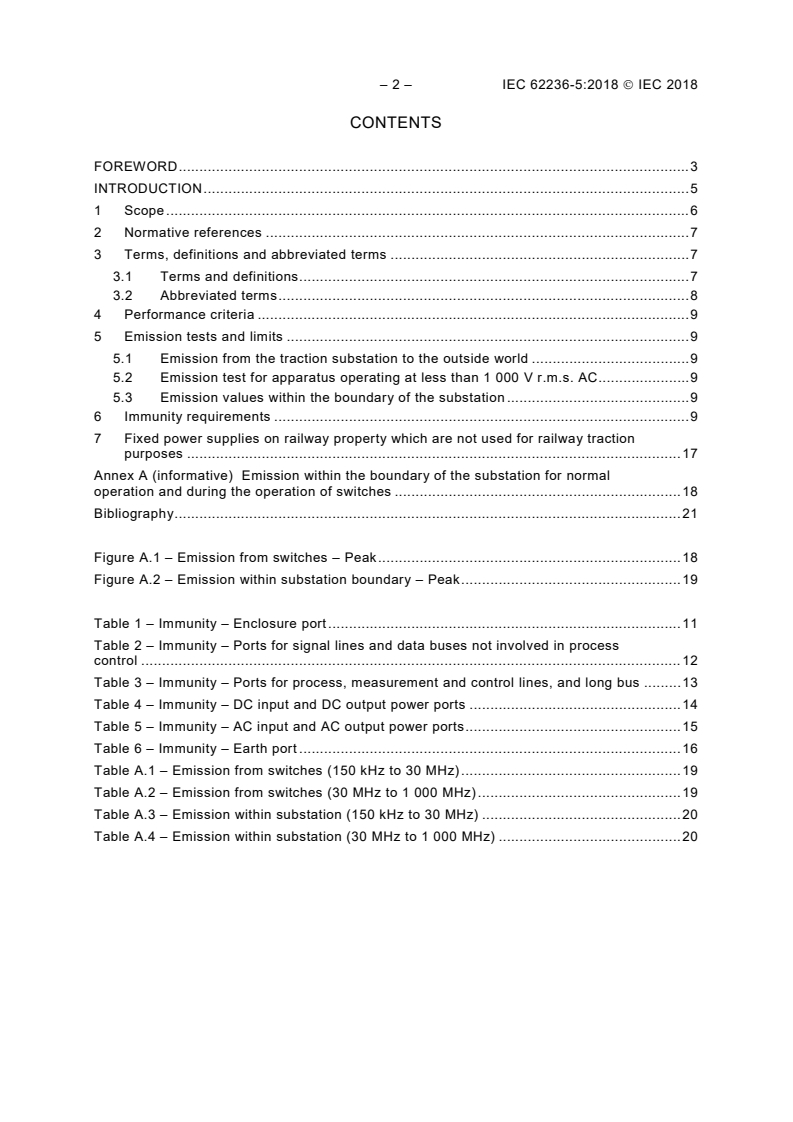

CONTENTS
FOREWORD . 3
INTRODUCTION . 2
1 Scope . 6
2 Normative references . 7
3 Terms, definitions and abbreviated terms . 8
3.1 Terms and definitions . 8
3.2 Abbreviated terms . 9
4 Performance criteria . 8
5 Emission tests and limits . 10
5.1 Emission from the traction substation to the outside world . 10
5.2 Emission test for apparatus operating at less than 1 000 V r.m.s. AC . 10
5.3 Emission values within the boundary of the substation . 10
6 Immunity tests and limits requirements . 10
7 Fixed power supplies on railway property which are not used for railway traction
purposes . 20
Annex A (informative) Emission within the boundary of the substation for normal
operation and during the operation of switches . 21
Bibliography . 22
Figure 1 – Main categories of ports .
Figure A.1 – Emission from switches – Peak . 22
Figure A.2 – Emission within substation boundary – Peak . 23
Table 1 – Immunity – Enclosure port . 12
Table 2 – Immunity – Ports for signal lines and data buses not involved in process
control . 15
Table 3 – Immunity – Ports for process, measurement and control lines, and long bus . 16
Table 4 – Immunity – DC input and DC output power ports . 17
Table 5 – Immunity – AC input and AC output power ports . 18
Table 6 – Immunity – Earth port . 19
Table A.1 – Emission from switches (150 kHz to 30 MHz) . 22
Table A.2 – Emission from switches (30 MHz to 1 000 MHz) . 23
Table A.3 – Emission within substation (150 kHz to 30 MHz) . 23
Table A.4 – Emission within substation (30 MHz to 1 000 MHz) . 24
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RAILWAY APPLICATIONS –
ELECTROMAGNETIC COMPATIBILITY –
Part 5: Emission and immunity of fixed
power supply installations and apparatus
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes
made to the previous edition. A vertical bar appears in the margin wherever a change
has been made. Additions are in green text, deletions are in strikethrough red text.
– 4 – IEC 62236-5:2018 RLV IEC 2018
International Standard IEC 62236-5 has been prepared by IEC technical committee 9:
Electrical equipment and systems for railways.
This third edition cancels and replaces the second edition published in 2008. It constitutes a
technical revision and has been developed on the basis of EN 50121-5:2015.
This edition includes the following significant technical changes with respect to the previous
edition:
a) clarification of scope (Clause 1);
b) emission requirement extended in the frequency range 1 GHz to 6 GHz following
IEC 61000-6-4;
c) immunity requirement extended in the frequency range 5,1 GHz to 6 GHz;
d) removal of limits for radiated H-fields in the frequency range 9 kHz to 150 kHz due to the
fact that:
– there are very few outside world victims;
– there is low reproducibility.
This Standard is to be read in conjunction with IEC 62236-1.
The text of this International Standard is based on the following documents:
FDIS Report on voting
9/2340/FDIS 9/2370/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 62236 series, published under the general title Railway
applications – Electromagnetic compatibility, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The “colour inside” logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this publication using a colour printer.
INTRODUCTION
The requirements of this part of IEC 62236 have been specified so as to ensure a level of
electromagnetic emission which will cause minimal disturbance to other equipment. The
levels, however, do not cover the following cases:
a) where the probability of an occurrence likely to produce emissions in excess of those
which would normally be experienced is extremely low,
a) which may occur with an extremely low probability of occurrence in any location;
b) where highly susceptible apparatus will be is used in close proximity of the equipment
covered by this document, in which case further measures may have to be taken.
The emission limits given are on the basis that the equipment of the product family range is
installed in railway traction substation areas.
– 6 – IEC 62236-5:2018 RLV IEC 2018
RAILWAY APPLICATIONS –
ELECTROMAGNETIC COMPATIBILITY –
Part 5: Emission and immunity of fixed
power supply installations and apparatus
1 Scope
This part of IEC 62236 applies to emission and immunity aspects of EMC for fixed power
supply installations and electrical and electronic apparatus and systems intended to be used
in these installations for use in railway fixed installations for power supply. This includes the
power feed to the apparatus, the apparatus itself with its protective control circuits, trackside
it
...
IEC 62236-5 ®
Edition 3.0 2018-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Railway applications – Electromagnetic compatibility –
Part 5: Emission and immunity of fixed power supply installations and apparatus
Applications ferroviaires – Compatibilité électromagnétique –
Partie 5: Emission et immunité des installations fixes d'alimentation de
puissance et des équipements associés
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.
IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and
CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des
en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées
comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et
projets et les publications remplacées ou retirées. CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette
Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:
Disponible en ligne et aussi une fois par mois par email. sales@iec.ch.
IEC 62236-5 ®
Edition 3.0 2018-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Railway applications – Electromagnetic compatibility –
Part 5: Emission and immunity of fixed power supply installations and apparatus
Applications ferroviaires – Compatibilité électromagnétique –
Partie 5: Emission et immunité des installations fixes d'alimentation de
puissance et des équipements associés
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.100; 45.060.01 ISBN 978-2-8322-5311-3
– 2 – IEC 62236-5:2018 IEC 2018
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 7
3 Terms, definitions and abbreviated terms . 7
3.1 Terms and definitions . 7
3.2 Abbreviated terms . 8
4 Performance criteria . 9
5 Emission tests and limits . 9
5.1 Emission from the traction substation to the outside world . 9
5.2 Emission test for apparatus operating at less than 1 000 V r.m.s. AC . 9
5.3 Emission values within the boundary of the substation . 9
6 Immunity requirements . 9
7 Fixed power supplies on railway property which are not used for railway traction
purposes . 17
Annex A (informative) Emission within the boundary of the substation for normal
operation and during the operation of switches . 18
Bibliography . 21
Figure A.1 – Emission from switches – Peak . 18
Figure A.2 – Emission within substation boundary – Peak . 19
Table 1 – Immunity – Enclosure port . 11
Table 2 – Immunity – Ports for signal lines and data buses not involved in process
control . 12
Table 3 – Immunity – Ports for process, measurement and control lines, and long bus . 13
Table 4 – Immunity – DC input and DC output power ports . 14
Table 5 – Immunity – AC input and AC output power ports . 15
Table 6 – Immunity – Earth port . 16
Table A.1 – Emission from switches (150 kHz to 30 MHz) . 19
Table A.2 – Emission from switches (30 MHz to 1 000 MHz) . 19
Table A.3 – Emission within substation (150 kHz to 30 MHz) . 20
Table A.4 – Emission within substation (30 MHz to 1 000 MHz) . 20
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RAILWAY APPLICATIONS –
ELECTROMAGNETIC COMPATIBILITY –
Part 5: Emission and immunity of fixed
power supply installations and apparatus
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62236-5 has been prepared by IEC technical committee 9:
Electrical equipment and systems for railways.
This third edition cancels and replaces the second edition published in 2008. It constitutes a
technical revision and has been developed on the basis of EN 50121-5:2015.
This edition includes the following significant technical changes with respect to the previous
edition:
a) clarification of scope (Clause 1);
b) emission requirement extended in the frequency range 1 GHz to 6 GHz following
IEC 61000-6-4;
c) immunity requirement extended in the frequency range 5,1 GHz to 6 GHz;
– 4 – IEC 62236-5:2018 IEC 2018
d) removal of limits for radiated H-fields in the frequency range 9 kHz to 150 kHz due to t
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
