IEC 60684-3-209:2010

IEC 60684-3-209 ®
Edition 3.0 2010-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Flexible insulating sleeving –
Part 3: Specifications for individual types of sleeving –
Sheet 209: Heat-shrinkable, polyolefin sleeving, general purpose, flame retarded

Gaines isolantes souples –
Partie 3: Spécifications pour types particuliers de gaines –
Feuille 209: Gaines thermorétractables, en polyoléfine, d’utilisation générale,
ignifugées
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 60684-3-209 ®
Edition 3.0 2010-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Flexible insulating sleeving –
Part 3: Specifications for individual types of sleeving –
Sheet 209: Heat-shrinkable, polyolefin sleeving, general purpose, flame retarded

Gaines isolantes souples –
Partie 3: Spécifications pour types particuliers de gaines –
Feuille 209: Gaines thermorétractables, en polyoléfine, d’utilisation générale,
ignifugées
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
J
CODE PRIX
ICS 29.035.20 ISBN 978-2-88910-965-4
– 2 – 60684-3-209 © IEC:2010

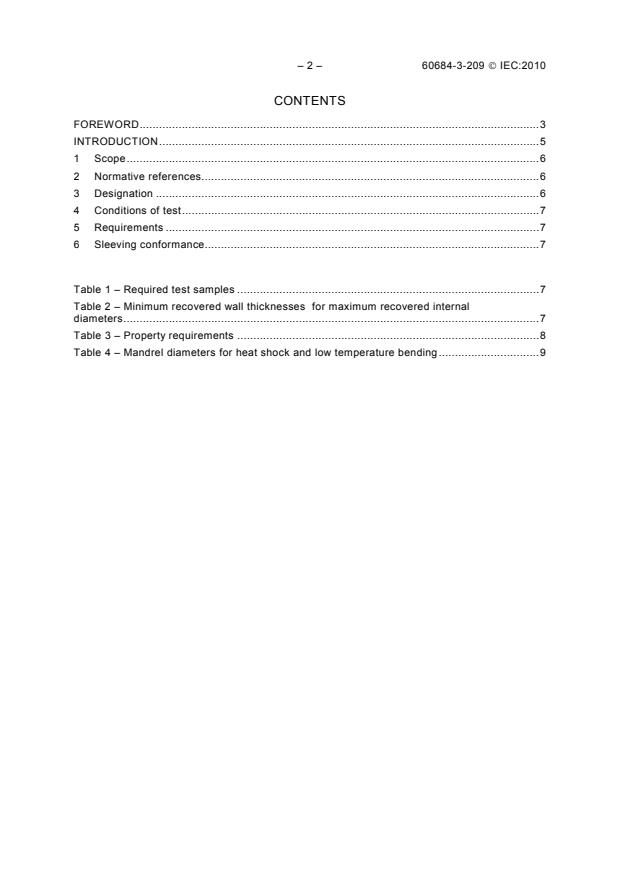

CONTENTS
FOREWORD.3
INTRODUCTION.5
1 Scope.6
2 Normative references.6
3 Designation .6
4 Conditions of test.7
5 Requirements .7
6 Sleeving conformance.7

Table 1 – Required test samples .7
Table 2 – Minimum recovered wall thicknesses for maximum recovered internal
diameters.7
Table 3 – Property requirements .8
Table 4 – Mandrel diameters for heat shock and low temperature bending.9

60684-3-209 © IEC:2010 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FLEXIBLE INSULATING SLEEVING –

Part 3: Specifications for individual types of sleeving –
Sheet 209: Heat-shrinkable, polyolefin sleeving,
general purpose, flame retarded

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60684-3-209 has been prepared by IEC technical committee 15:
Solid electrical insulating materials.
This third edition cancels and replaces the second edition published in 2003 and constitutes a
technical revision. This edition has been aligned with UL 224 for 125 ºC flexible heat-shrinkable
polyolefin tubing.
The text of this standard is based on the following documents:
FDIS Report on voting
15/561/FDIS 15/584/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

– 4 – 60684-3-209 © IEC:2010
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all the parts in the IEC 60684 series, published under the general title Flexible
insulating sleeving, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until the
stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to
the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
60684-3-209 © IEC:2010 – 5 –
INTRODUCTION
This International Standard is one of a series which deals with flexible insulating sleeving for
electrical purposes.
The series consists of three parts:
Part 1: Definitions and general requirements (IEC 60684-1)
Part 2: Methods of test (IEC 60684-2)
Part 3: Specifications for individual types of sleeving (IEC 60684-3)
This standard comprises one of the sheets of Part 3 as follows:
Sheet 209: Heat-shrinkable, polyolefin sleeving, general purpose, flame retarded

– 6 – 60684-3-209 © IEC:2010
FLEXIBLE INSULATING SLEEVING –

Part 3: Specifications for individual types of sleeving –
Sheet 209: Heat-shrinkable, polyolefin sleeving,
general purpose, flame retarded

1 Scope
This part of IEC 60684 gives the requirements for two types of general purpose, flexible, flame
retarded, heat-shrinkable polyolefin sleeving. This sleeving has been found suitable for use at
temperatures up to 125 °C.
– Type A – Highly flame retarded
– Type B – Flame retarded
The minimum supplied and maximum recovered internal diameters shall be specified by the
manufacturer and shall meet the minimum wall thicknesses given in Table 2.
It is normally available in bore sizes up to 75 mm as supplied and in the following colours:
black, brown, white, red, yellow, green, blue, orange, violet, grey and yellow/green.
Materials which conform to this specification meet established levels of performance. However,
the selection of a material by a user for a specific application should be based on the actual
requirements necessary for adequate performance in that application and not based on this
specification alone.
2 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of
the referenced document (including any amendments) applies.
IEC 60684-1:2003, Flexible insulating sleeving – Part 1: Definitions and general requirements
IEC 60684-2:1997, Flexible insulating sleeving – Part 2: Methods of test
Amendment 1 (2003)
Amendment 2 (2005)
IEC 60757:1983, Code for designation of colours
3 Designation
The sleeving shall be identified by the following designation:

Description IEC publication IEC part IEC Type Size (expanded and recovered Colour
number number sheet internal diameter in
number millimetres)
↓ ↓ ↓ ↓ ↓ ↓ ↓
Sleeving IEC 60684 -3 -209 A -12,7/6,4 - BK

60684-3-209 © IEC:2010 – 7 –
Any abbreviation used for colour shall comply with IEC 60757. Where no abbreviation is given,
the colour shall be written in full.
4 Conditions of test
Unless otherwise specified, the sleeving shall be shrunk in a forced air circulation oven for
5 min ± 1 min at 200 °C ± 5 K prior to testing.
5 Requirements
In addition to the general requirements given in IEC 60684-1, the sleeving in the sizes normally
available shall comply with the requirements in Tables 2 and 3.
6 Sleeving conformance
Conformance to the requirements of this specification shall be normally based on results from
black and white sleeving in the following sizes and designated tests.
Table 1 – Required test samples

Size Test
1 The largest recovered internal diameter produced for the sleeving All tests
having the smallest wall thickness
2 Recovered internal diameter between 5,4 mm and 12,7 mm Flammability
3 The largest internal diameter produced Wall thickness and flammability

Table 2 – Minimum recovered wall thicknesses
for maximum recovered internal diameters
Maximum recovered internal diameter Minimum wall thicknesses
mm mm
Up to 0,58 0,33
0,59 to 0,79 0,36
0,80 to 2,36 0,44
2,37 to 6,35 0,56
6,36 to 9,53 0,69
9,54 to 12,70 0,77
12,71 to 20,00 0,87
20,01 to 25,40 0,97
25,41 to 32,00 1,07
32,01 to 75,20 1,17
– 8 – 60684-3-209 © IEC:2010
Table 3 – Property requirements
Property IEC 60684-2 Units Max. Requirements Remarks
clause or or
subclause min.
Dimensions 3
Recovered internal
3.1.2 mm Max. Table 2
diameter
3.3.2 mm Min. Table 2
Wall thickness
Concentricity
expanded
3.3.3 % Min. Shrink ratio
2:1 65
Shrink ratio
3:1 50
Concentricity
recovered
Heat shock – –
Visual 6  No signs of The heating temperature shall be
dripping and 250 °C ± 5 K.
cracking
Flow % Max. 10
Visual after bending No cracking
See Table 4 for mandrel diameters.
when cooled Below 8,4 mm internal diameter test

and wound as full section sleeving. At and above
360° around a
8,4 mm test as 150 mm long × 13
mandrel.
mm wide strips.
Longitudinal change 9 % Max. +5 Heat expanded sleeving at 200 °C
–10 ± 5 K for (5 ± 1) min.
Bending at low  14 – – No visible
Condition at –30 °C ± 3 K.
temperature cracking
See Table 4 for mandrel diameters.
For sleeving up to and including
10 mm test as filled sleeving
Tensile strength 19.1 and 19.2 MPa Min. 10,3 Use a jaw separation rate of
Elongation at break 19.1 and 19.2 % Min. 200 100 mm/min. Below 6,5 mm nominal
bore, test as sleeving. At and above

6,5 mm nominal bore, test as
dumbbells in accordance with
IEC 60684-2, F
...
