IEC TR 60919-1:2010/AMD2:2017

IEC TR 60919-1


®


Edition 3.0 2017-05



TECHNICAL



REPORT




AMENDMENT 2

Performance of high-voltage direct current (HVDC) systems with line-
commutated converters –
Part 1: Steady-state conditions

IEC 60919-1:2010-05/AMD2:2017-05(en)

---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED


Copyright © 2017 IEC, Geneva, Switzerland


All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.



IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00

CH-1211 Geneva 20 info@iec.ch

Switzerland www.iec.ch

About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.

---------------------- Page: 2 ----------------------
IEC TR 60919-1



®



Edition 3.0 2017-05







TECHNICAL





REPORT















AMENDMENT 2






Performance of high-voltage direct current (HVDC) systems with line-

commutated converters –

Part 1: Steady-state conditions



























INTERNATIONAL

ELECTROTECHNICAL


COMMISSION





ICS 29.200; 29.240.99 ISBN 978-2-8322-4351-0



  Warning! Make sure that you obtained this publication from an authorized distributor.


® Registered trademark of the International Electrotechnical Commission

---------------------- Page: 3 ----------------------

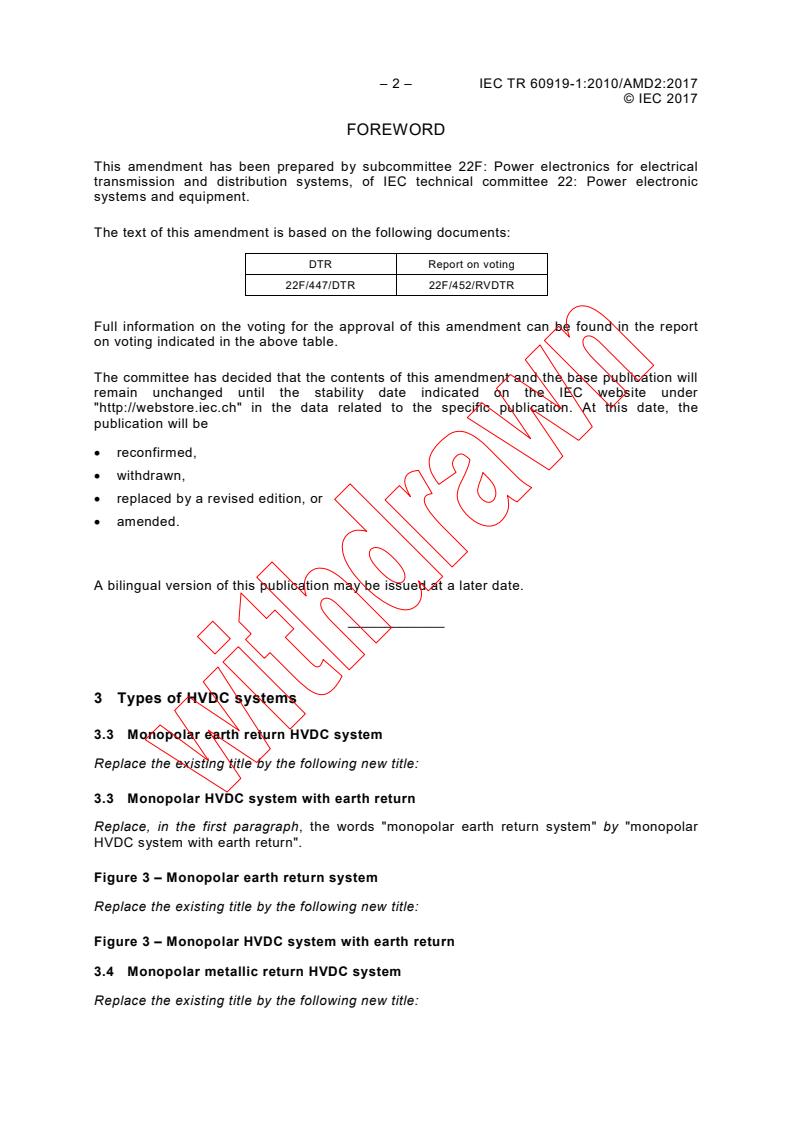

– 2 – IEC TR 60919-1:2010/AMD2:2017

© IEC 2017


FOREWORD


This amendment has been prepared by subcommittee 22F: Power electronics for electrical

transmission and distribution systems, of IEC technical committee 22: Power electronic

systems and equipment.


The text of this amendment is based on the following documents:

DTR Report on voting

22F/447/DTR 22F/452/RVDTR


Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC website under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

A bilingual version of this publication may be issued at a later date.
_____________

3 Types of HVDC systems
3.3 Monopolar earth return HVDC system
Replace the existing title by the following new title:

3.3 Monopolar HVDC system with earth return
Replace, in the first paragraph, the words "monopolar earth return system" by "monopolar
HVDC system with earth return".
Figure 3 – Monopolar earth return system
Replace the existing title by the following new title:
Figure 3 – Monopolar HVDC system with earth return

3.4 Monopolar metallic return HVDC system
Replace the existing title by the following new title:

---------------------- Page: 4 ----------------------
IEC TR 60919-1:2010/AMD2:2017 – 3 –

© IEC 2017

3.4 Monopolar HVDC system with metallic return


Add, after the fourth paragraph, the following new paragraph:


For metallic return scheme, DC fault current will flow into AC system and come back through

neutral point of transformers installed in the converter station. This current may lead to the

malfunction of protective relays installed in nearby stations, caused by the saturation of cores

due to DC current. To prevent such malfunctions, insertion of neutral grounding resistor (small

resistance) to transformers in converter station will be effective.


Figure 6 – Monopolar metallic return system

Replace the existing title by the following new title:
Figure 6 – Monopolar HVDC system with metallic return
3.5 Bipolar HVDC system with earth return
Replace, in the first paragraph, "Figure 7" by "Figure 7 (a)".
Figure 7 – Bipolar system
Replace the existing Figure 7, modified by IEC TR 60919-1/AMD1:2013, by the following new
figure.

---------------------- Page: 5 ----------------------
– 4 – IEC TR 60919-1:2010/AMD2:2017

© IEC 2017


I
d


(+)/(-)
1 1




2 F F 2


U
d

3 3
U
d
2 F F 2
(–)/(+)
1 1

IEC
Figure 7 (a) – Bipolar HVDC system with earth return
I
d
(+)/(-)
1 1
2 2
F F
U
d

3
2 2
F F
(-)/(+)
1 1
IEC

Figure 7 (b) – Rigid bipolar HVDC system

---------------------- Page: 6 ----------------------
IEC TR 60919-1:2010/AMD2:2017 – 5 –

© IEC 2017

Key

1 DC reactor

2 DC filter

3 Earth electrodes

Figure 7 – Bipolar system


Add, after the fourth paragraph, the following new paragraph:


Most of the HVDC system utilises electrode line or metallic return conductor (cable) for d.c.

current return path. However, as far as the balanced bipolar operation is always assured,

these facilities can be eliminated. This scheme is called "rigid bipole HVDC system"
configuration, as shown in Figure 7 (b). With this scheme, operation modes are limited but
installation cost can be reduced.
3.6 Bipolar metallic return HVDC system
Replace the existing title by the following new title:
3.6 Bipolar HVDC system with metallic return
Replace, in the first sentence of the first paragraph, the words "bipolar metallic return HVDC
system" by "bi
...
