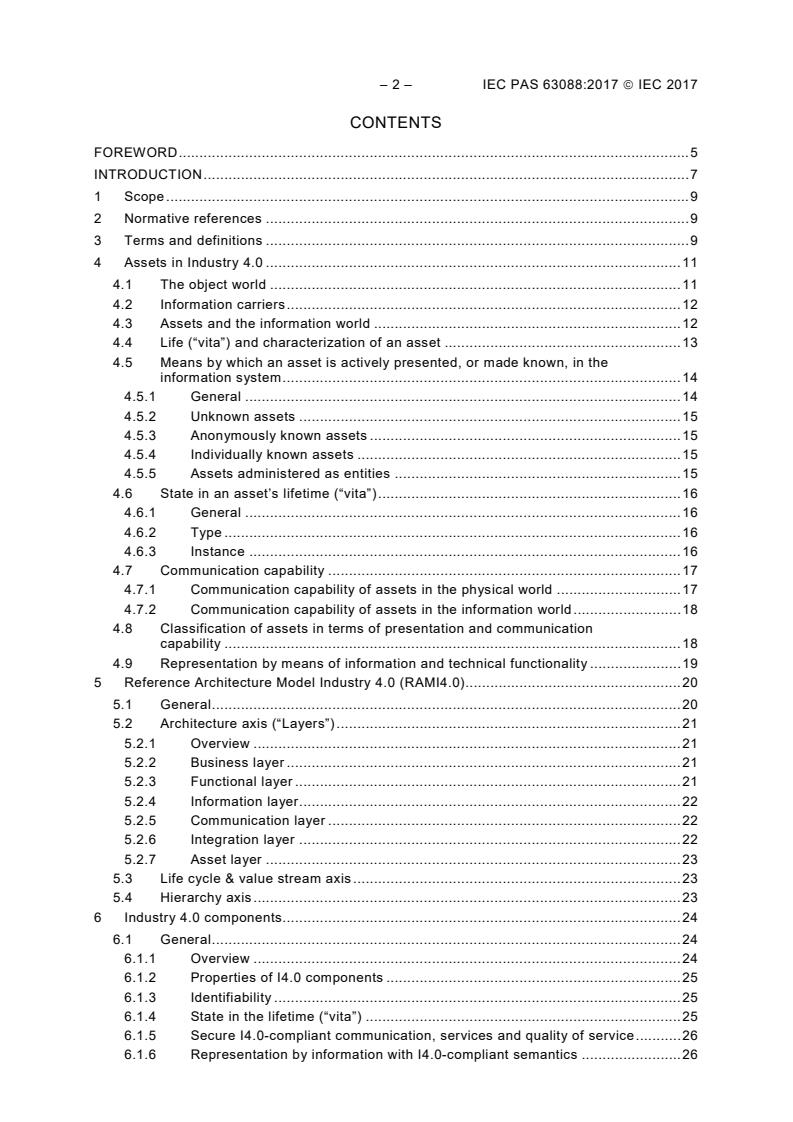

CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 9
2 Normative references . 9
3 Terms and definitions . 9
4 Assets in Industry 4.0 . 11
4.1 The object world . 11
4.2 Information carriers . 12
4.3 Assets and the information world . 12
4.4 Life (“vita”) and characterization of an asset . 13
4.5 Means by which an asset is actively presented, or made known, in the
information system . 14
4.5.1 General . 14
4.5.2 Unknown assets . 15
4.5.3 Anonymously known assets . 15
4.5.4 Individually known assets . 15
4.5.5 Assets administered as entities . 15
4.6 State in an asset’s lifetime (“vita”) . 16
4.6.1 General . 16
4.6.2 Type . 16
4.6.3 Instance . 16
4.7 Communication capability . 17
4.7.1 Communication capability of assets in the physical world . 17
4.7.2 Communication capability of assets in the information world . 18
4.8 Classification of assets in terms of presentation and communication
capability . 18
4.9 Representation by means of information and technical functionality . 19
5 Reference Architecture Model Industry 4.0 (RAMI4.0). 20
5.1 General . 20
5.2 Architecture axis (“Layers”) . 21
5.2.1 Overview . 21
5.2.2 Business layer . 21
5.2.3 Functional layer . 21
5.2.4 Information layer . 22
5.2.5 Communication layer . 22
5.2.6 Integration layer . 22
5.2.7 Asset layer . 23
5.3 Life cycle & value stream axis . 23
5.4 Hierarchy axis . 23
6 Industry 4.0 components. 24
6.1 General . 24
6.1.1 Overview . 24
6.1.2 Properties of I4.0 components . 25
6.1.3 Identifiability . 25
6.1.4 State in the lifetime (“vita”) . 25
6.1.5 Secure I4.0-compliant communication, services and quality of service . 26
6.1.6 Representation by information with I4.0-compliant semantics . 26

6.1.7 I4.0 system consisting of I4.0 components . 27
6.1.8 Nestability . 27
6.1.9 Encapsulability . 28
6.1.10 Domain specific functionality and state model . 29
6.2 Administration shell of I4.0 components . 29
6.2.1 General . 29
6.2.2 Basic structure of the administration shell . 30
6.2.3 DF header and DF body . 30
6.2.4 Partial models and views . 31
6.2.5 Properties . 32
6.2.6 Managing the administration shell . 34
6.2.7 Fundamental requirements for the administration shell . 36
6.3 Forms of I4.0 components . 36
6.3.1 Different assets with administration shells . 36
6.3.2 Asset with multiple administration shells . 37
6.3.3 Administration shell for multiple assets . 38
Bibliography . 39

Figure 1 – Structure of the object worlds with examples . 12
Figure 2 – Assets in the information world and their physical carriers . 12
Figure 3 – Life (“vita”) of an asset . 13
Figure 4 – Concepts of an asset . 14
Figure 5 – Component manager for administering entities . 16
Figure 6 – Active presentation of an asset in the information system and its
communication capability . 19
Figure 7 – CP notation system for classifying according to communication capability
and presentation (“publicity”) . 19
Figure 8 – Reference architecture model Industry 4.0 (RAMI4.0) . 20
Figure 9 – Hierarchical levels of RAMI4.0 . 24
Figure 10 – An I4.0 component as a necessary connection between the asset and the
administration shell . 25
Figure 11 – Nestability of I4.0 components . 28
Figure 12 – Encapsulability of I4.0-compliant and deterministic real-time
communication . 29
Figure 13 – Diagram of an I4.0 administration shell . 30
Figure 14 – Examples of domain specific models . 31
Figure 15 – Diagram of how views are created . 32
Figure 16 – Availability of administration shells via repository or directly via the
represented assets . 35
Figure 17 – Different assets that become I4.0 components by adding the administration
shell . 37
Figure 18 – Representation of an asset by means of multiple administration shells . 37
Figure 19 – Representation of multiple assets . 38

– 4 – IEC PAS 63088:2017  IEC 2017
Table 1 – Basic views of a partial model . 32
Table 2 – Property classes. 33

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SMART MANUFACTURING –
REFERENCE ARCHITECTURE MODEL INDUSTRY 4.0 (RAMI4.0)

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
A PAS is a technical specification not fulfilling the requirements for a standard, but made
available to the public.
– 6 – IEC PAS 63088:2017  IEC 2017
IEC PAS 63088 has been processed by IEC technical committee 65: Industrial-process
measurement, control and automation.
The text of this PAS is based on the This PAS was approved for publication
following document: by the P-members of the committee
concerned as indicated in the following
document
Draft PAS Report on voting
65/645/PAS 65/655/RVDPAS
Following publication of this PAS, which is a pre-standard publication, the technical committee
or subcommittee concerned may transform it into an International Standard.
This PAS shall remain valid for an initial maximum period of 3 years starting from the
publication date. The validity may be extended for a single period up to a maximum of
3 years, at the end of which it shall be published as another type of normative document, or
shall be withdrawn.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
INTRODUCTION
Background
Industry requires constant attention on optimization, cost efficiency, energy efficiency,
environmental concerns, quality, security, safety, time-to-market, inventory reduction,
simulation, ease of maintenance, etc. Customers also want to satisfy new requirements and
address new use cases now reachable given the availability of new technologies. Addressing
these challenges, several projects in different countries were issued with similar names and
aims, e.g. in Germany “Industrie 4.0”, in France “Industrie du Futur”, in China “Intelligent
Manufacturing”, in Japan etc.
Manufacturers, customers, service providers are working in a more and more global market.
The need of interoperability of products, open interfaces, etc. can only be achieved with
International Standards. To cover these needs, IEC and ISO have activities related to Smart
Manufacturing.
Objective
This specification defines a Reference Architecture Model to identify, structure, and illustrate
the different areas where standards exist or standards are required. It allows setting
standards in relation to different aspects, hierarchies and life cycles.
Life cycles are relevant to products, to assets in the factory or plant, to orders from planning
to cash and to the supply chain covering the process from source to delivery.
In addition, this specification defines term and definitions generally for Smart Manufacturing.
As Smart Manufacturing is covering different domains (batch, continuous, discrete, etc.),
terms need to be harmonized and globally accepted.
The fundamental purpose of Industry 4.0 is to facilitate cooperation and collaboration between
technical objects, which means they have to be virtually represented and connected. In this
context, a technical object is an object that is of value to an organization, which therefore not
only means physically tangible objects, but also intangible objects such as ideas, archives
and software. The concept of Industry 4.0 is intended to create digital description rules for a
technical object throughout its entire lifetime, and for the associated changes in value, in the
form of the Reference Architecture Model for Industry 4.0 “RAMI4.0”. The purpose of this
model is to represent the technical object and all aspects relevant to it, from its development,
production and use right through to its disposal. The Industry 4.0 component provides a digital
description of the object, making it possible to represent that object virtually.
Technical objects are intentionally manufactured in order to fulfil a specific purpose. They
possess common characteristics in terms of their lifetime and the associated changes in
value. Technical objects for which a “change in value” or an “owner” are important aspects are
also referred to as “technical assets”. Because this is almost always the case, the terms
“technical object” and “technical asset” can be regarded as synonymous. In this document,
the term “technical asset”, or simply “asset” is used.
This document describes two fundamental reference models for the Industry 4.0 concept:
– The reference architecture model RAMI4.0 is a reference model of Industry 4.0 reference
architecture and gives a structured description of fundamental ideas. See Clause 5.
– The I4.0 component reference model provides digital access to this description. See
Clause 6.
– 8 – IEC PAS 63088:2017  IEC 2017
The central concept of Industry 4.0 is that assets can be combined in any way, and these
assets are formally described in sufficient detail for use in the digital world. This methodology
not only enables sufficient generic descriptions of a configuration, but through an increasing
degree of detail also allows for very specific descriptions. This is a core concept regardless of
the way in which the asset is used.
To virtually represent configurations of assets and the connections between them, the
“principle of recursive description of assets” is used to characterize an asset as follows:
– the structural description is compliant with RAMI4.0;
– a configuration of two or more assets collectively forms a new asset, which is described
using RAMI4.0;
– components of an asset can themselves represent separate assets that are described with
RAMI4.0;
– the asset description is provided as structured information in the administration shell of
the I4.0 component that acts as a virtual representation of an asset.
This means that any configuration can be digitally represented to any degree of granularity by
describing structured assets, and combinations thereof, using RAMI4.0.

SMART MANUFACTURING –
REFERENCE ARCHITECTURE MODEL INDUSTRY 4.0 (RAMI4.0)

1 Scope
This document, which is a PAS, describes a reference architecture model in the form of a
cubic layer model, which shows technical objects (assets) in the form of layers, and allows
them to be described, tracked over their entire lifetime (or “vita”) and assigned to technical
and/or organizational hierarchies.
It also describes the structure and function of Industry 4.0 components as essential parts of
the virtual representation of assets.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 61360-1, Standard data element types with associated classification scheme for electric
components – Part 1: Definitions – Principles and methods
IEC 61360-2, Standard data element types with associated classification scheme for electric
components – Part 2: EXPRESS dictionary schema
IEC TR 62794 , Industrial-process measurement, control and automation – Reference model
for representation of production facilities (digital factory)
IEC TS 62832-1, Industrial-process measurement, control and automation – Digital factory
framework – Part 1: General principles
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
administration shell
virtual digital and active representation of an I4.0 component in the I4.0 system
Note 1 to entry: An administration shell contains the manifest and the component manager.
_____________
Withdrawn.
– 10 – IEC PAS 63088:2017  IEC 2017
3.2
architecture
fundamental concepts or properties of a system in its environment embodied in its elements,
relationships, and in the principles of its design and evolution
[SOURCE: ISO/IEC/IEEE 42010:2011, 3.2]
3.3
archive world
all the information in the digital world which is no longer valid or up-to-date and which
therefore can no longer be changed
Note 1 to entry: Information which is no longer valid or up-to-date is transferred to the archive world.
Note 2 to entry: No statement is made on when the information is transferred from the model world or state world
to the archive world.
3.4
asset
object which has a value for an organization
3.5
service
separate scope of functions offered by an entity or organization via interfaces
Note 1 to entry: This definition is not the same as the definition of services by the OASIS-RM (“Services are the
mechanism by which needs and capabilities are brought together”).
3.6
entity
uniquely identifiable object which is administered in the information world due to its
importance
3.7
information world
digital world or cyber world
ideas, concepts, algorithms, models and entirety of representations of physical objects and
people in the virtual environment
Note 1 to entry: The framework for considering each entirety needs to be defined.
Note 2 to entry: The elements of the information world can be semantically related to each other.
3.8
component manager
organizer of autonomous administration and access to resources of the relevant I4.0
component, such as the I4.0 component itself, object, technical functionality, virtual
representation
Note 1 to entry: In many documents, the component manager is referred to as the resource manager, but this
should be called the component manager in future.
3.9
manifest
externally accessible, defined set of meta-information on the functional and non-functional
properties of the relevant I4.0 component
Note 1 to entry: The manifest can be regarded as similar to the manifest in information technology.
3.10
physical world
all actually existing objects and people

Note 1 to entry: The real world is the same as the physical world.
Note 2 to entry: Loaded or stored software is part of the physical world.
Note 3 to entry: The framework for considering each entirety needs to be defined.
3.11
reference architecture
model for an architecture description (for I4.0) which is generally used and recognized as
being suitable (has reference character)
Note 1 to entry: A reference architecture can be defined on the basis of a reference model.
3.12
reference model
model that is generally used and recognized as being suitable (has recommendation
character) for deriving specific models
3.13
value-added chain
sequence of processes that add value (linear or hierarchical, which formally means acyclically
aligned)
Note 1 to entry: Company boundaries are not necessarily relevant for a value-added chain or value chain.
3.14
value-added system
network or system of value-added chains that can include connections and dependencies
between them
3.15
value-added process
process during which a commodity can be created which is valuable for a customer
Note 1 to entry: The commodity does not have to be tangible (such as a raw material or manufactured product),
but can also be intangible (such as knowledge, information or a service).
Note 2 to entry: The determination of the value or price is not considered here.
Note 3 to entry: Value-added processes are value activities according to Porter.
4 Assets in Industry 4.0
4.1 The object world
Figure 1 shows the structure of the object worlds. In the object world of Industry 4.0, assets
from the information world and the physical world are considered. Besides these assets,
people (the human world) also play an important part. The information world is divided into
the model world, the state world and the archive world. The model world contains objects
such as meta-documents, models, concepts, technical documentation, production plans and
procedural descriptions. The state world describes the current state. The archive world
contains the recorded state and life cycle information of processes that have taken place.
These can be production processes, development processes, maintenance processes and so
on.
The physical world includes all physical products, installations, resources, IT systems, loaded
programs, etc. When classifying software, it should be noted that the algorithm itself belongs
to the information world, but the executable program loaded to a system is part of the physical
world. People are part of the physical world and participate in the information world. Because
of their intelligence and freedom to make decisions, human beings have a special status.

– 12 – IEC PAS 63088:2017  IEC 2017
Human world
Human
Model world State world Archive world Physical world
- Meta-documents (standards, - Current - Life cycle - Products
directives) measurements documentation - Resources
- Technical documentation - Effective target - Events - Production systems (equipment items,
(functional diagrams, plant value - Status histories sensors, actuators)
diagrams, product descriptions, - Current - Project histories - IT systems, control systems (computer,
procedural descriptions) configuration - Processes programs, data carriers, cables)
- Operative plans (production parameters - Cabinets, paper
plans, project plans)
- Business process description
Information world Physical world

IEC
Figure 1 – Structure of the object worlds with examples
4.2 Information carriers
Figure 2 shows examples of various carriers of information. A plan, for example, can be
stored as an xml or pdf file on a computer. It can also be inside somebody’s head or printed
out on a piece of paper. In each case, the information asset “plan” is the same. The character
of the physical carrier does not alter the information asset. If the carrier is destroyed, so is all
the information stored on it. To prevent information from being lost, copies of it can be made
on multiple carriers. However, they are all still the same asset.
Assets in the
Information world
information world
USB Brain Paper
Physical world
stick
Carrier 1 Carrier 2 Carrier 3
IEC
Figure 2 – Assets in the information world and their physical carriers
4.3 Assets and the information world
Every asset has a value for an organization. It represents an artefact that is specifically
intended to perform a particular role in a particular system. Assets are intentionally
manufactured in order to fulfil a specific purpose. They possess a common “vita”, or lifetime,
and the associated change in value. See Figure 3. Assets for which a “change in value” or an
“owner” are important aspects are also referred to as “technical assets”.
The key task in Industry 4.0 is to take technical assets from the physical world and virtually
represent them in the information world. The physical world is to be understood to mean the
entirety of all real assets and people.

The following applies to every asset.
– The asset is designed, created, used and disposed of.
– The asset can be an idea, a software program, an archive, a service or any physical item
(in other words it does not have to exist in a physical form).
– The asset has a lifetime.
– The asset is clearly identifiable.
– The asset is represented in the virtual world by its administration shell.
– The asset can have multiple virtual representations specified according to the rules of
Industry 4.0 for different purposes.
– Assets can be combined to create new assets with different properties.
– The asset is characterized in a process by means of time, location and state.
– Each piece of information has a carrier.
– The asset’s characteristics are described using Industry 4.0 vocabulary that includes a
collection of terms which describe properties.
EXAMPLE: Assets in the context of Industry 4.0 are whole installations or parts thereof, electronic modules,
subsystems and systems, machinery, plants and networks, services, concepts and ideas, plans, archives and
programs.
3. Provision
2. Production
4. Usage
1. Commissioning
7. Disposal
6. Repair 5. Maintenance
IEC
Figure 3 – Life (“vita”) of an asset
4.4 Life (“vita”) and characterization of an asset
Each asset has a specific lifetime, during which it serves the purpose for which it was
specifically created (see Figure 3). The way it is created depends on the type of asset.
Creation can mean development (of a type), engineering (of a plant), measurement (of a
status), construction (of an installation) or production (of a product). In this context, these are
all creation processes. Once an asset is created, it exists, but it is not yet ready to use. The
provision phase includes all processes between the time the product is created and the time it
is ready and working at the place of use. Provision processes include shipping, transport,
warehousing, configuration and assembly, and for software assets, processes such as
release, downloading and installation. After provision, the asset is installed and ready to use
on site, in other words, it is ready to perform its intended role as a technical device. In the
subsequent phase, two different uses of the asset shall be taken into account: usage and
maintenance. When being used, the asset is part of the technical system for carrying out the
desired technical (production or usage) processes. During maintenance, the asset is still a
product whose functionality shall be maintained or restored. Maintenance can be carried out
by the user, by an external workshop or by the manufacturer. The work can take place on site,
by remote maintenance or (for example after it is removed) at a workshop. Certain
