Low-voltage electrical installations - Part 7-714: Requirements for special installations or locations - External lighting installations

IEC 60364-7-714:2011 applies to the selection and erection of luminaires and lighting installations forming part of an outdoor fixed installation. The origin of the external lighting installation is the supply delivery point of electrical energy by the supply authority or the origin of the circuit supplying the external lighting installation exclusively. The requirements apply to, for example, lighting installations for roads, parks, gardens, places open to the public, sporting areas, illumination of monuments, floodlighting, telephone kiosks, bus shelters, advertising panels, town plans and road signs. The requirements do not apply to:
- public street-lighting installations which are part of the public power grid;
- temporary festoon lighting;
- road traffic signal systems;
- and luminaires which are fixed to the outside of a building and are supplied directly from the internal wiring of that building.
This second edition cancels and replaces the first edition, published in 1996, and constitutes a technical revision. The major technical changes with respect to the previous edition are listed below:
- clause numbering is aligned with present structure of IEC 60364;
- additional protection is required in some cases of equipment incorporating lighting;
- more stringent requirements regarding IP degree of protection;
- introduction of particular requirements for isolation.

Installations électriques à basse tension - Partie 7-714: Règles pour les installations et emplacements spéciaux - Installations d'éclairage extérieur

La CEI 60364-7-714:2011 s'applique au choix et à la mise en oeuvre des luminaires et des installations d'éclairage faisant partie d'une installation extérieure fixe. L'origine des installations d'éclairage extérieur est le point de livraison de l'énergie électrique par le distributeur ou l'origine du circuit qui alimente exclusivement l'installation d'éclairage extérieur. Les exigences s'appliquent, par exemple, aux installations d'éclairage des rues, parcs, jardins, lieux publics, terrains de sport, pour l'illumination des monuments, pour l'éclairage par projection, aux installations d'éclairage des cabines téléphoniques, abris d'autobus, panneaux publicitaires, plans de ville et panneaux de signalisation routière. Les exigences ne s'appliquent pas:
- aux installations d'éclairage public qui font partie du réseau de distribution public;
- aux guirlandes lumineuses temporaires; aux systèmes de signalisation routière;
- et aux luminaires fixés à l'extérieur des bâtiments et alimentés directement de l'intérieur de ces bâtiments.
Cette seconde édition annule et remplace la première édition, publiée en 1996 dont elle constitue une révision technique. Les modifications principales par rapport à l'édition précédente sont les suivantes:
- la numérotation des articles est alignée sur celle de la CEI 60364;
- une protection additionnelle est exigée dans certains cas d'appareillages comportant des luminaires;
- les exigences concernant les degrés de protection IP sont renforcées;
- et des exigences particulières pour le sectionnement ont été introduites.

General Information

Status
Published
Publication Date
13-Dec-2011
Current Stage
PPUB - Publication issued
Start Date
15-Jan-2012
Completion Date
14-Dec-2011
Ref Project

Buy Standard

Standard
IEC 60364-7-714:2011 - Low-voltage electrical installations - Part 7-714: Requirements for special installations or locations - External lighting installations
English and French language
20 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)


IEC 60364-7-714 ®
Edition 2.0 2011-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Low-voltage electrical installations –
Part 7-714: Requirements for special installations or locations – External lighting
installations
Installations électriques à basse tension –
Partie 7-714: Règles pour les installations et emplacements spéciaux –
Installations d'éclairage extérieur

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
 Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
 IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
 Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
 Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
 Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
 Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
 Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
 Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 60364-7-714 ®
Edition 2.0 2011-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Low-voltage electrical installations –
Part 7-714: Requirements for special installations or locations – External
lighting installations
Installations électriques à basse tension –
Partie 7-714: Règles pour les installations et emplacements spéciaux –
Installations d'éclairage extérieur

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX K
ICS 91.140.50; 91.160.20 ISBN 978-2-88912-842-6

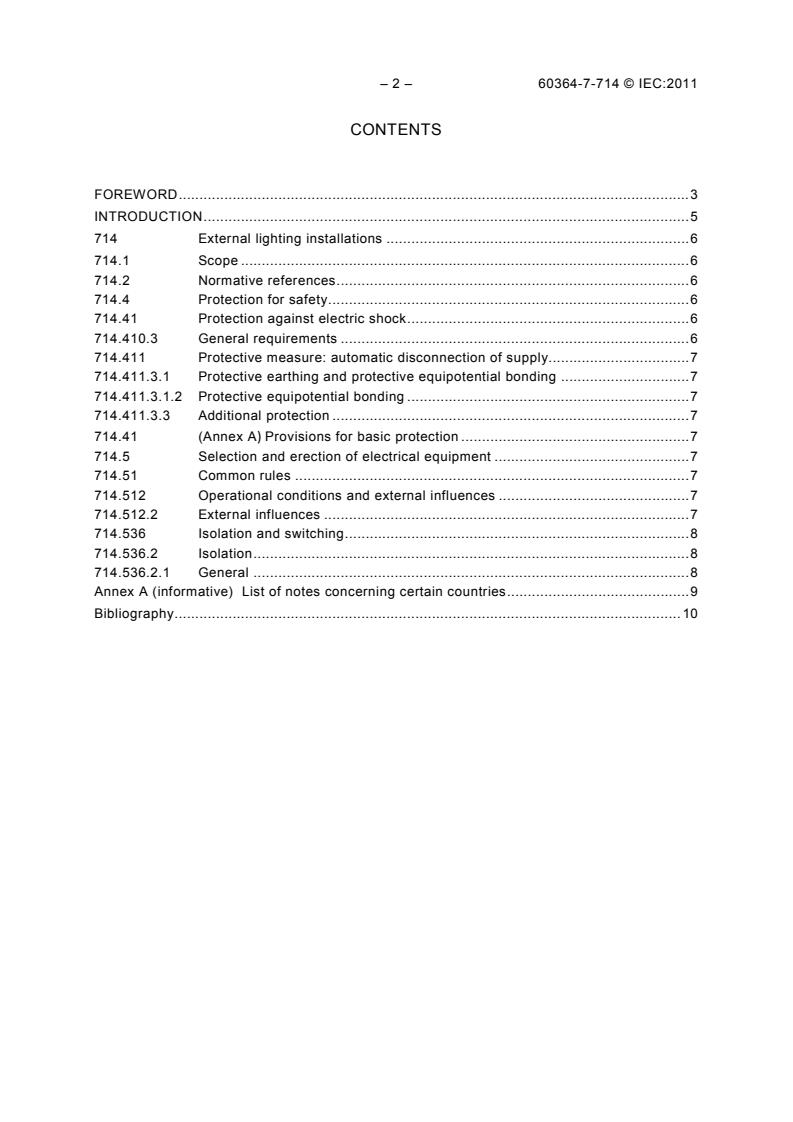

– 2 – 60364-7-714 © IEC:2011
