– 2 – IEC TS 62840-1:2016 © IEC 2016

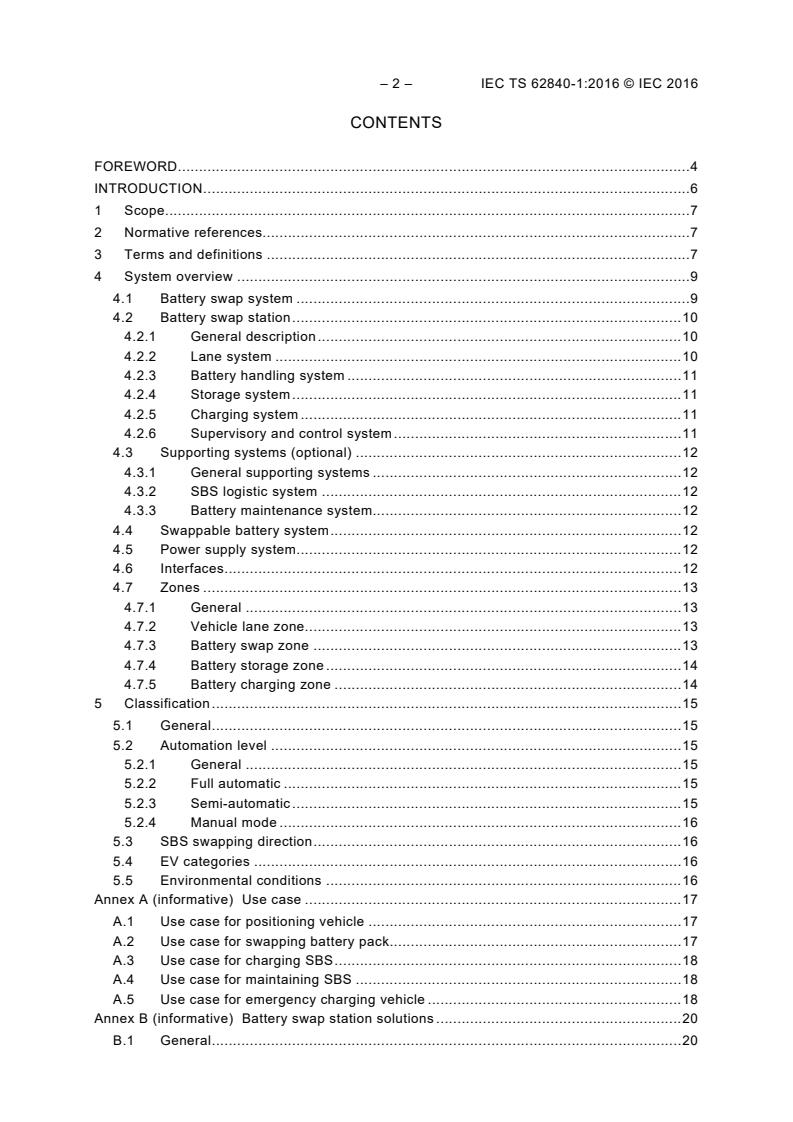

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references. 7
3 Terms and definitions . 7
4 System overview . 9
4.1 Battery swap system . 9
4.2 Battery swap station . 10
4.2.1 General description . 10
4.2.2 Lane system . 10
4.2.3 Battery handling system . 11
4.2.4 Storage system . 11
4.2.5 Charging system . 11
4.2.6 Supervisory and control system . 11
4.3 Supporting systems (optional) . 12
4.3.1 General supporting systems . 12
4.3.2 SBS logistic system . 12
4.3.3 Battery maintenance system . 12
4.4 Swappable battery system . 12
4.5 Power supply system . 12
4.6 Interfaces . 12
4.7 Zones . 13
4.7.1 General . 13
4.7.2 Vehicle lane zone . 13
4.7.3 Battery swap zone . 13
4.7.4 Battery storage zone . 14
4.7.5 Battery charging zone . 14
5 Classification . 15
5.1 General . 15
5.2 Automation level . 15
5.2.1 General . 15
5.2.2 Full automatic . 15
5.2.3 Semi-automatic . 15
5.2.4 Manual mode . 16
5.3 SBS swapping direction . 16
5.4 EV categories . 16
5.5 Environmental conditions . 16
Annex A (informative) Use case . 17
A.1 Use case for positioning vehicle . 17
A.2 Use case for swapping battery pack . 17
A.3 Use case for charging SBS . 18
A.4 Use case for maintaining SBS . 18
A.5 Use case for emergency charging vehicle . 18
Annex B (informative) Battery swap station solutions . 20
B.1 General . 20

B.2 Commercial vehicles battery swap station . 22
B.2.1 Automatic side-swapping station . 22
B.2.2 Automatic top-swapping station . 22
B.3 Passenger cars battery swap station . 23
B.3.1 Semi-automatic rear-swapping station . 23
B.3.2 Automatic bottom-swapping station . 24
B.3.3 Automatic side-swapping station . 25
Bibliography . 27

Figure 1 – EV battery swap system . 10
Figure B.1 – Automatic side-swapping station layout . 22
Figure B.2 – Automatic top-swapping station layout . 23
Figure B.3 – Semi-automatic rear-swapping station layout . 24
Figure B.4 – Automatic bottom-swapping station layout . 25
Figure B.5 – Automatic side-swapping station layout . 26

Table 1 – Accessibility of vehicle lane zone . 13
Table 2 – Accessibility of battery swap zone . 14
Table 3 – Accessibility of battery storage zone . 14
Table 4 – Accessibility of battery charging zone . 15
Table A.1 – Use case for positioning vehicle . 17
Table A.2 – Use case for swapping battery pack . 17
Table A.3 – Use case for charging SBS . 18
Table A.4 – Use case for maintaining SBS . 18
Table A.5 – Use case for emergency charging vehicle . 19
Table B.1 – Key index of the systems in different types of battery swap stations . 21

– 4 – IEC TS 62840-1:2016 © IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRIC VEHICLE BATTERY SWAP SYSTEM –

Part 1: General and guidance
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. In
exceptional circumstances, a technical committee may propose the publication of a Technical
Specification when
• the required support cannot be obtained for the publication of an International Standard,
despite repeated efforts, or
• the subject is still under technical development or where, for any other reason, there is the
future but no immediate possibility of an agreement on an International Standard.
Technical Specifications are subject to review within three years of publication to decide
whether they can be transformed into International Standards.
IEC TS 62840-1, which is a Technical Specification, has been prepared by IEC technical
committee 69: Electric road vehicles and electric industrial trucks.

The text of this Technical Specification is based on the following documents:
Enquiry draft Report on voting
69/368/DTS 69/399/RVC
Full information on the voting for the approval of this technical specification can be found in
the report on voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 62840 series, published under the general title Electric vehicle
battery swap system, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• transformed into an International standard,
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC TS 62840-1:2016 © IEC 2016
INTRODUCTION
The purpose of the battery swap system is to provide energy partly or in total to electric road
vehicles (EVs) through fast replacement of their swappable battery system (SBS). While
charging, the EV typically takes a relatively long time, the battery swap process takes only a
few minutes to complete. Thus it will reduce range anxiety and will facilitate travel for longer
distances.
As there is a possibility to charge the batteries after their removal from the vehicle in various
ways, the impact of this process on the critical infrastructure of the electrical grid is minimized.
Battery swap stations mainly include one or more of the following functions:
• swap of EV swappable battery system (SBS);
• storage of EV SBS;
• charging and cooling of EV SBS;
• testing, maintenance and safety management of EV SBS.
This document serves as generic requirements for battery swap systems for EVs.
The IEC 62840 series includes two parts:
– IEC 62840-1: General and guidance;
– IEC 62840-2: Safety requirements.

ELECTRIC VEHICLE BATTERY SWAP SYSTEM –

Part 1: General and guidance
1 Scope
This part of IEC 62840, which is a Technical Specification, gives the general overview for
battery swap systems, for the purposes of swapping batteries of electric road vehicles (EVs)
when the vehicle powertrain is turned off and when the battery swap system is connected to
the supply network at standard supply voltages according to IEC 60038 with a rated voltage
up to 1 000 V AC and up to 1 500 V DC.
This document is applicable for battery swap systems for EV equipped with one or more
swappable battery system (SBS).
NOTE Battery swap systems for light electric vehicles (LEVs) according to the IEC 61851-3 series are under
consideration.
This document is not applicable to:
• aspects related to maintenance and service of the battery swap station (BSS);
• trolley buses, rail vehicles and vehicles designed primarily for use off-road;
• maintenance and service of EVs.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60038, IEC standard voltages
3 Terms and definitions
3.1
electric vehicle
EV
electric road vehicle
vehicle propelled by an electric motor drawing current from a rechargeable storage battery or
from other portable energy storage devices (rechargeable, using energy from a source off the
vehicle, such as residential or public electric service), which is manufactured primarily for use
on public streets, roads or highways
[SOURCE: ISO 17409:2015, 3.19, modified — Some precisions have been added.]
3.2
battery swap system
battery swap station and supporting systems
_____________
Under consideration.
– 8 – IEC TS 62840-1:2016 © IEC 2016
3.3
supporting system
system which serve the battery swap station
3.4
battery swap station
BSS
facility that provides EVs with a swappable battery system (SBS )
3.5
battery pack
energy storage device that includes cells or cell assemblies normally connected with cell
electronics, voltage class B circuit and overcurrent shut-off device, including electrical
interconnections, and interfaces for external systems
Note 1 to entry: For further explanation, see ISO 12405-1:2011, 5.4 and Clause A.2.
Note 2 to entry: Examples of external systems are cooling, voltage class B, auxiliary voltage class A and
communication.
[SOURCE: ISO 12405-1:2011, 3.2]
3.6
swappable battery system
SBS
battery pack with a coupler for connecting charger/electric vehicle (EV), lock/unlock devices,
battery control unit (BCU), thermal management unit, electrical protection circuit, enclosure
and supporting devices
3.7
battery system
energy storage device that includes cells or cell assemblies or battery pack(s) as well as
electrical circuits and electronics
Note 1 to entry: For further explanation, see ISO 12405-1:2011, 5.5.2, 5.5.3, A.3.1 and A.3.2. Battery system
components can also be distributed in different devices within the vehicle.
Note 2 to entry: Examples of electronics are the BCU and contactors.
[SOURCE: ISO 12405-1:2011, 3.3]
3.8
swappable battery system coupler
SBS coupler
dedicated coupler for connecting a swappable battery system to an electric vehicle (EV) or to
a charging rack
3.9
SBS charger
swappable battery system charger
device installed outside the EV to supply DC power to a swappable battery system (SBS) or a
series of SBS
3.10
charging rack
equipment used for carrying a swappable battery system (SBS) and connecting a SBS to a
charger to accomplish the charge process

3.11
storage rack
equipment used to store a swappable battery system (SBS)
3.12
transferring equipment
equipment used for transferring a swappable battery system (SBS) inside a battery swap
station (BSS)
3.13
battery swap equipment
swap equipment
equipment used for mounting/unmounting a swappable battery system (SBS) to/ from electric
vehicles (EVs)
Note 1 to entry: The battery transferring function may be integrated in the battery swap equipment.
3.14
battery control unit
BCU
electronic device that controls, manages, detects or calculates electric and thermal functions
of the battery system and that provides communication between the battery system and the
battery swap system
[SOURCE: ISO 12405-1:2011, 3.1, modified — The words "other vehicle controllers" have
been replaced by "the battery swap system".]
3.15
human machine interface
HMI
interface between operating staff and the instrumentation and computer systems connected to
the plant
Note 1 to entry: In this case, the plant refers to BSS.
[SOURCE: IEC 60050-395:2014, 395-07-48, modified — The note to entry has been replaced
by a new note.]
4 System overview
4.1 Battery swap system
Battery swap systems provide quick, safe and reliable swapping of the swappable battery
system (SBS) of electric vehicles (EVs). The batteries will be loaded in a battery swap station
(BSS). The SBS are stored in a battery rack in the BSS. The battery swapping is carried out
by means of appropriate manipulators.
EV battery swap system consists of:
• BSS,
• supporting systems,
• SBS, and
• power supply system.
Figure 1 shows the composition of the EV battery swap system and the relationships between
the various systems.
– 10 – IEC TS 62840-1:2016 © IEC 2016
Power grid
Power supply
Mechanical/Electrical
system
connection
(optional)
SBS logistic
Comm
...
