IEC 62899-303-1:2018(E) defines standard mechanical dimensions (especially related to the web size) of equipment for printed electronics. This document covers web-based printing equipment, but it can be used for sheet-based products.
General Information
- Status
- Published
- Publication Date
- 06-May-2018
- Technical Committee
- TC 119 - Printed Electronics
- Drafting Committee
- WG 3 - TC 119/WG 3
- Current Stage
- PPUB - Publication issued
- Start Date
- 07-May-2018
- Completion Date
- 25-May-2018
Overview
IEC 62899-303-1:2018 is an international standard from the IEC (TC 119) that defines mechanical dimensions for printed electronics equipment, with a focus on roll-to-roll (R2R) printing web sizes. The standard specifies how to report and measure web-related dimensions for web-based printing equipment and notes that these dimensions can also be applied to sheet-based products. Its purpose is to promote interoperability, simplify equipment design, and support industrial-scale printed electronics manufacturing.
Key topics and requirements
- Scope: Standard mechanical dimensions related to web size for printed-electronics equipment (web-based R2R, applicable to sheet-based).
- Terms defined: R2R (roll-to-roll process), alignment mark, trigger mark - essential for registration and process timing.
- Measuring conditions: Measurements shall be reported at room temperature and room humidity.
- Web width definitions:
- Maximum web width: widest web the equipment can handle.
- Minimum web width: narrowest web the equipment can handle.
- Maximum printable width: width guaranteed to meet output quality, including functional printed area and alignment marks.
- Non-functional items (e.g., trigger marks) may be placed outside the maximum printable width.
- Recommended nominal maximum web widths: 300 mm, 500 mm, 600 mm, 900 mm, 1 200 mm, 1 500 mm - unless otherwise agreed by supplier and customer.
- Documentation examples: the standard includes illustrative figures (R2R overview, printed web dimensions) and an example equipment specification table (max/min web width, max printable width).
- Annex A (informative): shows example mechanical dimensions including length for reference.
Practical applications and users
IEC 62899-303-1 is directly useful for:
- Manufacturers of R2R printing equipment and converters specifying mechanical handling capabilities.
- OEMs and product designers of printed electronics (flexible circuits, sensors, OLEDs, printed batteries) who must match substrate/web sizes to production equipment.
- Procurement and quality assurance teams defining supplier specs and acceptance criteria.
- Integrators and contract manufacturers standardizing handoff dimensions between process steps (printing → patterning → assembly). Practical benefits include improved equipment interoperability, reduced custom engineering for web handling, and clearer supplier-customer agreements on nominal web sizes and printable areas.
Related standards and resources
- Part of the IEC 62899 series on Printed electronics (check the IEC catalogue for related parts).
- Terminology resources: IEC Electropedia and ISO Online Browsing Platform.
- Users should confirm they have the latest edition and consult other IEC 62899 parts for complementary guidance on processes and equipment.
Frequently Asked Questions
IEC 62899-303-1:2018 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Printed electronics - Part 303-1: Equipment - Roll-to-roll printing - Mechanical dimensions". This standard covers: IEC 62899-303-1:2018(E) defines standard mechanical dimensions (especially related to the web size) of equipment for printed electronics. This document covers web-based printing equipment, but it can be used for sheet-based products.
IEC 62899-303-1:2018(E) defines standard mechanical dimensions (especially related to the web size) of equipment for printed electronics. This document covers web-based printing equipment, but it can be used for sheet-based products.
IEC 62899-303-1:2018 is classified under the following ICS (International Classification for Standards) categories: 19.080 - Electrical and electronic testing; 35.160 - Microprocessor systems; 35.200 - Interface and interconnection equipment; 37.100.10 - Reproduction equipment. The ICS classification helps identify the subject area and facilitates finding related standards.
IEC 62899-303-1:2018 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
IEC 62899-303-1 ®
Edition 1.0 2018-05
INTERNATIONAL
STANDARD
Printed electronics –
Part 303-1: Equipment – Roll-to-roll printing – Mechanical dimensions
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.
IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and
CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 62899-303-1 ®
Edition 1.0 2018-05
INTERNATIONAL
STANDARD
Printed electronics –
Part 303-1: Equipment – Roll-to-roll printing – Mechanical dimensions
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 19.080; 37.100.10 ISBN 978-2-8322-5672-5

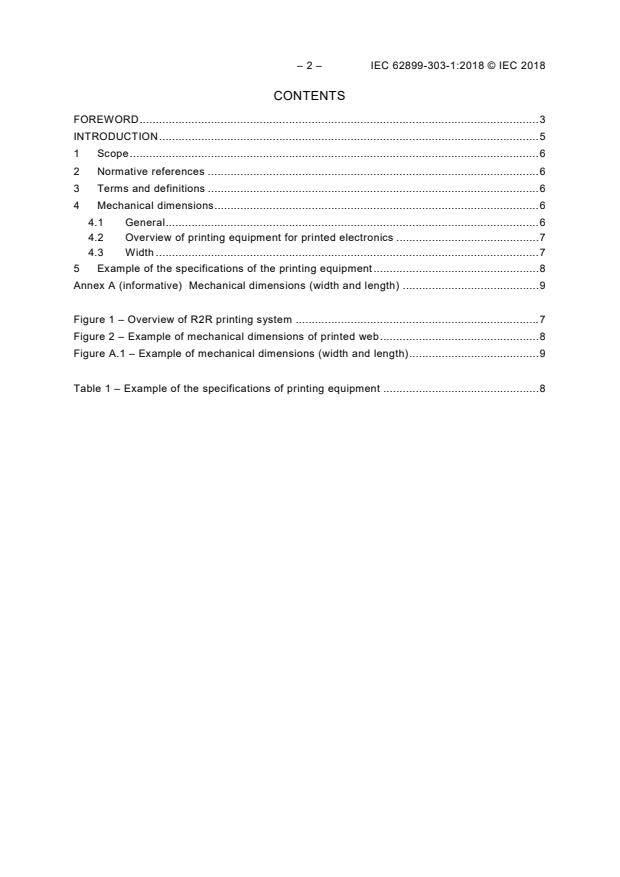

– 2 – IEC 62899-303-1:2018 © IEC 2018
