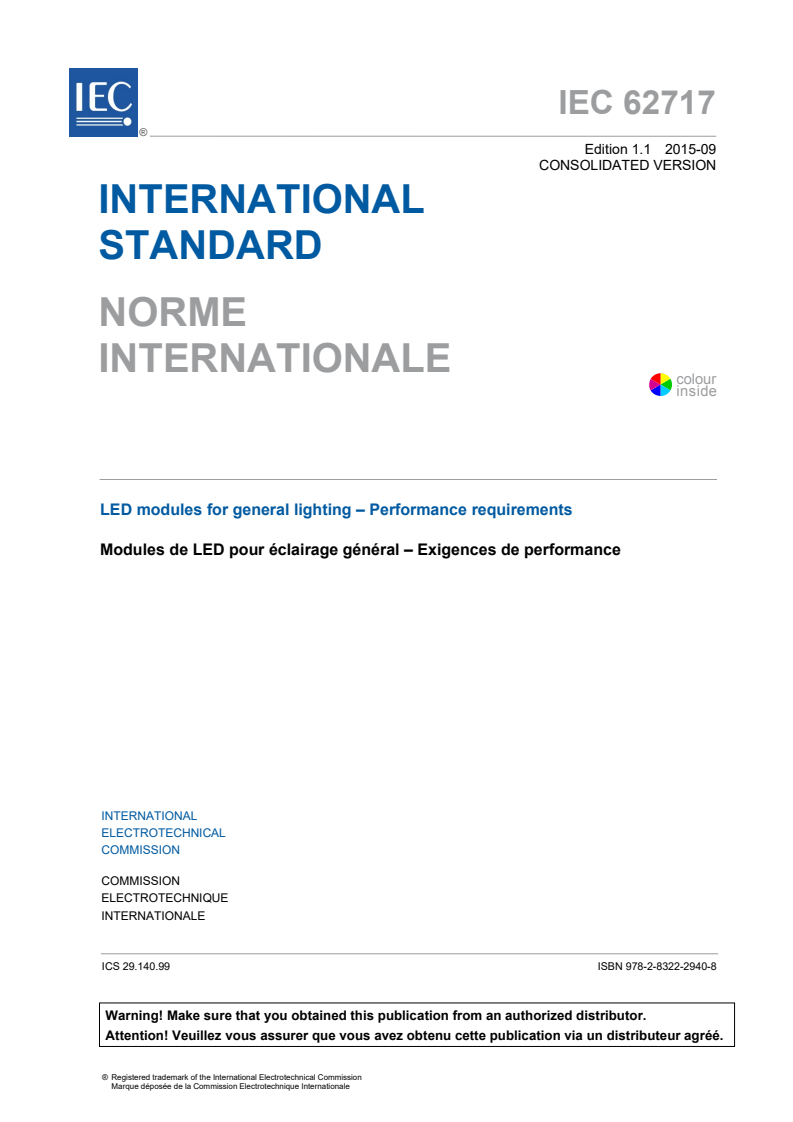

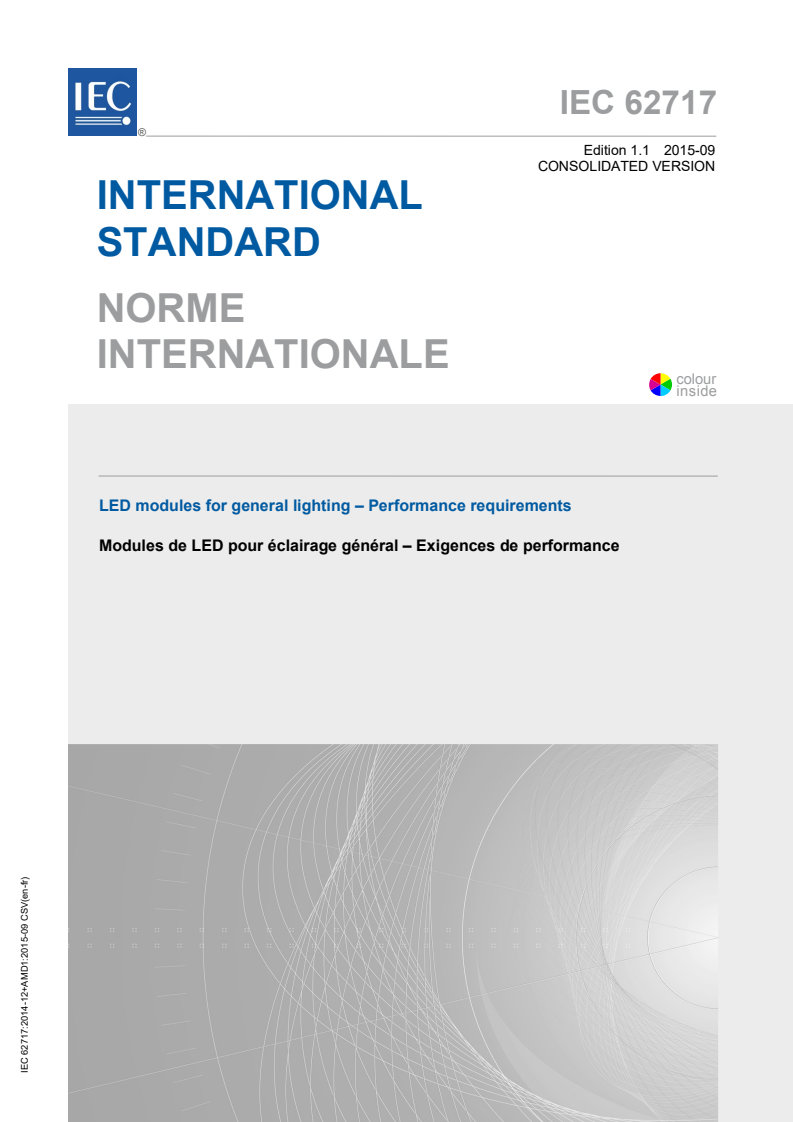

IEC 62717:2014

IEC 62717 ®
Edition 1.1 2015-09
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
LED modules for general lighting – Performance requirements

Modules de LED pour éclairage général – Exigences de performance

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC Plus de 60 000 entrées terminologiques électrotechniques, en
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 62717 ®
Edition 1.1 2015-09
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
LED modules for general lighting – Performance requirements

Modules de LED pour éclairage général – Exigences de performance

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.99 ISBN 978-2-8322-2940-8

IEC 62717 ®
Edition 1.1 2015-09
CONSOLIDATED VERSION
REDLINE VERSION
VERSION REDLINE
colour
inside
LED modules for general lighting – Performance requirements

Modules de LED pour éclairage général – Exigences de performance

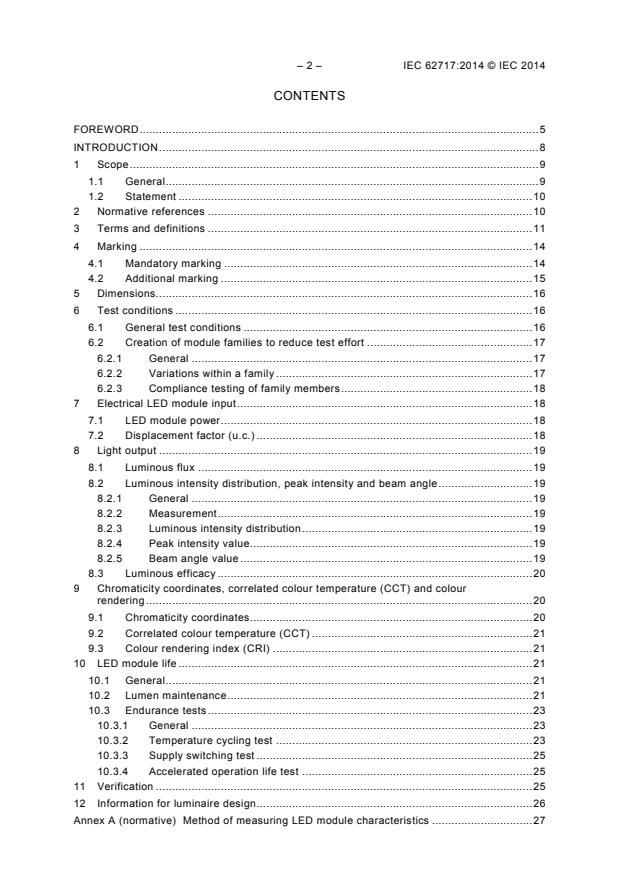

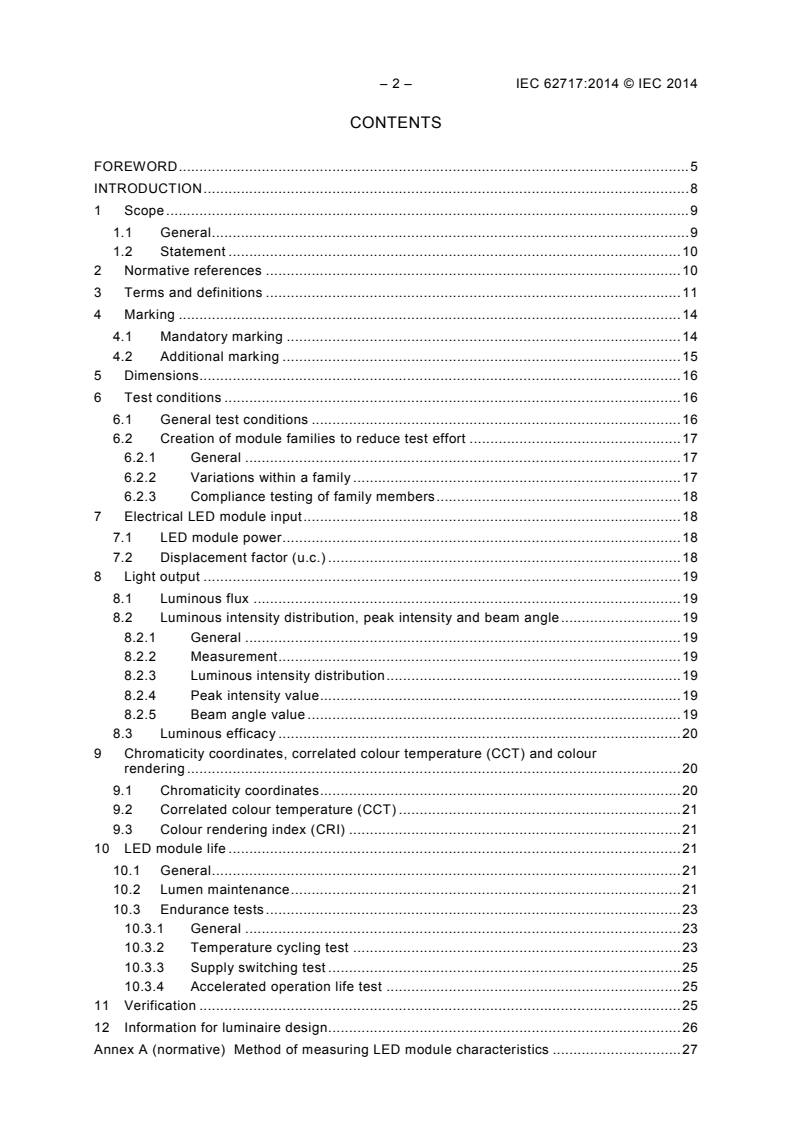

– 2 – IEC 62717:2014+AMD1:2015 CSV
© IEC 2015
CONTENTS
FOREWORD . 5
INTRODUCTION . 8
1 Scope . 9
1.1 General . 9
1.2 Statement . 10
2 Normative references . 10
3 Terms and definitions . 11
4 Marking . 14
4.1 Mandatory marking . 14
4.2 Additional marking . 15
5 Dimensions. 16
6 Test conditions . 16
6.1 General test conditions . 16
6.2 Creation of module families to reduce test effort . 17
6.2.1 General . 17
6.2.2 Variations within a family . 17
6.2.3 Compliance testing of family members . 18
7 Electrical LED module input . 19
7.1 LED module power . 19
7.2 Displacement factor (u.c.) . 19
8 Light output . 19
8.1 Luminous flux . 19
8.2 Luminous intensity distribution, peak intensity and beam angle . 19
8.2.1 General . 19
8.2.2 Measurement . 19
8.2.3 Luminous intensity distribution . 20
8.2.4 Peak intensity value . 20
8.2.5 Beam angle value . 20
8.3 Luminous efficacy . 20
9 Chromaticity coordinates, correlated colour temperature (CCT) and colour
rendering . 20
9.1 Chromaticity coordinates . 20
9.2 Correlated colour temperature (CCT) . 21
9.3 Colour rendering index (CRI) . 21
10 LED module life . 22
10.1 General . 22
10.2 Lumen maintenance . 22
10.3 Endurance tests . 23
10.3.1 General . 23
10.3.2 Temperature cycling test . 24
10.3.3 Supply switching test . 25
10.3.4 Accelerated operation life test . 25
11 Verification . 26
12 Information for luminaire design . 26

© IEC 2015
Annex A (normative) Method of measuring LED module characteristics . 27
A.1 General . 27
A.2 Electrical characteristics . 28
A.2.1 Test voltage, current or power . 28
A.2.2 Ageing . 28
A.3 Photometric characteristics . 28
A.3.1 Test voltage, current or power . 28
A.3.2 Luminous flux . 28
A.3.3 Luminous intensity distribution . 28
A.3.4 Peak intensity . 29
A.3.5 Beam angle . 29
A.3.6 Colour rendering . 29
A.3.7 Chromaticity coordinate values . 29
Annex B (informative) Information for luminaire design . 30
B.1 Temperature stability . 30
B.2 Binning procedure of white colour LEDs . 30
B.3 Ingress protection . 30
Annex C (informative) Explanation of recommended LED procuct lifetime metrics . 31
C.1 General . 31
C.2 Life time specification for gradual light output degradation . 32
C.3 Lifetime specification for abrupt light output degradation . 33
C.4 Combined gradual and abrupt light output degradation . 33
C.5 Overview of LED lifetime metrics and related lighting product groups . 35
C.6 Example lifetime metric values . 36
Annex D (normative) Explanation of the photometric code . 38
Annex E (normative) Measurement of displacement factor . 39
E.1 General . 39
E.2 Phase shift angle definition . 39
E.3 Measurements requirements . 40
E.3.1 Measurement circuit and supply source . 40
E.3.2 Requirements for measurement equipment . 40
E.3.3 Test conditions . 40
Annex F (informative) Explanation of displacement factor . 41
F.1 General . 41
F.2 Recommended values for displacement factor . 42
Annex G (informative) Examples of LED dies and LED packages . 43
G.1 LED die . 43
G.2 LED package . 44
Annex H (informative) Test equipment for temperature measurement . 45
H.1 General . 45
H.2 Set-up and procedure . 45
Annex I (normative) Use of IES LM-80 for lumen maintenance, colour rendering index
and maintained chromaticity coordinates data . 46
I.1 General . 46
I.2 Criteria for the use of IES LM-80 . 46
I.2.1 LED package data used for LED modules . 46
I.2.2 LED module with IES LM-80 data . 46
I.2.3 Boundary conditions . 46

– 4 – IEC 62717:2014+AMD1:2015 CSV
© IEC 2015
I.3 Compliance criteria . 47
I.3.1 Chromaticity coordinates . 47
I.3.2 Colour rendering index (CRI) . 47
I.3.3 Lumen maintenance factor . 47
Bibliography . 48

Figure 1 – Types of LED modules . 9
Figure 2 – Luminous flux depreciation over test time . 23
Figure C.1 – Lumen output over life of a LED-based luminaire comprised of a single
LED module . 31
Figure C.2 – Life time specification for gradual light output degradation . 32
Figure C.3 – Reliability curve R for abrupt light output degradation . 33
abrupt
Figure C.4 – Reliability curve R for gradual light output degradation . 34
gradual
Figure C.5 – Combined R and R degradation . 35
gradual abrupt
Figure C.6 – Overview of LED lifetime metrics . 36
Figure E.1 – Definition of the fundamental current phase shift angle φ (I leads
1 1
U , φ > 0) . 39
mains 1
Figure E.2 – Definition of the fundamental current phase shift angle φ (I lags
1 1
U , φ < 0) . 40
mains 1
Figure G.1 – Schematic drawings of LED dies . 43
Figure G.2 – Schematic drawings of LED packages . 44

Table 1 – Mandatory marking and location of marking . 15
Table 2 – LED module life time information . 16
Table 3 – Optional marking and location of marking . 16
Table 4 – Allowed variations within a family . 18
Table 5 – Tolerance (categories) on rated chromaticity coordinate values . 21
Table 6 – Lumen maintenance code at an operational time as stated in 6.1 . 22
Table 7 – Sample sizes . 26
Table C.1 – Example lifetime metric values for lumen maintenance factor ratings . 36
numbers in % . 36
Table C.2 – Example lifetime metric values for abrupt failure . 37
numbers in % . 37
Table C.3 – Example lifetime metric values of x for median LED lamp life (combined
failures) . 37
numbers in % . 37
Table C.4 – Example lifetime metric values . 37
Table F.1 – Recommended values for displacement factor . 42

© IEC 2015
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LED MODULES FOR GENERAL LIGHTING –
PERFORMANCE REQUIREMENTS
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendment has been prepared
for user convenience.
IEC 62717 edition 1.1 contains the first edition (2014-12) [documents 34A/1796/FDIS and
34A/1817/RVD] and its amendment 1 (2015-09) [documents 34A/1853/FDIS and 34A/1870/RVD].
In this Redline version, a vertical line in the margin shows where the technical content is
modified by amendment 1. Additions are in green text, deletions are in strikethrough red text. A
separate Final version with all changes accepted is available in this publication.

– 6 – IEC 62717:2014+AMD1:2015 CSV
© IEC 2015
International Standard IEC 62717 has been prepared by subcommittee 34A: Lamps, of IEC
technical committee 34: Lamps and related equipment.
This edition includes the following significant technical changes with respect to
IEC PAS 62717.
• all terms and definitions are aligned with IEC 62504 and relevant documents of CIE.
For example, general terms like “rated value” are shifted to IEC 62504.
• a statement on the applicability on a population is included.
• the normative references are completed and cleaned from standards that are not in
use.
• with regard to EMC, references to harmonic currents are given.
• the change, which has an effect on most parts of the standard, is the split of failure
mechanisms into abrupt failures and luminous flux depreciation. Consequently, new
terms and definitions, new requirements for lumen maintenance and a complete new
structure and contents of Annex C are introduced.
• transition from t to t is made, with the background that there is not one t ,
pmax prated pmax
but a choice of t (rated) values, in combination with lifetime.
p
• places where to mark (product, packaging, data sheets) are changed, and as a
consequence of the split of failure mechanisms, new parameters are listed. Further,
changes in the endurance test (ramping speed of temperature) are reflected in
marking.
• the concept of displacement factor instead of power factor is introduced. This led to
new definitions, requirements and Annexes E and F.
• the requirements on luminous efficacy are changed.
• the requirements, associated with the family concept are reviewed.
• statistics, based on confidence intervals are removed. This concerns requirements and
limits for LED module power and luminous flux and deletion of Annex E.
• new requirements for lumen maintenance are introduced.
• as part of the endurance test, the maximum light decrease after accelerated operation
life test is now fixed.
• with regard to the discussion on type test and sample size, the number of pieces in a
test sample is drastically reduced, see Table 7.
• Annex A on measuring methods is completely restructured and reviewed, for example
for ambient temperature and for shortening of stabilisation time when conducting
subsequent light output measurements.
• for electrical characteristics, the ageing time may be chosen as 500 h.
• for photometric data file formats, reference is given to IEC 62722-1.
• mistakes in the photometric code (Annex D) are corrected.
• Annex G on optimised test duration is removed; instead, an INF sheet shall be
published.
• from the luminaire standard, a new Annex H on “Test equipment for temperature
measurement” is taken over.
• finally, the Bibliography is updated.

© IEC 2015
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
In this standard, the following print types are used:
– requirements: roman type.
– test specifications: italic type.
– notes: smaller roman type.
The committee has decided that the contents of the base publication and it amendment will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 8 – IEC 62717:2014+AMD1:2015 CSV
© IEC 2015
INTRODUCTION
The first edition of a performance standard (precursor: IEC PAS 62717) for LED modules for
general lighting applications acknowledges the need for relevant tests for this new source of
electrical light, sometimes called “solid state lighting”. The publication is closely related to
simultaneously developed performance standard publication (which also started with a
Publicly Available Specification) for luminaires in general (IEC 62722-1) and for LED-
luminaires (IEC 62722-2-1). Changes in the LED module standard will have an impact on the
luminaire standards and vice versa, due to the behaviour of LED. Therefore, in the
development of the present standard, a close collaboration between experts of both products
has taken place.
The provisions in the standard represent the technical knowledge of experts from the fields of
the semiconductor (LED chip) industry and of those of the traditional electrical light sources.
Three types of LED-modules are covered: with integral controlgear, with means of control on
board, but with separate controlgear (“semi-ballasted”), and with complete separate
controlgear.
© IEC 2015
LED MODULES FOR GENERAL LIGHTING –
PERFORMANCE REQUIREMENTS
1 Scope
1.1 General
This International Standard specifies the performance requirements for LED modules,
together with the test methods and conditions, required to show compliance with this
standard. The following types of LED modules are distinguished and schematically shown in
Figure 1:
Type 1: integrated LED modules for use on d.c. supplies up to 250 V or on a.c. supplies up to
1 000 V at 50 Hz or 60 Hz.
Type 2: LED modules operating with part of separate controlgear connected to the mains
voltage, and having further control means inside (“semi-integrated”) for operation under
constant voltage, constant current or constant power.
Type 3: LED modules where the complete controlgear is separate from the module (non-
integrated) for operation under constant voltage, constant current or constant power.
IEC
The power supply of the controlgear for semi-ballasted LED modules (Type 2) is an electronic device capable of
controlling currents, voltage or power within design limits.
The control unit of the controlgear for semi-ballasted LED modules (Type 2) is an electronic device to control the
electrical energy to the LEDs.
A LED module with separate controlgear can be either a non-ballasted LED module or a semi-ballasted LED
module.
Figure 1 – Types of LED modules
The requirements of this standard relate only to type testing.
Recommendations for whole product testing or batch testing are under consideration.

– 10 – IEC 62717:2014+AMD1:2015 CSV
© IEC 2015
This standard covers LED modules, based on inorganic LED technology that produces white
light.
Life time of LED modules is in most cases much longer than the practical test times.
Consequently, verification of manufacturer’s life time claims cannot be made in a sufficiently
confident way, because projecting test data further in time is not standardised. For that
reason the acceptance or rejection of a manufacturers life time claim, past an operational time
as stated in 6.1, is out of the scope of this standard.
Instead of life time validation this standard has opted for lumen maintenance codes at a
defined finite test time. Therefore, the code number does not imply a prediction of achievable
life time. The categories, represented by the code, are lumen-depreciation character
categories showing behaviour in agreement with manufacturer’s information which is provided
before the test is started.
In order to validate a life time claim, an extrapolation of test data is needed. A general method
of projecting measurement data beyond limited test time is under consideration.
The pass/fail criterion of the life time test as defined in this standard is different from the life
time metrics claimed by manufacturers. For explanation of recommended life time metrics,
see Annex C.
NOTE When modules are operated in a luminaire, the claimed performance data can deviate from the values
established via this standard due to e.g. luminaire components that impact the performance of the LED module.
The separate electronic controlgear for LED modules as mentioned in Type 2 and Type 3 is
not part of the testing against the requirements of this standard.
Protection for water and dust ingress, see B.3.
1.2 Statement
It may be expected that integrated LED modules which comply with this standard will start and
operate satisfactorily at voltages between 92 % and 106 % of rated supply voltage. LED
modules with separate controlgear are expected to start and operate satisfactorily in
combination with the specified controlgear complying with IEC 61347-2-13 and IEC 62384. All
LED modules are expected to start and operate satisfactorily when operated under the
conditions specified by the LED module manufacturer and in a luminaire complying with
IEC 60598-1.
The requirements for individuals apply for 95 % of the population.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60050-845:1987, International Electrotechnical Vocabulary – Chapter 845: Lighting
IEC 60068-2-14, Environmental testing – Part 2-14: Tests – Test N: Change of temperature
IEC 60068-3-5:2001, Environmental testing – Part 3-5: Supporting documentation and
guidance – Confirmation of the performance of temperature chambers
IEC 60081, Double-capped fluorescent lamps – Performance specifications

© IEC 2015
IEC 61000-3-2:2005 , Electromagnetic compatibility (EMC) – Part 3-2: Limits – Limits for
harmonic current emissions (equipment input current ≤ 16 A per phase)
IEC 61000-3-2:2005/AMD 1:2008
IEC 61000-3-2:2005/AMD 2:2009
IEC 61000-4-7, Electromagnetic compatibility (EMC) – Part 4-7: Testing and measurement
techniques – General guide on harmonics and interharmonics measurements and
instrumentation, for power supply systems and equipment connected thereto
IEC TR 61341, Method of measurement of centre beam intensity and beam angle(s) of
reflector lamps
IEC 61347-2-13, Lamp controlgear – Part 2-13: Particular requirements for d.c. or a.c.
supplied electronic controlgear for LED modules
IEC 62031:2008, LED modules for general lighting – Safety specifications
IEC 62504, General lighting – Light emitting diode (LED) products and related equipment –
Terms and definitions
CIE 13.3:1995, Method of measuring and specifying colour rendering properties of light
sources
CIE 121:1996, The photometry and goniophotometry of luminaires
CIE 177:2007, Colour rendering of white LED light sources
IES LM-80, IES Approved Method: Measuring Lumen Maintenance of LED Light Sources
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 62504 and
IEC 60050-845, as well as the following apply.
3.1
test voltage, current or power
input voltage, current or power at which tests are carried out
Note 1 to entry: Specification of test voltage, current or power is given in A.2.
3.2
luminous flux maintenance factor
lumen maintenance factor
Unit: %
ratio, expressed as a percentage x, of the luminous flux emitted by the light source at a given
time in its life to its initial luminous flux emitted
Note 1 to entry: The lumen maintenance factor of a LED light source includes optical parts degradation, the effect
of decrease of the luminous flux output of the LED package and failure(s) of individual LED packages if the LED
light source contains more than one LED package.
_____________
Third edition. This edition has been replaced in 2014 by IEC 61000-3-2:2014, Electromagnetic compatibility
(EMC) – Part 3-2: Limits – Limits for harmonic current emissions (equipment input current ≤ 16 A per phase).

– 12 – IEC 62717:2014+AMD1:2015 CSV
© IEC 2015
3.3
initial value
photometric and electrical characteristics at the end of the ageing period and stabilisation
time
[SOURCE: IEC 62612:2013, 3.4, modified — The word 'colorimetric' and the note to entry
have been deleted]
3.4
maintained value
photometric and electrical characteristic at an operational time under standard test conditions,
including stabilisation time
Note 1 to entry: The test conditions are given in this standard.
3.5
parametric failure
luminous flux
failure of an operating LED module to produce luminous flux higher than or equal to the
luminous flux relating to the lumen maintenance factor x
Note 1 to entry: For the purpose of this standard, the LED product is a LED module.
Note 2 to entry: For illustration of gradual failure mode, causing a parametric failure, see Figure C.1.
3.6
abrupt failure
failure of a LED product to operate or to produce luminous flux
Note 1 to entry: For the purpose of this standard, the LED product is a LED module.
Note 2 to entry: The term “complete failure” is commonly used for the same purpose.
Note 3 to entry: For illustration of abrupt failure mode, see Figure C.1.
3.7
median useful life (of LED modules)
life (of LED modules)
L
x
length of time during which 50% (B ) of a population of operating LED modules of the same
type have parametrically failed to provide at least percentage x of the initial luminous flux
Note 1 to entry: The median useful life includes operating LED modules only.
[SOURCE: IEC 60050-845:1987, 845-07-61, modified – new definition]
3.8
abrupt failure probability
F(t)
probability of an LED module, taken from a population of LED modules of the same type, to
fail to operate after a given time, t
Note 1 to entry: LSF(t) = 1 – F(t), LSF is Lamp Survival Factor, [CIE 097 modified].
3.9
abrupt failure value
AFV
percentile of LED modules failing to operate at median useful life, L
x
Note 1 to entry: AFV = F(L ) × 100 %; LSF(L ) = 1 – F(L )
x x x
© IEC 2015
Note 2 to entry: Example: Given L =20 000 h and AFV = F(20 000 h) × 100 % = 7 % results in LSF(20 000 h) = 1 –
x
0,07 = 0,93.
3.10
time to abrupt failure
C
y
length of time during which y % of a population of initially operating LED modules of the same
type fail to produce any luminous flux
Note 1 to entry: The time to abrupt failure includes inoperative LED modules only.
Note 2 to entry: C = L .
AFV x
3.11
combined failure value
CFV
percentile of LED modules failing by either parametric or abrupt failure modes at median
useful life, L
x
Note 1 to entry: CFV = 50 + 0,5 × AFV
Note 2 to entry: Example: Given AFV = 15% results in CFV = 50 + 0,5 × 15 = 57,5%
3.12
combined life (of LED lamps)
M F
x y
length of time during which y% (F ) of a population of initially operating LED lamps of the
y
same type failed by either parametric or abrupt failure modes
Note 1 to entry: The combined life (of LED lamps) includes operating and non-operating LED lamps.
3.13
median combined life (of LED lamps)
M
x
length of time during which 50 % (F ) of a population of initially operating LED lamps of the
same type have failed by either parametric or abrupt failure modes
Note 1 to entry: The median combined life (of LED lamps) includes operating and non-operating LED lamps.
3.14
photometric code
colour designation of a LED module giving white light is defined by the Correlated Colour
Temperature and the general colour rendering index
Note 1 to entry: The definition of photometric code is given in IEC 62504 as light colour designation.
3.15
t -point
p
the designated location of the point where to measure the performance temperatures t and
p
t at the surface of the LED module
p rated
3.16
t temperature
p
temperature at the t -point, related to the performance of the LED module
p
Note 1 to entry:  t ≤ t . This is only the case if the location of t and t is the same. For t , see 3.10 of
p c p c c
IEC 62031:2008.
Note 2 to entry: For a given life time, the t temperature is a fixed value, not a variable.
p
_____________
2 Under consideration.
– 14 – IEC 62717:2014+AMD1:2015 CSV
© IEC 2015
Note 3 to entry: There can be more than one t , depending on the lifetime claim.
p
3.17
recommended maximum LED module operating temperature value
t
p rated
maximum operating temperature to which the rated performance characteristics are declared
by the manufacturer or responsible vendor
Note 1 to entry: t ≤ t . This is only the case if the location of t and t is the same. For t , see 3.10 of
p rated c p rated c c
IEC 62031:2008.
3.18
LED die
block of semi-conducting material on which a given functional circuit is fabricated
Note 1 to entry: For a schematic built-up of a LED die, see Figure G.1.
3.19
displacement factor
expressed by cos ϕ , where ϕ is the phase angle between the fundamental of the mains
1 1
supply voltage and the fundamental of the mains current
3.20
scaleable LED module
LED module which is designed according to a certain design rule and can be expressed by
the characteristics proportional to a specific geometrical dimension
Note 1 to entry: e.g. a linear LED module which is designed so that the consumed power per unit length is a
constant value. In case of 10 W consumed power, the total luminous flux is 500 lm per 50 cm LED module length.
In case of 20 W consumed power, the total luminous flux is 1 000 lm per 100 cm LED module length. LED modules
are considered scaleable, if arranged on one reel or similar bigger unit.
3.21
family
group of LED modules that having the same characteristics and method of control (integrated,
semi-integrated, non integrated), the groups are distinguished by common features of
materials, components, and/or method of processing
4 Marking
4.1 Mandatory marking
Information on the parameters shown in Table 1 shall be provided by the manufacturer or
responsible vendor and be locate
...

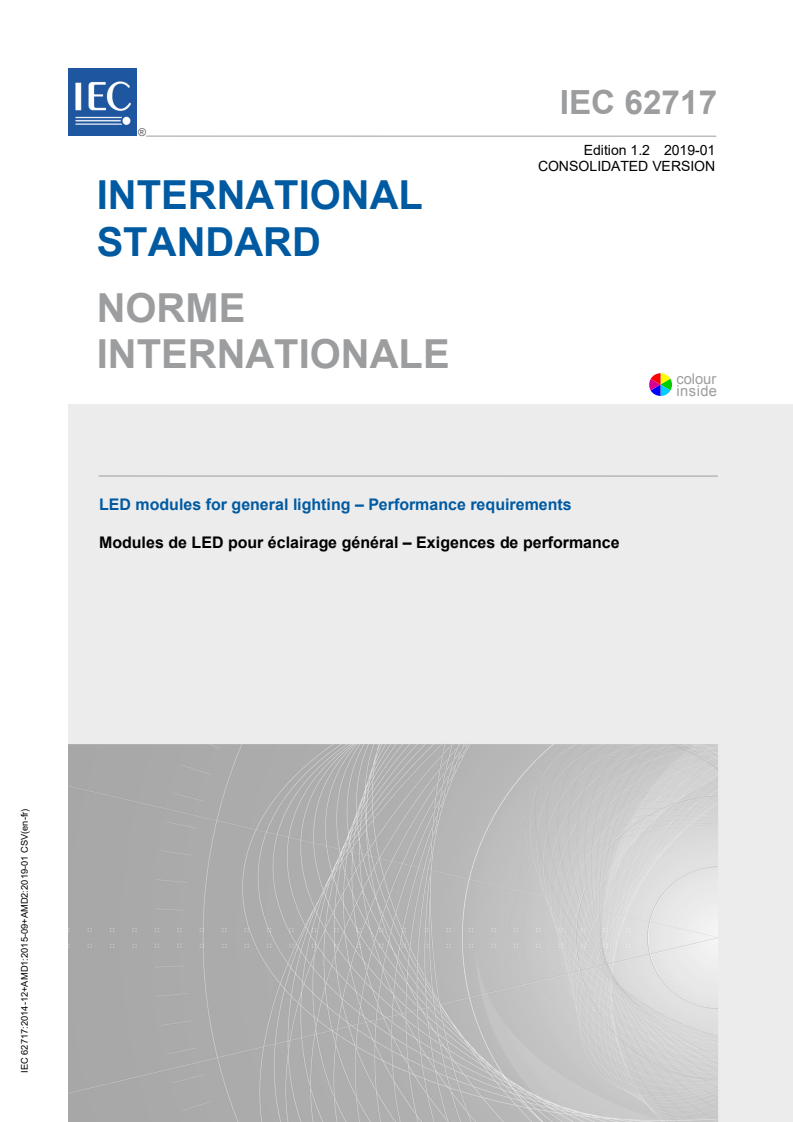

IEC 62717 ®
Edition 1.2 2019-01
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
LED modules for general lighting – Performance requirements

Modules de LED pour éclairage général – Exigences de performance

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 62717 ®
Edition 1.2 2019-01
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
LED modules for general lighting – Performance requirements

Modules de LED pour éclairage général – Exigences de performance

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.99 ISBN 978-2-8322-6485-0

IEC 62717 ®
Edition 1.2 2019-01
CONSOLIDATED VERSION
REDLINE VERSION
VERSION REDLINE
colour
inside
LED modules for general lighting – Performance requirements

Modules de LED pour éclairage général – Exigences de performance

– 2 – IEC 62717:2014+AMD1:2015
+AMD2:2019 CSV © IEC 2019
CONTENTS
FOREWORD . 5
INTRODUCTION . 8
1 Scope . 9
1.2 General . 9
1.3 Statement . 10
2 Normative references . 10
3 Terms and definitions . 11
4 Marking . 15
4.1 Mandatory marking . 15
4.2 Additional marking . 16
5 Dimensions. 17
6 Test conditions . 17
6.1 General test conditions . 17
6.2 Creation of module families to reduce test effort . 18
6.2.1 General . 18
6.2.2 Variations within a family . 18
6.2.3 Compliance testing of family members . 19
7 Electrical LED module input . 20
7.1 LED module power . 20
7.2 Displacement factor (u.c.) . 20
8 Light output . 20
8.1 Luminous flux . 20
8.2 Luminous intensity distribution, peak intensity and beam angle . 20
8.2.1 General . 20
8.2.2 Measurement . 20
8.2.3 Luminous intensity distribution . 21
8.2.4 Peak intensity value . 21
8.2.5 Beam angle value . 21
8.3 Luminous efficacy . 21
9 Chromaticity coordinates, correlated colour temperature (CCT) and colour
rendering . 21
9.1 Chromaticity coordinates . 21
9.2 Correlated colour temperature (CCT) . 22
9.3 Colour rendering index (CRI) . 22
10 LED module life . 23
10.1 General . 23
10.2 Lumen maintenance . 23
10.3 Endurance tests . 24
10.3.1 General . 24
10.3.2 Temperature cycling test . 25
10.3.3 Supply switching test . 26
10.3.4 Accelerated operation life test . 26
11 Verification . 27
12 Information for luminaire design . 27
Annex A (normative) Method of measuring LED module characteristics . 28

+AMD2:2019 CSV © IEC 2019
A.1 General . 28
A.2 Electrical characteristics . 30
A.2.1 Test voltage, current or power .
A.2.2 Ageing .
A.3 Photometric characteristics . 30
A.3.1 General . 30
A.3.12 Test voltage, current or power . 30
A.3.23 Luminous flux . 30
A.3.34 Luminous intensity distribution . 30
A.3.5 Colour characteristics . 31
A.3.4 Peak intensity .
A.3.5 Beam angle .
A.3.6 Colour rending .
A.3.7 Chromaticity coordinate values .
Annex B (informative) Information for luminaire design . 32
B.1 Temperature stability . 32
B.2 Binning procedure of white colour LEDs . 32
B.3 Ingress protection . 32
Annex C (informative) Explanation of recommended LED product lifetime metrics . 33
C.1 General . 33
C.2 Life time specification for gradual light output degradation . 34
C.3 Lifetime specification for abrupt light output degradation . 35
C.4 Combined gradual and abrupt light output degradation . 36
C.5 Overview of LED lifetime metrics and related lighting product groups . 37
C.6 Example of lifetime metric values . 38
Annex D (normative) Explanation of the photometric code . 40
Annex E (normative) Measurement of displacement factor . 41
E.1 General . 41
E.2 Phase shift angle definition . 41
E.3 Measurements requirements . 42
E.3.1 Measurement circuit and supply source . 42
E.3.2 Requirements for measurement equipment . 42
E.3.3 Test conditions . 42
Annex F (informative) Explanation of displacement factor . 43
F.1 General . 43
F.2 Recommended values for displacement factor . 44
Annex G (informative) Examples of LED dies and LED packages . 45
G.1 LED die . 45
G.2 LED package . 46
Annex H (informative) Test equipment for temperature measurement . 47
H.1 General . 47
H.2 Set-up and procedure . 47
Annex I (informative) Use of ANSI/IES LM-80-15 for luminous flux maintenance and
maintained chromaticity coordinates data . 48
I.1 General . 48
I.2 Criteria for the use of ANSI/IES LM-80-15 . 48
I.2.1 LED package data used for LED modules . 48
I.2.2 LED module with ANSI/IES LM-80-15 data . 48

– 4 – IEC 62717:2014+AMD1:2015
+AMD2:2019 CSV © IEC 2019
I.2.3 Boundary conditions . 48
I.3 Compliance criteria . 49
I.3.1 Chromaticity coordinates . 49
I.3.2 Luminous flux maintenance factor . 49
Bibliography . 50

Figure 1 – Types of LED modules . 9
Figure 2 – Luminous flux depreciation over test time . 24
Figure C.1 – Lumen Light output over life of a LED-based luminaire comprised of a
single LED module . 33
Figure C.2 – Life time specification for gradual light output degradation . 34
Figure C.3 – Reliability curve R for abrupt light output degradation . 36
abrupt
Figure C.4 – Reliability curve R for gradual light output degradation . 37
gradual
Figure C.5 – Combined R and R degradation . 37
gradual abrupt
Figure C.6 – Overview of LED lifetime metrics . 38
Figure E.1 – Definition of the fundamental current phase shift angle φ (I leads
1 1
U , φ > 0) . 41
mains 1
Figure E.2 – Definition of the fundamental current phase shift angle φ (I lags
1 1
U , φ < 0) . 42
mains 1
Figure G.1 – Schematic drawings of LED dies . 45
Figure G.2 – Schematic drawings of LED packages . 46

Table 1 – Mandatory marking and location of marking . 16
Table 2 – LED module life time median useful life information . 17
Table 3 – Optional marking and location of marking . 17
Table 4 – Allowed variations within a family . 19
Table 5 – Tolerance (categories) on rated chromaticity coordinate values . 22
Table 6 – Lumen maintenance code at an operational time as stated in 6.1 . 23
Table 7 – Sample sizes . 27
Table C.1 – Examples of lifetime metric values for lumen luminous flux maintenance
factor ratings. 39
Table C.2 – Examples of lifetime metric values for abrupt failure . 39
Table C.3 – Examples of lifetime metric values of x for median LED lamp life (combined
failures) . 39
Table C.4 – Examples of lifetime metric values . 39
Table C.5 – Examples of metric values for LED module useful life L B . 39
x y
Table F.1 – Recommended values for displacement factor . 44

+AMD2:2019 CSV © IEC 2019
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LED MODULES FOR GENERAL LIGHTING –
PERFORMANCE REQUIREMENTS
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendments has been
prepared for user convenience.
IEC 62717 edition 1.2 contains the first edition (2014-12) [documents 34A/1796/FDIS and
34A/1817/RVD], its amendment 1 (2015-09) [documents 34A/1853/FDIS and 34A/1870/
RVD] and its amendment 2 (2019-01) [documents 34A/2121/FDIS and 34A/2127/RVD].
In this Redline version, a vertical line in the margin shows where the technical content
is modified by amendments 1 and 2. Additions are in green text, deletions are in
strikethrough red text. A separate Final version with all changes accepted is available
in this publication.
– 6 – IEC 62717:2014+AMD1:2015
+AMD2:2019 CSV © IEC 2019
International Standard IEC 62717 has been prepared by subcommittee 34A: Lamps, of IEC
technical committee 34: Lamps and related equipment.
This edition includes the following significant technical changes with respect to
IEC PAS 62717.
• all terms and definitions are aligned with IEC 62504 and relevant documents of CIE.
For example, general terms like “rated value” are shifted to IEC 62504.
• a statement on the applicability on a population is included.
• the normative references are completed and cleaned from standards that are not in
use.
• with regard to EMC, references to harmonic currents are given.
• the change, which has an effect on most parts of the standard, is the split of failure
mechanisms into abrupt failures and luminous flux depreciation. Consequently, new
terms and definitions, new requirements for lumen maintenance and a complete new
structure and contents of Annex C are introduced.
• transition from t to t is made, with the background that there is not one t ,
pmax prated pmax
but a choice of t (rated) values, in combination with lifetime.
p
• places where to mark (product, packaging, data sheets) are changed, and as a
consequence of the split of failure mechanisms, new parameters are listed. Further,
changes in the endurance test (ramping speed of temperature) are reflected in
marking.
• the concept of displacement factor instead of power factor is introduced. This led to
new definitions, requirements and Annexes E and F.
• the requirements on luminous efficacy are changed.
• the requirements, associated with the family concept are reviewed.
• statistics, based on confidence intervals are removed. This concerns requirements and
limits for LED module power and luminous flux and deletion of Annex E.
• new requirements for lumen maintenance are introduced.
• as part of the endurance test, the maximum light decrease after accelerated operation
life test is now fixed.
• with regard to the discussion on type test and sample size, the number of pieces in a
test sample is drastically reduced, see Table 7.
• Annex A on measuring methods is completely restructured and reviewed, for example
for ambient temperature and for shortening of stabilisation time when conducting
subsequent light output measurements.
• for electrical characteristics, the ageing time may be chosen as 500 h.
• for photometric data file formats, reference is given to IEC 62722-1.
• mistakes in the photometric code (Annex D) are corrected.
• Annex G on optimised test duration is removed; instead, an INF sheet shall be
published.
• from the luminaire standard, a new Annex H on “Test equipment for temperature
measurement” is taken over.
• finally, the Bibliography is updated.

+AMD2:2019 CSV © IEC 2019
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
In this standard, the following print types are used:
– requirements: roman type.
– test specifications: italic type.
– notes: smaller roman type.
The committee has decided that the contents of the base publication and it amendments will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 8 – IEC 62717:2014+AMD1:2015
+AMD2:2019 CSV © IEC 2019
INTRODUCTION
The first edition of a performance standard (precursor: IEC PAS 62717) for LED modules for
general lighting applications acknowledges the need for relevant tests for this new source of
electrical light, sometimes called “solid state lighting”. The publication is closely related to
simultaneously developed performance standard publication (which also started with a
Publicly Available Specification) for luminaires in general (IEC 62722-1) and for LED-
luminaires (IEC 62722-2-1). Changes in the LED module standard will have an impact on the
luminaire standards and vice versa, due to the behaviour of LED. Therefore, in the
development of the present standard, a close collaboration between experts of both products
has taken place.
The provisions in the standard represent the technical knowledge of experts from the fields of
the semiconductor (LED chip) industry and of those of the traditional electrical light sources.
Three types of LED-modules are covered: with integral controlgear, with means of control on
board, but with separate controlgear (“semi-ballasted”), and with complete separate
controlgear.
+AMD2:2019 CSV © IEC 2019
LED MODULES FOR GENERAL LIGHTING –
PERFORMANCE REQUIREMENTS
1 Scope
1.2 General
This International Standard specifies the performance requirements for LED modules,
together with the test methods and conditions, required to show compliance with this
standard. The following types of LED modules are distinguished and schematically shown in
Figure 1:
Type 1: integrated LED modules for use on d.c. supplies up to 250 V or on a.c. supplies up to
1 000 V at 50 Hz or 60 Hz.
Type 2: LED modules operating with part of separate controlgear connected to the mains
voltage, and having further control means inside (“semi-integrated”) for operation under
constant voltage, constant current or constant power.
Type 3: LED modules where the complete controlgear is separate from the module (non-
integrated) for operation under constant voltage, constant current or constant power.
IEC
The power supply of the controlgear for semi-ballasted LED modules (Type 2) is an electronic device capable of
controlling currents, voltage or power within design limits.
The control unit of the controlgear for semi-ballasted LED modules (Type 2) is an electronic device to control the
electrical energy to the LEDs.
A LED module with separate controlgear can be either a non-ballasted LED module or a semi-ballasted LED
module.
Figure 1 – Types of LED modules
The requirements of this standard relate only to type testing.
Recommendations for whole product testing or batch testing are under consideration.

– 10 – IEC 62717:2014+AMD1:2015
+AMD2:2019 CSV © IEC 2019
This standard covers LED modules, based on inorganic LED technology that produces white
light.
Life time of LED modules is in most cases much longer than the practical test times.
Consequently, verification of manufacturer’s life time claims cannot be made in a sufficiently
confident way, because projecting test data further in time is not standardised. For that
reason the acceptance or rejection of a manufacturers life time claim, past an operational time
as stated in 6.1, is out of the scope of this standard.
Instead of life time validation this standard has opted for lumen maintenance codes at a
defined finite test time. Therefore, the code number does not imply a prediction of achievable
life time. The categories, represented by the code, are lumen-depreciation character
categories showing behaviour in agreement with manufacturer’s information which is provided
before the test is started.
In order to validate a life time claim, an extrapolation of test data is needed. A general method
of projecting measurement data beyond limited test time is under consideration.
The pass/fail criterion of the life time test as defined in this standard is different from the life
time metrics claimed by manufacturers. For explanation of recommended life time metrics,
see Annex C.
NOTE When modules are operated in a luminaire, the claimed performance data can deviate from the values
established via this standard due to e.g. luminaire components that impact the performance of the LED module.
The separate electronic controlgear for LED modules as mentioned in Type 2 and Type 3 is
not part of the testing against the requirements of this standard.
Protection for water and dust ingress, see B.3.
1.3 Statement
It may be expected that integrated LED modules which comply with this standard will start and
operate satisfactorily at voltages between 92 % and 106 % of rated supply voltage. LED
modules with separate controlgear are expected to start and operate satisfactorily in
combination with the specified controlgear complying with IEC 61347-2-13 and IEC 62384. All
LED modules are expected to start and operate satisfactorily when operated under the
conditions specified by the LED module manufacturer and in a luminaire complying with
IEC 60598-1.
The requirements for individuals apply for 95 % of the population.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60050-845:1987, International Electrotechnical Vocabulary – Chapter 845: Lighting
IEC 60068-2-14, Environmental testing – Part 2-14: Tests – Test N: Change of temperature
IEC 60068-3-5:2001, Environmental testing – Part 3-5: Supporting documentation and
guidance – Confirmation of the performance of temperature chambers
IEC 60081, Double-capped fluorescent lamps – Performance specifications

+AMD2:2019 CSV © IEC 2019
IEC 61000-3-2:2005 , Electromagnetic compatibility (EMC) – Part 3-2: Limits – Limits for
harmonic current emissions (equipment input current ≤ 16 A per phase)
IEC 61000-3-2:2005/AMD 1:2008
IEC 61000-3-2:2005/AMD 2:2009
IEC 61000-4-7, Electromagnetic compatibility (EMC) – Part 4-7: Testing and measurement
techniques – General guide on harmonics and interharmonics measurements and
instrumentation, for power supply systems and equipment connected thereto
IEC TR 61341, Method of measurement of centre beam intensity and beam angle(s) of
reflector lamps
IEC 61347-2-13, Lamp controlgear – Part 2-13: Particular requirements for d.c. or a.c.
supplied electronic controlgear for LED modules
IEC 62031:2008, LED modules for general lighting – Safety specifications
IEC 62504, General lighting – Light emitting diode (LED) products and related equipment –
Terms and definitions
CIE 13.3:1995, Method of measuring and specifying colour rendering properties of light
sources
CIE 121:1996, The photometry and goniophotometry of luminaires
CIE 177:2007, Colour rendering of white LED light sources
CIE S 025/E:2015, Test Method for LED Lamps, LED Luminaires and LED Modules
ANSI/IES LM-80-15, Approved Method: Measuring Luminous Flux and Color Maintenance of
LED Packages, Arrays and Modules
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 62504 and
IEC 60050-845, as well as the following apply.
3.1
test voltage, current or power
input voltage, current or power at which tests are carried out
Note 1 to entry: Specification of test voltage, current or power is given in A.2.
3.2
luminous flux maintenance factor
lumen maintenance factor
Unit: %
ratio, expressed as a percentage x, of the luminous flux emitted by the light source at a given
time in its life to its initial luminous flux emitted
Note 1 to entry: The lumen maintenance factor of a LED light source includes optical parts degradation, the effect
of decrease of the luminous flux output of the LED package and failure(s) of individual LED packages if the LED
light source contains more than one LED package.
_____________
Third edition. This edition has been replaced in 2014 by IEC 61000-3-2:2014, Electromagnetic compatibility
(EMC) – Part 3-2: Limits – Limits for harmonic current emissions (equipment input current ≤ 16 A per phase).

– 12 – IEC 62717:2014+AMD1:2015
+AMD2:2019 CSV © IEC 2019
3.3
initial value
photometric and electrical characteristics at the end of the ageing period and stabilisation
time
[SOURCE: IEC 62612:2013, 3.4, modified — The word 'colorimetric' and the note to entry
have been deleted]
3.4
maintained value
photometric and electrical characteristic at an operational time under standard test conditions,
including stabilisation time
Note 1 to entry: The test conditions are given in this standard.
3.5
parametric failure
luminous flux
failure of an operating LED module to produce luminous flux higher than or equal to the
luminous flux relating to the lumen maintenance factor x
Note 1 to entry: For the purpose of this standard, the LED product is a LED module.
Note 2 to entry: For illustration of gradual failure mode, causing a parametric failure, see Figure C.1.
flux degraded LED product
operating LED product that emits an amount of luminous flux less than the luminous flux
relating to the required luminous flux maintenance factor x
Note 1 to entry: For illustration of gradual depreciation mode, causing a flux degraded product, see Figure C.1.
Note 2 to entry: In general, LED products include LED lamps, LED modules and LED luminaires although this
term can be used with any LED based lighting product.
3.6
abrupt failure
failure of a LED product to operate or to produce luminous flux
Note 1 to entry: For the purpose of this standard, the LED product is a LED module.
Note 2 to entry: The term “complete failure” is commonly used for the same purpose.
Note 3 to entry: For illustration of abrupt failure mode, see Figure C.1.
3.7
median useful life (of LED modules)
life (of LED modules)
L
x
length of operating time during which a total of 50 % (B ) of a population
of operating LED modules of the same type have parametrically failed to provide at least
percentage x of the initial luminous flux flux degraded to the luminous flux maintenance
factor x
Note 1 to entry: The median useful life includes operating LED modules only.
Note 2 to entry: By convention, the expression “life of LED modules” without any modifiers is understood to mean
the median useful life.
[SOURCE: IEC 60050-845:1987, 845-07-61, modified – new definition]

+AMD2:2019 CSV © IEC 2019
3.8
abrupt failure probability
F(t)
probability of an LED module, taken from a population of LED modules of the same type, to
fail to operate after a given time, t
Note 1 to entry: LSF(t) = 1 – F(t), LSF is Lamp Survival Factor, [CIE 097 modified].
3.9
abrupt failure value
AFV
percentile of LED modules failing to operate at median useful life, L
x
Note 1 to entry: AFV = F(L ) × 100 %; LSF(L ) = 1 – F(L )
x x x
Note 2 to entry: Example: Given L =20 000 h and AFV = F(20 000 h) × 100 % = 7 % results in LSF(20 000 h) = 1 –
x
0,07 = 0,93.
3.10
time to abrupt failure
C
y
length of time during which y % of a population of initially operating LED modules of the same
type fail to produce any luminous flux
Note 1 to entry: The time to abrupt failure includes inoperative LED modules only.
Note 2 to entry: C = L .
AFV x
3.11
combined failure value
CFV
percentile percentage of LED modules failing by either parametric or abrupt failure modes or
LED luminaires having either flux degraded or abruptly failed at median useful life, L
x
Note 1 to entry: CFV = 50 % + 0,5 × AFV
Note 2 to entry: EXAMPLE Given AFV = 15% results in, then CFV = 50 % + 0,5 × 15 % = 57,5%
Note 2 to entry: This note applies to the French language only.
3.12
combined life (of LED lamps)
M F
x y
length of time during which y % (F ) of a population of initially operating LED
y
lamps of the same type failed by either parametric or abrupt failure modes have either flux
degraded to the luminous flux maintenance factor x or abruptly failed
Note 1 to entry: The combined life (of LED lamps) includes operating and non-operating LED lamps.
3.13
median combined life (of LED lamps)
M
x
length of time during which 50 % (F ) of a population of initially operating
LED lamps of the same type have failed by either parametric or abrupt failure modes either
flux degraded or abruptly failed
Note 1 to entry: The median combined life (of LED lamps) includes operating and non-operating LED lamps.

– 14 – IEC 62717:2014+AMD1:2015
+AMD2:2019 CSV © IEC 2019
3.14
photometric code
colour designation of a LED module giving white light is defined by the Correlated Colour
Temperature and the general colour rendering index
Note 1 to entry: The definition of photometric code is given in IEC 62504 as light colour designation.
3.15
t -point
p
the designated location of the point where to measure the performance temperatures t and
p
t at the surface of the LED module
p rated
3.16
t temperature
p
temperature at the t -point, related to the performance of the LED module
p
Note 1 to entry:  t ≤ t . This is only the case if the location of t and t is the same. For t , see 3.10 of
p c p c c
IEC 62031:2008.
Note 2 to entry: For a given life time, the t temperature is a fixed value, not a variable.
p
Note 3 to entry: There can be more than one t , depending on the lifetime claim.
p
3.17
recommended maximum LED module operating temperature value
t
p rated
maximum operating temperature to which the rated performance characteristics are declared
by the manufacturer or responsible vendor
Note 1 to entry: t ≤ t . This is only the case if the location of t and t is the same. For t , see 3.10 of
p rated c p rated c c
IEC 62031:2008.
3.18
LED die
block of semi-conducting material on which a given functional circuit is fabricated
Note 1 to entry: For a schematic built-up of a LED die, see Figure G.1.
3.19
displacement factor
expressed by cos ϕ , where ϕ is the phase angle between the fundamental of the mains
1 1
supply voltage and the fundamental of the mains current
3.20
scaleable LED module
LED module which is designed according to a certain design rule and can be expressed by
the characteristics proportional to a specific geometrical dimension
Note 1 to entry: e.g. a linear LED module which is designed so that the consumed power per unit length is a
constant value. In case of 10 W consumed
...
