IEC 62386-218:2018

IEC 62386-218 ®
Edition 1.0 2018-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Digital addressable lighting interface –
Part 218: Particular requirements for control gear – Dimming curve selection
(device type 17)
Interface d’éclairage adressable numérique –
Partie 218: Exigences particulières pour les appareillages de commande –
Sélection de la courbe de gradation (dispositifs de type 17)

IEC 662386-218:2018-03(en-fr)
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des
en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées
comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et
projets et les publications remplacées ou retirées. CISPR de l'IEC.

IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette
Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:
Disponible en ligne et aussi une fois par mois par email. sales@iec.ch.

IEC 62386-218 ®
Edition 1.0 2018-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Digital addressable lighting interface –

Part 218: Particular requirements for control gear – Dimming curve selection

(device type 17)
Interface d’éclairage adressable numérique –

Partie 218: Exigences particulières pour les appareillages de commande –

Sélection de la courbe de gradation (dispositifs de type 17)

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.50; 29.140.99 ISBN 978-2-8322-5502-5

– 2 – IEC 62386-218:2018 © IEC 2018

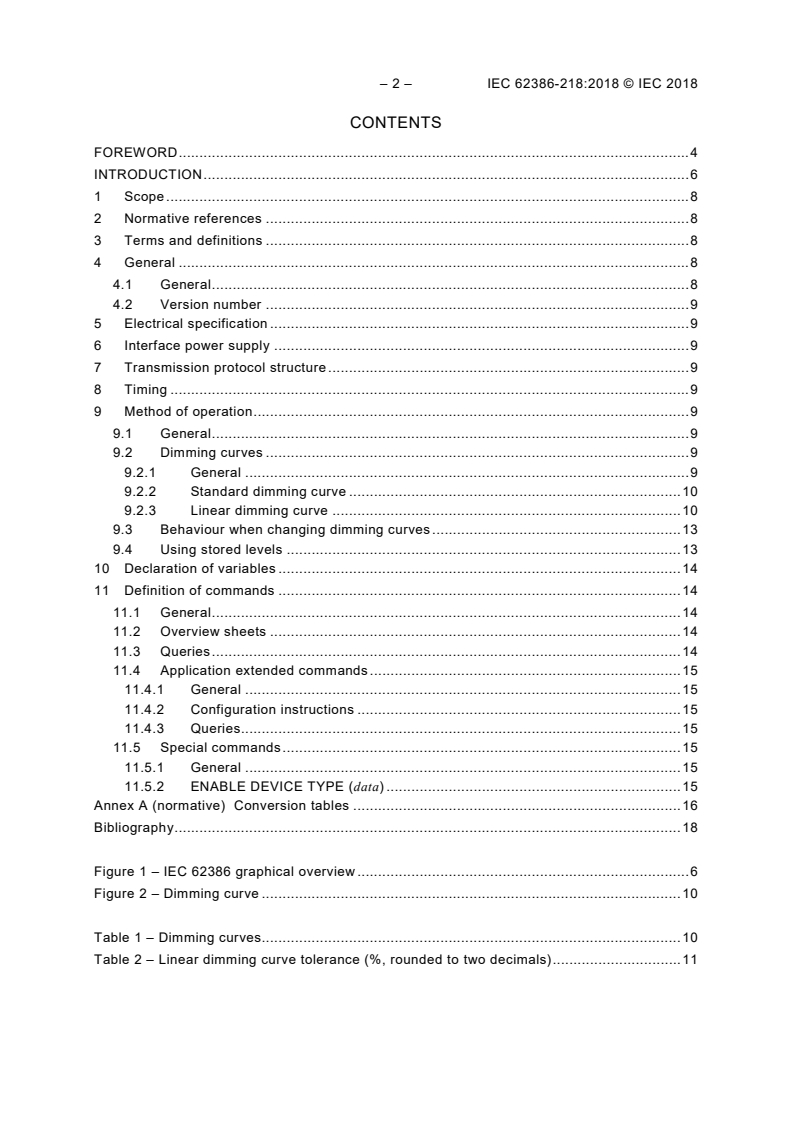

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 8
2 Normative references . 8
3 Terms and definitions . 8
4 General . 8
4.1 General . 8
4.2 Version number . 9
5 Electrical specification . 9
6 Interface power supply . 9
7 Transmission protocol structure . 9
8 Timing . 9
9 Method of operation . 9
9.1 General . 9
9.2 Dimming curves . 9
9.2.1 General . 9
9.2.2 Standard dimming curve . 10
9.2.3 Linear dimming curve . 10
9.3 Behaviour when changing dimming curves . 13
9.4 Using stored levels . 13
10 Declaration of variables . 14
11 Definition of commands . 14
11.1 General . 14
11.2 Overview sheets . 14
11.3 Queries . 14
11.4 Application extended commands . 15
11.4.1 General . 15
11.4.2 Configuration instructions . 15
11.4.3 Queries. 15
11.5 Special commands . 15
11.5.1 General . 15
11.5.2 ENABLE DEVICE TYPE (data) . 15
Annex A (normative) Conversion tables . 16
Bibliography . 18

Figure 1 – IEC 62386 graphical overview . 6
Figure 2 – Dimming curve . 10

Table 1 – Dimming curves. 10
Table 2 – Linear dimming curve tolerance (%, rounded to two decimals) . 11

Table 3 – Linear dimming curve . 12
Table 4 – Declaration of variables . 14
Table 5 – Application extended commands for this device type . 14
Table A.1 – Reported light level from linear dimming curve in standard dimming curve . 16
Table A.2 – Reported light level from standard dimming curve in linear dimming curve . 17

– 4 – IEC 62386-218:2018 © IEC 2018
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
DIGITAL ADDRESSABLE LIGHTING INTERFACE –

Part 218: Particular requirements for control gear –
Dimming curve selection (device type 17)

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62386-218 has been prepared by IEC technical committee 34:
Lamps and related equipment.
The text of this International Standard is based on the following documents:
FDIS Report on voting
34/482/FDIS 34/506/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

This Part 218 of IEC 62386 is intended to be used in conjunction with:
• Part 101, which contains general requirements for system components;
• Part 102, which contains general requirements for control gear.
A list of all parts in the IEC 62386 series, published under the general title: Digital
addressable lighting interface, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related
to the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC 62386-218:2018 © IEC 2018
INTRODUCTION
IEC 62386 contains several parts, referred to as series. The 1xx series includes the basic
specifications. Part 101 contains general requirements for system components, Part 102
extends this information with general requirements for control gear and Part 103 extends it
further with general requirements for control devices.
The 2xx parts extend the general requirements for control gear with lamp specific extensions
(mainly for backward compatibility with Edition 1 of IEC 62386) and with control gear specific
features.
The 3xx parts extend the general requirements for control devices with input device specific
extensions describing the instance types as well as some common features that can be
combined with multiple instance types.
This first edition of IEC 62386-218 is intended to be used in conjunction with
IEC 62386-101:2014, IEC 62386-101:2014/AMD1:—, IEC 62386-102:2014 and
IEC 62386-102:2014/AMD1:—. The division into separately published parts provides for ease
of future amendments and revisions. Additional requirements will be added as and when a
need for them is recognized.
The setup of the standards is graphically represented in Figure 1 below.
2xx 2xx 2xx 2xx 2xx 3xx 3xx 3xx 3xx 3xx
102 General requirements - 103 General requirements -
Control gear Control devices
101 General requirements -
System components
IEC
Figure 1 – IEC 62386 graphical overview
This document, and the other parts that make up the IEC 62386-200 series, in referring to any
of the clauses of IEC 62386-1XX, specifies the extent to which such a clause is applicable;
the parts also include additional requirements, as necessary.
Where the requirements of any of the clauses of IEC 62386-1XX are referred to in this
document by the sentence “The requirements of IEC 62386-1XX, Clause “n” apply”, this
sentence is to be interpreted as meaning that all requirements of the clause in question of
Part 1XX apply, except any which are clearly inapplicable.
The standardization of the control interface for control gear is intended to achieve compatible
co-existence between electronic control gear and lighting control devices, below the level of
building management systems. This document describes a method of implementing control
gear.
All numbers used in this document are decimal numbers unless otherwise noted. Hexadecimal
numbers are given in the format 0xVV, where VV is the value. Binary numbers are given in
the format XXXXXXXXb or in the format XXXX XXXX, where X is 0 or 1 and "x" in binary
numbers means "don't care".
The following typographic expressions are used:
Variables: variableName or variableName[3:0], giving only bits 3 to 0 of variableName
Range of values: [lowest, highest]
Command: “COMMAND NAME”
– 8 – IEC 62386-218:2018 © IEC 2018
DIGITAL ADDRESSABLE LIGHTING INTERFACE –

Part 218: Particular requirements for control gear –
Dimming curve selection (device type 17)

1 Scope
This part of IEC 62386 specifies a bus system for control by digital signals of electronic
lighting equipment which is in line with the requirements of IEC 61347 (all parts), with the
addition of DC supplies.
This document is only applicable to IEC 62386-102:2014 and IEC 62386-102:2014/AMD1:—
control gear that implements dimming curve selection.
NOTE Requirements for testing individual products during production are not included.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 62386-101:2014, Digital addressable lighting interface – Part 101: General requirements
– System components
IEC 62386-101:2014/AMD1:—
IEC 62386-102:2014, Digital addressable lighting interface – Part 102: General requirements
– Control gear
IEC 62386-102:2014/AMD1:—
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 62386-102 apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 General
4.1 General
The requirements of IEC 62386-102:2014 and IEC 62386-102:2014/AMD1:—, Clause 4 apply,
with the restrictions, changes and additions identified below.
_____________
1 Under preparation. Stage at the time of publication: IEC CCDV 62386-101/AMD1:2018.
2 Under preparation. Stage at the time of publication: IEC CCDV 62386-102/AMD1:2018.

4.2 Version number
In 4.2 of IEC 62386-102:2014 and IEC 62386-102:2014/AMD1:—, 102 shall be replaced by
“218”, “version number” shall be replaced by “extended version number” and “versionNumber”
shall be replaced by “extendedVersionNumber”.
5 Electrical specification
The requirements of IEC 62386-102:2014 and IEC 62386-102:2014/AMD1:—, Clause 5 apply.
6 Interface power supply
The requirements of IEC 62386-102:2014 and IEC 62386-102:2014/AMD1:—, Clause 6 apply.
7 Transmission protocol structure
The requirements of IEC 62386-102:2014 and IEC 62386-102:2014/AMD1:—, Clause 7 apply.
8 Timing
The requirements of IEC 62386-102:2014 and IEC 62386-102:2014/AMD1:—, Clause 8 apply.
9 Method of operation
9.1 General
The requirements of IEC 62386-102:2014 and IEC 62386-102:2014/AMD1:—, Clause 9 apply,
with the following restrictions and additions.
9.2 Dimming curves
9.2.1 General
The dimming curve can be set using “SELECT DIMMING CURVE (DTR0)” and can be queried
using “QUERY DIMMING CURVE”.
“SELECT DIMMING CURVE (DTR0)SELECT DIMMING CURVE” shall set “dimmingCurve” as
follows:
• if “DTR0” > 1: no change;
• in all other cases: “DTR0”.
The answer to “QUERY DIMMING CURVE” shall be “dimmingCurve”.

– 10 – IEC 62386-218:2018 © IEC 2018
The selected dimming curve shall be according to Table 1:
Table 1 – Dimming curves
“dimmingCurve” Dimming curve
0 Standard dimming curve
1 Linear dimming curve
9.2.2 Standard dimming curve
The standard dimming curve is the dimming curve as defined in IEC 62386-102:2014 and
IEC 62386-102:2014/AMD1:—.
9.2.3 Linear dimming curve
If the linear dimming curve is selected, an “actualLevel” greater than or equal to 1 and
less than or equal to 254 shall be translated into light output according to
actualLevel
Light output (actualLevel)= ×100%

The light output is expressed relative to the maximum possible light output of a given
control gear-lamp combination. The dimming curve starts at 0,39 % for “actualLevel” equal to
0x01 and ends at 100 % for “actualLevel” equal to 0xFE. The dimming curve is strictly
monotonic, and the relative accuracy shall be ±½ step. This shall be tested using a fade,
excluding the physical minimum level (PHM).
Dimming curve
Maximum values
Minimum values
0 50 100 150 200 250
“actualLevel”
IEC
Figure 2 – Dimming curve
Light output (%)
The accuracy of light output is specified by the test points given in Table 2. The test points of
Table 2 and the dimming curve are depicted in Figure 2, and Table 3 shows the light output
versus the level. The lamp type or load used during testing shall be stated for reproducibility.
Table 2 – Linear dimming curve tolerance (%, rounded to two decimals)
Level
1 26 51 77 102 127 153 178 204 229 254
Minimum 0,20 8 15 23 31 39 46 55 67 79
value
Nominal 0,394 10,236 20,079 30,315 40,157 50,00 60,236 70,079 80,315 90,157 100,00
value
Maximum 0,79 15,05 29,52 44,56 59,03 73,50 87,00 91 94 97
value
– 12 – IEC 62386-218:2018 © IEC 2018
Table 3 – Linear dimming curve
Level Light Level Light Level Light Level Light Level Light
output output output output output
1 0,394 52 20,472 103 40,551 154 60,630 205 80,709
2 0,787 53 20,866 104 40,945 155 61,024 206 81,102
3 1,181 54 21,260 105 41,339 156 61,417 207 81,496
4 1,575 55 21,654 106 41,732 157 61,811 208 81,890
5 1,969 56 22,047 107 42,126 158 62,205 209 82,283
6 2,362 57 22,441 108 42,520 159 62,598 210 82,677
7 2,756 58 22,835 109 42,913 160 62,992 211 83,071
8 3,150 59 23,228 110 43,307 161 63,386 212 83,465
9 3,543 60 23,622 111 43,701 162 63,780 213 83,858
10 3,937 61 24,016 112 44,094 163 64,173 214 84,252
11 4,331 62 24,409 113 44,488 164 64,567 215 84,646
12 4,724 63 24,803 114 44,882 165 64,961 216 85,039
13 5,118 64 25,197 115 45,276 166 65,354 217 85,433
14 5,512 65 25,591 116 45,669 167 65,748 218 85,827
15 5,906 66 25,984 117 46,063 168 66,142 219 86,220
16 6,299 67 26,378 118 46,457 169 66,535 220 86,614
17 6,693 68 26,772 119 46,850 170 66,929 221 87,008
18 7,087 69 27,165 120 47,244 171 67,323 222 87,402
19 7,480 70 27,559 121 47,638 172 67,717 223 87,795
20 7,874 71 27,953 122 48,031 173 68,110 224 88,189
21 8,268 72 28,346 123 48,425 174 68,504 225 88,583
22 8,661 73 28,740 124 48,819 175 68,898 226 88,976
23 9,055 74 29,134 125 49,213 176 69,291 227 89,370
24 9,449 75 29,528 126 49,606 177 69,685 228 89,764
25 9,843 76 29,921 127 50,000 178 70,079 229 90,157
26 10,236 77 30,315 128 50,394 179 70,472 230 90,551
27 10,630 78 30,709 129 50,787 180 70,866 231 90,945
28 11,024 79 31,102 130 51,181 181 71,260 232 91,339
29 11,417 80 31,496 131 51,575 182 71,654 233 91,732
30 11,811 81 31,890 132 51,969 183 72,047 234 92,126
31 12,205 82 32,283 133 52,362 184 72,441 235 92,520
32 12,598 83 32,677 134 52,756 185 72,835 236 92,913
33 12,992 84 33,071 135 53,150 186 73,228 237 93,307
34 13,386 85 33,465 136 53,543 187 73,622 238 93,701
35 13,780 86 33,858 137 53,937 188 74,016 239 94,094
36 14,173 87 34,252 138 54,331 189 74,409 240 94,488
37 14,567 88 34,646 139 54,724 190 74,803 241 94,882
38 14,961 89 35,039 140 55,118 191 75,197 242 95,276
39 15,354 90 35,433 141 55,512 192 75,591 243 95,669
40 15,748 91 35,827 142 55,906 193 75,984 244 96,063
41 16,142 92 36,220 143 56,299 194 76,378 245 96,457
42 16,535 93 36,614 144 56,693 195 76,772 246 96,850
43 16,929 94 37,008 145 57,087 196 77,165 247 97,244
44 17,323 95 37,402 146 57,480 197 77,559 248 97,638
45 17,717 96 37,795 147 57,874 198 77,953 249 98,031
46 18,110 97 38,189 148 58,268 199 78,346 250 98,425
47 18,504 98 38,583 149 58,661 200 78,740 251 98,819
48 18,898 99 38,976 150 59,055 201 79,134 252 99,213
49 19,291 100 39,370 151 59,449 202 79,528 253 99,606
50 19,685 101 39,764 152 59,843 203 79,921 254 100,000
51 20,079 102 40,157 153 60,236 204 80,315

9.3 Behaviour when changing dimming curves
The control gear shall store levels in combination with the active dimming curve. This allows
the control gear to always be able to reproduce the exact light output requested by the
application controller, since the level and dimming curve combined are needed to calculate
the light output. This includes, but is not limited to, the PHM and the following variables as
defined in IEC 62386-102:2014 and IEC 62386-102:2014/AMD1:—:
• “lastActiveLevel”,
• “lastLightLevel”,
• “powerOnLevel”,
• “sytemFailureLevel”,
• “minLevel”,
• “maxLevel”,
• “actualLevel”,
• “targetLevel”,
• “sceneX”.
Similar variables used in combination with levels introduced in other parts of the IEC 62386
series shall be included.
Changing the dimming curve shall have no effect either on the light output or on any of the
stored levels.
If “dimmingCurve” is changed during a running fade, the change shall only take effect after the
running fade has finished.
9.4 Using stored levels
If a stored level is queried, the level reported shall be the level that matches the closest
based on the active dimming curve. The level shall be calculated as follows:
• calculate the light output percentage based on both the level and dimming curve stored
previously;
• determine the closest matching light output percentage according to the active dimming
curve;
• report the corresponding level for the matching light output percentage.
Since conversion is used only for reporting, changing the dimming curve shall not reduce the
resolution or change stored levels. See Annex A.
When stored levels are recalled, the control gear shall use the combination of the level and
the dimming curve stored to calculate “targetLevel” based on the above rules. This might
introduce a small error between the light output according to the active dimming curve, and
the light output according to the stored dimming curve. It is up to the manufacturer to decide
which light level will be used, the rounded value or the exact value.
All further actions such as fading shall be executed using the currently active dimming curve.
EXAMPLE 1: The level with the standard dimming curve active (“dimmingCurve” = 0) is set to 8, which is 0,121 %.
After switching to the linear dimming curve (“dimmingCurve” = 1) the actual level is queried. This reports the
nearest level in the linear curve, which is 1 or 0,39 %. Switching back to the standard curve reports 8 again (no
conversion loss).
EXAMPLE 2: The level with the standard dimming curve active (“dimmingCurve” = 0) is set to 252, which is
94,686 %. After switching to the linear dimming curve (“dimmingCurve” = 1) the actual level is queried. This reports
the nearest level in the linear curve, which is 241 or 94,882 %. If now a step up is performed, this is executed in
the linear curve, going to 242, which is 95,276 %. Changing back to the standard dimming curve and querying the
actual level, the answer is still be 252 since this is the closest matching value in the standard dimming curve.

– 14 – IEC 62386-218:2018 © IEC 2018
10 Declaration of variables
The requirements of IEC 62386-102:2014 and IEC 62386-102:2014/AMD1:—, Clause 10
apply, with the following additional variables for this device type as given in Table 4.
Table 4 – Declaration of variables
Variable Default value Reset value Power on Range of Memory type
(factory) value validity
“dimmingCurve”
0 0 no change [0,1] NVM
“extendedVersionNumber” 2.0 no change no change 00001000b ROM
“deviceType” 17 No change no change 17 ROM

NOTE Light level related variables get a dimming curve type extension (see 9.3).
11 Definition of commands
11.1 General
The requirements of IEC 62386-102:2014 and IEC 62386-102:2014/AMD1:—, Clause 11,
apply with the following additions.
11.2 Overview sheets
Table 5 defines the application extended commands for this device type.
Unused opcodes of application extended commands shall be reserved for future needs.
Table 5 – Application extended commands for this device type
Command name Address Opcod Referenc Comma
byte e es nd
byte referen
See
ce
IEC 62386-102, 7.2.2
SELECT DIMMING CUR Device 1 0xE3    9.2 11.4.2.2
VE (DTR0)
QUERY DIMMING CUR Device 1 0xEE   9.2 11.4.3.2
VE
QUERY EXTENDED VE Device 1 0xFF   4.2 11.4.3.3
RSION NUMBER
ENABLE DEVICE TYPE 0xC1 0x11    11.5.2
(data)
11.3 Queries
When querying any variable representing a light level as defined in IEC 62386-102:2014 and
IEC 62386-102:2014/AMD1:— or in other parts of the IEC 62386 series, the content of DTR2
shall be set to the value representing the dimming curve in which the respective variable was
stored. See Table 1 for the values and their corresponding dimming curve.
Selector bit
DTR0
DTR1
DTR2
Answer
Send twice
11.4 Application extended commands
11.4.1 General
Application extended commands as defined in this document shall be preceded by
“ENABLE DEVICE TYPE (data)” where data equals “deviceType”. For device types other than
“deviceType” these commands may be used in a different way.
11.4.2 Configuration instructions
11.4.2.1 General
The requirements of IEC 62386-102:2014 and IEC 62386-102:2014/AMD1:—, 11.4.1 apply
with the following additions.
11.4.2.2 SELECT DIMMING CURVE (DTR0)
The dimming curve of the control gear shall be set in accordance with the value of “DTR0”.
Refer to 9.2 for further information.
11.4.3 Queries
11.4.3.1 General
The requirements of IEC 62386-102:2014 and IEC 62386-102:2014/AMD1:—, 11.5.1 apply
with the following changes and additions.
11.4.3.2 QUERY DIMMING CURVE
The answer shall be “dimmingCurve”.
Refer to 9.2 for further information.
11.4.3.3 QUERY EXTENDED VERSION NUMBER
Replacement:
The answer shall be “extendedVersionNumber”.
Refer to 4.2 for further information.
11.5 Special commands
11.5.1 General
The requirements of IEC 62386-102:2014 and IEC 62386-102:2014/AMD1:—, 11.7 apply with
the following additions.
11.5.2 ENABLE DEVICE TYPE (data)
To enable the command set as defined in this document, “data” shall be “deviceType”.

– 16 – IEC 62386-218:2018 © IEC 2018
Annex A
(normative)
Conversion tables
When a level is stored in the linear dimming curve and needs to be reported in the standard
dimming curve, the reported value shall be according to Table A.1.
Table A.1 – Reported light level from linear dimming curve in standard dimming curve
From To From To From To
linear curve standard curve linear curve standard curve linear curve standard curve
1 51 44 190 87 215
2 77 45 191 88 215
3 91 46 191 89 216
4 102 47 192 90 216
5 110 48 193 91 216
6 117 49 194 92 to 93 217
7 122 50 194 94 to 96 218
8 127 51 195 97 to 99 219
9 132 52 196 100 to 101 220
10 136 53 197 102 to 104 221
11 139 54 197 105 to 107 222
12 142 55 198 108 to 110 223
13 145 56 199 111 to 113 224
14 148 57 199 114 to 116 225
15 150 58 200 117 to 119 226
16 153 59 201 120 to 123 227
17 155 60 201 124 to 126 228
18 157 61 202 127 to 130 229
19 159 62 202 131 to 133 230
20 161 63 203 134 to 137 231
21 163 64 204 138 to 141 232
22 164 65 204 142 to 145 233
23 166 66 205 146 to 149 234
24 168 67 205 150 to 153 235
25 169 68 206 154 to 157 236
26 171 69 206 158 to 161 237
27 172 70 207 162 to 166 238
28 173 71 207 167 to 170 239
29 175 72 208 171 to 175 240
30 176 73 208 176 to 180 241
31 177 74 209 181 to 185 242
32 178 75 209 186 to 190 243
33 179 76 210 191 to 195 244
34 180 77 210 196 to 201 245
35 181 78 211 202 to 206 246
36 182 79 211 207 to 212 247
37 183 80 212 213 to 218 248
38 184 81 212 219 to 224 249
39 185 82 213 225 to 230 250
40 186 83 213 231 to 237 251
41 187 84 213 238 to 243 252
42 188 85 214 244 to 250 253
43 189 86 214 251 to 254 254
When a level is stored in the standard dimming curve and needs to be reported in the linear
dimming curve, the reported value shall be according to Table A.2.

Table A.2 – Reported light level from standard dimming curve in linear dimming curve
From To From To From To
standard curve linear curve standard curve linear curve standard curve linear curve
1 to 66 1 181 35 218 95
67 to 84 2 182 36 219 98
85 to 98 3 183 37 220 100
99 to 106 4 184 38 221 103
107 to 113 5 185 39 222 106
114 to 119 6 186 40 223 109
120 to 124 7 187 41 224 112
125 to 129 8 188 42 225 115
130 to 133 9 189 43 226 118
134 to 137 10 190 44 227 122
138 to 140 11 191 45 228 125
141 to 143 12 192 47 229 128
144 to 146 13 193 48 230 132
147 to 149 14 194 49 231 136
150 to 151 15 195 51 232 139
152 to 153 16 196 52 233 143
154 to 156 17 197 54 234 147
157 to 158 18 198 55 235 151
159 19 199 57 236 155
160 to 161 20 200 58 237 160
162 to 163 21 201 60 238 164
164 to 165 22 202 61 239 169
166 23 203 63 240 173
167 24 204 65 241 178
168 24 205 67 242 183
169 25 206 68 243 188
170 26 207 70 244 193
171 26 208 72 245 199
172 27 209 74 246 204
173 28 210 76 247 210
174 29 211 79 248 216
175 29 212 81 249 222
176 30 213 83 250 228
177 31 214 85 251 234
178 32 215 88 252 241
179 33 216 90 253 247
180 34 217 92 254 254
– 18 – IEC 62386-218:2018 © IEC 2018
Bibliography
[1] IEC 61347 (all parts), Lamp controlgear
[2] IEC 61347-1, Lamp controlgear – Part 1: General and safety requirements

___________
