EN IEC 61169-69:2024
(Main)Radio-frequency connectors - Part 69: Sectional specification for RF coaxial connectors with push on mating - Characteristic impedance 50 Ω (type SMP3)
Radio-frequency connectors - Part 69: Sectional specification for RF coaxial connectors with push on mating - Characteristic impedance 50 Ω (type SMP3)
IEC 61169-69:2024, which is a sectional specification (SS), provides information and rules for the preparation of detail specifications (DS) for RF coaxial connectors with push-on coupling, typically for use in 50 Ω RF cables or micro-strips in microwave, telecommunication, wireless systems, and other fields (SMP3). It specifies mating face dimensions for general purpose connectors – grade 2, dimensional details of standard test connectors-grade 0, gauging information and tests selected from IEC 61169-1, applicable to all detail specifications relating to series SMP3 RF connectors. This specification indicates recommended performance characteristics to be considered when writing a detail specification and it covers test schedules and inspection requirements for assessment levels M and H. The SMP3 push-on coupling structure series RF coaxial connectors with the characteristic of normative impedance 50 Ω are used with various kinds of RF cables or micro-strips in microwave, telecommunication, wireless systems, and other fields. The operating frequency limit is up to 65 GHz. NOTE Imperial dimensions are the original dimensions since this is a very miniature RF connector. There is a concern that conversion to the metric system could lead to rounding errors which can lead to performance degradation from the original imperial design. The SMPM connector was released as an imperial design for this reason. All undimensioned pictorial information is for reference only.
Hochfrequenzsteckverbinder - Teil 69: Rahmenspezifikation für HF-Koaxialsteckverbinder mit Push-On-Verbindung - Wellenwiderstand 50 Ohm (Typ SMP3)
Connecteurs pour fréquences radioélectriques - Partie 69: Spécification intermédiaire relative aux connecteurs coaxiaux pour fréquences radioélectriques à accouplement par poussée - Impédance caractéristique 50 Ω (type SMP3)
L’IEC 61169-69:2024, qui est une spécification intermédiaire (SS), fournit des informations et des règles pour l’établissement de spécifications particulières (DS) relatives aux connecteurs coaxiaux pour fréquences radioélectriques à accouplement par poussée, typiquement utilisés dans des câbles pour fréquences radioélectriques de 50 Ω ou des microbandes au sein de systèmes d’hyperfréquences, de télécommunication, sans fil ou autres champs (SMP3). Elle spécifie les dimensions de la face d’accouplement pour les connecteurs à usage général (grade 2), les détails dimensionnels des connecteurs d’essai normaux (grade 0), les informations de calibrage et les essais choisis à partir de l’IEC 61169-1, qui s’appliquent à toutes les spécifications particulières relatives aux connecteurs pour fréquences radioélectriques de série SMP3. Cette spécification indique les caractéristiques de performance recommandées à prendre en considération pour la rédaction d’une spécification particulière et elle couvre les programmes d’essai et les exigences de contrôle pour les niveaux d’assurance M et H. Les connecteurs coaxiaux pour fréquences radioélectriques de série SMP3 avec une structure d’accouplement par poussée, et avec la caractéristique d’impédance normative de 50 Ω, sont utilisés avec différents types de câbles pour fréquences radioélectriques ou microbandes au sein de systèmes d’hyperfréquences, de télécommunication ou sans fil, ou autres champs. La limite de fréquence de fonctionnement s’étend jusqu’à 65 GHz. NOTE Les dimensions impériales sont les dimensions d’origine puisqu’il s’agit d’un connecteur RF extrêmement miniaturisé. Il est à craindre que la conversion au système métrique n’entraîne des erreurs d’arrondi pouvant dégrader les performances par rapport au modèle en dimensions impériales d’origine. C’est pour cette raison que le connecteur SMPM a été commercialisé en dimensions impériales. Toutes les informations graphiques sans dimensions sont fournies à titre de référence seulement.
Radiofrekvenčni konektorji - 69. del: Področna specifikacija za radiofrekvenčne (RF) koaksialne konektorje s potisnim osnim spajanjem - Karakteristična impedanca 50 Ohm (tip SMPM) (IEC 61169-69:2024)
Standard IEC 61169-69:2024, ki je področna specifikacija (SS), podaja informacije in pravila za pripravo podrobnih specifikacij (DS) za radiofrekvenčne (RF) koaksialne konektorje s potisnim osnim spajanjem, običajno za uporabo v 50-ohmskih kablih ali mikrotrakovih pri mikrovalovanju, telekomunikacijah, v brezžičnih omrežjih in na drugih področjih (SMP3).
Določa mere spojne površine za konektorje za splošni namen tipa 2, podrobnosti o merah standardnih preskusnih konektorjev tipa 0, informacije o merjenju in preskuse, izbrane iz standarda IEC 61169-1, ki se uporabljajo za vse podrobne specifikacije v zvezi z radiofrekvenčnimi konektorji serije SMP3.
Ta specifikacija navaja priporočene lastnosti, ki jih je treba upoštevati pri sestavljanju podrobne specifikacije, ter zajema razporede preskusov in zahteve za pregled za ravni vrednotenja M in H.
Radiofrekvenčni koaksialni konektorji serije SMP3 s potisnim osnim spajanjem s karakteristično nazivno impedanco 50 Ω se uporabljajo z različnimi vrstami radiofrekvenčnih kablov ali mikrotrakov pri mikrovalovanju, telekomunikacijah, v brezžičnih omrežjih in na drugih področjih. Omejitev frekvenčnega območja delovanja je največ 65 GHz.
OPOMBA: Izvirne mere so podane v imperialnih enotah, saj gre za zelo majhen radiofrekvenčni konektor. Obstaja zaskrbljenost, da bi lahko pretvorba v metrični sistem povzročila napake pri zaokroževanju, kar lahko privede do poslabšanja zmogljivosti glede na izvirno imperialno zasnovo. Zato ima konektor SMPM v osnovi imperialno zasnovo. Vse nedimenzionirane slikovne informacije so podane samo za referenčne namene.
General Information
Standards Content (Sample)

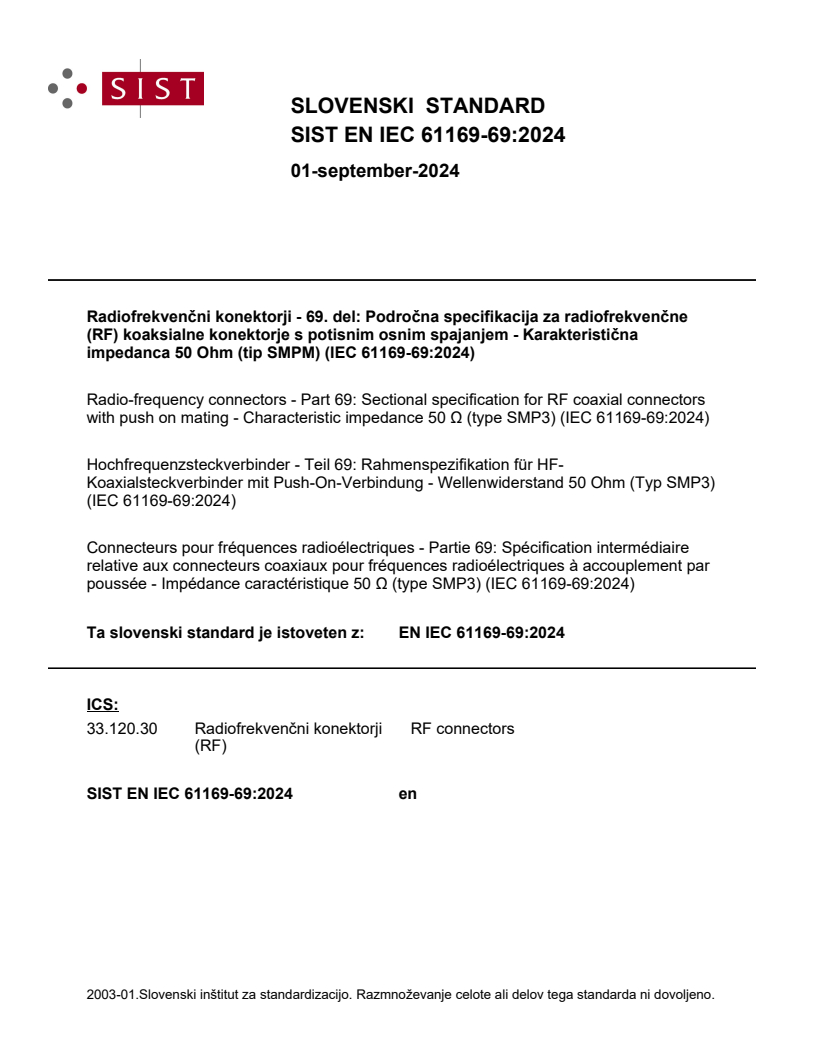

SLOVENSKI STANDARD
01-september-2024
Radiofrekvenčni konektorji - 69. del: Področna specifikacija za radiofrekvenčne
(RF) koaksialne konektorje s potisnim osnim spajanjem - Karakteristična
impedanca 50 Ohm (tip SMPM) (IEC 61169-69:2024)
Radio-frequency connectors - Part 69: Sectional specification for RF coaxial connectors
with push on mating - Characteristic impedance 50 Ω (type SMP3) (IEC 61169-69:2024)
Hochfrequenzsteckverbinder - Teil 69: Rahmenspezifikation für HF-
Koaxialsteckverbinder mit Push-On-Verbindung - Wellenwiderstand 50 Ohm (Typ SMP3)
(IEC 61169-69:2024)
Connecteurs pour fréquences radioélectriques - Partie 69: Spécification intermédiaire
relative aux connecteurs coaxiaux pour fréquences radioélectriques à accouplement par
poussée - Impédance caractéristique 50 Ω (type SMP3) (IEC 61169-69:2024)
Ta slovenski standard je istoveten z: EN IEC 61169-69:2024
ICS:
33.120.30 Radiofrekvenčni konektorji RF connectors
(RF)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

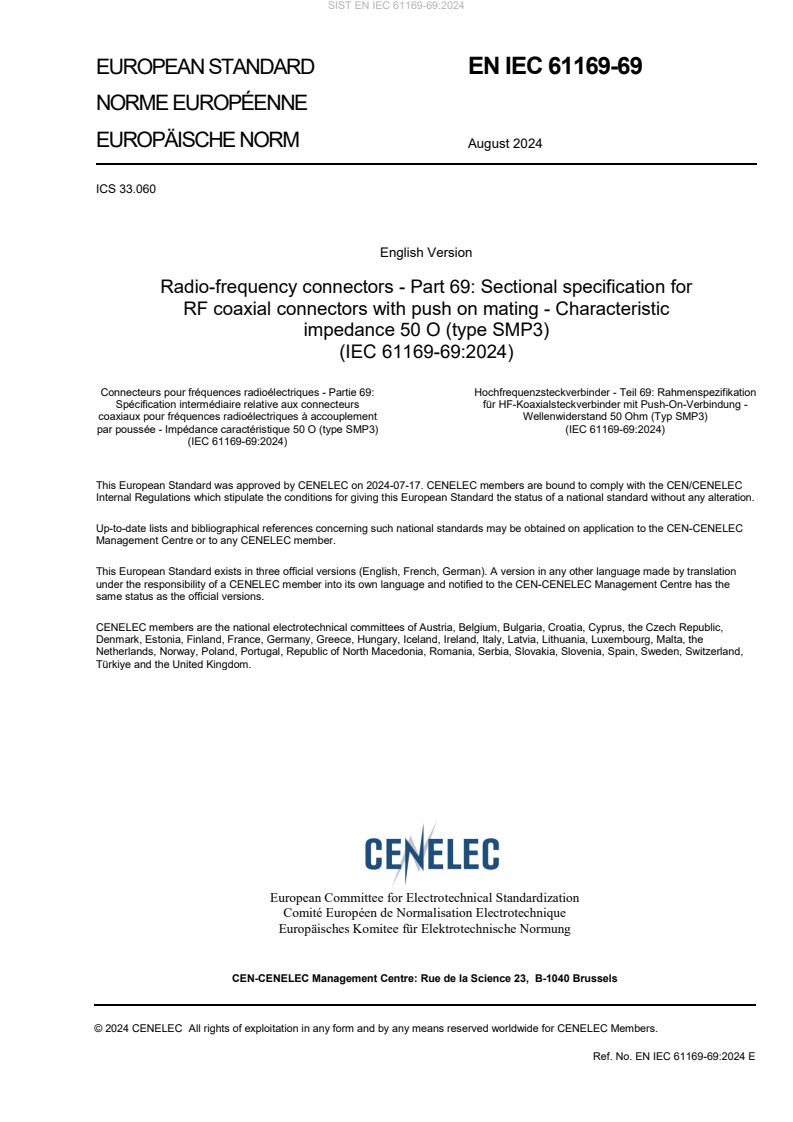

EUROPEAN STANDARD EN IEC 61169-69
NORME EUROPÉENNE
EUROPÄISCHE NORM August 2024
ICS 33.060
English Version
Radio-frequency connectors - Part 69: Sectional specification for
RF coaxial connectors with push on mating - Characteristic
impedance 50 O (type SMP3)
(IEC 61169-69:2024)
Connecteurs pour fréquences radioélectriques - Partie 69: Hochfrequenzsteckverbinder - Teil 69: Rahmenspezifikation
Spécification intermédiaire relative aux connecteurs für HF-Koaxialsteckverbinder mit Push-On-Verbindung -
coaxiaux pour fréquences radioélectriques à accouplement Wellenwiderstand 50 Ohm (Typ SMP3)
par poussée - Impédance caractéristique 50 O (type SMP3) (IEC 61169-69:2024)
(IEC 61169-69:2024)
This European Standard was approved by CENELEC on 2024-07-17. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61169-69:2024 E

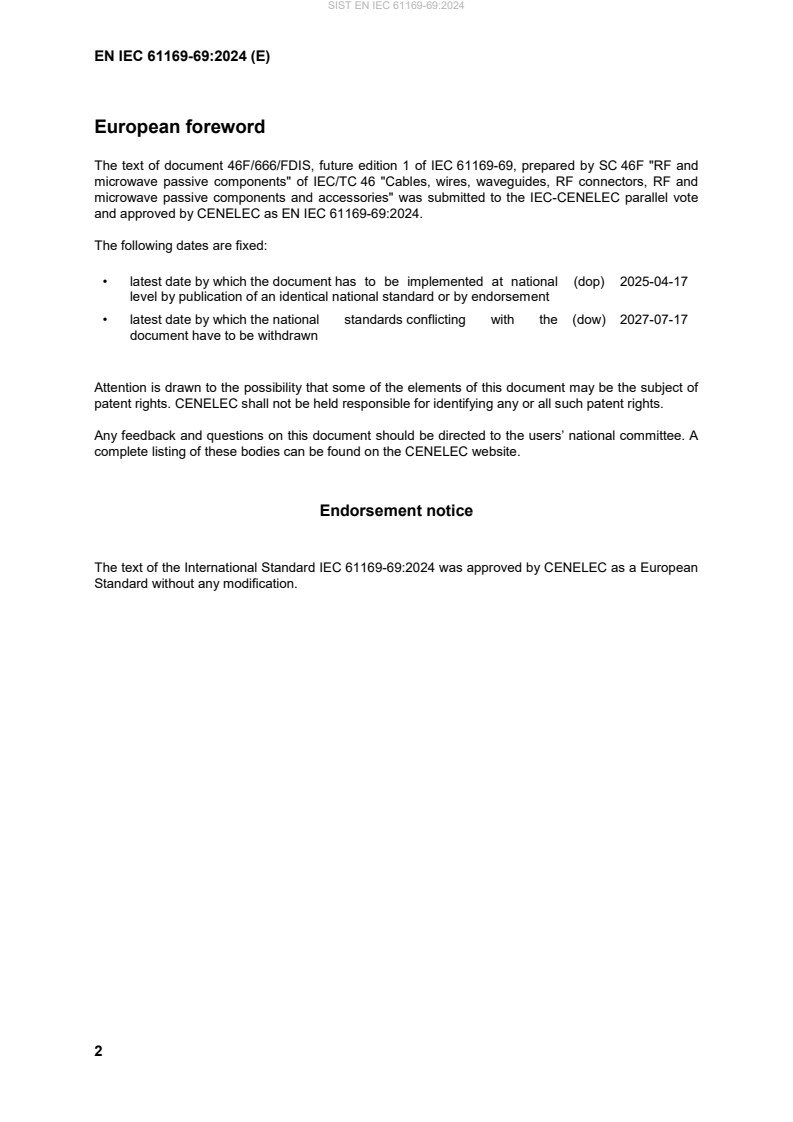

European foreword
The text of document 46F/666/FDIS, future edition 1 of IEC 61169-69, prepared by SC 46F "RF and
microwave passive components" of IEC/TC 46 "Cables, wires, waveguides, RF connectors, RF and
microwave passive components and accessories" was submitted to the IEC-CENELEC parallel vote
and approved by CENELEC as EN IEC 61169-69:2024.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2025-04-17
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2027-07-17
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61169-69:2024 was approved by CENELEC as a European
Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60068-1 - Environmental testing - Part 1: General EN 60068-1 -
and guidance
IEC 61169-1 2013 Radio frequency connectors - Part 1: EN 61169-1 2013
Generic specification - General
requirements and measuring methods
IEC 61169-69 ®
Edition 1.0 2024-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Radio-frequency connectors –
Part 69: Sectional specification for RF coaxial connectors with push on mating –
Characteristic impedance 50 Ω (type SMP3)
Connecteurs pour fréquences radioélectriques –
Partie 69: Spécification intermédiaire relative aux connecteurs coaxiaux pour
fréquences radioélectriques à accouplement par poussée – Impédance
caractéristique 50 Ω (type SMP3)
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.060 ISBN 978-2-8322-8739-2
– 2 – IEC 61169-69:2024 © IEC 2024
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Mating face and gauge information . 7
4.1 Dimensions – General connectors – Grade 2 . 7
4.1.1 SMP3 connector with pin-centre contact . 7
4.1.2 SMP3 connector with socket-centre contact . 8
4.2 SMP3 gauges . 10
4.2.1 SMP3 gauge pin for socket-centre contact . 10
4.2.2 Gauges for outer contact of SMP3 connector with socket-centre contact . 11
5 Quality assessment procedure . 20
5.1 General . 20
5.2 Rating and characteristics (see IEC 61169-1:2013, Clause 5) . 20
5.3 Test schedule and inspection requirements. 23
5.3.1 Acceptance tests . 23
5.3.2 Periodic tests . 24
5.4 Procedures for the quality conformance . 25
5.4.1 Quality conformance inspection . 25
5.4.2 Quality conformance and its maintenance . 25
6 Instructions for preparation of detail specifications (DS) . 26
6.1 General . 26
6.2 Identification of the component . 26
6.3 Performances . 26
6.4 Marking, ordering information and related matters . 26
6.5 Selection of tests, test conditions and severities . 27
6.6 Blank detail specification pro-forma for type SMP3 connector . 27
7 Marking . 31
7.1 Marking of component . 31
7.2 Marking and contents of package . 32
Figure 1 – SMP3 connector with pin-centre contact – Full detent . 7
Figure 2 – SMP3 connector with pin-centre contact – Smooth bore . 8
Figure 3 – SMP3 connector with socket-centre contact . 9
Figure 4 – SMP3 gauge pin for socket-centre contact . 10
Figure 5 – SMP3 engagement force gauge – Full detent . 11
Figure 6 – SMP3 separation force gauge – Full detent . 13
Figure 7 – SMP3 engagement force gauge – Smooth bore . 15
Figure 8 – SMP3 Separation force gauge – Smooth bore . 17
Figure 9 – SMP3 gauge block . 19
Table 1 – Dimensions of SMP3 connector with pin-centre contact – Full detent . 7
Table 2 – Dimensions of SMP3 connector with pin-centre contact – Smooth bore . 8
IEC 61169-69:2024 © IEC 2024 – 3 –
Table 3 – Dimensions of SMP3 connector with socket-centre contact . 9
Table 4 – Dimensions of SMP3 gauge pin for socket-centre contact . 10
Table 5 – Dimensions of SMP3 engagement force gauge – Full detent . 12
Table 6 – Dimensions of SMP3 separation force gauge – Full detent . 14
Table 7 – Dimensions of SMP3 engagement force gauge – Smooth bore . 16
Table 8 – Dimensions of SMP3 separation force gauge – Smooth bore . 18
Table 9 – Dimensions of SMP3 gauge block . 19
Tablٞe 10 – Preferred climatic categories . 20
Table 11 – Rating and characteristics . 21
Table 12 – Acceptance tests . 23
Table 13 – Periodic tests . 24
– 4 – IEC 61169-69:2024 © IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIO-FREQUENCY CONNECTORS –
Part 69: Sectional specification for RF coaxial connectors
with push on mating – Characteristic impedance 50 Ω (type SMP3)
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and
...
