EN IEC 61800-5-1:2023
(Main)Adjustable speed electrical power drive systems - Part 5-1: Safety requirements - Electrical, thermal and energy
Adjustable speed electrical power drive systems - Part 5-1: Safety requirements - Electrical, thermal and energy
IEC 61800-5-1:2022 specifies requirements for adjustable speed electrical power drive systems (PDS) or their elements, with respect to electrical, thermal, fire, mechanical, energy and other relevant hazards. It does not cover the driven equipment except for interface requirements. It applies to adjustable speed electrical PDS which include the power conversion, basic drive module (BDM)/complete drive module (CDM) control, and a motor or motors. Excluded are traction and electric vehicle BDM/CDM. It applies to low-voltage adjustable speed electrical PDS intended to feed a motor or motors from a BDM/CDM connected to phase-to-phase voltages of up to and including 1,0 kV AC (50 Hz or 60 Hz) and up to and including 1,5 kV DC. It also applies to high-voltage adjustable speed electrical PDS intended to feed a motor or motors from a BDM/CDM connected to phase-to-phase voltages of up to and including 35 kV AC (50 Hz or 60 Hz) and up to and including 52 kV DC. This document also applies to PDS which intentionally emits or receives radio waves for the purpose of radio communication. This edition includes the following significant technical changes with respect to the previous edition: a) harmonization with IEC 62477-1:2022; b) harmonization with UL 61800-5-1 and CSA C22.2 No. 274, including an annex with a list of national deviation which was considered not possible to harmonize within a reasonable timeframe; c) more detailed information about the evaluation of components according to this document and relevant safety component standards; d) updated requirement for mechanical hazards including multiple IP ratings.
Elektrische Leistungsantriebssysteme mit einstellbarer Drehzahl - Teil 5-1: Anforderungen an die Sicherheit - Elektrische, thermische und energetische Anforderungen
Entraînements électriques de puissance à vitesse variable - Partie 5-1: Exigences de sécurité - Électrique, thermique et énergétique
L’IEC 61800-5-1:2022 spécifie les exigences relatives aux entraînements électriques de puissance (PDS – power drive system) à vitesse variable ou leurs éléments, en ce qui concerne les dangers électriques, thermiques, d'incendie, mécaniques et énergétiques, et d'autres risques appropriés. Elle ne couvre pas le matériel entraîné, à l’exception des exigences relatives aux interfaces. Elle s'applique aux PDS à vitesse variable qui incluent la conversion de puissance, la commande de module d’entraînement principal (BDM)/module d’entraînement complet (CDM) et un ou plusieurs moteurs. Les BDM/CDM pour les véhicules électriques et les véhicules de traction sont exclus. Elle s'applique aux PDS électriques à vitesse variable basse tension destinés à alimenter un ou plusieurs moteurs à partir d'un BDM/CDM relié à des tensions entre phases allant jusqu'à 1,0 kV inclus en courant alternatif (50 Hz ou 60 Hz) et jusqu'à 1,5 kV inclus en courant continu. Elle s'applique également aux PDS électriques à vitesse variable haute tension destinés à alimenter un ou plusieurs moteurs à partir d'un BDM/CDM relié à des tensions entre phases allant jusqu'à 35 kV inclus en courant alternatif (50 Hz ou 60 Hz) et jusqu'à 52 kV inclus en courant continu. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
harmonisation avec l'IEC 62477-1:2022;
harmonisation avec l'UL 61800-5-1 et la CSA C22.2 No 274, incluant une annexe contenant une liste des divergences nationales qui ont été considérées comme étant impossibles à harmoniser dans un délai raisonnable;
informations plus détaillées relatives à l'évaluation des composants selon l'IEC 61800-5-1 et les normes pertinentes relatives aux composants de sécurité;
exigences mises à jour concernant les dangers mécaniques, y compris plusieurs classifications IP.
Električni pogonski sistemi z nastavljivo hitrostjo - 5-1. del: Varnostne zahteve - Električne, toplotne in energijske (IEC 61800-5-1:2022 + COR1:2023)
Ta del standarda IEC 61800 določa zahteve za električne pogonske sisteme z nastavljivo hitrostjo (PDS) oziroma njihove elemente v zvezi z električno, toplotno, požarno, mehansko, energijsko nevarnostjo in drugimi pomembnimi nevarnostmi. Ne zajema pogonske opreme, razen zahtev za vmesnike. Uporablja se za električne pogonske sisteme z nastavljivo hitrostjo, ki vključujejo nadzor pretvorbe moči, osnovnega pogonskega modula/celovitega pogonskega modula in motor oziroma motorje.
Ne zajema osnovnega pogonskega modula/celovitega pogonskega modula za vleko in električna vozila.
Uporablja se za nizkonapetostne električne pogonske sisteme z nastavljivo hitrostjo, ki so namenjeni za pogon motorja ali motorjev iz osnovnega pogonskega modula/celovitega pogonskega modula, priključenega na medfazno izmenično napetost do vključno 1,0 kV (50 Hz ali 60 Hz) oziroma medfazno enosmerno napetost do vključno 1,5 kV.
Uporablja se tudi za visokonapetostne električne pogonske sisteme z nastavljivo hitrostjo, ki so namenjeni za pogon motorja ali motorjev iz osnovnega pogonskega modula/celovitega pogonskega modula, priključenega na medfazno izmenično napetost do vključno 35 kV (50 Hz ali 60 Hz) oziroma medfazno enosmerno napetost do vključno 52 kV.
OPOMBA 1: V času objave tega dokumenta je tehnična zgornja meja enosmerne napetosti za motorje na enosmerni tok znašala 2,25 kV.
OPOMBA 2: Vrednosti napetosti in frekvence nad temi mejami spadajo v področje uporabe standarda IEC 61800-1 in standarda IEC 61800-2.
OPOMBA 3: Za električne pogonske sisteme z nastavljivo hitrostjo, ki niso zajeti v področje uporabe tega standarda, je mogoče uporabiti veljavne zahteve drugih standardov, npr. IEC 62477-1 in IEC 62477-2.
Ta dokument se uporablja tudi za električne pogonske sisteme z nastavljivo hitrostjo, ki namenoma oddajajo ali sprejemajo radijske valove za namene radijske komunikacije.
Motorji za pogonsko opremo (glej sliko 1) so zajeti v standardu IEC 60034 (vsi deli).
OPOMBA 4: V nekaterih primerih lahko varnostne zahteve električnega pogonskega sistema z nastavljivo hitrostjo (na primer zaščita pred dostopom do nevarnih delov) zahtevajo uporabo posebnih sestavnih delov in/ali dodatnih ukrepov.
General Information
Relations
Standards Content (Sample)

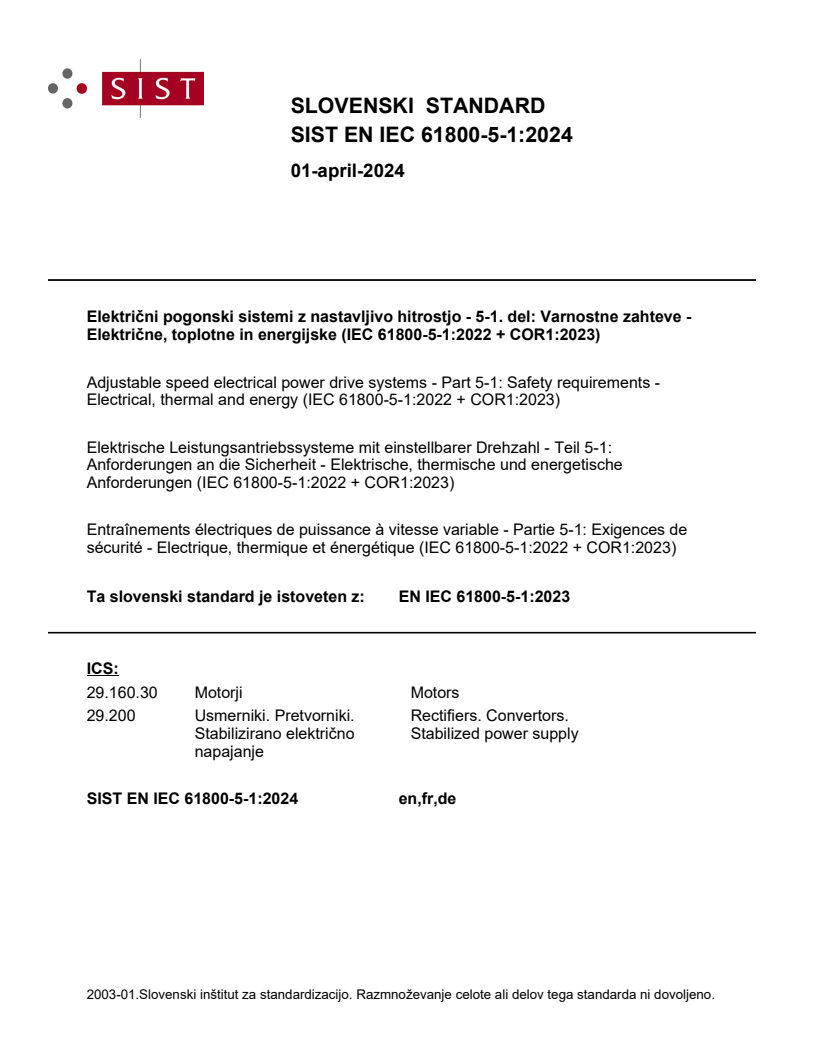

SLOVENSKI STANDARD
01-april-2024
Električni pogonski sistemi z nastavljivo hitrostjo - 5-1. del: Varnostne zahteve -
Električne, toplotne in energijske (IEC 61800-5-1:2022 + COR1:2023)
Adjustable speed electrical power drive systems - Part 5-1: Safety requirements -
Electrical, thermal and energy (IEC 61800-5-1:2022 + COR1:2023)
Elektrische Leistungsantriebssysteme mit einstellbarer Drehzahl - Teil 5-1:
Anforderungen an die Sicherheit - Elektrische, thermische und energetische
Anforderungen (IEC 61800-5-1:2022 + COR1:2023)
Entraînements électriques de puissance à vitesse variable - Partie 5-1: Exigences de
sécurité - Electrique, thermique et énergétique (IEC 61800-5-1:2022 + COR1:2023)
Ta slovenski standard je istoveten z: EN IEC 61800-5-1:2023
ICS:
29.160.30 Motorji Motors
29.200 Usmerniki. Pretvorniki. Rectifiers. Convertors.
Stabilizirano električno Stabilized power supply
napajanje
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

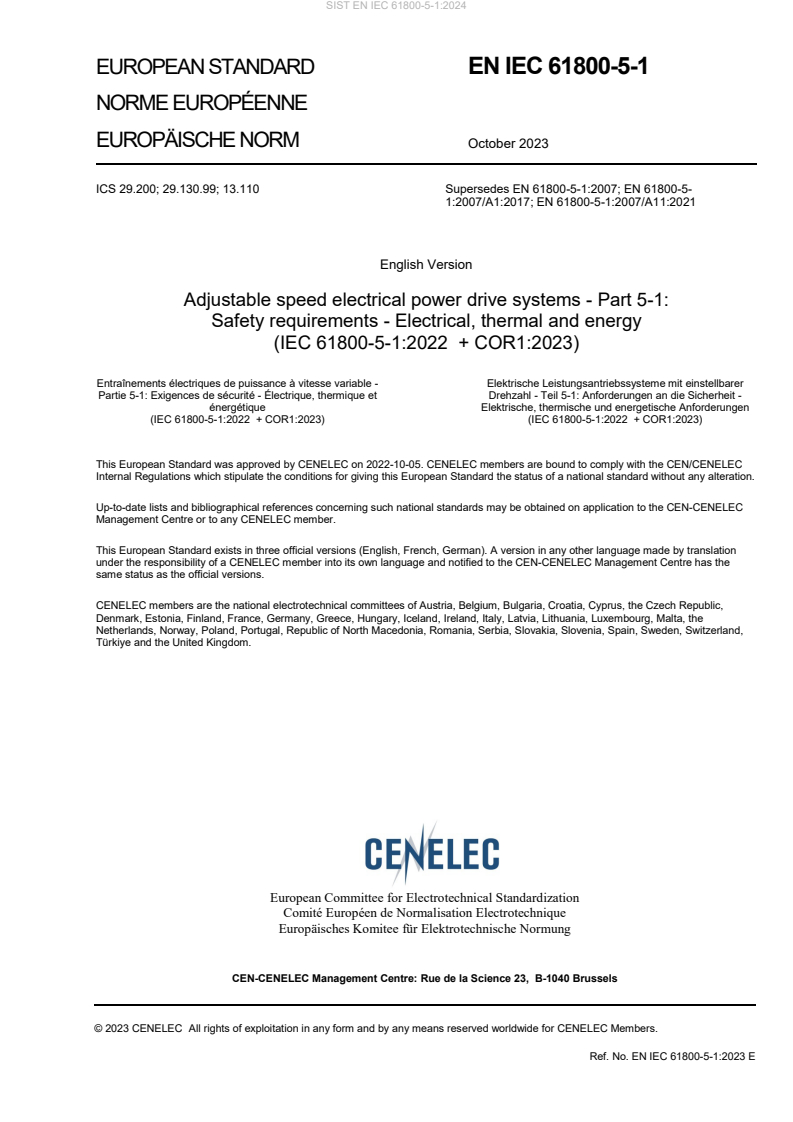

EUROPEAN STANDARD EN IEC 61800-5-1
NORME EUROPÉENNE
EUROPÄISCHE NORM October 2023
ICS 29.200; 29.130.99; 13.110 Supersedes EN 61800-5-1:2007; EN 61800-5-
1:2007/A1:2017; EN 61800-5-1:2007/A11:2021
English Version
Adjustable speed electrical power drive systems - Part 5-1:
Safety requirements - Electrical, thermal and energy
(IEC 61800-5-1:2022 + COR1:2023)
Entraînements électriques de puissance à vitesse variable - Elektrische Leistungsantriebssysteme mit einstellbarer
Partie 5-1: Exigences de sécurité - Électrique, thermique et Drehzahl - Teil 5-1: Anforderungen an die Sicherheit -
énergétique Elektrische, thermische und energetische Anforderungen
(IEC 61800-5-1:2022 + COR1:2023) (IEC 61800-5-1:2022 + COR1:2023)
This European Standard was approved by CENELEC on 2022-10-05. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61800-5-1:2023 E

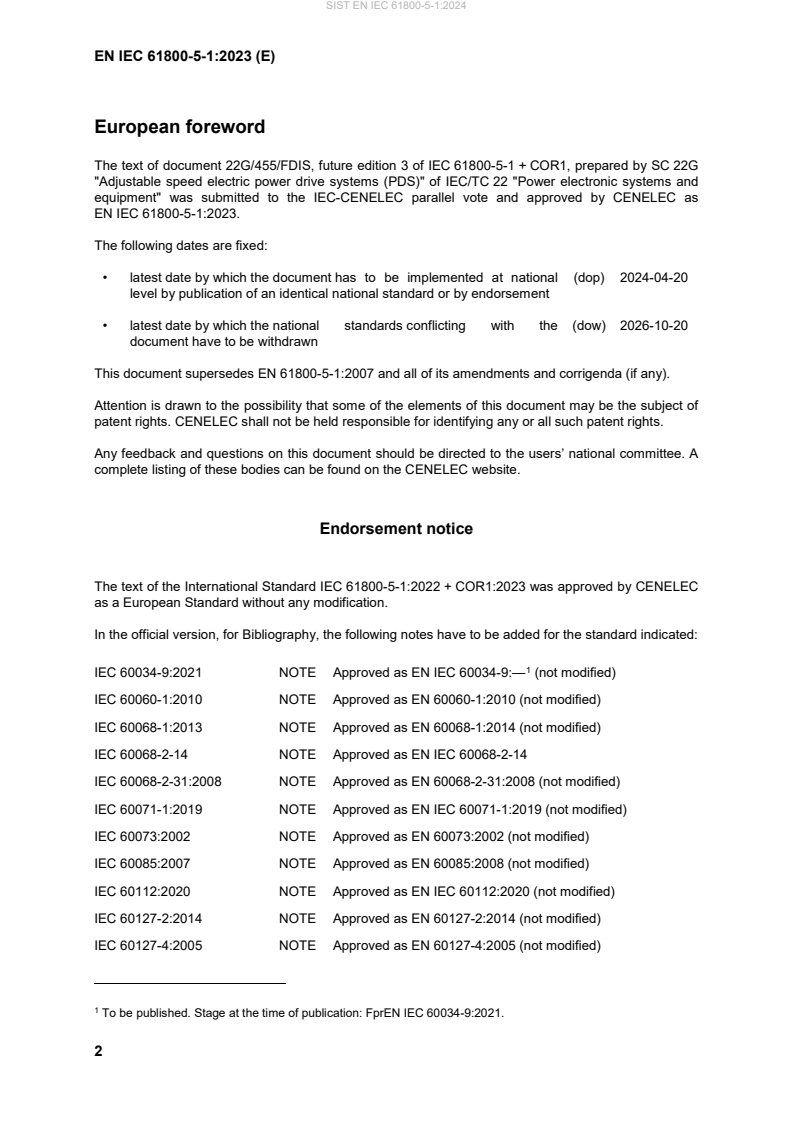

European foreword
The text of document 22G/455/FDIS, future edition 3 of IEC 61800-5-1 + COR1, prepared by SC 22G
"Adjustable speed electric power drive systems (PDS)" of IEC/TC 22 "Power electronic systems and
equipment" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2024-04-20
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-10-20
document have to be withdrawn
This document supersedes EN 61800-5-1:2007 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61800-5-1:2022 + COR1:2023 was approved by CENELEC
as a European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60034-9:2021 NOTE Approved as EN IEC 60034-9:— (not modified)
IEC 60060-1:2010 NOTE Approved as EN 60060-1:2010 (not modified)
IEC 60068-1:2013 NOTE Approved as EN 60068-1:2014 (not modified)
IEC 60068-2-14 NOTE Approved as EN IEC 60068-2-14
IEC 60068-2-31:2008 NOTE Approved as EN 60068-2-31:2008 (not modified)
IEC 60071-1:2019 NOTE Approved as EN IEC 60071-1:2019 (not modified)
IEC 60073:2002 NOTE Approved as EN 60073:2002 (not modified)
IEC 60085:2007 NOTE Approved as EN 60085:2008 (not modified)
IEC 60112:2020 NOTE Approved as EN IEC 60112:2020 (not modified)
IEC 60127-2:2014 NOTE Approved as EN 60127-2:2014 (not modified)
IEC 60127-4:2005 NOTE Approved as EN 60127-4:2005 (not modified)
To be published. Stage at the time of publication: FprEN IEC 60034-9:2021.
IEC 60204-1:2016 NOTE Approved as EN 60204-1:2018
IEC 60216 (series) NOTE Approved as EN 60216 (series)
IEC 60320-1 NOTE Approved as EN IEC 60320-1
IEC 60335-1:2020 NOTE Approved as EN IEC 60335-1:— (not modified)
IEC 60364 (series) NOTE Approved as HD 60364 (series)
IEC 60364-1:2005 NOTE Approved as HD 60364-1:2008 + A11:2017
IEC 60364-4-44:2007 NOTE Approved as HD 60364-4-444:2010
IEC 60364-4-44:2007/A1:2015 NOTE Approved as HD 60364-4-443:2016
IEC 60364-5-52:2009 NOTE Approved as HD 60364-5-52:2011 + A11:2017
IEC 60445:2021 NOTE Approved as EN IEC 60445:2021 (not modified)
IEC 60664 (series) NOTE Approved as EN 60664 (series)
IEC 60695-10-3:2016 NOTE Approved as EN 60695-10-3:2016 (not modified)
IEC 60695-11-5:2016 NOTE Approved as EN 60695-11-5:2017 (not modified)
IEC 60721 (series) NOTE Approved as EN 60721 (series)
IEC 60947-2:2016 NOTE Approved as EN 60947-2:2017 (not modified)
IEC 60947-7-2:2009 NOTE Approved as EN 60947-7-2:2009 (not modified)
IEC 61082-1:2014 NOTE Approved as EN 61082-1:2015 (not modified)
IEC 61140:2016 NOTE Approved as EN 61140:2016 (not modified)
IEC 61148:2011 NOTE Approved as EN 61148:2012 (not modified)
IEC 61439-1:2020 NOTE Approved as EN IEC 61439-1:2021 (not modified)
IEC 61508 (series) NOTE Approved as EN 61508 (series)
IEC 61643-11:2011 NOTE Approved as EN 61643-11:2012 + A11:2018
IEC 61643-12 NOTE Approved as CLC/TS 61643-12
IEC 61800-1:2021 NOTE Approved as EN IEC 61800-1:2021 (not modified)
IEC 61800-2:2021 NOTE Approved as EN IEC 61800-2:2021 (not modified)
IEC 61800-3:2017 NOTE Approved as EN IEC 61800-3:2018 (not modified)
IEC 61800-5-1:2007 NOTE Approved as EN 61800-5-1:2007 (not modified) + A11:2021
IEC 61800-5-1:2007/A1:2016 NOTE Approved as EN 61800-5-1:2007/A1:2017 (not modified)
IEC 61800-5-2 NOTE Approved as EN 61800-5-2
IEC 61800-5-3 NOTE Approved as EN IEC 61800-5-3
IEC/TR 61800-6:2003 NOTE Approved as CLC/TR 61800-6:2007 (not modified)
IEC 61800-7 (series) NOTE Approved as EN 61800-7 (series)
To be published. Stage at the time of publication: FprEN IEC 60335-1:2023.
IEC 61800-9 (series) NOTE Approved as EN 61800-9 (series)
IEC 61936-1:2021 NOTE Approved as EN IEC 61936-1:2021 (not modified)
IEC 62311:2019 NOTE Approved as EN IEC 62311:2020 (not modified)
IEC/IEEE 82079-1:2019 NOTE Approved as EN IEC/IEEE 82079-1:2020 (not modified)
IEC 60076-1:2011 NOTE Approved as EN 60076-1:2011 (not modified)
IEC 60127 (series) NOTE Approved as EN IEC 60127 (series)
IEC 60309-1 NOTE Approved as EN IEC 60309-1
IEC 60317 (series) NOTE Approved as EN IEC 60317 (series)
IEC 60384-14:2013 NOTE Approved as EN 60384-14:2013 (not modified)
IEC 60691:2015 NOTE Approved as EN 60691:2016 (not modified)
IEC 60730 (series) NOTE Approved as EN IEC 60730 (series)
IEC 60738-1:2006 NOTE Approved as EN 60738-1:2006 (not modified)
IEC 60747-5-5:2020 NOTE Approved as EN IEC 60747-5-5:2020 (not modified)
IEC 60825 (series) NOTE Approved as EN 60825 (series)
IEC 60940:2015 NOTE Approved as EN 60940:2015 (not modified)
IEC 60947 (series) NOTE Approved as EN IEC 60947 (series)
IEC 60947-7-1:2009 NOTE Approved as EN 60947-7-1:2009 (not modified)
IEC 61008 (series) NOTE Approved as EN 61008 (series)
IEC 61009 (series) NOTE Approved as EN 61009 (series)
IEC 61010-1:2010 NOTE Approved as EN 61010-1:2010 (not modified)
IEC 61051-2:2021 NOTE Approved as EN IEC 61051-2:2021 (not modified)
IEC 61058-1:2016 NOTE Approved as EN IEC 61058-1:2018 (not modified)
IEC 61071:2017 NOTE Approved as EN 61071:— (not modified)
IEC 61204-7:2016 NOTE Approved as EN IEC 61204-7:2018 (not modified)
IEC 61558-2-16:2021 NOTE Approved as EN IEC 61558-2-16:— (not modified)
IEC 61810-1:2015 NOTE Approved as EN 61810-1:2015 (not modified)
IEC 61984:2008 NOTE Approved as EN 61984:2009 (not modified)
Approved as EN IEC 62368-1:2020 (not modified) +
IEC 62368-1:2018 NOTE
A11:2020
IEC 62423:2009 NOTE Approved as EN 62423:2012 + A11:2021
To be published. Stage at the time of publication: FprEN 61071:2017.
To be published. Stage at the time of publication: FprEN IEC 61558-2-16:2021.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60034 series Rotating electrical machines - series
IEC 60034-1 2022 Rotating electrical machines - Part 1: Rating - -
and performance
IEC 60034-5 2020 Rotating electrical machines - Part 5: EN IEC 60034-5 2020
Degrees of protection provided by the
integral design of rotating electrical machines
(IP code) - Classification
IEC 60050-112 - International Electrotechnical Vocabulary - - -
Part 112: Quantities and units
IEC 60050-113 - International Electrotechnical Vocabulary - - -
Part 113: Physics for electrotechnology
IEC 60050-114 - International Electrotechnical Vocabulary - - -
Part 114: Electrochemistry
IEC 60050-131 - International Electrotechnical Vocabulary - - -
Part 131: Circuit theory
IEC 60050-151 - International Electrotechnical Vocabulary - - -
Part 151: Electrical and magnetic devices
IEC 60050-161 - International Electrotechnical Vocabulary. - -
Chapter 161: Electromagnetic compatibility
IEC 60050-192 - International electrotechnical vocabulary - - -
Part 192: Dependability
IEC 60050-426 - International Electrotechnical Vocabulary - -
(IEV) - Part 426: Explosive atmospheres
IEC 60050-441 - International Electrotechnical Vocabulary. - -
Switchgear, controlgear and fuses
IEC 60050-442 - International Electrotechnical Vocabulary - - -
Part 442: Electrical accessories
IEC 60050-551 - International Electrotechnical Vocabulary - - -
Part 551: Power electronics
Publication Year Title EN/HD Year
IEC 60050-601 - International Electrotechnical Vocabulary. - -
Chapter 601: Generation, transmission and
distribution of electricity - General
IEC 60050-826 - International Electrotechnical Vocabulary - - -
Part 826: Electrical installations
IEC 60050-903 - International electrotechnical vocabulary_- - -
Part_903: Risk assessment
IEC 60068-2-1 2007 Environmental testing - Part 2-1: Tests - Test EN 60068-2-1 2007
A: Cold
IEC 60068-2-2 2007 Environmental testing - Part 2-2: Tests - Test EN 60068-2-2 2007
B: Dry heat
IEC 60068-2-6 2007 Environmental testing - Part 2-6: Tests - Test EN 60068-2-6 2008
Fc: Vibration (sinusoidal)
IEC 60068-2-30 - Environmental testing - Part 2-30: Tests - EN 60068-2-30 -
Test Db: Damp heat, cyclic (12 h + 12 h
cycle)
IEC 60068-2-30 2005 Environmental testing - Part 2-30: Tests - EN 60068-2-30 2005
Test Db: Damp heat, cyclic (12 h + 12 h
cycle)
IEC 60068-2-52 2017 Environmental testing - Part 2-52: Tests - EN IEC 60068-2-52 2018
Test Kb: Salt mist, cyclic (sodium chloride
solution)
IEC 60068-2-68 1994 Environmental testing - Part 2-68: Tests - EN 60068-2-68 1996
Test L: Dust and sand
IEC 60068-2-78 2012 Environmental testing - Part 2-78: Tests - EN 60068-2-78 2013
Test Cab: Damp heat, steady state
IEC 60204-11 2018 Safety of machinery - Electrical equipment of EN IEC 60204-11 2019
machines - Part 11: Requirements for
equipment for voltages above 1 000 V AC or
1 500 V DC and not exceeding 36 kV
IEC 60320 - Appliance couplers for household and similar - -
general purposes
IEC 60364 series Low-voltage electrical installations HD 60364 series
+ A1 2017 - -
IEC 60364-4-41 2005 Low-voltage electrical installations - Part 4- HD 60364-4-41 2017
(mod) 41: Protection for safety - Protection against
electric shock
- - + A11 2017
- - + A12 2019
IEC 60364-5-54 2011 Low-voltage electrical installations - Part 5- HD 60364-5-54 2011
54: Selection and erection of electrical
equipment - Earthing arrangements and
protective conductors
- - + A11 2017
IEC 60417 - Graphical symbols for use on equipment. - -
Index, survey and compilation of the single
sheets.
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
