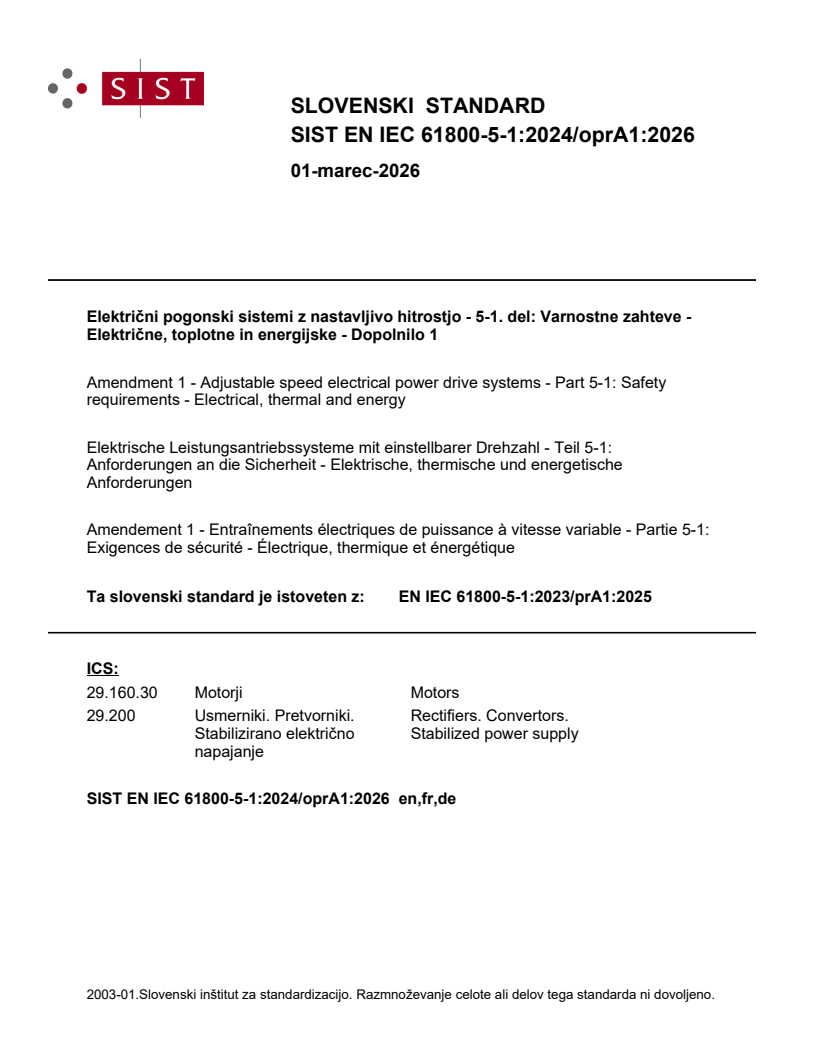

EN IEC 61800-5-1:2023/prA1:2025

SLOVENSKI STANDARD
01-marec-2026
Električni pogonski sistemi z nastavljivo hitrostjo - 5-1. del: Varnostne zahteve -
Električne, toplotne in energijske - Dopolnilo 1
Amendment 1 - Adjustable speed electrical power drive systems - Part 5-1: Safety
requirements - Electrical, thermal and energy
Elektrische Leistungsantriebssysteme mit einstellbarer Drehzahl - Teil 5-1:
Anforderungen an die Sicherheit - Elektrische, thermische und energetische
Anforderungen
Amendement 1 - Entraînements électriques de puissance à vitesse variable - Partie 5-1:
Exigences de sécurité - Électrique, thermique et énergétique
Ta slovenski standard je istoveten z: EN IEC 61800-5-1:2023/prA1:2025
ICS:
29.160.30 Motorji Motors
29.200 Usmerniki. Pretvorniki. Rectifiers. Convertors.
Stabilizirano električno Stabilized power supply
napajanje
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

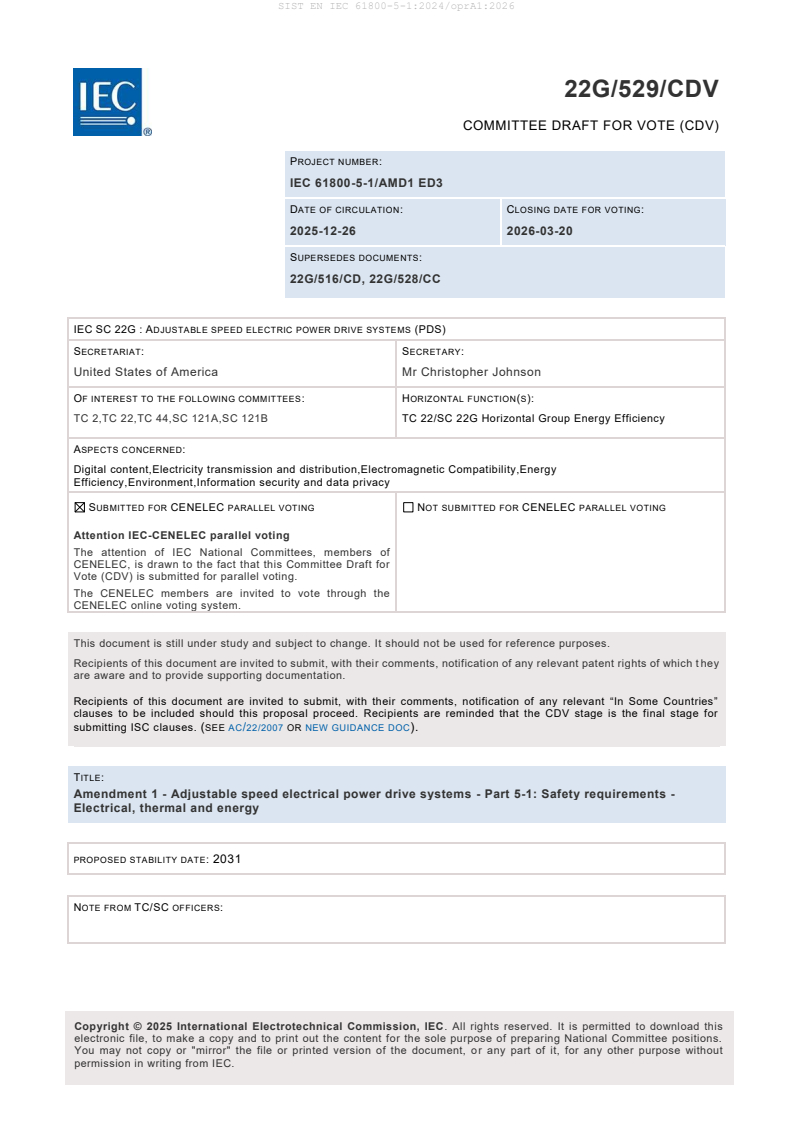

22G/529/CDV
COMMITTEE DRAFT FOR VOTE (CDV)

PROJECT NUMBER:
IEC 61800-5-1/AMD1 ED3
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2025-12-26 2026-03-20
SUPERSEDES DOCUMENTS:
22G/516/CD, 22G/528/CC
IEC SC 22G : ADJUSTABLE SPEED ELECTRIC POWER DRIVE SYSTEMS (PDS)
SECRETARIAT: SECRETARY:
United States of America Mr Christopher Johnson
OF INTEREST TO THE FOLLOWING COMMITTEES: HORIZONTAL FUNCTION(S):
TC 2,TC 22,TC 44,SC 121A,SC 121B TC 22/SC 22G Horizontal Group Energy Efficiency
ASPECTS CONCERNED:
Digital content,Electricity transmission and distribution,Electromagnetic Compatibility,Energy
Efficiency,Environment,Information security and data privacy
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft for
Vote (CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.
This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of which t hey
are aware and to provide supporting documentation.
Recipients of this document are invited to submit, with their comments, notification of any relevant “In Some Countries”
clauses to be included should this proposal proceed. Recipients are reminded that the CDV stage is the final stage for
submitting ISC clauses. (SEE AC/22/2007 OR NEW GUIDANCE DOC).

TITLE:
Amendment 1 - Adjustable speed electrical power drive systems - Part 5-1: Safety requirements -
Electrical, thermal and energy

PROPOSED STABILITY DATE: 2031
NOTE FROM TC/SC OFFICERS:
electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions.
You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without
permission in writing from IEC.

IEC CDV 61800-5-1/AMD1 ED3 © IEC 2025

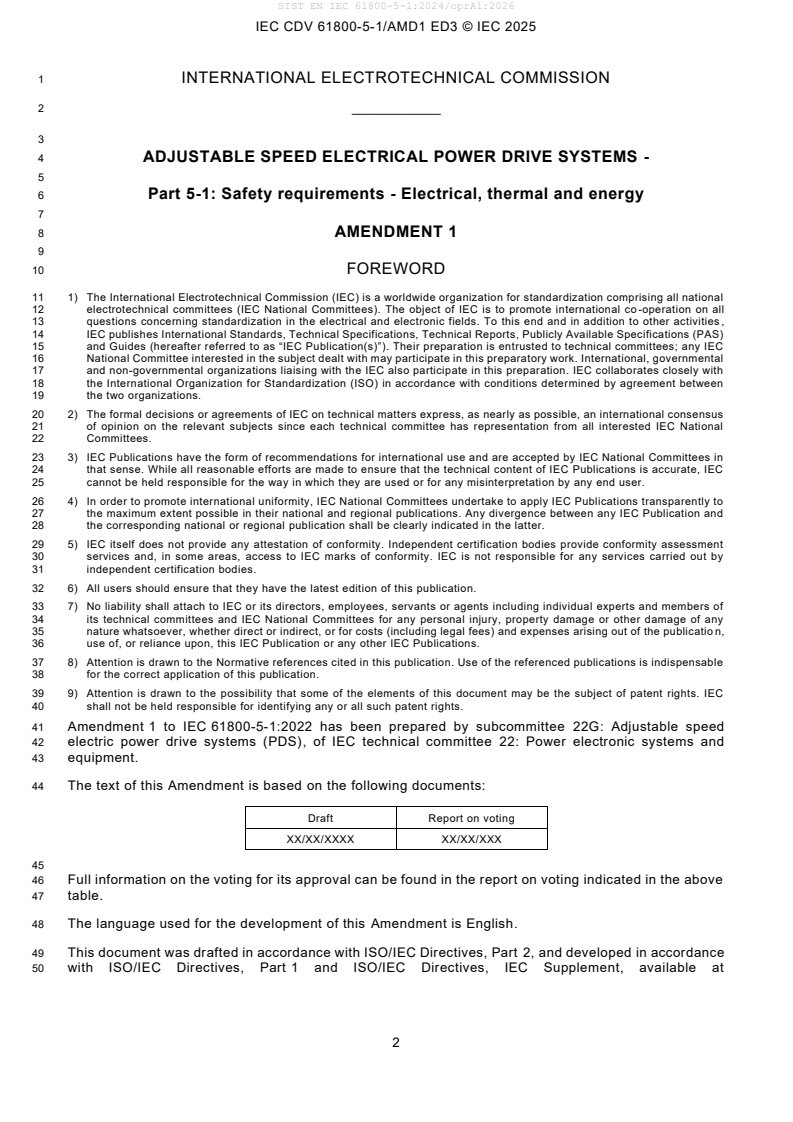

1 INTERNATIONAL ELECTROTECHNICAL COMMISSION
2 ____________
4 ADJUSTABLE SPEED ELECTRICAL POWER DRIVE SYSTEMS -
6 Part 5-1: Safety requirements - Electrical, thermal and energy
8 AMENDMENT 1
10 FOREWORD
11 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising all national
12 electrotechnical committees (IEC National Committees). The object of IEC is to promote international co -operation on all
13 questions concerning standardization in the electrical and electronic fields. To this end and in addition to other activities ,
14 IEC publishes International Standards, Technical Specifications, Technical Reports, Publicly Available Specifications (PAS)
15 and Guides (hereafter referred to as “IEC Publication(s)”). Their preparation is entrusted to technical committees; any IEC
16 National Committee interested in the subject dealt with may participate in this preparatory work. International, governmental
17 and non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely with
18 the International Organization for Standardization (ISO) in accordance with conditions determined by agreement between
19 the two organizations.
20 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international consensus
21 of opinion on the relevant subjects since each technical committee has representation from all interested IEC National
22 Committees.
23 3) IEC Publications have the form of recommendations for international use and are accepted by IEC National Committees in
24 that sense. While all reasonable efforts are made to ensure that the technical content of IEC Publications is accurate, IEC
25 cannot be held responsible for the way in which they are used or for any misinterpretation by any end user.
26 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications transparently to
27 the maximum extent possible in their national and regional publications. Any divergence between any IEC Publication and
28 the corresponding national or regional publication shall be clearly indicated in the latter.
29 5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity assessment
30 services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any services carried out by
31 independent certification bodies.
32 6) All users should ensure that they have the latest edition of this publication.
33 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and members of
34 its technical committees and IEC National Committees for any personal injury, property damage or other damage of any
35 nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses arising out of the publicatio n,
36 use of, or reliance upon, this IEC Publication or any other IEC Publications.
37 8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is indispensable
38 for the correct application of this publication.
39 9) Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. IEC
40 shall not be held responsible for identifying any or all such patent rights.
41 Amendment 1 to IEC 61800-5-1:2022 has been prepared by subcommittee 22G: Adjustable speed
42 electric power drive systems (PDS), of IEC technical committee 22: Power electronic systems and
43 equipment.
44 The text of this Amendment is based on the following documents:
Draft Report on voting
XX/XX/XXXX XX/XX/XXX
46 Full information on the voting for its approval can be found in the report on voting indicated in the above
47 table.
48 The language used for the development of this Amendment is English.
49 This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in accordance
50 with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available at
IEC CDV 61800-5-1/AMD1 ED3 © IEC 2025
51 www.iec.ch/members_experts/refdocs. The main document types developed by IEC are described in
52 greater detail at www.iec.ch/publications/.
53 The committee has decided that the contents of this document will remain unchanged until the stability
54 date indicated on the IEC website under webstore.iec.ch in the data related to the specific document.
55 At this date, the document will be
56 • reconfirmed,
57 • withdrawn,
58 • replaced by a revised edition, or
59 • amended.
60 _______________________________
62 List of changes intended for IEC 61800-5-1:2022, AMD 1
Design Tests Marking Other
Clause 4 Clause 5 Clause 6
1. Update of the 4.4.2.1 General 5.1.5.3 Operating 6.1.1 Overview Annex V
environmental parameters for (informative)
conditions 4.4.2.6.2 Limits of tests 6.2.1.4 g) Considerations for
the working voltage  environmental
for the DVC, Table 5.2.6 Supplementary conditions
2 Environmental information for
tests (type tests) each port V.1 General
4.9.1 General
5.2.6.1 General 6.2.1.5 Liquid V.2 Examples for
4.9.1.1 Conditions cooled environmental
during normal 5.2.6.2 Acceptance BDM/CDM/PDS operating
operating criteria conditions
conditions 6.3.3 Environment
5.2.6.3.1 V.3 Environmental
4.9.1.2 Conditions Preconditioning or 6.3.4 Handling and conditions during
during recovery procedure mounting transportation,
transportation, for climatic tests storage and
storage and 6.3.6.3.1 Operating handling
handling 5.2.6.3.2 Dry heat ambient
test (type test) temperature V.4
Interdependance of
5.2.6.3.3 Cold test air temperature
(type test) and relative or
absolute air
5.2.6.3.4 Damp humidity
heat test (steady
state) (type test) Bibliography

5.2.6.3.5 Damp 2 Normative
heat test (cyclic) references
(type test)
5.2.6.4 Vibration
test (type test)
5.2.6.5 Salt mist
test (type test)
5.2.6.6 Dust test
(type test)
IEC CDV 61800-5-1/AMD1 ED3 © IEC 2025
5.2.6.7 Sand test
(type test)
1. General: Neutrality principle - Text modified throughout the document
2. Topics relevant
(Manufacturer shall .)
for the O.J.
2. Cl. 5.2.6.X: Reference to Annex L (Inf.) changed to ref. to IEC 60990 Fig. 5
listing/harmonisation
3. Cl. 4.3.7: Reference to IEC 62477-2:2018 changed to IEC 62477-2:2027 with modified
as required by the
scope (Voltage range)
European HAS
4. Updated normative references to several IEC 60068-2-X:2025 versions.
consultant
5. Cl. 5.2.6.3.3: Sentence with special procedure deleted.
3. Minimum required 4.3.2.2 Rated 5.2.4.2 Supply 6.2.1.4
prospective S/C conditional short- voltage, current conditional short-
current circuit current (I ) and frequency circuit current (Icc)
cc
and minimum
on input power
required
ports
prospective short-
circuit current
Icp,mr
6.2.1.4 g)
Supplementary
information for
each port
4. Clarification of  A.5.2 Classification
DVC of the working
Determination for voltage
composite working
voltage A.5.5 Composite
AC and DC
working voltage
A.5.5.1 Typical
waveform for a
composite AC and
DC working voltage
A.5.5.2 DVC As
evaluation
A.5.5.3 DVC B,
DVC C and DVC D
evaluation
A.5.6 Examples
with a “PWM
waveform” of
working voltage
Annex L
(informative)
Measuring
instrument for
touch current
measurements and
working voltage
classification
L.1 Measuring test
circuit for touch
current
IEC CDV 61800-5-1/AMD1 ED3 © IEC 2025
L.2 Measuring test
circuit for DVC As
evaluation
L.3 Requirements
for measuring
instruments
5. Arc fault 4.3.7 Internal Arc 3.97 arc-flash
6.3.9.8 Internal
(New Annex) classification
Arc classification
Annex R,
Table R.1
Annex U
(normative) Arc-
flash and Internal
Arc Fault
U.1 Arc-flash and
Internal Arc Fault
U.2 Arc-flash Study
U.3 Internal Arc
fault test and
labelling
requirements
Bibliography
6. Cemented joints 4.4.7.9 Connection 5.2.5.6 Cemented
of parts of solid joints test (type
insulation test)
(cemented joints)
IEC CDV 61800-5-1/AMD1 ED3 © IEC 2025
68 2 Normative references
69 Delete the following content:
70 IEC 60721-3-3:1994, Classification of environmental conditions – Part 3-3: Classification of groups of
71 environmental parameters and their severities – Stationary use at weather protected locations
72 IEC 60721-3-3:1994/AMD1:1995
73 IEC 60721-3-3:1994/AMD2:1996
74 IEC 60721-3-4:2019, Classification of environmental conditions – Part 3: Classification of groups of
75 environmental parameters and their severities – Stationary use at non-weather protected locations
76 Replace following normative references to new versions:
77 IEC 60068-2-1:2025, Environmental testing – Part 2-1: Tests – Test A: Cold
78 IEC 60068-2-2:2025, Environmental testing – Part 2-2: Tests – Test B: Dry heat
79 IEC 60068-2-30:2025, Environmental testing – Part 2-30: Tests – Test Db: Damp heat, cyclic
80 (12 h + 12 h cycle)
81 IEC 60068-2-78:2025, Environmental testing – Part 2-78: Tests – Test Cab: Damp heat, steady state
82 3 Terms and definitions
83 Add the following new term and definition:
84 3.97
85 arc-flash
86 hazardous condition associated with the release of energy caused by an electric arc
87 Note 1 to entry: Arc-flash is related to installation and the incident energy from the installation, while arc fault relates to the
88 unintentional arc inside the BDM/CDM.
89 Note 2 to entry: See also IEC 62477-2:2018 clause AA.3.5 and AA.3.6.
90 [SOURCE: IEC 60050-651:2023, 651-27-01, modified – Note 1 to entry and note 2 to entry added.]
91 _______________________________
92 Cemented joints
93 4.4.7.9 Connection of parts of solid insulation (cemented joints)
94 Replace the content of clause 4.4.7.9 by the following new one:
95 The clearance and creepage distance paths in the presence of a cemented joint between two insulating
96 parts are determined as follows.
97 For cemented joint of Type 1 protection:
98 • the cemented joint is not considered to be similar to solid insulation with respect to clearance and
99 creepage distance measurements, however the pollution degree within the joint itself is pollution
100 degree 1. See clause D.1. Examples are given in Figures D.6 – D.9.
101 • the cemented joint shall comply with the test requirements of 5.2.5.6.
103 For cemented joint of Type 2 protection:
104 • the cemented joint is considered to be similar to solid insulation with respect to clearance and
105 creepage distance measurements. An example is given in Figure D.5.

This publication has been withdrawn.
IEC CDV 61800-5-1/AMD1 ED3 © IEC 2025
106 • the distance through the cemented joint (i.e. the thickness of the material relative to the shortest
107 distance between live parts) shall not be less than that specified in IEC 60664-3:2016, Table 1,
108 which is reproduced as Table O.1.
109 • the cemented joint shall comply with the test requirements of 5.2.5.6.
111 Note: The concept of Type 1 and Type 2 protection are similar to the concepts specified in IEC 60664-3:2016.
113 A cemented joint that is not evaluated as providing protection of Type 1 or Type 2 is neither considered
114 solid insulation nor to reduce pollution degree. The clearance and creepage distances of 4.4.7.4 and
115 4.4.7.5 apply for the pollution degree of the environment around the cemented joint.
117 5.2.5.6 Cemented joints test (type test)
118 Replace the text of c) by the following:
119 c) The complete mechanical assembly of a cemented joint investigated for
120 1. Type 1 protection shall comply with the requirements for the impulse withstand voltage test
121 according to 5.2.3.2, requirements for clearance.
122 2. Type 2 protection shall comply with the requirements according to 4.4.7.10.
123 _______________________________
124 Short circuit test
125 4.3.2.2 Rated conditional short-circuit current (I ) on input power ports
cc
126 Modify the headline with following new headline:
127 4.3.2.2 Rated conditional short-circuit current (I ) and minimum required prospective
cc
128 short-circuit current (I ) on input power ports
cp,mr
nd
129 Replace the 2 paragraph by the sentence:
130 The BDM/CDM/PDS shall be rated for a conditional short-circuit current (I ) rating and a minimum required
cc
131 prospective short-circuit current (I ) for compliance to 4.3.2.2. In addition, the information pertaining to the
cp,mr
132 short-circuit protective device shall be provided as specified in either a), b), or c):
nd
133 Remove first bullet point under a) in the 2 paragraph
134 • minimum required prospective short-circuit current (Icp,mr); and
135 Replace bullet point a) and b) by following new bulletpoints a), b) and c):
136 a) For current limiting protective devices, the protective device rated voltage, current, interrupt rating,
137 peak-let through current (I ) and let-through energy (I t) at I ;
p cc
138 NOTE 1:  Where a standard establishes the values as required by a) for a specific class of fuse, the class of fuse can be
139 specified in lieu of those values.
140 b) For non-current limiting protective devices, the protective device rated voltage, current, interrupt
141 rating, and other required information such as remote actuation of the protective device, maximum
142 required fault clearing time of the protective device, etc.
144 c) the protective device manufacturer and part number.
rd
146 Replace 3 paragraph with following new paragraphs:
IEC CDV 61800-5-1/AMD1 ED3 © IEC 2025
147 The minimum required prospective short-circuit current (I ) shall not exceed the conditional short-
cp,mr
148 circuit current (I ), and the conditional short-circuit current (I ) shall not be less than the prospective
cc cc
149 short-circuit current (I ).
cp
150 Where I is selected based on the BDM/CDM rated input current provided in Table 36 or specified by
cp
151 the high-voltage BDM/CDM I rating.
cc
152 NOTE 2  I ≥ I provided in Table 36 can be selected. I can be higher than the maximum value of I in Table 36 (42 kA).
cc cp cc cp
153 NOTE 3  I ≤ I . I can be lower than the minimum value of I in Table 36 (1 kA).
cp_mr cc cp,mr cp
154 For high-voltage BDM/CDM no table is provided in 5.2.4.2. The conditional short-circuit current (I )
cc
155 shall not be less than 5kA. Typical conditional short-circuit current (I ) values are 20 kA, 25 kA, 31.5 kA,
cc
156 40 kA, 50 kA, and 63 kA. See 5.2.4.2.
th
158 Delete last two sentences at the end of the 5 paragraph.
160 5.2.4.2 Supply voltage, current and frequency
161 Replace text in Table 36 row 1, col. 2:
“Prospective short-circuit current”
“Icp”
162 Add note to Table 36:
The prospective short-circuit currents (I ) are considered to represent the situation of low-voltage mains supplies and low-voltage non-
cp
mains supplies.
164 Replace the text below Table 36 by the following:
165 The output short circuit test 5.2.4.5 and breakdown of component test 5.2.4.10 shall be performed
166 using the selected values of the minimum required prospective short-circuit current (I ) and the
cp,mr
167 conditional short-circuit current (I ) in accordance with 4.3.2.2.
cc
168 For high-voltage BDM/CDM topologies (e.g. multi-level converters) where the BDM/CDM includes
169 converter transformer and converter sections in separate enclosures, the prospective short - circuit
170 currents shall not be less than 5 kA for the converter section. See IEC 61800-2:2021, Figure 3.
171 The power factor shall not exceed the level specified in Table 36 for the selected test current levels.
172 If the short circuit current level selected exceeds 42 kA, the power factor shall be in the range of 0,2 to
173 0,3 or lower.
174 NOTE 1 Available laboratory circuits above 42 kA might be limited to lower power factor values.
175 NOTE 2 Since the BDM/CDM/PDS are protected by up-stream short-circuit protective devices, it is important to understand
176 the prospective short-circuit current of Table 36 as the conditional short-circuit current (I ) of IEC 62477-1:2022, 4.3.2.2.
cc
177 If the analysis of 4.2 shows that a value of prospective short-circuit current (I ) different from the
cp
178 specified I and I will have the same ultimate result, then that prospective short-circuit current (I )
cc cp_mr cp
179 may be selected for the test.
180 NOTE 3  Based on the analysis of 4.2, a value of prospective short-circuit current (I ) for test can be lower than specified I
cp cc
181 or higher than specified I .
cp_mr
IEC CDV 61800-5-1/AMD1 ED3 © IEC 2025
182 The short-circuit protective device utilized during testing shall correspond to the specific option a), b),
183 or c) in accordance with 4.3.2.2 and shall be representative of the type and ratings specified therein.
184 The short-circuit protective device selected according to 4.3.2.2 a) and 4.3.2.2 b) shall be representative
185 of those ratings during the tests.
186 The short-circuit protective device selected according to 4.3.2.2 c), the same protective device shall be
187 used during the tests.
188 6.2.1.4 Supplementary information for each port
189 Change the 1st bullet of g) as follows:
190 – conditional short-circuit current (I ) and minimum required prospective short-circuit current I and
cc cp,mr
191 the information pertaining to the short-circuit protective device in accordance with 4.3.2.2.,
193 Add in g) “short-circuit current rating(s) in terms of” below the bullet list the following sentence:
194 If the BDM/CDM/PDS is rated with an I equal to I , both values shall be marked.
cc cp,mr
195 _______________________________
197 Environmental conditions
198 4.4.2.1 General
199 Replace in the numbered list a) the text by the following new text:
200 “environmental conditions in 4.9.1”
202 4.4.2.6.2 Limits of the working voltage for the DVC
c
203 Replace in Table 2 the text by the following new one:
204 “This rating is permitted only if contact is restricted to the tip of the finger. For information: values are derived from
205 IEC 60364-4-41:2005+AMD1:2017, 414.4.5.”
d
206 Replace in Table 2 the text by the following new one:
207 “This rating meets the requirements for dry locations according to IEC 61140:2016 ”
209 4.9.1 General
210 Replace the content of 4.9.1 by the following new clauses 4.9.1.1 and 4.9.1.2:
211 4.9.1.1 Environmental conditions during operation
212 BDM/CDM/PDS shall be suitable to operate safely in the intended physical environment.
213 Table 20 provides information about typical environmental operating conditions for the majority of
214 BDM/CDM/PDS covered by this document, in the specified physical environment.
215 See Annex V for considerations related to environmental operating conditions.
IEC CDV 61800-5-1/AMD1 ED3 © IEC 2025
216 Table 20 – Environmental operating conditions
Physical environment
Environmental condition Indoor conditioned Indoor unconditioned Outdoor unconditioned
Ambient temperature
Humidity
Condensation
see Table V.1
Pollution degree
Vibration
Altitude
Humidity skin condition
Mechanical shock
Mechanically active substances
see Table V.2
Chemically active substances
Biological
UV resistance
In this IEC 61800-5-1:2022, AMD1, Table 20 is required to ensure the consistency of numbering of the following
tables in this document.
Note The conditioned and unconditioned operating conditions reflect the control of the humidity and temperature
conditions under which the BDM/CDM/PDS is intended to be installed. See for example: IEC 60721-3-3:2019,
IEC 60721-3-4:2019 and IEC 60721-3-6:2025.
218 BDM/CDM/PDS can be affected by the environmental influences in two ways:
219 a) short-term extreme environmental conditions which may directly cause malfunction or damage of
220 the BDM/CDM/PDS; and
221 b) long-term environmental conditions which may degrade and finally cause malfunction or destruction
222 of the BDM/CDM/PDS.
223 Note a) and b) are taken from IEC 60721-3-3:2019.
224 The BDM/CDM/PDS shall be rated with the following environmental conditions c) to h) based on the operating
225 conditions and the intended use of the BDM/CDM/PDS:
226 c) ambient temperature or surrounding air temperature (min./max.);
227 d) humidity (min./max.);
228 e) condensation;
229 f) pollution degree;
230 g) vibration;
231 h) altitude consideration for:
232 1) thermal requirements, if rated for operation above 1 000 m;
233 2) insulation coordination, if rated for operation above 2 000 m.
234 The manual shall specify the requirement for heating to prevent condensation, when required in 4.9.1.1.
235 The specified environmental conditions can include further aspects than those listed in c) to h). See
236 table V.2 for examples.
237 For marking, see 6.3.3 and 6.3.6.3.
238 NOTE The specification of the environmental conditions, including special conditions and any special safety considerations,
239 can be defined by the manufacturer or as an agreement between manufacturer and user.
IEC CDV 61800-5-1/AMD1 ED3 © IEC 2025
240 For PDS, the environmental operating conditions shall be specified separately for each of the main
241 components (motor, transformers, etc.) also considering the relevant product standard (e.g. IEC 60034
242 series for motors). For integrated PDS, the most severe conditions from all individual components shall
243 be taken into consideration.
244 Compliance is checked by the tests of 5.2.6 as applicable, for the environmental conditions specified
245 for the BDM/CDM/PDS.
246 If the BDM/CDM/PDS is rated for additional environmental conditions, appropriate tests from IEC 60068
247 series or equivalent standards shall be carried out to demonstrate compliance.
248 For use in outdoor unconditioned environment, where internal condensation cannot be excluded, one
249 or more of the following i), j) or k) is required:
250 i) means shall be provided in the BDM/CDM/PDS to prevent energizing or operation during
251 condensation;
252 j) the damp heat test (cyclic) shall be performed, see 5.2.6.3.5;
253 k) marking is required to specify heating, see 6.3.3 d).
255 4.9.1.2 Environmental conditions during transportation, storage and handling
256 The BDM/CDM shall be rated with the following conditions for transportation, storage and handling, as
257 applicable:
258 a) ambient temperature (min./max.);
259 b) humidity (min./max.);
260 c) vibration.
261 NOTE 1 Environmental conditions for transportation and handling may be combined.
262 Compliance is checked by the tests of 5.2.6.
263 Suitable means shall be provided to prevent damage from temperature, humidity, vibration and
264 mechanical shock, as applicable (e.g. by packaging).
265 For marking, see 6.3.3 and 6.3.6.3.
266 NOTE 2 The specification of the environmental conditions for transportation, storage and handling, including special conditions
267 and any special safety considerations, can be defined by the manufacturer or as an agreement between manufacturer and user.
268 See Annex V.3.
270 5.1.5.3 Operating parameters for tests
271 Replace Table 24 by the following new one:
272 Table 24 – Environmental conditions for tests
Temperature Relative humidity Air pressure
°C % kPa
25 to 75
15 to 35 86 to 106
without condensation
Source: IEC 60068-1:2013, Table 2.
NOTE If the above conditions are not achievable, tests can be performed within the
rated range of the climatic conditions of the BDM/CDM/PDS.
274 5.2.6.1 General
IEC CDV 61800-5-1/AMD1 ED3 © IEC 2025
275 Replace the content of 5.2.6.1 by the following new content:
276 Environmental testing is required to establish the safety of the BDM/CDM/PDS under the environmental
277 conditions to which the BDM/CDM/PDS will be subjected according to 4.9.
278 NOTE 1 In the USA and Canada, environmental tests are not required.
279 If size or power considerations prevent testing on the complete BDM/CDM/PDS, it is permitted to test
280 sub-assemblies that are representative and relevant to the safety of the BDM/CDM/PDS.
281 NOTE 2 For a BDM/CDM/PDS whose mass exceed 100 kg, or whose design is based on sub-assemblies, these tests can be
282 conducted on sub-assemblies.
283 Table 38 shows the tests to be performed for the different specified environmental conditions.
284 Compliance of the environmental conditions is demonstrated by conducting tests according to Table 38,
285 as applicable. The appropriate test severity shall be selected to ensure safe operation for the intended
286 use of the BDM/CDM/PDS.
287 Where applicable, procedures specified for the BDM/CDM/PDS shall be followed during testing (e.g. for
288 liquid cooled system).
289 To demonstrate compliance with the specified environmental conditions during operation the product
290 shall be tested while unpacked.
291 NOTE 3 Packaging means to mitigate the impact of extreme environmental conditions during transportation and storage can
292 be considered for testing.
IEC CDV 61800-5-1/AMD1 ED3 © IEC 2025
296 Table 38 – Environmental tests
Environmental group of tests Test description Applicability
Climatic Preconditioning or recovery
procedure for climatic tests
(see 5.2.6.3.1)
Dry heat test (see 5.2.6.3.2)
Test Bd or Be of IEC 60068-2-2:2025
Cold test (see 5.2.6.3.3) Applicable if minimum ambient
operating temperature is below
Test Ab followed by
0 C
Test Ad of IEC 60068-2-1:2025
Damp heat (steady state) (see
5.2.6.3.4)
Test Cab of IEC 60068-2-78:2025
Damp heat (cyclic) (see 5.2.6.3.5) Applicable for outdoor equipment
where condensation is expected
Test Db of IEC 60068-2-30:2025
Vibration Vibration (see 5.2.6.4) Applicable if the BDM/CDM/PDS
is rated for vibration
Test Fc of IEC 60068-2-6:2025
(sinusoidal)
or
Test Fh of IEC 60068-2-64:2008 +
IEC 60068-2-64:2008/AMD1:2019
(random)
Chemically active substances Salt mist (see 5.2.6.5) Applicable if the BDM/CDM/PDS
is rated for salt mist.
Test Kb of IEC 60068-2-52:2017
Mechanically active substances Blown dust (see 5.2.6.6) Applicable if the BDM/CDM/PDS
is rated for blown dust.
Test Lc1 of IEC 60068-2-68:1994
Blown sand (see 5.2.6.7) Applicable if the BDM/CDM/PDS
is rated for blown sand
Test Lc1 of IEC 60068-2-68:1994
Ultra-violet (UV) resistance See 5.2.5.7 Applicable if required in 4.12.9
for polymeric outdoor enclosure
or the BDM/CDM/PDS is rated
for Ultra-violet resistance.
297 5.2.6.2 Acceptance criteria
298 Replace complete clause
299 The following acceptance criteria shall be satisfied:
300 a) no degradation of any safety relevant component or its characteristics;
301 b) no potentially hazardous behaviour of the BDM/CDM/PDS during the test;
302 c) no hazardous live part shall become accessible;
303 d) pass AC or DC voltage test for routine testing according to 5.2.3.4 after environmental testing;
304 e) pass protective equipotential bonding continuity test according to 5.2.3.11.2;
305 f) no potentially hazardous behaviour when the BDM/CDM/PDS is operated following the test.
307 NOTE Examples of degradation includes signs of overheating, cracks, and damaged or loose components and/or enclosures.
IEC CDV 61800-5-1/AMD1 ED3 © IEC 2025
312 5.2.6.3.1 Preconditioning or recovery procedure for climatic tests (type test)
313 Replace Table 39 by the following new one:
314 Table 39 – Preconditioning or recovery procedure for climatic tests
Subject Conditions
– Time 1 h minimum
– Climatic conditions See Table 24
– Power supply Power supply disconnected
– Recovery procedure only All external and internal condensation shall be removed by air flow prior
to performing the AC or DC voltage test or re-connecting the
BDM/CDM/PDS to a power supply.
316 Add after Table 39 the following sentence:
317 Initial selection and visual inspection before environmental tests shall be performed according to 5.1.2
318 and 5.2.1.
320 5.2.6.3.2 Dry heat test (type test)
321 Replace the complete content by the following:
322 To prove the ability of components and the BDM/CDM/PDS to be operated at high temperatures, the
323 dry heat test shall be performed according to the conditions specified in Table 40.
324 The test is considered to also cover higher temperatures for transportation, storage or handling.
325 When testing components or sub-assemblies separately, the temperature during the dry heat test shall
326 be chosen as to simulate actual use in the end-product. This temperature can be achieved by energizing
327 the component or sub-assembly simulating the same conditions as in the end-product, or by heating the
328 component or sub-assembly to its worst-case temperature.
329 Table 40 – Dry heat test (type test)
Subject Test conditions
Preconditioning procedure According to Table 39
Test reference IEC 60068-2-2:2025, Test Bd or Be
Requirement reference 4.9
Operating conditions Operating at rated conditions
– Temperature Temperature according to the BDM/CDM/PDS rating for high temperature.
– Accuracy See IEC 60068-2-2:2025 cl. 7.1
– Duration of exposure ≥ 16 h
Recovery procedure According to Table 39
Acceptance criteria 5.2.6.2 a), b), c), d), e), f)
331 5.2.6.3.3 Cold test (type test)
332 Replace the complete content by the following:
333 To prove the ability of components and BDM/CDM/PDS to be operated, transported, stored or handled
334 at low temperatures, the cold test shall be performed according to the conditions specified in Table 41,
335 (see Figure 27a as example).
IEC CDV 61800-5-1/AMD1 ED3 © IEC 2025
336 Table 41 – Cold test (type test)
Subject Test conditions
Preconditioning procedure No preconditioning required
Requirement reference 4.9
Test reference Test Ab followed by Test Ad
of IEC 60068-2-1:2025
Test Ab Operating conditions Power supply disconnected
Temperature Minimum temperature of storage, transportation or
handling
Duration 2 h after thermal stabilization
Preparation of BDM/CDM/PDS for test Ad for test under operating conditions
Test Ad Operating conditions After thermal stabilization at the minimum operating
temperature, start operation at light load and wait again
for thermal stabilization
Temperature Minimum operating temperature
Duration 2 h after thermal stabilization
Accuracy See IEC 60068-2-1:2025 cl. 7.1
Humidity Not controlled
Recovery procedure According to Table 39
Acceptance criteria 5.2.6.2 a), b), c), d), e), f)
NOTE 1 For thermal stabilization see 5.2.3.10.
NOTE 2 Test Ab and test Ad may be conducted with identical air velocity.
339 T minimum temperature of storage, transportation or handling
Ab
340 T minimum operating temperature
Ad
341 t minimum temperature period
Ab
342 t minimum operating temperature period

Ad
343 T start temperature (e.g., laboratory temperature conditions)
st
344 t recovery period
rec
345 Figure 28 – Example of Cold test cycle
IEC CDV 61800-5-1/AMD1 ED3 © IEC 2025
347 5.2.6.3.4 Damp heat test (steady state) (type test)
348 Replace the complete content by the following:
349 To prove the resistance to humidity, the BDM/CDM/PDS shall be subjected to a damp heat test (steady
350 state) according to the conditions specified in Table 42.
351 The humidity severity for components tested separately shall be 93 % RH.
352 Table 42 – Damp heat test (steady state) (type test)
Subject Test conditions
Preconditioning procedure According to Table 39
Test reference IEC 60068-2-78:2025, test Cab
Requirement reference 4.9
Operating conditions Power supply disconnected
Temperature and According to the following temperature at humidity closest to the rating of the
relative humidity BDM/CDM/PDS
Temperature Relative humidity
°C %
30 or 40 85 or 93
Accuracy See IEC 60068-2-78:2025, Table 1
Temperature ±2 °C
Relative humidity ±3 % (RH)
Duration of exposure ≥ 96 h
Recovery procedure According to Table 39
Acceptance criteria 5.2.6.2 a), c), d), e), f)
354 5.2.6.3.5 Damp heat test (cyclic) (type test)
355 To prove the resistance of components and the BDM/CDM/PDS to condensation, a damp heat test
356 (cyclic) according to the conditions specified in Table 43 shall be performed if condensation is expected.
357 Replace Table 43 by the following new table:
358 Table 43 – Damp heat test (cyclic) (type test)
Subject Test conditions
Preconditioning procedure According to Table 39
Test reference IEC 60068-2-30:2025, test Db, variant 2
Requirement reference 4.9
Operating conditions Power supply disconnected
Upper temperature 40 °C
Number of cycles 2 (48 h)
Recovery procedure According to Table 39
Acceptance criteria 5.2.6.2 a), c), d), e), f)
360 5.2.6.4 Vibration test (type test)
361 Replace the complete content by the following:
IEC CDV 61800-5-1/AMD1 ED3 © IEC 2025
362 To verify the ability to withstand mechanical vibrations, the BDM/CDM/PDS shall be evaluated by:
363 a) tests according to the conditions specified in Table 44, or
364 b) calculation or simulation based on tests on a representative model of the BDM/CDM/PDS.
366 Table 44 – Vibration test (sinusoidal/random) (type test)
Subject Test conditions
Sinusoidal Random
Test Fh of IEC 60068-2-64:2008 +
Test reference Test Fc of IEC 60068-2-6:2007
IEC 60068-2-64:2008/AMD1:2019
Requirement reference 4.9
Conditions Power supply disconnected
Vibration According to the rating of the BDM/CDM/PDS (see Table V.1 as example)
Detail of mounting According to the mounting instructions specified
Number of test samples 1 sample for all axes
Acceptance criteria 5.2.6.2 a), b), c), d), e), f)
368 The BDM/CDM/PDS shall demonstrate compliance with the sinusoidal or random test conditions depending on
369 the intended use.
370 NOTE See IEC 60721-3-3, AMD1 (104/1091/CDV) to choose the type of vibration test.
372 5.2.6.5 Salt mist test (type test)
373 Replace the complete content by the following:
374 To verify the resistance against salt mist, the BDM/CDM/PDS shall be evaluated by tests according to
375 the conditions specified in Table 45.
376 Table 45 – Salt mist test (type test)
Subject Test conditions
Test reference Test Kb of IEC 60068-2-52:2017
Requirement reference According to the rating of the BDM/CDM/PDS
Conditions Power supply disconnected
Level Test method 2
Acceptance criteria 5.2.6.2 a), c)
Note Where the BDM/CDM/PDS is rated for salt mist levels that are higher than those specified above, the higher
levels shall be used for the test. The acceptance criteria shall not be changed.
378 5.2.6.6 Dust test (type test)
379 Replace the complete content by the following:
380 To verify the ability to operate under the influence of dust, the BDM/CDM/PDS shall be evaluated by
381 tests under the conditions specified in Table 46.
IEC CDV 61800-5-1/AMD1 ED3 © IEC 2025
382 Table 46 – Blown dust test (type test)
Subject Test conditions
Test reference Test Lc1 of IEC 60068-2-68:1994
Requirement reference According to the rating of the BDM/CDM/PDS
Conditions Power supply disconnected
Particle size Variant 2 (coarse dust)
Dust concentration 3
2 g/m
Air velocity 5 m/s
Air pressure in the specimen Air pressure in the specimen is that of the ambient air pressure (Category 2)
Test duration 4 h
Acceptance criteria a
5.2.6.2 a) considering clearance and creepage distances according to 5.2.2.1 ,
5.2.6.2 f)
a
5.2.6.2 a) applies, unless the BDM/CDM/PDS is rated for non-conductive dust only.
NOTE This test covers special harsh environment, and it does not replace IP testing (5.2.2.3).
385 5.2.6.7 Sand test (type test)
386 Replace the complete content by the following:
387 To verify the ability to operate under the influence of sand, the BDM/CDM/PDS shall be evaluated by
388 tests under the conditions specified in Table 47.
389 Table 47 – Blown sand test (type test)
Subject Test conditions
Test reference Test Lc1 of IEC 60068-2-68:1994
Requirement reference According to the rating of the BDM/CDM/PDS
Conditions Power supply disconnected
Particle size Variant 3 (sand)
Sand concentration 3
2 g/m
Air velocity 20 m/s
Air pressure in the specimen Air pressure in the specimen is that of the ambient air pressure (Category 2)
Test duration 8 h
Acceptance criteria 5.2.6.2 f)
NOTE Only non-conductive sand is considered.
391 6.1.1 Overview
392 Add in Table 48 below the row “Open type BDM/CDM” a new row:
Enclosed BDM/CDM/PDS 6.3.6.3 X  X
4.9.1.1
394 6.2.1.4 Supplementary information for each port
395 Delete in the numbered list c) the following text:
IEC CDV 61800-5-1/AMD1 ED3 © IEC 2025
396 “according to Table 20”
398 6.2.1.5 Liquid cooled BDM/CDM/PDS
399 Add below the numbered list the following new text:
400 In case of liquid cooled BDM/CDM/PDS, where relevant, instructions shall be provided regarding filling
401 and draining before transportation and storage of the BDM/CDM/PDS.
403 6.3.3 Environment
404 Replace the complete content by the following:
405 As required in 4.1, the manual shall specify the following environmental conditions for operation,
406 transportation, storage and handling in accordance with 4.9:
407 a) ambient temperature or surrounding air temperature (min./max.);
408 b) humidity (min./max.);
409 c) condensation;
410 d) pollution degree;
411 e) vibration;
412 f) altitude consideration for:
413 1) thermal requirements, if rated for operation above 1000 m;
414 2) insulation coordination, if rated for operation above 2000 m.
416 Additional environmental conditions according to 4.9.1.1 shall be specified in the manual.
418 When required by 4.9.1.1 and 4.9.1.2, the manual shall provide information on the means necessary to prevent
419 damage resulting from temperature, humidity, vibration, mechanical shock etc.
420 NOTE Example of means: heating to prevent condensation, dampers for vibration, etc.
422 6.3.4 Handling and mounting
423 Replace the alphabetic list by the following new one:
424 a) packing and unpacking,
425 b) moving,
426 c) lifting,
427 d) strength and rigidity of mounting surface,
428 e) fastening,
429 f) provision of adequate access for operation, adjustment and maintenance, and
430 g) draining and filling of liquid in case of removable liquid cooling.
432 6.3.6.3.1 Operating ambient temperature
433 Replace the text by the following new one:
434 For enclosed BDM/CDM/PDS
435 • the operating ambient temperature (min/max) shall be marked in the manual and
IEC CDV 61800-5-1/AMD1 ED3 © IEC 2025
436 • if the maximum ambient temperature rating is less than 40 °C, the maximum ambient
437 temperature shall also be marked on the BDM/CDM/PDS.
438 Remove the note with national deviation below the text.
440 A.5.2 Classification of the working voltage
441 Replace in the second bullet “pulsating” by “composite AC and DC”
443 A.5.5 Pulsating working voltage
444 Replace the complete subclause “A.5.5 Pulsating working voltage” by the following new A.5.5:
445 A.5.5 Composite AC and DC working
...
